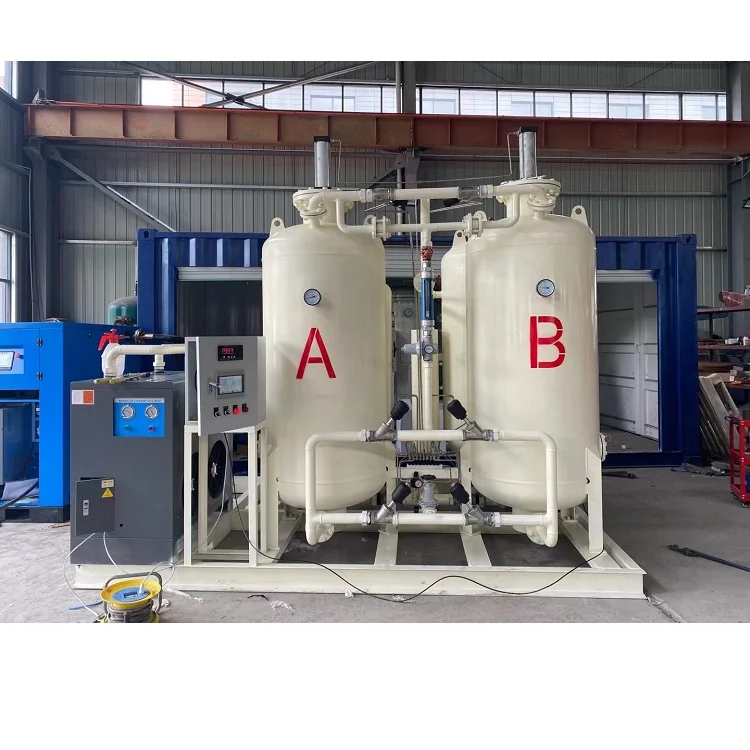

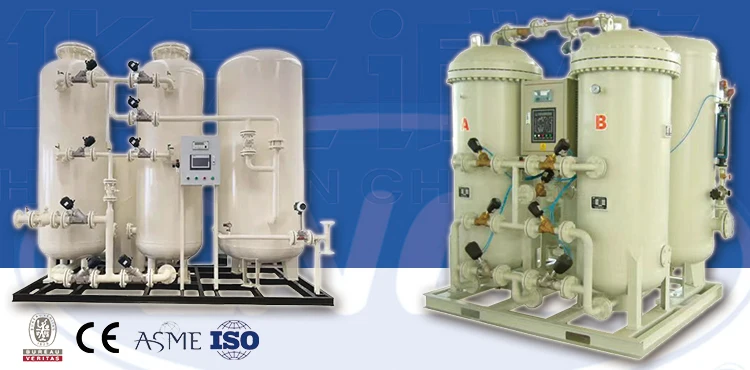

Good Price Industrial Automatic High Purity Psa Nitrogen Generator Machine For Laser Cutting

Product Overview

Description

Good Price Industrial Automatic High Purity Psa Nitrogen Generator Machine For Laser Cutting

Product introduction

Working principle

    Pressure swing adsorption (PSA) nitrogen generator is a gas separation equipment that takes carbon molecular sieve as adsorbent,and directly produces product nitrogen from compressed air based on the principle of pressure adsorption and depressurization desorption by taking advantage of the difference in the adsorption amount of oxygen and nitrogen molecules in the molecular sieve in the compressed air.



Product features

♦Fast and stable on-site product nitrogen production, and qualified nitrogen can be produced in 10-20 minutes at the shortest.

♦More efficient and stable molecular sieves and special PSA energy-saving technology are selected, with lower energy consumption.

♦The standard configuration of molecular sieve water pollution protection alarm device and multiple molecular sieve protection technology ensure that the nitrogen generator can operate longer and more stably.

♦The air tank, nitrogen tank and nitrogen generator are prefabricated on the same skid, and the installation is simple and fast.

Product parameters

Capacity	Purity(%)	Size(mm)	Weight(Kg)	Inlet size(DN)	Outlet size(DN)	Buffer tank volume(m³)
5	99	1000*1000*1640	380	DN 15	DN 15	/
20		1450*1300*1450	700	DN 20	DN 15	0.3
50		1600*1400*2100	1100	DN 25	DN 20	0.5
100		1600*900*2230	1050	DN 40	DN 50	1.5
150		1800*1150*2200	1400	DN 40	DN 25	1.5
200		2000*1150*2300	1700	DN 40	DN 25	2
300		2200*1250*2620	2500	50	40	3
400		2200*1300*2900	3350	65	40	4

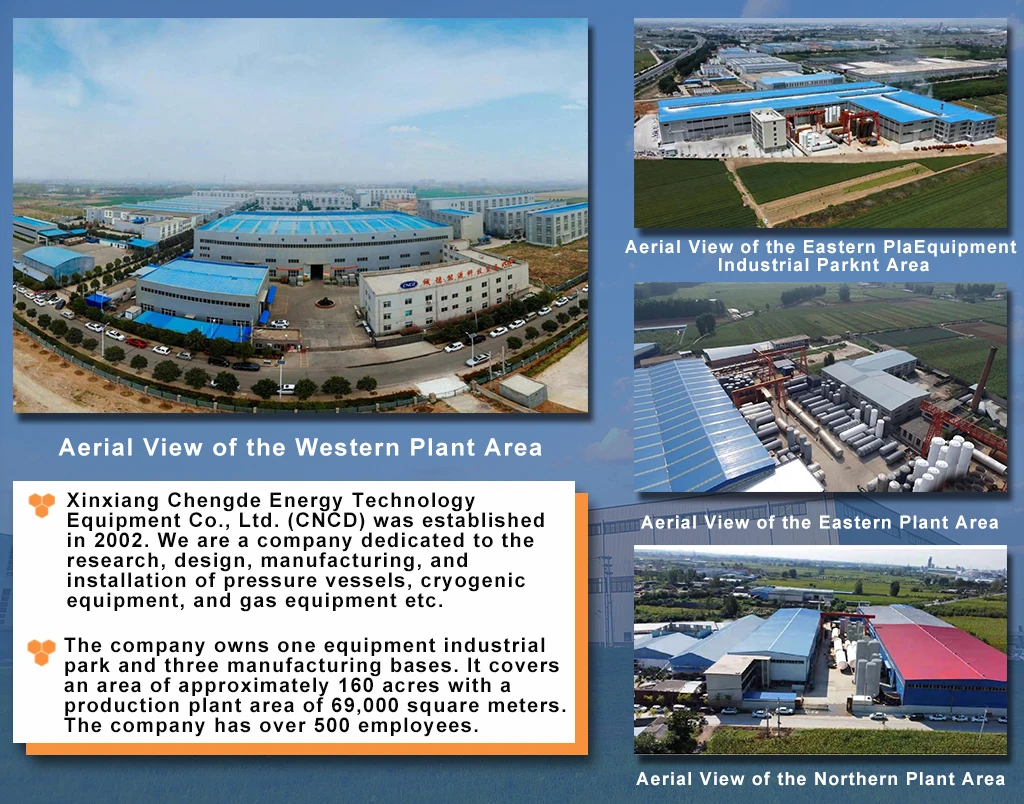

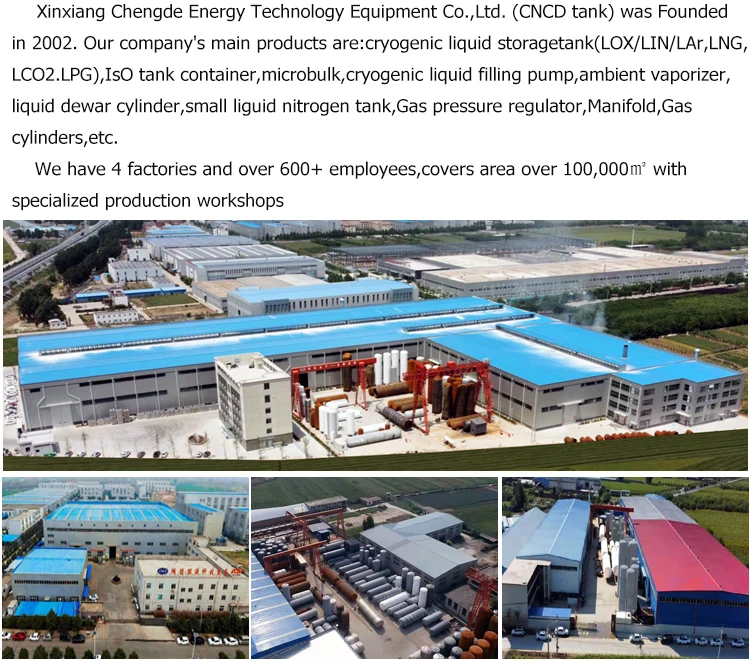

Company Profile

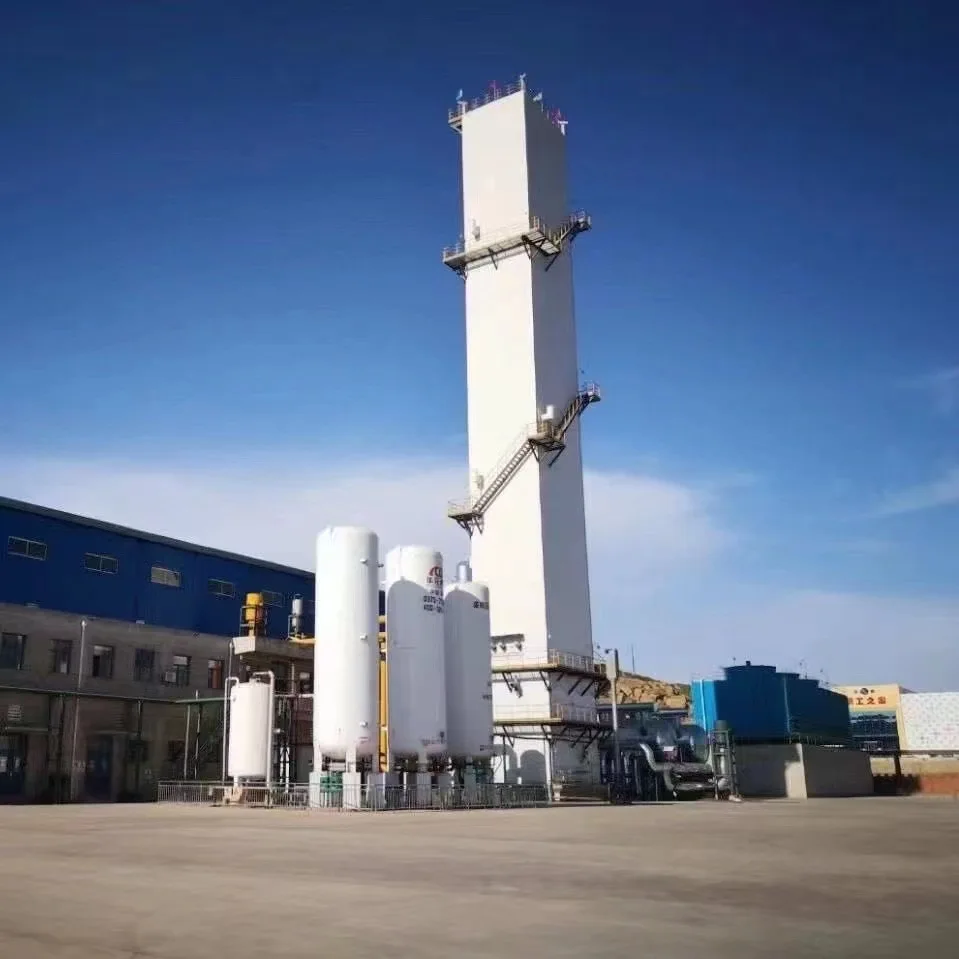

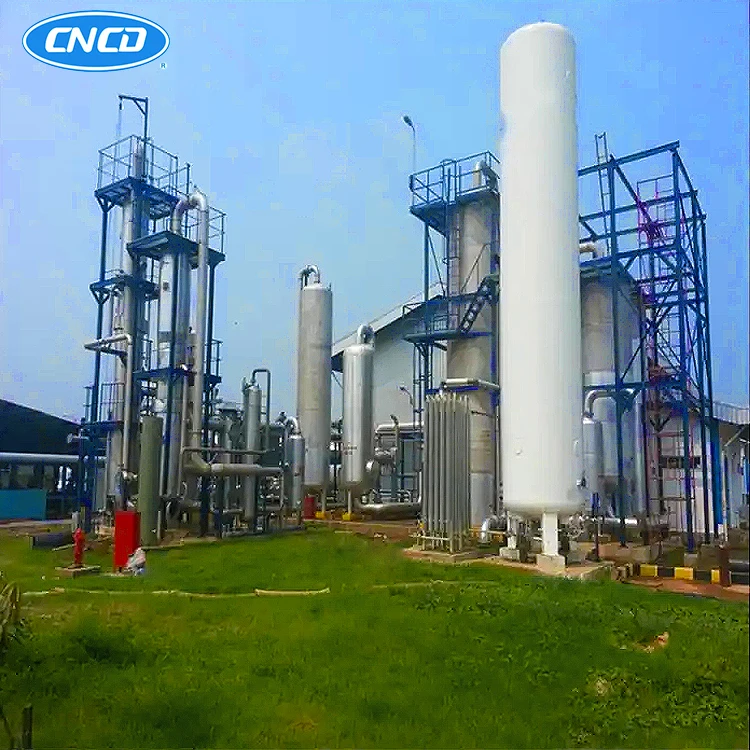

Our Customers

Customer Feedback

Certificate

Related Products

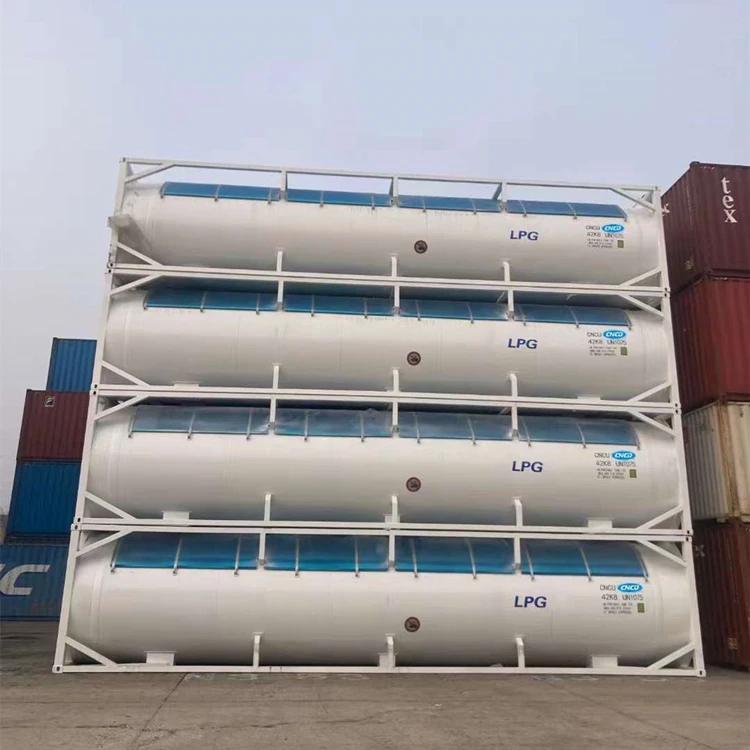

Air Separation Plant	CO2 Recovery plant	Iso tank container

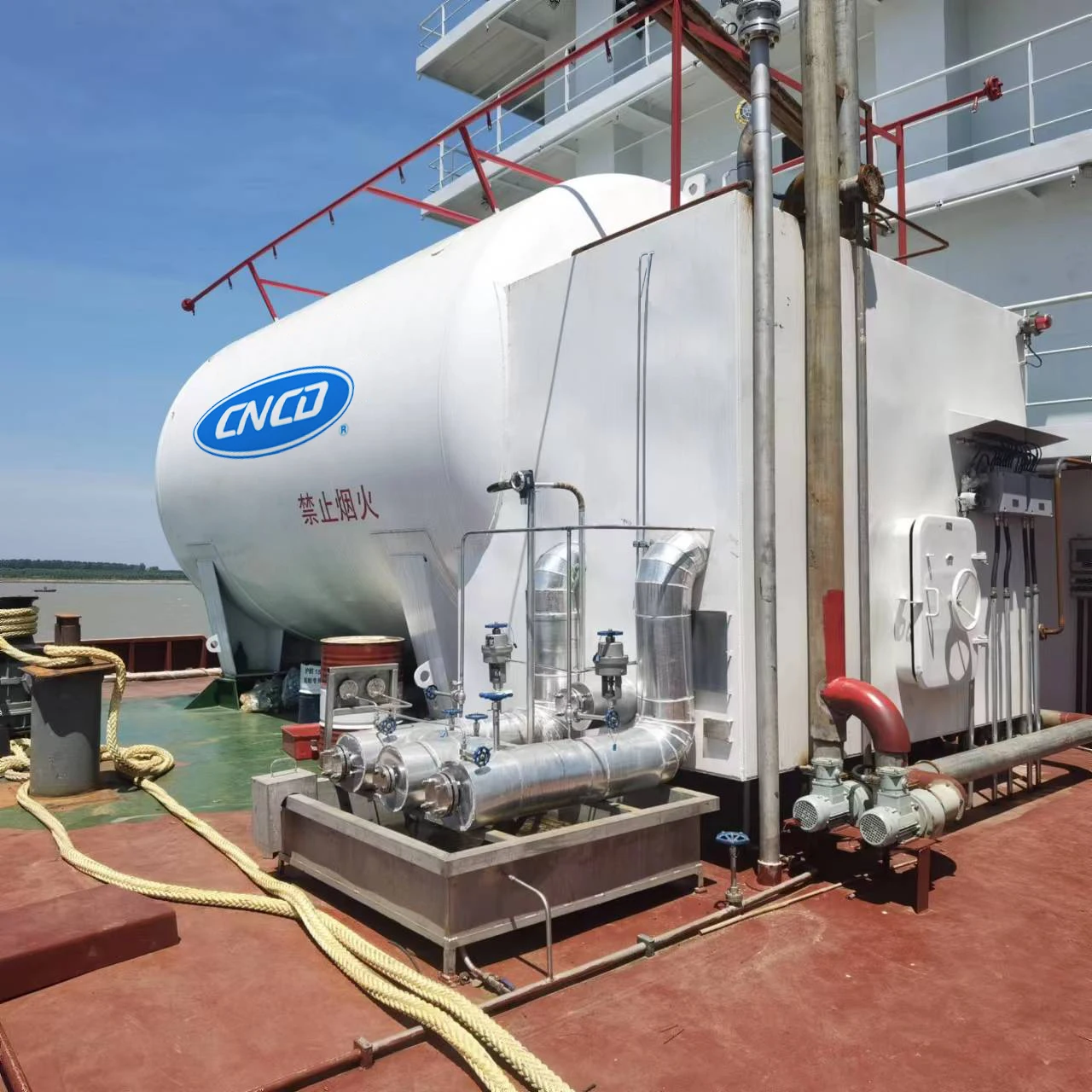

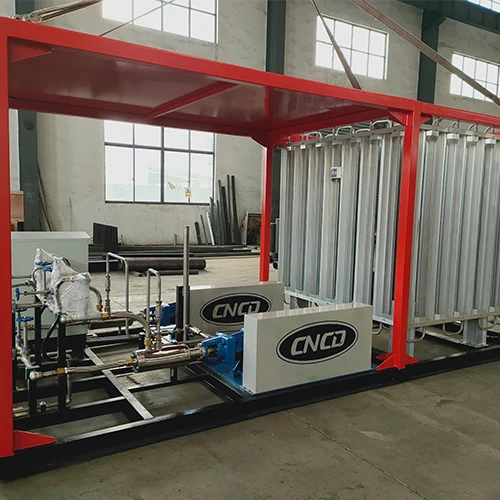

lng marine fuel tank	PSA oxygen generator	Skid-Mounted
