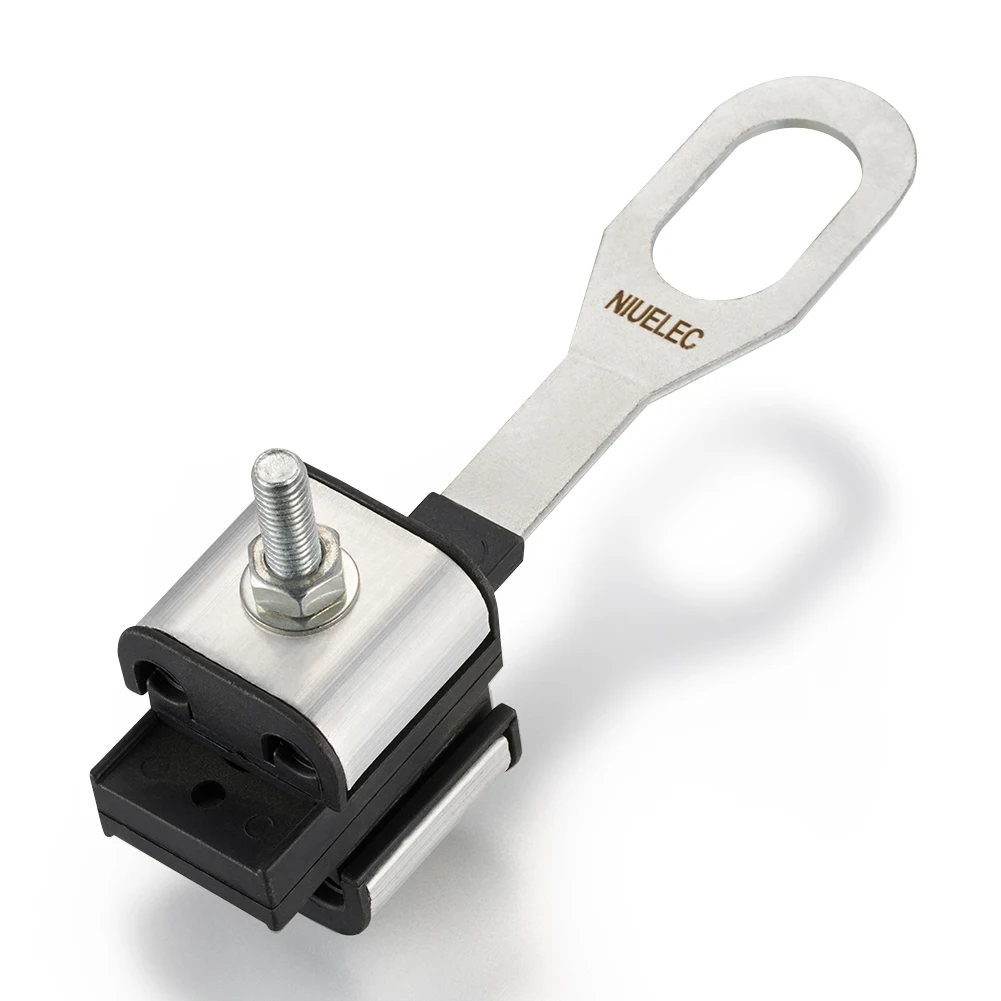

Anchoring Wedge Clamp for Low Voltage Cable Metal Branch tension clamp PAG416 35
- Category: >>>
- Supplier: N.i.u Electric Co. Ltd.
Share on (1601215880717):
Product Overview
Description
Product Description
Application:
The PA Metal Branch tension clamp is applicable to service line system. This clamp is designed to anchoring and suspending insulated service line with 2 or 4 conductors onto poles or walls.
The clamp complete the transformation between anchoring clamps and supporting clamps by adjusting bolt.
The surface is special which can guarantee fastness, skid resistance and insulation
The body materials are UV-resistant.
| Item No. | Cross section(mm2) | Conductor(mm) | Breaking load(KN) |
| PAG216-35 | 2X(16-35) | 4-9 | 4 |
| PAG416-35 | 4X(16-35) | 4-9 | 6 |
| PAS216-435 | 4X(16-35) | 4-11 | 8 |
| PAT435-50 | 4X(25-50) | 11-14 | 20 |
| PAT470-95 | 4X(70-95) | 14-16 | 20 |
| PAT16-95H | 4X(16-95) | 4-10 | 20 |
| PAT50-120H | 4X(50-120) | 10-18 | 25 |
| PAT16-95S | 4X(16-95) | 4-10 | 20 |
| PAT50-120S | 4X(50-120) | 10-18 | 25 |
| RPA425-50 | 4X(25-50) | 7-11 | 15 |
| RPA450-120 | |||
| RPA470-120 | 4X(50-120) | 11-17 | 25 |
Shipping:
Port of Departure: Ningbo or Shanghai
Delivery Time: 15 days after receiving the payment
