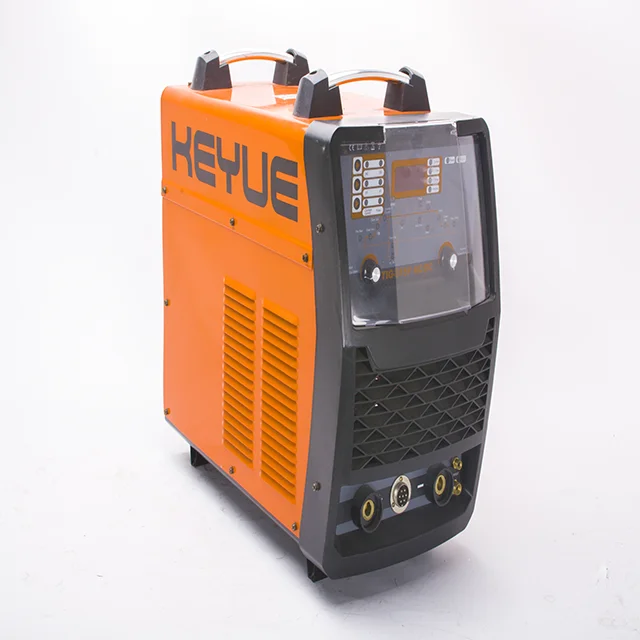

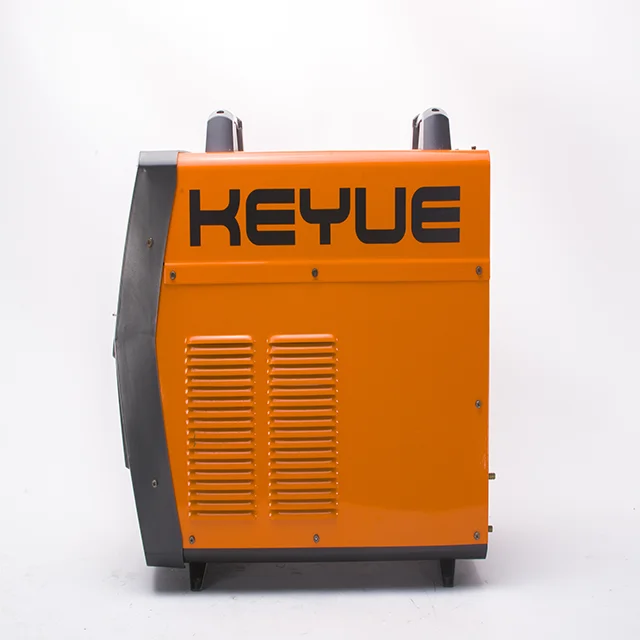

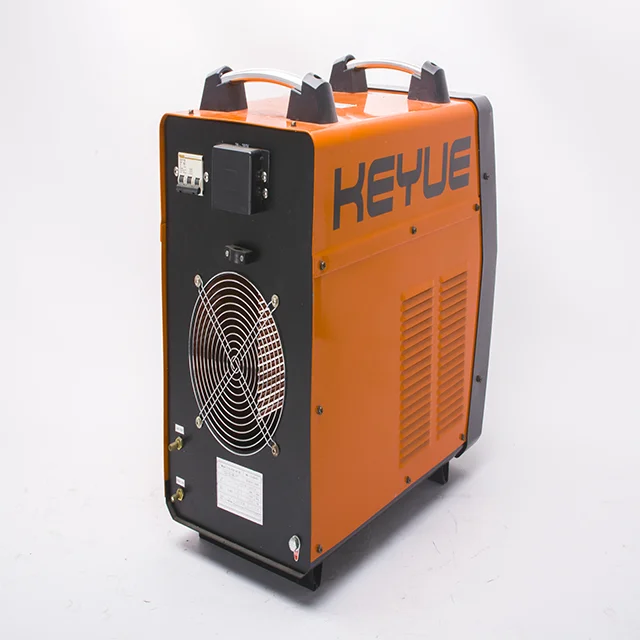

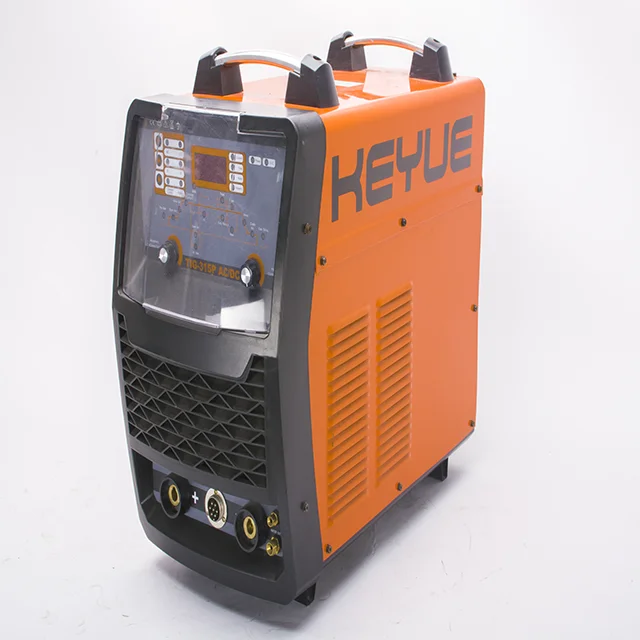

KEYUE TIG 200P Welding Machine Inverter Digital Igbt Ac Dc Tig Welder Digital Pulse Cold TIG
- Category: >>>
- Supplier: Keyue Welding Equipment Co. Ltd.
Share on (1601215940256):
Product Overview
Description
Product description
Product feature
- Support: TIG , MMA, Pulse TIG and TIG-AC/DC
- HF TIG arc starting
- Function: 2T/4T, gas pre-flow, gas delay, slow-up, slow down and anti-stick
- Protection: over-heat and over current.
- Material: Aluminum, Stainless steel, Carbon steel and so on
| Model | TIG-315PACDC |
| Input voltage(V) | 3PH AC380V±15% |
| Input power(KVA) | 13.2 @MMA; 9.2 @TIG |
| Input current (A) | 20A@MMA; 14A@TIG |
| Rated output | 5-315A |
| Output current(A) | TIG:5-315 MMA:20-315 |
| No-load voltage (V) | 70±5 |
| Duty Cycle% (40℃ 10min) | 315A 60% |
| 244A 100% | |
| Efficiency (%) | 80 |
| Protection grade | IP21 |
| Insulation grade | F |
| Net weight (KG) | 43.7 |
| Gross weight (KG) | 51.3 |
| Dimension of machine (mm) | 690*335*550 |
| Dimension of package (mm) | 740*400*630 |
Performance
Material | Sheet thickness (mm) | Tungsten diameter (mm) | Current range(A) | Model |
Carbon steel, stainless steel, low alloy steel | 0.3-6 | 1.6-2.4 | 20-175 | TIG-160 |
0.3-10 | 0.8/1.0 | 20-190 | TIG-200 | |
0.3-12 | 1.0/1.2 | 20-220 | TIG-250 | |
| 0.3-12 | 2.5-3.2 | 5-400 | TIG-400P | |
Copper | 0.3-14 | 2.5/3.2/4.0 | 5-500 | TIG-500P |
0.5-5.0 | 2.5-3.2 | 5-400 | TIG-400P | |
0.5-60 | 2.5/3.2/4.0 | 5-500 | TIG-500P | |
Carbon steel Stainless steel Low alloy steel Aluminum | 1.5-5 | 2.5/3.2 | 5-315 | TIG-315PAC/DC |
1.5-10 | 2.5/3.2/4.0 | 20-500 | TIG-500PAC/DC |
