220W/M2 Far Infrared Radiant Electric Floor Carbon Heating Mat 110V/220V/230V Graphene Material for Hotel Use
- Category: >>>
- Supplier: Nuanjia Graphene Carbon New Energy (qingdao) Co. Ltd.Nuanjia Ltd.
Share on (1601215940465):
Product Overview
Description
Product Description
Product Description
Low temperature radiation electrothermal film is a kind of polyester film that can generate heat after being electrified. It is made of electrically conductive special ink and metal current carrying strips, which are processed and hot-pressed between insulating polyester films. When working, carbon or graphene is used as a heating element to send heat into the space in the form of infrared radiation, which first warms the human body and objects. Its comprehensive effect is superior to traditional convection heating methods. The electric system consists of a power supply, a temperature controller, connectors, an electric heating film, and a decorative laver. The principle of electrothermal film heating is that under the action of an electric field. The carbon molecules in the heating body generate a "Brownian motion", causing severe friction and impact between the carbon molecules. The generated heat energy is transmitted externally in the form of far infrared radiation, and the conversion rate between electric energy and heat energy is very high.
Specification
Product Specifications
The main parameters are as the following:

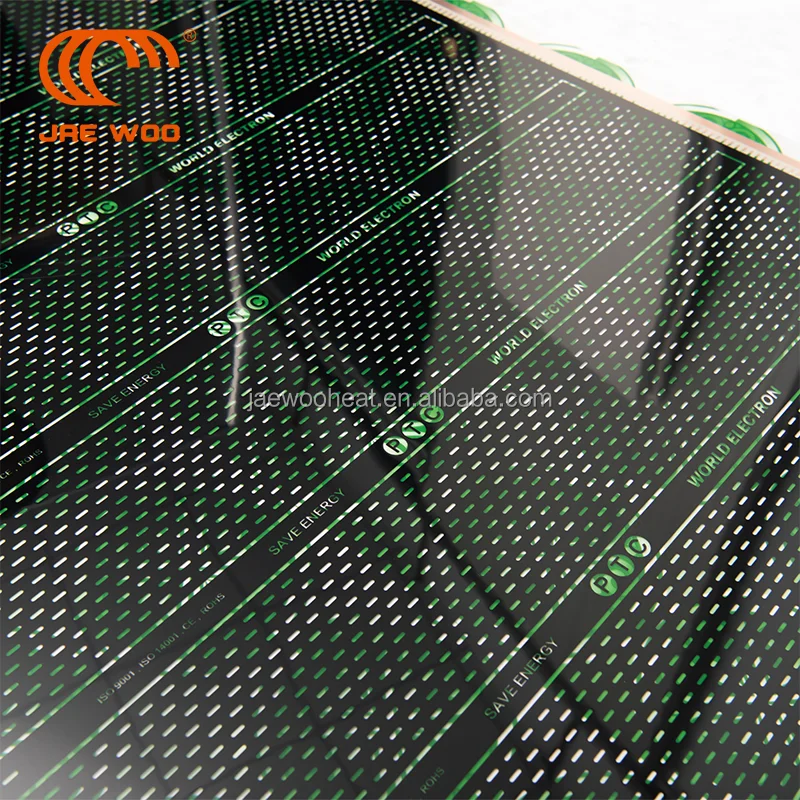

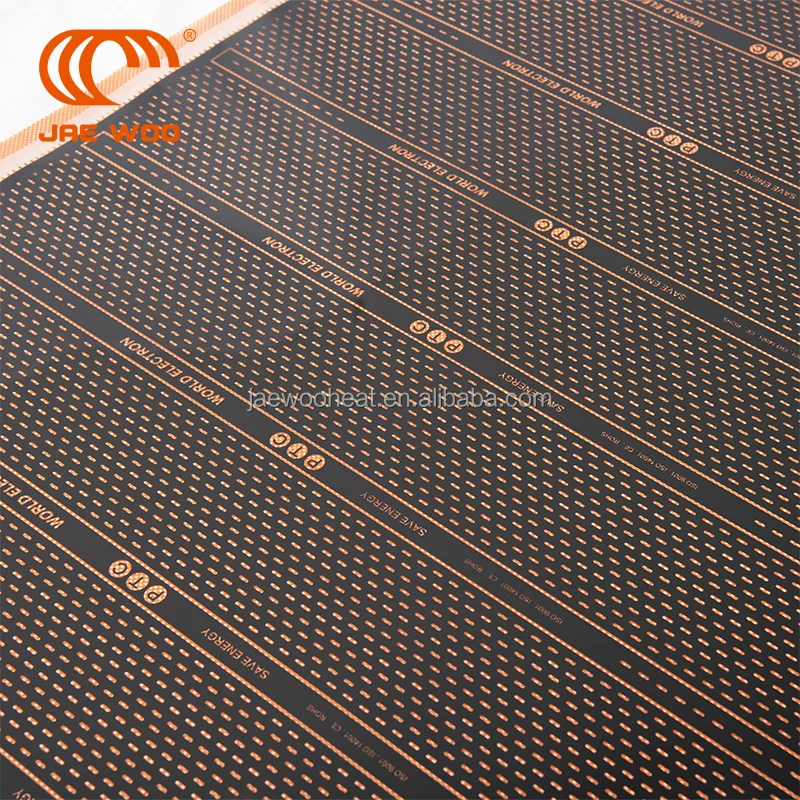

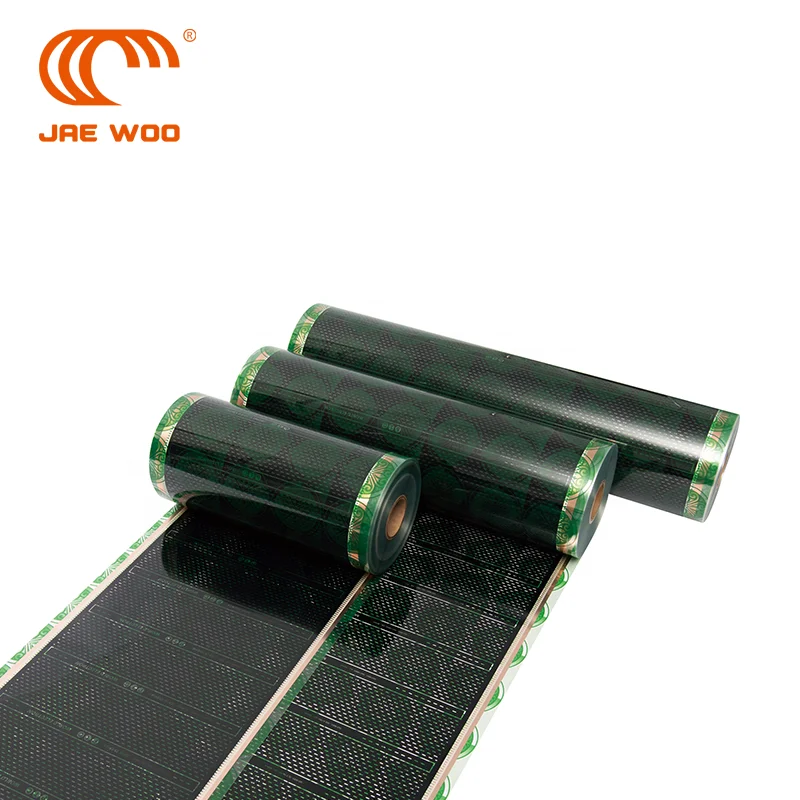

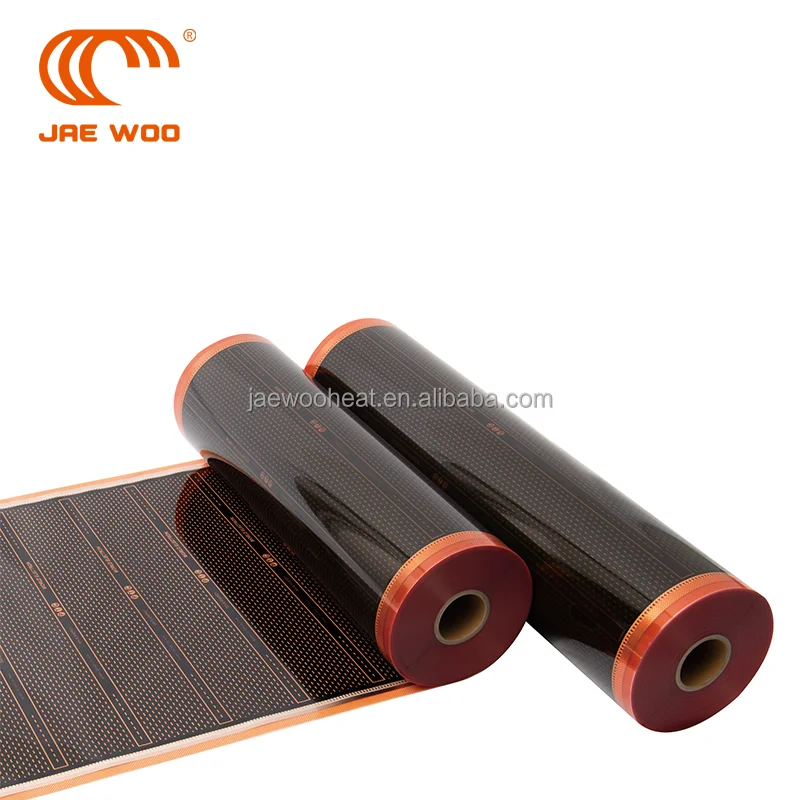

Product Name | Graphene Underfloor Heating Film |
Material | Graphene Carbon, PTC，Pure copper strip,Silver paste |
Color | Black,Green,Red,White,As your need |
Shape | Strip, hollow-out, as your need |
Power | 220W/m2-450W/m2 |
Mains Voltage | 220V/110V/230V/As your need |
Heating Film Size | 50cm*150m/80cm*100m/100cm*100m/As your need |
Heating Fim Thickness | 0.338mm |
Copper strip width | 10-15mm |
Silver paste width | 14mm-18mm |
Carbon paste width | 11mm/as your need |
Cutting line | 25cm of each |
Heating Film Sample | Free(Sample shipping fee will be afforded by customer) |
Heating Film Warranty | 5 years |
Film melting point | 180 ℃ |
The share of IR rays in the total spectrum | 95.6% |
Efficiency of converting electricity into thermal energy | 96%-98% |
Surface temperature can achieve after covering | in the range from 39 to 49 ℃ |
Average daily electricity consumption with thermostat | 30-40 W/m2 |
Work Scene
Application Area
The heating film is widely applied to:
1. Buildings: residential communities, hotels, office buildings, hospitals, schools, villas, senior apartments, kindergartens,
libraries, shopping malls;
libraries, shopping malls;
2. Home use: anti fog mirror, electric heating picture, electric foot mat, electric heated kang,
writing desk board;
writing desk board;
3. Industry: Tank insulation, pipeline tracing, warehouse, industrial plant;
4. Transportation: platform heating, road snow melting;
5. Agriculture: vegetable greenhouses, flower houses, incubators;Exhibition
Packing & Delivery

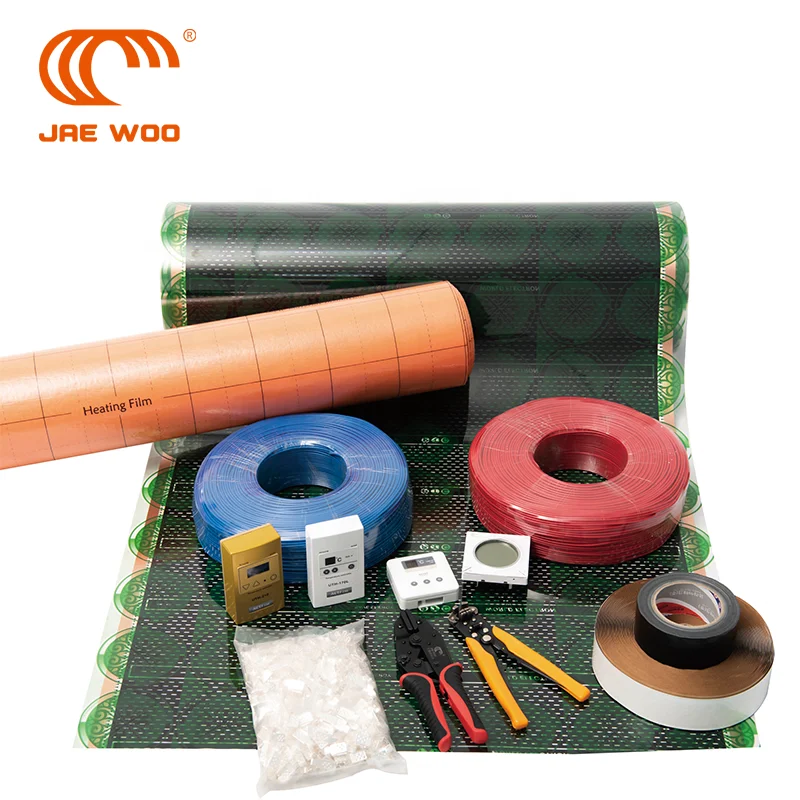

Precautions for installing electric heat film:
1. Determine the load of the electric heat film according to the area and wattage of the electric heat film, and configure the
corresponding international high temperature resistant wires.
corresponding international high temperature resistant wires.
2. Select the temperature controller model and quantity based on the actual situation.
3. The electric thermal film must be cut according to the cut position.
4. The electric heat film must be laid face up according to the instructions. When laying, the electric thermal film should be flat, no folds, and need to be fixed with tape to prevent overlapping of the electric thermal film.
5. When installing, the electric thermal film should be at least 30 cm away from the wall with a window.
Company Profile
Our history and enterprise philosophy

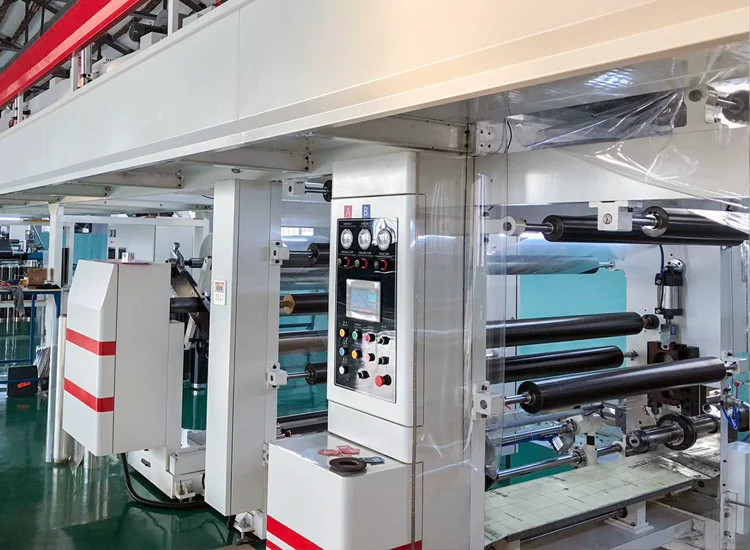

Based on more than 20 years of experience in the production of electric heating products, the brand JAW WOO was established. We are one of the earliest enterprises engaged in clean energy heating in China, as well as one of the standard setters of graphene electric heat film industry in China. And we have obtained many certifications from China and internationally, including ISO, CE , ROHS certification, etc. We have multiple production lines with a monthly production capacity of 180,000 square meters. At the same time, we have an independent warehouse with a storage capacity of 1,000 tons. Rationalized production and manufacturing, regular products are in stock, can be send to customers in the first time. Since our founding, we have delivered on our mission and remain dedicated to providing the best service, support, and products by placing our customers first. We will never compromise on quality or safety! To keep our commitment, we are devoted to relentless innovation that have 24 patents and 60 trademarks. As the real factory in China, we insist on win-win cooperation, insist on producing high-quality products for our own brand JAE WOO, and at the same time provide high-quality OEM/ODM products for international customers. Our patented heating technology safely brings warmth and comfort to every area of your home. We have expanded our product line to include outdoor, indoor, agricultural, and custom heating solutions. in 2023, we decided to export our graphene floor heating and electric heating film products to the world, sharing our cutting-edge technology with the world. JAE WOO designs, manufactures, and distributes various underfloor Infrared Heating Film and Thermostat that provide safe, reliable, and green energy solutions with great value. Our mission is to enable every corner of the world to enjoy the convenience and comfort brought by energy-saving and emission-reducing clean energy heating, to provide safe, energy-saving and innovative electric radiant heating products.
Certifications
FAQ
FAQ about company：How do I pay for Nuanjia?
1.T/T wire transfer
2.NUANJIA can send the PayPal invoice to you and you can using the PayPal account or credit card to payment.
3.NUANJIA also can accept the western union.
FAQ about product:
1.Does each room require its own thermostat?
We would recommend that each room has its own heating system controlled by its own thermostat.This will allow for simple and more
accurate temperature control of each room and will avoid heating rooms which do not require it.
2.Is this a safe product to put in my home or business?
Yes. All our floor heating solutions endure rigorous development and quality control testing to ensure that your floor heating
system is reliable and safe.
3.Can I use Heating Film with my floor material? What if my project uses an underlayment?
Heating Film is compatible with a wide variety of floor materials like vinyl, laminate, and carpet. Let us know if you have any
questions because we are here to help. One note you should keep in mind is that Heating Film is not rated for wet areas like
bathrooms. Heating Film is compatible with any underlayment you would use in an installation, including a pre-attached
underlayment like some vinyl floors have.
4.How do I install Heating Film? How does it all get connected?
Heating Film installs directly under a floating floor and is compatible with a variety of underlayment options. Simply lay out
your underlayment and then position Heating Film above the under layment. You can also install Thermo Film under an MDF
layer.Heating Film mats are then wired in parallel to a floor heating thermostat. The number of mats and layout of the room will
affect the exact process of how to wire the heating mats together. Please see the Installation Manual for explicit directions or
call us anytime for assistance.
5.Will this add height to my floor?
Heating Film will add up to about 1/32nd of an inch to your floor height. Depending on the type of floor coverings or the
potential presence of an underlayment padding, this height may end up being negligible according to industry standards on floor
height deviation allowances.
6.How does electric radiant heat work?
Electric radiant heat works by arranging conductive heating elements through your floor to provide gentle but noticeable heat
traveling up from the floor, providing an efficient and luxurious effect in your home or commercial space.
7.What type of floors can be heated with ThermoSoft systems?
If you can walk on it, we can heat it! Our diverse array of underfloor heat systems can be applied under any floor covering. The
key is matching the right radiant heating product with the right installation method, and of course, this is just one of the
things you can call us to get help with anytime!
8.How long will ThermoFilm last? How long is the warranty?
Heating film requires no regular maintenance once installed correctly and if left undisturbed (remember your radiant system is
down there when planning a remodel!). The heating mats are warrantied for 10 years, but after 17 years being on the market, we
have yet to see a ThermoFilm mat fail due to old age. The thermostats that we offer are warrantied for 3 years because we only use
thermostats with GFCI protection which, per national electric code, is recommended to be replaced every 3 years. Replacing a
thermostat is simple, easy, and inexpensive.
