$12,600

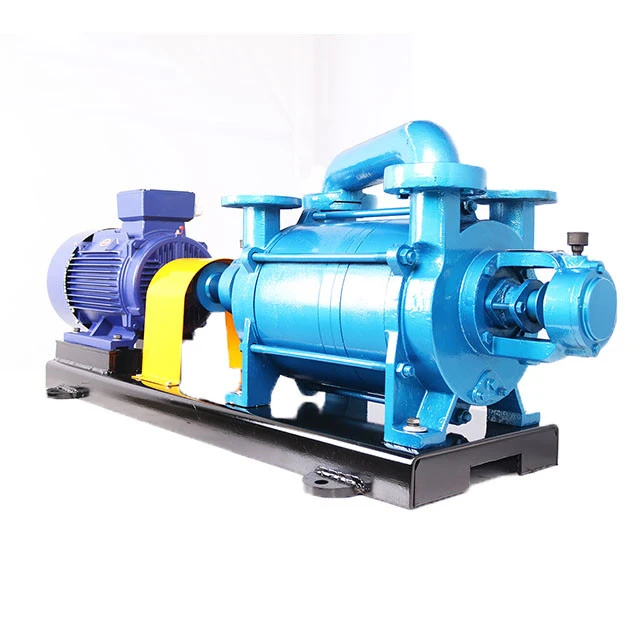

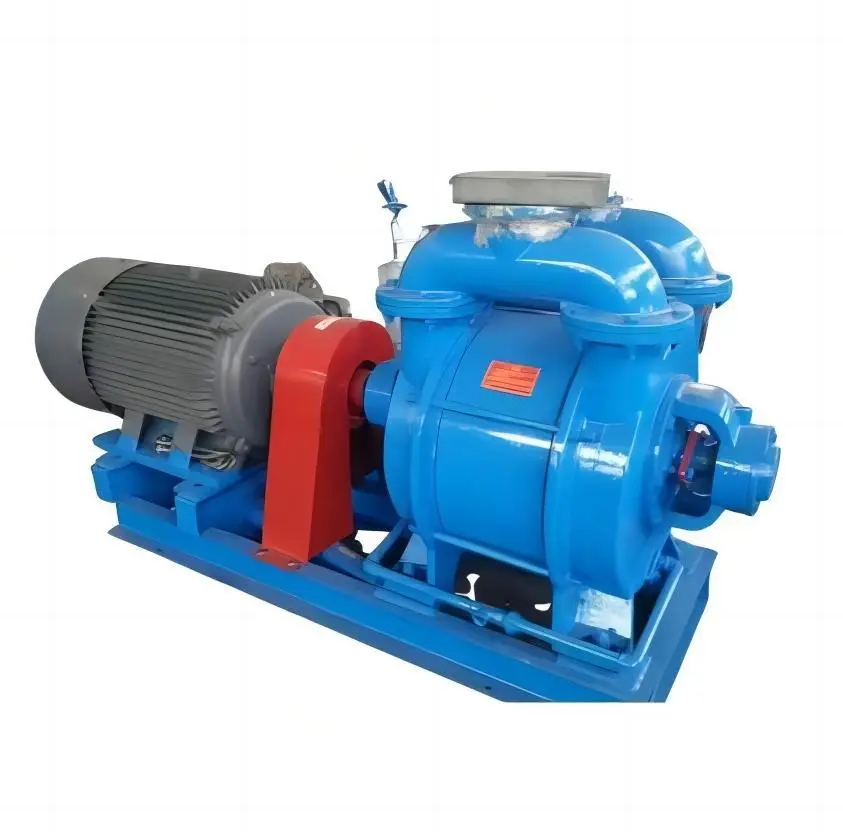

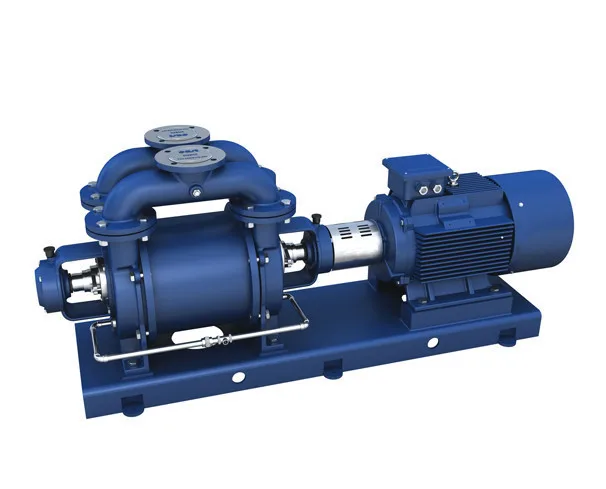

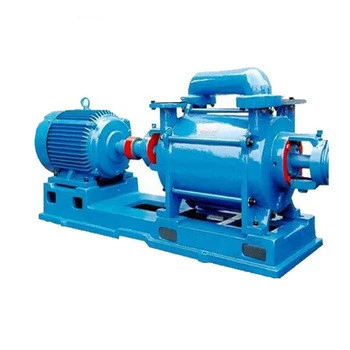

Water Ring Vaccum Pump 2SK Series Liquid Vacuum Pump 25.2HP heavy duty vacuum pump
- Category: >>>
- Supplier: Luoyang Pioneer Anticorrosion Equipment Co. Ltd.
Share on (1601216002495):
Product Overview
Description
Product Description
1. 2SK series water ring vacuum pump product overview:
2SK series water ring vacuum pump and 2SK-P1 series two-stage water ring vacuum pump-atmospheric jet pump unit are used to extract air and other non-corrosive, water-insoluble, and solid particle-free gases in order to obtain a higher vacuum in a closed container. It is widely used in vacuum evaporation, vacuum concentration, vacuum rehumidification, vacuum impregnation, vacuum drying and vacuum smelting in the food, weaving chemical, pharmaceutical and metallurgical industries and electronics. It has the characteristics of high vacuum, high pumping speed in the high vacuum area, compact structure, reliable operation and convenient maintenance.
2SK series is suitable for working conditions with suction pressure lower than -0.08MPa. 2SK-P1 series is suitable for working conditions with suction pressure lower than -0.096MPa. When equipped with an atmospheric pump, the ultimate vacuum can reach -750mmHg. The working vacuum range is -0.03---0.08MPa.
2. Working principle of 2SK series water ring vacuum pump:
2SK series water ring vacuum pump is a two-stage single-acting water ring vacuum pump. It uses the structure of eccentric installation of pump casing and impeller. When the impeller rotates, the direct-connected vacuum pump forms a water ring eccentric to the impeller, which is filled with water between the blades. As the impeller rotates, it continuously makes periodic reciprocating motion between the blades. The volume between the blades is changed, and the suction, compression and exhaust functions are completed under the corresponding cooperation of the fixed suction port and exhaust port. The function of the two-stage is that the gas discharged from the first-stage exhaust port is sucked into the second-stage suction port, and then discharged through the compression of the second stage. The function of the second stage is to reduce the exhaust pressure of the first stage to improve the suction limit vacuum of the first stage.

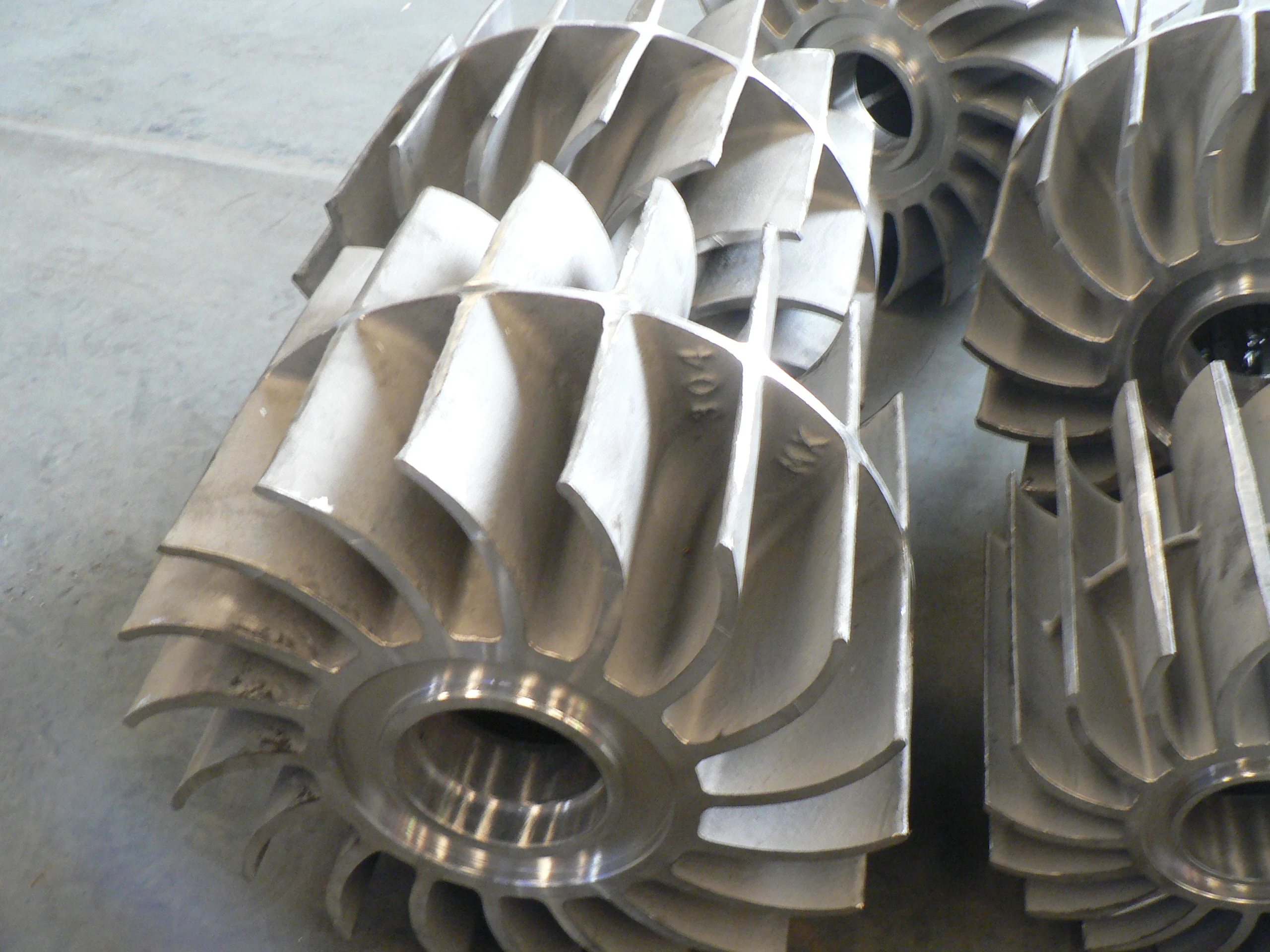

This model of two-stage water ring vacuum system is made into a coaxial two-stage pump in series. The airway between the two stages is composed of an intermediate basin and a connecting pipe, so the structure is relatively compact. The rotating part is composed of a shaft and two-stage impellers, and the fixed part is composed of an inlet and outlet machine base, two pump rings and a gas distribution plate, and a bearing bracket. The transmission of the motor and pump parts uses a shaft pump and a motor installed on a common base.
3. Main features of 2SK series water ring vacuum pump:
2SK series water ring vacuum pump and 2SK-P1 series two-stage water ring vacuum pump-atmospheric jet pump unit are used to extract air and other non-corrosive, water-insoluble, and solid particle-free gases in order to obtain a higher vacuum in a closed container. It is widely used in vacuum evaporation, vacuum concentration, vacuum rehumidification, vacuum impregnation, vacuum drying and vacuum smelting in the food, textile chemical, pharmaceutical and metallurgical industries and electronics. It has the characteristics of high vacuum, high pumping speed in the high vacuum area, compact structure, reliable operation and convenient maintenance.
2SK series water ring vacuum pump is suitable for working conditions with suction pressure lower than -0.08MPa. 2SK-P1 series two-stage water ring vacuum pump is suitable for working conditions with suction pressure lower than -0.096MPa. When equipped with an atmospheric pump, the ultimate vacuum can reach -750mmHg. The working vacuum range is -0.03---0.08MPa.
2SK two-stage water ring vacuum pump has the characteristics of high vacuum degree and high pumping speed in high vacuum area; compact structure and convenient maintenance; wide range of applications, can be used to extract various gases containing water vapor, flammable, explosive, small amount of dust, and small amount of liquid; mainly uses water as the working medium, low maintenance cost; can work in relatively harsh environments.
2SK two-stage water ring vacuum pump has the characteristics of high vacuum degree and high pumping speed in high vacuum area; compact structure and convenient maintenance; wide range of applications, can be used to extract various gases containing water vapor, flammable, explosive, small amount of dust, and small amount of liquid; mainly uses water as the working medium, low maintenance cost; can work in relatively harsh environments.
Long service life
Wide application
International standard
Safe and reliable
Compact structure
Long safe and continuous operation time
Small appearance
High speed
2SK series water ring vacuum pump and 2SK-P1 series two-stage water ring vacuum pump-atmospheric jet pump unit are used to extract air and other non-corrosive, water-insoluble, and solid particle-free gases in order to obtain a higher vacuum in a closed container. It is widely used in vacuum evaporation, vacuum concentration, vacuum rehumidification, vacuum impregnation, vacuum drying and vacuum smelting in the food, weaving chemical, pharmaceutical and metallurgical industries and electronics. It has the characteristics of high vacuum, high pumping speed in the high vacuum area, compact structure, reliable operation and convenient maintenance.
2SK series is suitable for working conditions with suction pressure lower than -0.08MPa. 2SK-P1 series is suitable for working conditions with suction pressure lower than -0.096MPa. When equipped with an atmospheric pump, the ultimate vacuum can reach -750mmHg. The working vacuum range is -0.03---0.08MPa.
2. Working principle of 2SK series water ring vacuum pump:
2SK series water ring vacuum pump is a two-stage single-acting water ring vacuum pump. It uses the structure of eccentric installation of pump casing and impeller. When the impeller rotates, the direct-connected vacuum pump forms a water ring eccentric to the impeller, which is filled with water between the blades. As the impeller rotates, it continuously makes periodic reciprocating motion between the blades. The volume between the blades is changed, and the suction, compression and exhaust functions are completed under the corresponding cooperation of the fixed suction port and exhaust port. The function of the two-stage is that the gas discharged from the first-stage exhaust port is sucked into the second-stage suction port, and then discharged through the compression of the second stage. The function of the second stage is to reduce the exhaust pressure of the first stage to improve the suction limit vacuum of the first stage.
This model of two-stage water ring vacuum system is made into a coaxial two-stage pump in series. The airway between the two stages is composed of an intermediate basin and a connecting pipe, so the structure is relatively compact. The rotating part is composed of a shaft and two-stage impellers, and the fixed part is composed of an inlet and outlet machine base, two pump rings and a gas distribution plate, and a bearing bracket. The transmission of the motor and pump parts uses a shaft pump and a motor installed on a common base.
3. Main features of 2SK series water ring vacuum pump:
2SK series water ring vacuum pump and 2SK-P1 series two-stage water ring vacuum pump-atmospheric jet pump unit are used to extract air and other non-corrosive, water-insoluble, and solid particle-free gases in order to obtain a higher vacuum in a closed container. It is widely used in vacuum evaporation, vacuum concentration, vacuum rehumidification, vacuum impregnation, vacuum drying and vacuum smelting in the food, textile chemical, pharmaceutical and metallurgical industries and electronics. It has the characteristics of high vacuum, high pumping speed in the high vacuum area, compact structure, reliable operation and convenient maintenance.
2SK series water ring vacuum pump is suitable for working conditions with suction pressure lower than -0.08MPa. 2SK-P1 series two-stage water ring vacuum pump is suitable for working conditions with suction pressure lower than -0.096MPa. When equipped with an atmospheric pump, the ultimate vacuum can reach -750mmHg. The working vacuum range is -0.03---0.08MPa.
2SK two-stage water ring vacuum pump has the characteristics of high vacuum degree and high pumping speed in high vacuum area; compact structure and convenient maintenance; wide range of applications, can be used to extract various gases containing water vapor, flammable, explosive, small amount of dust, and small amount of liquid; mainly uses water as the working medium, low maintenance cost; can work in relatively harsh environments.
2SK two-stage water ring vacuum pump has the characteristics of high vacuum degree and high pumping speed in high vacuum area; compact structure and convenient maintenance; wide range of applications, can be used to extract various gases containing water vapor, flammable, explosive, small amount of dust, and small amount of liquid; mainly uses water as the working medium, low maintenance cost; can work in relatively harsh environments.
Long service life
Wide application
International standard
Safe and reliable
Compact structure
Long safe and continuous operation time
Small appearance
High speed
IV. Scope of application:
It is widely used in vacuum evaporation, vacuum concentration, vacuum rehumidification, vacuum impregnation, vacuum drying and vacuum smelting in the fields of food, textile chemicals, medicine, metallurgy and electronics. It has the characteristics of high vacuum degree, high pumping speed in high vacuum area, compact structure, reliable operation and convenient maintenance.
It is widely used in vacuum evaporation, vacuum concentration, vacuum rehumidification, vacuum impregnation, vacuum drying and vacuum smelting in the fields of food, textile chemicals, medicine, metallurgy and electronics. It has the characteristics of high vacuum degree, high pumping speed in high vacuum area, compact structure, reliable operation and convenient maintenance.
Specification
item | value |
Warranty | 1 year |
Customized support | OEM, ODM, OBM |
Brand Name | PIONEER |
Model Number | 2SK-30 |
Application | Commercial Buildings, Drinking water treatment, Marine, Metal and Equipment Manufacturers, Mining industry, Raw Water Intake, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions |
Power Source | Electric |
Pressure | Low Pressure |
Structure | Vacuum Pump |
Voltage | 380v/440v |
Power | 50kw |
motor | YE3 |
Product name | Vacuum Pump |
Theory | Vacuum System |
Usage | Chemical |
Material | Stainless Steel |
Standard or Nonstandard | Standanrd |
MOQ | 1 Set |
Color | Customers' Requirement |
Package | Wooden Case Package |
Size | 25-150mm |
Seal | Mechnical Seal |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1. who are we?
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe
4. why should you buy from us not from other suppliers?
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe
4. why should you buy from us not from other suppliers?
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
