QDJ chips line
Applications:
This machine is used to make chocolate chips, buttons.
| Model | QDJ600 | QDJ1000 | QDJ1200 |
| Belt width(mm) | 600 | 1000 | 1200 |
| Capacity(kg/hour) | 50~100 | 80~200 | 100~500 |
| Minimum weight(g) | 0.1 | 0.1 | 0.1 |
| Length of cooling tunnel(m) | 10 | 16 | 20 |
| Total power(kw) | 8 | 12 | 18 |
| Dimension(mm) | 12000x950x1500 | 18000x1300x1500 | 22000x1450x1500 |
- Width of belt: 600mm, 1000mm, 1200mm
- Can make 0.1g chips with nails and chocolate buttons. But different size products need to change distribution plate.
- Depositing speed: 8~12 time per minute.

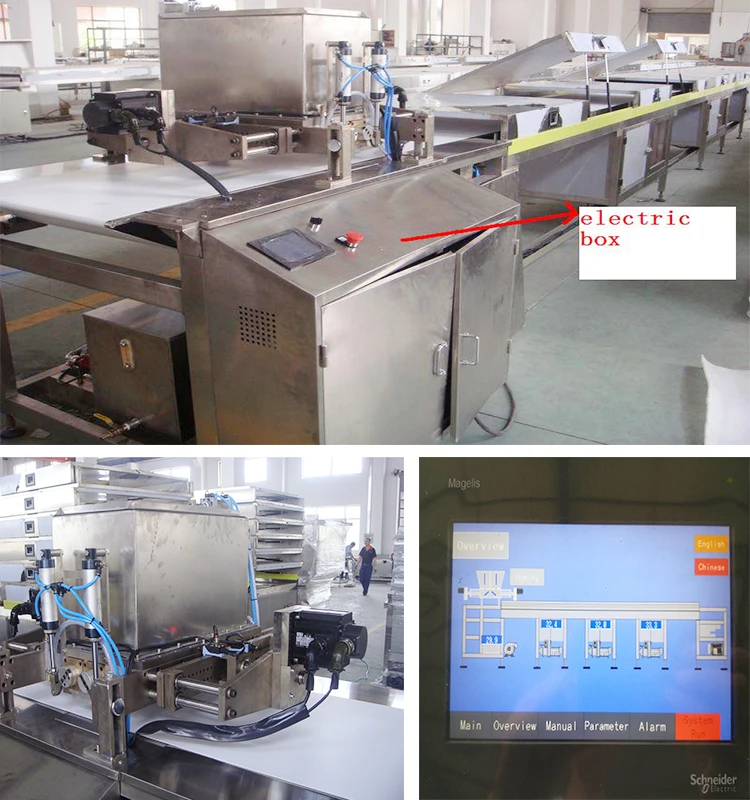

- Control way of depositing head: pneumatic or servo two types.
- Hopper: SS304, Double jacket hopper with a separate hot water tank to supplier warm water.
- Belt: Food grade PU belt.

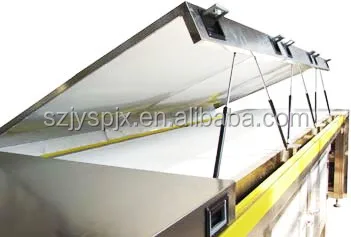

- Designing principle is easy to clean, belt supporting plate and belt supporting roller are easy to remove. At the end of cooling tunnel there is a scraper to clean the belt. Scraper material is stainless steel.
- With rectifying device to avoid belt off tracking .
- Cooling tunit: Copeland (Emerson) compressor.
