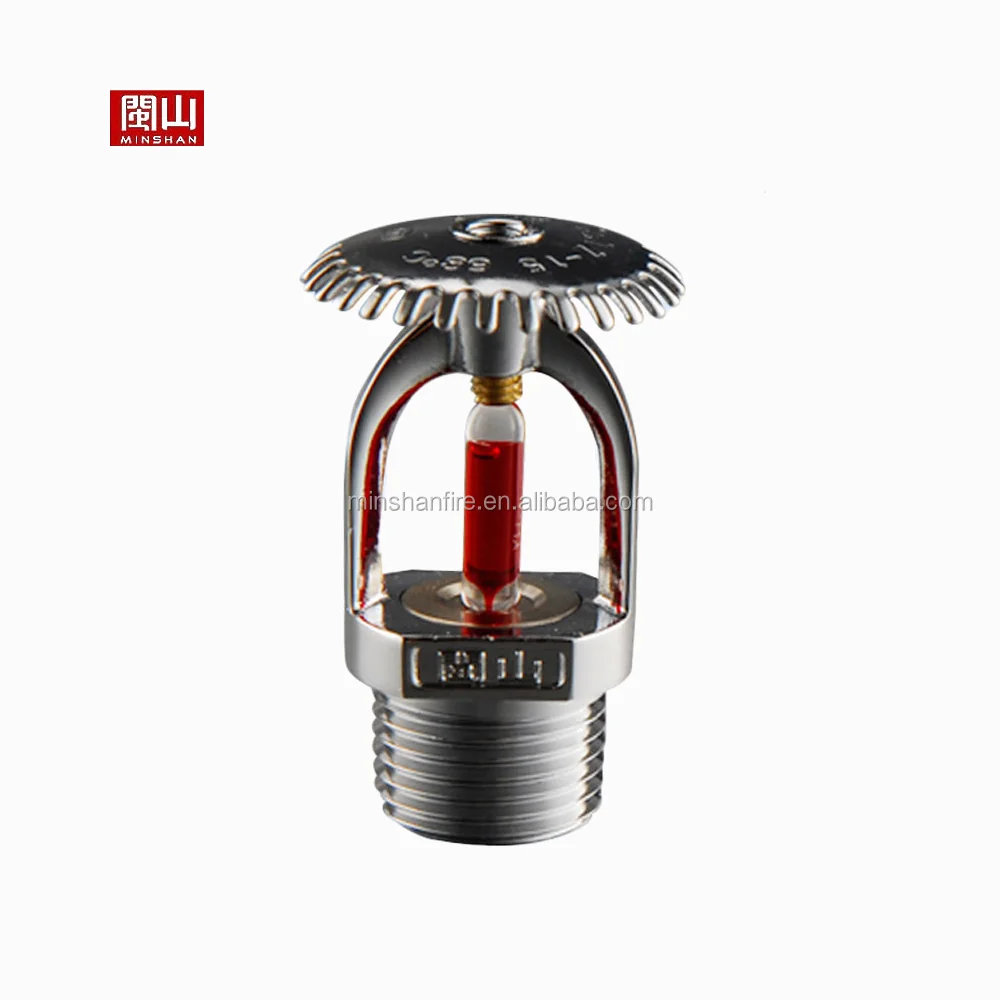

Vertical Quick Response Sprinkler Head Automatic Sprinkler System Fire Safety Sprinkler Head

Share on (1601216171529):


Price:$0.89 - $1.05

Quantity:


Product Overview

Description



Banner



fire sprinkler zstx-15 fire sprinkler india




  • fire sprinkler




  • fire sprinkler india




  • fire sprinkler zstx-15





Product Description


fire sprinkler zstx-15 fire sprinkler india with ISO, CCC Certificates




Each closed-head sprinkler is held closed by either a heat-sensitive glass bulb (see below) or a two-part metal link held together with fusible alloy such as Wood's metal and other alloys with similar compositions.The glass bulb or link applies pressure to a pipe cap which acts as a plug prevents water from flowing until the ambient temperature around the sprinkler reaches the design activation temperature of the individual sprinkler. Each sprinkler activates independently when the predetermined heat level is reached, the number of sprinklers that operate is limited to only those near the fire, thereby maximizing the available water pressure over the point of fire origin.

The bulb breaks which results to the thermal expansion of the liquid inside the bulb. The time it takes before a bulb breaks is dependent on the temperature. Below the design temperature, it does not break, and above the design temperature, it takes less time for higher temperatures. The response time is expressed as a response time index (RTI), which typically has values between 35 and 250 m½s½, where a low value indicates a fast response. Under standard testing procedures (135 °C air at a velocity of 2.5 m/s), a 68 °C sprinkler bulb will break within 7 to 33 seconds, depending on the RTI.[13] The RTI can also be specified in imperial units, where 1 ft½s½ is equivalent to 0.55 m½s½. The sensitivity of a sprinkler can be negatively affected if the thermal element has been painted.






















































;Characteristics and Functions
ModelESFR
MaterialAluminum, chrome plating
TypeUpright type of fire sprinkler
Norminal diameter(mm)15DN or 20DN
Connecting threadR1/2 or R3/4
Glass bulb colorRed
Temperature rating68°C
Flow Rate80±4 or 115±6
Bulb3mm or 5mm
Responsequick response
















































































;;Basic Parameters of Fire Sprinkler
ModelNorminal DiameterThreadFlow RateStyle
T-ZSTPDN15R1/280±4Upright/Pendent
DN20R3/4115±6
T-ZSTXDN15R1/280±4Pendent
DN20R3/4115±6
T-ZSTZDN15R1/280±4Upright
DN20R3/4115±6

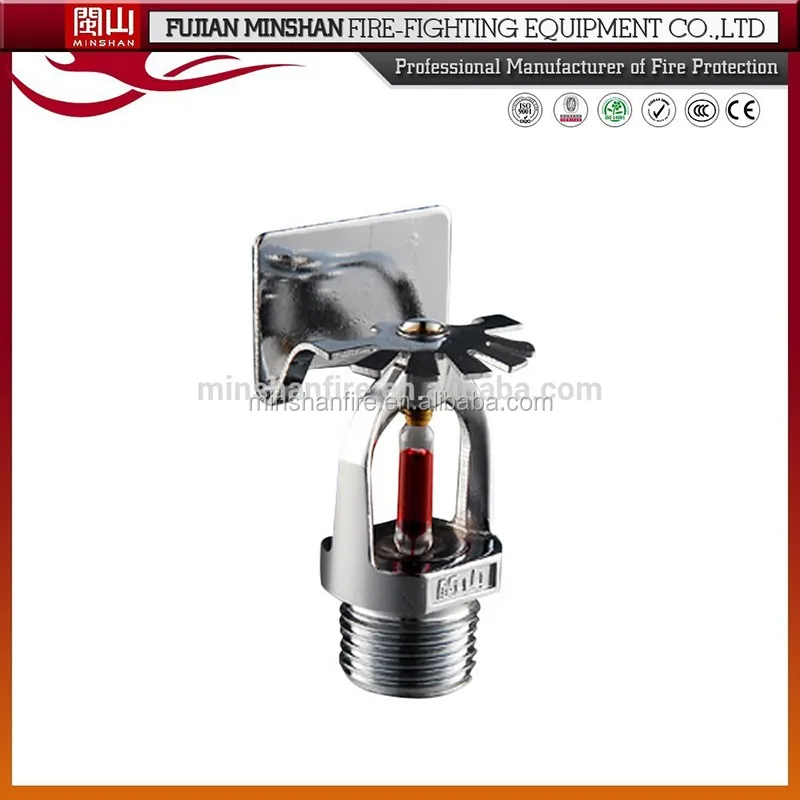

T-ZSTBSDN15R1/280±4Horizontal Sidewall
DN20R3/4115±6
ZSTDYDN15R1/280±4Pendent
DN20R3/4115±6













































Nozzle Rated TempMax Ambient TempGlass Ball Color
57°C27°COrange
68°C38°CRed
79°C49°CYellow
93°C63°CGreen
141°C111°CBlue
182°C152°CPurple

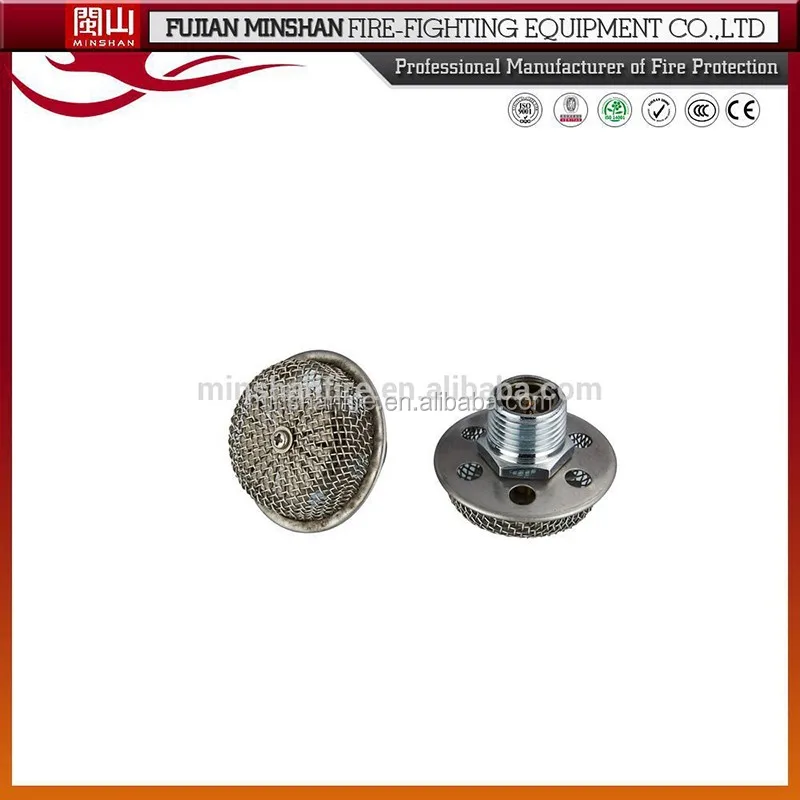

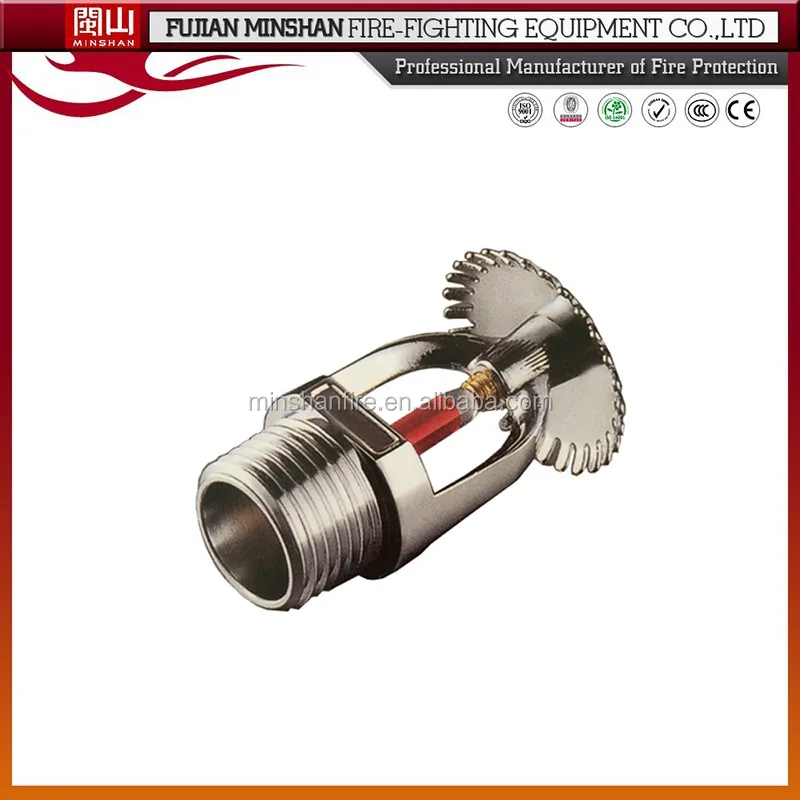

Product Image

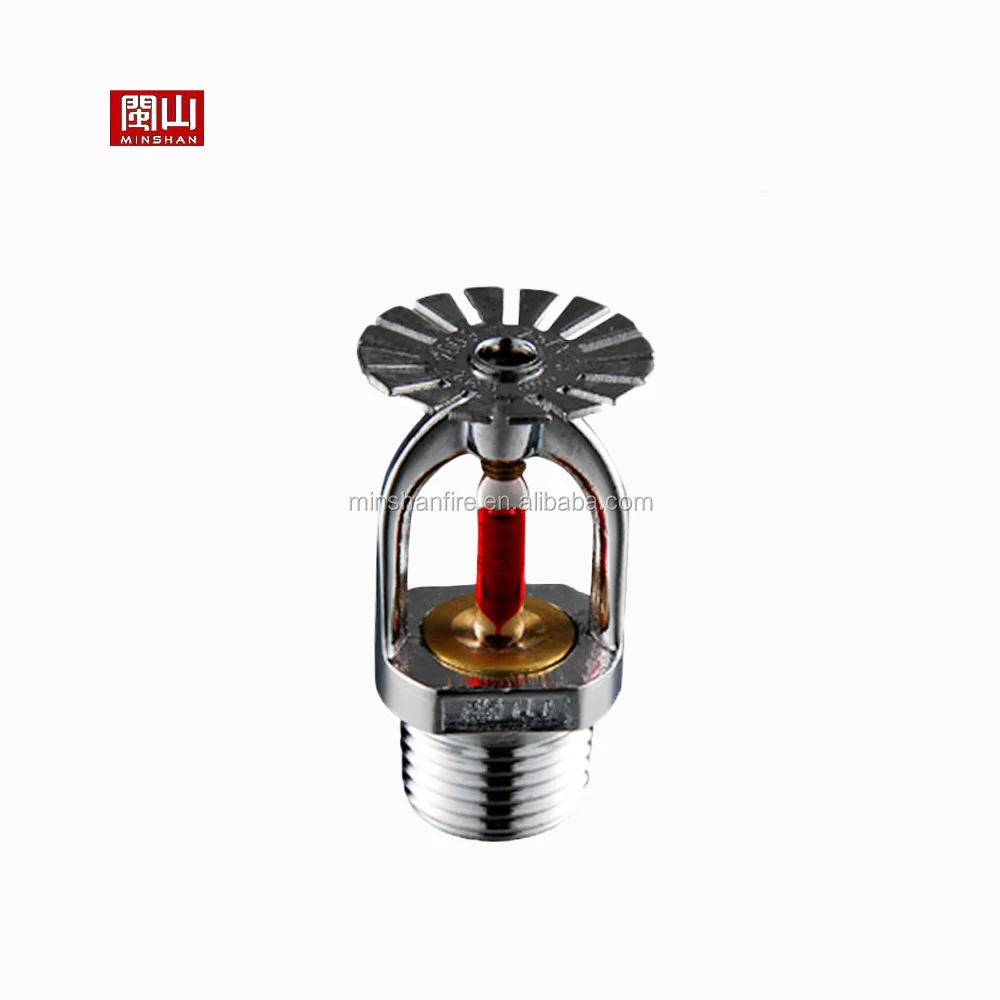

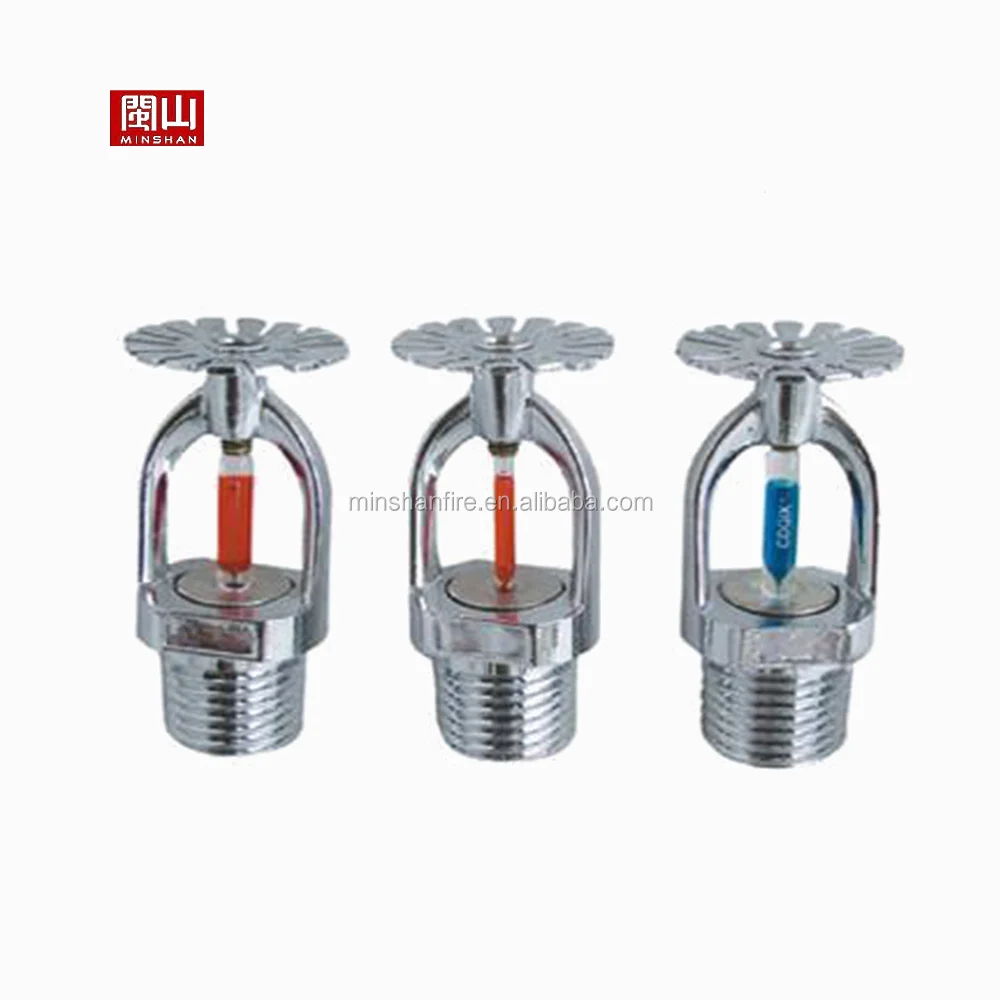

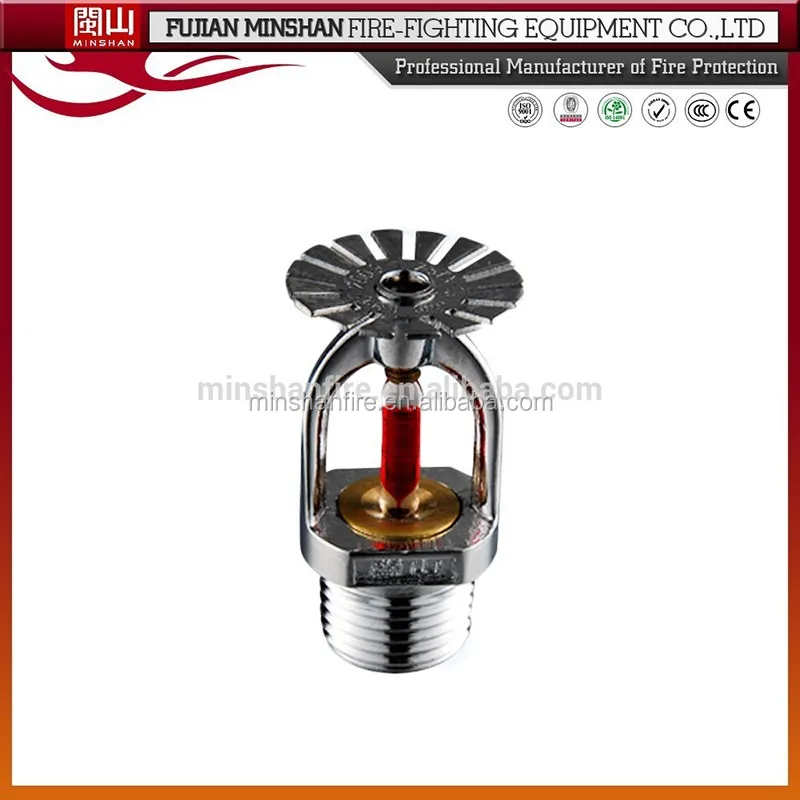

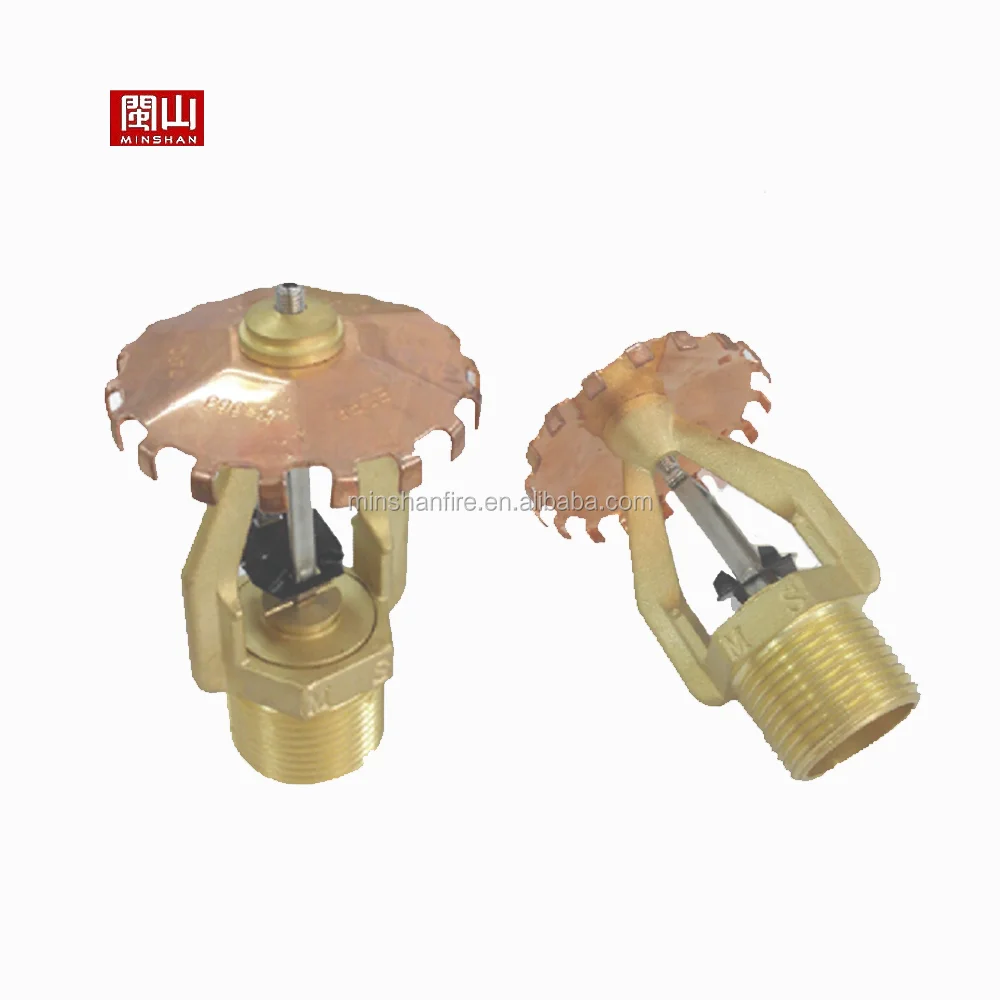

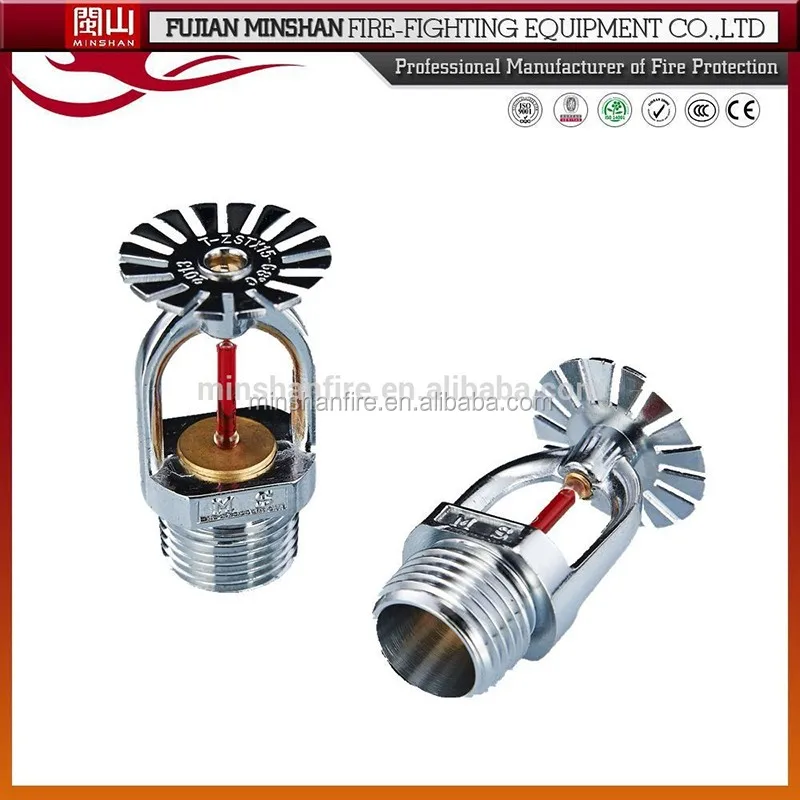

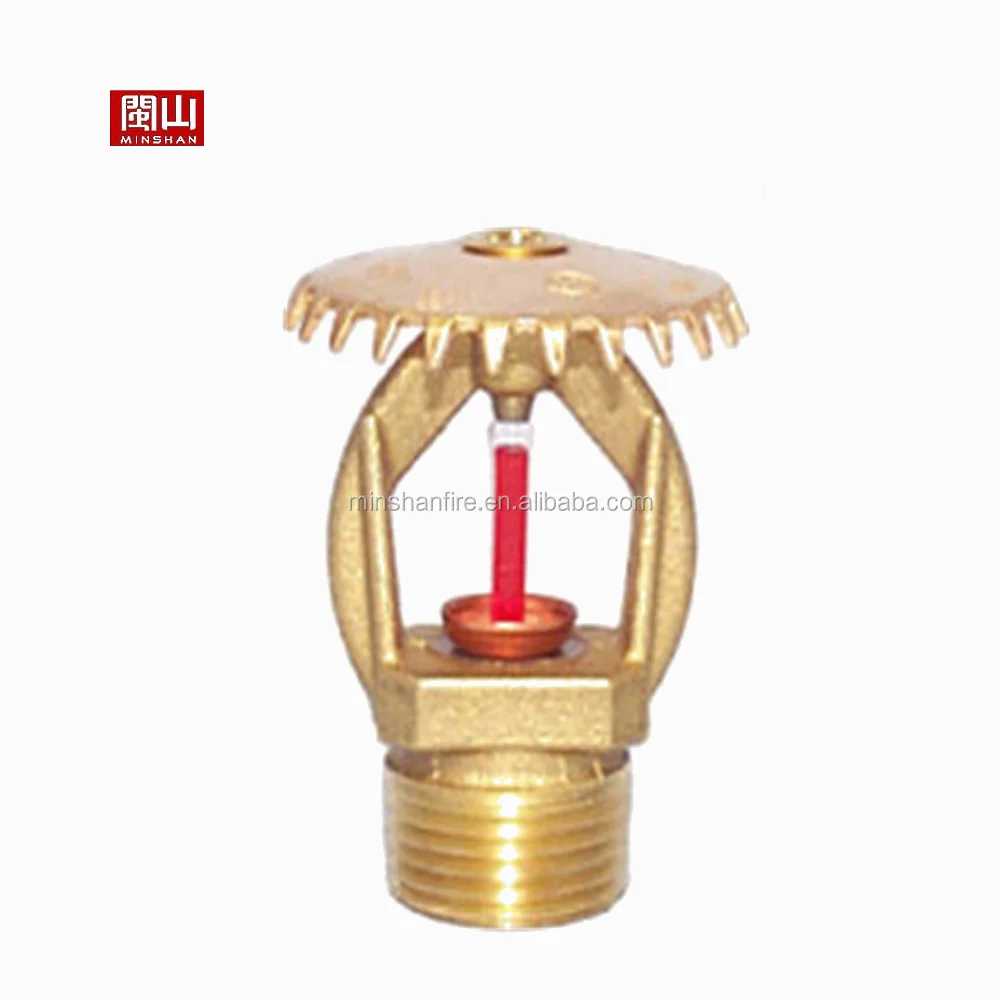

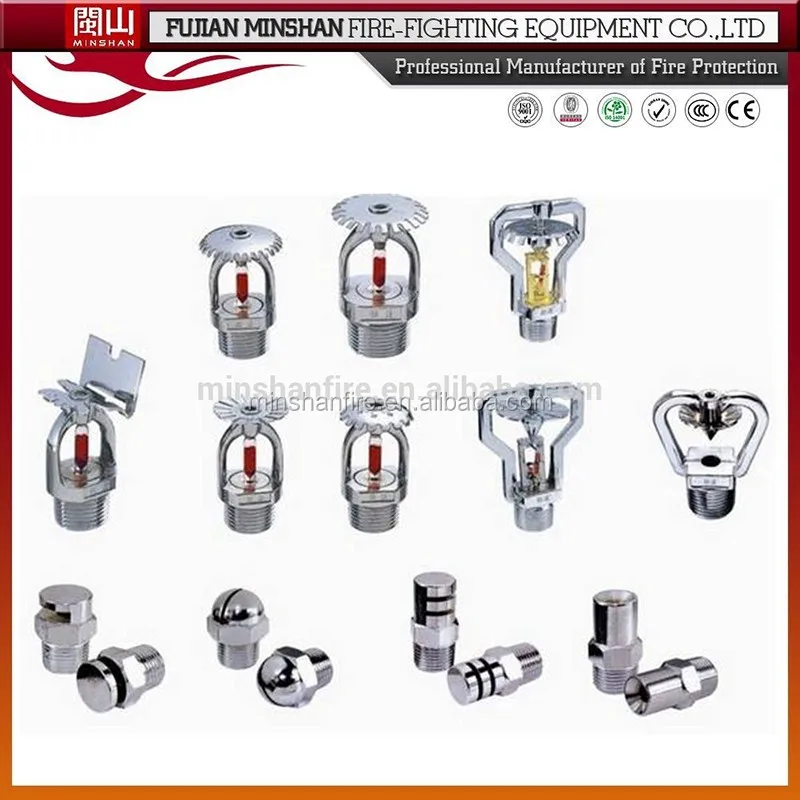

 sprinkler 1.jpgsprinkler 2.jpgsprinkler 3.jpgsprinkler 9.jpgsprinkler 10.jpg


sprinkler 7.jpg
