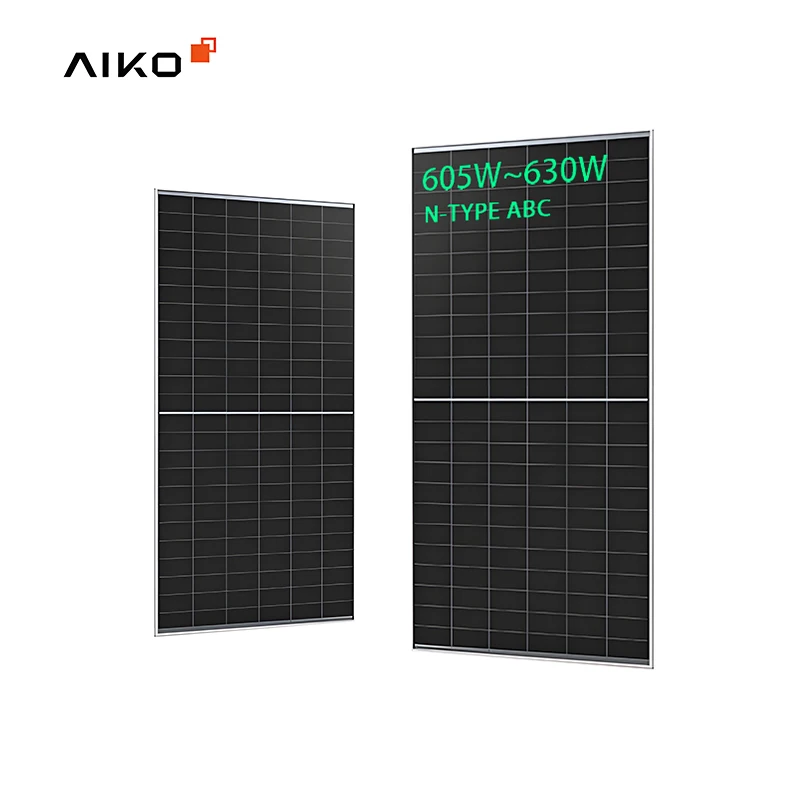

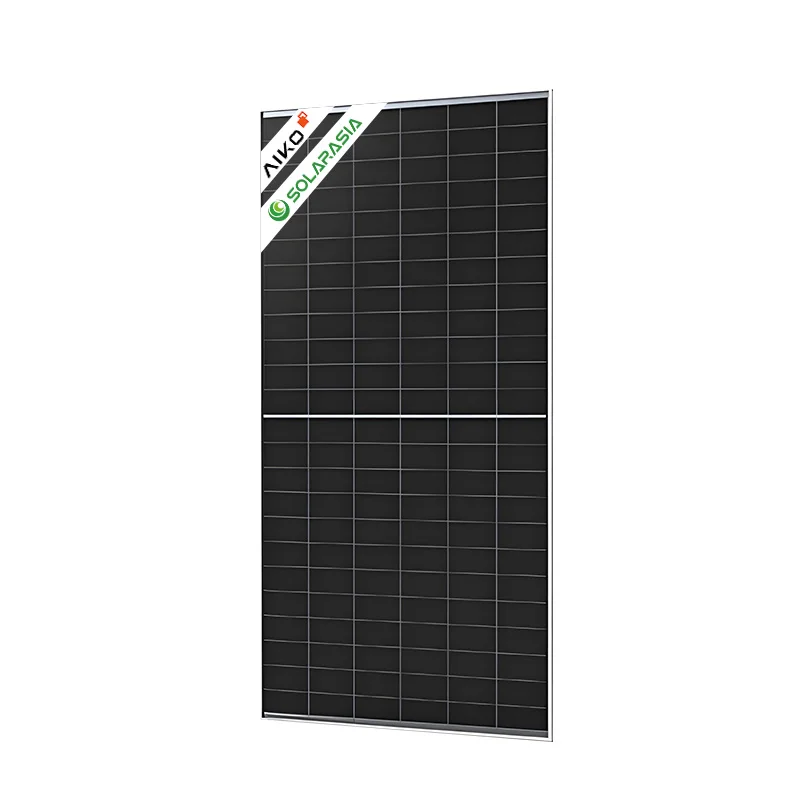

Aiko N Type ABC Dual Glass Bifacial Solar Panel Aiko A Mah72Dw G 605~625W Solar Panels Eu Warehouse
- Category: >>>
- Supplier: Anhui Solarasia Energy Technology Co. Ltd.Anhui Ltd.
Share on (1601216372925):
Product Overview
Description
Product Description
Technical Specifications

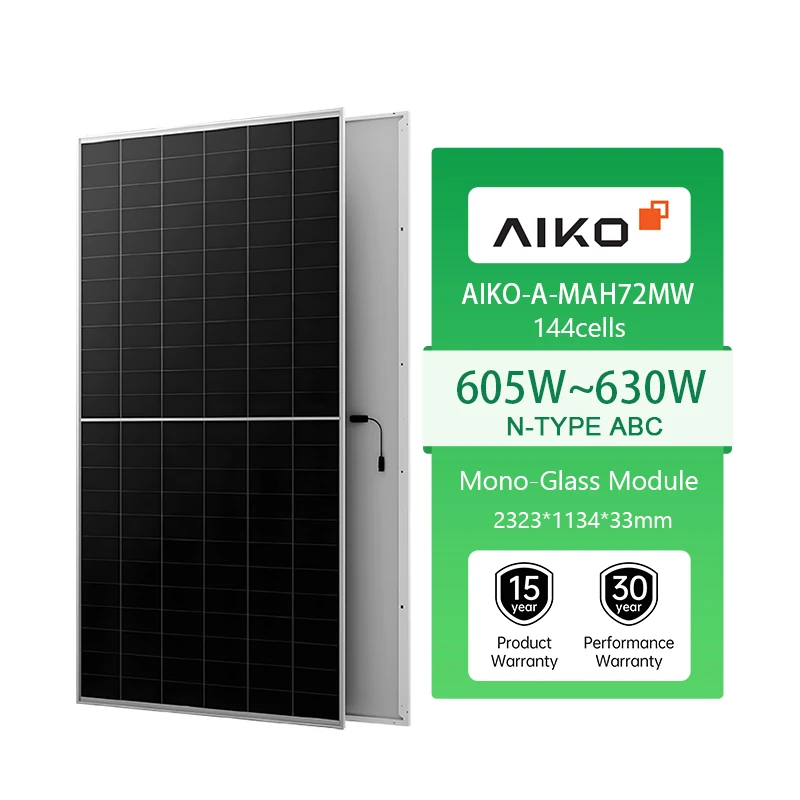

Model | AIKO-A-MAH72Mw | AIKO-A-MAH72Dw | |||||
Cell Type | N-Type ABC | ||||||
Frame | Anodized aluminum | ||||||
Cable | 4mm²(IEC) 12AWG(UL) 1400mm or Customized Length | ||||||
No. of Cells | 144(6*24) | ||||||
Junction Box | IP68,3 bypass diodes | ||||||
Connector | MC4 Compatible | ||||||
Weight | 27.7kg | 31.8kg | |||||

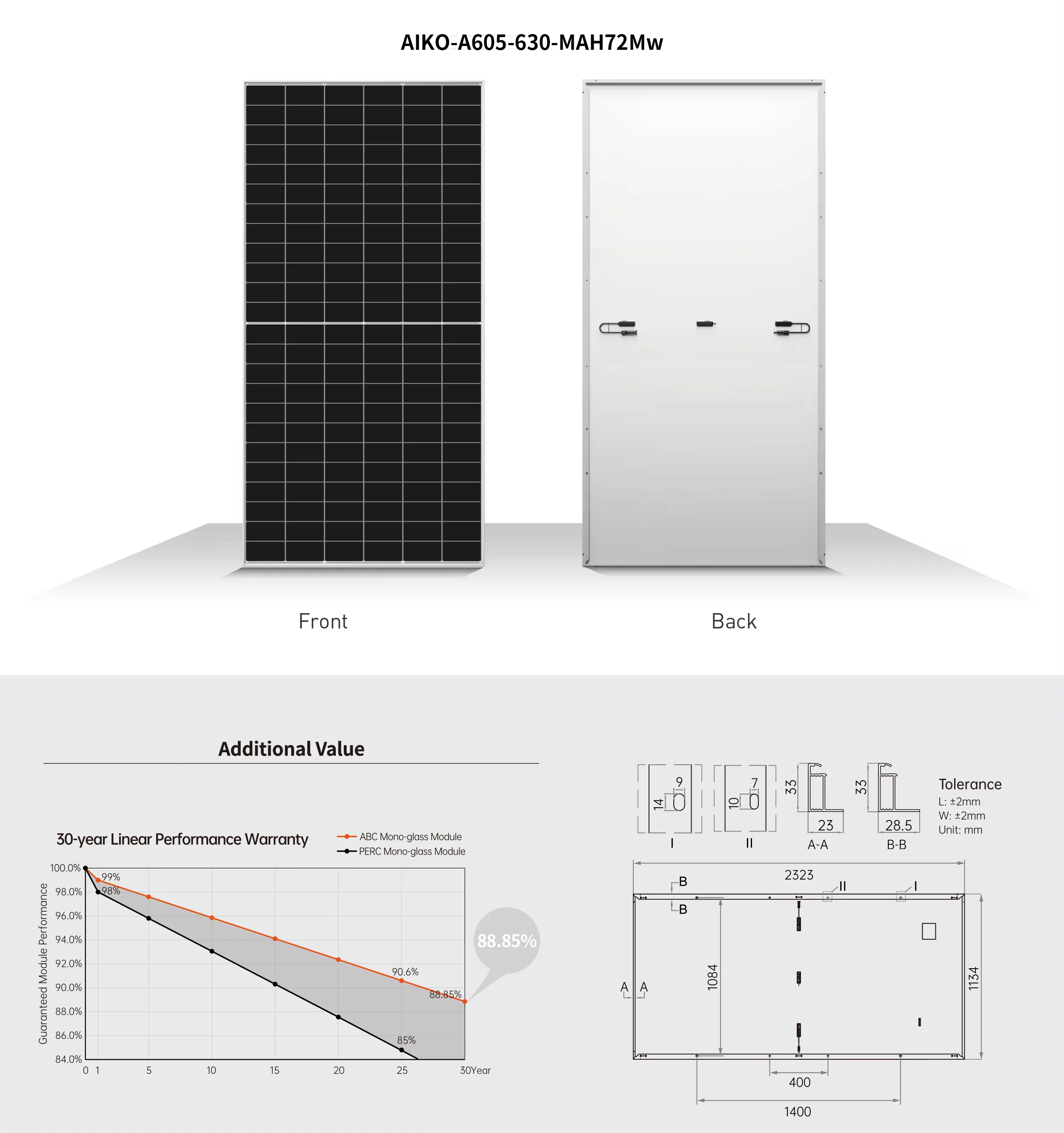

Dimension | 2323*1134*33mm | 2323*1134*30mm | |||||
Operation Temperature | -40℃-+85℃ | ||||||
Maximum Series Fuse Rating | 25A | ||||||
Protection Class | Class ll | ||||||
Maximum System Voltage | DC1500V | ||||||
Maximum Static Loading | Front 5400Pa Back 2400Pa | ||||||
Hail Test | 25 mm diameter hail at 23 m/s | ||||||
Fire Rating | lEC Class C | ||||||
Package Detail | 33pcs per pallet/165pcs per 20'GP/660pcs per 40'HC | 36pcs per pallet/180pcs per 20'GP/720pcs per 40'HC | |||||

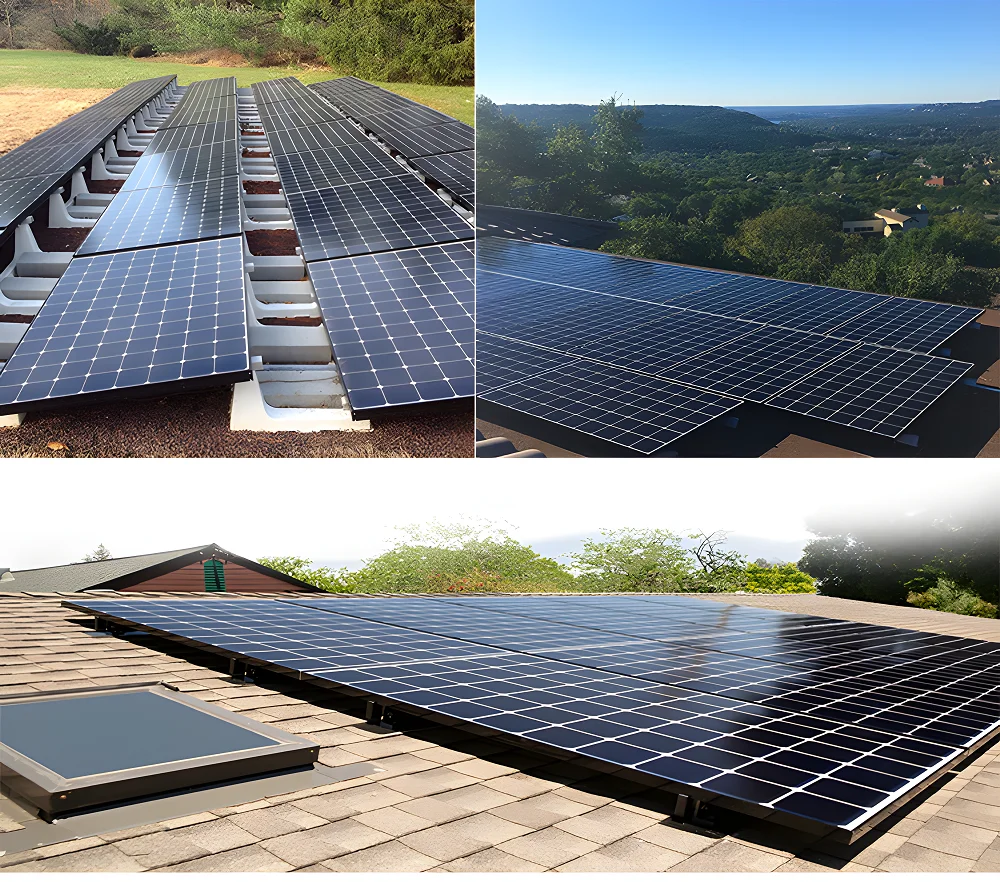

Aplication

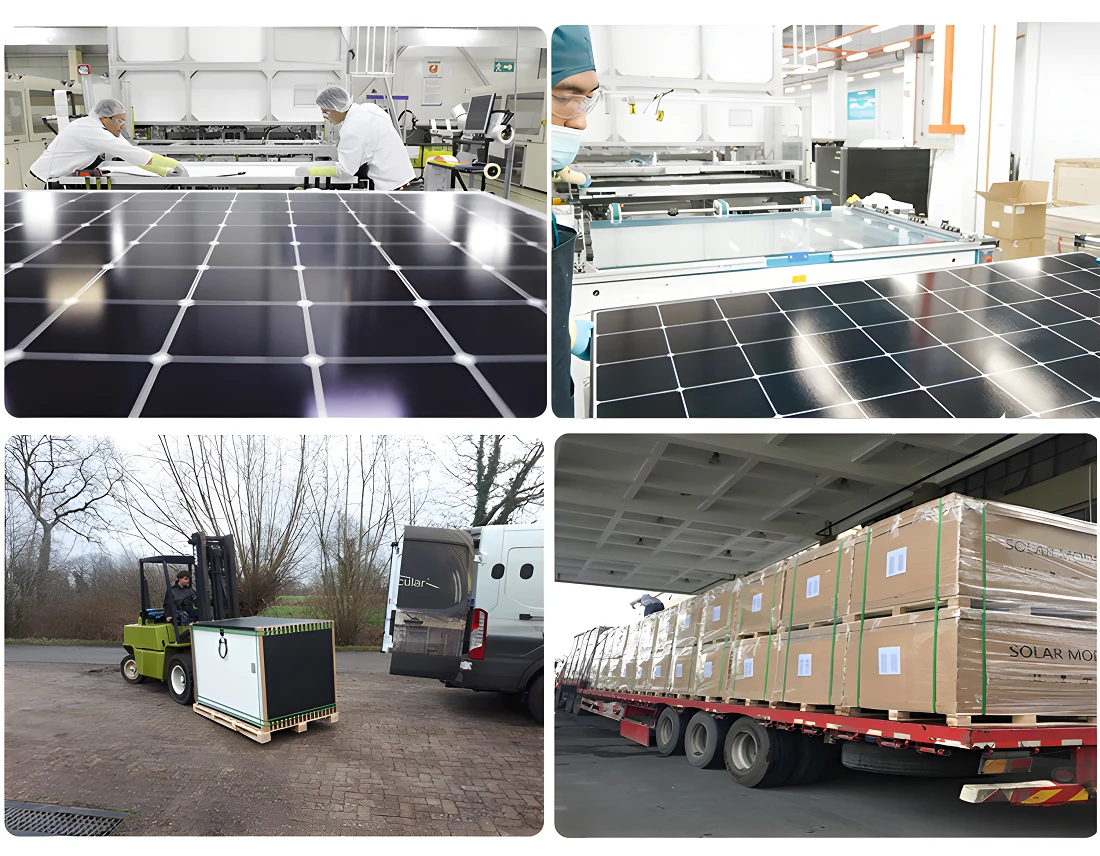

Production & Delivery
Related Products
FAQ
Q1: How to install and use the solar panel?
A1: We have the teaching manual and videos. All the videos about every step of solar panel disassembly, assembly, operation will be sent to our customers.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3: How is your technical support?
A3: We provide lifetime online support through Whatsapp/Skype/Wechat/Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q4: Can you get the solar panel customized?
A5: Of course, OEM & ODM are both available. Cell sizes, solar panel color, designed unique patterns, brand name etc., are all available for customization.
