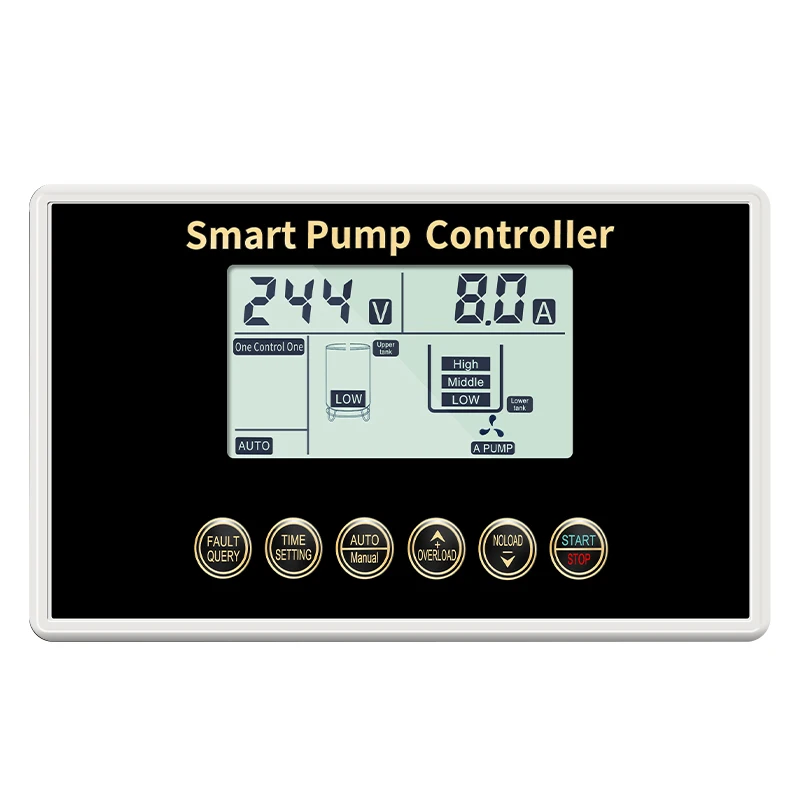

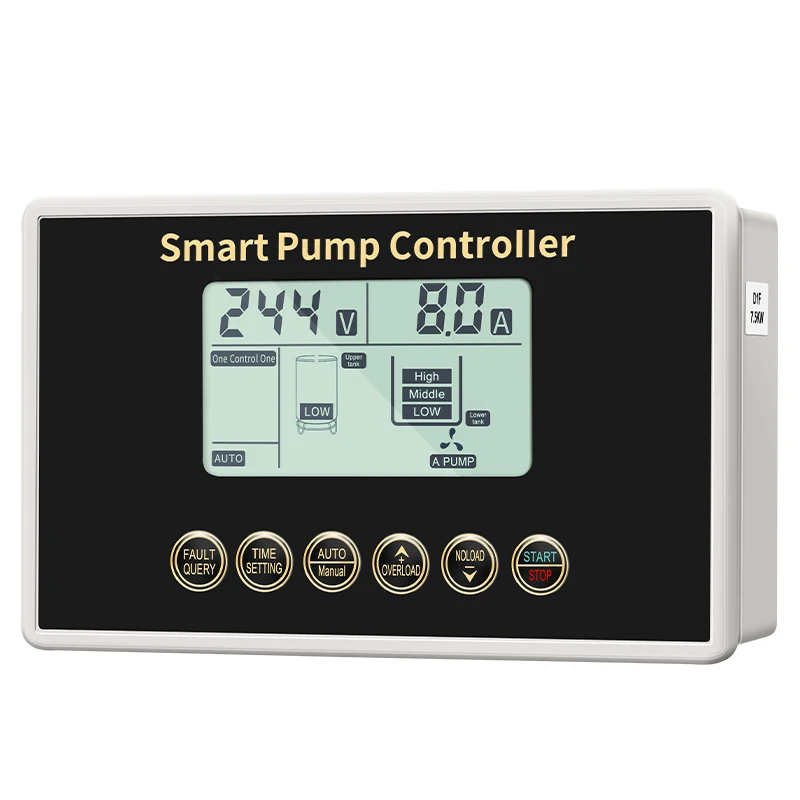

Automatic Pump Control Panel Box Board Water Pump Controller for Level and Pressure Control
Automatic Pump Control Panel Box Board Water Pump Controller for Level and Pressure Control
Automatic Pump Control Panel Box Board Water Pump Controller for Level and Pressure Control
Automatic Pump Control Panel Box Board Water Pump Controller for Level and Pressure Control
Automatic Pump Control Panel Box Board Water Pump Controller for Level and Pressure Control
Automatic Pump Control Panel Box Board Water Pump Controller for Level and Pressure Control
Automatic Pump Control Panel Box Board Water Pump Controller for Level and Pressure Control
Automatic Pump Control Panel Box Board Water Pump Controller for Level and Pressure Control

Automatic Pump Control Panel Box Board Water Pump Controller for Level and Pressure Control

Share on (1601216401650):


Price:

Quantity:


Product Overview

Description





D1F/D2F

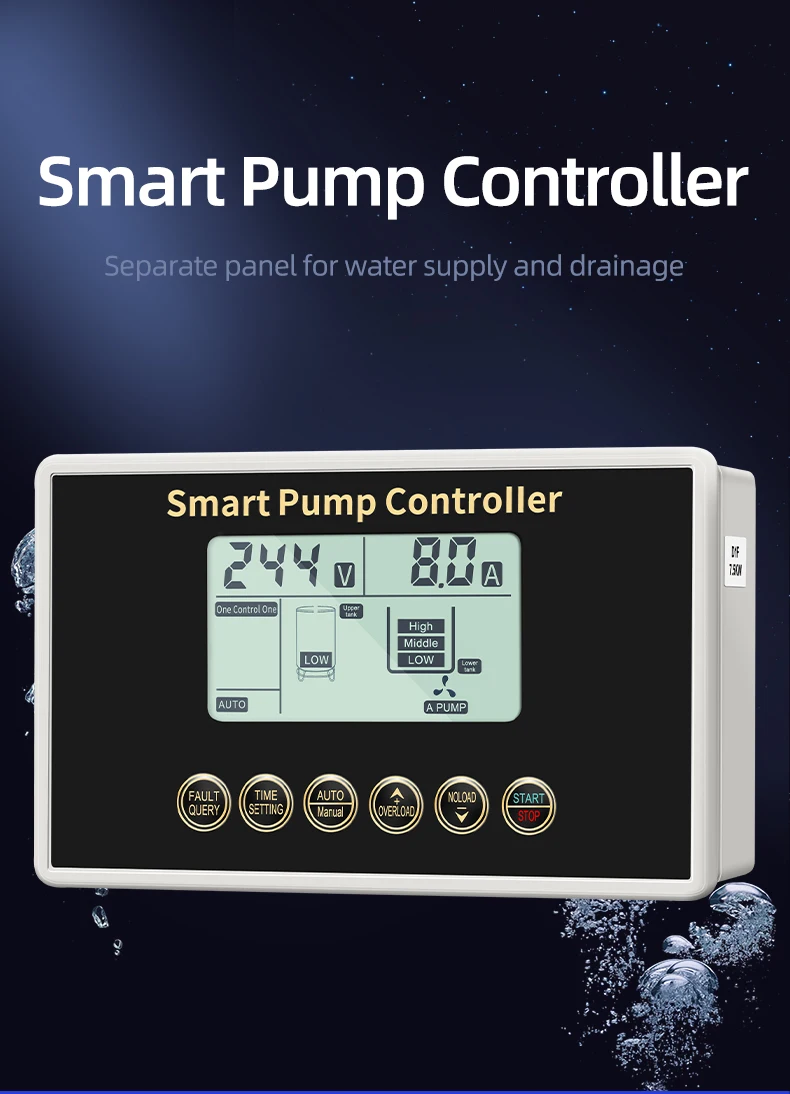

Split Single Pump Control Panel


D1F/D2F LCD display pump control panel for pump controller cabinet assembly is designed to be installed inside the enclosure.There are several layers of automation when it comes to managing and maintaining pumps:Monitoring, Controlling, Protecting,and Automating.

It can be applied to various water pumps up to 30KW,such as subermersible pump,centrifugal pump,multistage pump,deep-well pump,sewage pump,booster pump,pipeline pump,ground pump and etc.

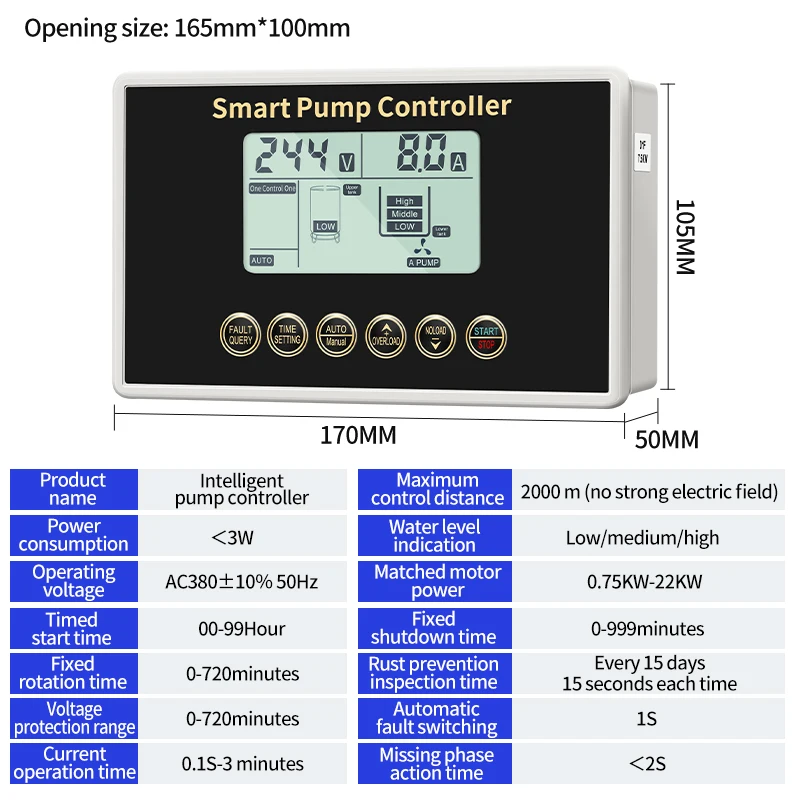

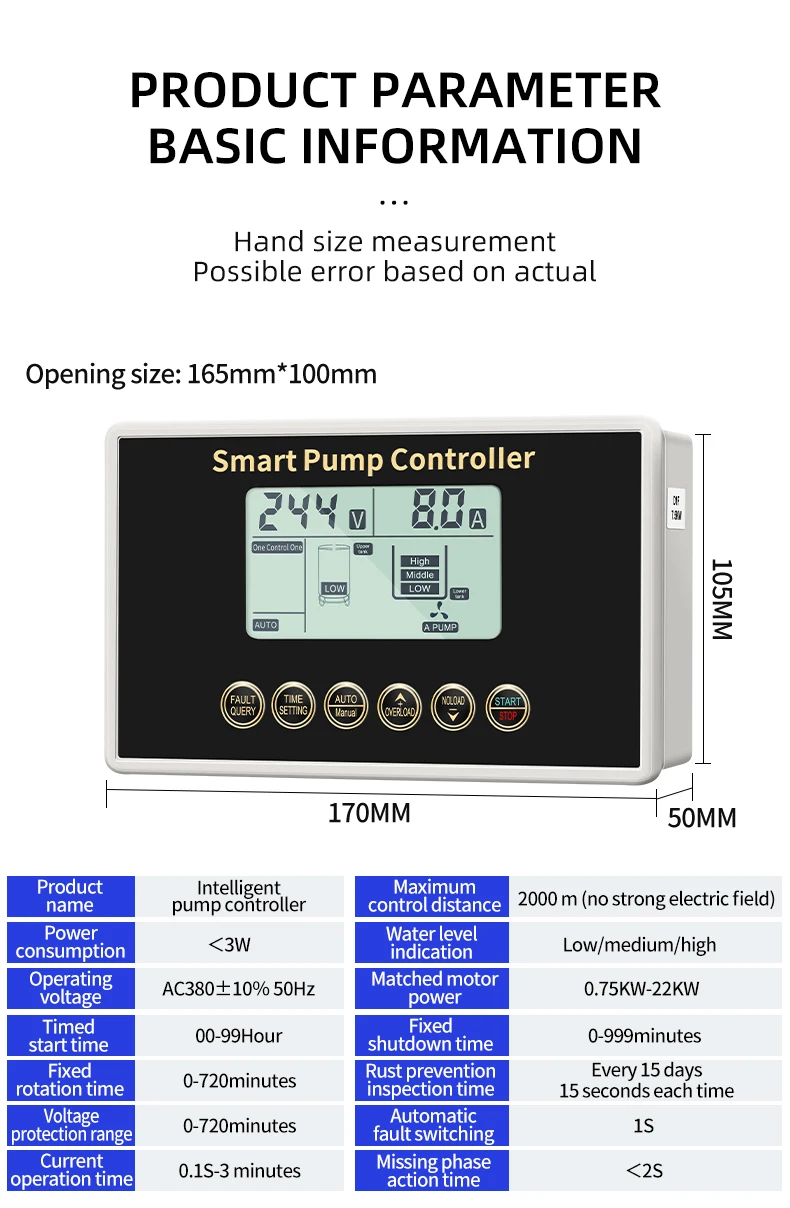

Main Technical Parameters



Type
D1F
D2F
Pump Controlled
Single Pump Control
Two Pump Control
Model
D1F-4KW
D1F-7.5KW
D1F-11KW
D1F-30KW
D2F-4KW
D2F-7.5KW
D2F-11KW
D2F-22KW
Rated Power
0.75-4KW
1.1-7.5KW
1.1-11KW
11-30KW
0.75-4KW
1.1-7.5KW
1.1-11KW
22KW
Rated Voltage
                                                              304VAC-456VAC
176VAC-264VAC
176-264VAC
Main Functions
1,Water level control: level probes or float switch
2,Pressure control: electric contact pressure gauge or pressure switch
3,Pump fault record,latest 10 pump failure reasons display,audio/light alarms.
4,Anti-rust protection,long-term non-use of the pump,15 days to start once for 3 seconds.
5,Automatic restart from over-voltage/under-voltage protection,power failure recovery and dry run protection.
6,Restore factory setting: press both "Overload"and "NO-Load" keys for 3 seconds.
7.Two pump operation modes( D2F exclusive):one duty one standby,twin pump alternation,twin pump automatic switch in faults,twin pumps simultaneous work.

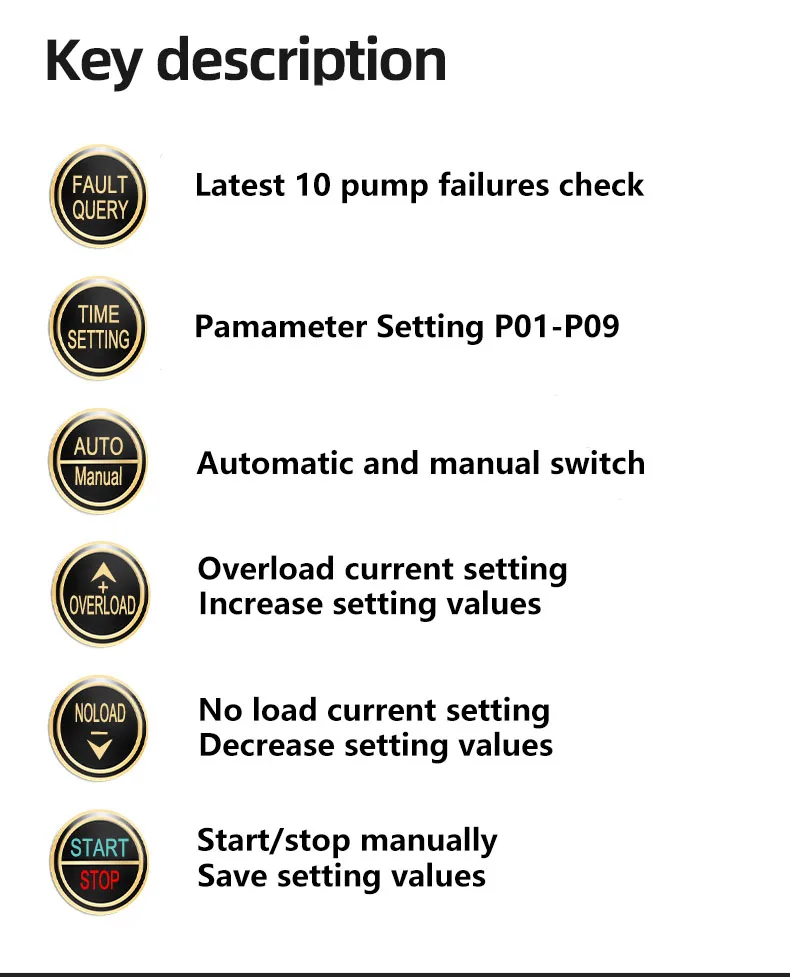

User-friendly Interface

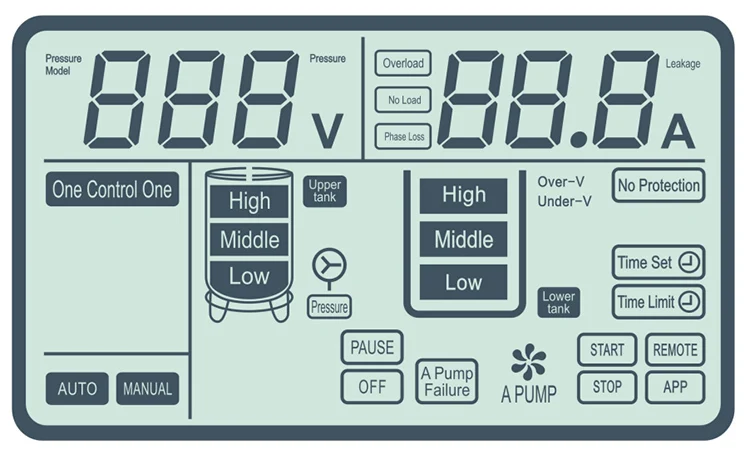

Pump status display: voltage,current,water level,pump failures,and etc.

Parameter Setting:
P01--Overload current setting
P02--No load current setting
P03--Downtime Setting(0-99 hours)
P04-- Pump run time setting(0-999 minutes)
P05-- No load restart time setting(0-720 minutes)
P06-- Twin pump alternation time setting(0-720 minutes)
P07--Over-voltage setting(220V-264VAC,380V-456VAC)
P08 -- Under-voltage setting(176V-220VAC,304V-456VAC)
P09-- Screen backlight OFF time setting((0-999 minutes)


Product Details

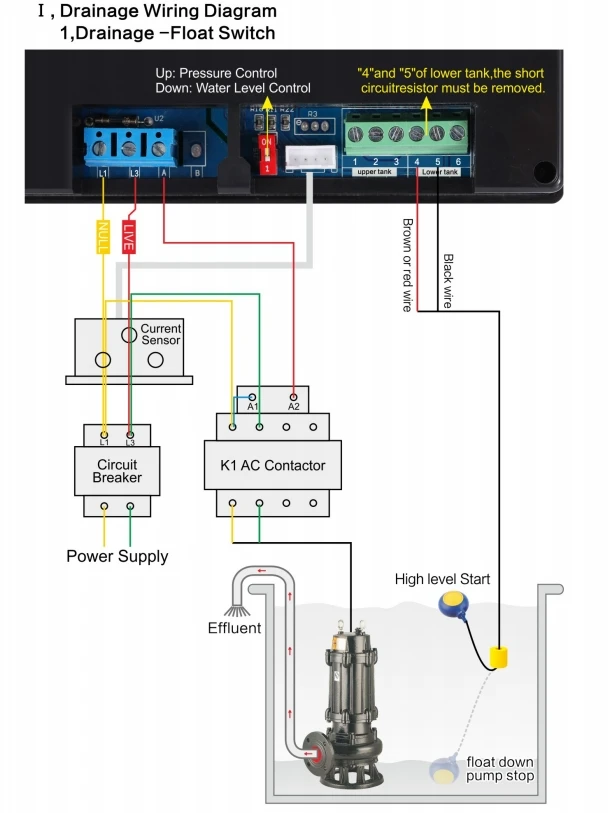

Product Wiring Diagram
