Factory Price Shantui SD22 used bulldozers/Chinese tractor SD22 SD32 Shantui used crawler bulldozer for sale
- Category: >>>
- Supplier: BAI YING TRADING SDN. BHD.
Share on (1601216459945):
Product Overview
Description
Product Description

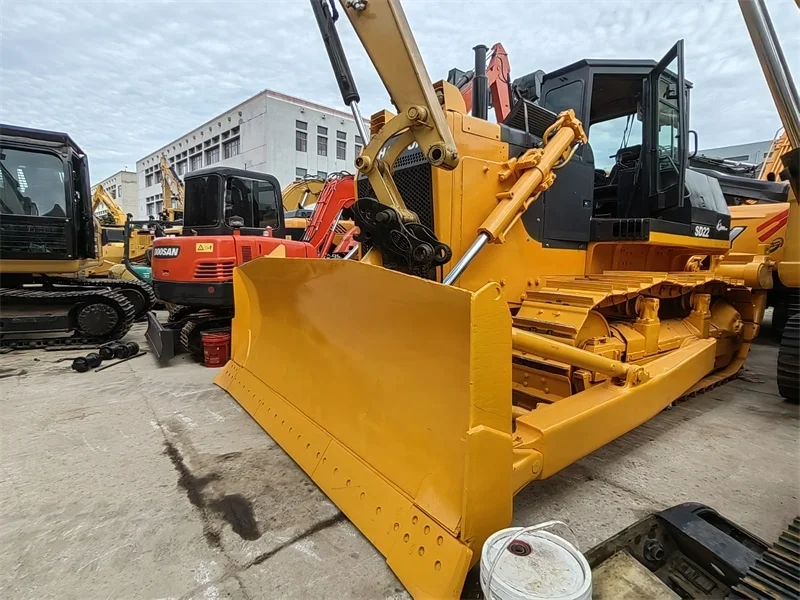

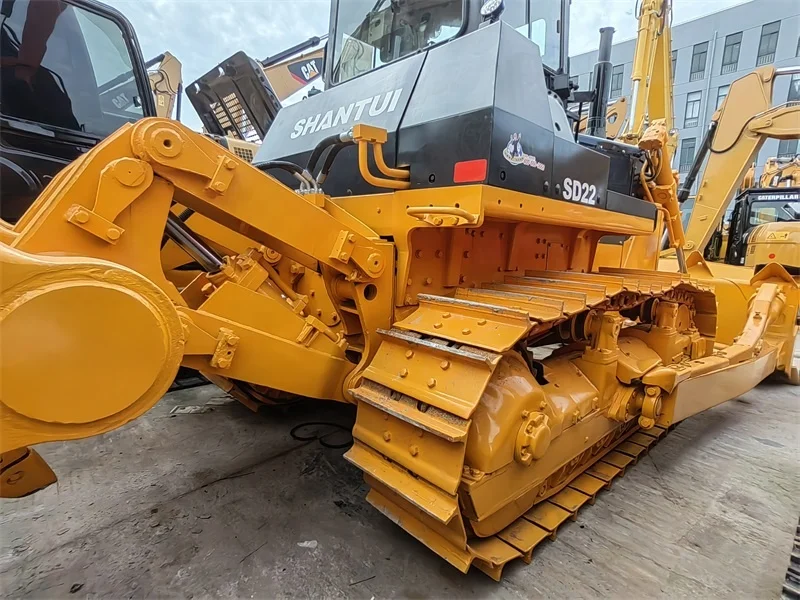

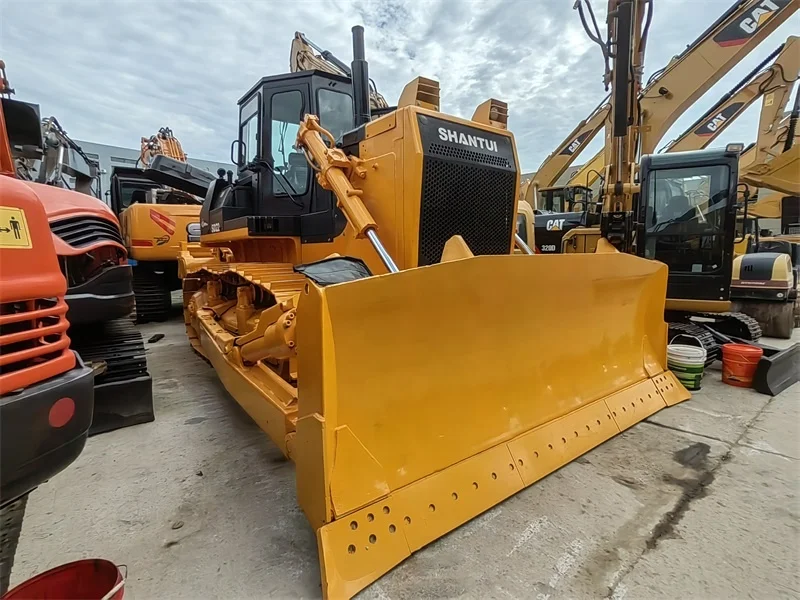

factory price Shantui SD22 high quality used bulldozer for sale
ENGINE Model & type ：Cummins NT855-C280S10;
In-line, water cooled 4-cycle,
overhead valve direct injection,
turbocharged diesel Rated
power: 162 kW
Number of cylinders: 6—139.7 x 152.4 mm (bore x stroke) Piston displacement 14.01 L
Min. fuel consumption 205 g/kW·h
Maximum torque 1030 N·m@1250rpm
ENGINE Torque converter 3-element, 1 stage, 1 phase Transmission Planetary gear, multi-disc
clutch, hydraulically connected, forced lubrication
Main drive Spiral bevel gear, splash lubrication, single-stage speed reduction
Steering clutch Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control Steering brake Wet, floating, direct
on-off hydraulic inter-linking operation Final drive 2-stage speed reduction of spur gear, splash lubrication POWER TRANSMISSION
SYSTEM Gear 1st 2nd 3rd Forward 0~3.6 km/h 0~6.5 km/h 0~11.2 km/h Reverse 0~4.3 km/h 0~7.7 km/h 0~13.2 km/h TRAVEL SPEED Type
Swing type of sprayed beam, suspended structure of equalizer bar Carrier rollers 2 each side Track rollers 6 each side Track type
Assembled, single-grouser Width of track shoes 560 mm Pitch 216 mm UNDERCARRIAGE SYSTEM Maximum pressure 14 MPa Pump type Gear pump Discharge 262 L/min
Bore of working cylinder × no. 120 mm × 2 HYDRAULIC SYSTEM SD22 Blade type Straight-tilt Angle
Semi-U-blade Dozing capacity 6.4 m3 4.7 m3 7.5 m3 Efficiency (Theoretical value 40 m) 330 m3 /h 245 m3 /h 365 m3 /h Blade width 3725 mm 4365 mm 3725 mm
Blade height 1315 mm 1055 mm 1374 mm Maximum drop below ground 538 mm 535 mm 540 mm Maximum tilt

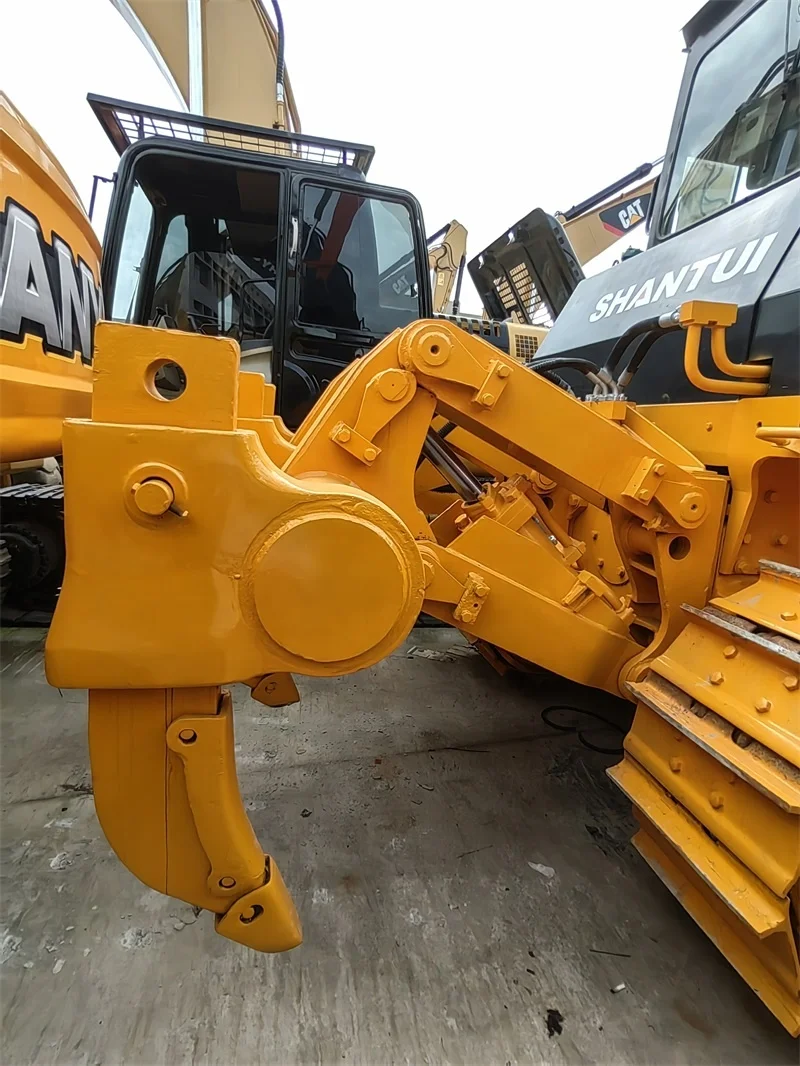

adjustment >735 mm >500 mm >755 mm Weight of blade 2830 kg 3254 kg 3419 kg BLADE Maximum digging depth of 3-shank ripper 666 mm
Maximum lift above ground ：555 mm
Weight of 3-shank ripper :2495 kg
Maximum digging depth of single ripper:695 mm Maximum lift above ground：515 mm
Weight of single ripper: 2453 kg
Item | bulldozer | Mark | Shantui |
weight | Weight 37.2 t. | condition | used |
Engine | original | Fuel | Diesel |
Specification
item | value |
Local Service Location | None |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2021 |
Warranty of core components | 1.5 years |
Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
Brand Name | Caterpillar |
Model Number | SD22 |
Condition | Used |
Moving Type | Crawler Bulldozer |
Warranty | 1.5 years |
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts |
Packing & Delivery

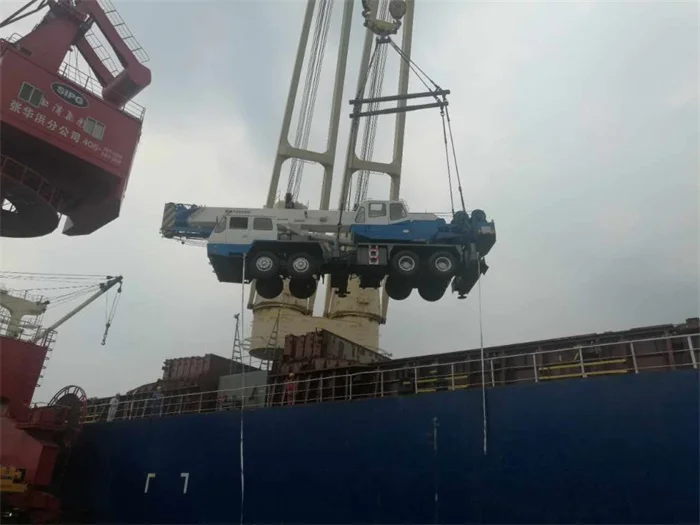

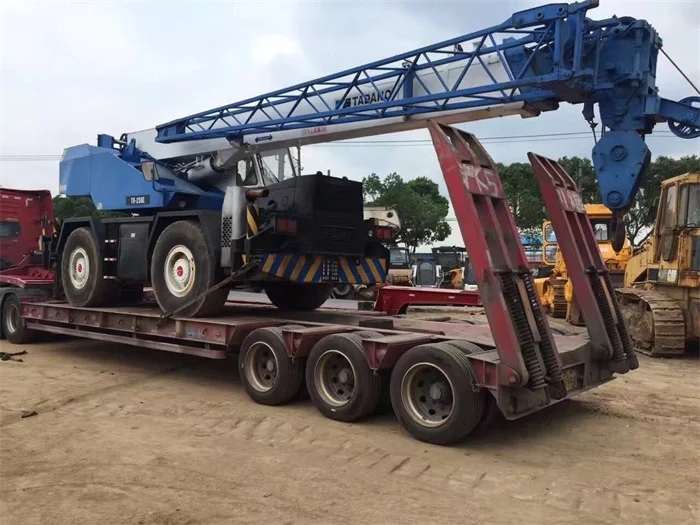

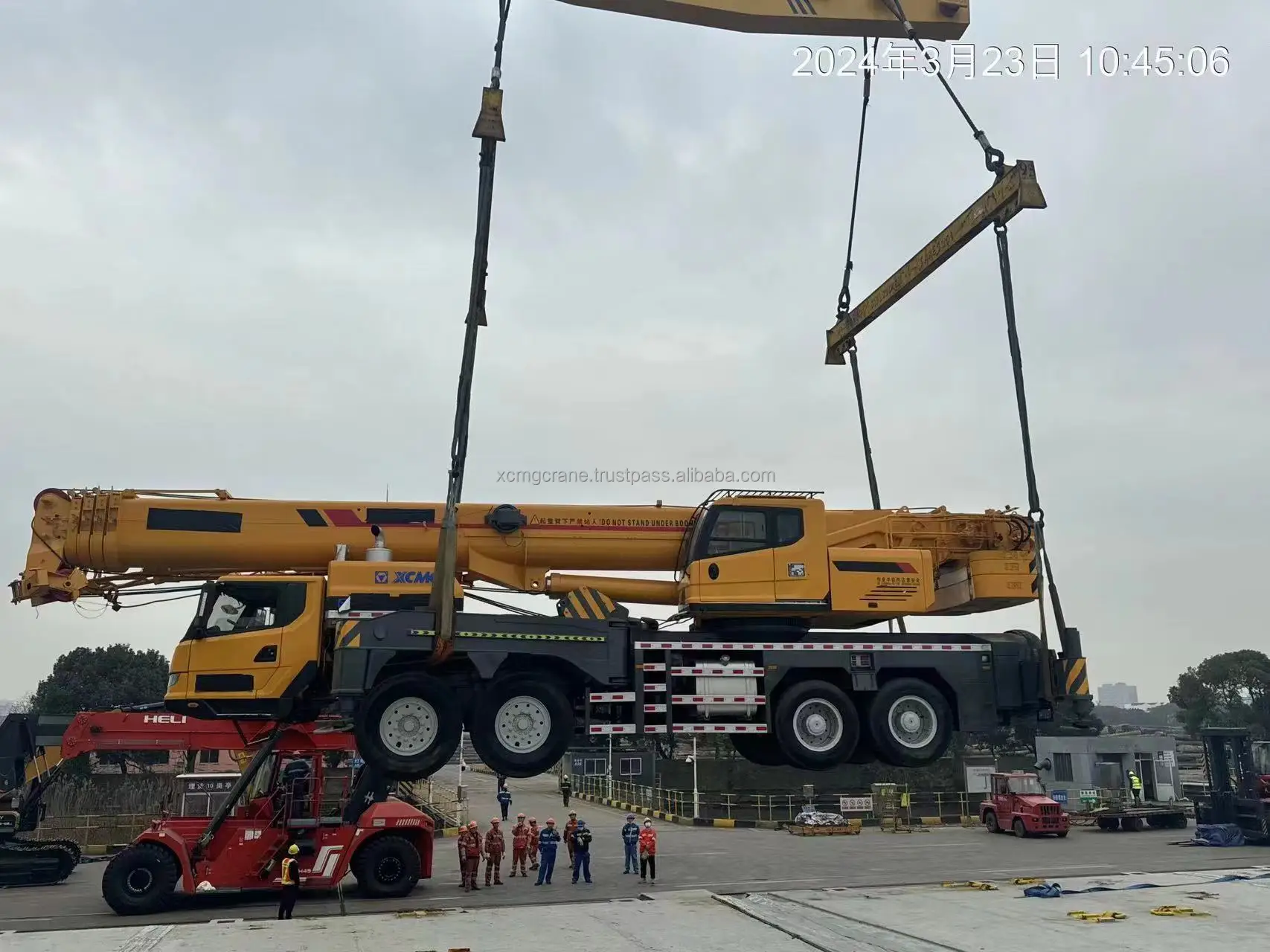

Ro-Ro, Bulk , Flat rack container
Company Profile
We are a standard company which specialized in selling all kinds of used construction machines, such as used excavator, used bulldozer, used motor grader, used road roller, used wheel loader, used forklift, used truck crane, etc. We would supply machines in excellent condition in competitive price.
FAQ
Our service:
Before purchasing:
1.Pick you up from the airport
2.Book comfortable hotel
3.show you around the famous places in Shanghai
4.taste some local cuisines
5.Gratuitous translation and guide service providedtaste
In the purchasing:
1. welcome you to visit our yards
2. Enjoy free test drive
3. Can try and choose verity of machines from all the brands that we have.
After the purchase:
1. enjoy one year of warranty
2. Supplying and returning every parts of machines,that you have bought from us.
3. Take you to the airport.
1.Pick you up from the airport
2.Book comfortable hotel
3.show you around the famous places in Shanghai
4.taste some local cuisines
5.Gratuitous translation and guide service providedtaste
In the purchasing:
1. welcome you to visit our yards
2. Enjoy free test drive
3. Can try and choose verity of machines from all the brands that we have.
After the purchase:
1. enjoy one year of warranty
2. Supplying and returning every parts of machines,that you have bought from us.
3. Take you to the airport.
