US $7999-$8699
HWCPM1500 Counter current concrete planetary mixer supplier used in precast concrete mixing plant
- Category: >>>
- Supplier: Henan Wode Heavy Industry Co. Ltd.Henan Ltd.
Share on (1601216536489):
Product Overview
Description
Product descriptions from the supplier
Overview
Product Description

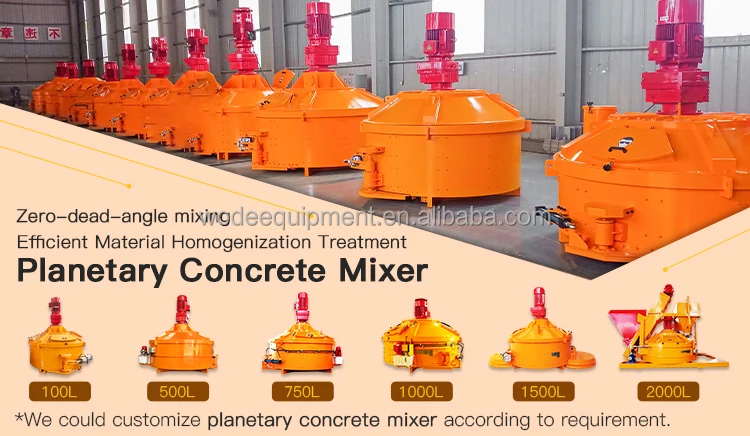

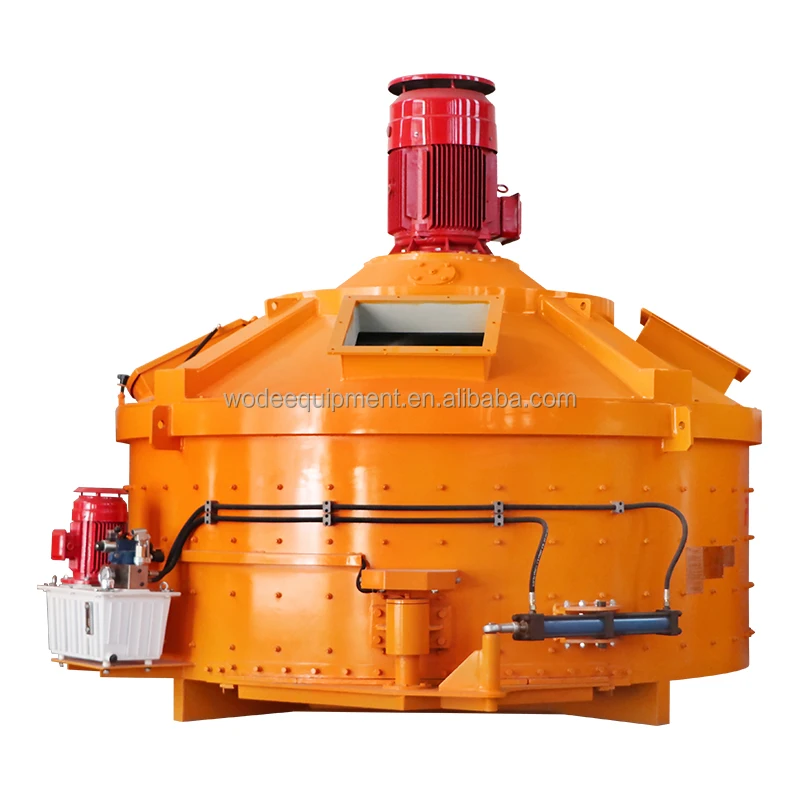

HWCPM1500 planetary concrete mixer:
1. Different with common mixer, planetary concrete mixer mixing blade uses the principle of revolution androtation motion, and the motion track cobers the entire mixing barrel, realizing zero-dead-angle mixing in themixer barrel.

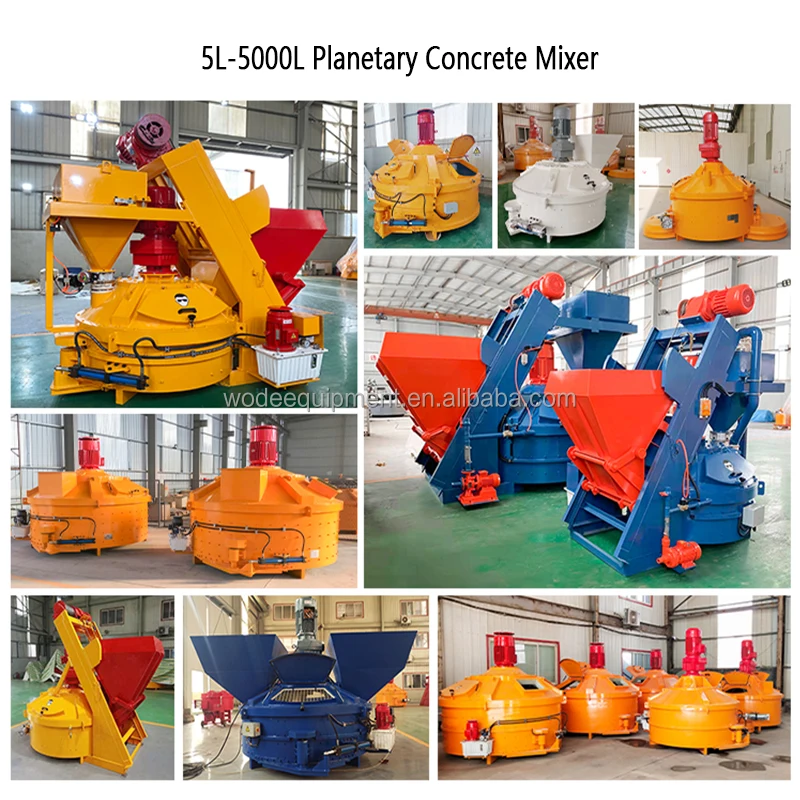

2. HWCPM planetary concrete mixer output capacity is 5L-5000l
2. HWCPM planetary concrete mixer output capacity is 5L-5000l
3. HWCPM planetary concrete mixers are mainly used in various building materiasl, concrete, UHPc, refractorycastable,metallurgy,glass and chemical materials etc.
4. We could customize pneumatic or hydraulic discharge door, skip hopper, extended funnel with bagbreaker for bag,cement weighting device and water metering device.
If you are interested in planetary concrete mixer, please contact us freely.

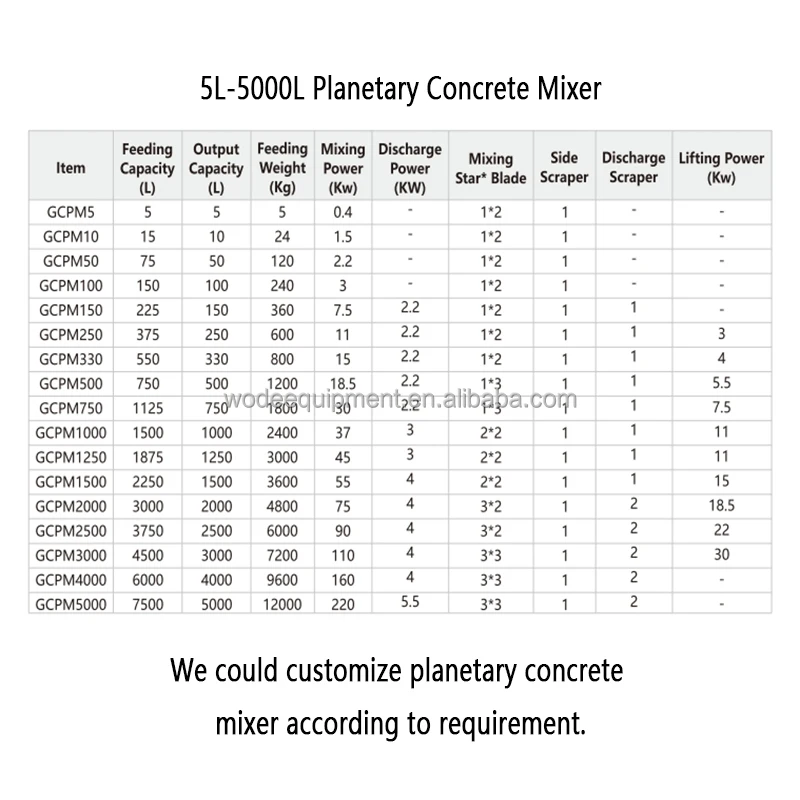

Item | HWCPM1500 | |
Feeding Volume (L) | 2250 | |
Feeding Capacity (Kg) | 3600 | |
Output Volume (L) | 1500 | |
Mixing Power (Kw) | 55 | |
Mixing Star * Blade | 2*2 | |
Side Scraper | 1 | |
Discharge Scraper | 1 | |
Discharging Power (KW) | 3 | |
Weight (Kg) | 6500 | |
Dimension (mm) | 3223*2902 *2470 | |
Working principle of planetary concrete mixer：
Different with common mixer, planetary concrete mixer mixing blade uses the principle of revolution and rotatiormotion, and the motion track cobers the entire mixing barrel, realizing zero-dead-angle mixing in the mixerbarrel.
Different with common mixer, planetary concrete mixer mixing blade uses the principle of revolution and rotatiormotion, and the motion track cobers the entire mixing barrel, realizing zero-dead-angle mixing in the mixerbarrel.

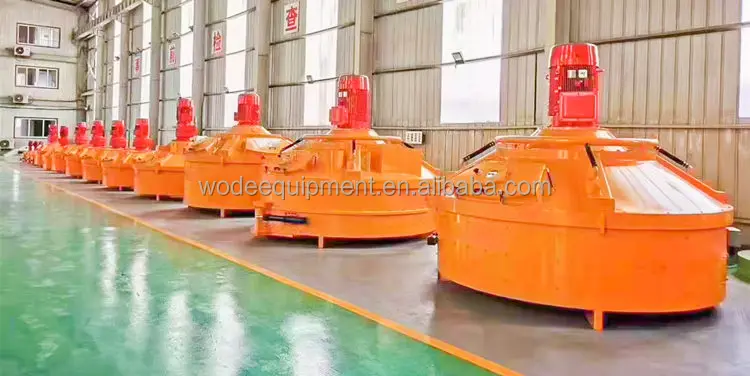

Image Display

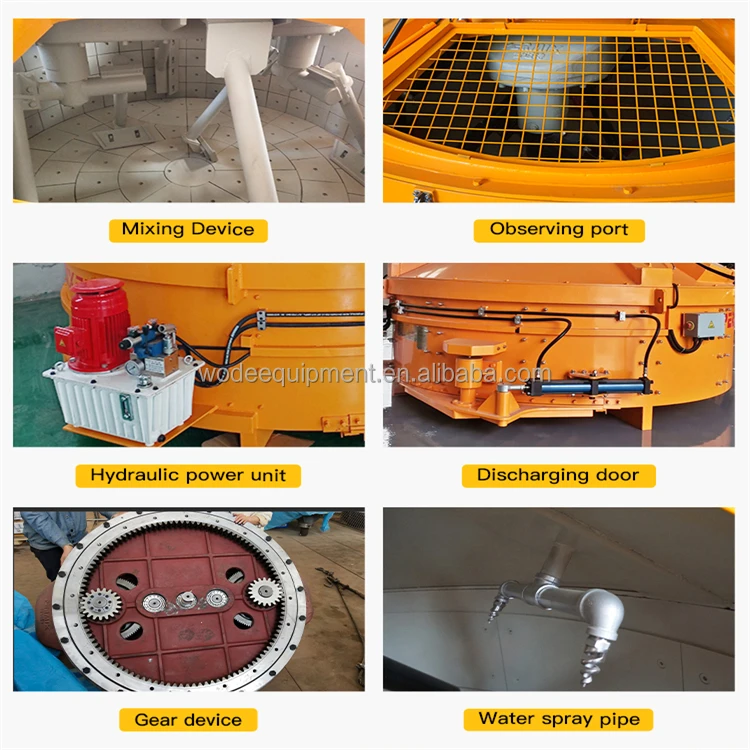

Details Images
Planetary Reducer
The transmission system integrates AutoNavi's customized motor with hard tooth surface gear, and the gearbox optimized by European
technology is seamlessly connected by elastic coupling. The new version is quieter, more torque, and significantly more durable.
The transmission system integrates AutoNavi's customized motor with hard tooth surface gear, and the gearbox optimized by European
technology is seamlessly connected by elastic coupling. The new version is quieter, more torque, and significantly more durable.
Security switch
In order to improve the security of using theproduct, reliable high-sensitive security switchesare used in the
maintaining door to
make the maintaining work safe and convenient
maintaining door to
make the maintaining work safe and convenient
Discharge Door
According to the different demands ofcustomers, the discharging door can beopened by hydraulic, pneumatic or by
hands.The number
of the discharging door is threeat most. And there is special sealing deviceon the discharging door to ensure thesealing reliable.
hands.The number
of the discharging door is threeat most. And there is special sealing deviceon the discharging door to ensure thesealing reliable.
Planetary mixing system
Mixing blades are designed in parallelogramstructure, which can be turned 180°for reuseto increase service
life, Bottom scraper/
sidescraper /planetary mixing. The movement ofthe material inside the trough is smooth andcontinuous.
life, Bottom scraper/
sidescraper /planetary mixing. The movement ofthe material inside the trough is smooth andcontinuous.
Water & Additive Device
Overhead structure is used to water, largecovering area and make the material moreuniform mixing.
Maintenance Gate
Large maintenance gate and inside space isconvenient for maintenance and spare partsreplacement.

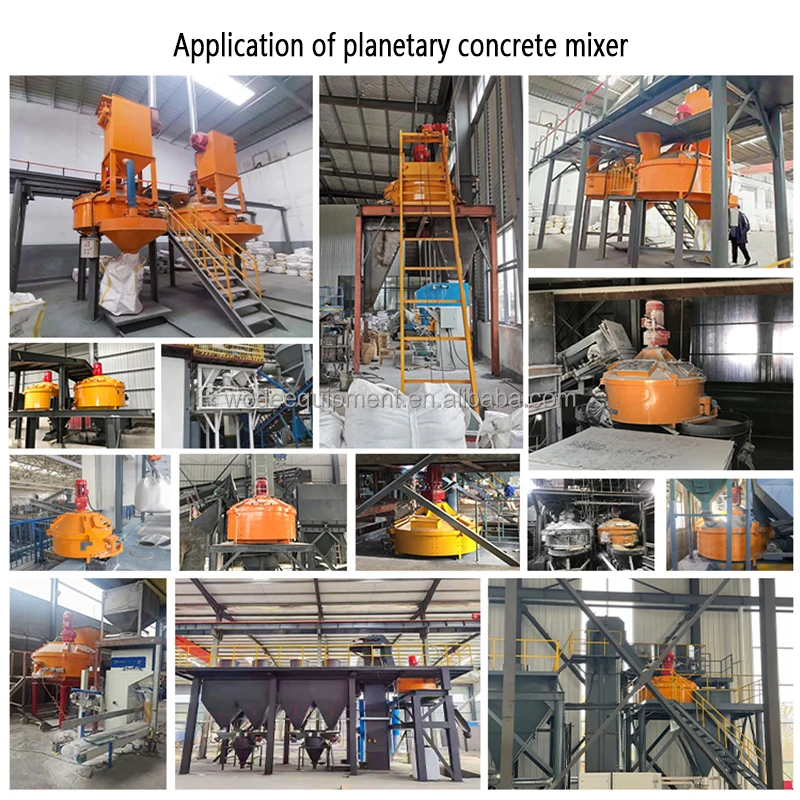

Application

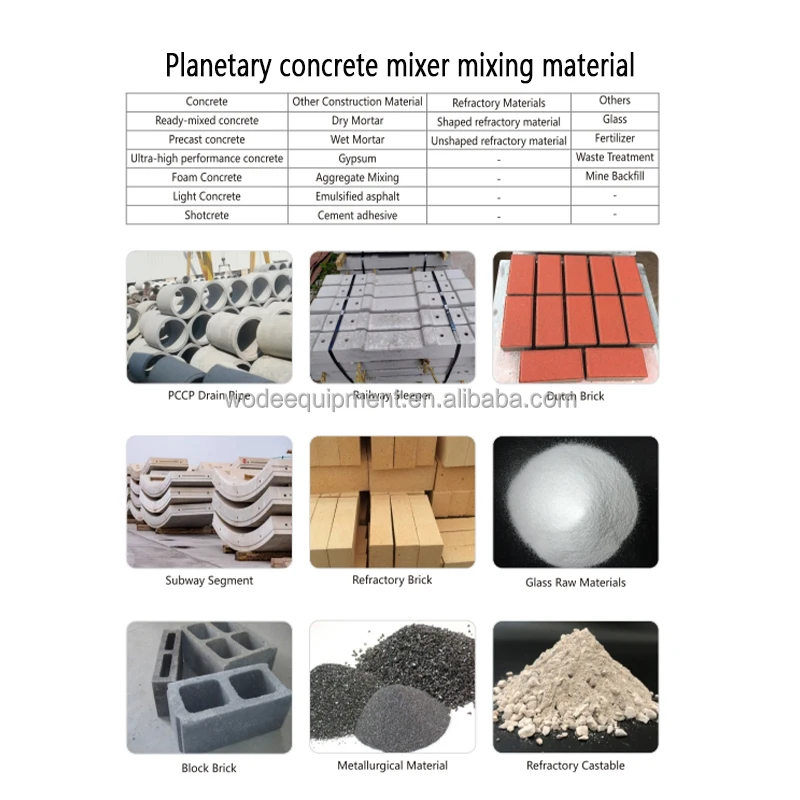

Planetary concrete mixer application | ||||||
Concrete Material | Other Construction Material | Refractory Material | Others | |||
Ready-mixed concrete / Ready mix concrete | Dry Mortar | Shaped refractory | Glass (glass processing machinery) | |||
Precast Concrete | Wet Mortar | Unshaped refractory | Fertilizer | |||
Foam Concrete | Gypsum | Water treatment | ||||
Ultra High Performance Concrete | Aggregate Mixing | Mine backfill | ||||
Light Concrete | Emulsified asphalt | Ceramic Raw Materials | ||||
Shotcrete | Cement adhesive | |||||
We could customize planetary concrete mixer according to requirement. | ||||||
Related Products
Package and delivery
Contact Supplier
Contact us for planetary concrete mixer catalog and price
In order to confirm which type planetary concrete mixer suitable for your job, could you please help us to confirm the following information:
1. What is your project with our mixer, for mixing concrete or refractory?
2. What is the mixing capacity you require?
3. Do you need pneumatic discharge door or hydraulic discharge door?
4. What is the voltage you require?
3. Do you need pneumatic discharge door or hydraulic discharge door?
4. What is the voltage you require?
If you are interested in our products, please contact us freely .And click here. https://message.alibaba.com/msgsend/contact.htm?spm=a2700.shop_index.88.dctmsg.11075435dFTao3&action=contact_action&domain=2&id=284468362&id_f=IDX10nfuP6SeZqxn9bJFcID-qFcH7RMjvH0M5FA4ikb3lDtVQIpy2DDNcEjHLFmsQq8D&tracelog=from_shop&mloca=shop
