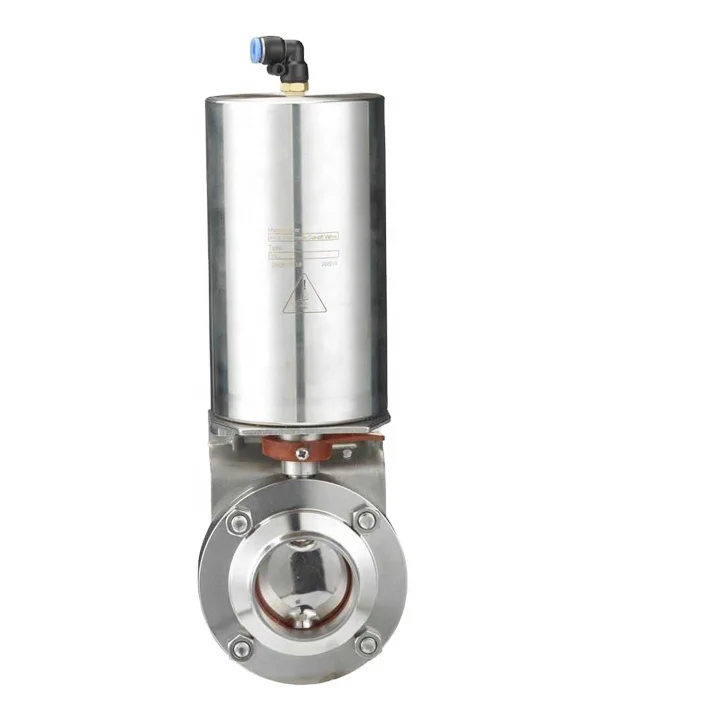

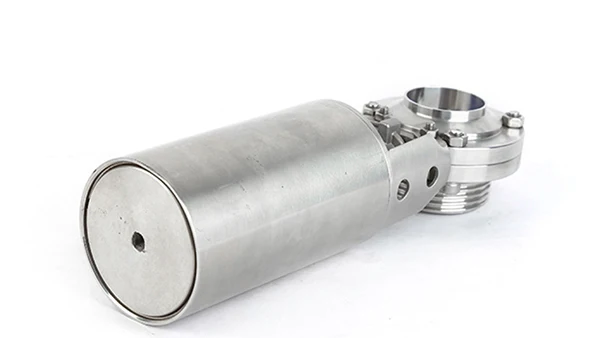

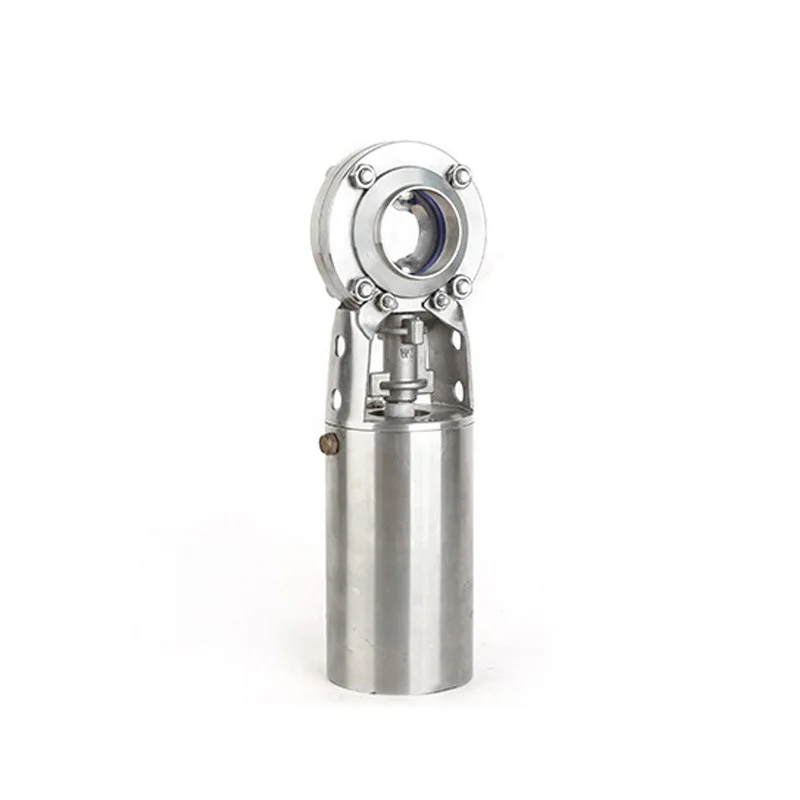

Sanitary Stainless Steel Pneumatic Weld Butterfly Valve

Share on (1601216663437):


Price:$20.00-26.00

Quantity:


Product Overview

Description

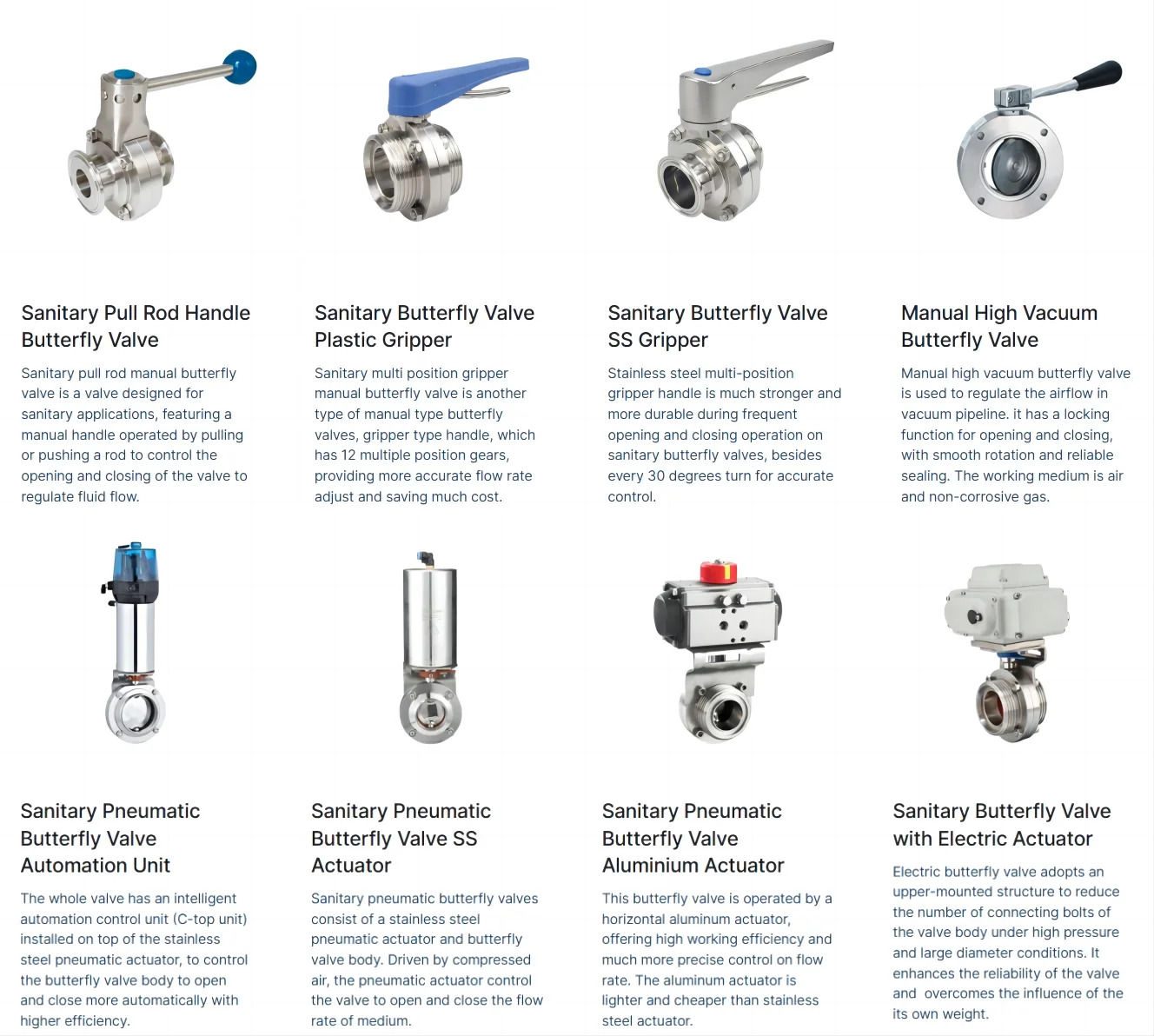

Sanitary Butterfly Valves Types


Linch offers all kinds sanitary stainless steel butterfly valves: Manual butterfly valves, Pneumatic butterfly valves and Electric butterfly valves. Valve body is made of high-grade stainless steel, SS304 or SS316L.

Sanitary butterfly valves are available with different connect end, like clamp, weld, male, union, flange to suit various of pipe systems and installation requirements.

We can manufacture butterfly valves as per requested standards, SMS standard, DIN standards, ISO/IDF standards and 3A standards



Product name
Sanitary Pull Rod Handle Butterfly Valve
Standard
DIN,SMS,3A
Body Material
SS304 or SS316L
Seal Material
Silicon, EPDM, PTFE,Viton, NBR
Working Pressure(Max)
10 bar
Working Temperature (Max)
120 ℃
Size
1/2" - 6"; DN15-DN150
Connection End
Weld
SurfaceTreatment
Inside Ra≥0.4-0.8 um; Outside: Mirror polish
Manual Handle
4 gear pull handle, or 12 gear gripper handle




Product name
Sanitary Pneumatic Butterfly Valve Aluminium Actuator
Pneumatic Actuator:
Light and economical aluminum actuator
Actuation Mode:
Normal Open, Normal Closed, Spring Return
Air Supply Pressure:
5-7 bar
Clamp End Size:
1” - 8”, Φ20-Φ219
Connection End:
Tri Clamp
Clamp Standard:
DIN11864, DIN11853, DIN32676, ISO2852, SMS3017, ASME BPE, BS4825
Gasket:
Silicone, EPDM, Viton
Pressure:
PN1.0MPa, PN1.6Mpa
Working Temperature:
-10°C to +120°C
Surface Polishing:
Ra≤0.8um

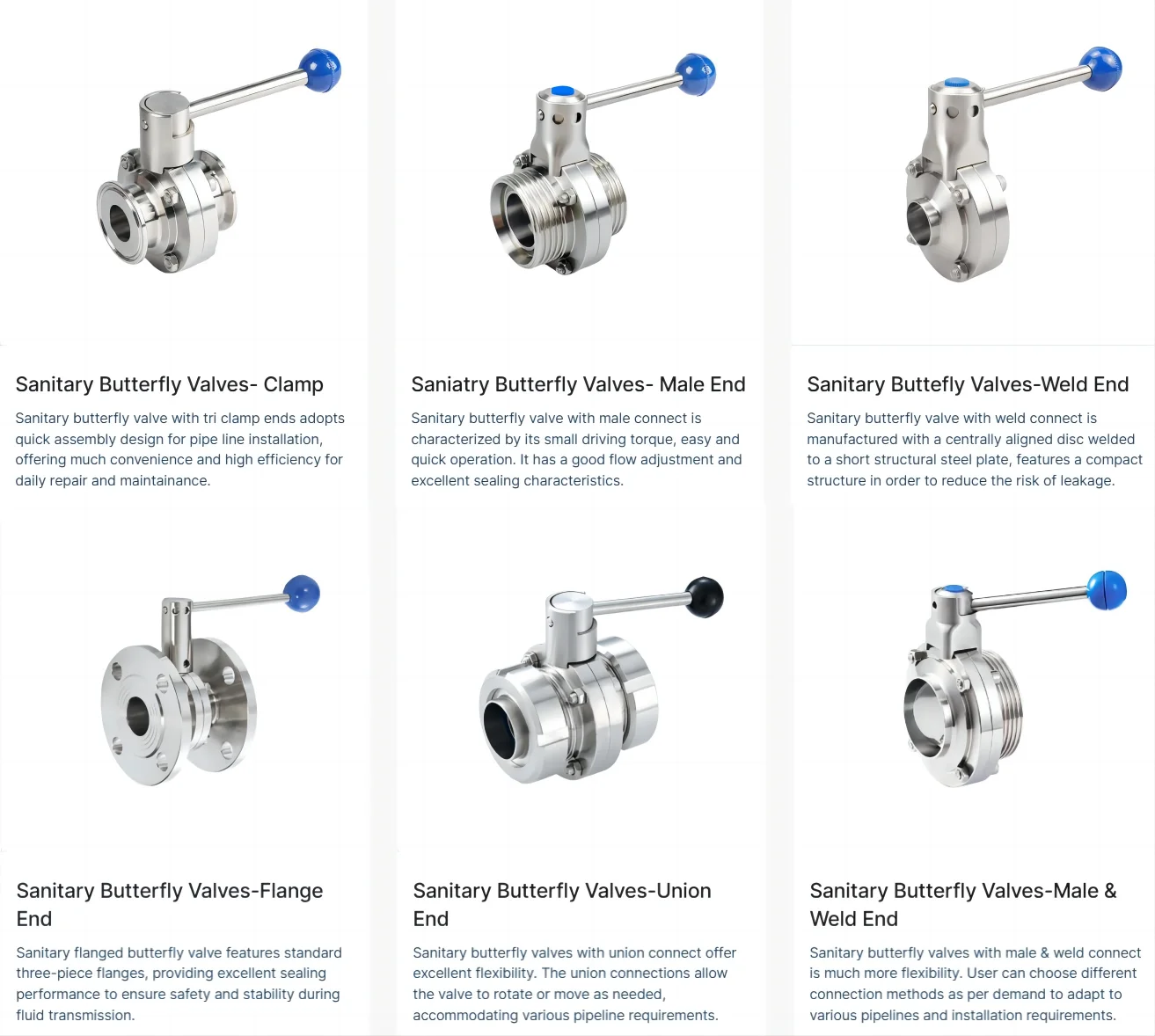

Sanitary Butterfly Valves By Connection End

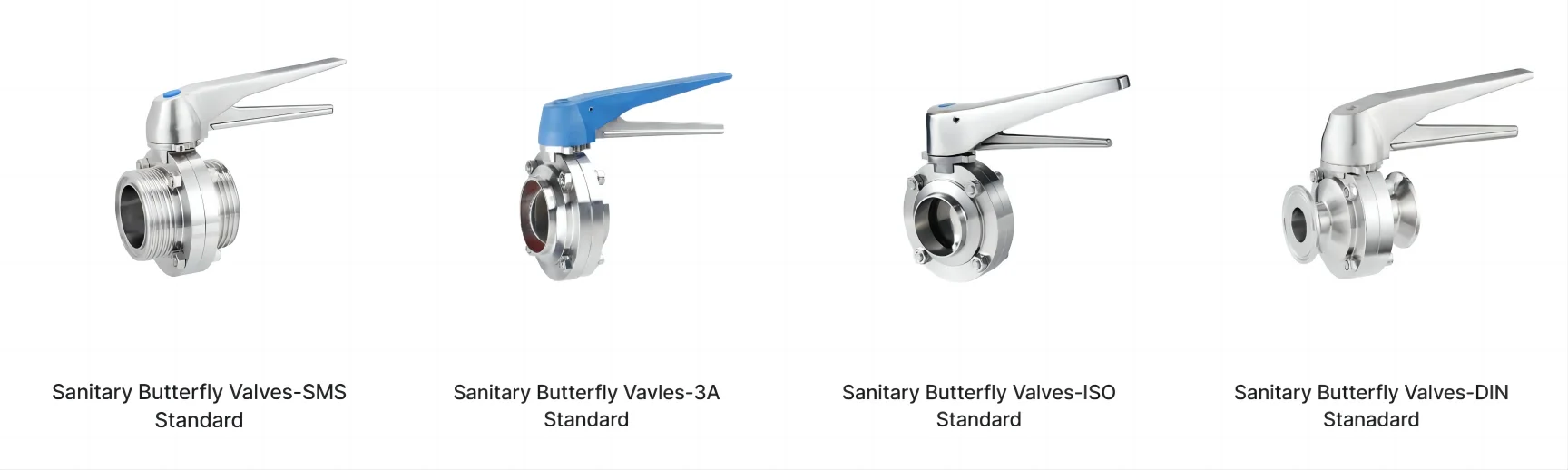

Sanitary Butterfly Valve Production Standards

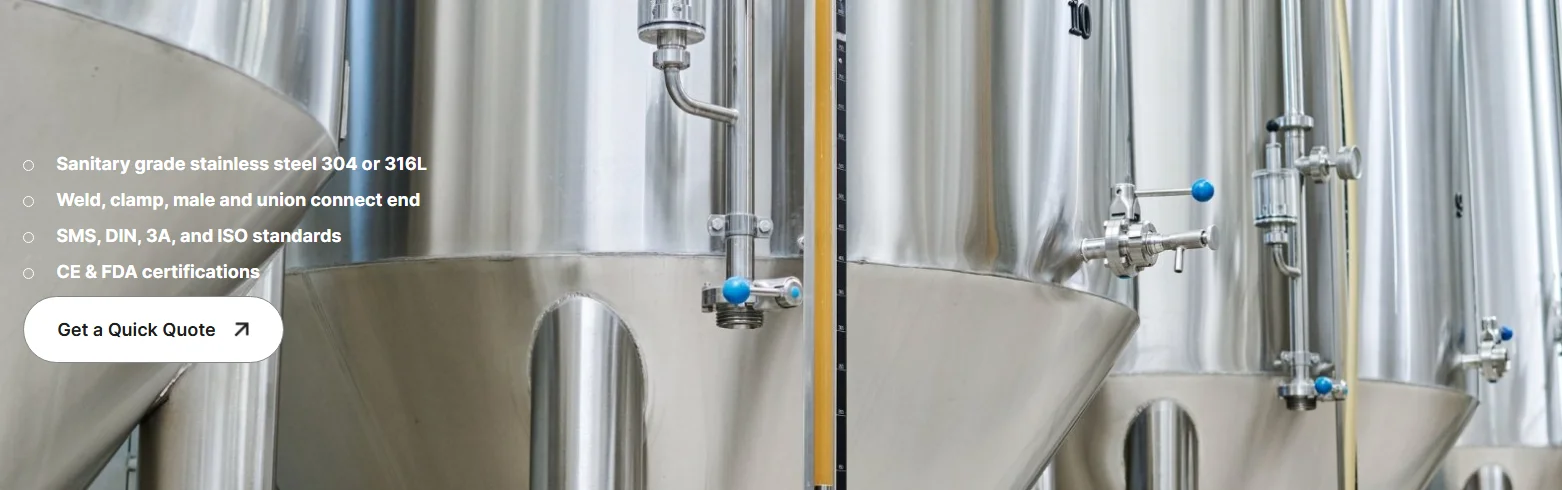

Application


Beverage & Brewery Industries
Food & Dairy Industries
Biological & Pharmaceutical Industries

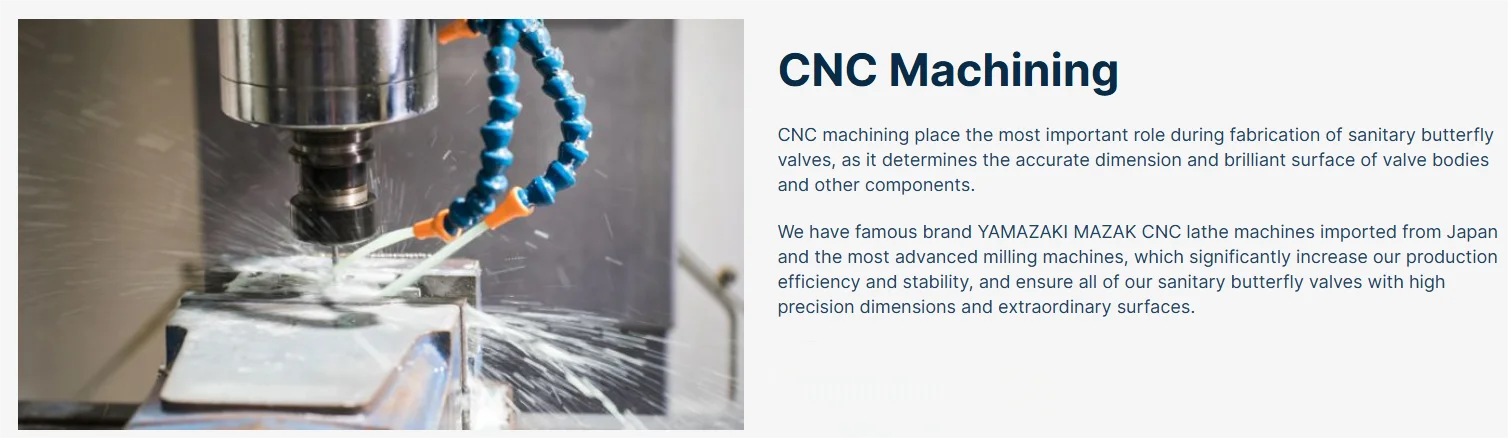

Production Process












Why Choose Us


We are one of the best suppliers of sanitary stainless steel products in China, specializing in the production of various high-precision sanitary stainless steel products.
Products cover: sanitary valves, stainless steel pipes, pipe fittings, flanges, fasteners, reducing pipes, etc., and various sanitary stainless steel products can also be customized according to customer requirements.




In order to ensure that product quality meets all relevant standards, we have developed 8 special processing technologies and have more than 10 technical patents.
Currently, all our products comply with ISO, SMS, IDF, 3A and DIN standards, as well as GMP and food industry requirements.
Among all Chinese suppliers, we have the most extensive range of models and the safest certification




We provide customized services to customers all over the world
* We have technical team with more than 15 years’ experience in R & D and design of sanitary stainless steel products
* A complete system of control process to meet customer’s specific needs and applications
* Our management mechanism is one-on-one project for each client
* More stringent process technology team, more skillful technology processing workers
* A full set of non-standard products processing equipment




Certifications




FAQ


Q:What is MQO?
A:No MOQ required for products in stock.Others can be discussed.

Q:What is your lead time?
A:7-10 days for standard products.For custom made products lead time to be negotiated.

Q:How do you ensure to meet our requirement?
A:Yes, we fabricate samples for your approval, and arrange trial order production before mass production.

Q:Do you fabricate custom made valves and fittings?
A:We can fabricate non-standard stainless steel valves and fittings as per your drawings. We can also provide technical support in design according to your special requirement.
