Production Line Flying 20W CO2 Laser Marking Machine Expiry Date Batch Code Laser Printer for Plastic Bags Cable Wire PET Bottle
- Category: >>>
- Supplier: Suzhou Fangshiheng Precision Machinery Co. Ltd.
Share on (1601216705748):

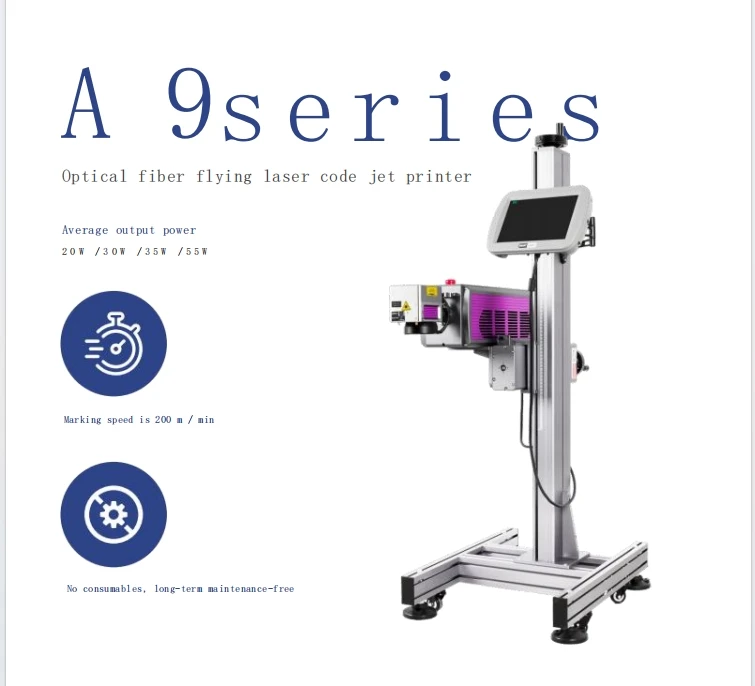

Product Overview
Description
Product Overview

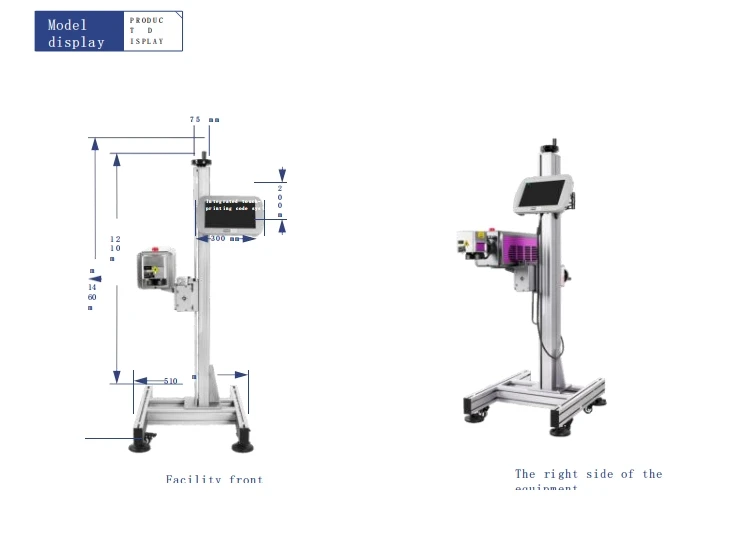

PRODUCT SIZE
PRODUCT SPECIFICATIONS
Model serials | A serial | Data | |||||||
Model | A9-M20 | A9-M30 | A9-M40 | A9-M60 | |||||
Laser parameters | Laser source model | YLP-V2-20 | YLP-V2-30 | YLP-V2-40 | YLP-V2-60 | ||||
3 | Output Power | 18.5w | 27w | 40w | 55w | ||||
4 | Beam quality M | ≤2 | ≤2 | ≤2 | ≤2 | ||||
5 | Pulse repetition frequency | 2-200 kHz | 96kN | 5-200 kHz | |||||
6 | Laser wavelength | 1064±10nm | |||||||
7 | Output power stability | ＜5% | |||||||
8 | Working life | About 100,000 working hours (non-lifetime) | |||||||
Marking range | 100~300mm (range optional) | ||||||||
Engraving depth | 1mm (depending on power and time) | ||||||||
Engraving speed | 10000mm/s | ||||||||
Repeat accuracy | ±0.002 | ||||||||
Minimum marking line width | 0.1mm | ||||||||
Minimum character height | 0.15mm | ||||||||
Use environment | Cooling way | Built-in air cooling | |||||||
System power supply | 500W / 220V / 50Hz (110V can be connected) | ||||||||
Temperature humidity | 0~40°, 30% RH 85%, air conditioner should be installed when used outside the range | ||||||||
Oil mist condensation | Not allowed | ||||||||
Operating system | Fly control system | ||||||||
File format | The software supports text, QR code, barcode, serial number, graphics and other marking content | ||||||||
Dimensions | 660X510X1460 mm | ||||||||
Packing size | Host: 790X740X350mm Column: 1350X350X280mm | ||||||||
Total Weight | About 66kg | ||||||||

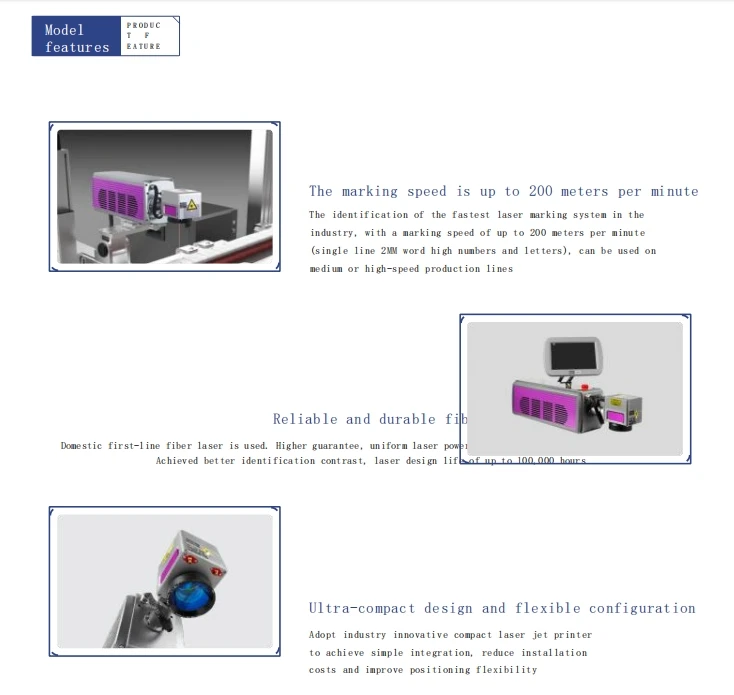

MODEL CHARACTERISTICS
SAMPIE PICTURES
Marking of soda cans
Marking of hardware parts
Electronic components
Marking of iron wire
ABS hose marking
Plastic bag production date marking
SCOPE OF APPLICATION
Electrical components and
electronic devices
electronic devices
Electrical components
Aviation and automobiles
Food and beverages and
fast moving consumer goods
Medicines and medical devices
Cosmetics, personal and
home care products
Company Profile
Company Advantage
1.A professional team with rich experience more than 20 years in the laser industry.
2.Customized technical solution and after-sales support.
3.ODM/OEM service avaliable.
2.Customized technical solution and after-sales support.
3.ODM/OEM service avaliable.
Packing &Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
