SUN-29.9/30/35/40/50K-SG01HP3-EU-AM4 | 30-50KW | Three Phase | 4 MPPT | Hybrid Inverter | High Voltage Battery
SUN-29.9/30/35/40/50K-SG01HP3-EU-AM4 is brand new three phase hybrid inverter with high battery voltage, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS,x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
Detailed Parameters
Model | SUN-29.9K-SG01HP3-EU-AM4 | SUN-30K-SG01HP3-EU-AM4 | SUN-35K-SG01HP3-EU-AM4 | SUN-40K-SG01HP3-EU-AM4 | SUN-50K-SG01HP3-EU-AM4 | |||||
Battery Input Data | ||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||
Battery Voltage Range (V) | 160-800 | |||||||||
Max. Charging Current (A) | 50+50A | 50+50A | 50+50A | 50+50A | 50+50A | |||||
Max. Discharging Current (A) | 50+50A | 50+50A | 50+50A | 50+50A | 50+50A | |||||
Charging Curve | 3 Stages / Equalization | |||||||||
External Temperature Sensor | Yes | |||||||||
Charging Strategy | Self-adaption to BMS | |||||||||
PV String Input Data | ||||||||||
Max. DC Input Power (W) | 38870W | 39000W | 45500W | 52000W | 65000W | |||||
Rated PV Input Voltage (V) | 600V | |||||||||
Start-up Voltage (V) | 160V | |||||||||
MPPT Range (V) | 150V-850V | |||||||||
Max. DC Input Voltage (V) | 1000V | |||||||||
PV Input Current (A) | 36+36+36 | 6000W | 36+36+36+36 | 10000W | 12000W | |||||
Max. PV ISC (A) | 55+55+55 | 6,600VA | 55+55+55+55 | 11,000VA | 12,000VA | |||||
Number of MPPT | 3/2+2+2 | 4/2+2+2+2 | ||||||||
AC Output Data | ||||||||||
Rated AC Input/Output Active Power (W) | 29900W | 30000W | 35000W | 40000W | 50000W | |||||
Max. AC Input/Output Apparent Power (VA) | 29900W | 33000W | 38500W | 44000W | 55000W | |||||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||||||
Rated AC Input/Output Current (A) | 45.4/43.4 | 45.5/43.5 | 53.1/50.8 | 60.7/58 | 75.8/72.5 | |||||
Max. AC Input/Output Current (A) | 45.4/43.4 | 50/47.9 | 58.4/55.8 | 66.7/63.8 | 83.4/79.8 | |||||
Max. Continuous AC Passthrough (grid to load) (A) | 200A | |||||||||
Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac，230/400Vac | |||||||||
Grid Type | Three Phase | |||||||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||||||
Efficiency | ||||||||||
Max. Efficiency | 97.6% | |||||||||
Euro Efficiency | 97.00% | |||||||||
MPPT Efficiency | 99.90% | IP66 | ||||||||
General Data | ||||||||||
Operating Temperature (℃) | -45~60℃, >45℃ Derating | |||||||||
Cooling | Smart cooling | |||||||||
Noise (dB) | 《45dB | |||||||||
Communication with BMS | RS485; CAN | |||||||||
Weight (kg) | 80 | |||||||||
Size (mm) | 527×894×294 (Excluding Connectors and Brackets) | |||||||||
Protection Degree | IP65 | |||||||||
Installation Style | Wall-mounted | |||||||||
Warranty | 5 years | |||||||||

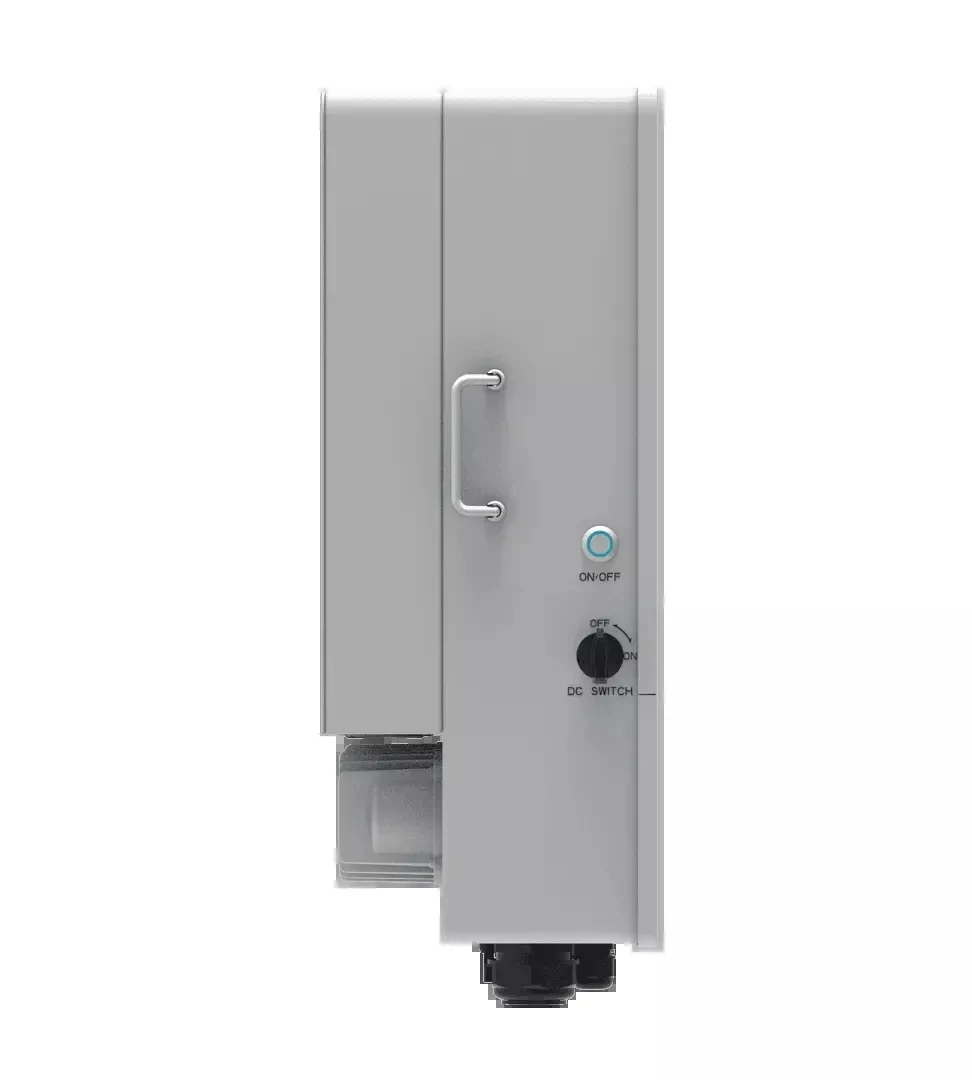

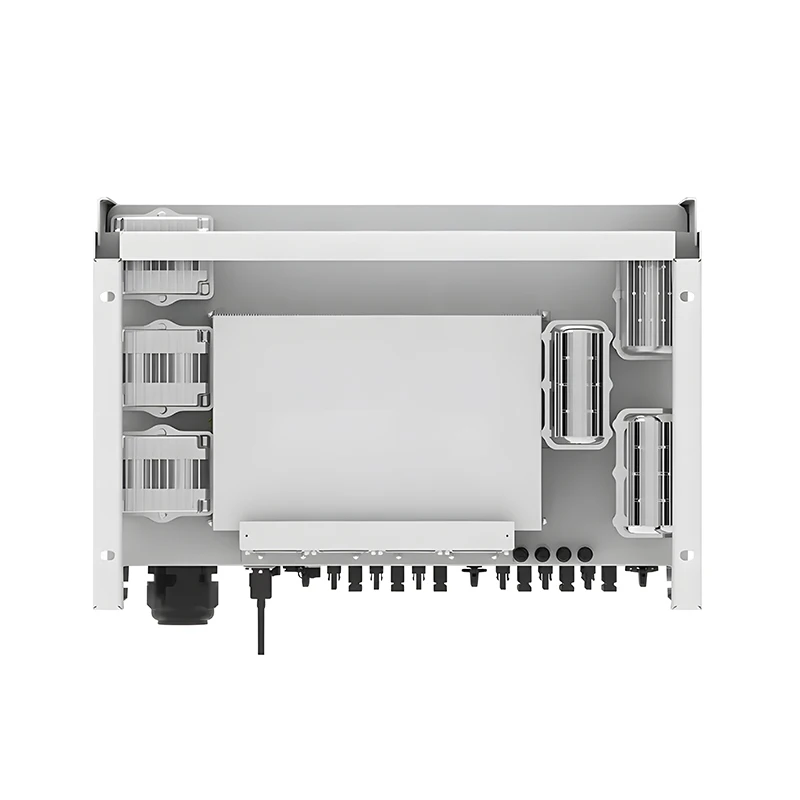

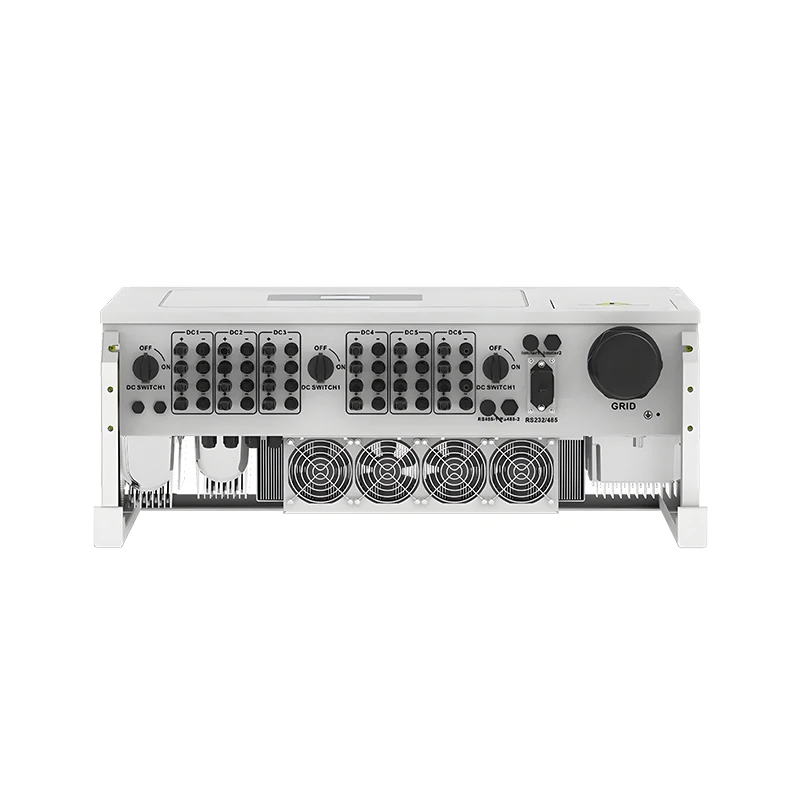

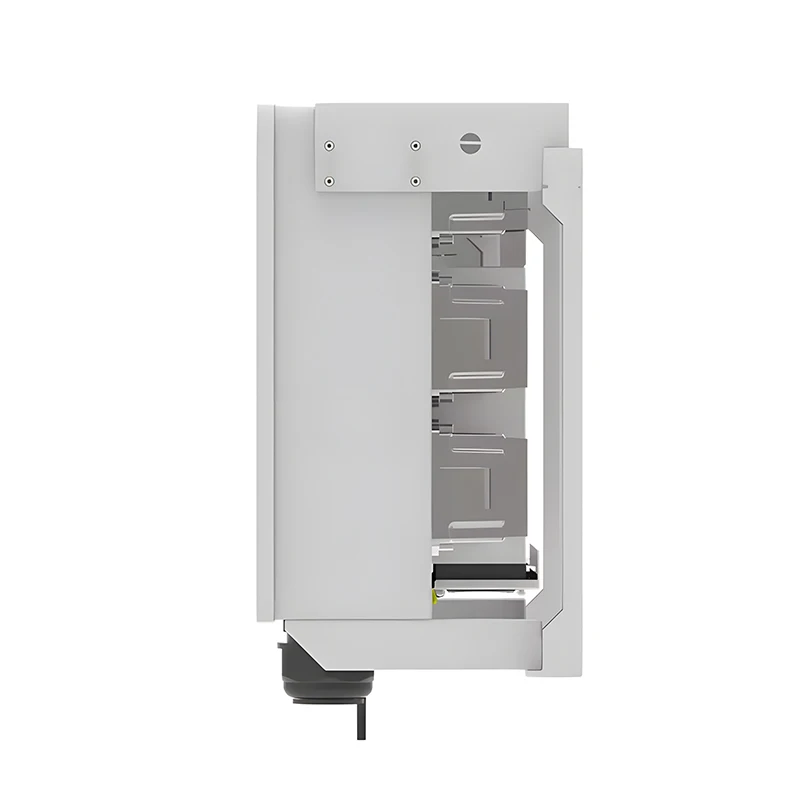

Detailed Images

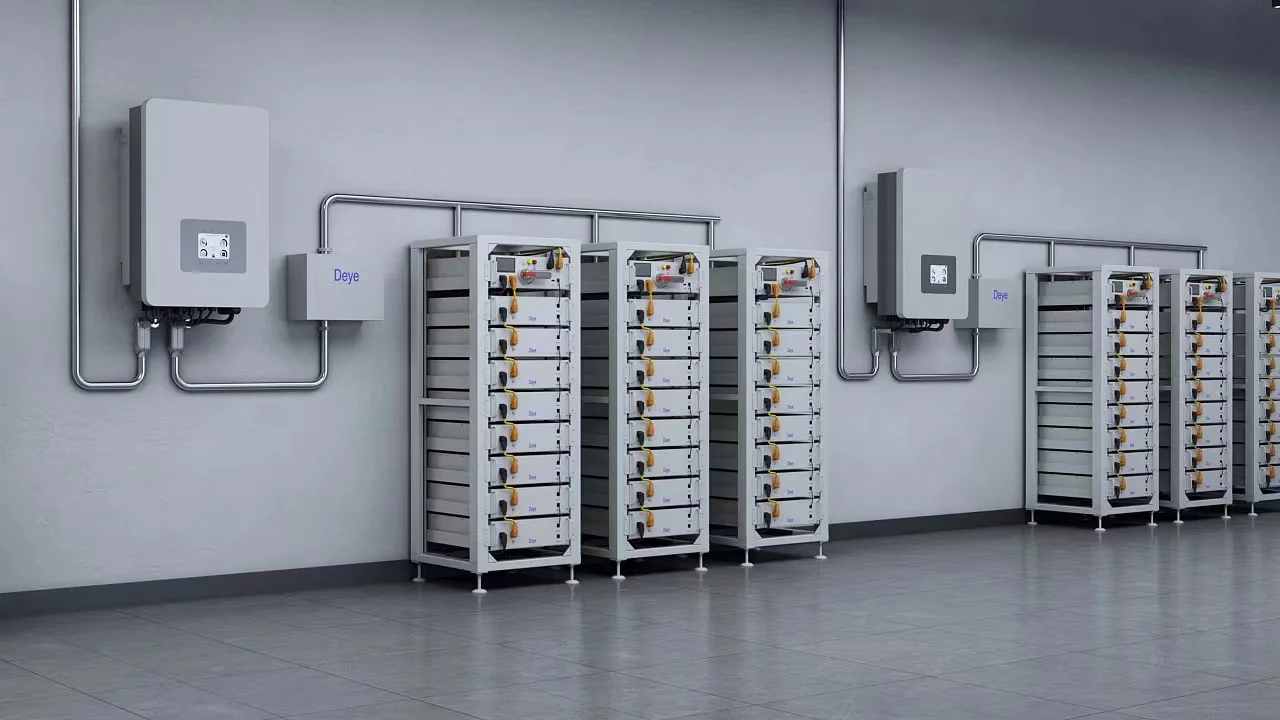

Product Applications
