Product Overview
Description
Product Description
Main technical parameters

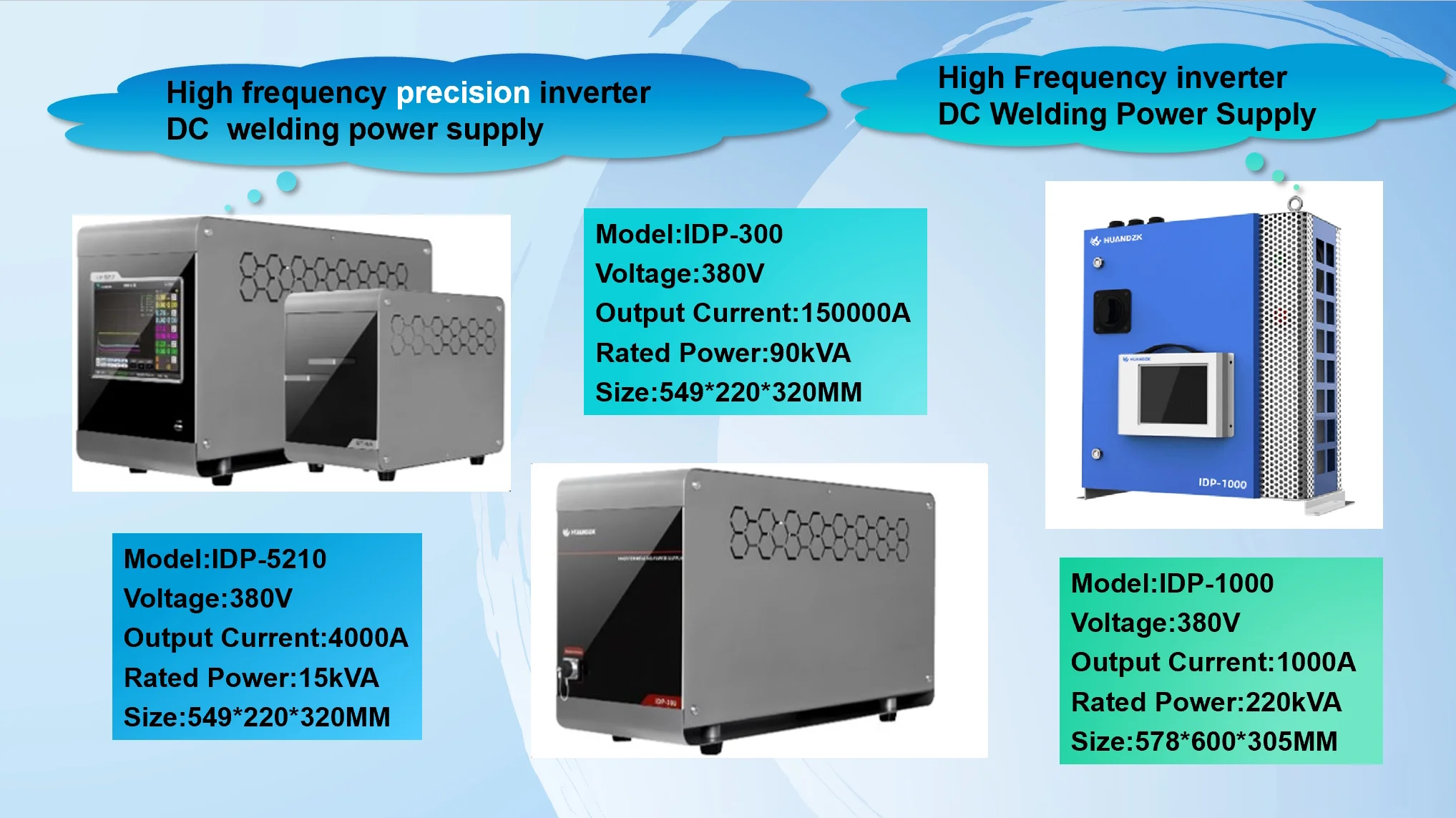

Model | IDP-5210 | IDP-8210 | IDP-300 | ||||
Supply Voltage | 3-phase 380V (50/60Hz) | ||||||
Control frequency | 1kHz/2kHz/3kHz/4kHz/5kHz | ||||||
Max. output current/A | 4000 | 8000 | 15000 | ||||
Rated power/kVA | 15 | 25 | 90 | ||||

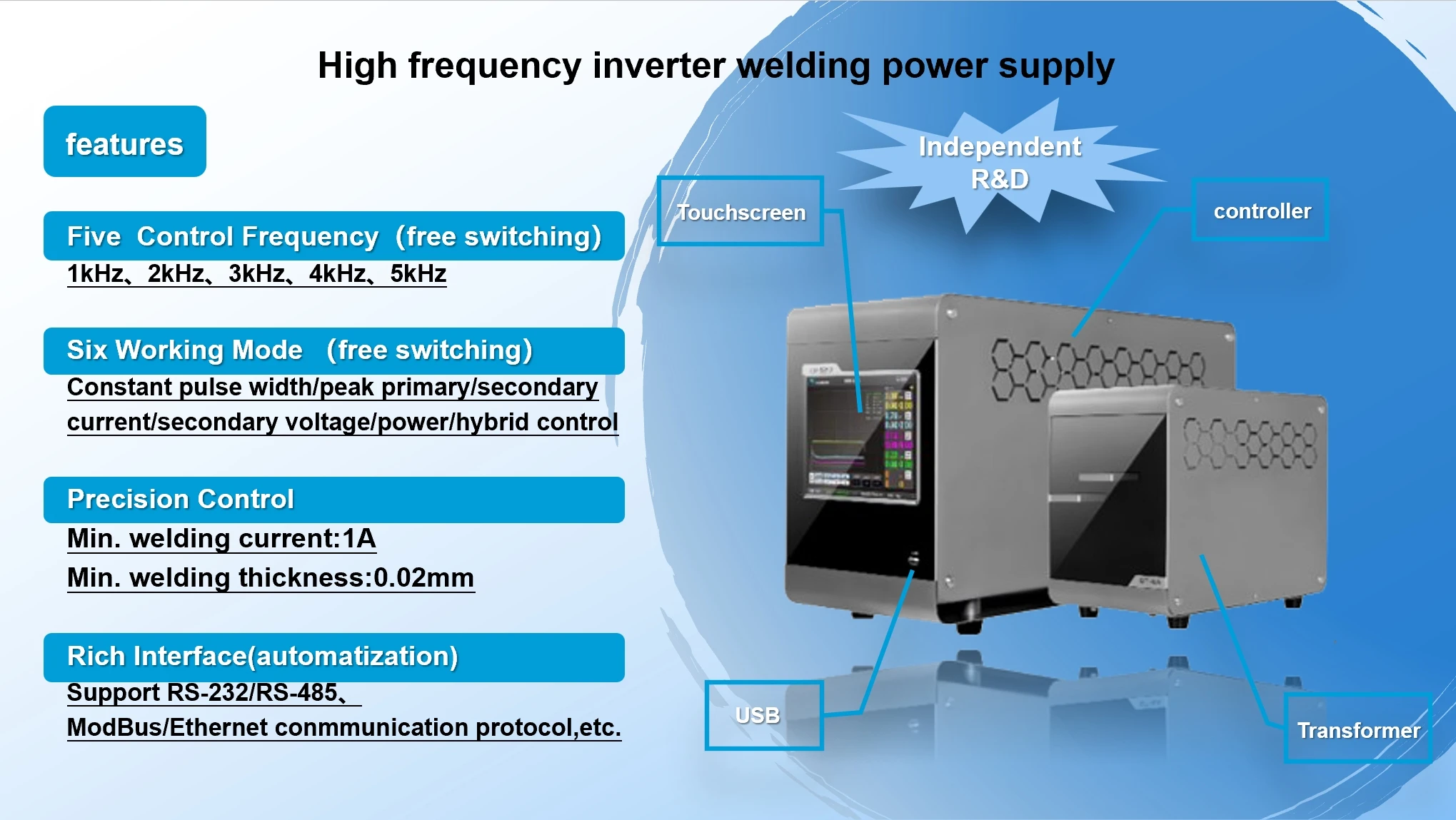

Control method | Constant pulse width/peak primary/secondary current/secondary voltage/power/hybrid control | ||||||
Number of welding norms | 32 group norms | ||||||
Welding time setting | Pre-pressure time | 0-9999ms | |||||
Pressurization time | 0-9999ms | ||||||
Slow rise 1 time | 0-9999cyc | ||||||
Welding 1 time | 0-9999cyc | ||||||
Slow down 1 time | 0-9999cyc | ||||||
Cooldown | 0-9999cyc | ||||||
Slow rise 2 time | 0-9999cyc | ||||||
Welding 2 time | 0-9999cyc | ||||||
Slow down 2 time | 0-9999cyc | ||||||
Slow rise 3 time | 0-9999cyc | ||||||
Welding 3 time | 0-9999cyc | ||||||
Slow down 3 time | 0-9999cyc | ||||||
Holding time | 0-9999ms | ||||||
Rest period | 0-9999ms | ||||||
Finish time | 0-9999ms | ||||||
Number of cycles | 0-9 | ||||||
Setting range for secondary current/KA | 0.1-4.00 | 0.2-8.00 | 0.3-15.00 | ||||
Setting range of pulse width | 1%-100% | ||||||
Setting range for secondary voltage/V | 0.01-10 | ||||||
Power setting range/KW | 0.1-15 | 0.2-25 | 0.2-60 | ||||
Dimensions/mm(L*W*H) | 549*220*320 | ||||||
Weight/KG | 22 | ||||||

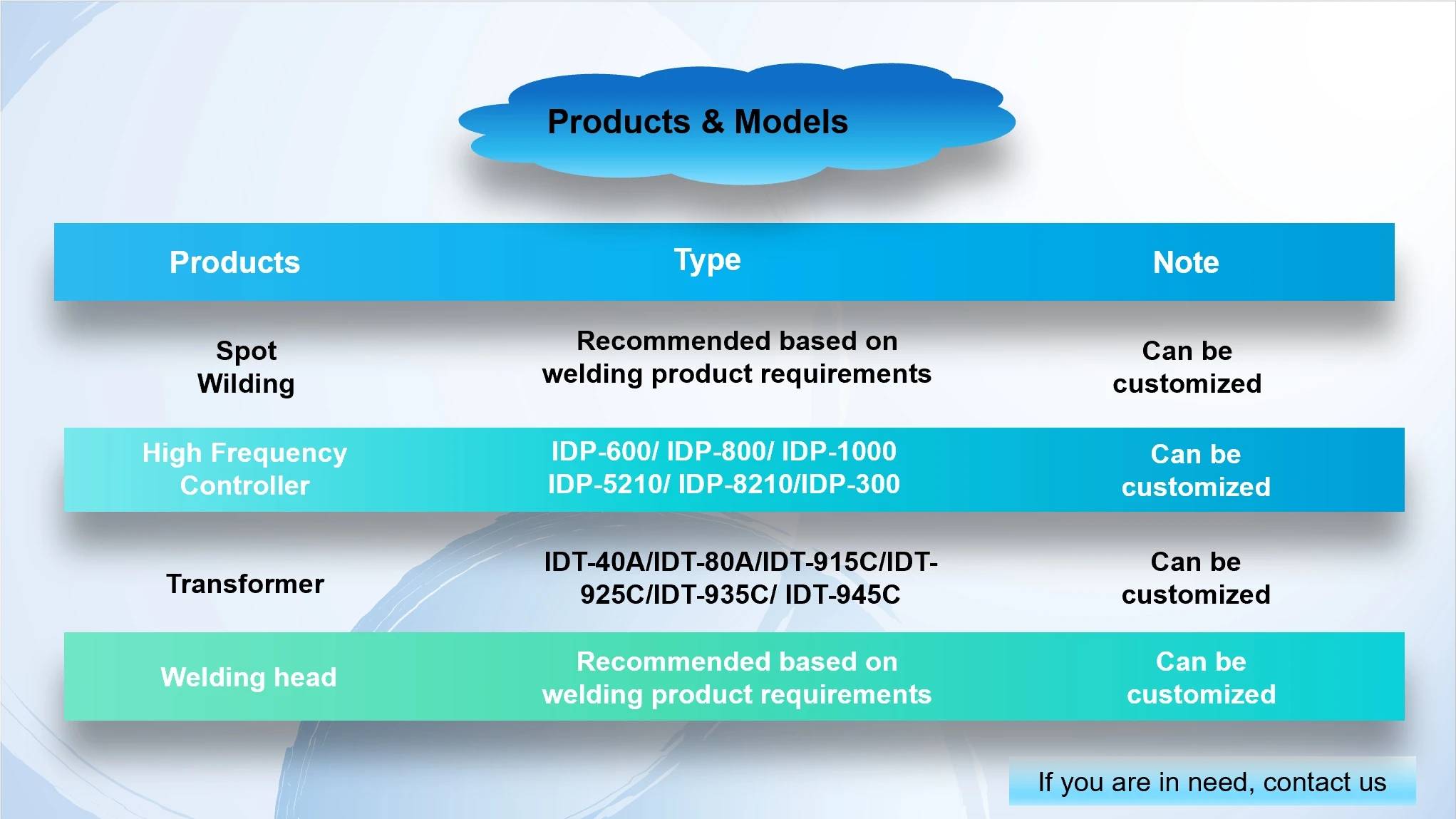

Matching Transformer | IDT-40A | IDT-80A | IDT-915C | ||||
Cooling method | air-cooling | air-cooling | water cooling | ||||
Communication method | Support RS-232/RS-485、ModBus/Ethernet conmmunication protocol,etc. | ||||||
