XIDLY 6 Zone Analog Class AB Wifi PA Mixer 70V 100V Amplifier with 6 Zone Speaker Output
- Category: >>>
- Supplier: Foshan Xinghongde Technology Co. Ltd.Foshan Ltd.
Share on (1601216831343):
Product Overview
Description
XIDLY-6 Zone Analog Class AB Wifi PA Mixer 70V 100V Amplifier with 6 Zone Speaker Output
Description and Feature:

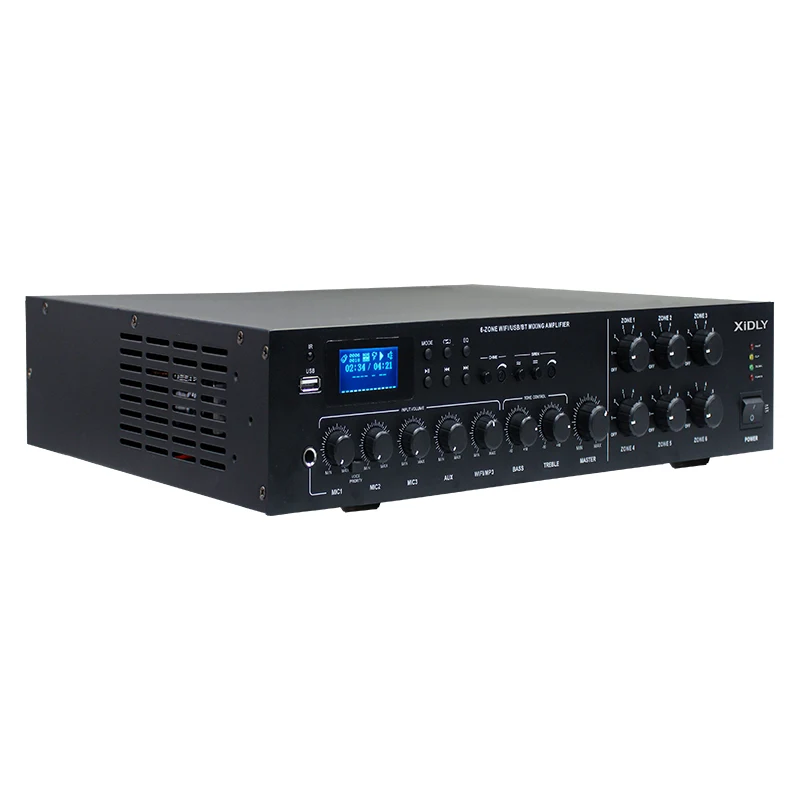

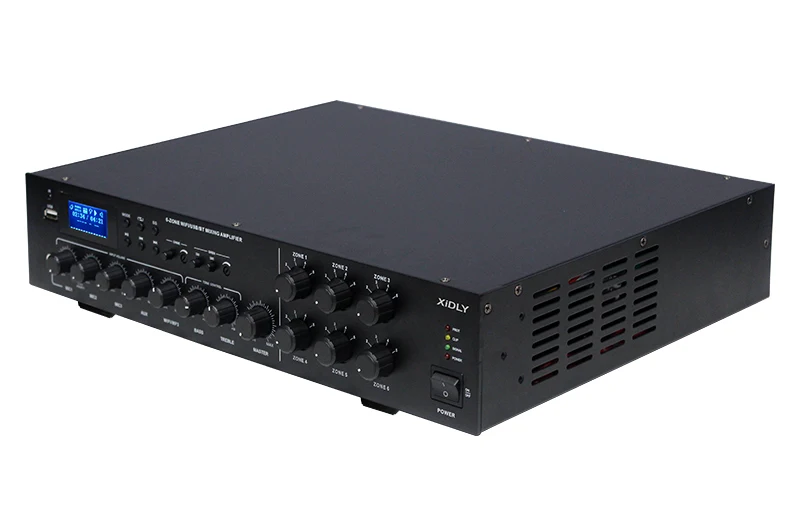

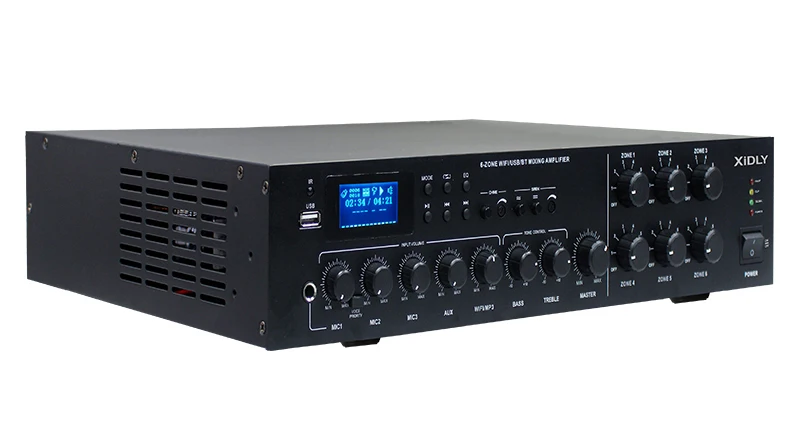

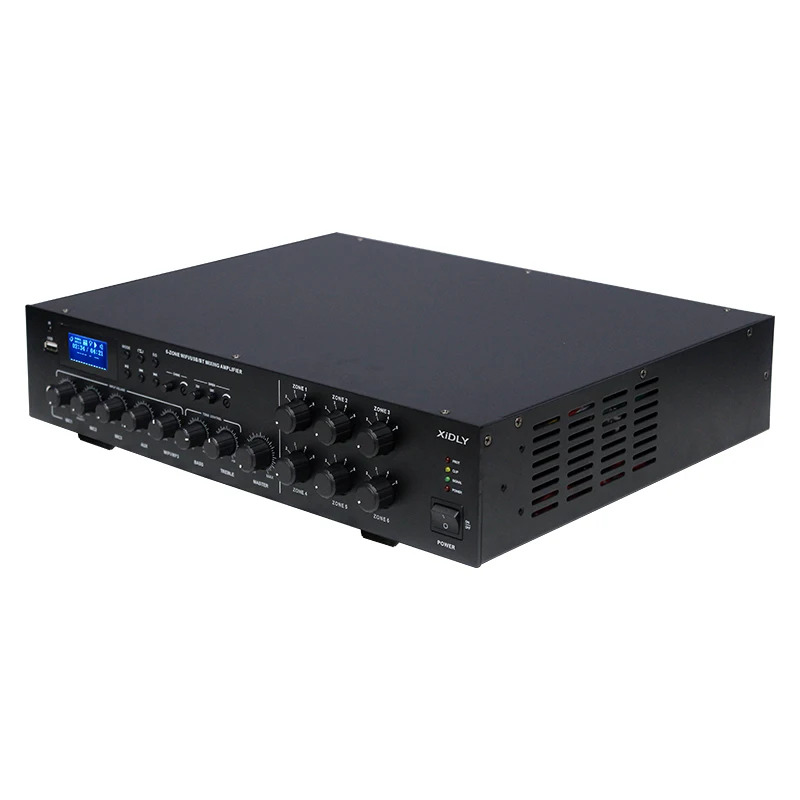

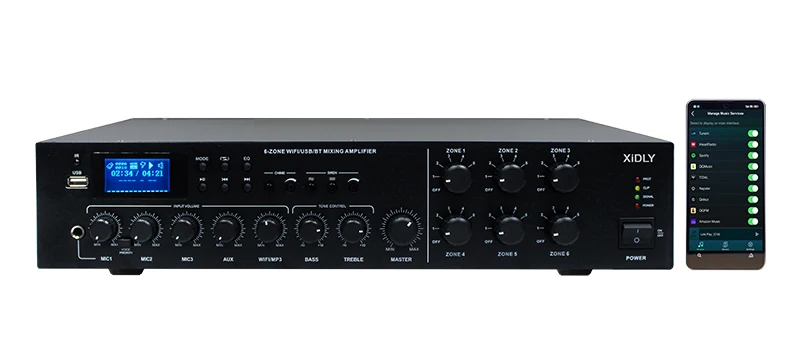

The 6 Zone WIFI/MP3 Mixing Amplifiers are designed to meet the requirements of medium sized professional public address installations,and designed with overall 70/100-volt and 4/8 ohms(Ω) loads and featured an industry leading 6 zoned 100 volt load solution,120/240/350 watts of amplifier power are available,with provided an audio output to 6 different zones within the venue,each zone has its own separate volume control manually operated on front panel.

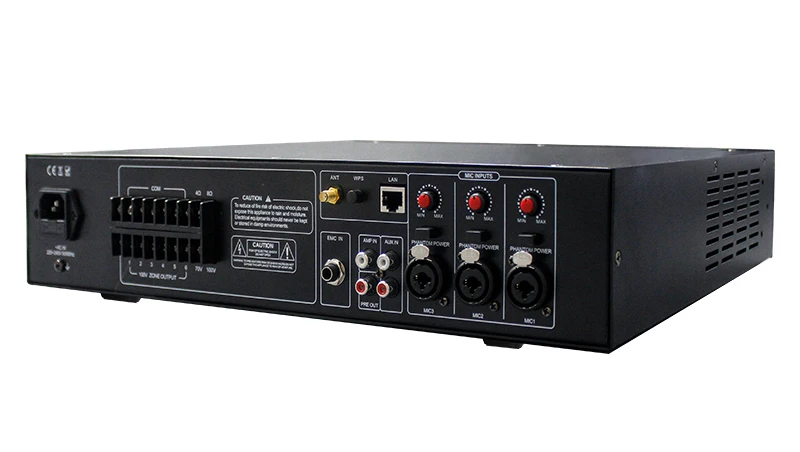

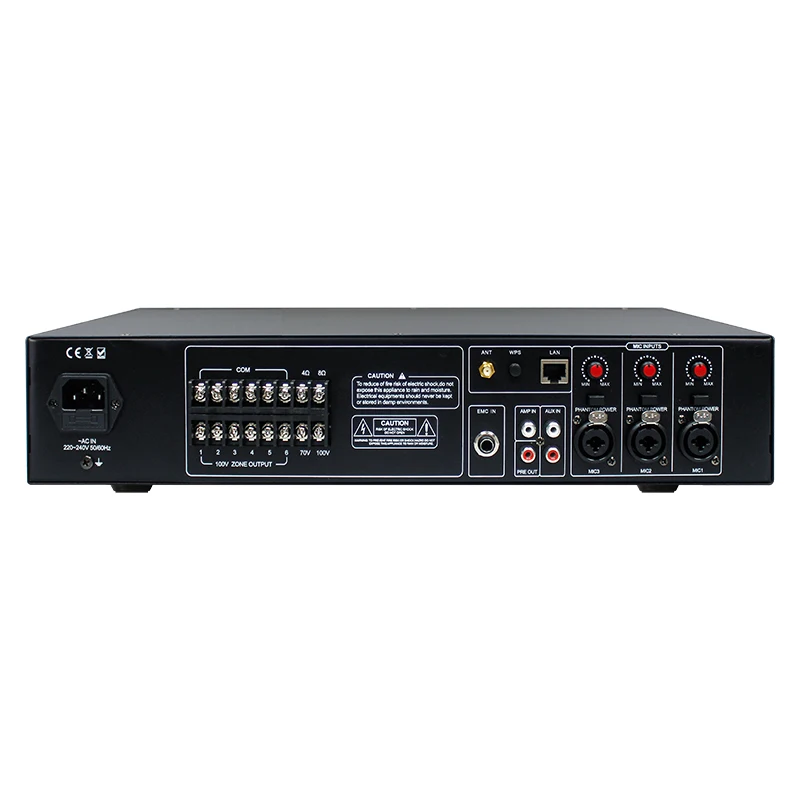

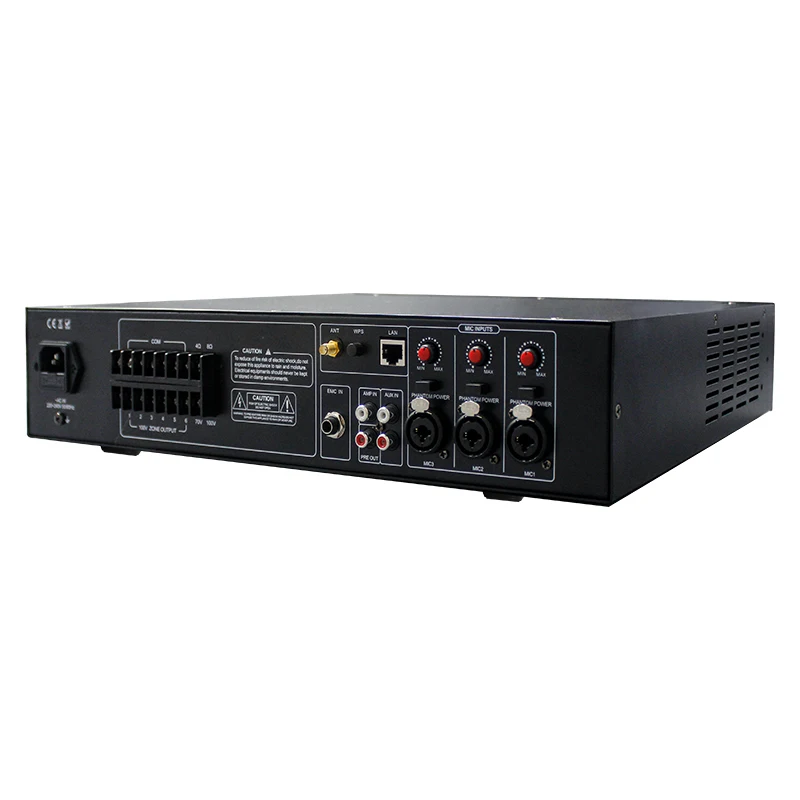

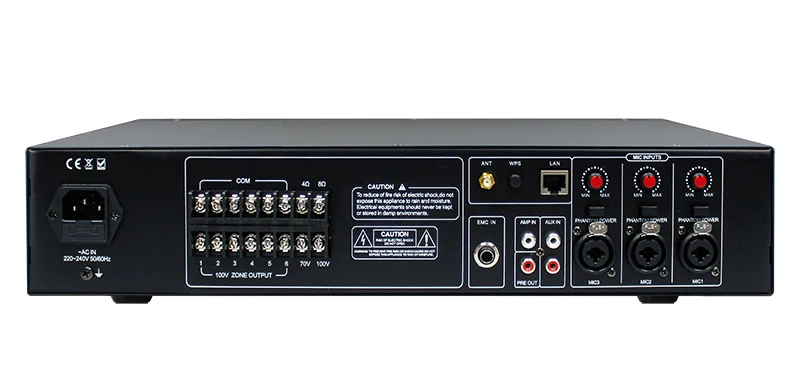

Its outstanding feature of WiFi wireless music streaming receiver,supports connection with your smart device via a free APP,one RJ45 port is available on the rear panel as a backup for the point where the WiFi signal is weaker.
Three combo microphone jacks support 48V Phantom Power microphone and 6.35mm plug microphone,pushing the button "VOICE PRIORITY" the MIC1 can be set with priority over the other inputs.
All units feature full protections against operation under quite severe misuse such as over temperature, over voltage, over load and short circuit speaker line conditions.
* Built-in WiFi wireless music streaming receiver,Bluetooth receiver and USB player.
* Connect with your smart device via the free app.
* LCD screen with display size (128*64)
* Support AIRPLQY/D LAN/Q PLAY.
* One RJ45 port available for the point where the WiFi signal is weaker.
* 70/100-volt and 4/8 ohms(Ω) output loads.
* 6 Zones 100V speaker outputs with individual zone volume control.
* Powerful amplifier tubes.
* Three 48V Phantom Power jacks, suitable for unbalanced 6.35mm plug microphone.
* Mic 1 has priority over the inputs.
* High-definition display for the working status of playing programme.
* Built-in Chime and Siren circuitry with push-button and volume control.
* BASS and TREBLE tone controllers.Master volume control.
* Complete protection provided for output short circuit, overload, high temperature.
* Removable rack mounting brackets supplied.
The 6 Zone WIFI/MP3 Mixing Amplifiers are designed to meet the requirements of medium sized professional public address installations,and designed with overall 70/100-volt and 4/8 ohms(Ω) loads and featured an industry leading 6 zoned 100 volt load solution,120/240/350 watts of amplifier power are available,with provided an audio output to 6 different zones within the venue,each zone has its own separate volume control manually operated on front panel.
Its outstanding feature of WiFi wireless music streaming receiver,supports connection with your smart device via a free APP,one RJ45 port is available on the rear panel as a backup for the point where the WiFi signal is weaker.
Three combo microphone jacks support 48V Phantom Power microphone and 6.35mm plug microphone,pushing the button "VOICE PRIORITY" the MIC1 can be set with priority over the other inputs.
All units feature full protections against operation under quite severe misuse such as over temperature, over voltage, over load and short circuit speaker line conditions.
* Built-in WiFi wireless music streaming receiver,Bluetooth receiver and USB player.
* Connect with your smart device via the free app.
* LCD screen with display size (128*64)
* Support AIRPLQY/D LAN/Q PLAY.
* One RJ45 port available for the point where the WiFi signal is weaker.
* 70/100-volt and 4/8 ohms(Ω) output loads.
* 6 Zones 100V speaker outputs with individual zone volume control.
* Powerful amplifier tubes.
* Three 48V Phantom Power jacks, suitable for unbalanced 6.35mm plug microphone.
* Mic 1 has priority over the inputs.
* High-definition display for the working status of playing programme.
* Built-in Chime and Siren circuitry with push-button and volume control.
* BASS and TREBLE tone controllers.Master volume control.
* Complete protection provided for output short circuit, overload, high temperature.
* Removable rack mounting brackets supplied.
Specification:
Rated Power | 120W | 240W | 350W |
Speaker Output Mode | Voltage line:70V & 100V | ||
Low impedance:4 & 8 ohms (Ω) | |||
WiFi Solution | Legacy Wireless Hi-Fi System | ||
WiFi APP Name | Legacy Player | ||
WiFi APP Version | Android, iOS | ||
Wi-Fi Mode | Wi-Fi 8.2.11 b/g/n(AP/STA modes supported) | ||
Music Format | Supported with MP3,WMA,ACC(ACC+),Apple lossless,ALAC,FLAC,APE,WAV | ||
Frequency Response | 60 Hz ~ 15k Hz (± 3 dB) | ||
T.H.D | <1% at 1kHz,1/3 rated power | ||
S/N | ≥75dB | ||
Tone Control | BASS:100 Hz (± 10 dB) , TREBLE:10k Hz (± 10 dB) | ||
Audio Input | MIC,AUX, USB, BLUETOOTH, WIFI | ||
Protection | Short circuit,overload,high temperature | ||
AC Fuse | T2A | T4A | T6A |
Power Supply | AC 220-240V- 50/60Hz | ||
Power Consumption | 185W | 350W | 485W |
Power Cord | (3×0.75 mm2)×1.5M | ||
Dimension(HxWxD) | 100x430x340mm | ||
Carton Size | 185x520x435mm | ||
Net Weight | 9.00 KGS | 11.80 KGS | 14.30 KGS |
Gross Weight | 10.50 KGS | 13.30 KGS | 15.80 KGS |
