Roller glass coating machine
US $10000-$13000
Factory direct sell Auto Spacer Bending Machine with Cutting and Bender Machine for Double glass making machine
- Category: >>>
- Supplier: Shandong Zhengke Automation Co. Ltd.Shandong Ltd.
Share on (1601216929466):
Product Overview
Description
Products Description

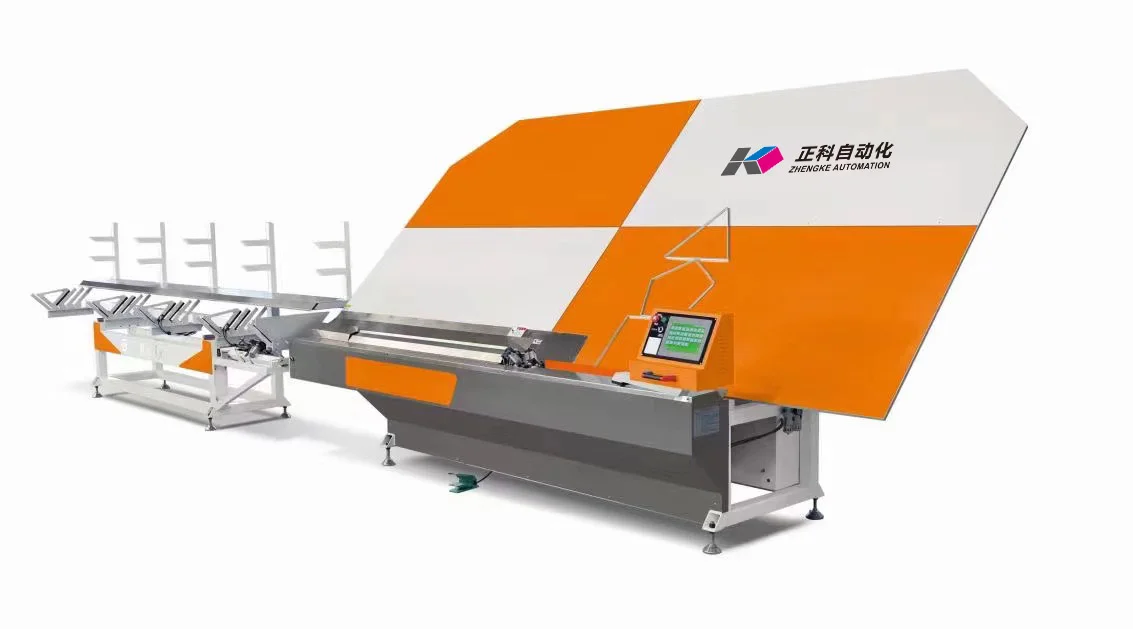

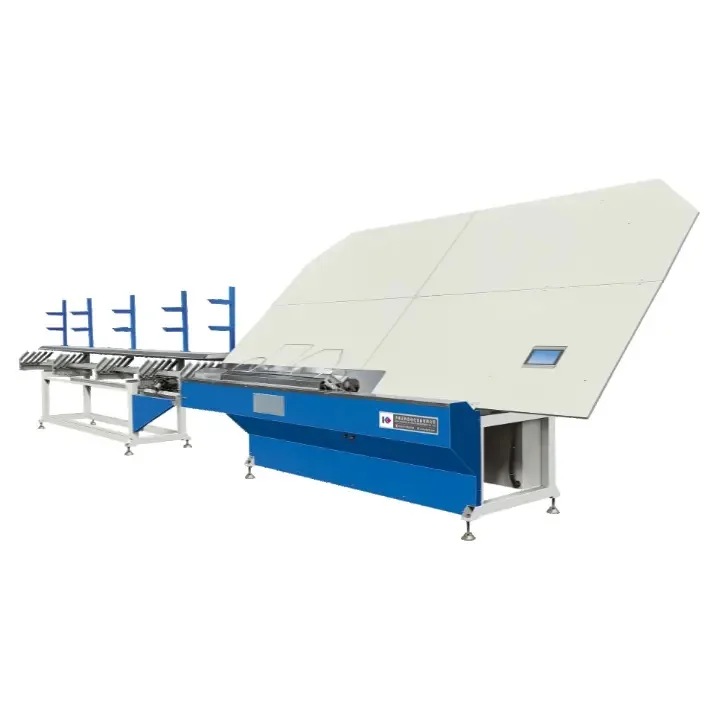

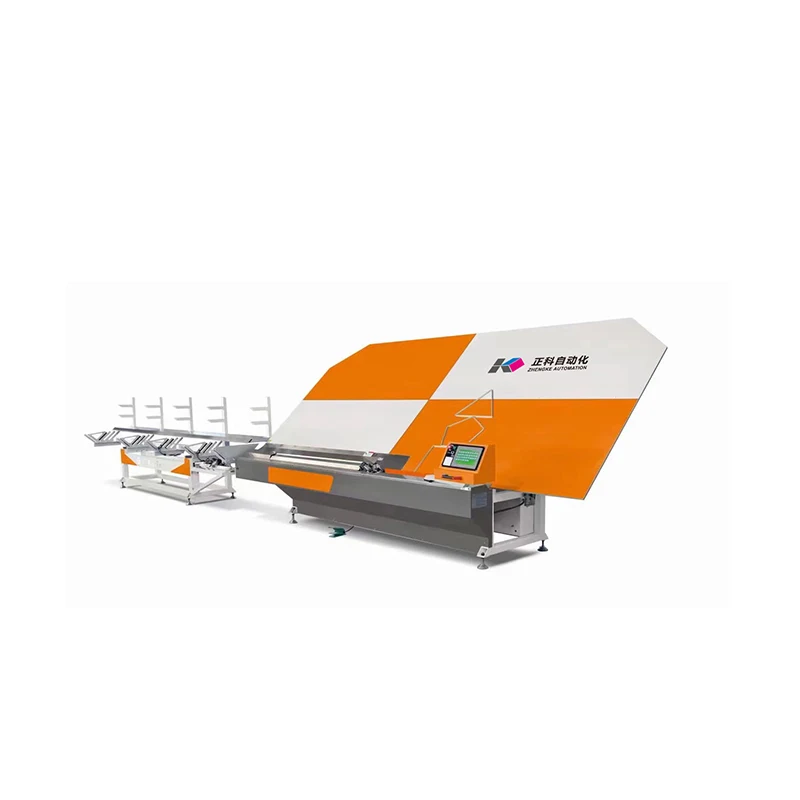

Fully automatic aluminum spacer bending machine
1. Automatic glass cutting upper piece machine
2. Glass edge grinding machine
3. Automatic vertical coating detaching machine
4. Full automaticinsulating glass flat-press production line
5. Automatic aluminium spacer bending machine
6. Desiccant filling machine
7. Butyl sealant coating machine
8. Aluminium frame conveyors
9. CNC insulating glass sealant coating line
10. Two component sealant coating machine
11. Rotaing sealant coating table
12. Glass suction crane machine
13. Insulating glass aerator
14. Glass of conveyors
3. Automatic vertical coating detaching machine
4. Full automaticinsulating glass flat-press production line
5. Automatic aluminium spacer bending machine
6. Desiccant filling machine
7. Butyl sealant coating machine
8. Aluminium frame conveyors
9. CNC insulating glass sealant coating line
10. Two component sealant coating machine
11. Rotaing sealant coating table
12. Glass suction crane machine
13. Insulating glass aerator
14. Glass of conveyors
Product Paramenters
Features
1. Curved frame type high-end insulating special equipment solves the problem of difficult sealing of the corners of angled
insulating glass. This machine is controlled by a CNC system, and the feeding, positioning and bending are automatically
completed. Stable and reliable performance, easy to operate.
2.
Major outsourced components such as electrical appliances are from domestic and foreign brands or suppliers with
international quality certification;
3.
The main steel structure welding parts are subjected to vibration aging and natural aging (key parts) to eliminate the
internal stress of the materials and welding joints to the greatest extent and ensure long-term mechanical accuracy;
4.
Using CNC servo feeding system, the aluminum frame size can be adjusted with an accuracy of 0.1mm/m
5.
Adopt CNC bending angle control system with adjustable accuracy of 0.1°
6.
No tail material design, except for cutting loss, can realize zero-material head processing
7.
Four automatic storage troughs can store aluminum bar raw materials of 4 specifications and lengths of 4-6 meters
respectively.
8.
It has the function of high-speed automatic continuous cutting of aluminum bars, which is suitable for processing ordinary
aluminum frames (including domestic extruded aluminum bars) with ordinary straight-inserted aluminum frames, and still has
the function of continuous material head splicing.
9.
Fully automatic feeding, optional automatic trough replacement function can be added
10.
Automatically and steplessly adjust the bending speed according to the size of the aluminum frame to avoid deformation of the
frame of large frames and ensure high-speed continuity of small frames.
Automatic splicing of aluminum strips, intelligent avoidance design of aluminum strip joints
11. With high-speed continuous production function, the operator only needs to ensure that there is material in the trough and
remove the folded aluminum frame from the bending machine. The bending machine will automatically stop after processing to
the set quantity.
12. Sleep energy-saving function and emergency stop protection
All functions can be operated manually to meet debugging and emergency repair needs.
13. Online no material prompt, sleep prompt, fault prompt, work prompt, no material during processing, automatic shutdown and
waiting for material, continue to complete the process after loading the material
14. Frame data rationality judgment function, unreasonable data refuses to be processed and prompts
Fully automatic reset when powering on the system
15. The aluminum frame completes automatic material cutting
The back panel is made of imported multi-layer industrial boards, which has excellent wear resistance and is easy to clean.
Quick maintenance adjustment panel design

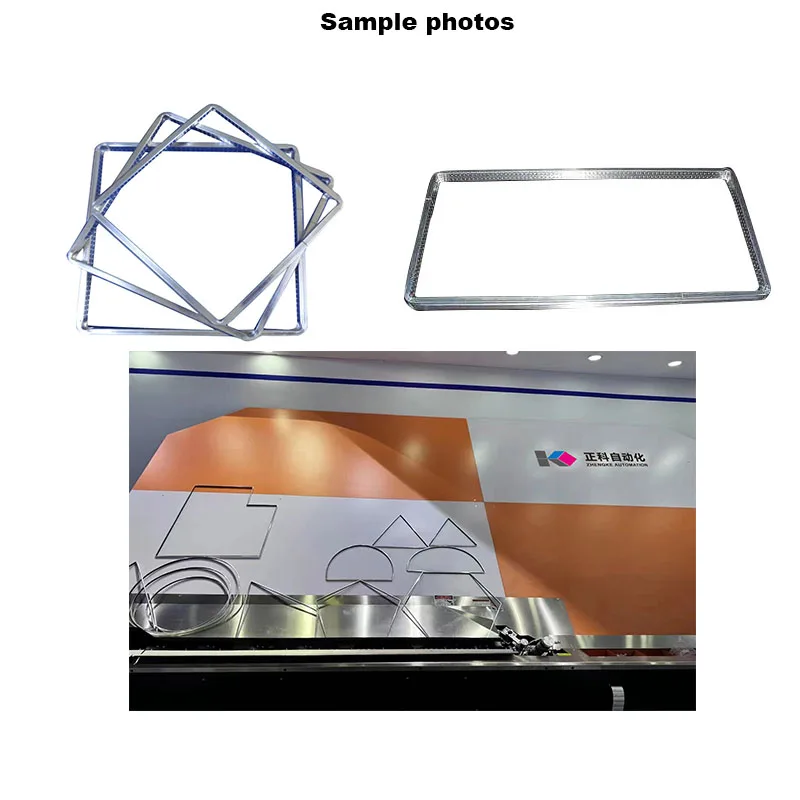

Can bend arc-shaped aluminum frames, special-shaped frames, can bend triangles, rectangles, regular five-, six-, octagonal and arc
shapes
insulating glass. This machine is controlled by a CNC system, and the feeding, positioning and bending are automatically
completed. Stable and reliable performance, easy to operate.
2.
Major outsourced components such as electrical appliances are from domestic and foreign brands or suppliers with
international quality certification;
3.
The main steel structure welding parts are subjected to vibration aging and natural aging (key parts) to eliminate the
internal stress of the materials and welding joints to the greatest extent and ensure long-term mechanical accuracy;
4.
Using CNC servo feeding system, the aluminum frame size can be adjusted with an accuracy of 0.1mm/m
5.
Adopt CNC bending angle control system with adjustable accuracy of 0.1°
6.
No tail material design, except for cutting loss, can realize zero-material head processing
7.
Four automatic storage troughs can store aluminum bar raw materials of 4 specifications and lengths of 4-6 meters
respectively.
8.
It has the function of high-speed automatic continuous cutting of aluminum bars, which is suitable for processing ordinary
aluminum frames (including domestic extruded aluminum bars) with ordinary straight-inserted aluminum frames, and still has
the function of continuous material head splicing.
9.
Fully automatic feeding, optional automatic trough replacement function can be added
10.
Automatically and steplessly adjust the bending speed according to the size of the aluminum frame to avoid deformation of the
frame of large frames and ensure high-speed continuity of small frames.
Automatic splicing of aluminum strips, intelligent avoidance design of aluminum strip joints
11. With high-speed continuous production function, the operator only needs to ensure that there is material in the trough and
remove the folded aluminum frame from the bending machine. The bending machine will automatically stop after processing to
the set quantity.
12. Sleep energy-saving function and emergency stop protection
All functions can be operated manually to meet debugging and emergency repair needs.
13. Online no material prompt, sleep prompt, fault prompt, work prompt, no material during processing, automatic shutdown and
waiting for material, continue to complete the process after loading the material
14. Frame data rationality judgment function, unreasonable data refuses to be processed and prompts
Fully automatic reset when powering on the system
15. The aluminum frame completes automatic material cutting
The back panel is made of imported multi-layer industrial boards, which has excellent wear resistance and is easy to clean.
Quick maintenance adjustment panel design
Can bend arc-shaped aluminum frames, special-shaped frames, can bend triangles, rectangles, regular five-, six-, octagonal and arc
shapes
Model | LZ02/03 |
Power | 380V50Hz3kW |
Air source requirement | 0.65MPa |
Bending thickness | 5.5-20mm |
Min bending size | 250*100mm |
Max bending size | 2000*2000mm |
Maximum processing speed | <30 s/piece (1000*1000mm) |
Processing database | Processing database |
Processing accuracy | Aluminum frame size error ±0.5mm Angle error ±1° |
Dimension | 9800*2100*2600 |
Name | Brand | Origin |
PLC | Schneider | France |
Servo drives servo motor | Schneider | France |
Intermediate relay | Omron | Japan |
HMI | Schneider | France |
Photoelectric switch | Autonics | Korea |
Micro Switch | Omron | Japan |
Low voltage electrical appliances | Schneider | France |
CNC power supply | Omron | Japan |
Details Images

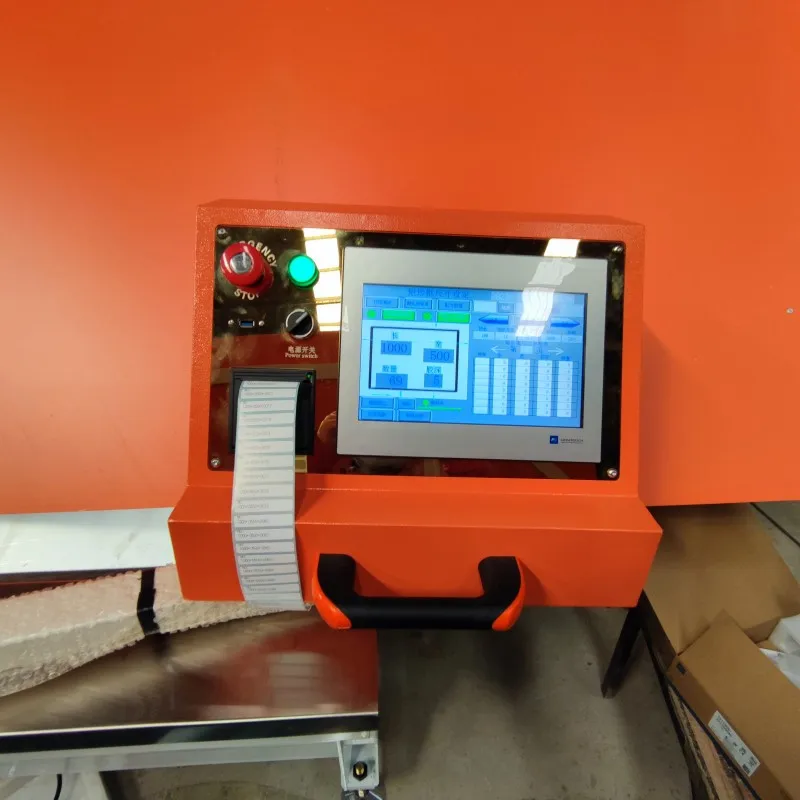

Friendly human-machine interface, easy operation

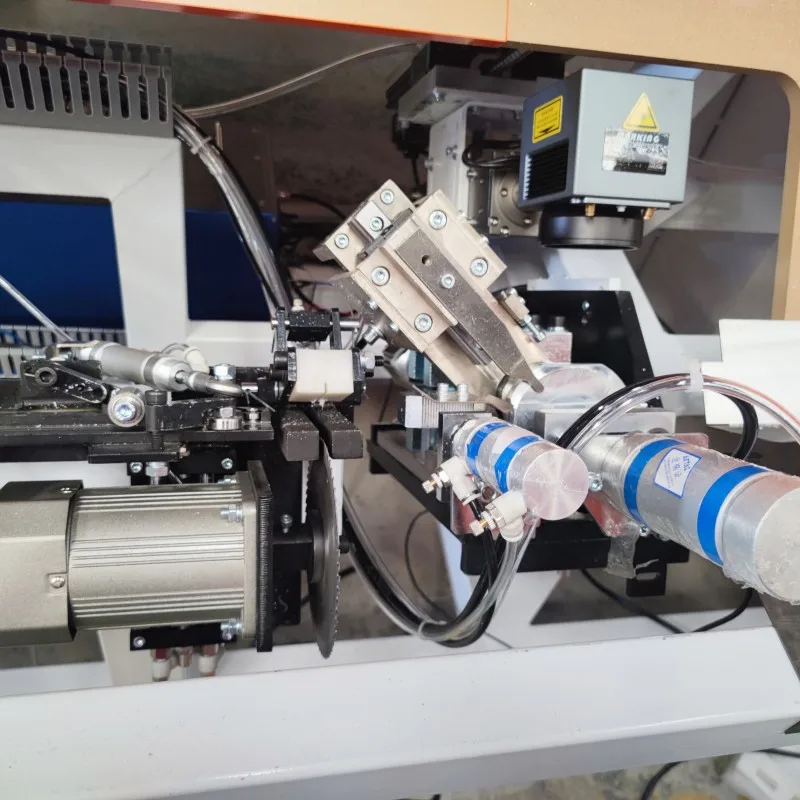

Continuous bending, automatic cutting

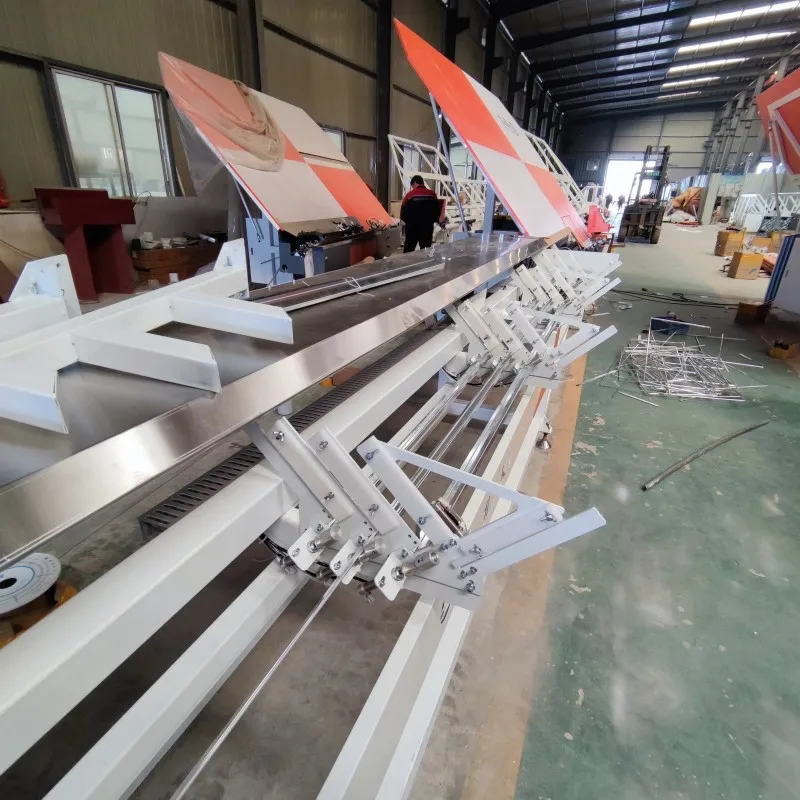

Material storage, store 4 sizes spacers

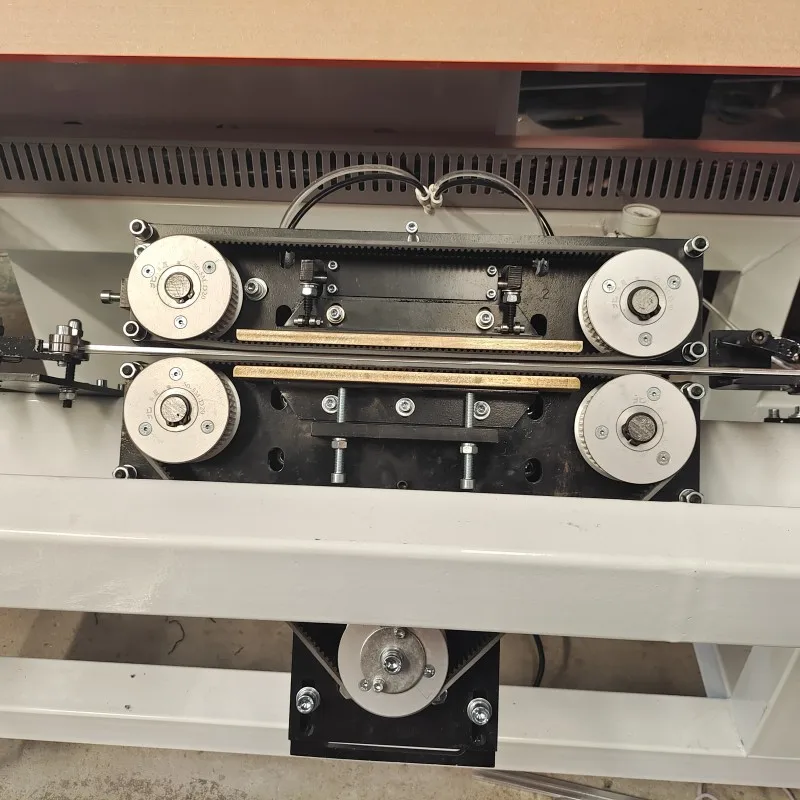

Automatic feeding
Product packaging
Company Profile
The company mainly produces insulating glass equipment, distribution of glass cutting, edging equipment, toughening, laminating
and other related equipment. The company has more than 1500 terminal customers, with good reputation, won the recognition of the
majority of customers. We have 2 independent technical patents, 12 Copyrights and 2 trademarks. The company developed a series of
two-component glue machine advanced technology, sensitive reversing, continuous stability, high production efficiency, high degree
of automation, easy to use; Widely used in two-component silicone structural adhesive, polysulfide adhesive, polyamine glue and
other high accurate ratio, uniform mixing and fast operation occasions. Solve the phenomenon of high waste and low efficiency
caused by manual work, is the ideal glass bonding production equipment. The company adheres to the business philosophy of "Honest
and trustworthy, and prosper enterprises with science and technology", based on talent, technology, service and reputation, not
only to provide customers with high quality glue coating equipment, but also to provide you with case debugging equipment,
technical consulting guides, staff operation training and other comprehensive after-sales service, so as to relieve customers of
worries.
and other related equipment. The company has more than 1500 terminal customers, with good reputation, won the recognition of the
majority of customers. We have 2 independent technical patents, 12 Copyrights and 2 trademarks. The company developed a series of
two-component glue machine advanced technology, sensitive reversing, continuous stability, high production efficiency, high degree
of automation, easy to use; Widely used in two-component silicone structural adhesive, polysulfide adhesive, polyamine glue and
other high accurate ratio, uniform mixing and fast operation occasions. Solve the phenomenon of high waste and low efficiency
caused by manual work, is the ideal glass bonding production equipment. The company adheres to the business philosophy of "Honest
and trustworthy, and prosper enterprises with science and technology", based on talent, technology, service and reputation, not
only to provide customers with high quality glue coating equipment, but also to provide you with case debugging equipment,
technical consulting guides, staff operation training and other comprehensive after-sales service, so as to relieve customers of
worries.
Exhibition
Certifications
FAQ
Q: Are you a trade company or a manufacturer? A: we are a manufacturer, welcome to visit our factory and check the machines. Q:How
long is your delivery time? A: Generally it is 5-10 working days if the goods are in stock, 20-30 working days if the goods are
not in stock. The specific delivery time needs to be confirmed based on the quantity and time of the order.
Q: Could you cutomize the machine according to our requirements? A: Yes, please tell us your detail requirements.
Q: How about the after-service? A: We will provide 24 hours on line service and professional on line training. Q: How about the
machine warranty? A: We provide 1 year warranty, Lifetime service
long is your delivery time? A: Generally it is 5-10 working days if the goods are in stock, 20-30 working days if the goods are
not in stock. The specific delivery time needs to be confirmed based on the quantity and time of the order.
Q: Could you cutomize the machine according to our requirements? A: Yes, please tell us your detail requirements.
Q: How about the after-service? A: We will provide 24 hours on line service and professional on line training. Q: How about the
machine warranty? A: We provide 1 year warranty, Lifetime service
