Tobee Effluent Handling
$12,600

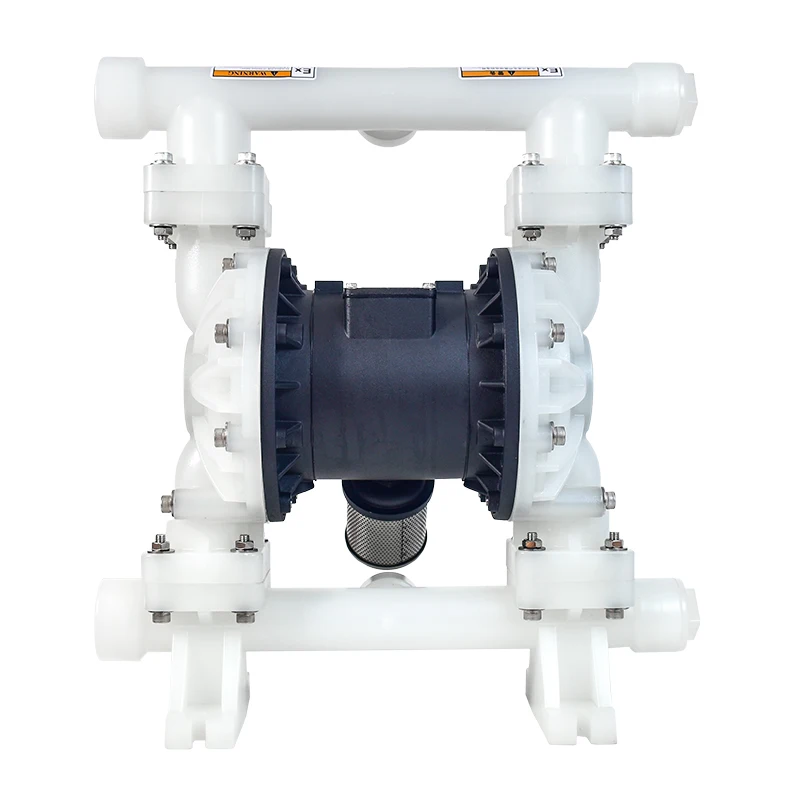

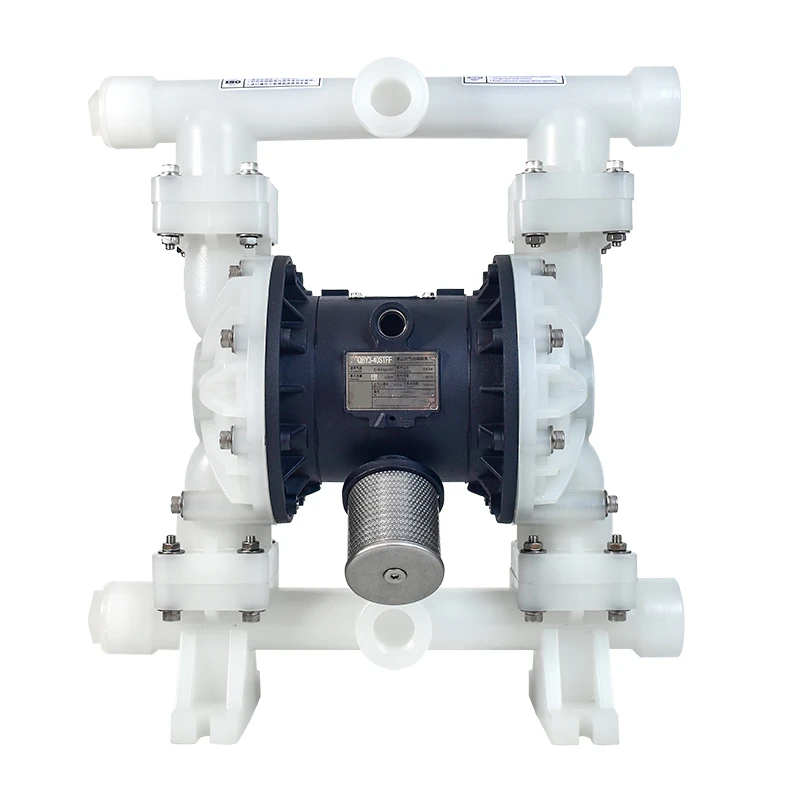

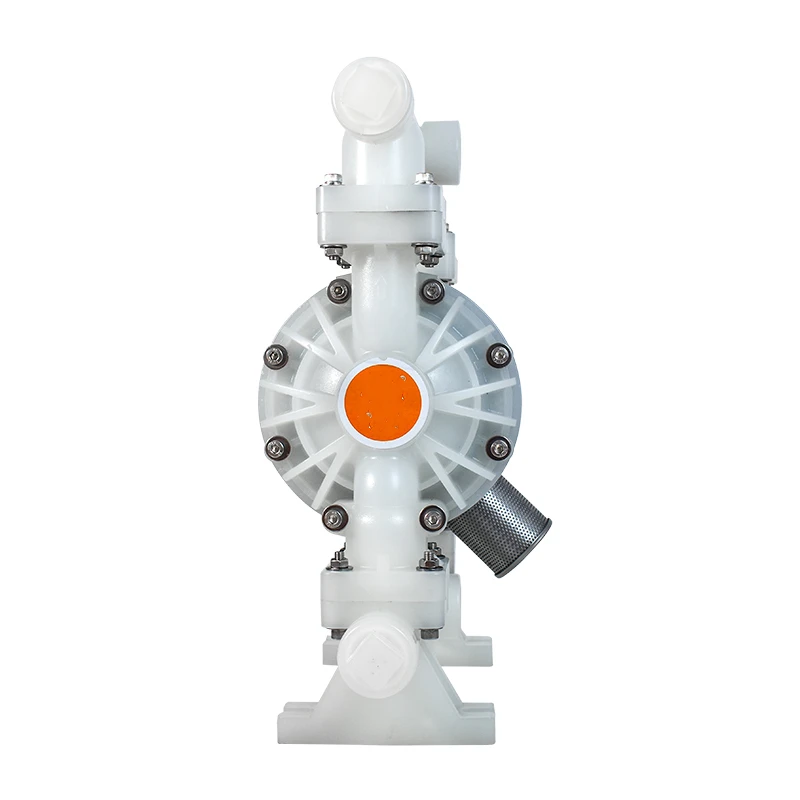

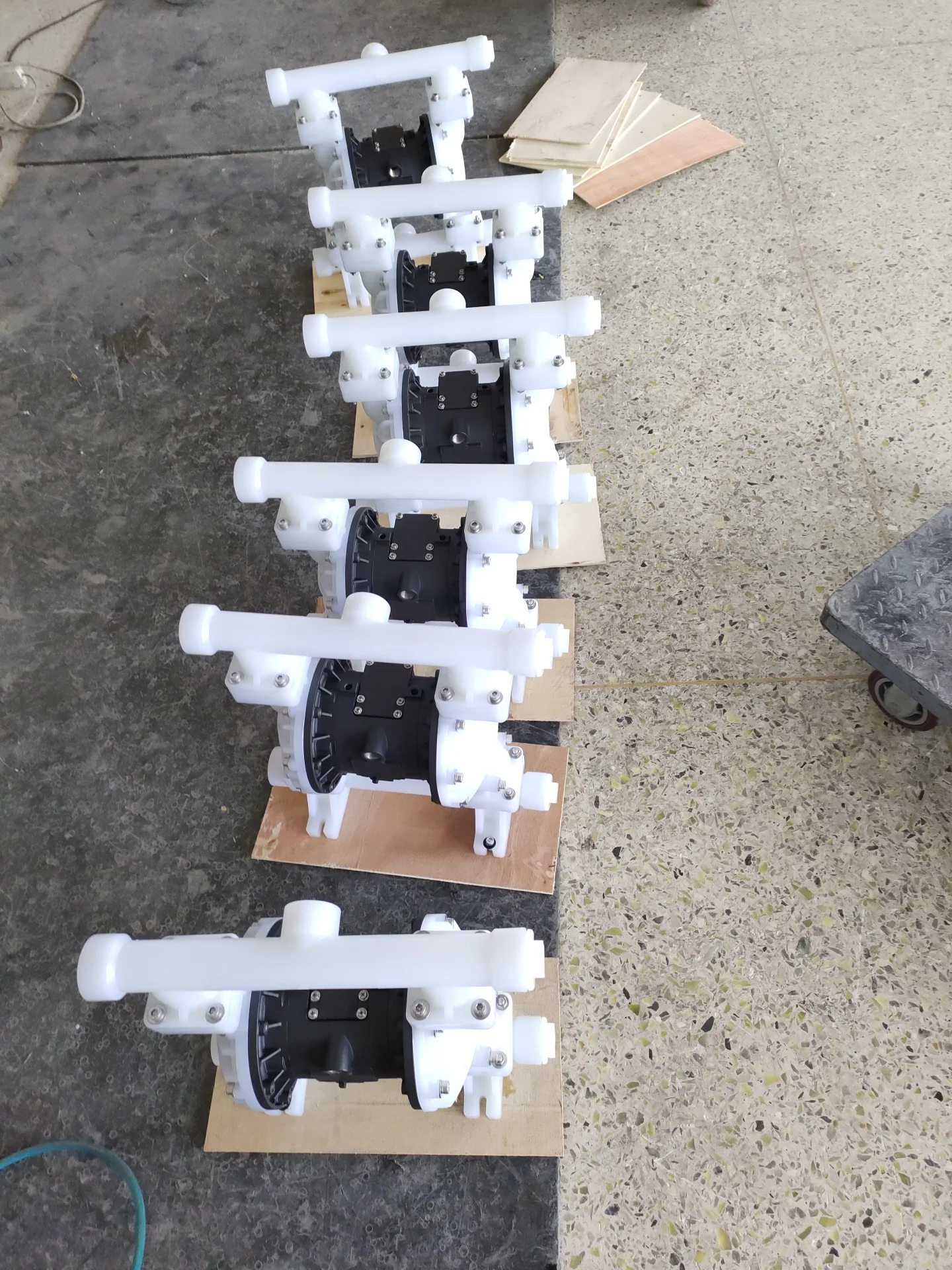

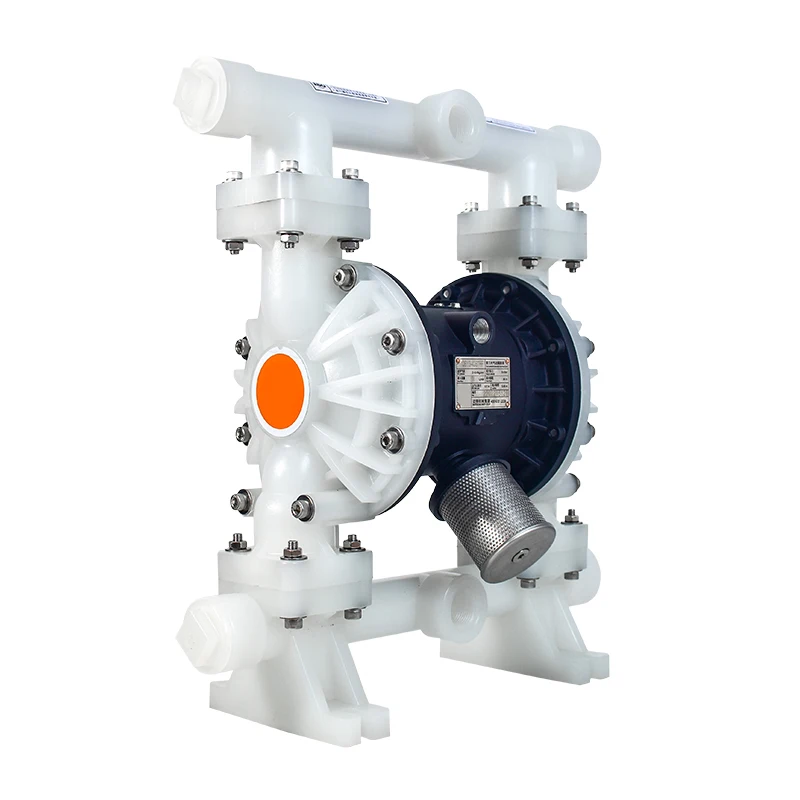

Polypropylene shell chemical ptfe pneumatic double diaphragm pump Diaphragm Acid Dose Pump Mechanical
- Category: >>>
- Supplier: Jinan H-Level Industrial Facility Co. Ltd.
Share on (1601216979005):
Product Overview
Description
Product Description

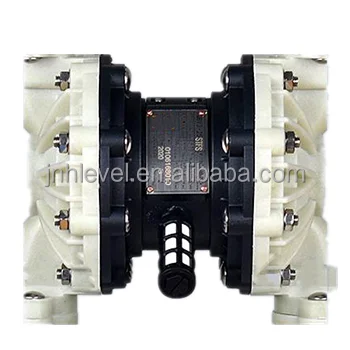

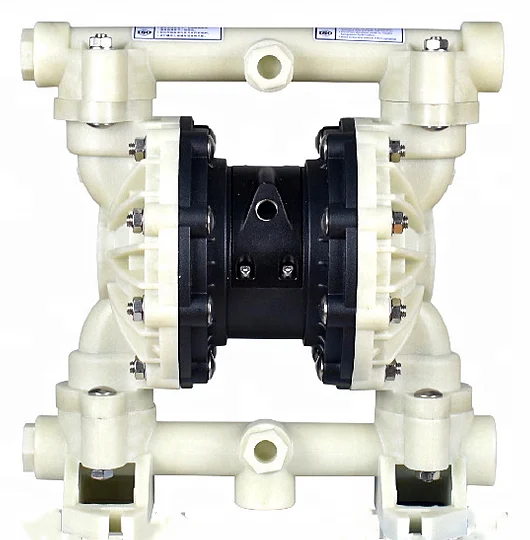

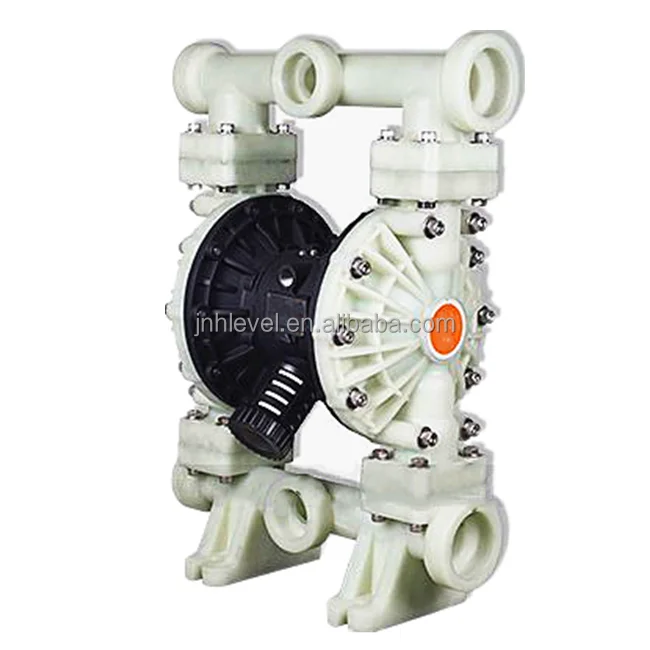

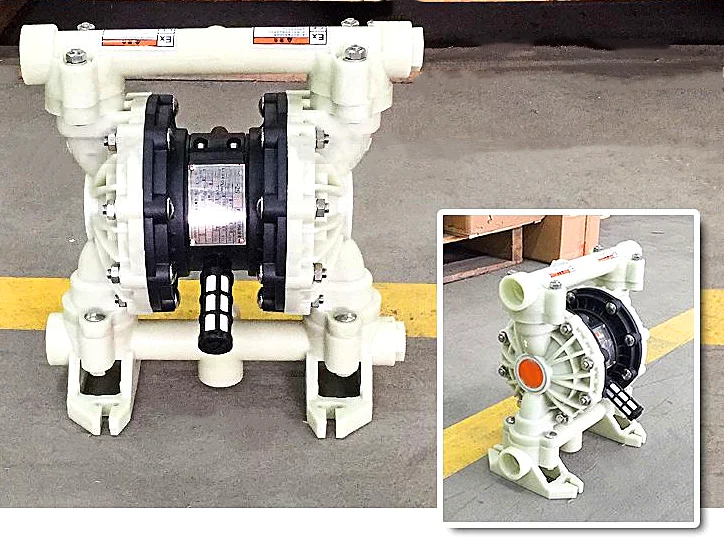

QBY3-40, 170 lpm China diaphragm pump supplier 1.5 INCH air operated PP pneumatic diaphragm pump for chemical
Model | QBY3-40 |
Material | PP |
Flowrate | 170 l/min |
Inlet&outlet | 1.5 inch, 40mm |
Pressure | 8.4bar |
Air inlet | 1/2 inch |
Suction height | 5.48m |
Max particle size | 3.2 mm |
Air consumption | 0.67 m3/min |
Performance
Durable, long working life(body warranty 5years), low noise, low vibration,non crashing problem,excellent workmanship.Suitable for liquid and material that hard to flow. Has advantages of self-preming pump,submerged pump,slurry pump and impurities pump etc.
Self-preming
No need irrigation water,self-suction height can reach 4.5m, particle size can be 3mm; tiny wearing to the pump when transferring slurry and impurities.
Flowrate and head can be adjusted by air valve.
Safety operation
No rotating parts,no shaft sealing, medium is separated from the pump running parts by diaphragms. When pumping poisonous, corrosive materials, wont cause environment pollution or harm to human.
No need electricity,safe for flammable and explosive condition.
China diaphragm pump manufacturer pneumatic diaphraggm pump for solution and powder
Pneumatic diaphragm pump is a new type of transport device, used to transport various materials like liquid, slurry, powder, even of high viscosity, volatile, flammable, highly toxic liquid
Features:
Our diaphragm pumps are of unsealed design
Anti-explosion
Suits to low cutting condition
Easy maintenance
Allow for idle load running
Light and protable
Self-absorption start-up
Multi-material option, suitable for various material
Advantages:
1) can work under bad air source, the reversing valve is reliable, not easy broken.
2) smooth air path, no air path obstacle from 1/2'to 3'pump,ensuring a flexible reversing.
3) Reversing valve totally externally maintainable.
4) Less moving parts compared to other diaphragms pumps.
5) pilot type reversing valve with long working life, ensuring the continuous running.
6) one reversing valve suits to different size pumps.
Application:
The diaphragm pumps can be applied to ship/bus/train unloading, chemical production, batch treatment and mixing, large tank or tank area conveying, common feed-conveying, system flushing, wastewater treatment or fluid filtration, packaging or filling, recycling and recycling.

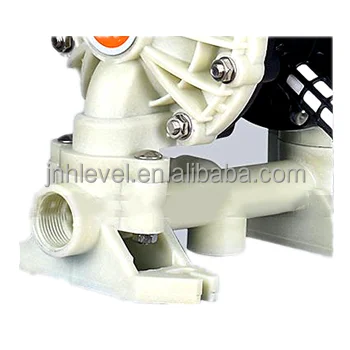

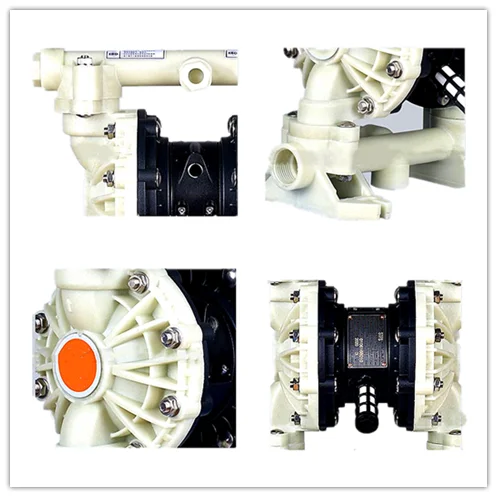

Structure
Specifications
Application examples
Application filed | Materials |
Chemical | Acid, alkali, solvent, suspension, dispersion system. |
petrochemical industry | thick oil, grease, slurry, sludge |
Coating industry | Resin, solvent, colorant, paint |
Daily chemical industry | Detergent, shampoo, emulsion, emulsion, hand cream, surfactant |
Ceramic industry | Mud, porcelain pulp, lime pulp, clay pulp |
Mining industry | Coal slurry, magma, mud, mortar, lubricating oil |
Water treatment | Lime slurry, soft sediment, waste water, chemicals, wastewater |
Food industry | Liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey |
Beverage industry | Yeast, syrup, concentrate, gas - liquid mixture, wine, juice, corn slurry |
Medical | Solvent, acid, alkali, plant extract liquid, ointment and other kinds of pharmaceutical liquid |
Paper making | Adhesives, resins, paints, inks, pigments, hydrogen peroxide |
Electronics | Solvent, plating solution, cleaning solution, nitric acid, waste acid, corrosive acid, polishing solution |
textile | Dye stuff, resins, gels |
Building | Cement paste, ceramic tile binder, rock paste, ceiling finish |
Car industry | Polishing emulsion, oil, coolant, automotive primer, oil emulsion, varnish, varnish additive, degreaser |
furniture | Adhesives, varnishes, dispersants, solvents, colorants, wood gums, epoxy resins, starch binders |
1.What is the pump material?
PP/ aluminium alloy/ SUS304/SS316/SS316L/Carbon steel
2.What is the diaphragms material?
PTFE/ rubber
3. How many pcs dispharagms on a pump?
We have 2 pcs PTFE and 2 pcs rubber
4.What is the delivery time?
Delivery within 7 days
5.What is the package?
Size below DN80 in carton, size above DN80 in wooden case
6.Is the pump certified?
Yes, have CE and ISO9001
7.What is the warranty?
Up to 5 years.
