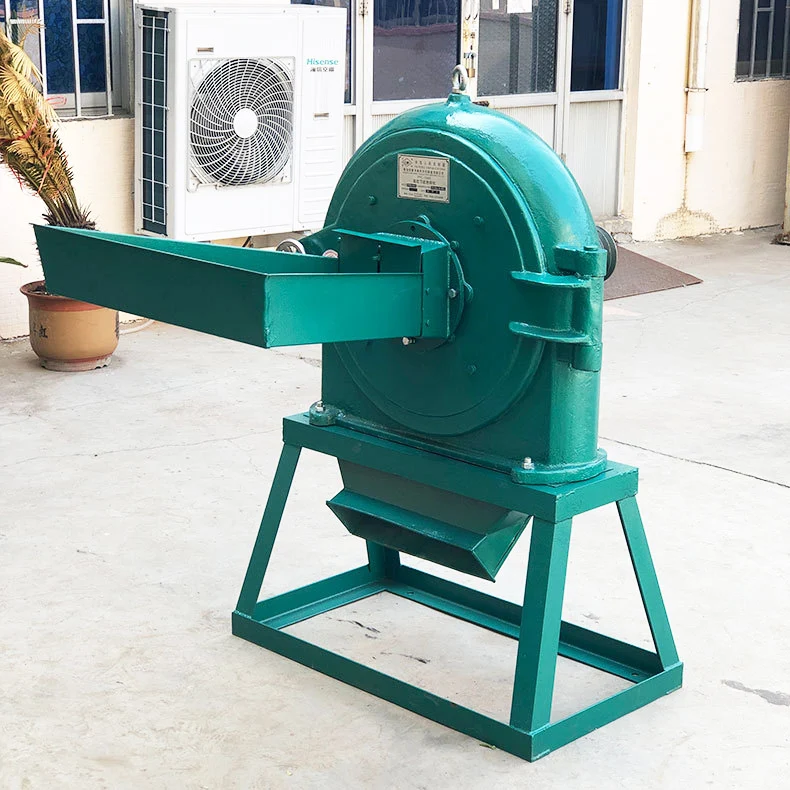

Meal Grind Industrial Maize Milling Plant Farm Flour Make 1.2t/h Corn Mill Machine

Share on (1601217023274):


Price:$2,620.00 - $2,700.00

Quantity:


Product Overview

Description



Product Description

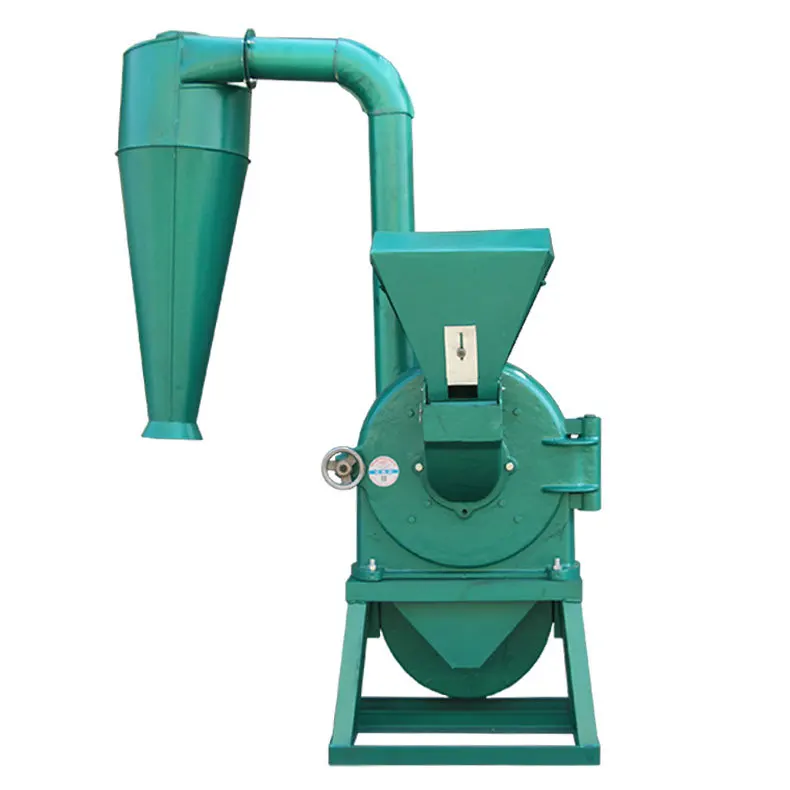

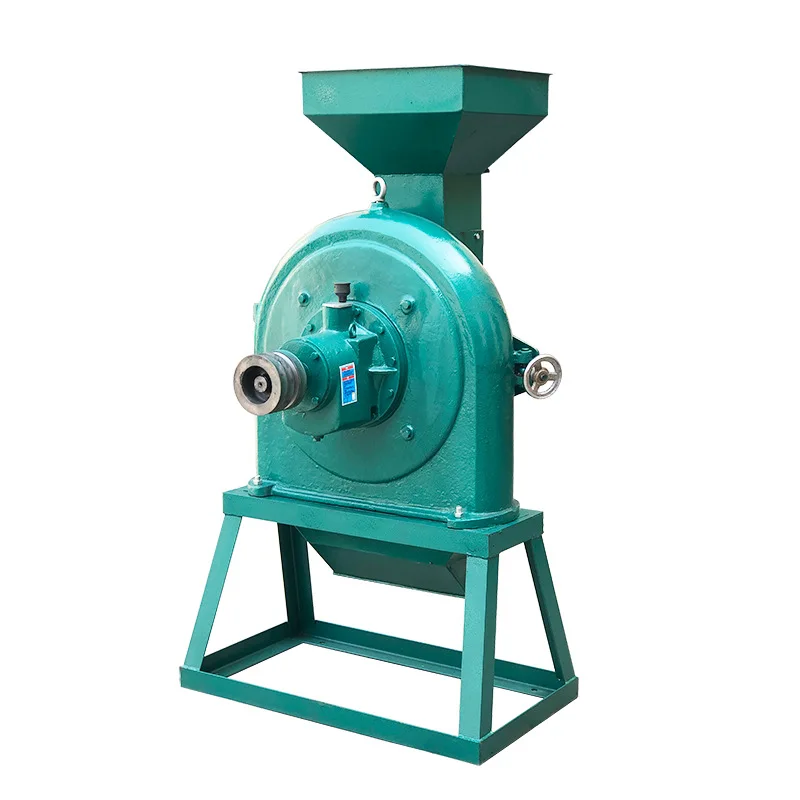

Corn Flour Mill Machine
This series of mills has a compact structure, beautiful appearance, sturdy and durable, reliable use, easy maintenance, wide application range, high crushing output, and can well meet the needs of users.
This machine is particularly ideal for processing corn, soybeans and other grains, feed, seasonings, food and other materials. After the raw materials are put into the machine, they are crushed into powder once without leaving any residue.


Product Paramenters


Model
Capacity
Power
FFC-23
150KG
3KW
FFC-26
180-220KG
3-4KW
FFC-37
250-300KG
7.5-11KW
FFC-45
350-450KG
11-15KW
FFC-45K
400-500KG
15-18.5KW
FFC-55
600-700KG
15-22KW
FFC-500
700-800KG
18.5-22KW
FFC-600
900-1000KG
22-30KW
FFC-700
1000-1200KG
30-45KW
The above capacities are measured by crushing corn with a 1.5mm aperture sieve. Please consult the seller for specific capacities.


Details Images


1. Siamese design
The fixed gear disc adopts a conjoined design, which can reduce the wear rate and tooth breakage rate by 90%.

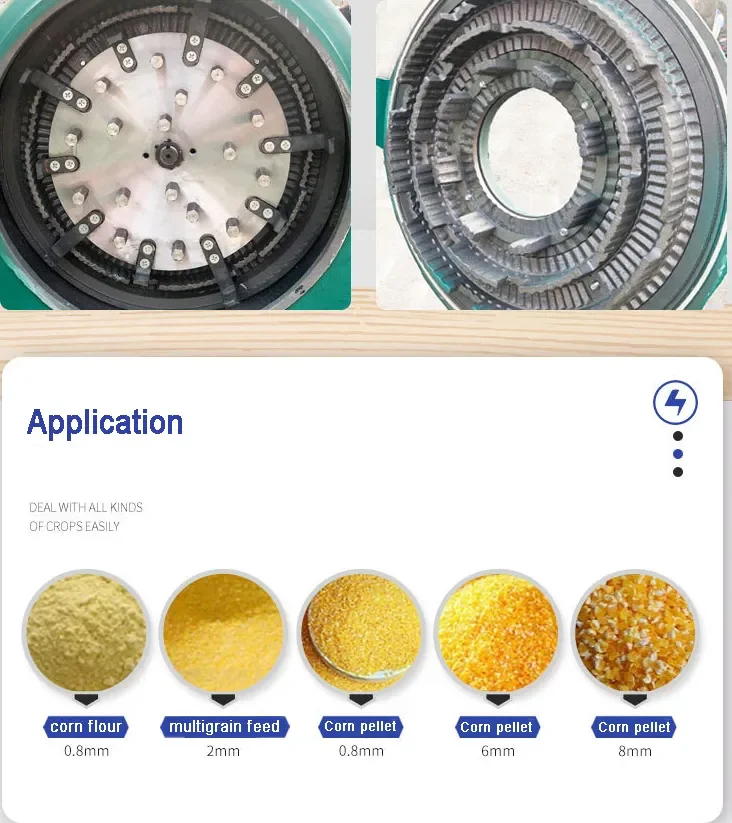

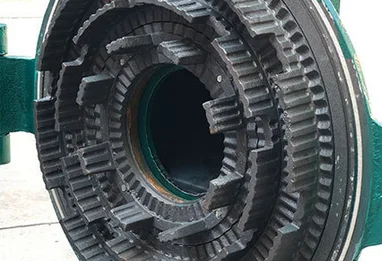

2.Dual gear disc design
It adopts a double gear disc design, and there is also a set of fixed crushing gear discs inside the machine chamber (behind the rotor disc), which greatly improves the crushing efficiency and fineness.

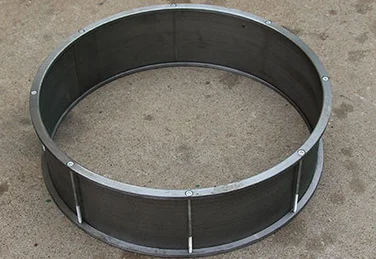

3. Screen widening design
Screen size: 146*2100mm
Screen width: 158mm
Screen ring diameter: 668mm

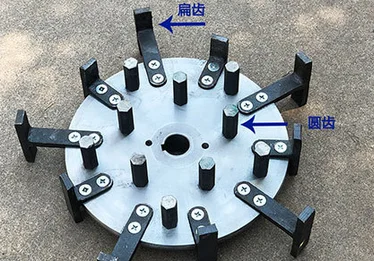

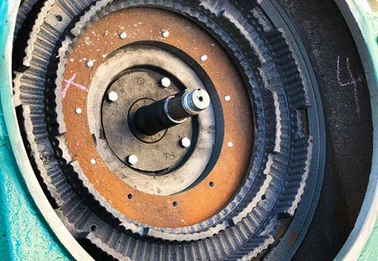

4. All-steel thickened rotor disc
This machine uses an all-steel thickened rotor disc, and the round teeth are made of 60# rail steel, which has high strength and good wear resistance. The flat teeth are forged from round steel, and after repeated hammering, impurities are removed and density is increased, and the teeth are almost never broken.


Application


Raw materials that can be crushed using this machine:
Grain: corn, wheat, cassava, soybeans, rice, buckwheat, various grains and various food scraps
Feed: soybean meal, soybean powder, soybean cake, bran, corn cobs, rice husks, rice husks, chili residue, garlic skins, peanut shells, etc.

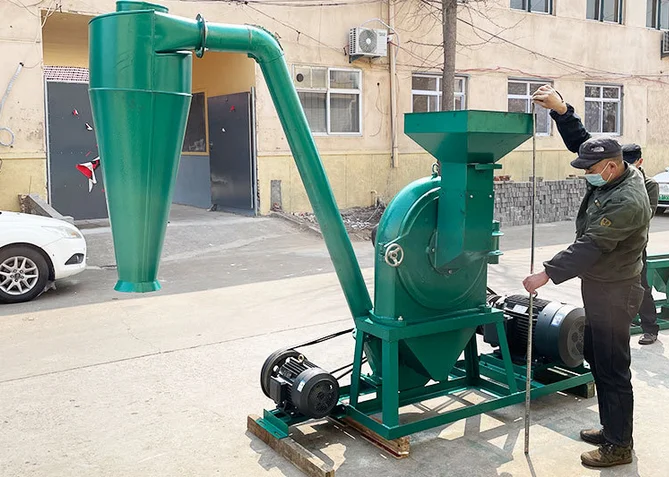

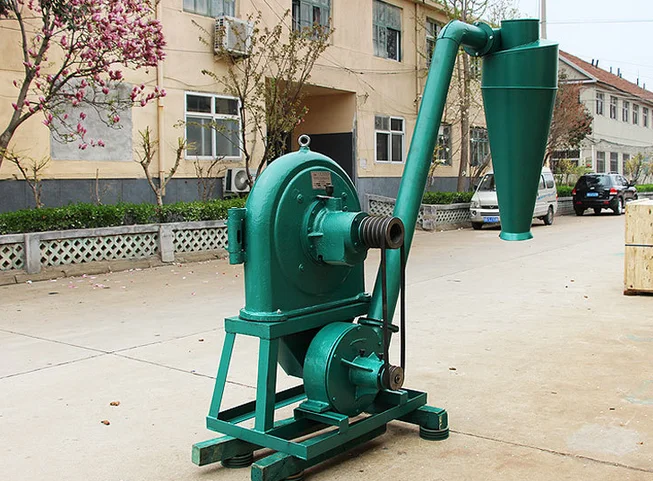

Self-priming

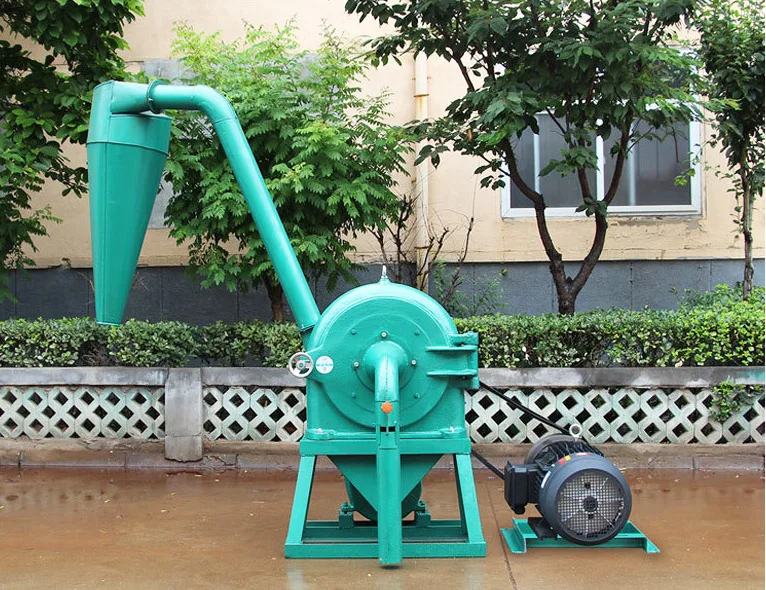

Flat hopper
Vertical hopper

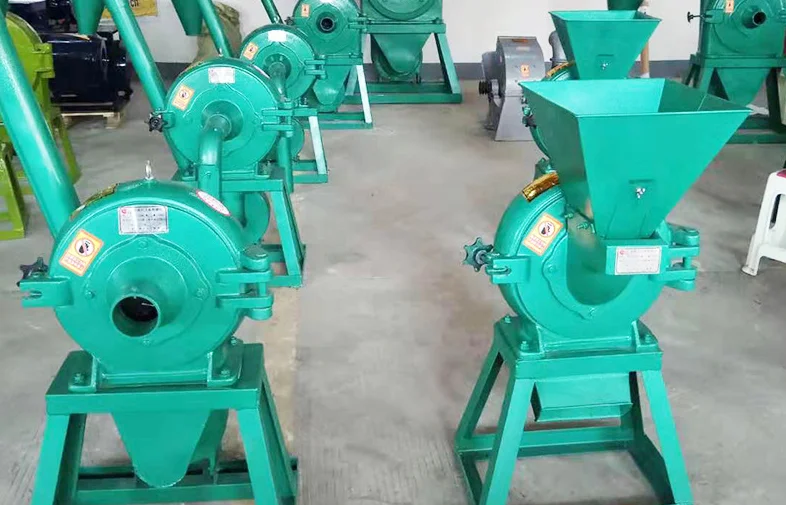

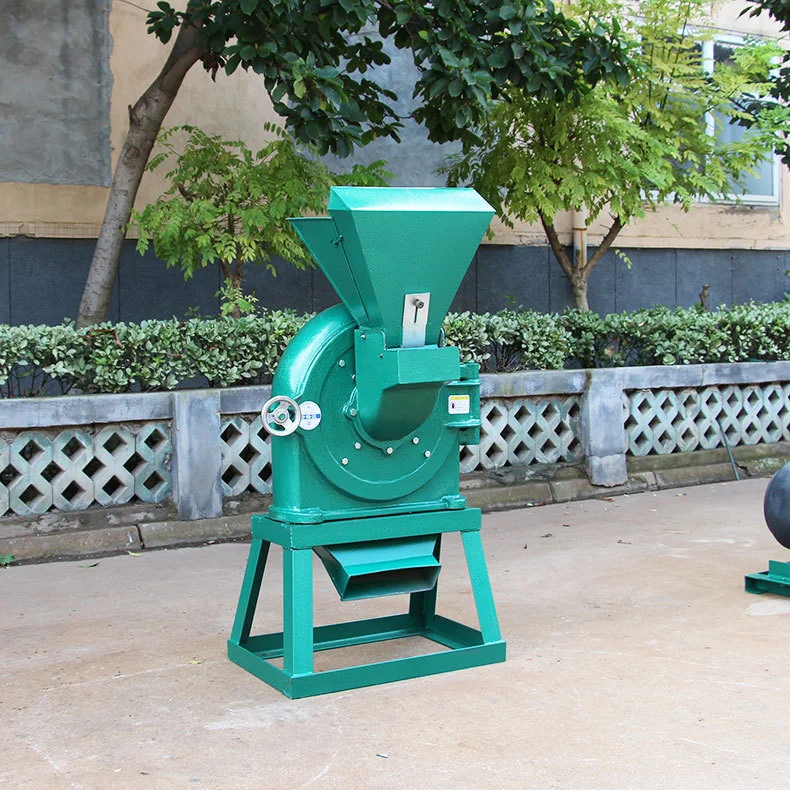

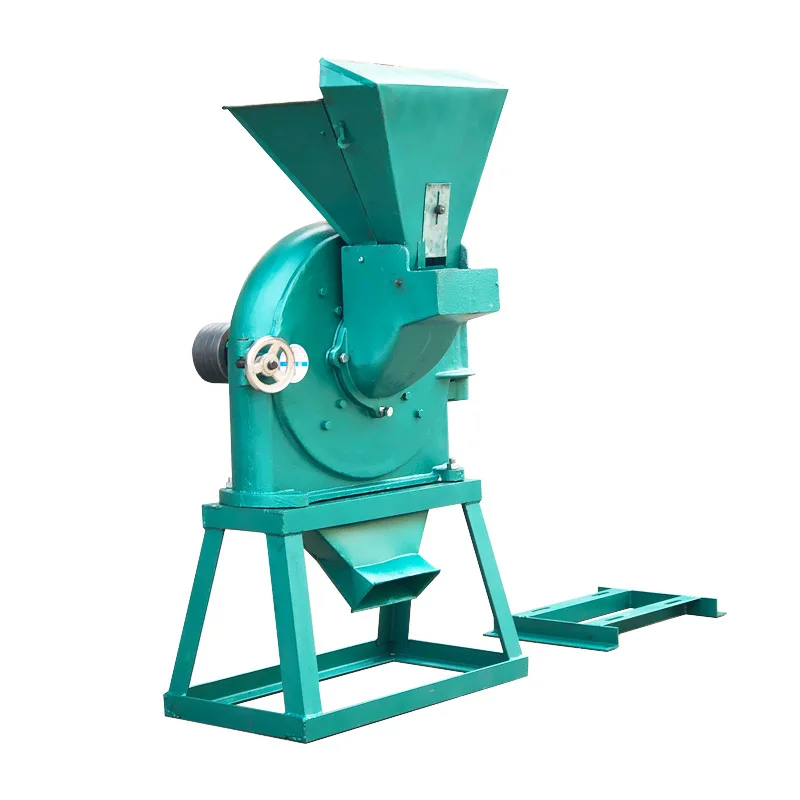

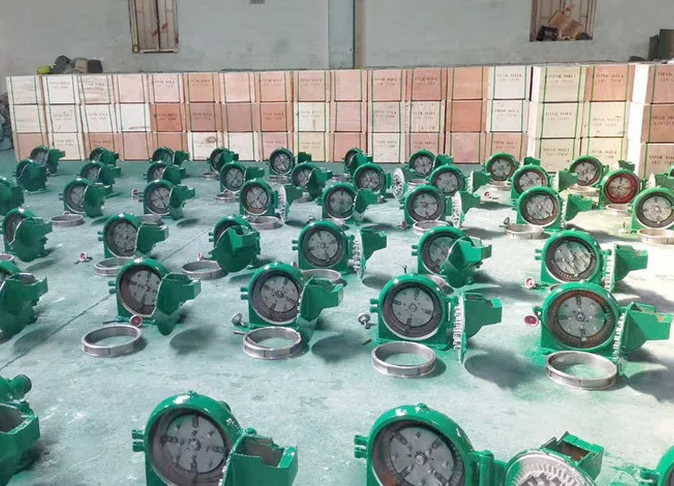

Product Display

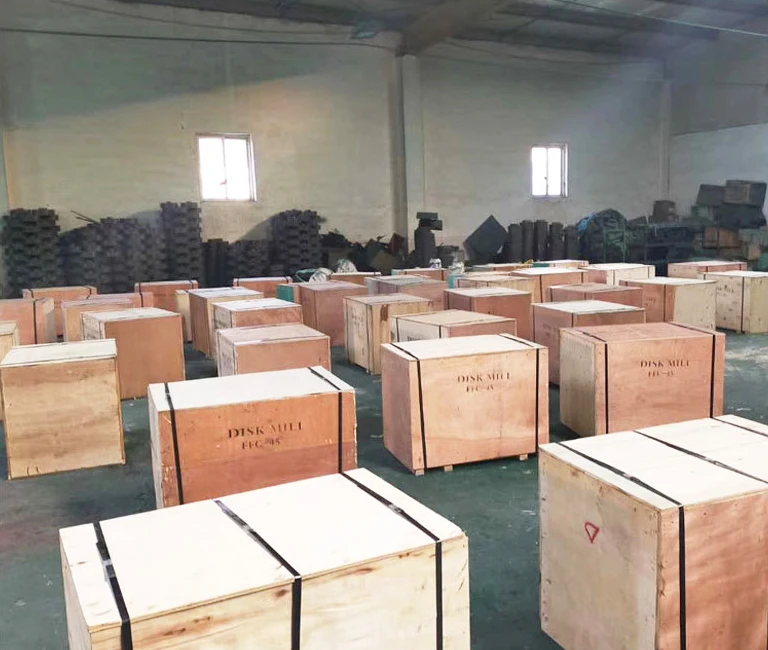

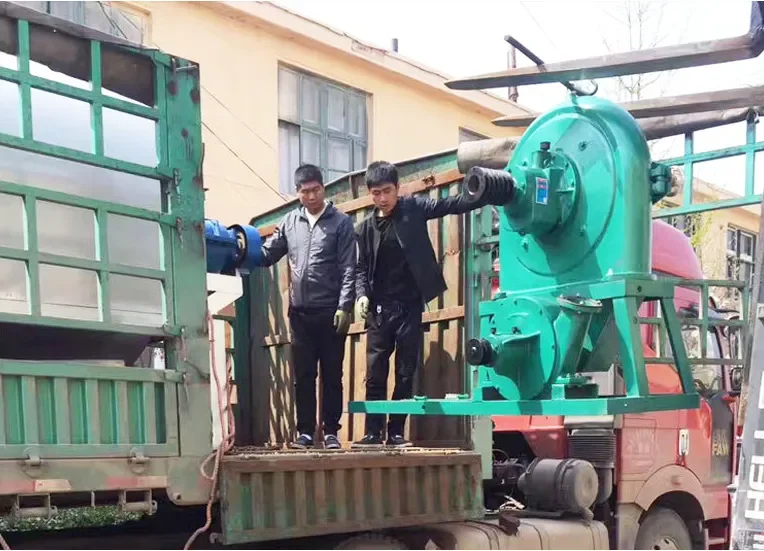

Product packaging




Company Profile


SolisFer Ltd
SolisFer Ltd is mainly engaged in the production of pulverizers, integrating R&D, processing and sales. It has many years of processing and manufacturing experience, and its products are widely praised and favored in the market. The machinery produced by SolisFer Ltd breaks the working bottleneck of traditional machinery. It can be applied to small industries as well as large-scale operations. It is easy to operate and highly automated.
The multifunctional claw crushers we produce are sold well all over the country and exported to Vietnam, Cambodia, Malaysia, North Korea, South Korea, Poland and other countries. We mainly produce super multifunctional flour mill series and feed crusher series. We are a company specializing in the production and processing of crushers. At present, we have FFC series crushers, FFC-23, FFC-45, FFC-500, FFC-600, FFC-700 and other products.
