Shandong Jinan factory hot selling European popular wide 6133 CNC glass cutting machine with CE certification
- Category: >>>
- Supplier: Shandong Zhengke Automation Co. Ltd.Shandong Ltd.
Share on (1601217206524):
Product Overview
Description

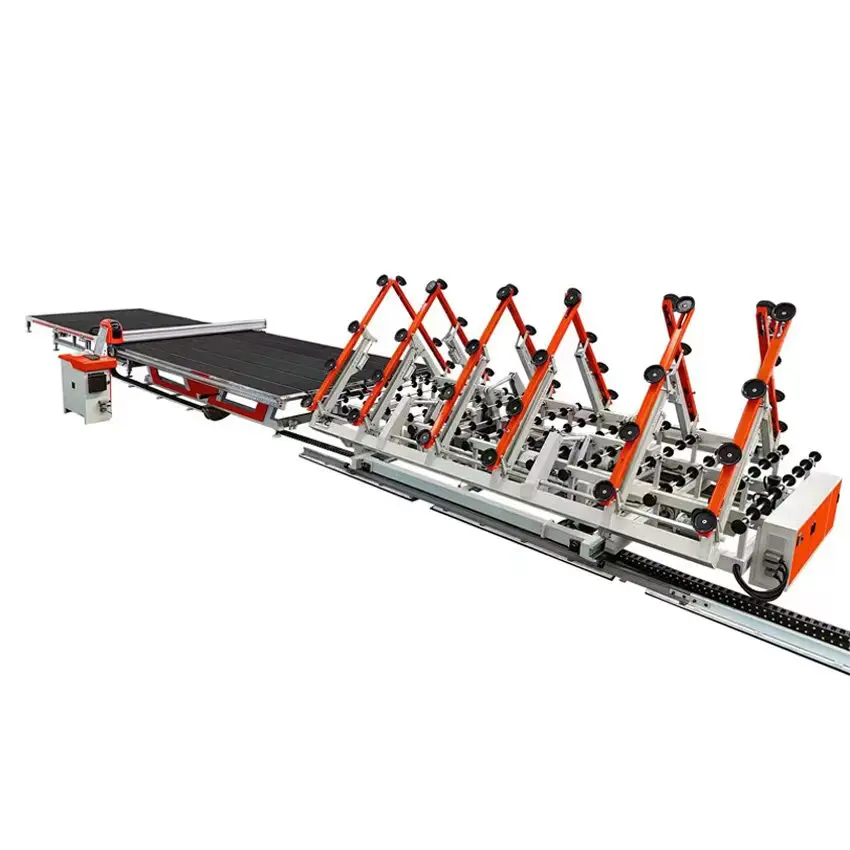

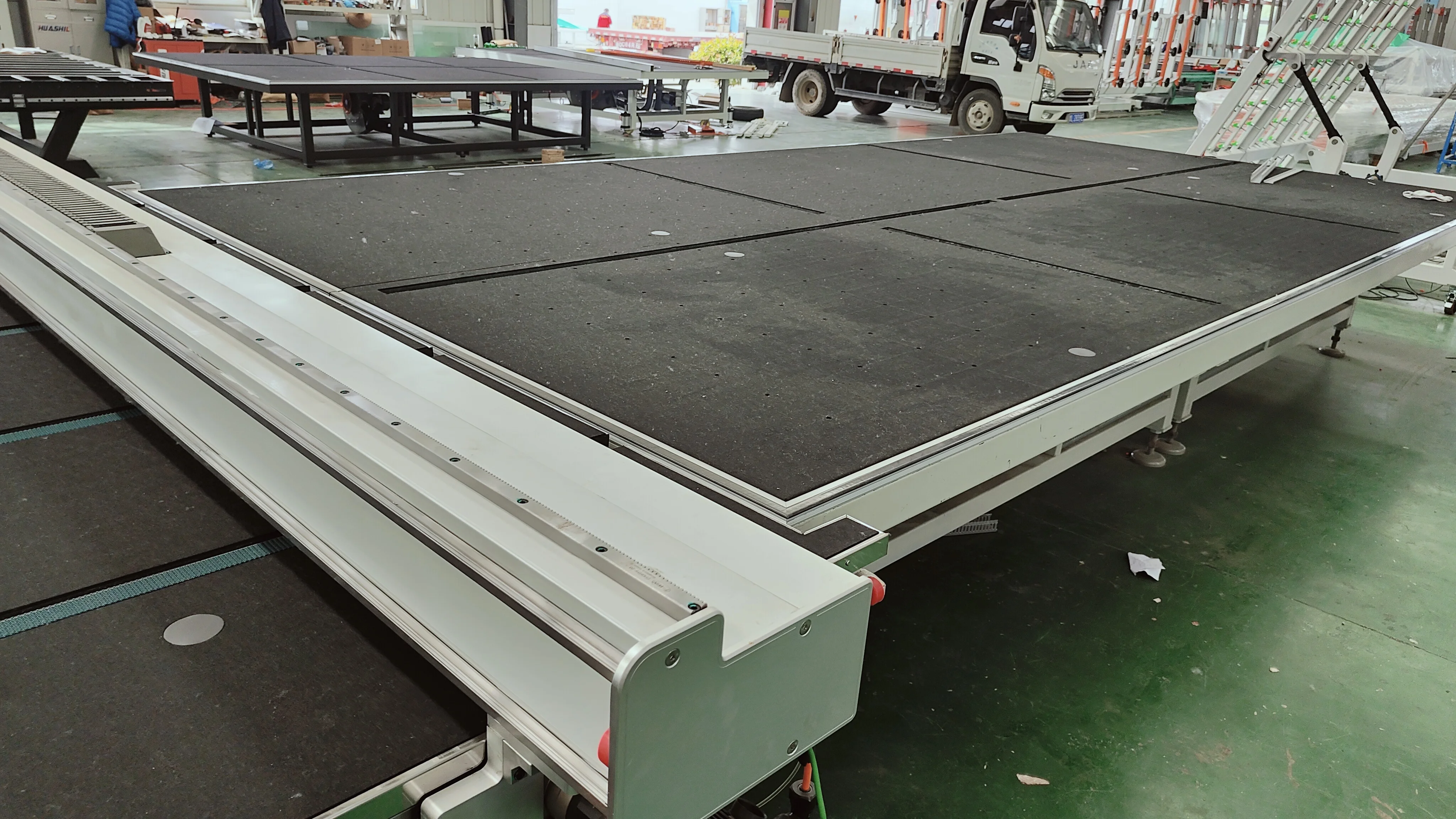

ZK-5133 Glass cutting line Automatic Loading Breaking Glass Cutting machine Glass Processing Line
Products Description

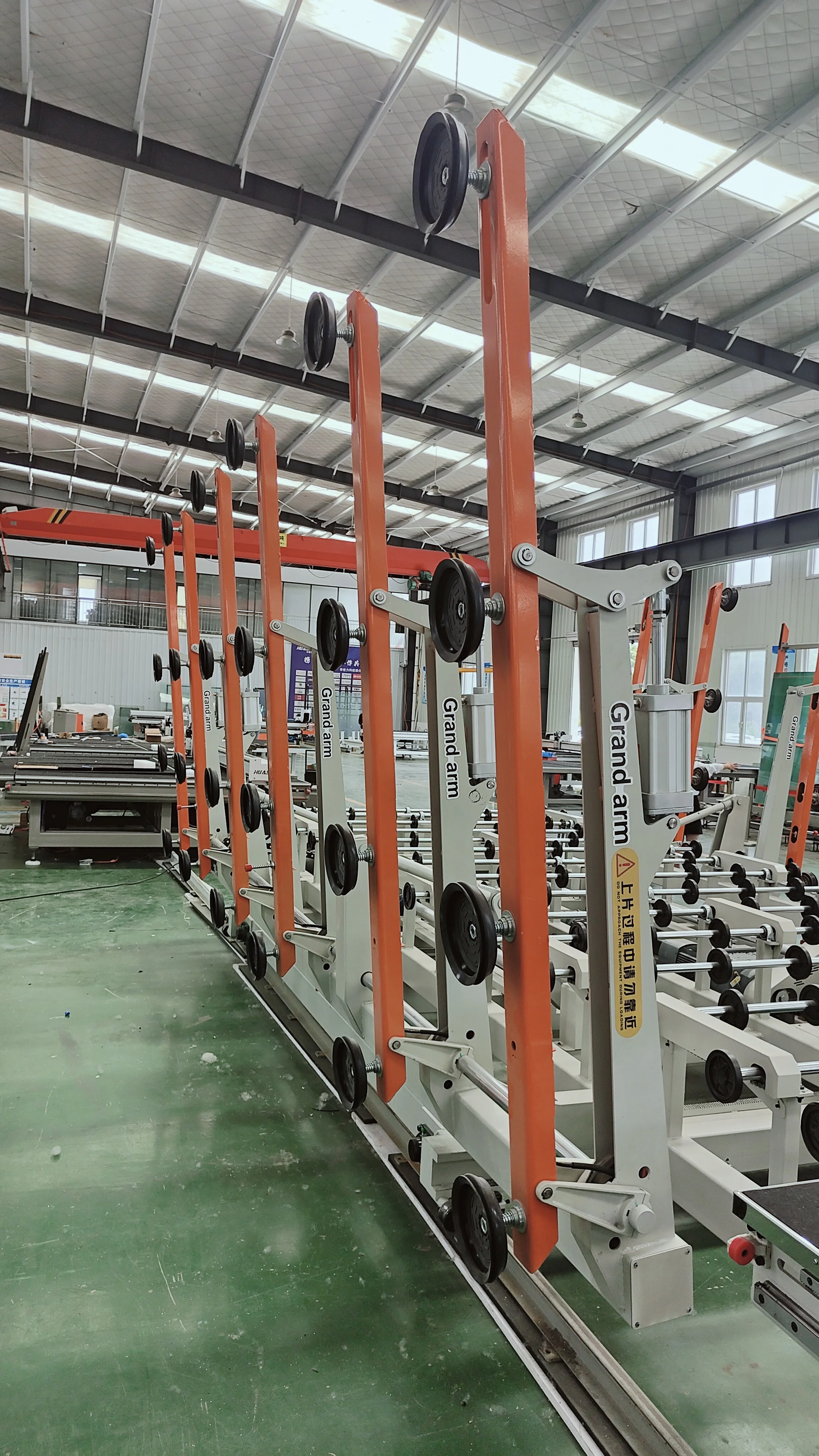

The telescopic arm and the big arm extend out at the same time, and automatically find the glass. After the system detects the suction cup firmly, put the glass back to the table automatically, and the upper plate is finished.
2. Intelligent control:
2. Intelligent control:
one button control can finish the loading, cutting and labeling at one time.
3. Automatic cutting：
3. Automatic cutting：
Intelligent optimization cutting software, optimization rate up to 99%, automatic cutting, high precision, fast speed.
4. Automatic labeling：
4. Automatic labeling：
Intelligent automatic labeling，labeling follows the head of the cutting machine,which has the advantages of fast speed and high stability.
5. Fault detection:
5. Fault detection:
automatic fault detection and alarm system, real-time uploading of fault causes can quickly solve the fault.
6. Optimization software:
Using Italian Optima optimization software, the cutting accuracy is higher.
Product Paramenters
Overall dimension | 20140*3900*2400mm |
Countertop height | 880±30 mm (foot adjustable) |
Max glass size | 6100*3300mm |
Min glass size | 50*50 mm |
Glass thickness | 3～19 mm （If the glass thickness exceeds 12mm, you need to inform us in advance） |
Total power | 34 kw |
Power supply | 380V/50HZ/3P |
Air pressure | 0.6～0.8 MPa |
Cutting knife holder | 360° |
X axis speed | 0～200 m/min ( can be set ) |
Y axis speed | 0～200 m/min ( can be set ) |
Cutting acceleration | ≥ 6 m/s² |

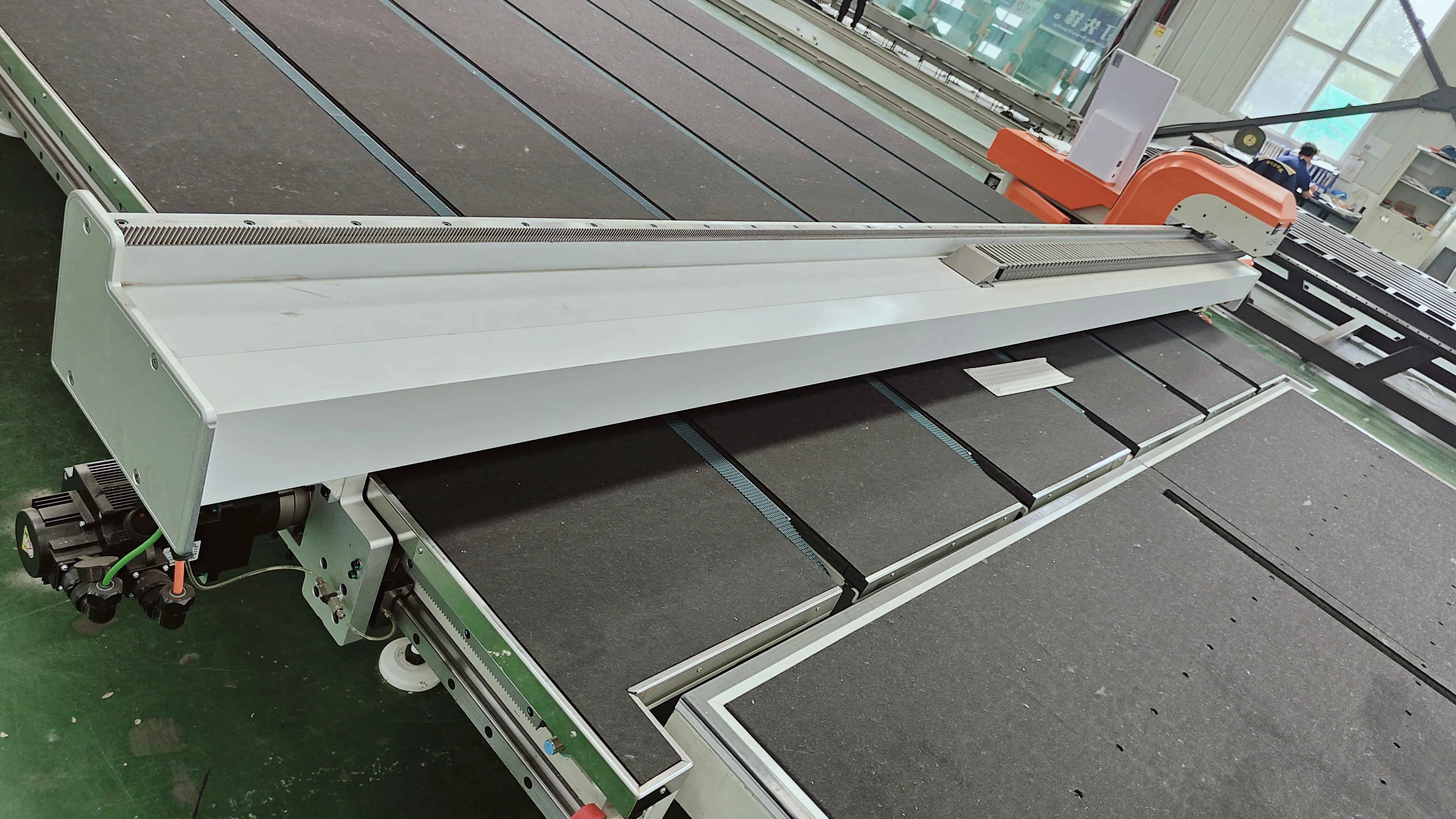

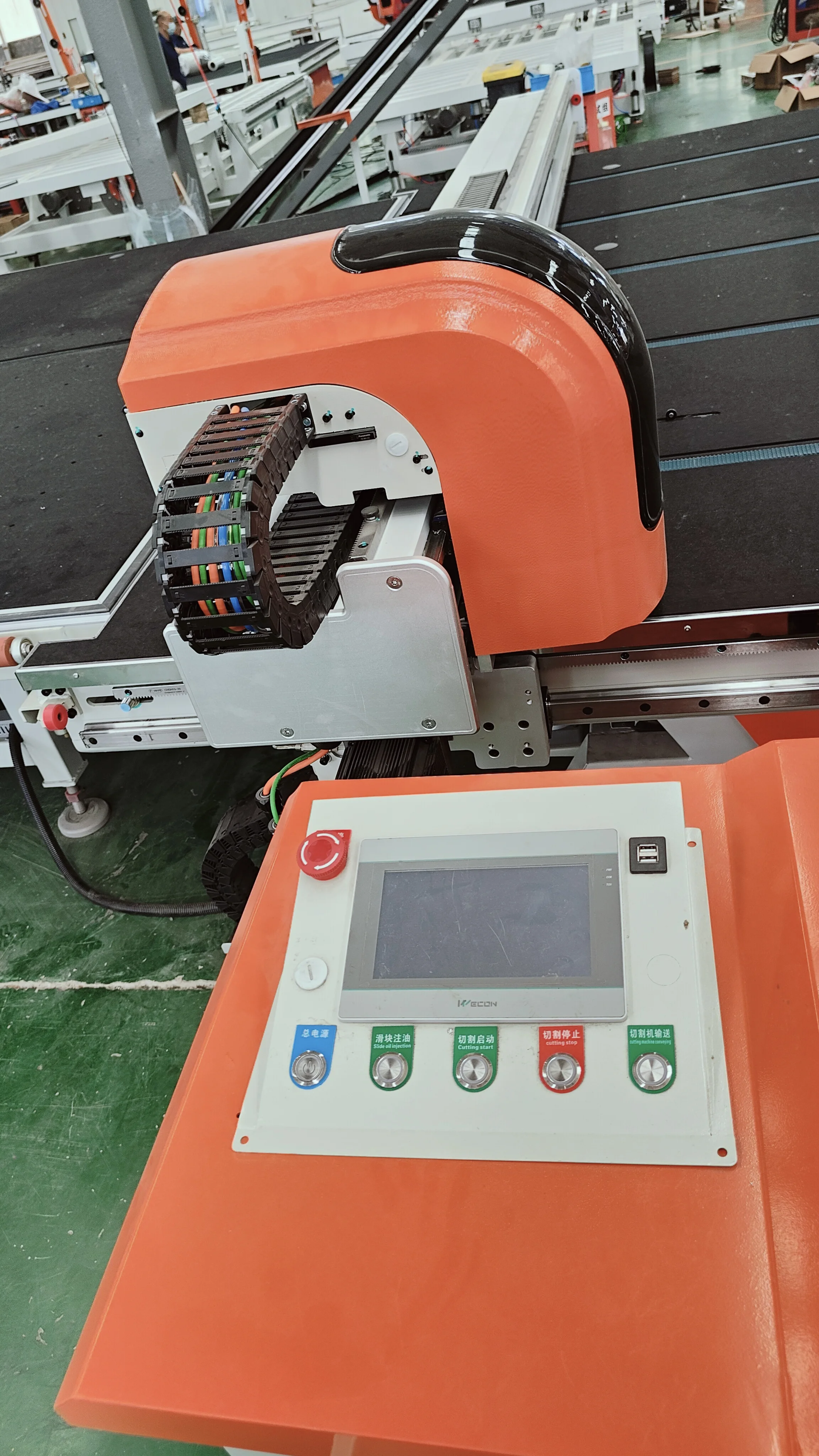

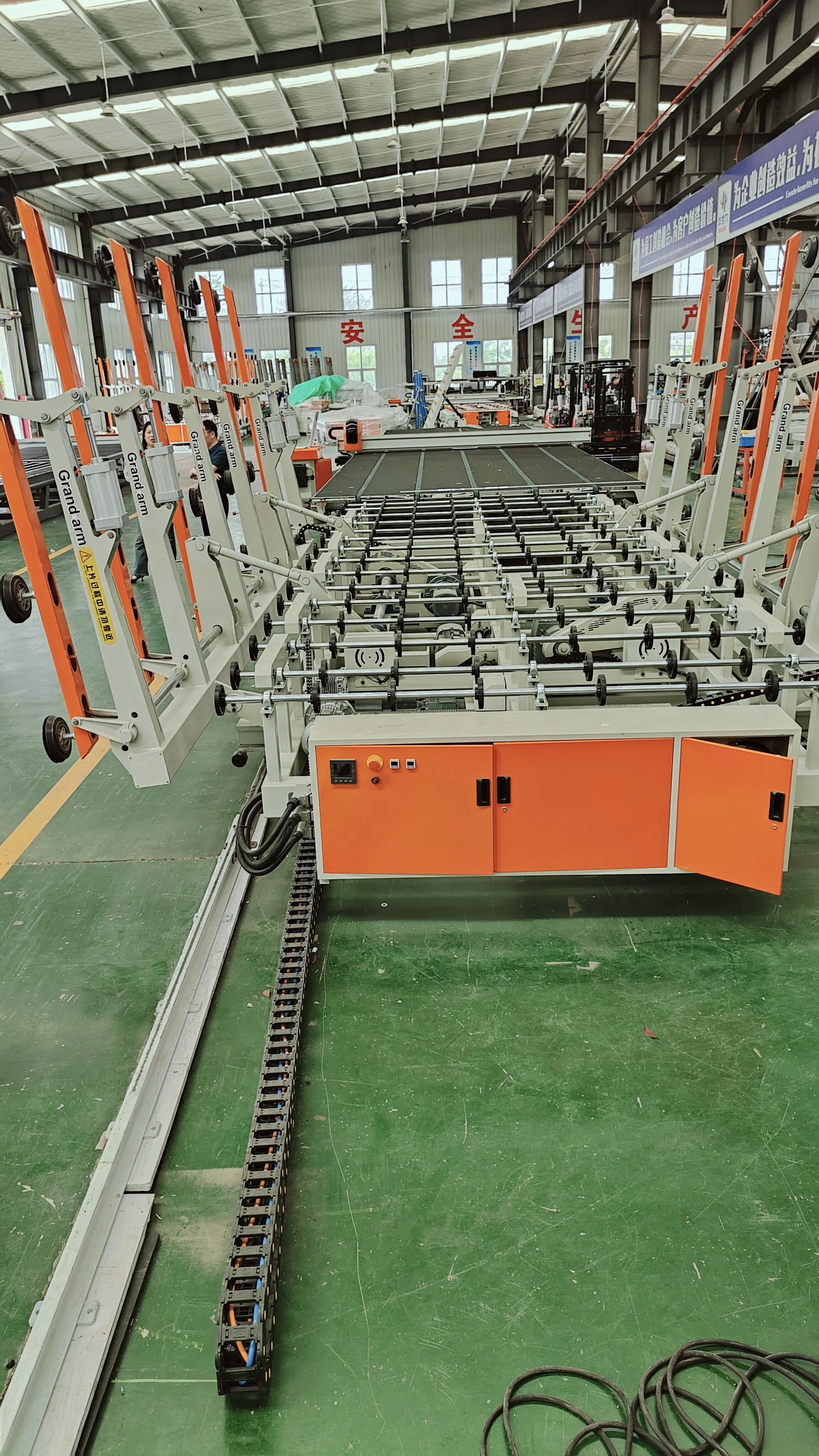

Details Images
Main accessories and brands
Germany Wieland Intermediate relay
INOVANCE frequency converter
DELIXI contactor
AirTAC solenoid valve
Gugao cutting software
Italian Optima optimization software
Panasonic fiber optic probe
Omron phase sequence protector
T-win linear square rail
Main model parameters of Zhengke glass cutting line
Model | Max. glass size | Min. glass size | Thickness | Dimensions (L*W*H) | Total Power | Air pressure |
ZK-4228 | 4200*2800mm | 50*50m | 3~19mm | 13900*3800*2400mm | 22KW | 0.6~0.8MPa |
ZK-5133 | 5100*3300mm | 50*50m | 3~19mm | 17100*4450*2400mm | 30KW | 0.6~0.8MPa |
ZK-6133 | 6100*3300mm | 50*50m | 3~19mm | 20140*3900*2400mm | 34KW | 0.6~0.8MPa |
Machine Video
Automatic glass loading, cutting function display

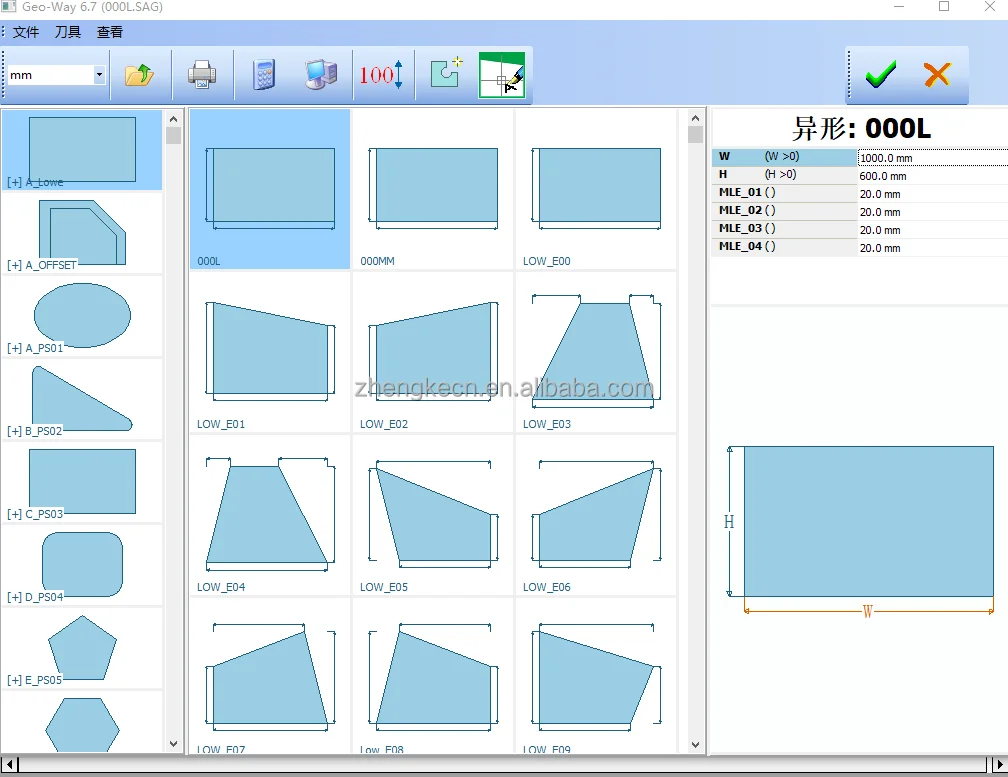

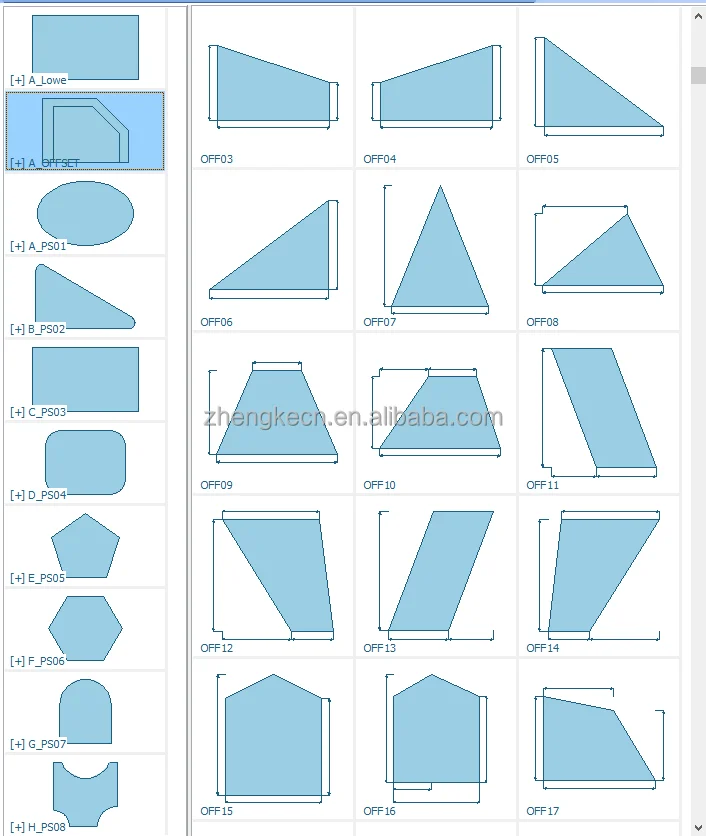

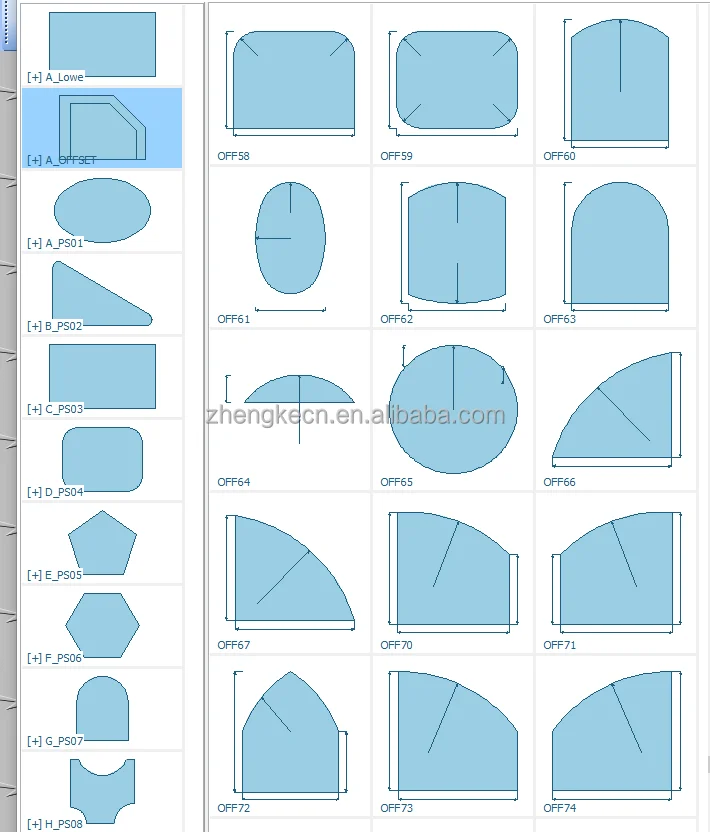

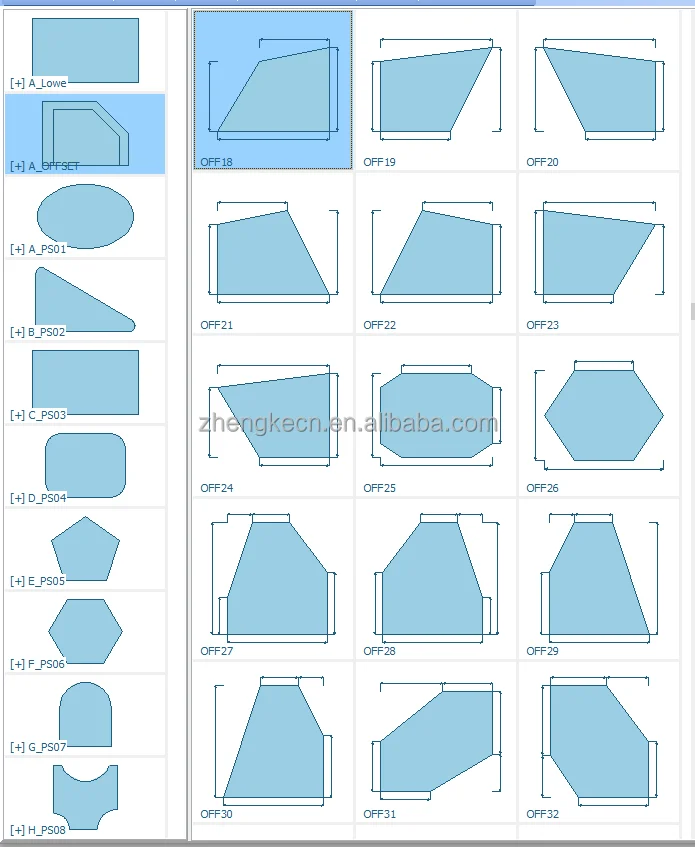

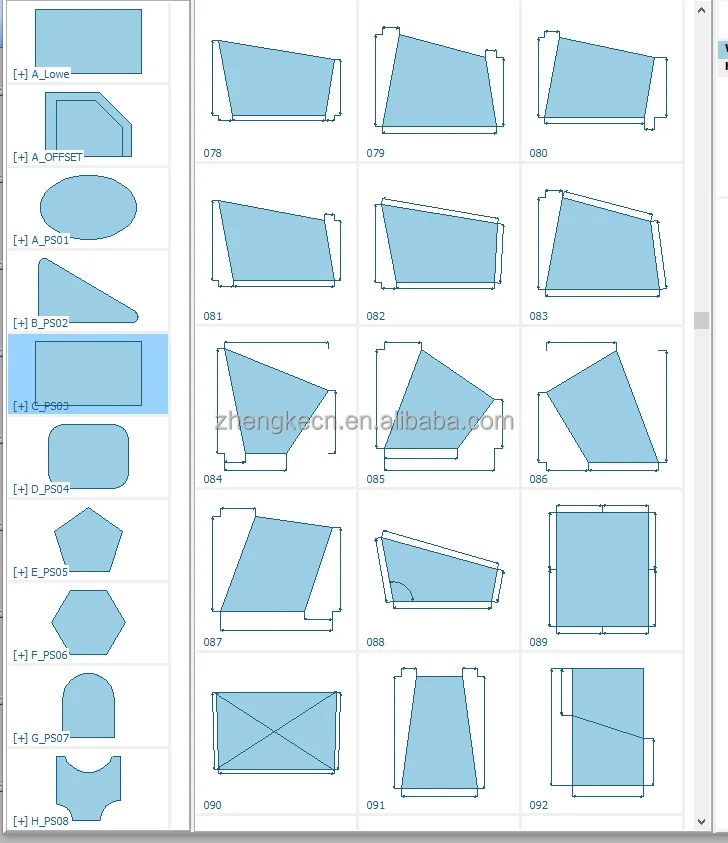

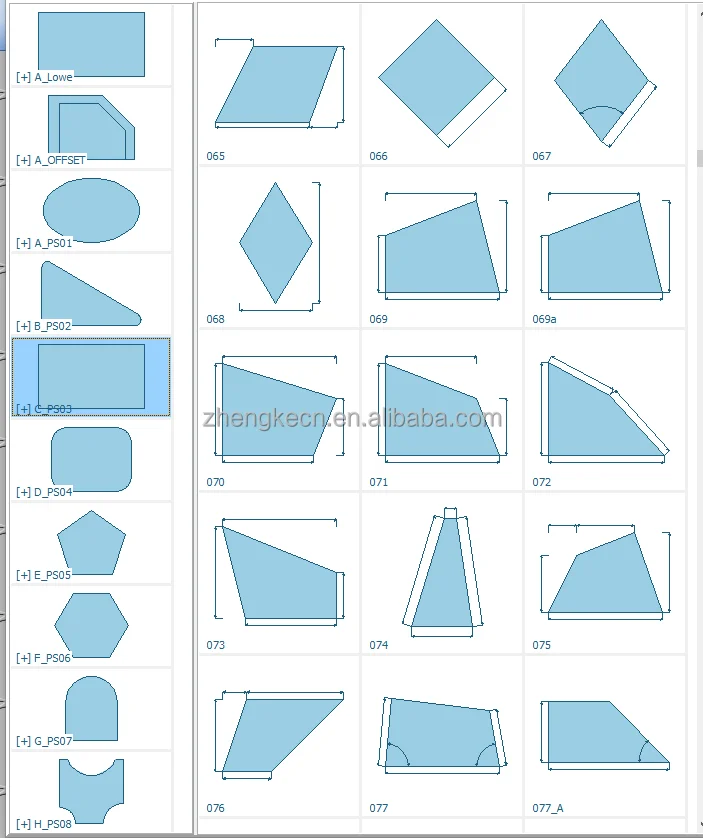

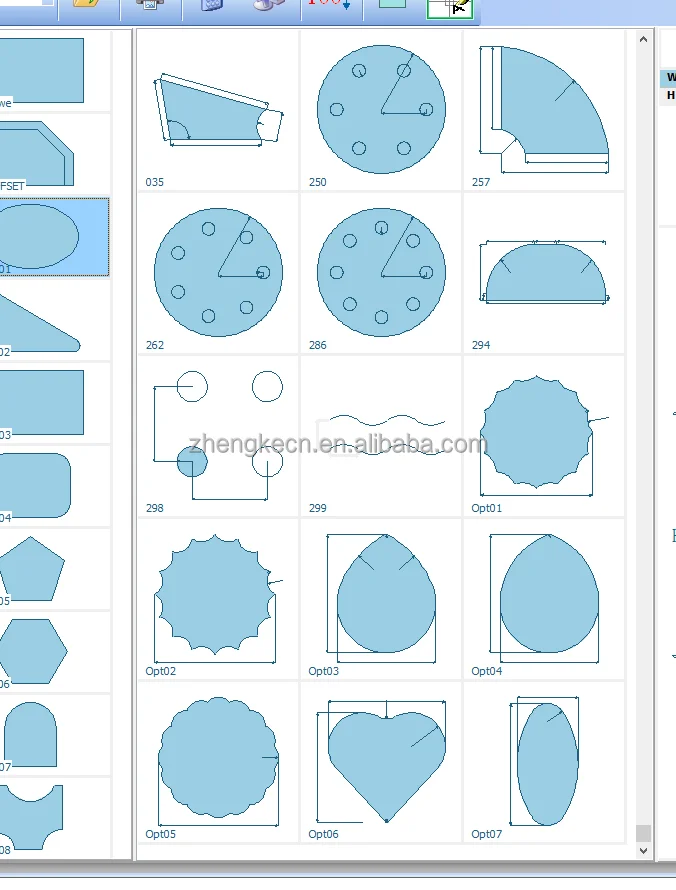

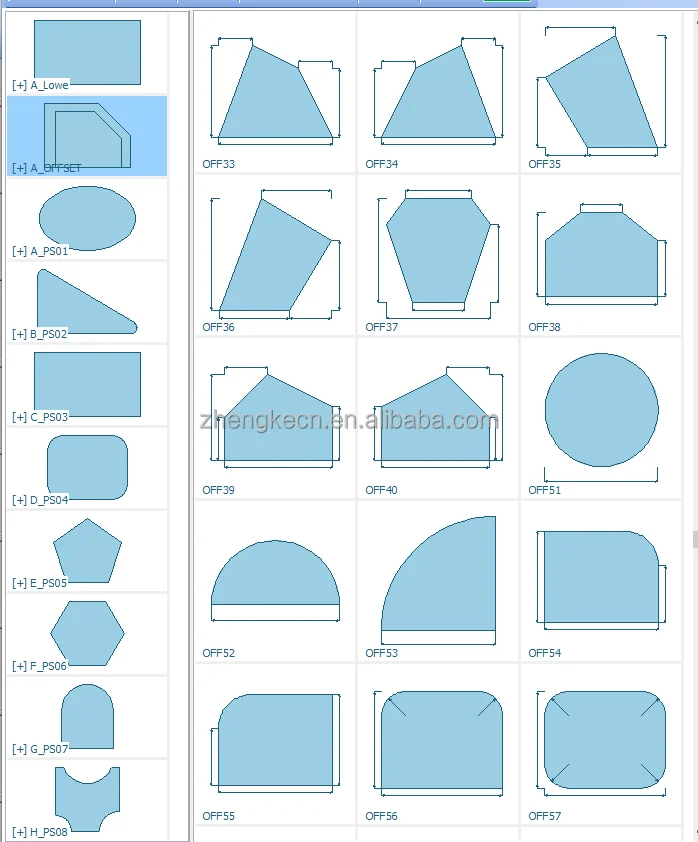

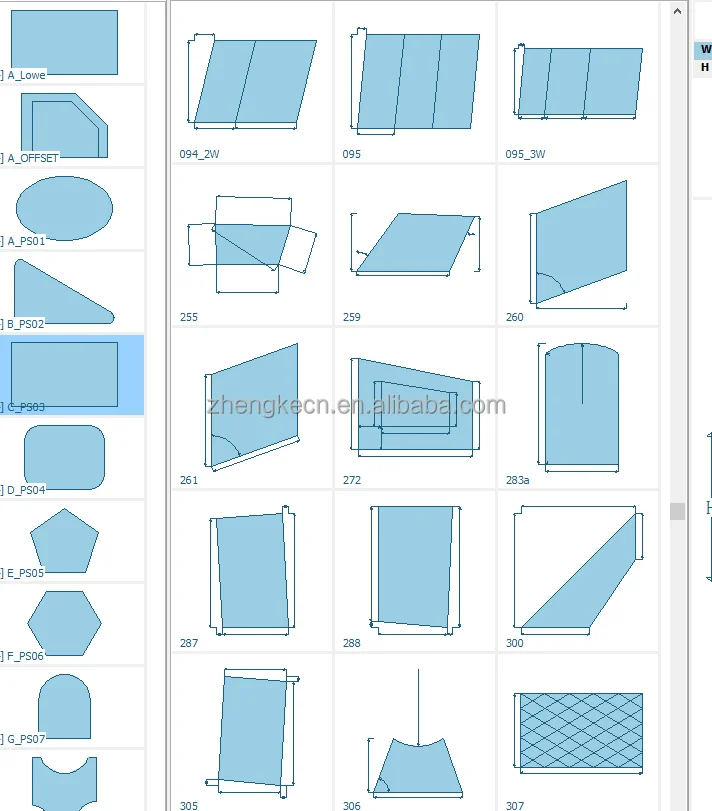

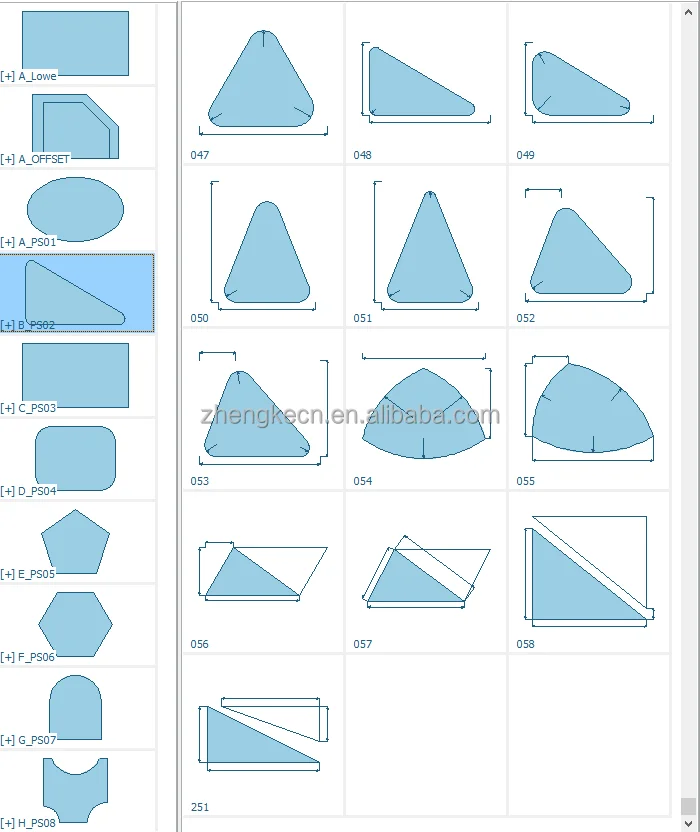

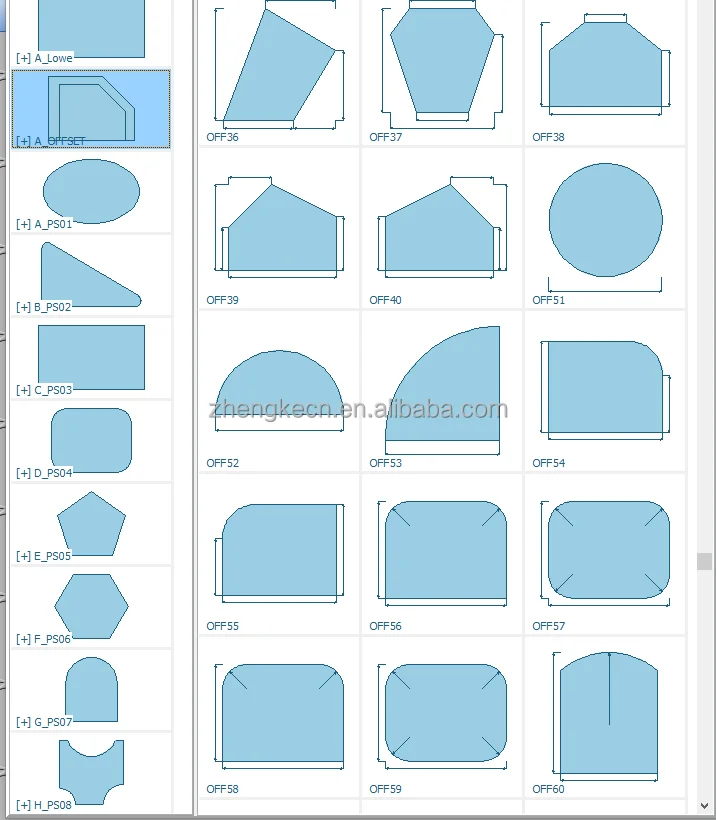

Cutting Graphic Display

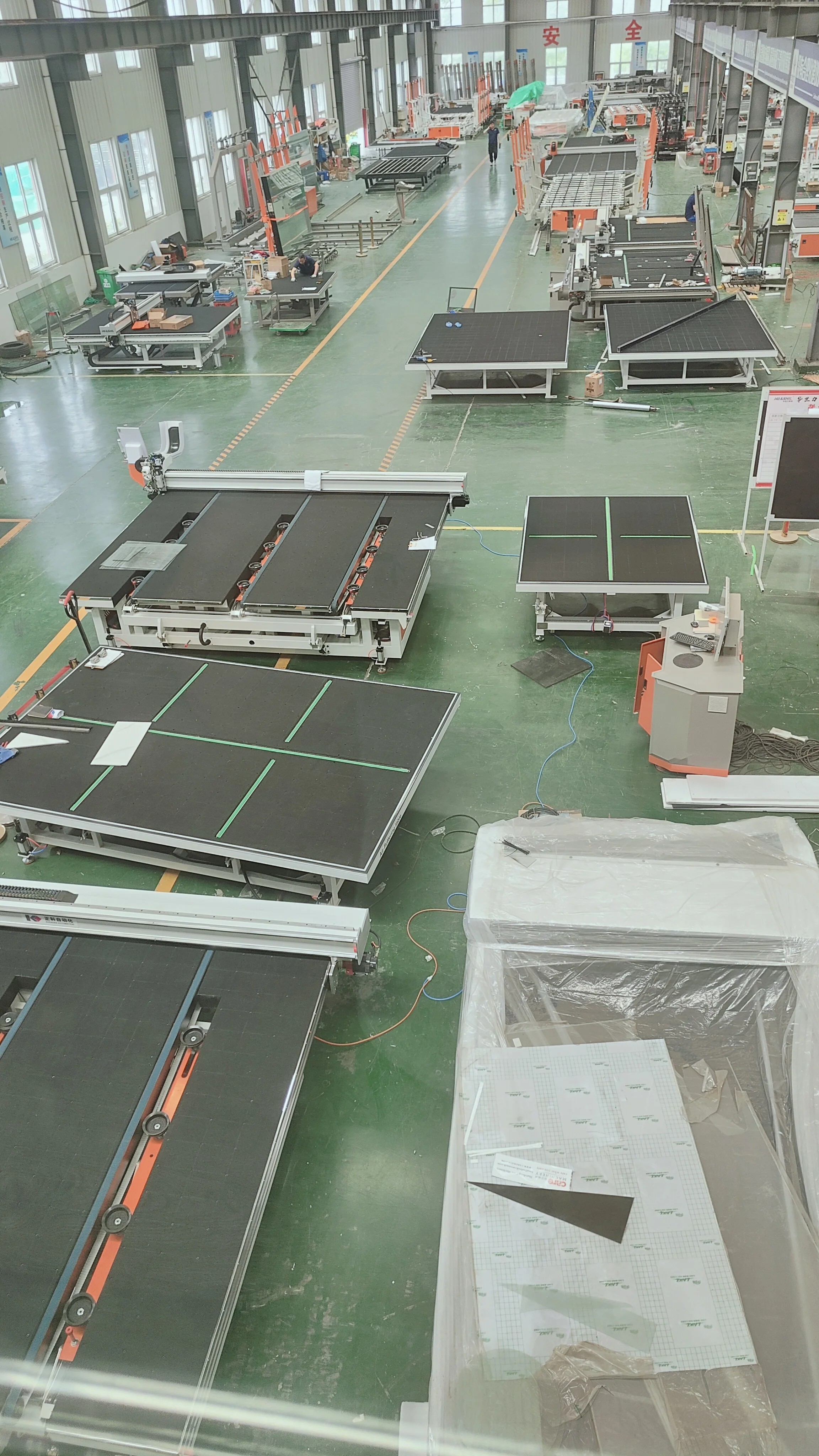

Exhibition

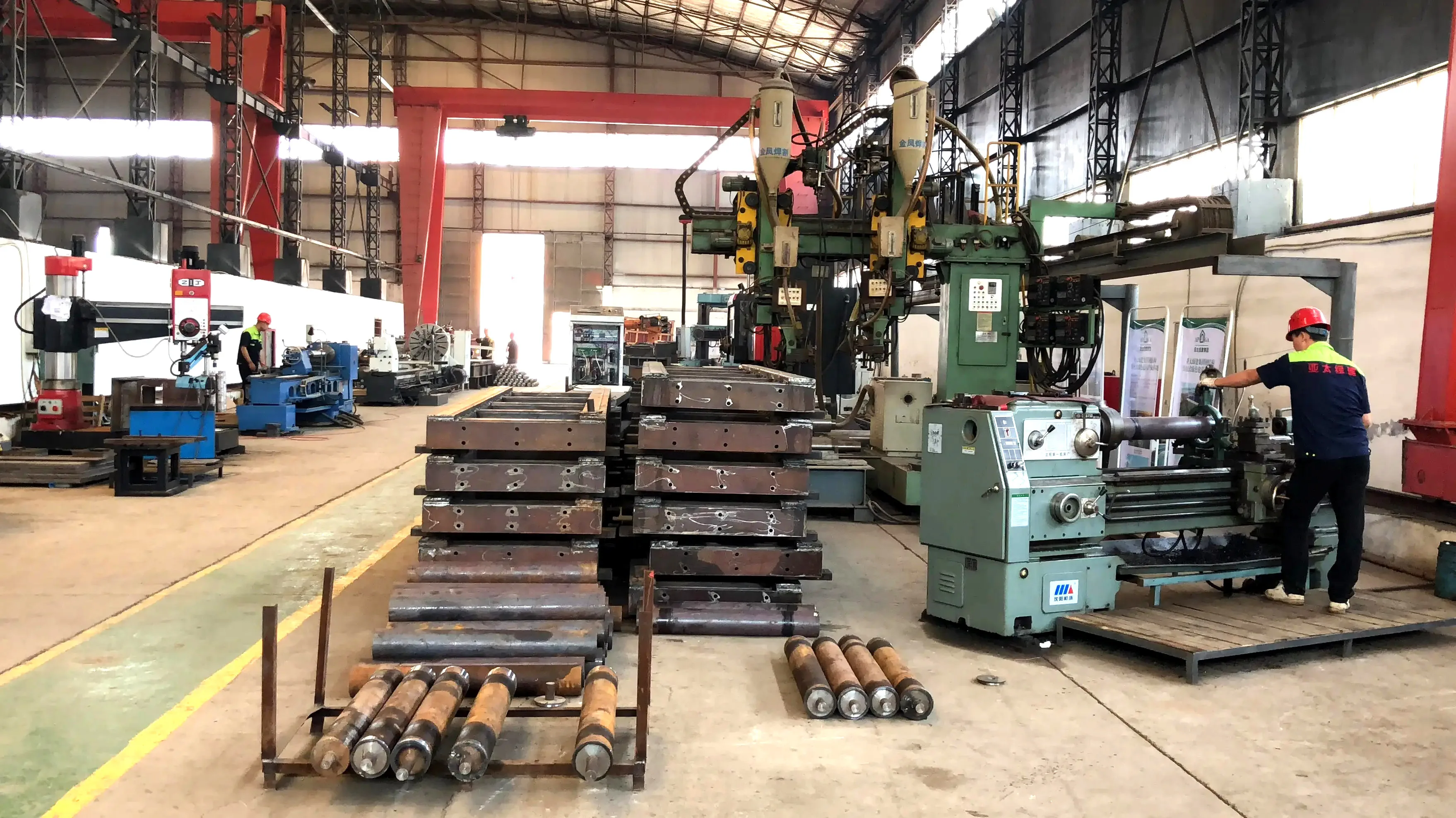

Company Profile
Packing & Delivery
FAQ
Answer :
Yes,we are the professional glass processing machines manufacturer, which has 10-years history since 2014.
2.Question: How about the service ?
Answer :
1).Timely reply it at once on Alibaba store , WhatsAPP and Email.
1).Timely reply it at once on Alibaba store , WhatsAPP and Email.
2).24 hours online for after-sale service.
3).More than 10 years experience in this glass processing machine field.
4).Fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer :
1). Our guarantee for 1 year.
1). Our guarantee for 1 year.
2). 24 hours' technical support by email, video or calling.
3). English manual and video tutorial.
4). 24 hours on line service each day, free professional technical support.
4. Question: Do you provide equipment operation training?
Answer :
Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer :
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our glass processing machine.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is
satisfactory. We have a good reputation in our customers.
satisfactory. We have a good reputation in our customers.
