China Supply New 12 Ton Spider Knuckle Crane Crawler Lifter with Engine Gear Core Components Construction Manufacturing Plant
- Category: >>>
- Supplier: Jining Guanyu Construction Machinery Co. Ltd.Jining Ltd.
Share on (1601217250797):
Product Overview
Description
Product Description

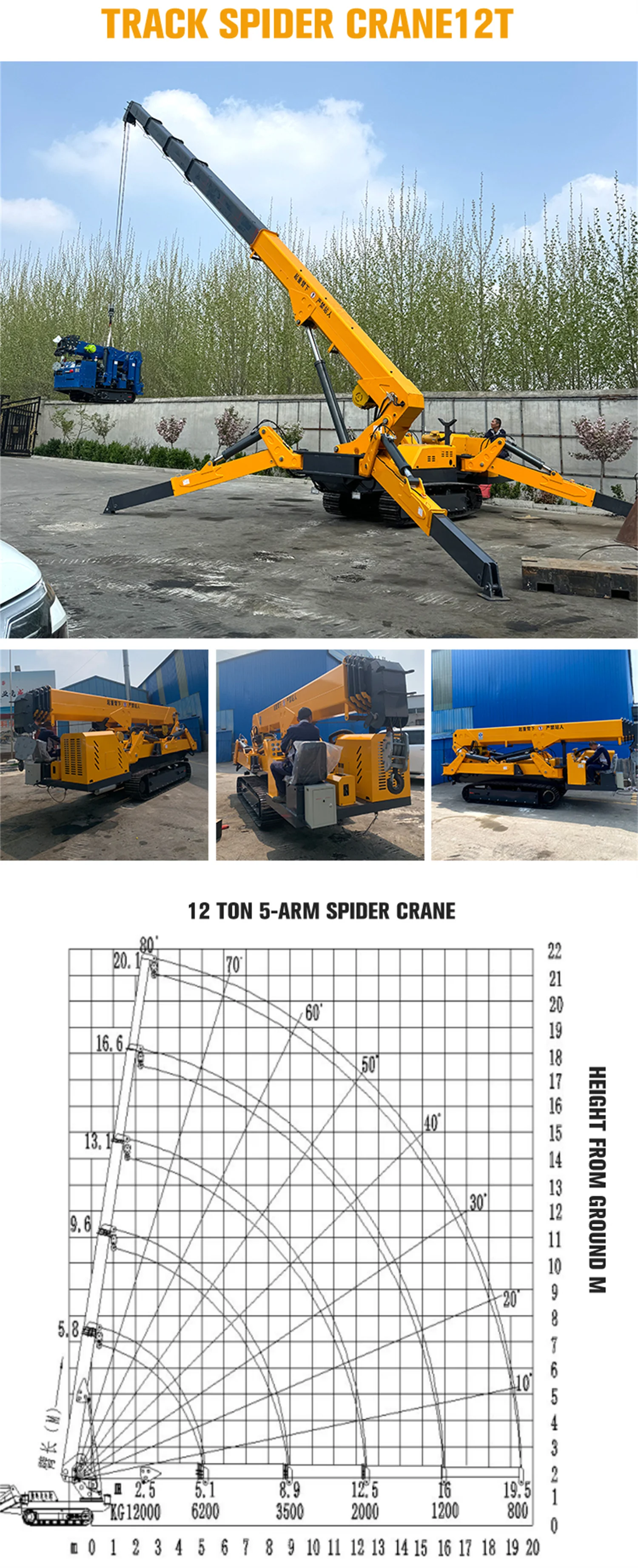

Basic Parameters of 12-ton Spider Crane | ||||
Specification | 12t | |||
Maximum Working Radius | 19.5m×0.8t | |||
Maximum Ground Lifting Height | 21.8m | |||
Maximum Underground Lifting Height | 24m | |||
Winch Device | Hook Speed | 22m/min (4绳） | ||
Specification of steel wire rope | Φ14mm×120m | |||
Telescopic Device | Boom Type | Fullautomatic 5 section | ||
Telescopic Boom length | 5.8m-20.1m | |||
Boom angle/time | 0-80°/13sec | |||
Rotation angle/speed | 0-360°（连续）/38sec | |||
Outrigger | Outrigger movement form | Manual Spin Out， Hydraulic Telescopic， Automatic Support (Two Legs) | ||
Maximum Extended Dimensions（mm） | Left and right（8200）around（7400） | |||
Traction system | Walking Way | Hydraulic motor drive | ||
Walking Speed | 0-3km/h | |||
Grade Ability | 20°(36%) | |||
Power Supply Voltage | AC 380v | |||
Engine | Producer | Anhuifull brands | ||
Model | 4102 | |||
Starting method | Electric start | |||
FuelTank Capacity | -5°C~40°C | |||
Fuel/Volume | Diesel oil | |||
Power Supply Voltage | AC 380v | |||
vehicle size | Length * Width * Heigth | 6.2m*1.8m*2.4m | ||
Weight | 11.5T | |||
Standard configuration | Diesel engine and electric motor (dual power) | |||
