NEW Dongfeng 4x2 Fuel Tanker Truck 5/10/20/30CBM Oil Tank Trailer Tanker Dongfeng cummins engine customizable For Sale
- Category: >>>
- Supplier: Changfeng (hubei) Vehicle Co. Ltd.
Share on (1601217316432):
Product Overview
Description

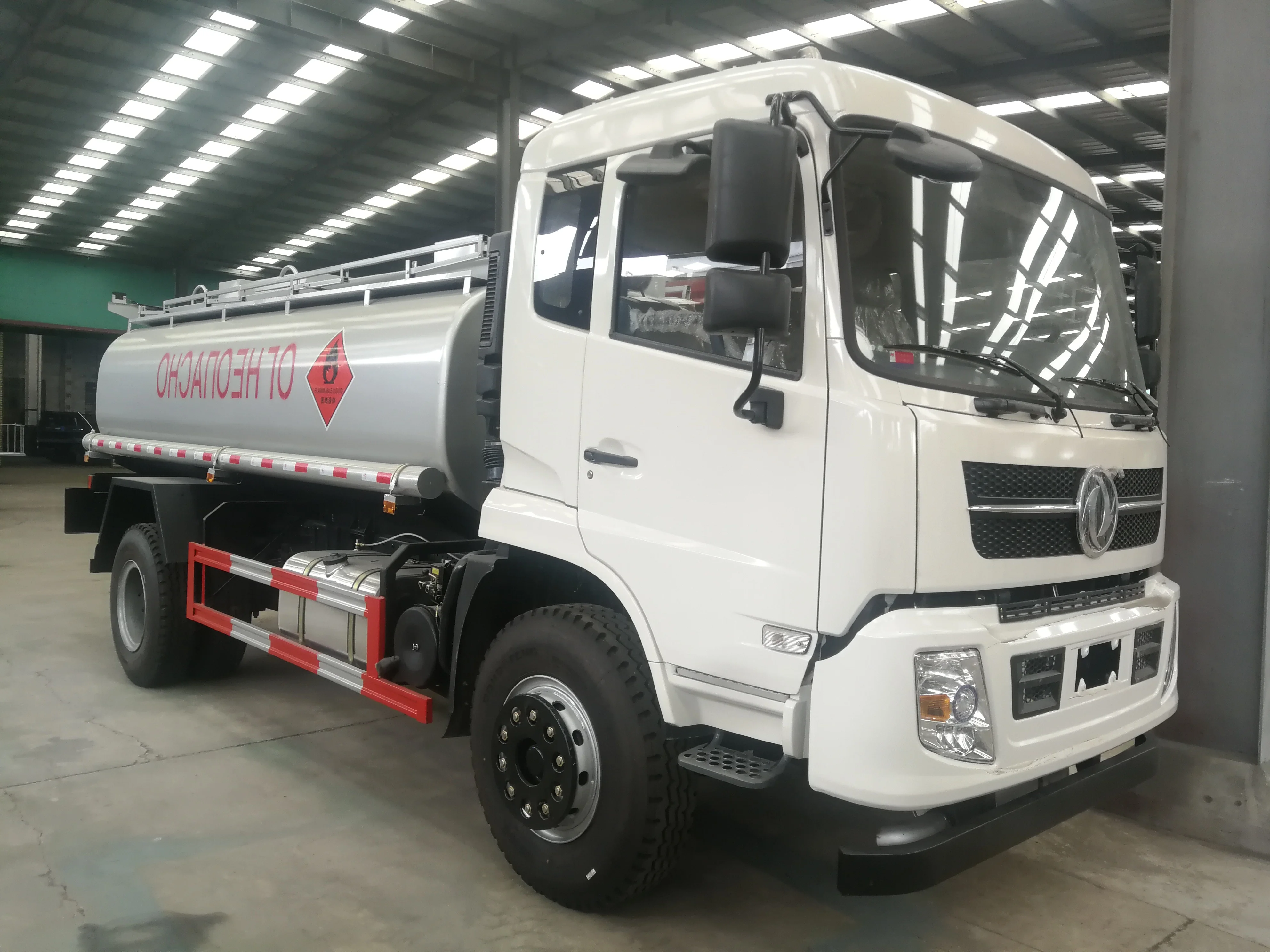

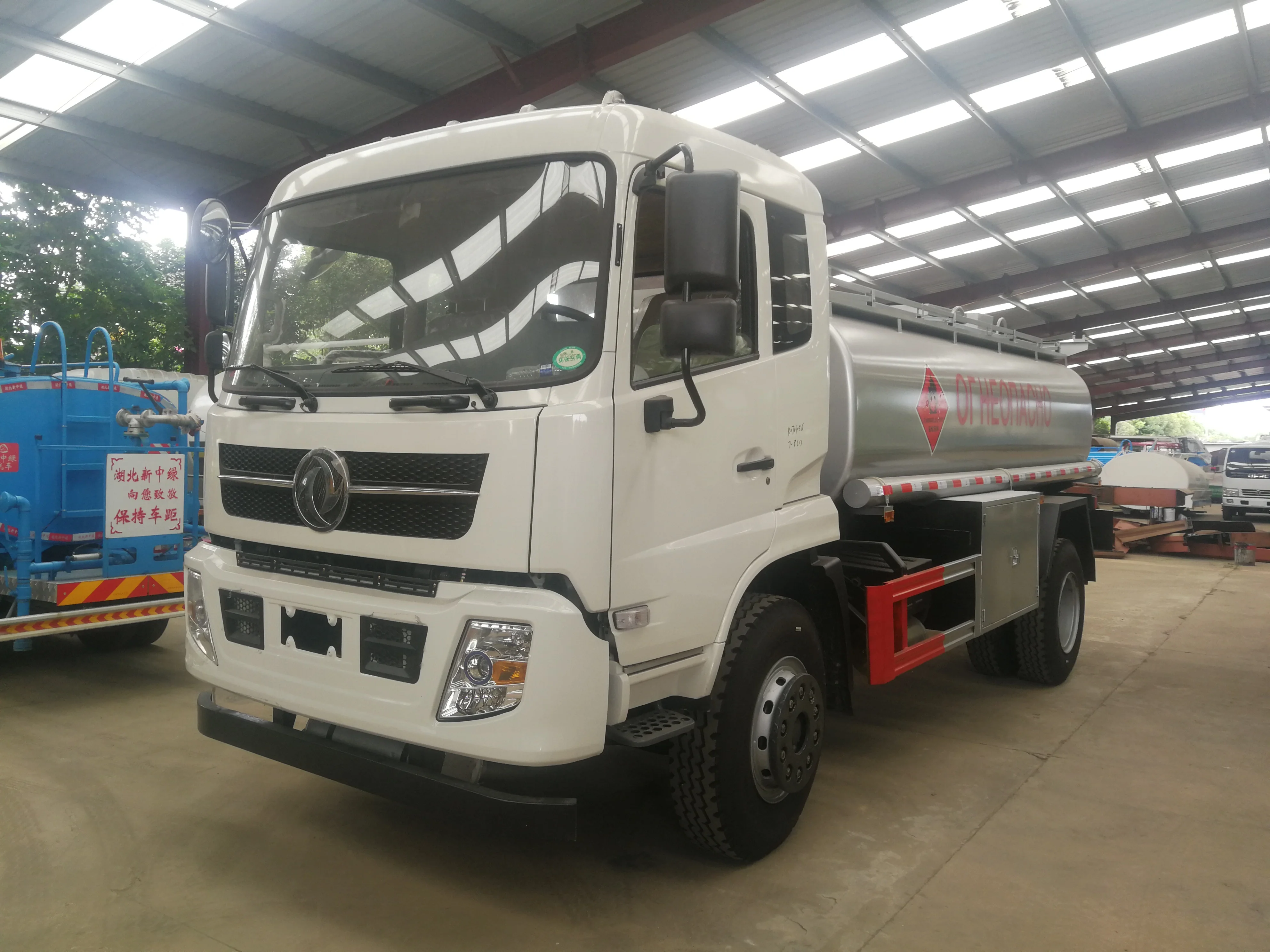

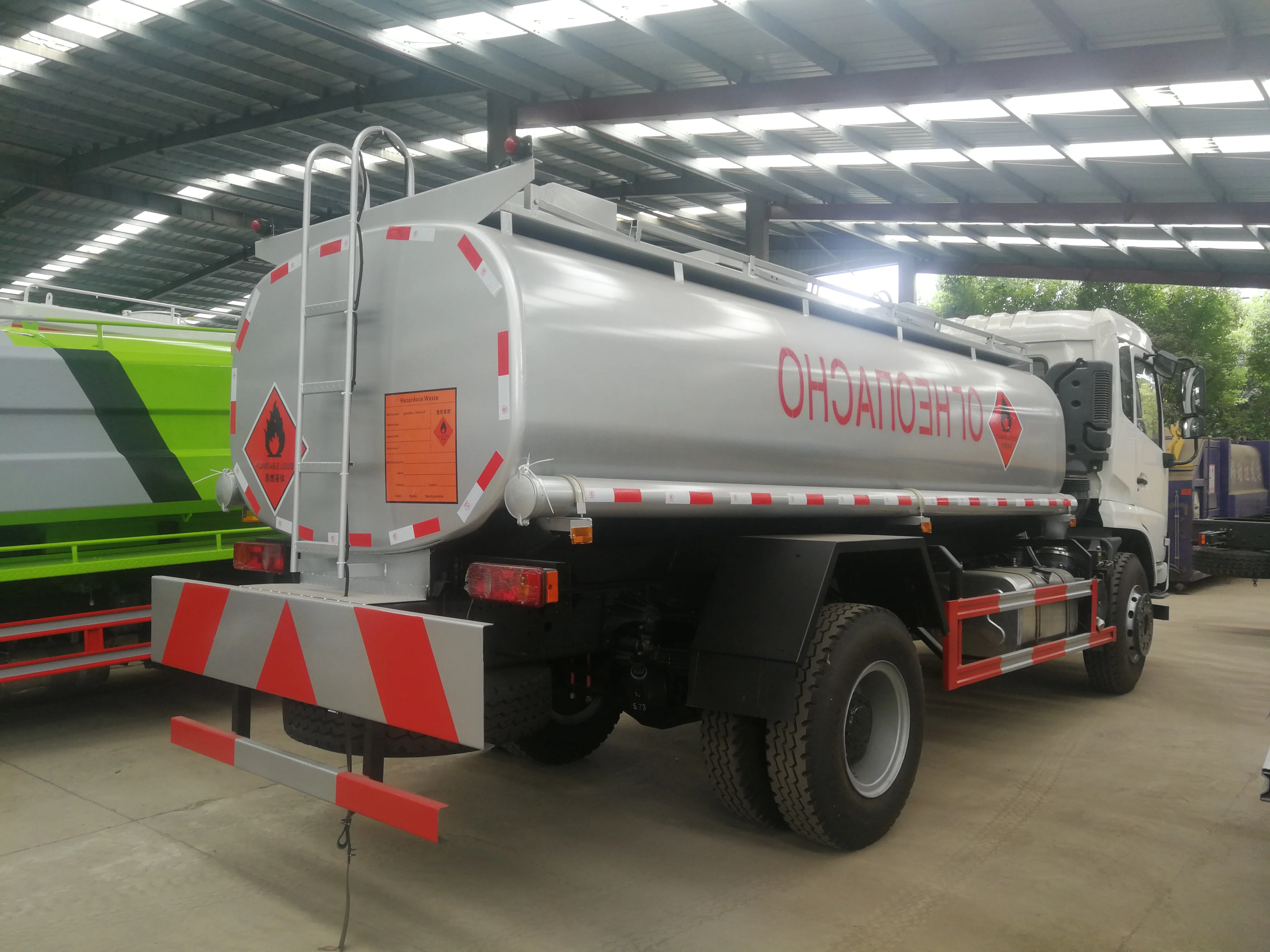

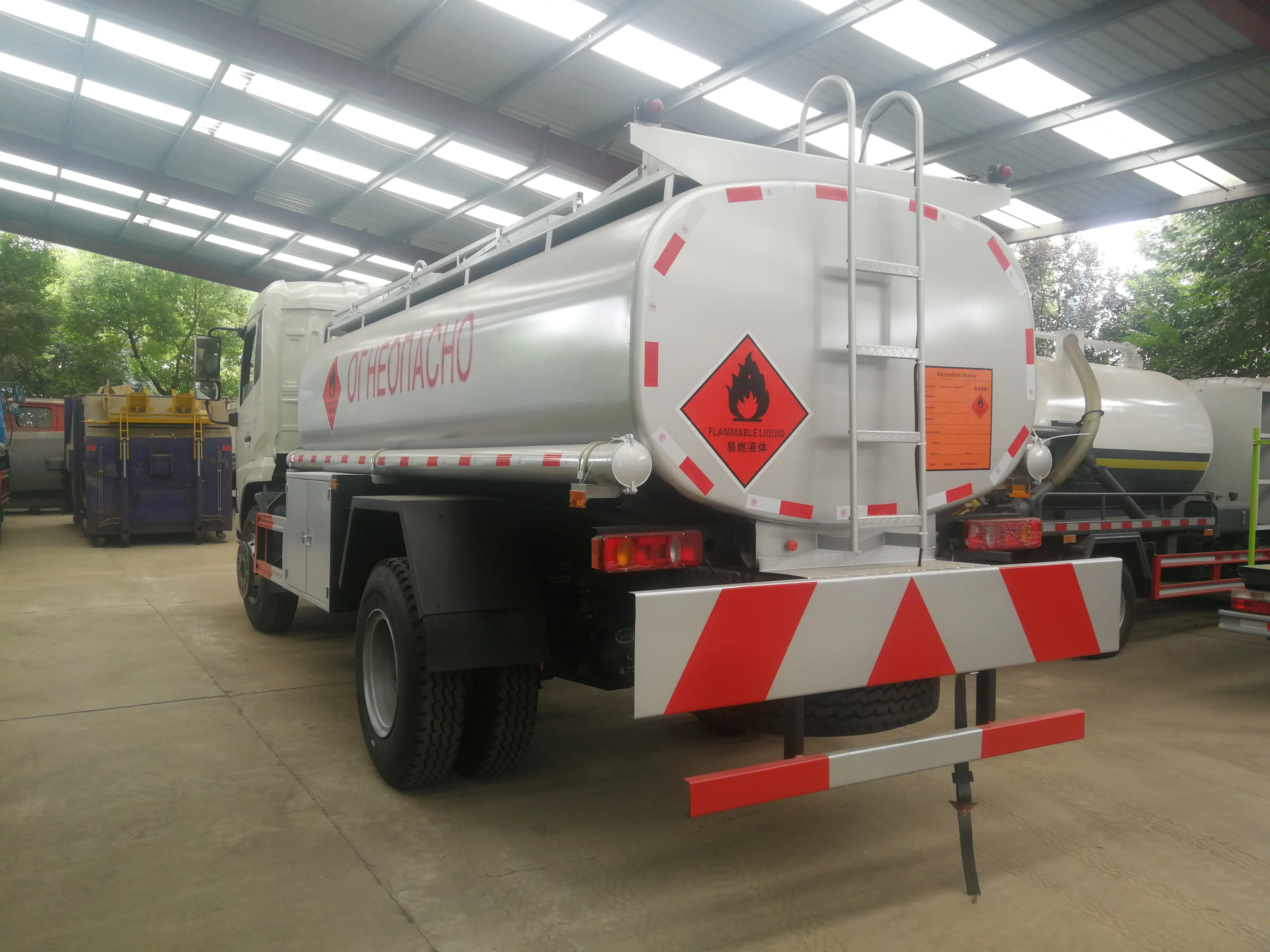

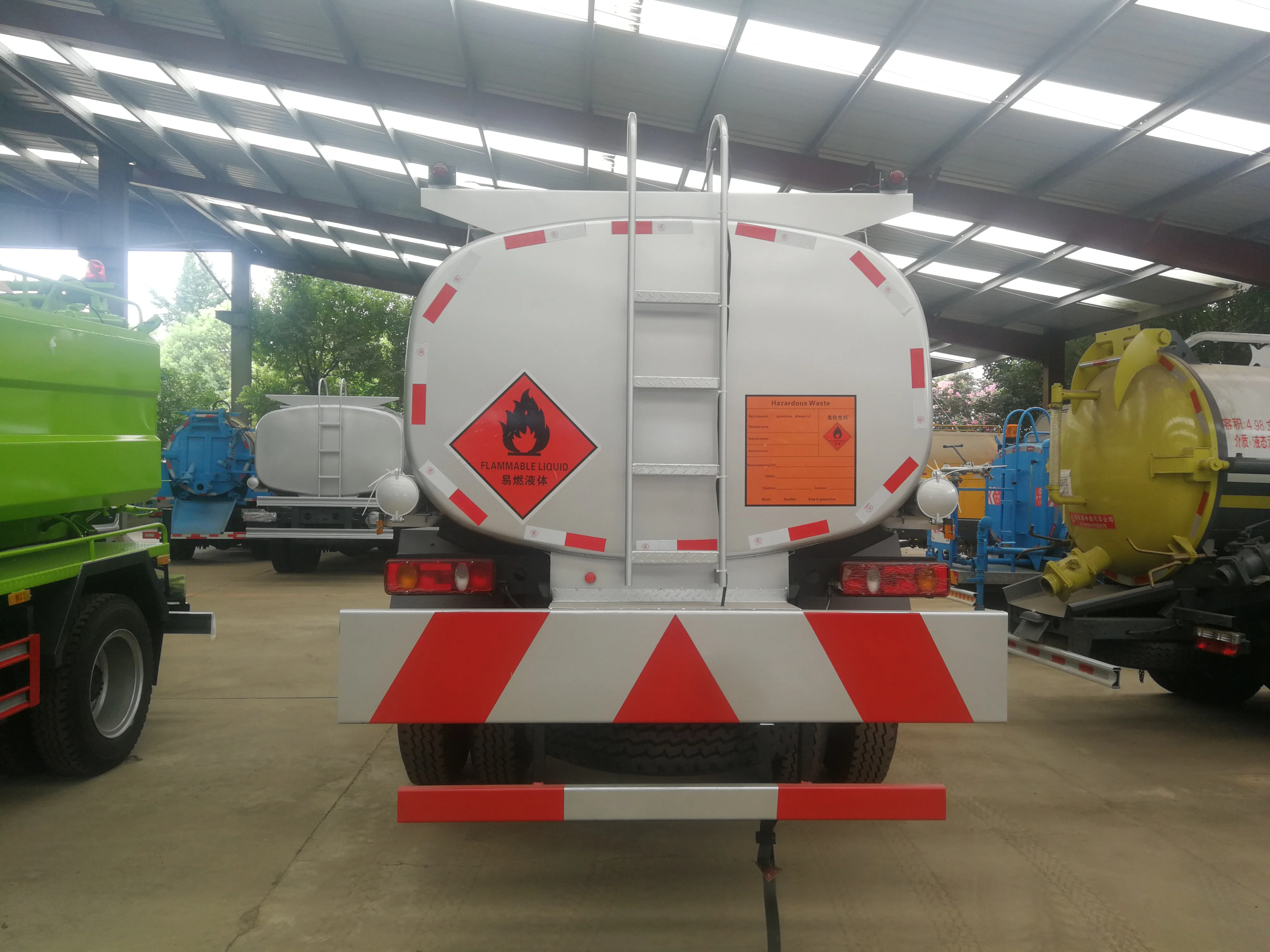

product photos
Specification
Product name | Dongfeng 4×2 12- 15- 18 cubic meter fuel tanker truck refueling tanker truck | |
Chassis brand | Dongfeng | |
Wheelbase | 4500 or 4700 | |
Drive form | 4×2 | |
drive type | Right hand drive/ left hand drive | |
Steering gear | Hydraulic Power Steering | |
Dimensions | 8500mm*2480*3200 | |
Compacity | 12- 15- 18 CBM | |
Engine | ||
Engine brand | Yuchai or Commins or weichai | |
Emission Standard | Euro 2 3 4 5 6 | |
Rated power | 170 , 190 , 210 260 290 HP | |
Engine Fuel | Diesel Oil | |
Gearbox | 8 OR 10 Forward gears, 2 Back gear | |
Brake | Dual-circuit, pneumatic brake Hand parking brake Engine exhaust brake | |
Tires model | 11.00.20 | |
The number of Tire | 6+1 (spare tire) | |
Front axle | 5 T | |
Rear axle | 10 T | |
CAB | Dongfeng | |
Fuel tank | 200L | |
Body | ||
Material | Q355B | |
Thickness | Tank :6mm, dish head:6mm | |
Capacity | 12- 15- 18 | |
compartment | One or two , three compartment depend on the tank capacity or the requirments of the customer | |
Baffle | Two or more depend on the tank capacity or the requirments of the customer | |
Fuel pomp | Famous brand PTO pomp | |
manhole cover and breather valve | One or two or 3 units EURO standard DN500 manhole with breather valve | |
Load ball valve adapters | One untis , DN100 or more depend on the compartment | |
Discharge ball valve adapters | One untis , DN100 or more depend on the compartment | |
level gauge | One units or more depend on the compartment | |
Emergency Valve | One unit or more depend on the compartment | |
Optional: European standard Bottom loading oil system | 1. Bottom Loading Components 2. Overfill Prevention and Grounding 3. Pneumatic Control System | |
Optional: refueling equipment | 1. flowmeter 2. refueling gun with 30 m hose reel 3. refueling machine with 30 m hose reel | |
operation box | One untis , on the right side of the truck | |
Tool box | One untis on the left side of the truck | |
Top Protection | Rollover damage protection along the top of the tanker, run the full length of the tank top, integral with the tank | |
Ladder and Walkway | A non-slip-rung ladder at the rear of the tank , with Handhold，A non-slip platform on the roof of the tank | |
Fuel hose and hose carrier | Two units 6 m flexible hose with connector , hose carrier in each side | |
Electrostatic ground belt | One , install on the rear of the chassis frame | |
Fire-Fighting | two units 4 kg dry-chemicalFire Extinguishers , two on each side | |
Hazardous Materials Signs and reflectors | 1) Three hazard warning signs to be provided at the three locations (two on both sides and one at end), sides and rear shall bear an inscription such as “FLAMMABLE LIQUID”. 2) Reflectors provided | |
Test | pressure: 5 PSI | |
pneumatic test: Certified hermetic and pneumatic testing provided with the tank | ||
Warranty | One year | |

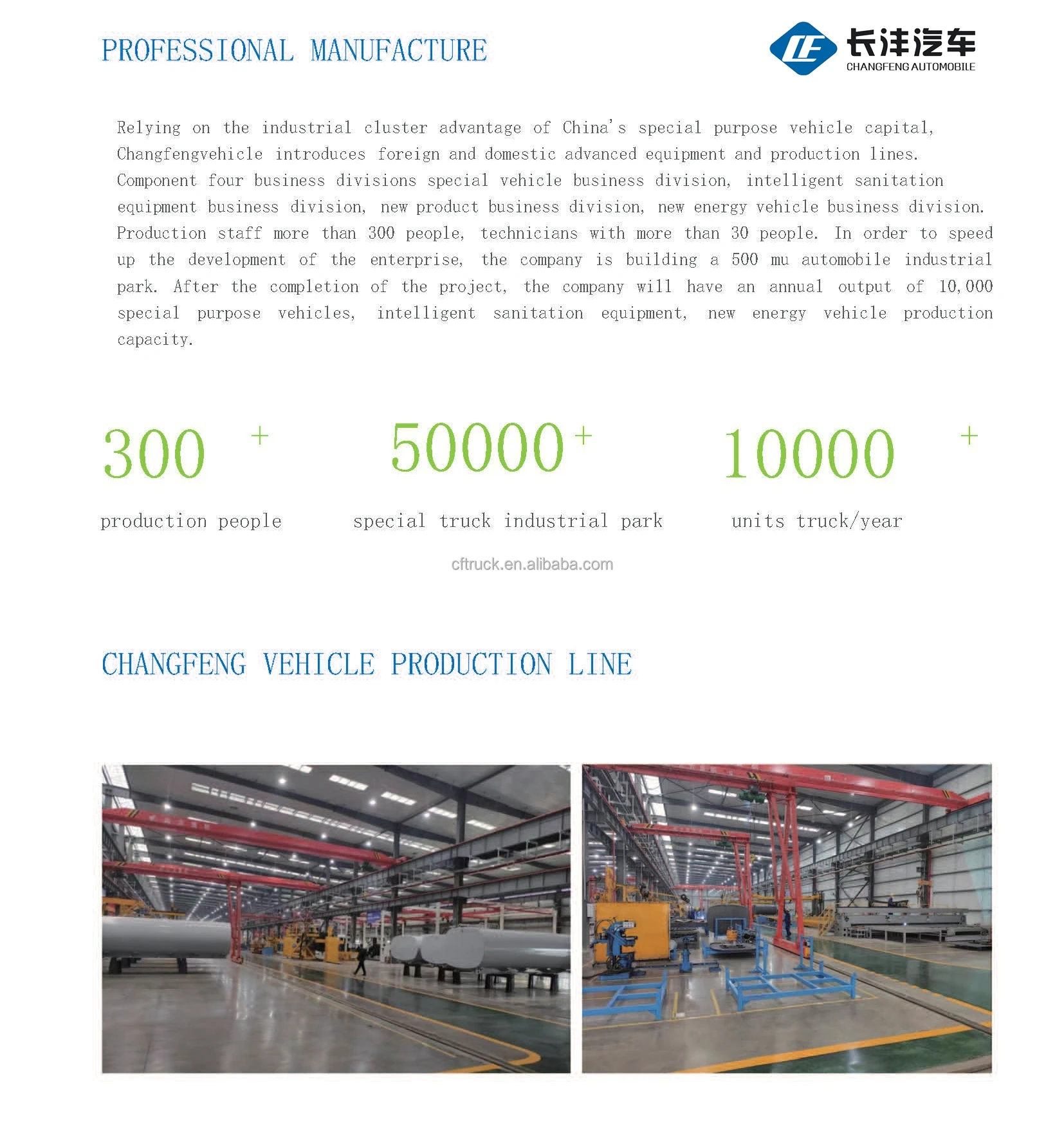

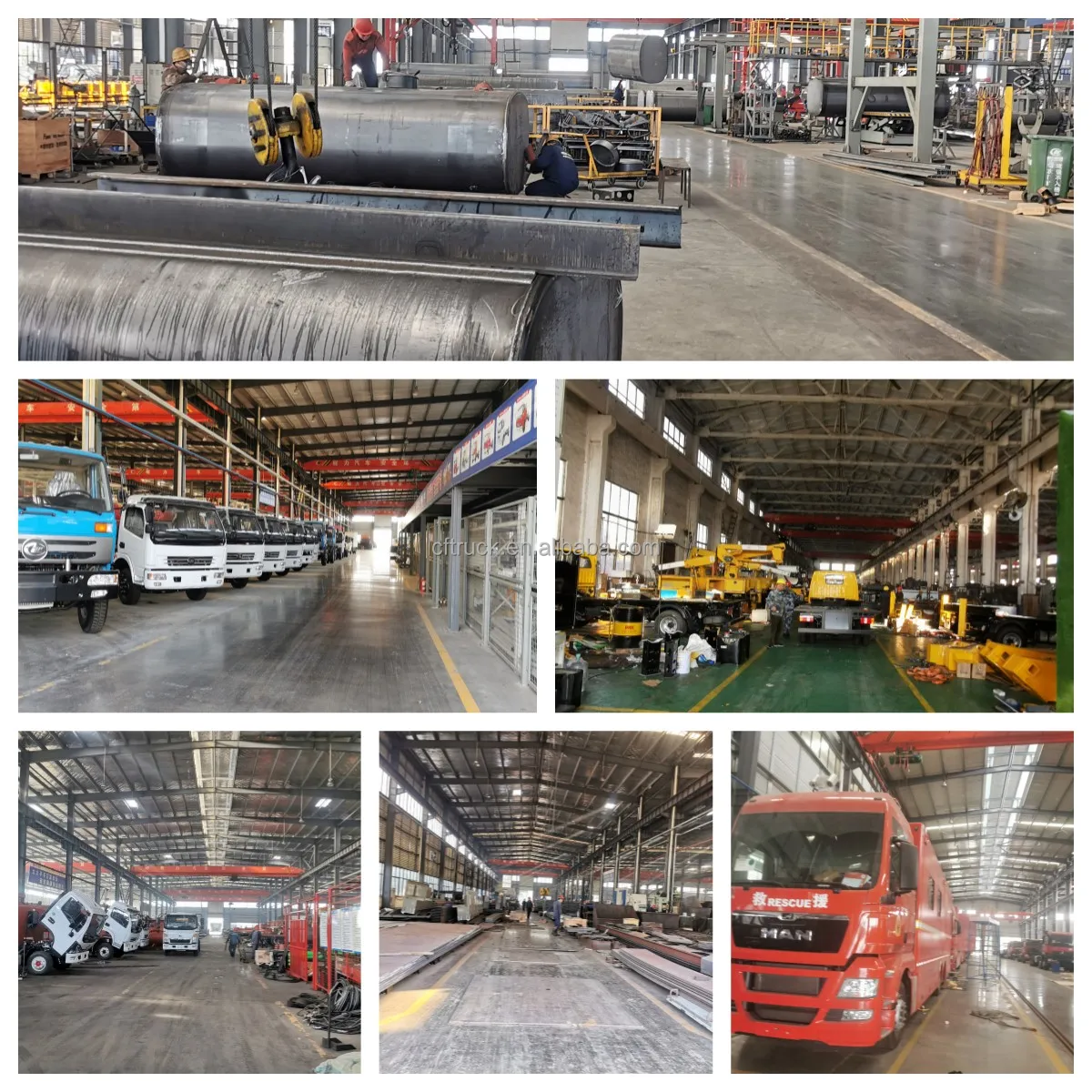

Company Profile
Customers
Product packaging

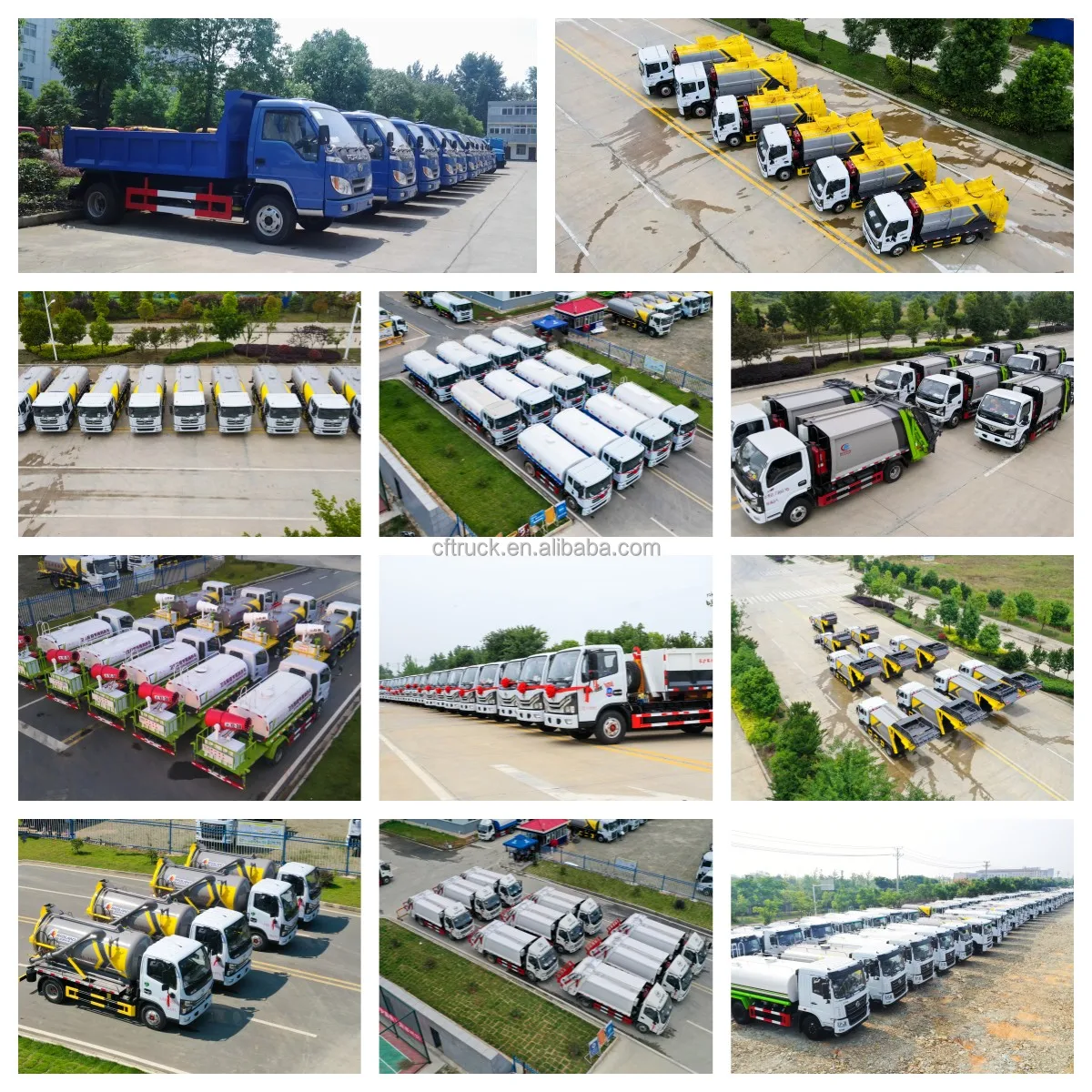

PROJECT SHOW
FAQ
Q1. Is your company a factory or trading company? A: We are a leading manufacturer of special trucks, tankers, trailers, and spare
parts in China. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
Q2. What is your terms of payment?
A: T/T 30-50% as deposit, and the rest before delivery or L/C . We'll show you the photos of the products and packages before you
pay the
balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DAF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 to 30 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you customize the product according to my requirements?
A: Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
Q6. What is the price of your product?
A: We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price
also depends on your special needs. To know the exact price, please contact us!
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: What service can I get from you?
A: We provide lifelong tracking service and one year free warranty for all of our products.Meanwhile we provide free training and
technical support to guide you repair your product. If need, we will also supply original spare parts and you just need to pay the
freight.
