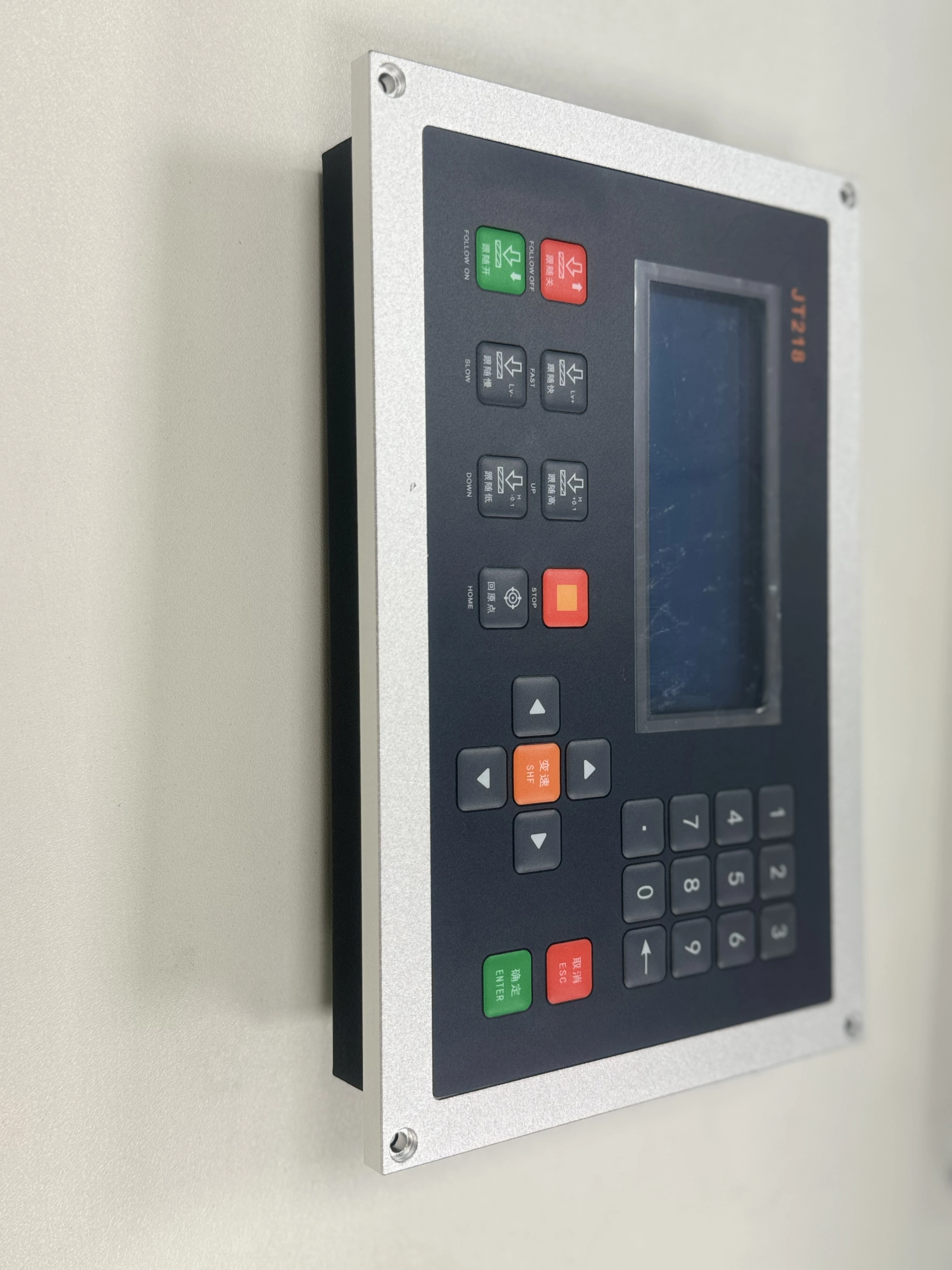

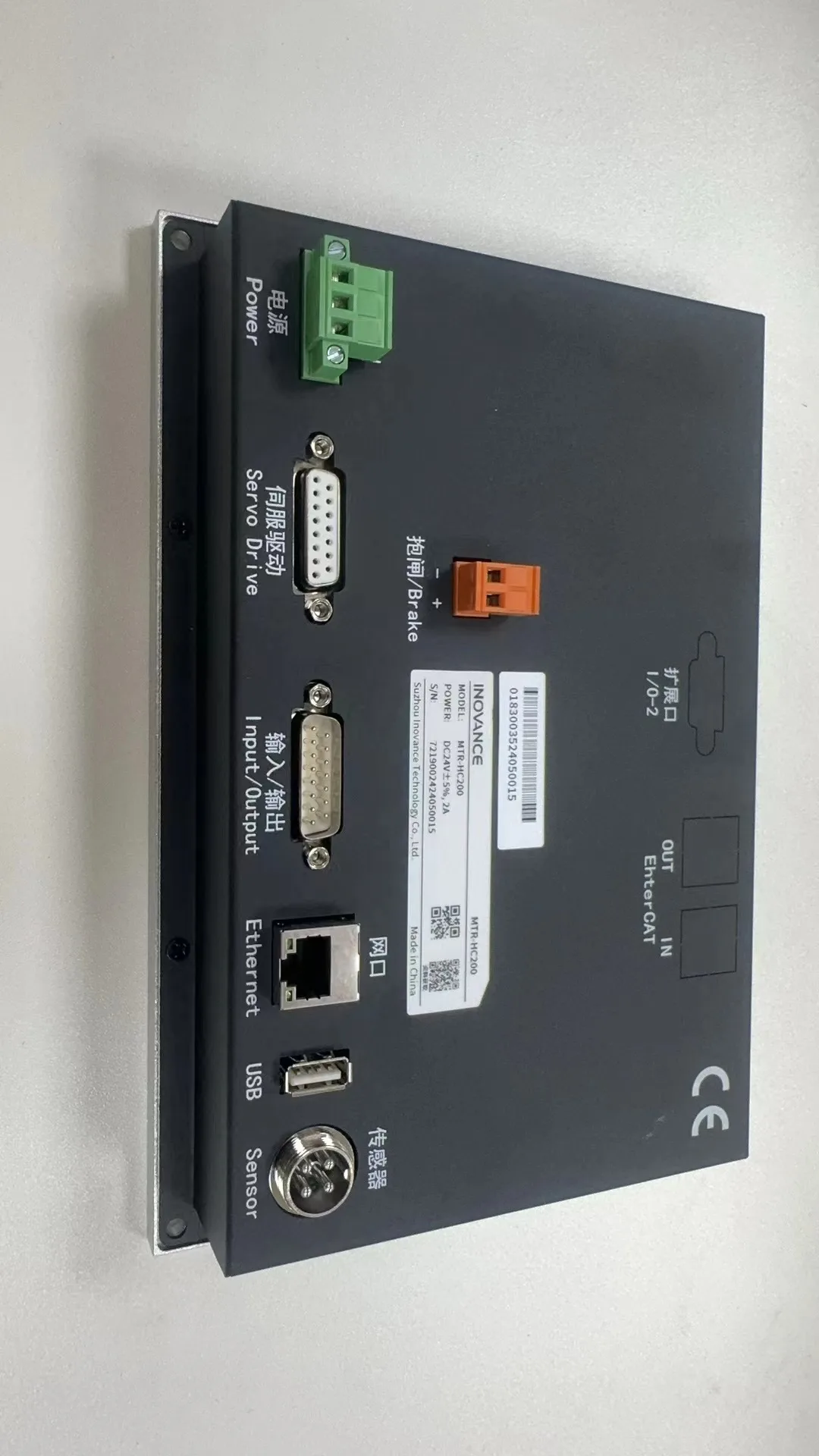

MTS4000 Fiber laser cnc controller with auto focus height controller for sales

Product Overview

Description

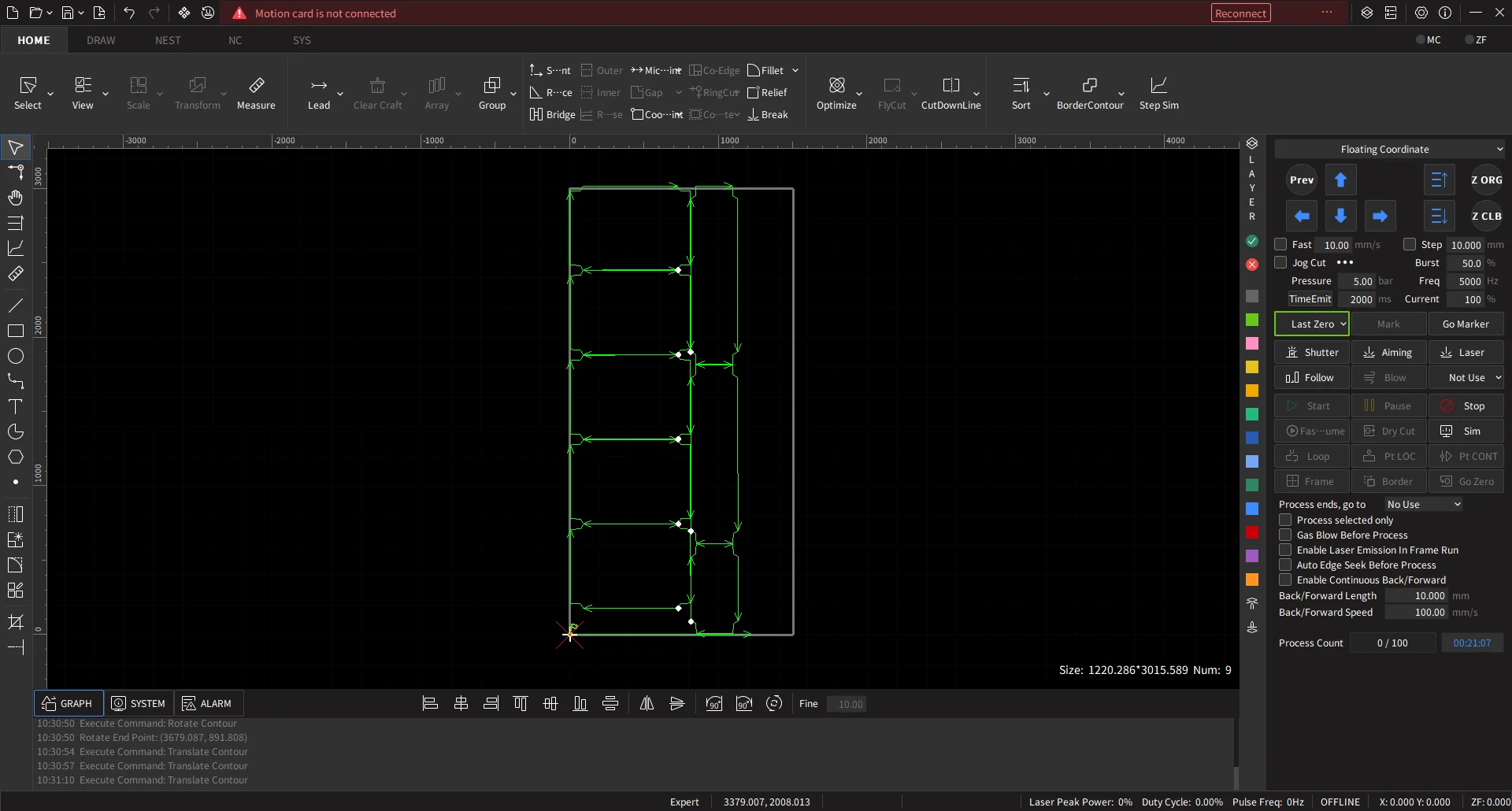

Software Characteristics:



1. Support different graphics as Al, DXF, PLT, Gerber, can read standard ISO G codes from MaterCam, Type3 such nesting software.

2. Automatically optimization when open or lead in DXF file, and other external files, like delete repeated line, merge connected lines, remove tiny graphics, recognize inside and outside dies, conduct sorting. User can decide to manually do above work, or let controller do it automatically.

3. Support conventional graphics edit functions

4. Following what you see is what you get, to set lead in/out, kerf compensation, Micro connection, Bridge connection, over burning, lead seal gap ….etc

5. Unique function of Preview of cutting work flow.

6. Support segmental pierce, Progressive pierce, Pre-pierce, support separately setting laser watt, frequency, laser type, air type, pressure, auto cutting height during pierce and cutting.

7. Support to set separate lead in/out speed according to adjustment of laser power.

8. Powerful material library functions, allowing user to save all cutting parameters to use it again on same material.

9. Breakpoint memory, CNC can return to the point where the cutting stopped, allowing partial file cutting. It can go to any point to start there after stop or pause.

10. Same software can support round tube cutting and plate cutting, programming is same, and support intersecting cutting.

11. Support to cut at set height, automatically seek edge, and start from outside of workpiece, or lift up when torch is out of workpiece.

12. Powerful expanding capability, over 15 PLC process programming, over 30 programmable processes.

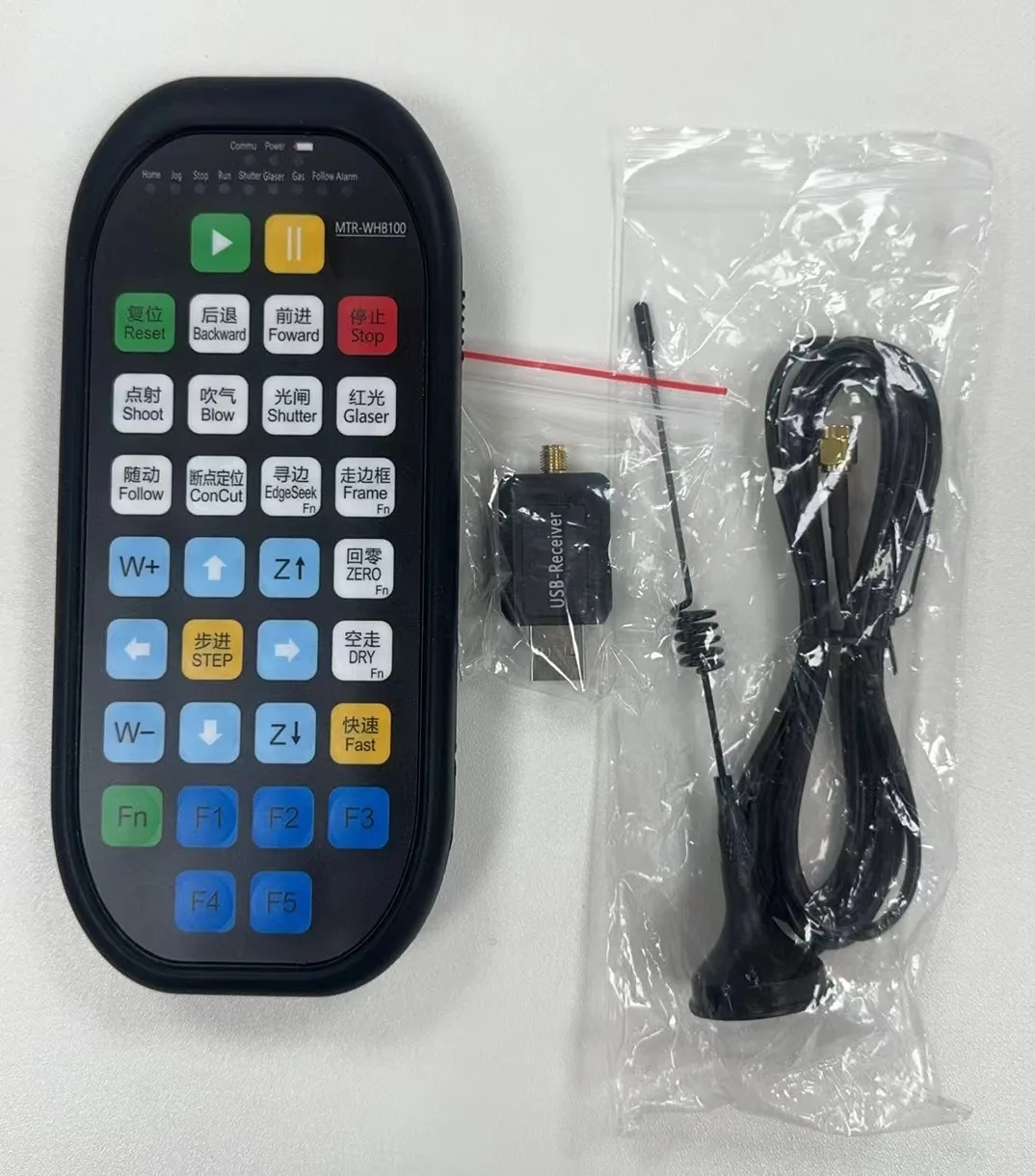

13. Input/output and alarm input are programmable, support wireless remote control, and support internet ……
