Contemporary 20ft Self Folding Mobile Portable Caravan Container Prefab House Two Rooms One Hall Fold Home Prefabricated Trailer
- Category: >>>
- Supplier: Shenyang Xinger Construction Technology Co. Ltd.Shenyang Ltd.
Share on (1601217437538):
Product Overview
Description
Exit folding room technical parameters table | ||||||||
Essential feature | outside dimensions | 5800*2460*2510mm | ||||||
inside dimension | 5640*2320*2380mm | |||||||
Folded state | 5800*2460*320mm | |||||||
Index | Roof bearingRoof bearing | 1.0KN/m² | fire rating | A | ||||
Ground bearing | 4.2KN/m² | classes of seismic measure | 8 | |||||
Sidewall pressure | 0.5KN/m² | classification of wind resistance | 10 | |||||
total mass | 950kg | durable years | 10 | |||||
specification | materials | model | thickness | quantity |
top structure | Q235 galvanized square pipe | 40*40*2.32m | 1.30mm | 4 root |
Q235 galvanized square pipe | 20*40*1.1m | 1.30mm | 5 root | |
Q235 galvanized square pipe | 20*20 | 1.30mm | 2 root | |
galvanized square tube | 60*60*5.8m | 1.30mm | 2 root | |
angle iron | 30*30 | 1.30mm | 1 root | |
5.64m | 1.30mm | 2 root | ||
2.32m | 1.30mm | 2 root | ||
Color steel corrugated board | 0.50mm | 7 piece | ||
rock wool | 11.6m*1.24m | 50.00mm | 2 M | |
Lateral structure | L-shaped steel plate | 1.15m | 2.00mm | 4 piece |
1.165m | 2.00mm | 4 piece | ||
Galvanized 215P pipe | 30*55*5.8m | 1.30mm | 8 root | |
Galvanized 215P pipe | 1080mm | 1.30mm | 8 root | |
Galvanized hinge | high strength | 34 units | ||
wallboard | 1080mm*2.845m | 0.25mm | 8 piece | |
Color steel buckle groove | 1080mm | 0.40mm | 8 root | |
Galvanized groove | 1080mm | 1.30mm | 8 root | |
Type D rubber strip | 5.8m | 24root | ||
Frontal structure | Galvanized 235P pipe | 2.43m | 1.30mm | 4 root |
2.31m | 1.30mm | 4 root | ||
Galvanized groove | 2.45 | 1.30mm | 1 root | |
860 | 1.30mm | 1 root | ||
wallboard | 950 | 0.25mm | 9.66 M | |
Galvanized Angle | 50# | 1.30mm | 20.41 M | |
Window (warm white) | 925mm*930mm | 0.40mm | 2 units | |
Door (warm white) | 860mm*1980mm | High quality security doorHigh quality security door | 2 units | |
block gine | Seal and dust proof | 21.32 M | ||
Bottom structure | Custom galvanized square pipe | 60*120*5.8m | 1.30mm | 2 root |
60*80*2.32m | 1.30mm | 2 root | ||
hinge | high strength | 4 units | ||
Q235B galvanized square pipe | 40*40*2.32m | 1.00mm | 9 root | |
floor | Fireproof moisture-proof cement mix | 15.00mm | 5 piece |

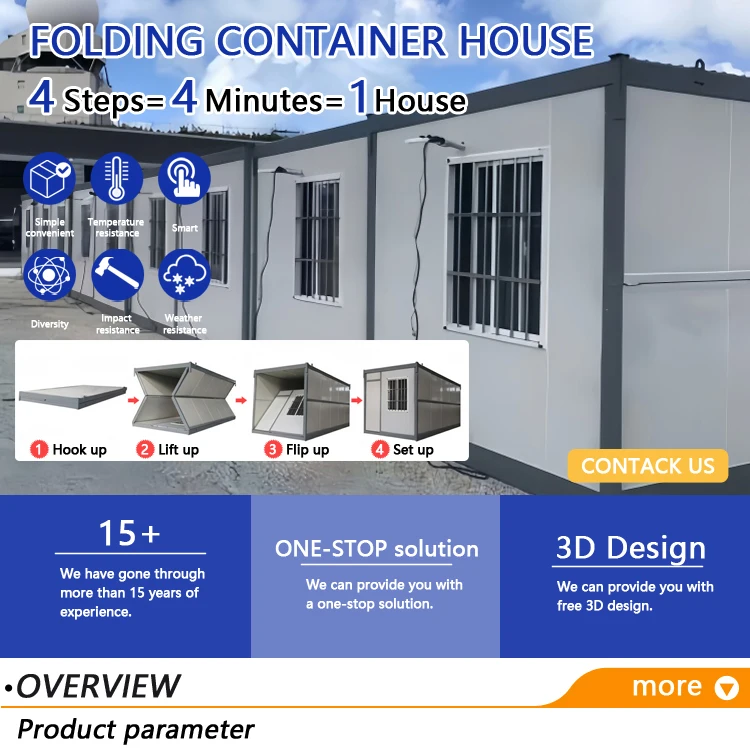

Advantages of folding container house:
Movable
Folding container house easy to move, can be moved before the house, but also after the house installation. Short distance transportation can use forklift, long distance transportation can use truck, Note that this is very economical transportation space.
layout&Color&Size
Beautiful appearance,different colors and size.The layout，Color and size are customized design.
Sealing
Good sealing performance, waterproof, sound-insulated,heat preservation,strict manufacturing process makes this kind of mobile house has very good water tightness.
Product application scope
The mobile home is based on a standard steel chassis, which can be derived from a number of combination Spaces. Such as conference room, dormitory, kitchen, toilet and so on.
Quick installation
Ready for use,without any assemble work.Folding container house installation is quick and 5 minutes to complete the installation of a house. If you have enough folding container house, you can quickly build a camp or even a city, no noise pollution, no air pollution, no harmful chemical pollution, folding container house is a very energy-saving house.
Merits
Convenient disassembly, superior performance, stable and firm, good shockproof performance, waterproof, fireproof and anticorrosive, light weight,water cleaning.. The house is a whole structure, with a frame, the wall is steel plate, available wood veneer, can be migrated as a whole, the service life can reach more than 30 years.
Q:Do you offer designing service for us?
A:Yes, we can provide you with 3D design for free.
Q:How do I get a project quote?
A:If you have drawings or product specifications，we will provide a quote based on your drawings and product specifications.
Q:How to install?
A:We will provide you with detailed construction drawings, if you need on-site guidance, we will arrange technicians to help you, or arrange a professional construction team to help you install.
How to guarantee the quality of the products?
Q:We have our own team to control the products quality for all our clients orders before loading.
How many is minimum order quantity？
A:One.
Q:What is the typical lead time for an order?
A:After we receive your deposit, small orders are typically 2-3 weeks, larger orders will take 4-5 weeks, depending on the quantity.
Q:Can I take some samples before place the order?
A:Sure.Please contact our sales manager online. Then they will supply it for you.You will only need to pay the shipping charges.
Q:Is it hard to build a folding container mobile house?
A:Building a container mobile house is very easy, it takes only 4 minutes to build a luxury container mobile house to live in.
Q:What designs do you have in different climates (How can the products adopt to different limates?
A:Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure. High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
Q:What are the advantages of prefabricated houses compared with traditional buildings?
A:a. Fast assembly (folding container house installation takes only 10 minutes)
b. Very cheap. It is 1/10 of traditional construction
c. It is earthquake, wind, fire and termite resistant
d. No need to buy land, no need for approval, and can be moved at will.
e. It can be customized according to the usage environment in terms of size, thickness, material, etc.
A:Yes, we can provide you with 3D design for free.
Q:How do I get a project quote?
A:If you have drawings or product specifications，we will provide a quote based on your drawings and product specifications.
Q:How to install?
A:We will provide you with detailed construction drawings, if you need on-site guidance, we will arrange technicians to help you, or arrange a professional construction team to help you install.
How to guarantee the quality of the products?
Q:We have our own team to control the products quality for all our clients orders before loading.
How many is minimum order quantity？
A:One.
Q:What is the typical lead time for an order?
A:After we receive your deposit, small orders are typically 2-3 weeks, larger orders will take 4-5 weeks, depending on the quantity.
Q:Can I take some samples before place the order?
A:Sure.Please contact our sales manager online. Then they will supply it for you.You will only need to pay the shipping charges.
Q:Is it hard to build a folding container mobile house?
A:Building a container mobile house is very easy, it takes only 4 minutes to build a luxury container mobile house to live in.
Q:What designs do you have in different climates (How can the products adopt to different limates?
A:Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure. High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
Q:What are the advantages of prefabricated houses compared with traditional buildings?
A:a. Fast assembly (folding container house installation takes only 10 minutes)
b. Very cheap. It is 1/10 of traditional construction
c. It is earthquake, wind, fire and termite resistant
d. No need to buy land, no need for approval, and can be moved at will.
e. It can be customized according to the usage environment in terms of size, thickness, material, etc.
