Cleanroom Air Supply Unit HEPA filter box
- Category: >>>
- Supplier: Suzhou Meidi Clean Technology Co. Ltd.
Share on (1601217615973):
Product Overview
Description
The demands of the clean room technology and especially in pharmaceutical applications are the air-conditioning .

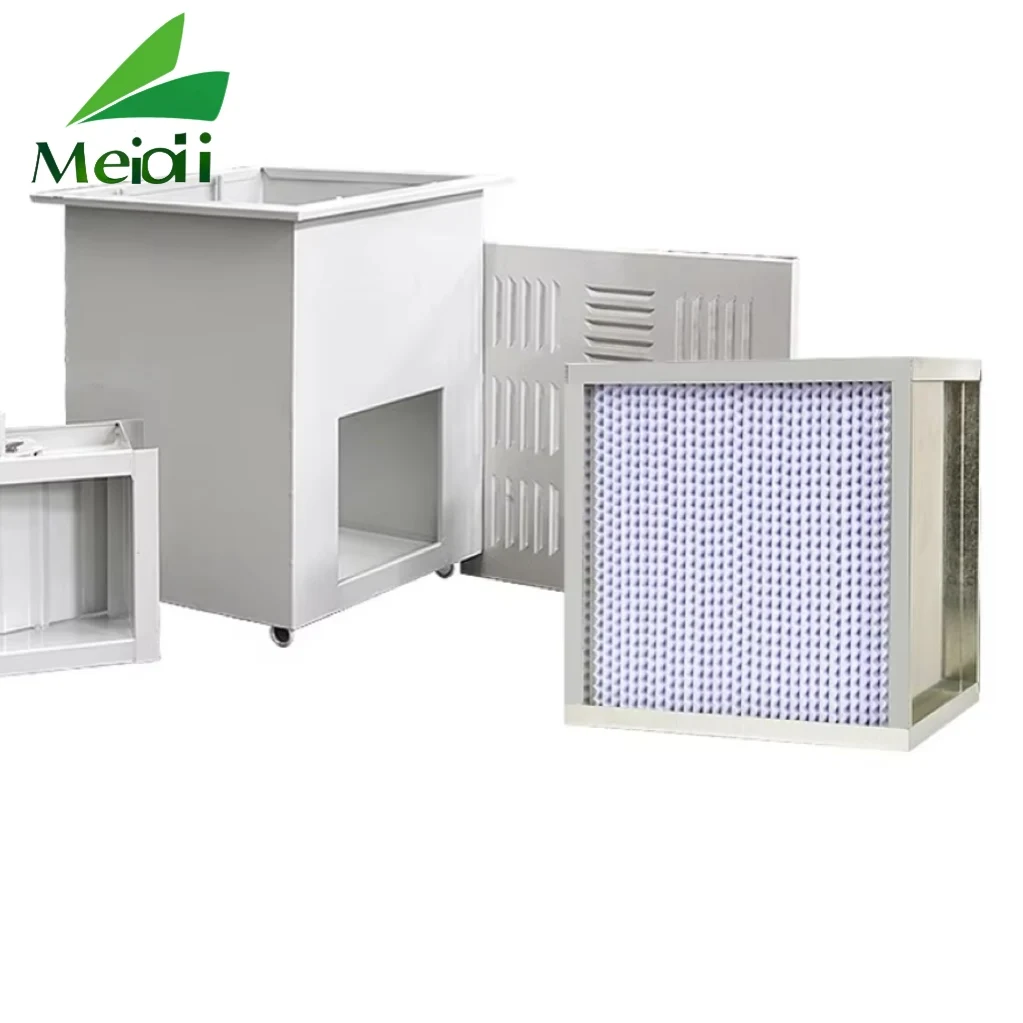

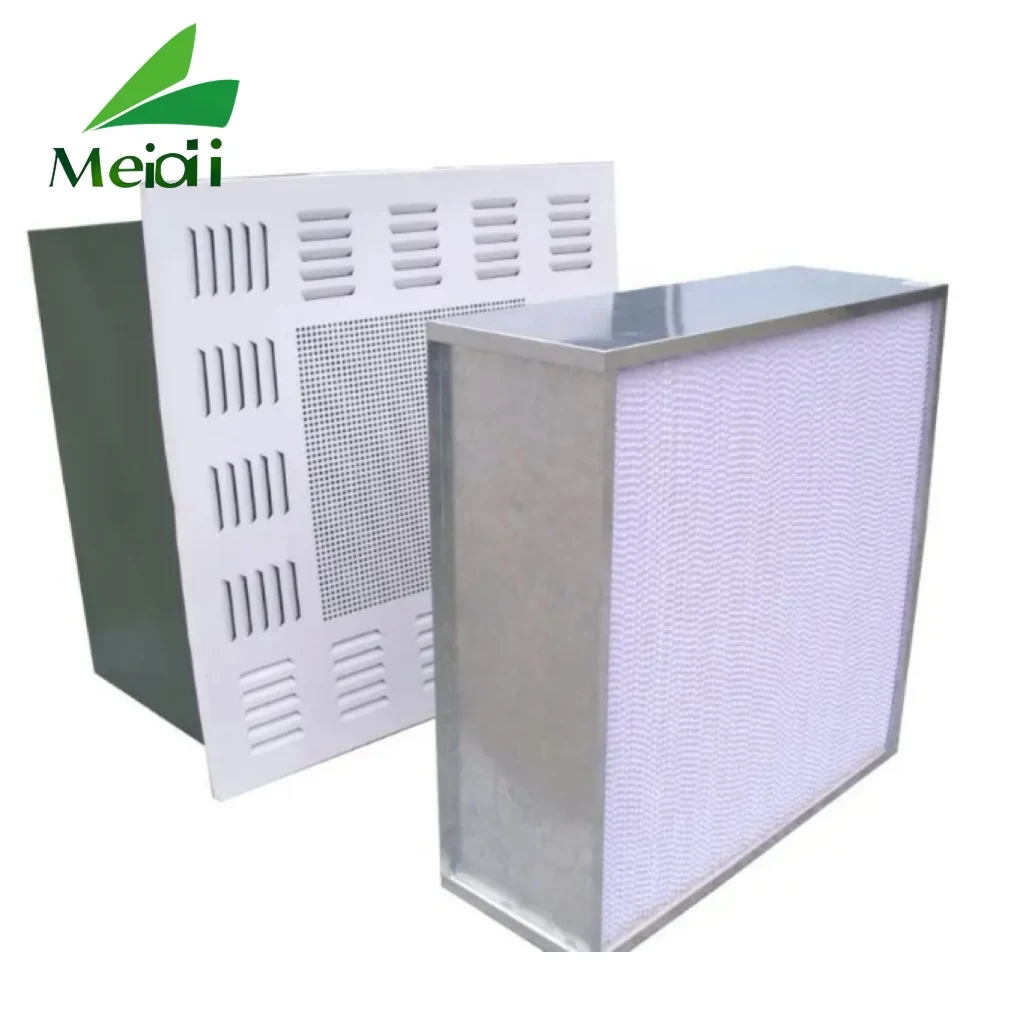

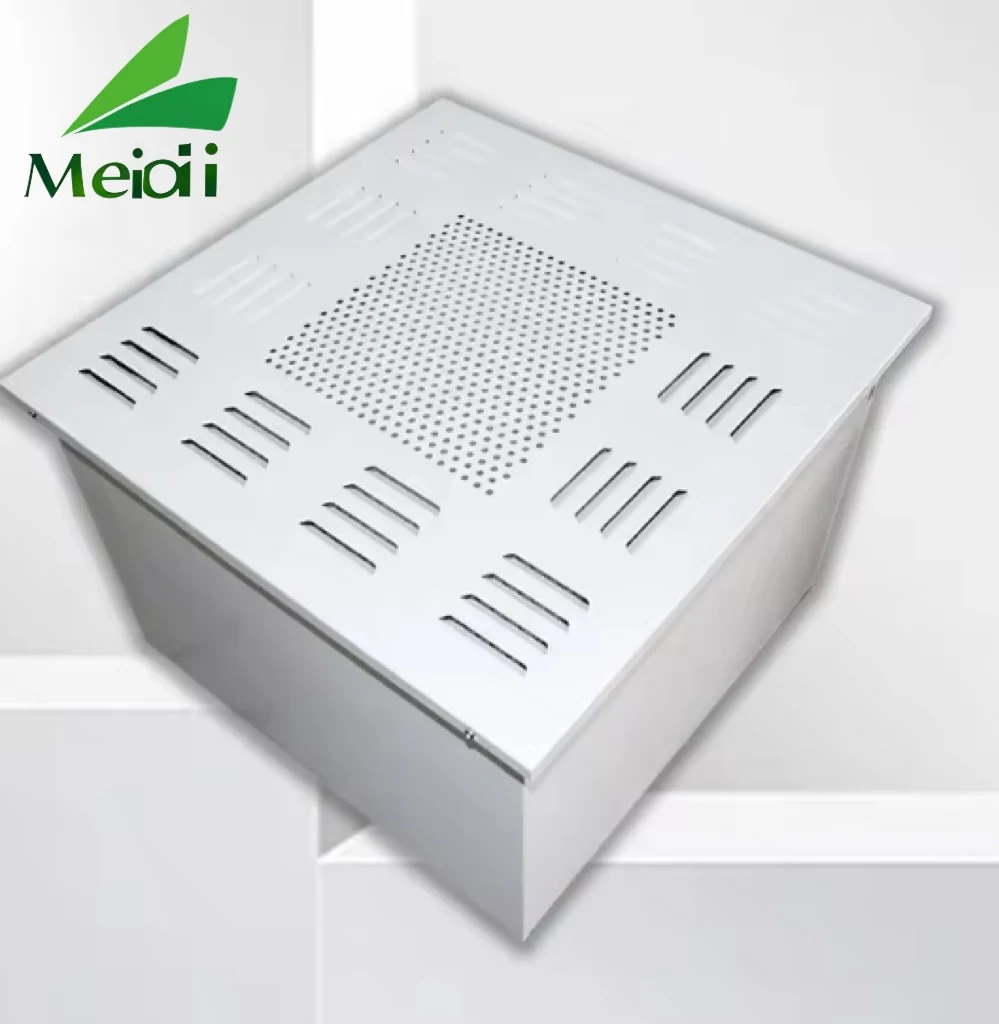

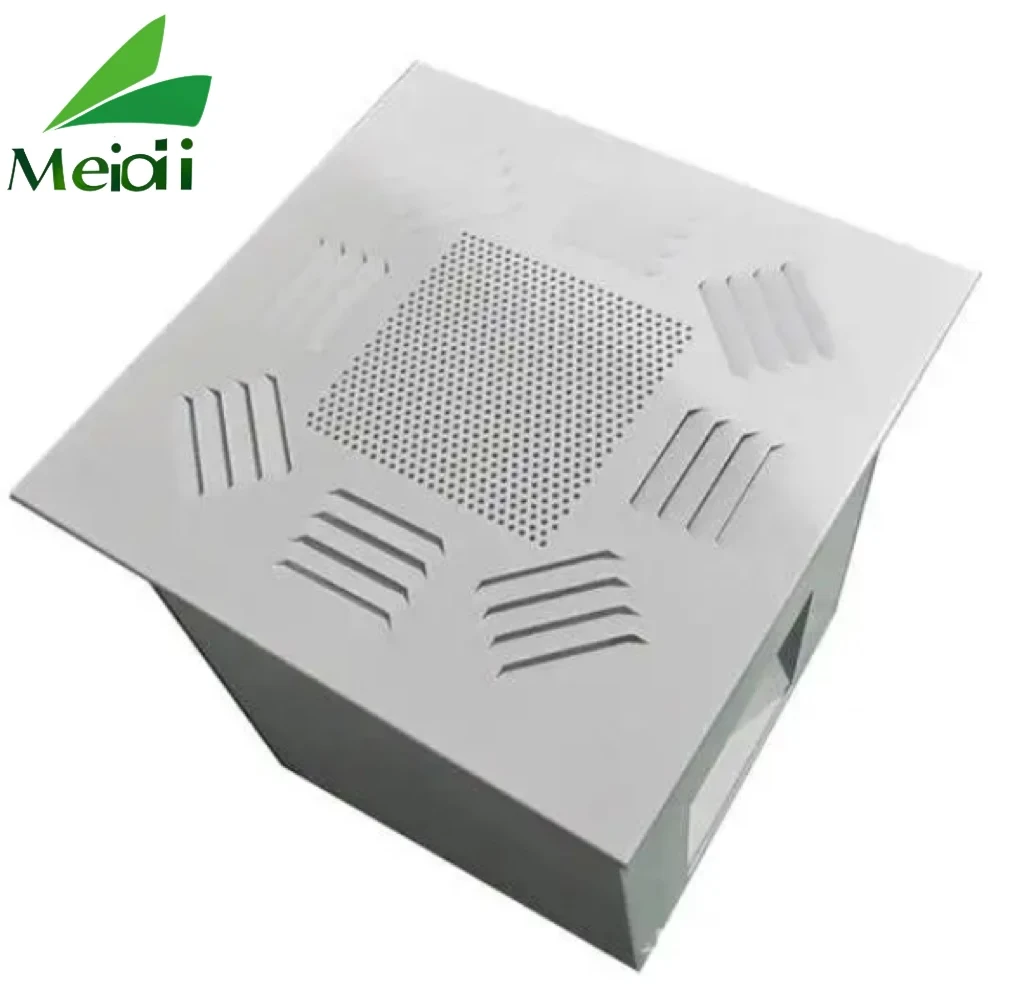

HEPA Filter Housing consists of three main parts, which are the box, filter and the diffuser. Box has a duct connection port for air inlet at the top or at the sides. Filters can be chosen according to the cleanroom Class.
Air distribution is generally made through the HEPA filter installed to its housing. Therefore,
selection and assembling the HEPA filter to its housing without leakage is very important.
selection and assembling the HEPA filter to its housing without leakage is very important.
HEPA Filter Housing consists of three main parts, which are the box, filter and the diffuser. Box has a duct connection port for air inlet at the top or at the sides. Filters can be chosen according to the cleanroom Class.

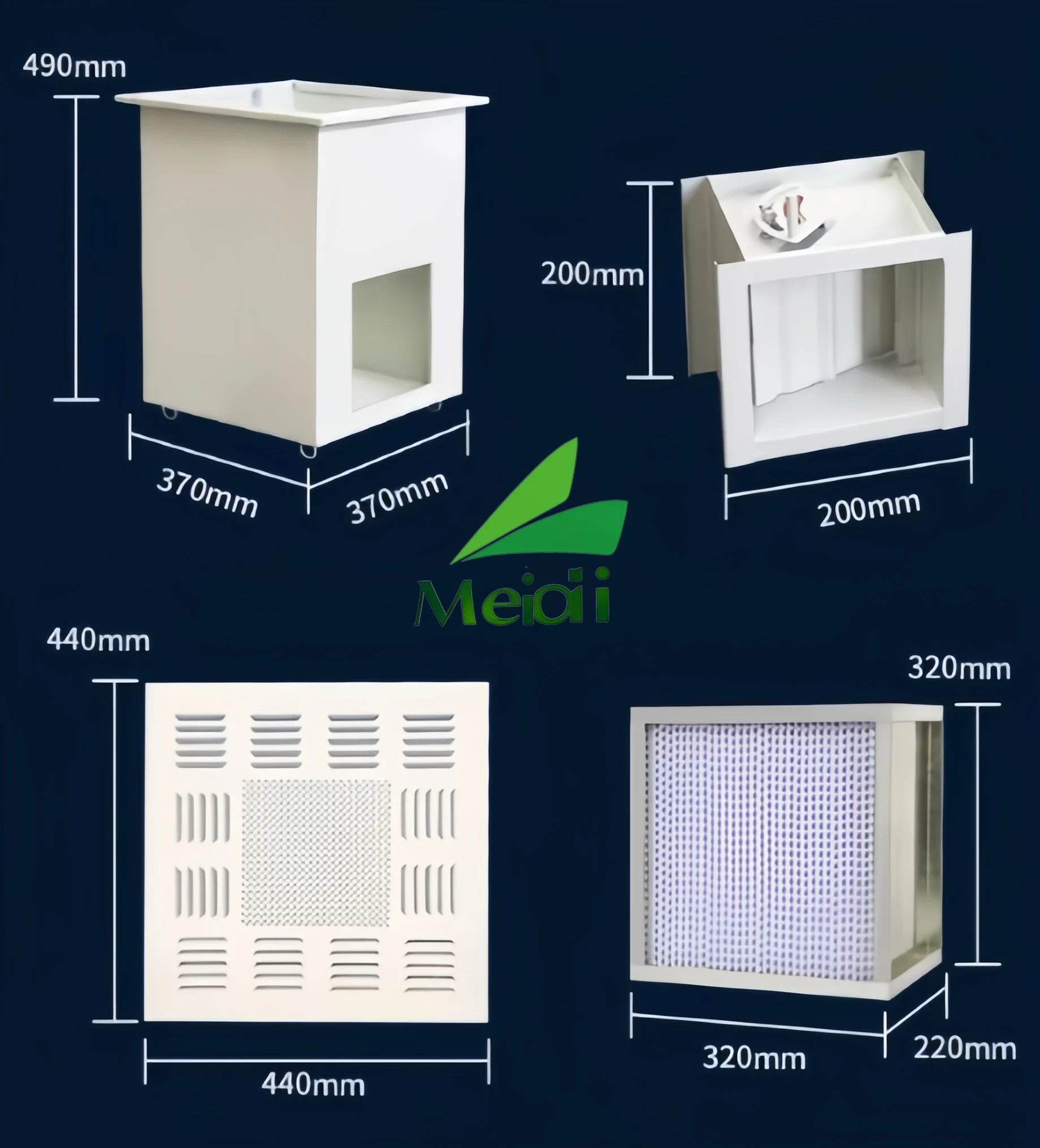

| Product Parameters | ||||
| Product Name | Hepa Box | |||
| Product Model | MD-1900 | MD-1901 | MD-1902 | MD-1903 |
| Air Volume (m3/h) | 500 | 1000 | 1500 | 2000 |
| Air Diffuser Size (mm) | 415×415×16.5 | 579×579×16.5 | 705×705×16.5 | 1010×705×16.5 |
| Cabinet Size (mm) | 370×370×400 | 534×534×400 | 660×660×400 | 965×660×400 |

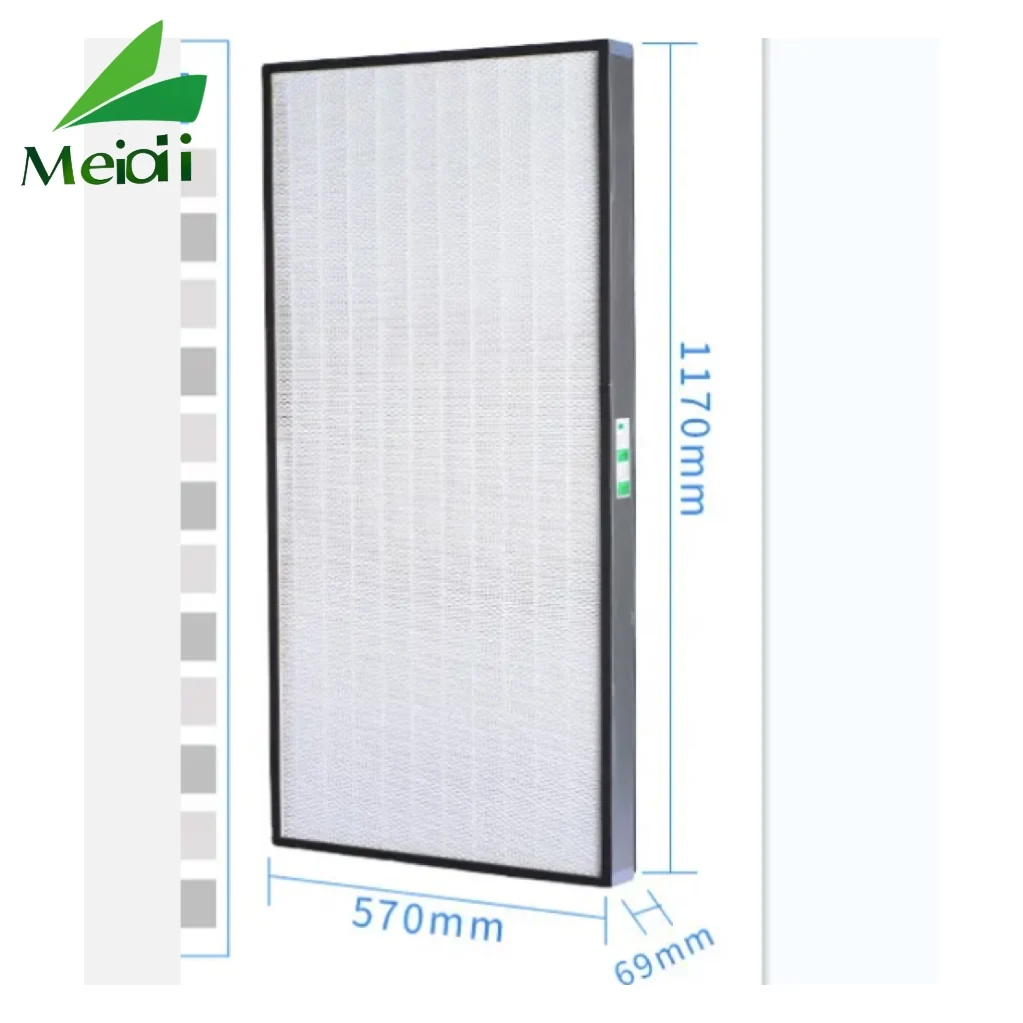

| Hepa Filter Size (mm) | 320×320×90 | 484×484×90 | 610×610×90 | 915×610×90 |
| Efficiency | 99.95%@0.3um | 99.95%@0.3um | 99.95%@0.3um | 99.95%@0.3um |
| Flange Size (mm) | 200×200 | 320×200 | 400×200 | 500×200 |

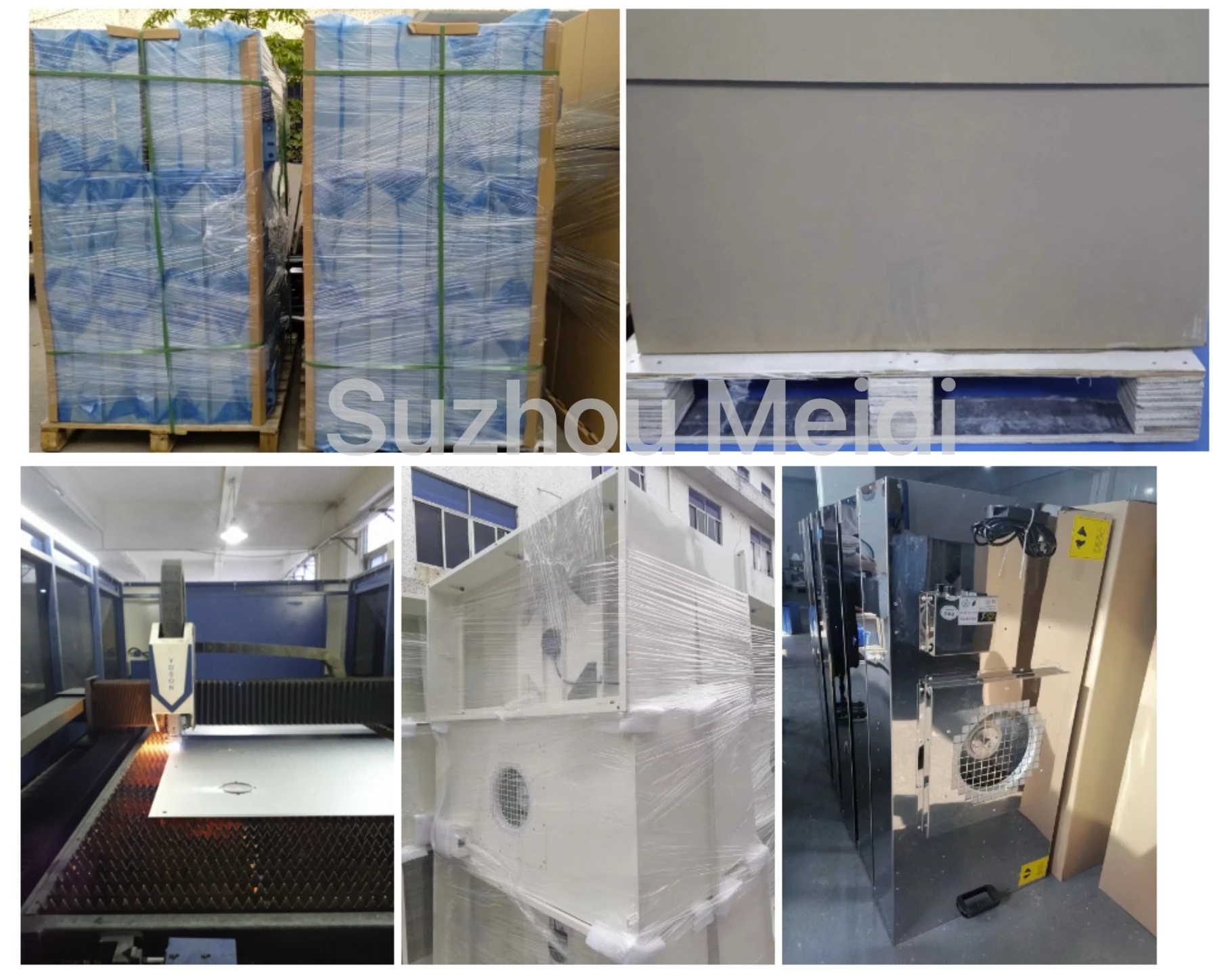

Packaging & Shipping
