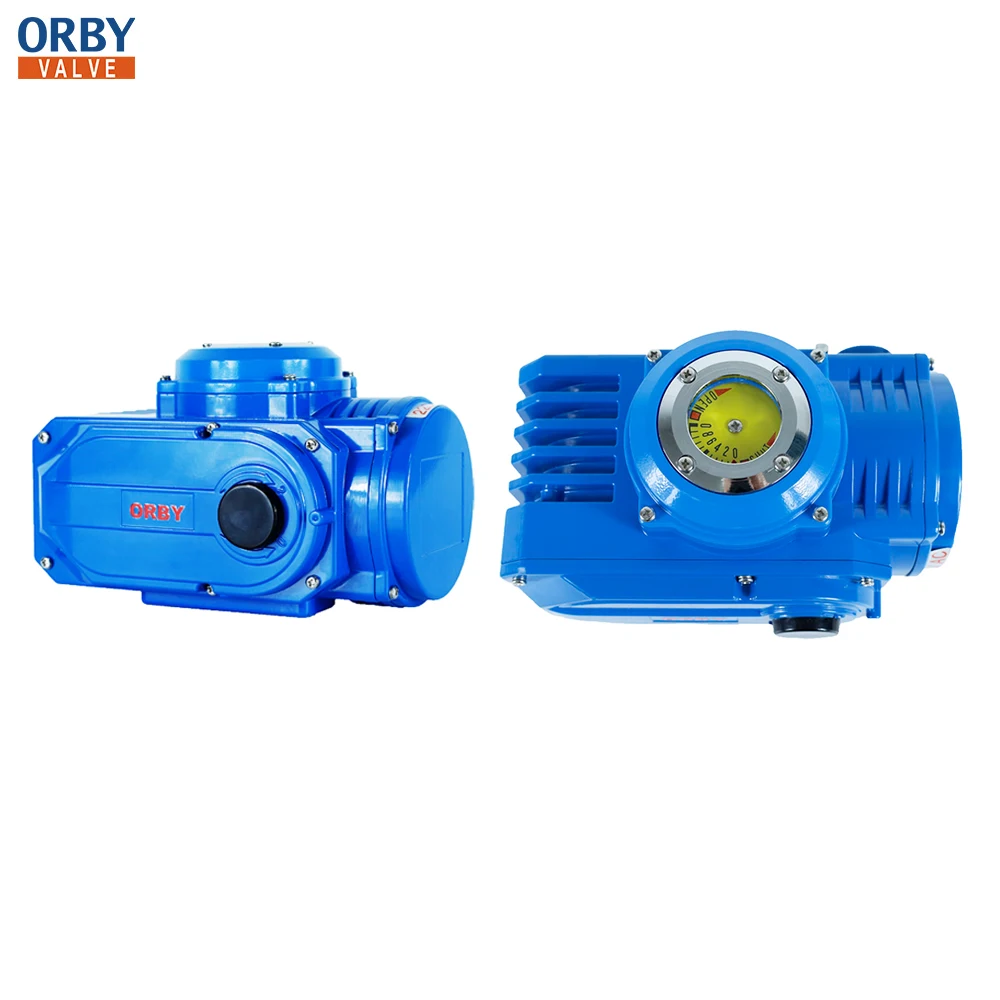

220VAC RS485 Cable Electric ball valve 4 20mA Electric Actuated Actuator for wafer TPFE cast Iron butterfly valve
- Category: >>>
- Supplier: Guangzhou ORBY Technology Co. LTD
Share on (1601217650792):
Product Overview
Description
Products Description

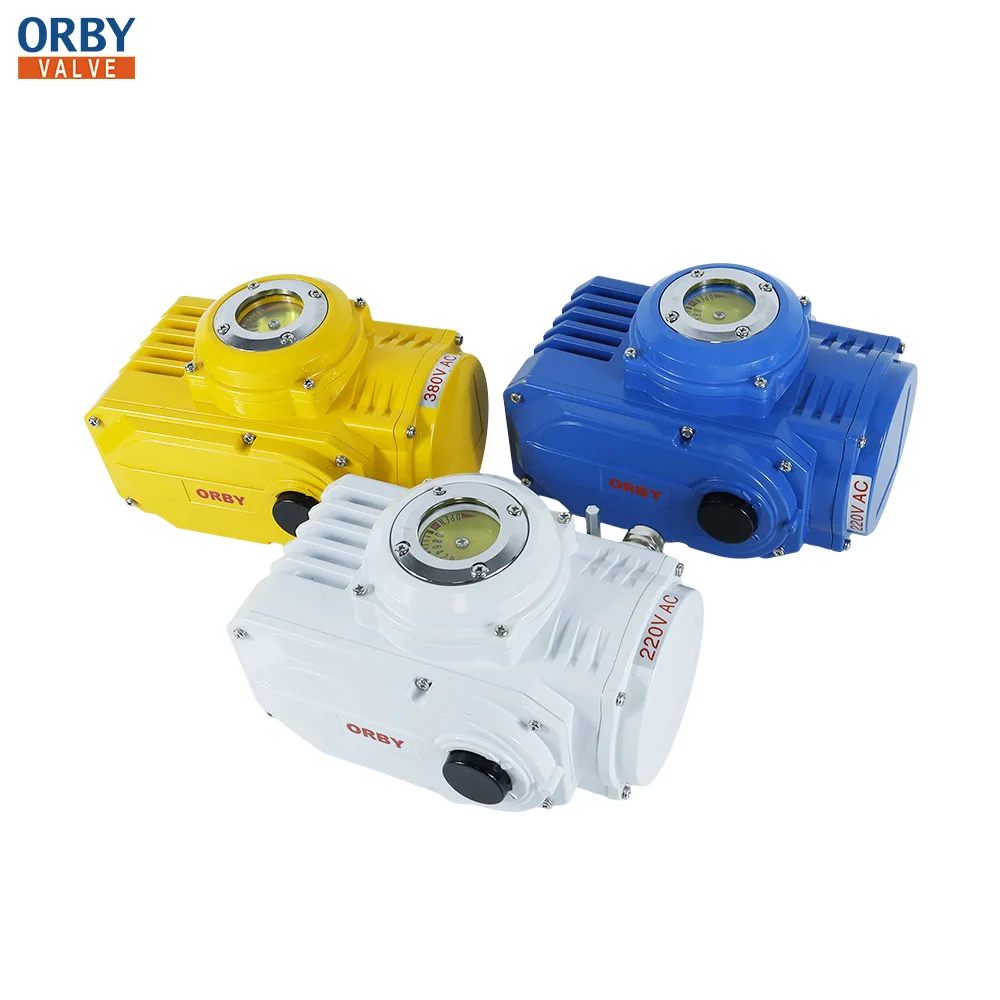

Electrical Actuators "ORBY"
It is a quarter turn electric actuator specifically designed for ball and butterfly valves which have ON/OFF type and adjustable type ,It can be installed in 360°any angle and customize a variety of voltages.
Technical Data
Specifications | Materials |

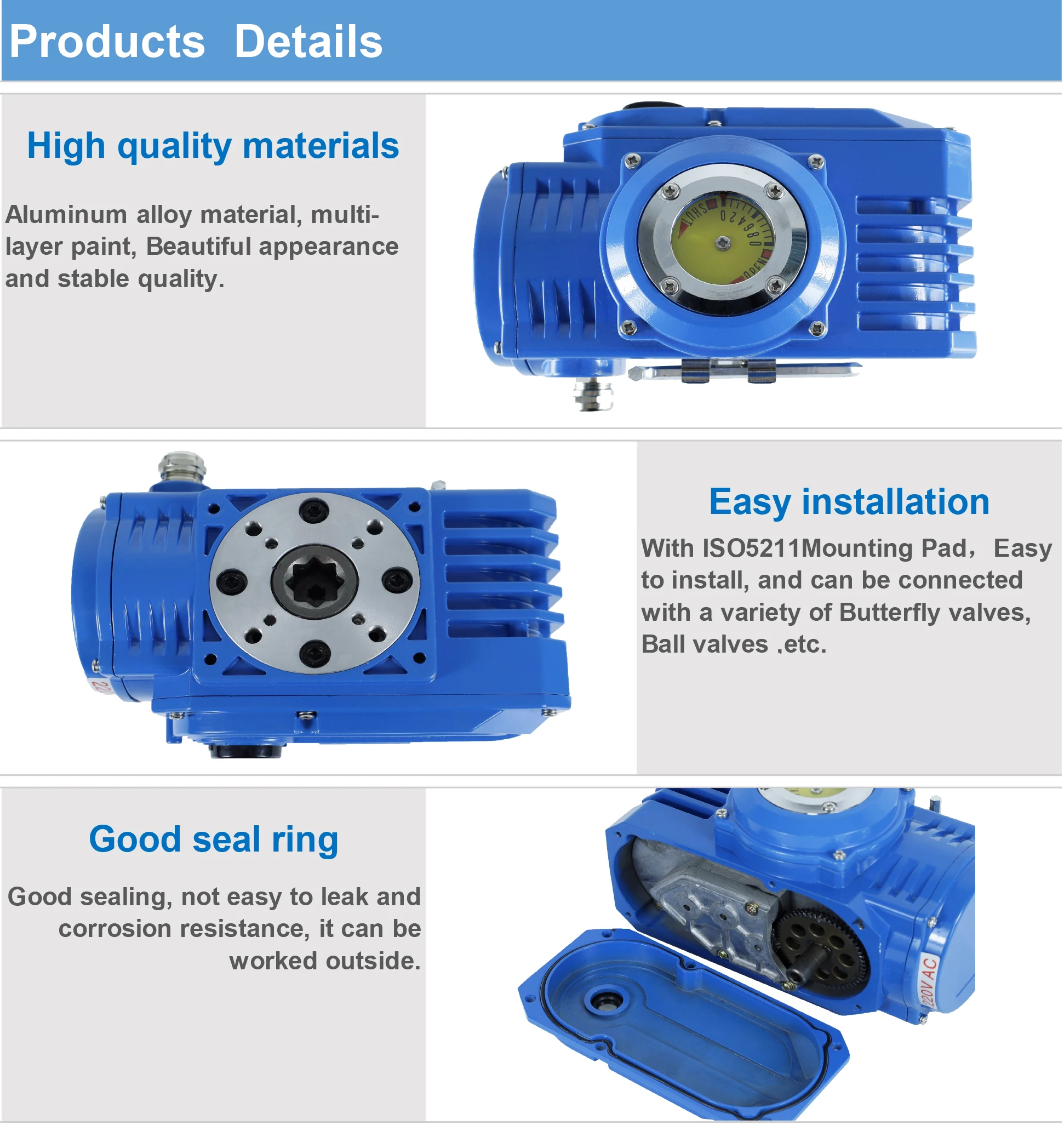

• Quarter turn electric actuator | • Body: Aluminum alloy |
• Working angle 90° | • Motor set : Copper |
• Working torques: 30Nm to 2000 Nm. | Voltage Options: |
• Cycle time: 10S-95S(see chart) | • AC220V,AC24V,AC110V |

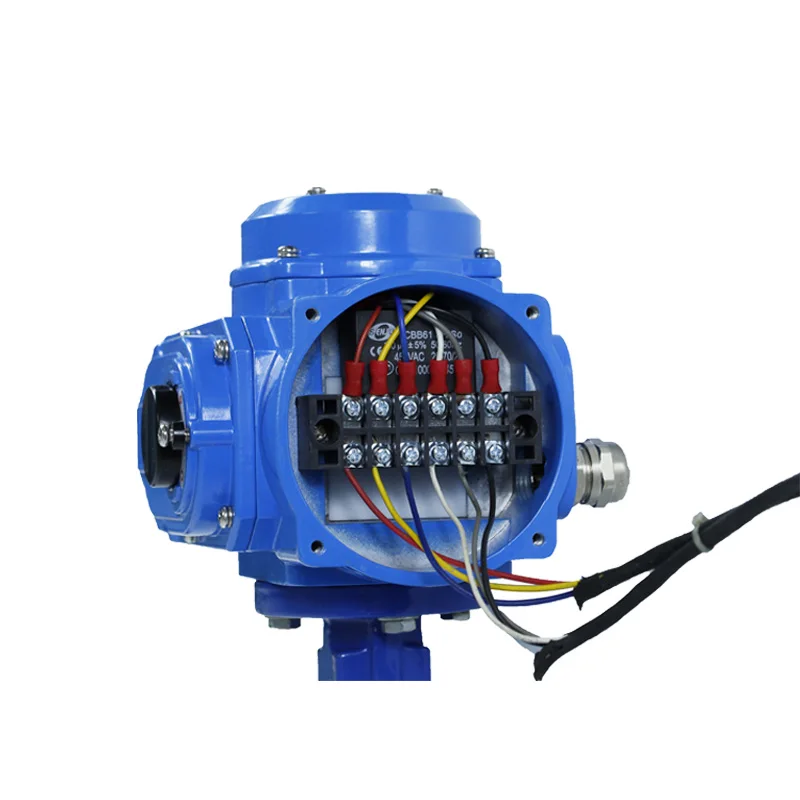

• Internal wire terminals | • DC24V,DC12V,AC380V |
• Insulation resistance: 100M/500VDC | Optionals |
• Tension insulation: 1500VAC/Minute | • ON/OFF Type |
• Medium temperature : –20°C ~ +180°C | • Modulating Type |
• Ambient temperature : –30℃ ~+ 60°C | 4-20 mA modulating positioner |

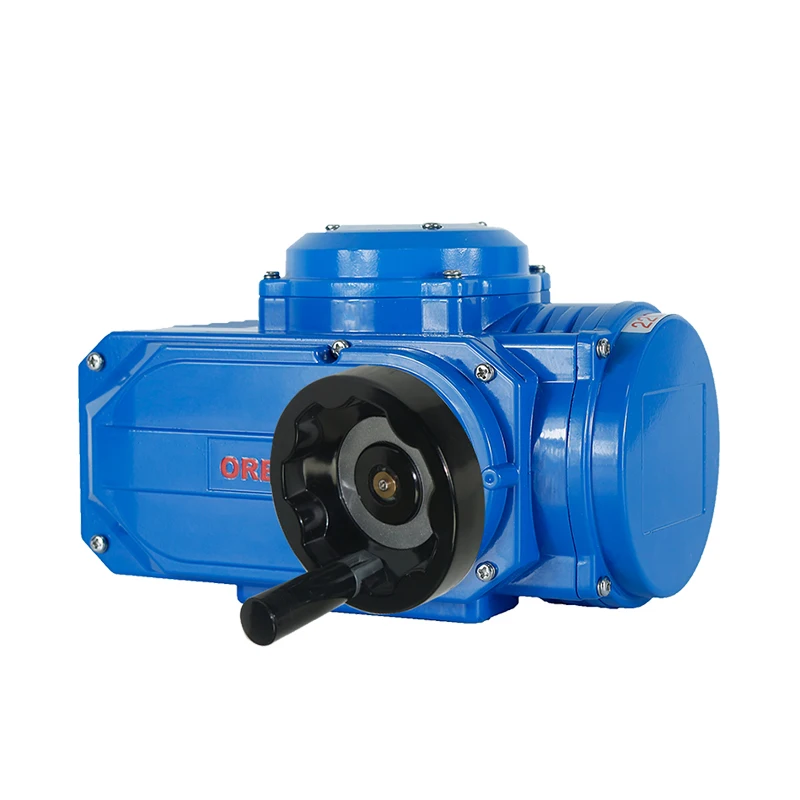

• Available Manual Override | 0-10 VDC modulating positioner |
• Available wiring : Eight types | • Display unit |

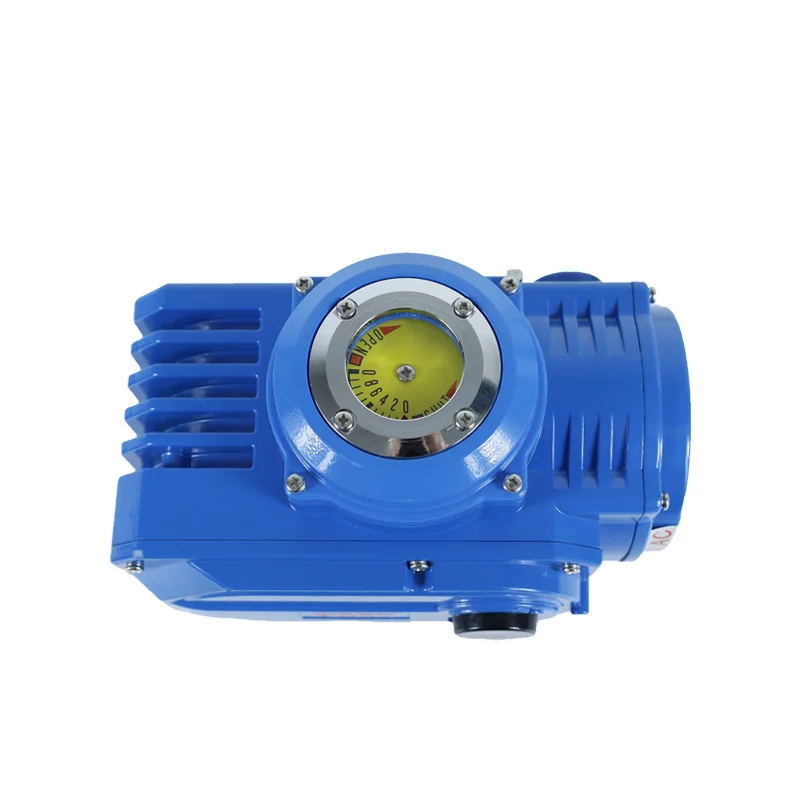

• Visual position indicator | Typical Applications |

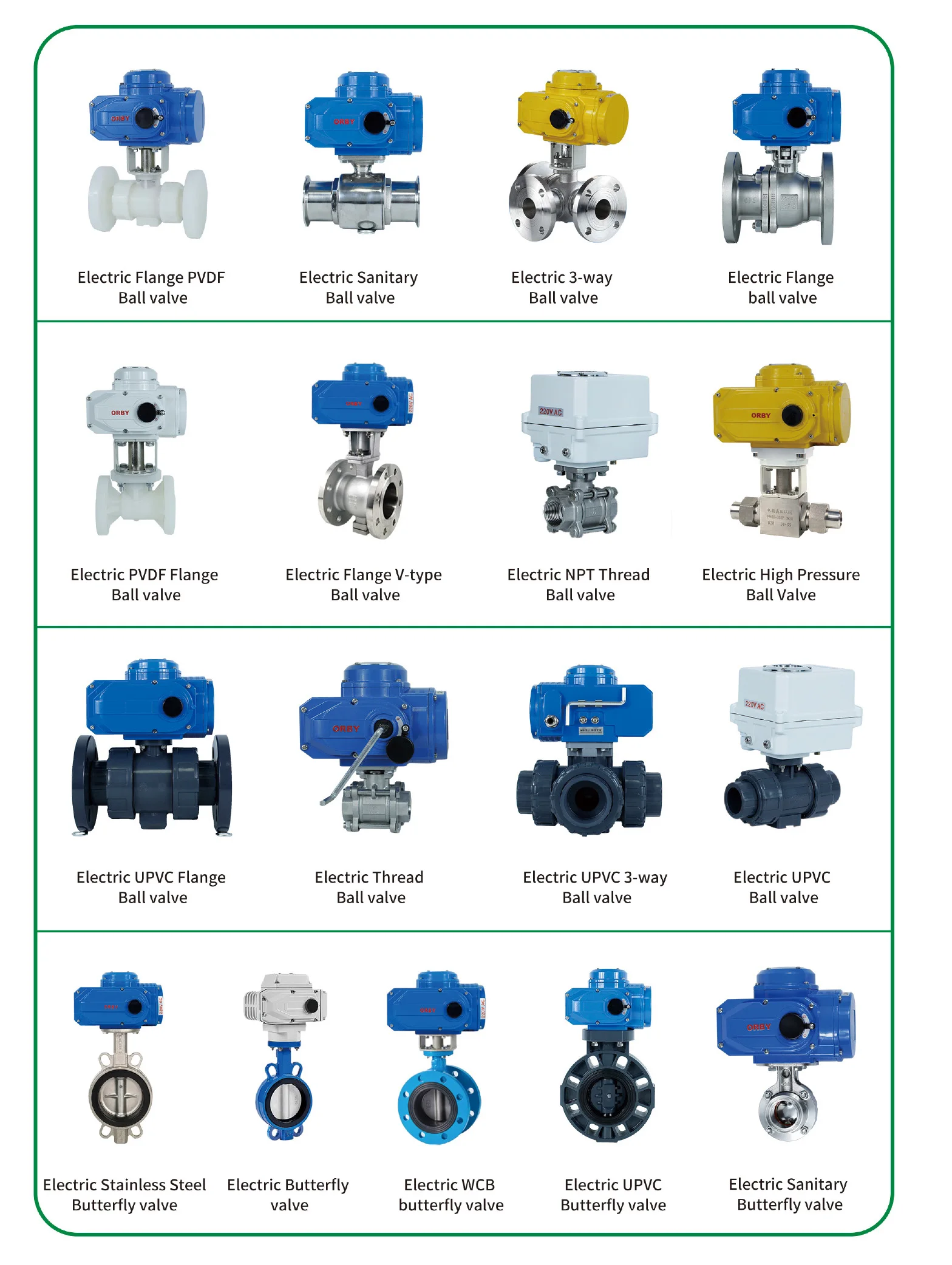

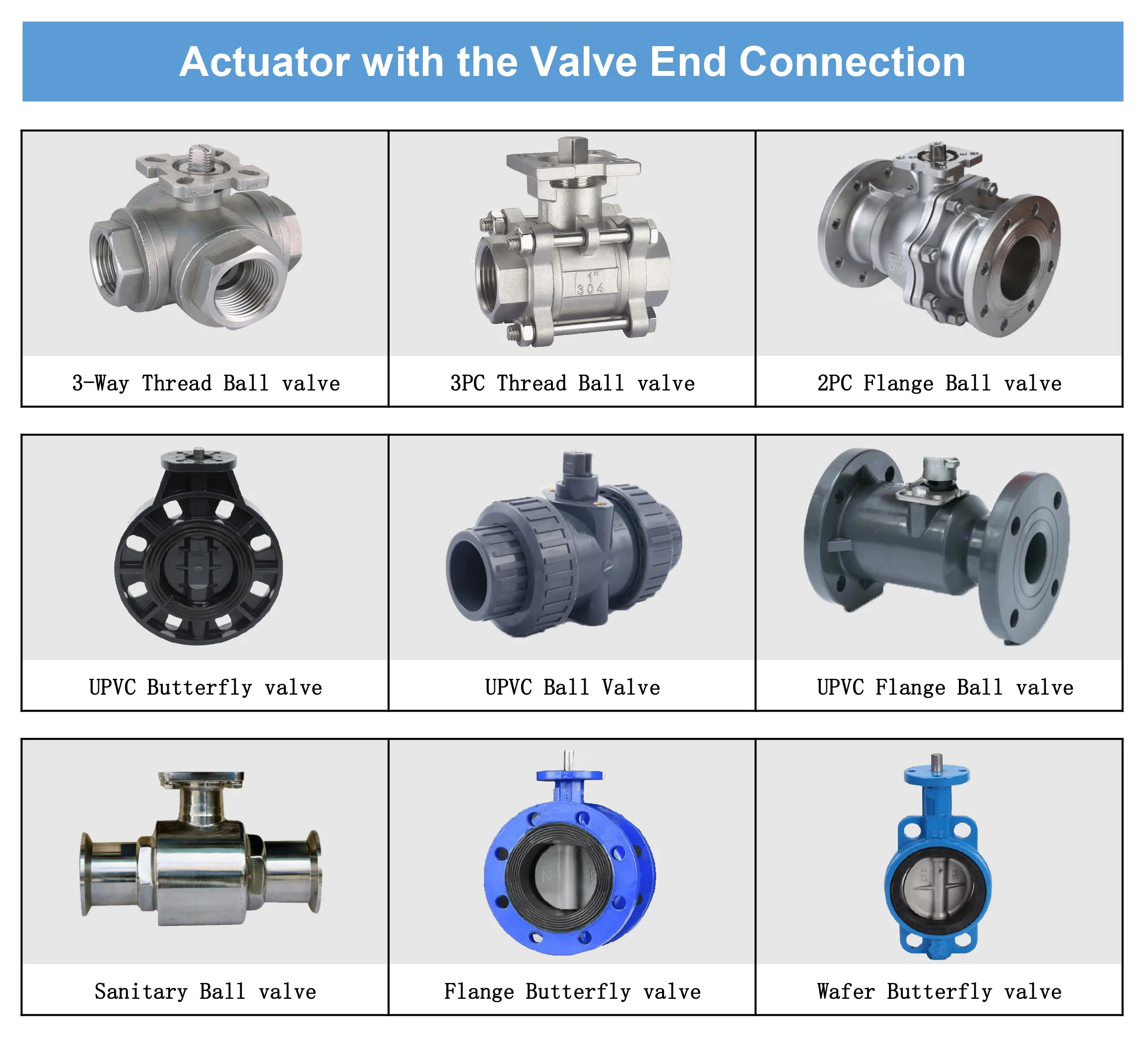

• Installation angle: 360° any angle | • Ball valve: DN15-300 |
• Self locking | • Butterfly valve: DN50-600 |

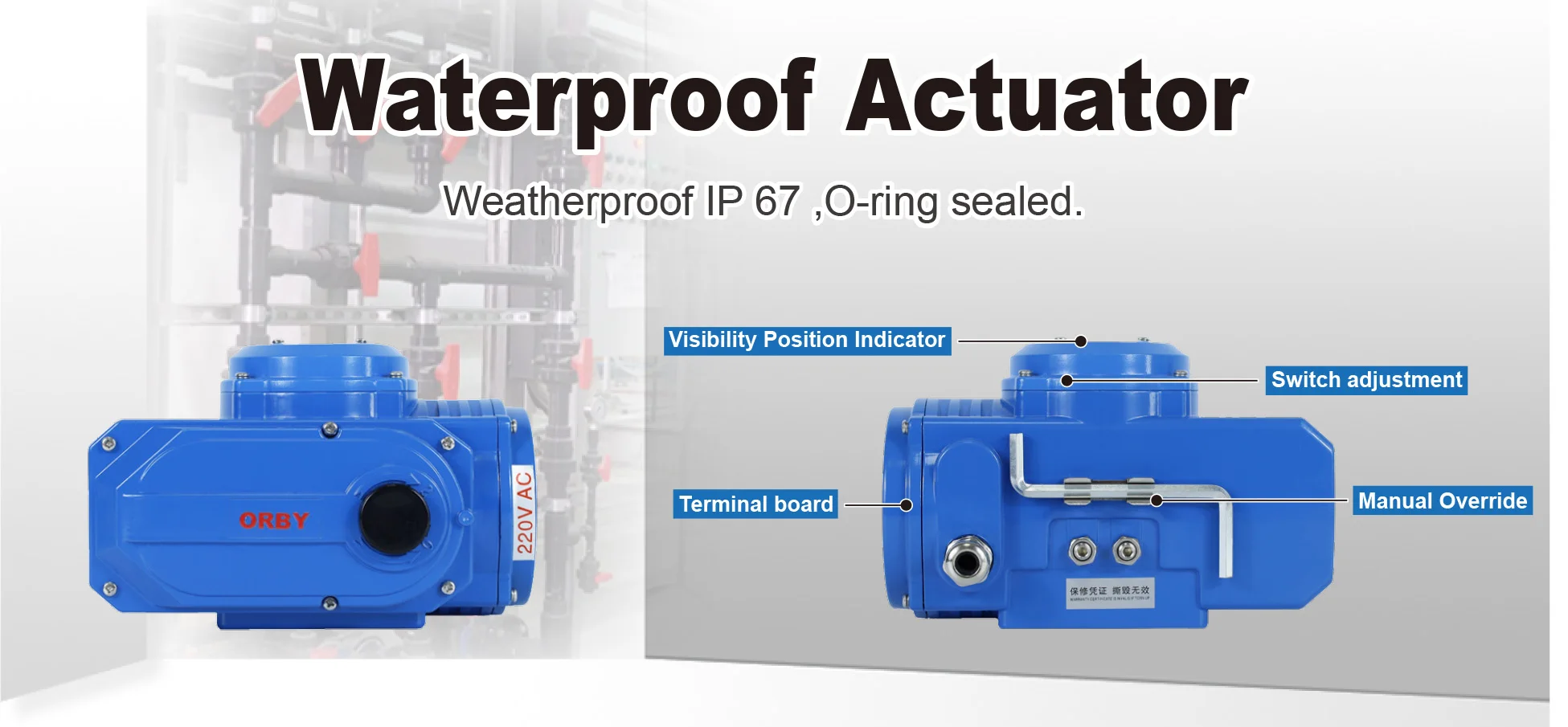

• Protection Class ：IP67 |
Optional (Must be requested when placing the order)
ON/OFF Type | Modulating Type | Display unit |
Product Paramenters
ON/OFF Electric Actuators | ||||||||||||||||
Model | 03 | 05 | 10 | 15 | 30 | 60 | 100 | 200 | ||||||||
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm | ||||||||
Actuator speed | 25S | 12S/15S/25S/30S/45S | 30S/60S | 30S | 45S | |||||||||||
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | ||||||||
Motor power | 6W/F | 15W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | ||||||||
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph | |||||||||||||||
Modulating Electric Actuators | ||||||||||||||||
Model | 03E | 05E | 10E | 15E | 30E | 60E | 100E | 200E | ||||||||
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm | ||||||||
Actuator speed | 25S | 12S/15S/25S/30S/45S | 30S/60S | 30S | 45S | |||||||||||
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | ||||||||
Motor power | 6W/F | 15W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | ||||||||
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph | |||||||||||||||
Input signal | 4-20mADC,1-5VDC,0-10VDC | |||||||||||||||
Output signal | 4-20mADC,0-10VDC | |||||||||||||||

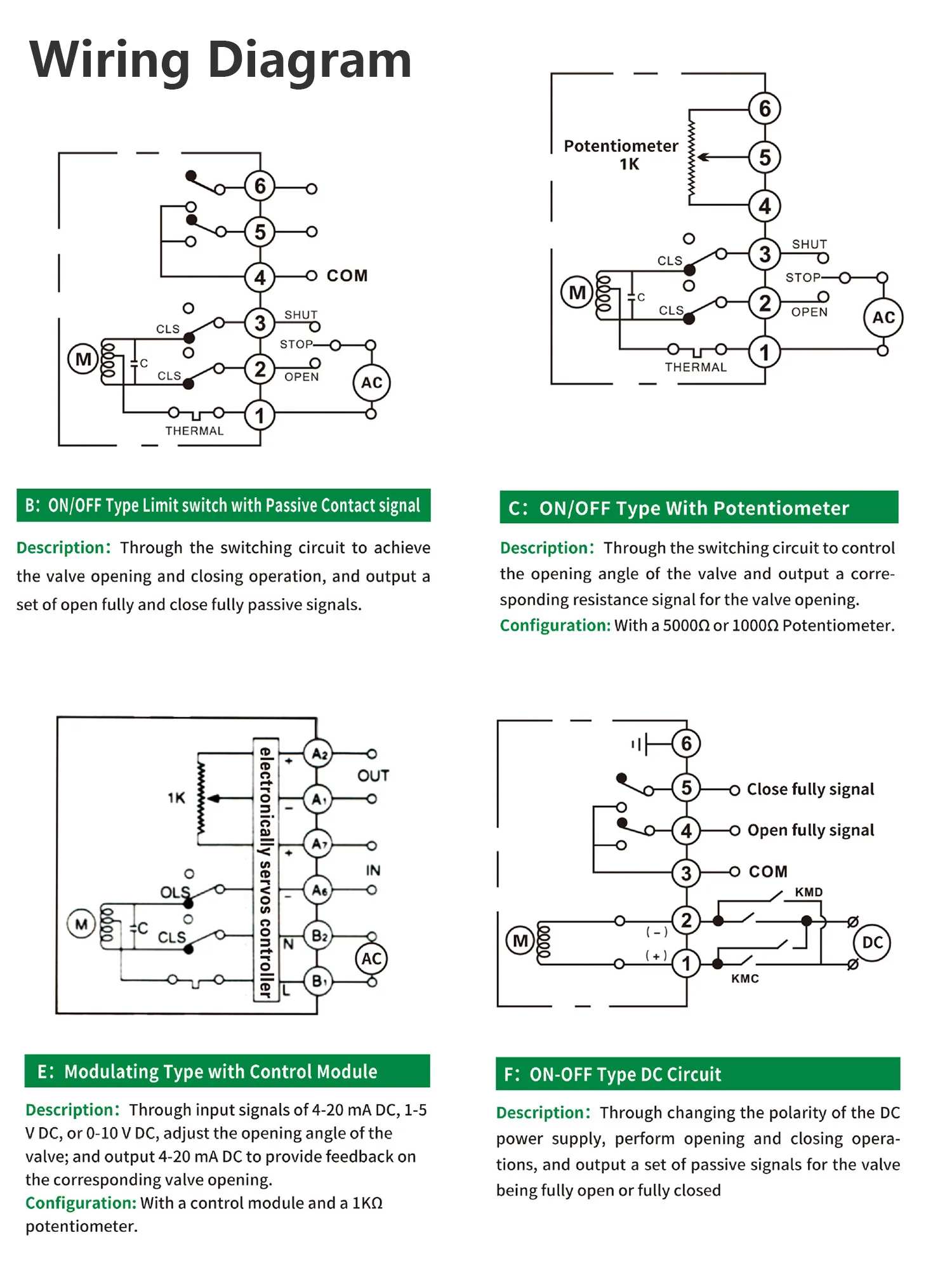

Eight wiring types are available,Contact us for the most technical information. |
A: ON/OFF Type Limit switch with Light Indicator |
B: ON/OFF Type Limit switch with Passive Contact signal |
C: ON/OFF Type With Potentiometer |
D: ON-OFF Type Passive signal with Potentiometer |
E: Modulating Type with Control Module |
F: ON-OFF Type DC Circuit |
G: AC380V Three-Phase Circuit |
H: AC380V Three-Phase With Potentiometer |
