Basen lithium Batteries for Solar Systems 10Kwh 14.3Kwh 15Kwh 48v battery for Solar Power System Super Capacitor Battery
- Category: >>>
- Supplier: Shenzhen Basen Technology Co. Ltd.
Share on (1601217654077):
Product Overview
Description
Product Introduction
Model | BR-OW-LV 10.24KWH | BR-OW-LV 11.776KWH | BR-OW-LV 14.3KWH | BR-OW-LV 15.5KWH | ||||
Main Parameter | ||||||||
EU Stock（GE/PL） | √ | √ | √ | √ | ||||
Cell Technology | Lithium-iron Phosphate (LiFePO4) | |||||||
Capacity | 200AH | 230Ah | 280Ah | 304Ah | ||||
Nominal Energy | 10.24Kwh | 11.776Kwh | 14.336Kwh | 15.5Kwh | ||||
Round-Trip Efficiency | 98% | |||||||
Scalability | Max. 15 Modules in Parallel | |||||||
Dimensions(L/W/H) | 640*510*245mm | 670*500*232mm | 955*605*505mm | 955*605*505mm | ||||
Weight | 120KG | 120KG | 147KG | 147KG | ||||
Warranty | 5 Years Product Warranty 10 Years Performance Warranty | |||||||
Electrical Parameter | ||||||||
Nominal Voltage | 51.2V | |||||||
Max Charge Current | 200A | |||||||
Max. Cont. Charge Current | 200a | |||||||
Max Discharge Current | 200A | |||||||
Max. Cont. Discharge Current | 200A | |||||||
Operating Voltage Range | 43.2V-57.6V | |||||||
Charge Cut-off Voltage | 58.4V | |||||||
Discharge Cut-Off Voltage | 43.2V | |||||||
General Parameter | ||||||||
Cycle Life | ≥6000 Times (80%DOD) | |||||||
Protection Rating | IP55 | |||||||
Display | SOC Status Indicator(optional), LED Indicator | |||||||
Communication | RS485, RS232, CAN | |||||||
Charge Temperature Range | 0°C~60°C (Under 0C extra heating mechanism) | |||||||
Discharge Temperature Range | - 20°C~60°C (Under 0Cwork with reduced capacity) | |||||||
Storage Temperature Range | - 40°C~55°C @ 60% ± 25% relative humidity | |||||||
Compatible Inverters | SMA, Victron Energy, Deye, Goodwe, Growatt, Sermatec, etc. | |||||||
* Contact us for the latest inverter-compatible list. ** Under specific test conditions | ||||||||
Two Types of Terminal Connection |

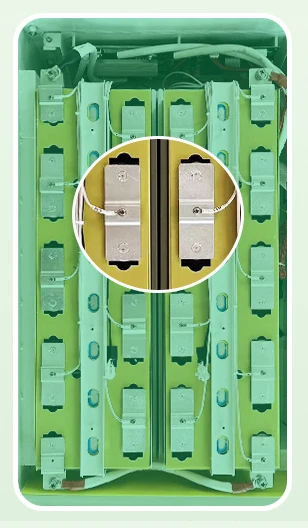

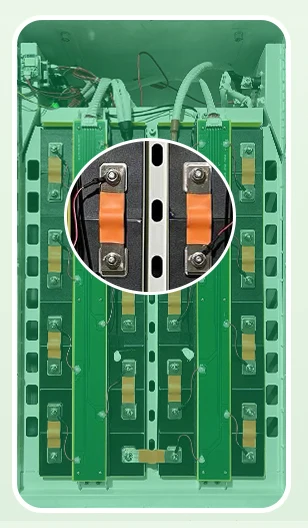

①Stud nuts locking Easy to maintain | ②Laser welding Bus bars and terminalsare welded directlyto reduce internal resistance |
PRODUCT SPECIFICATIONS
Why BASENGREEN is your BEST Partner?
★ Your Expert For Power Solution: With 13 years of experience in the battery industry, BASENGREEN has served over 12,000 customers from 80+ countries. We have 4 overseas warehouses Because of maintaining a repurchase rate of over 90%, an on-time delivery rate of 99.5%, and receiving 98% positive feedback rated by Alibaba, we have received Alibaba's recommendation. ★ Source Factory & Direct Distributor: We are direct distributors for EV, CATL, LISHEN, CALB, and REPT batteries. All batteries are 100% original Grade A and brand new. We maintain weekly fresh stock with newly produced cells, ensuring long-term supply for your projects without worrying about stock availability. ★ Guaranteed Quality Service: We guarantee 100% tested batteries, ensuring strict testing before shipment with matched voltage and IR. We welcome QC checking and online video checking before shipping. ★ Fully Warranty Service Guaranteed: BASENGREEN has self-operated overseas warehouses and repair centers in Poland and Germany, providing 100% product usage guidance and technical support. For products confirmed to have non-artificial quality issues, we offer complete after-sales service, ensuring worry-free shopping for you. ★ OEM / ODM Supported: With an experienced team of energy storage structural and software engineers, we offer flexible customization services.Additionally, our marketing team provides one-on-one support, offering a full range of marketing solutions and services to help you expand your business in local markets. Send an inquiry Vicky (Click here) TOM is here at your service to help you get guaranteed power. |

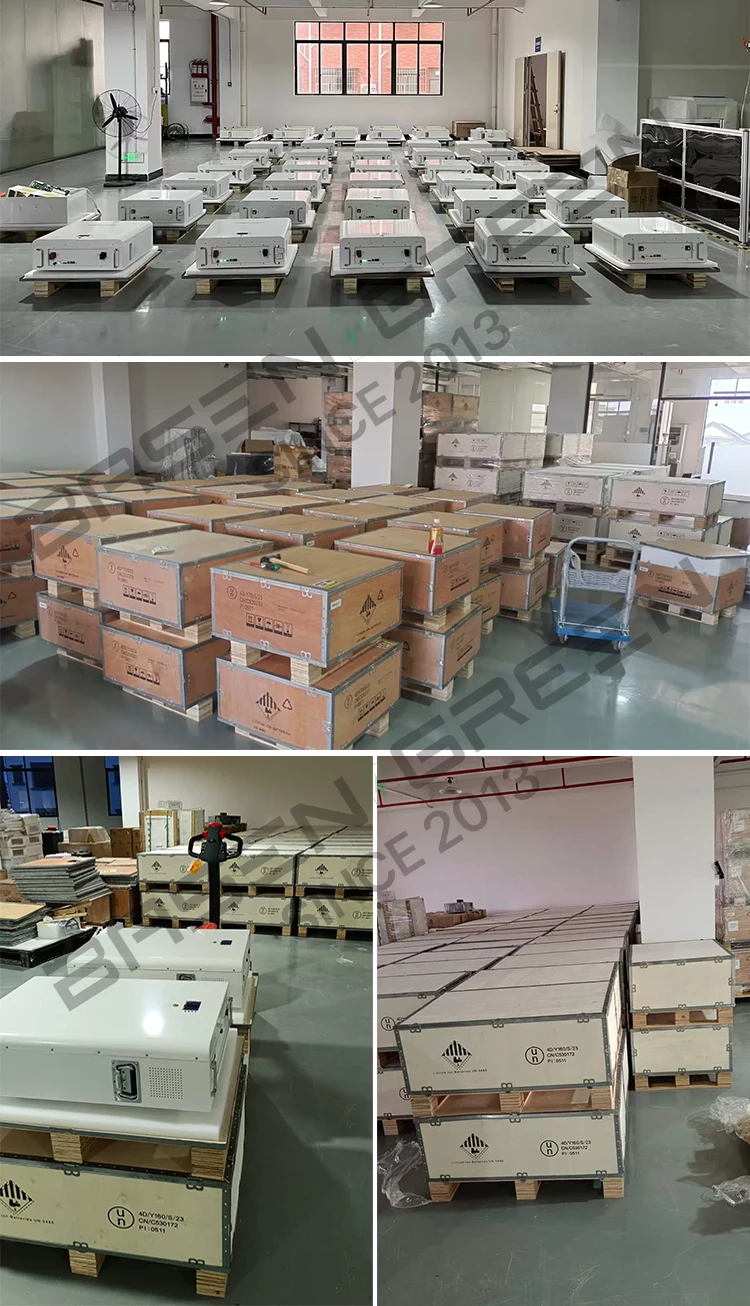

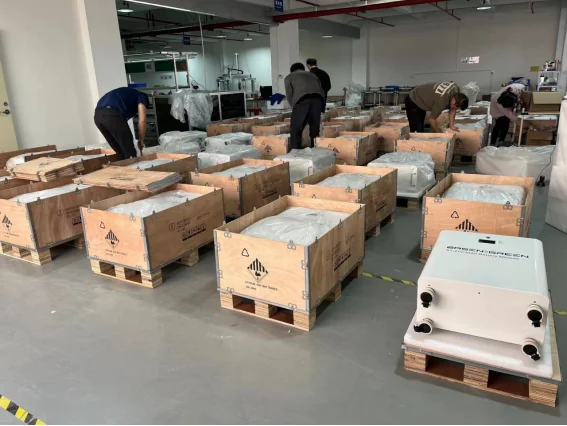

Packing & Shipping

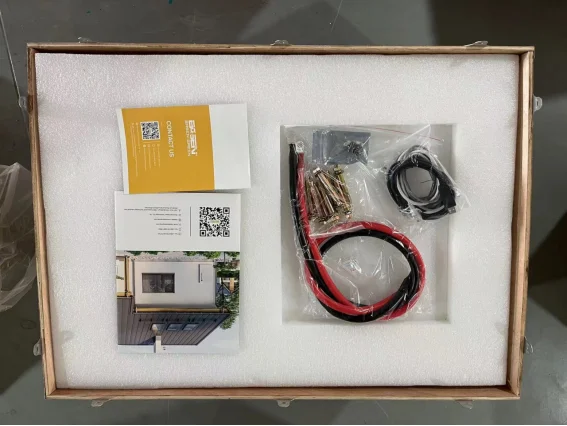

Stable & Safety Package Package : Carton + Wooden + Pallet or Customized We usually provide DDP CIF by Sea for 48V Battery Packs. Packing with Wooden Packing for safety shipping. Contact us for more shipping details. | ||||||||
EU Address | EU stock: 3~7 days after delivery | By Express or Truck (DDP, including custom clearance, all the tax fees and door to door service) | The tracking will be update after pick up by local express.Usually it will take around 20-30 days after delivery. | |||||
China stock: 40~60 days after delivery | By Sea/Train + Local express (DDP, including custom clearance, all the tax fees and door to door service) | |||||||
USA Address | USA stock: 3~7 days after delivery | By Express or Truck (DDP, including custom clearance, all the tax fees and door to door service) | The tracking will be update after pick up by local express.Usually it will take around 15-25 days after delivery. | |||||
China stock: 35~55 days after delivery | By Sea + Local express (DDP, including custom clearance, all the tax fees and door to door service) | |||||||
3 | DDP service for other countries: We also have DDP service for some other countries like Canada, UK, Australia, Philippines, etc.More detail information, pls click here to contact us to get the DDP price. | |||||||
4 | CIF/FOB service for Rmoved Countries: If there is not DDP service for some removed countries, we also have CIF service or FOB service for you to choose. | |||||||
5 | Completed Certificate: We have completed certificate of shipping, such as, MSDS, ROHS, CE, UN.38.3 and Certification for Safe Transport of Goods, etc. | |||||||
6 | Your own shipping forward: if you have your own shipping forward, we can also arrange that. Just send us your forward address and phone number, we will send to your forward address. | |||||||
Noted: * For ordering from China warehouse client: Local express will be updated only after the goods arrive at European ports and customs clearance. If you want to ask about the progress of the ship, you can contact us in the Alibaba message ,we will ask the freight forwarder about the progress. * If your countries that do not appear in this table, Please click here to consult us for freight charges One thing shold be clear! * Please tell us which shipping method you prefer? Sea/Air/Express? And send us your full delivery address when you send your inquiry so that we can check the total quote directly for you. | ||||||||
How we guarantee TOP quality?
Grade A 100% Brand New with Original QR code !!!!! QR CODE Scanner VERIFIED QR CODE Talk Vicky (Click here) to get more details |
All Single battery must test over 3 times before shipping, to make sure they are in top quality level, with full capacity, matched voltage & internal resistance. Please contact Vicky(Click here) to learn more about our offer. Thanks. |
READY TO SHIP FROM USA/EU WAREHOUSE
QUICK SHIPING FROM OVERSEAS WAREHOUSE! Poland EU/US/CA/UK location 24H Shipping /48H tracking number provided/ 7days delivered. | ||||||
BASENGREEN DIY KITS( DIY KITS & BMS) | ||||||
Product | Model | Specification | ||||
DIY Rack BOX | BS-RM230-DIY | 51.2V 230AH | more | |||
DIY Rack BOX | BS-RM280-DIY | 51.2V 280AH/300AH | more | |||
DIY Wall-mounted BOX | BS-RM280-DIY | 51.2V 280AH/300AH | more | |||
DIY Rack Stackable BOX | BS-OW280-DIY | 51.2V 280AH/300AH | more | |||
DIY BASEN kits BMS | BS-BMS-200A | 16S 200A BMS with BT | more | |||
GRADE A LIFEPO4 BATTERY CELL | ||||||
Product | Model | Specification | ||||
EV LiFePO4 Battery | LF280K | 3.2V 280ah | more | |||
EV LiFePO4 Battery | LF304 | 3.2V 304Ah | more | |||
EV LiFePO4 Battery | MB30 | 3.2V 306Ah | more | |||
EV LiFePO4 Battery | MB31 | 3.2V 314Ah | more | |||
BASENGREEN 12V BATTERY PACK | ||||||
Product | Model | Specification | ||||
Battery Pack | BG-12100 | 12V 100Ah with BT | more | |||
Battery Pack | BG-12230 | 12V 230Ah with BT | more | |||
Battery Pack | BG-12300 | 12V 300Ah with BT | more | |||
BASENGREEM ASSEMBLED 48V BATTERY | ||||||
Product | Model | Specification | ||||
Rack Mounted Battery | BR-RM-LV | 6kWh 51.2V 120Ah | more | |||
Wall Mounted Battery | BR-WM-LV | 10kWh 51.2V 200Ah | more | |||
Wall Mounted Battery | BR-OW-LV | 11.7kWh 51.2V 230Ah | more | |||
Wall Mounted Battery | BR-OW-LV | 14.3kWh 51.2V 280Ah | more | |||
Wall Mounted Battery | BR-OW-LV | 15kWh 51.2V 300Ah | more | |||
Shipping and delivery time | ||||
Ship from | Logistics type | Delivery time | ||
China warehouse | DDP by sea /train | 45-50 working days | ||
Germany warehouse | DDP by DPD/UPS | 3-7 working days | ||
Poland warehouse | DDP by DPD/DHL | 3-7 working days | ||
USA warehouse | USA warehouse | 3-7 working days | ||
DDP : The shipping cost and all import cost for destination are included in the price and you do not have to worry about anything and pay extra fees. | ||||
Accessories you will also need
BASENGREEN are Official distributor of DALY/ JK/ JBD brand and Supply other safety DIY Pack accessories together Just show us what kinds of BMS you need. TOM will quote the RIGHT BMS/KITS and accessores together. 100% technicial support 100% after-sales support |
DIY Battery Box
The Battery case includes the following accessories. Smart BMS with LCD dispaly and BT Kits | ||
① BASENGREEN 16S200A smart BMS with BT ② Active balancer(Optional) ③ DC breaker(Optional) ④ LCD dispaly ⑤ Shell, Front panel, Cover plate | ⑥ Handle. ⑦ Insulation board ⑧ Charge and discharge connector ⑨ Screws & flexible busbar ⑩ USB-485 communication cable ⑩ Inverter communication cable | |
FAQ
DIY battery pack must get the cells balanced (same voltage ) before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detected voltage/resistance/appearance and other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not provide return nor refund. If you found problems you can contact us for return or refund.Battery can only be unused (the electrode intact, no welding, no wear, the appearance good) to provide return. Any return behavior buyers need to be responsible for shipping fee. 1).Warranty period:5 years(from the date of successful delivery),if the single battery capacity less than 80% initialcapacity,take the test pictures or video to us,we will replace it or give satisfied solution. 2).If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case of lossof cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost. 3).These situations not provide return nor refund 1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage,charger failure, the assembly error or unbalanced assembly, etc. 2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging. Tips: * These products are prototype batteries without protection board, you need to purchase a match one! Pls click here to consult us. * please consider before taking orders, place order means you have agreed. thank you for your cooperation! |
