China Diaphragm Vacuum Pump GM 1.0A with Competitive Price and High Quality

China Diaphragm Vacuum Pump GM 1.0A with Competitive Price and High Quality

Category: >>>
Supplier: Tianjin Jinteng Experiment Equipment Co. Ltd.

Price:$210.00 - $270.00

Quantity:

Product Overview

Description

Product Introduction

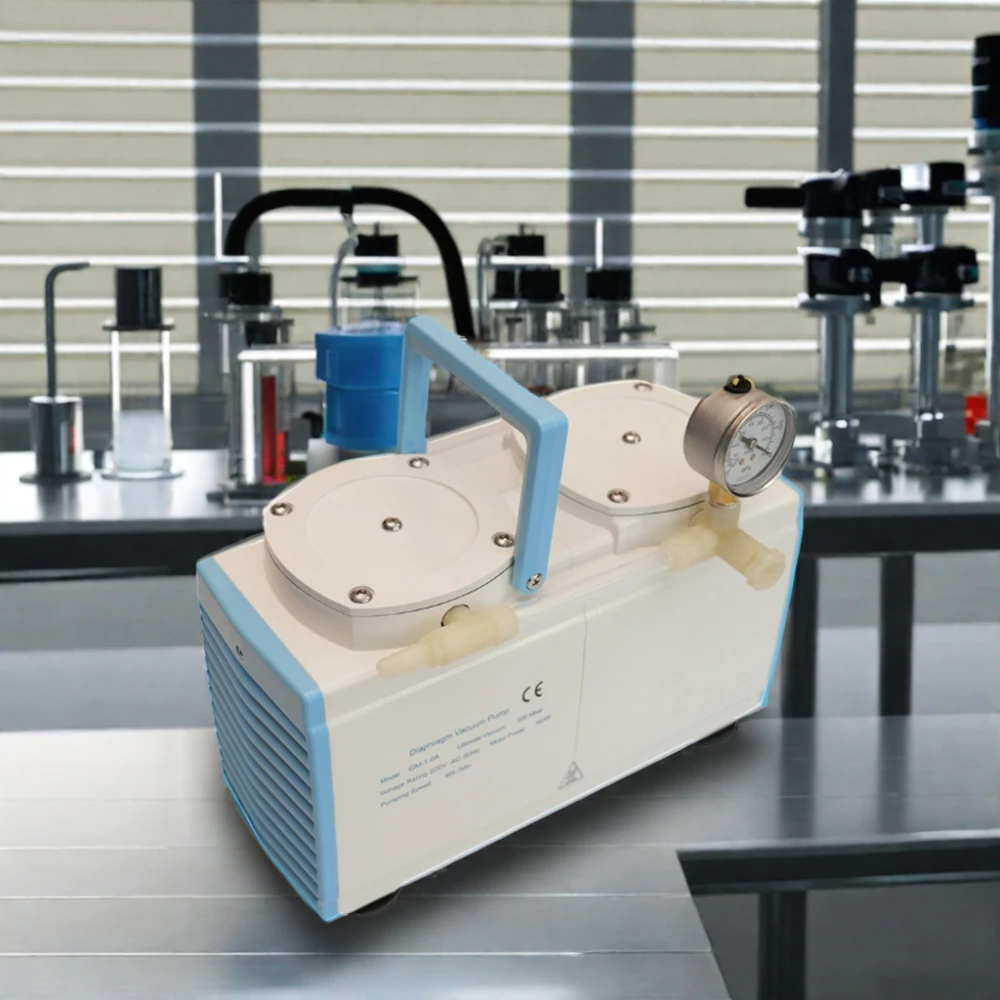

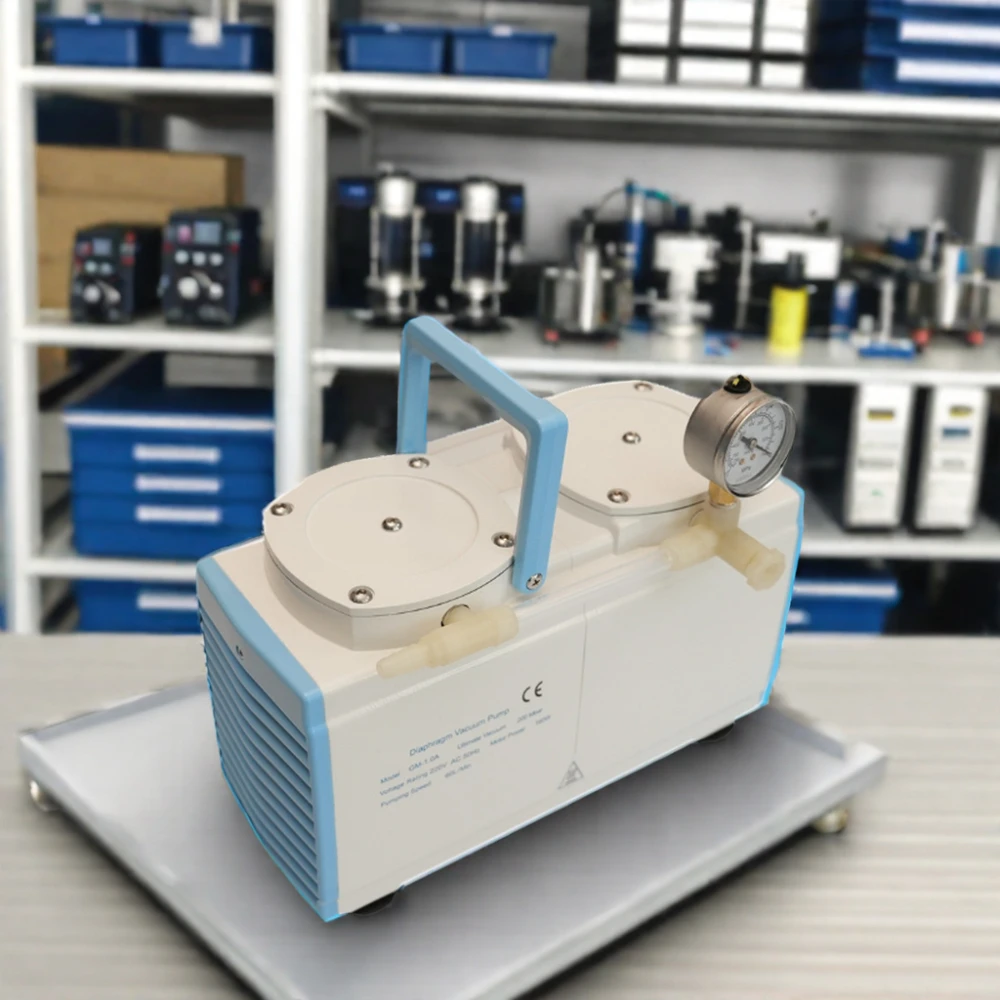

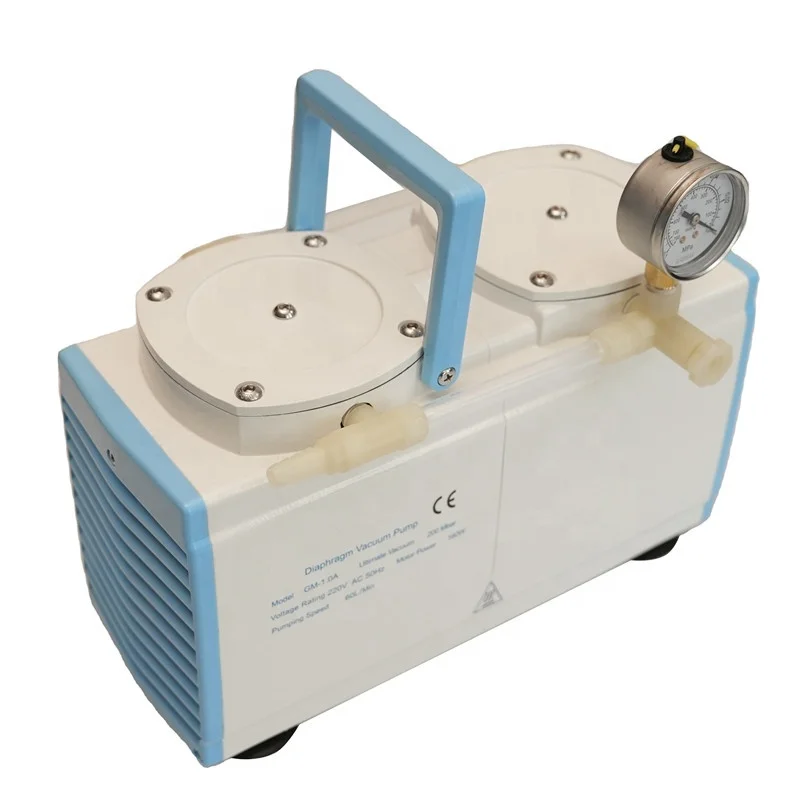

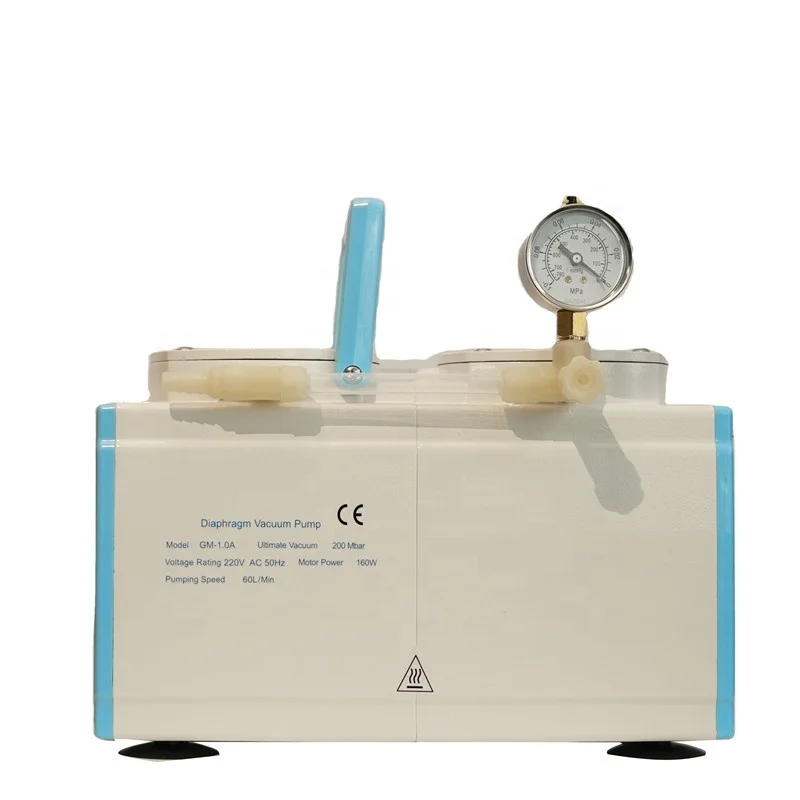

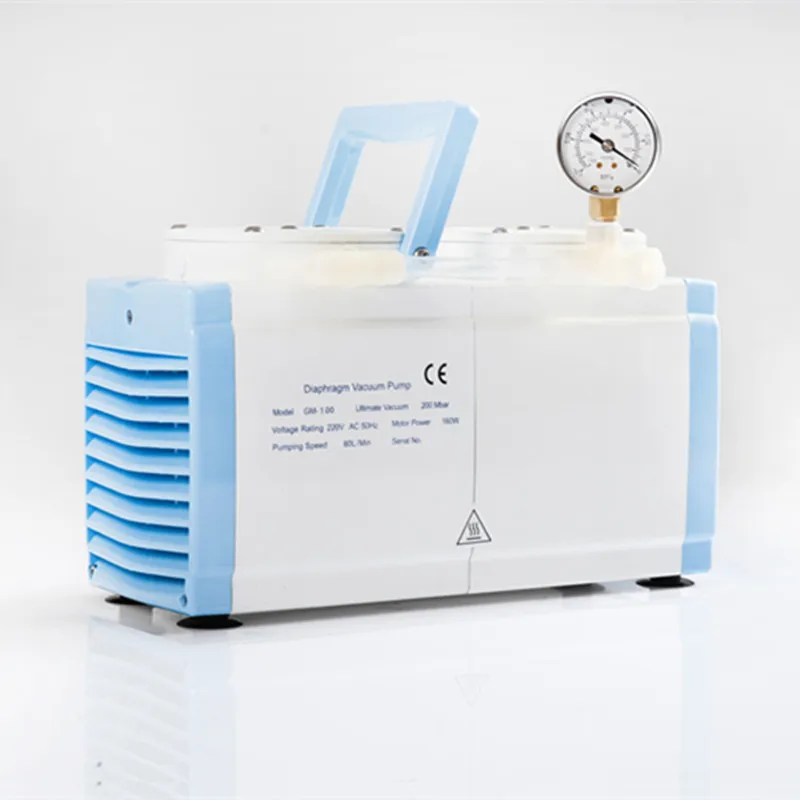

Tianjin Jinteng GM-1.0A Lab Oilless Diaphragm Vacuum Pump

Diaphragm Vacuum Pump with nitrile (NBR) pump material is equipped with automatic cooling exhaust system to ensure continuous 24 hours operation & deliver contamination-free air, gases or vapours. Its high quality design enables steady running with low noise and high operating efficiency. It can operate independently or as part of a modular system and require minimal maintenance.

Product Features

Main Feature:
•100% oil-free operation
•Replace Water Aspirator
•Small footprint
•Low Maintenance
•Quiet and Low Vibration
•Thermal protection device

Application

Vacuum Adsorption

Solvent Filtration

Vacuum Disillation

Vacuum Drying

Compressing And Converting Gas

SPE (Solid Phase Extraction)

Deaeration

Technological Competitiveness

The internal components of Jinteng diaphragm vacuum pump series are produced by numerical control equipments which imported from Germany DMG and Korea kia. This is our unique technology competitiveness that all the same type of products made by other companies could not match. With the good appearance, stable quality, excellent performance of our products, and high quality service of our company, we believe that Jinteng's diaphragm vacuum pump is the best choice for your laboratory.

Product Parameters

Speed of Evacuation(l/m)	60	Temp of the body(ºC)	<55
Ultimate pressure vacuum	200mbar	Function	Vacuum & Pressure
Inlet(mm)	φ6	Weight(kg)	12
Outlet(mm)	φ6	Pump head	2
Temperature of working environment(ºC)	7-40	Dimensions (mm) length×Width×Height	300160235
Voltage rating	220Vac, 50Hz	Noise level(DB)	<60
Motor power	160W	Diaphragm	NBR
Valves	NBR	Pressure	≥30Psi
