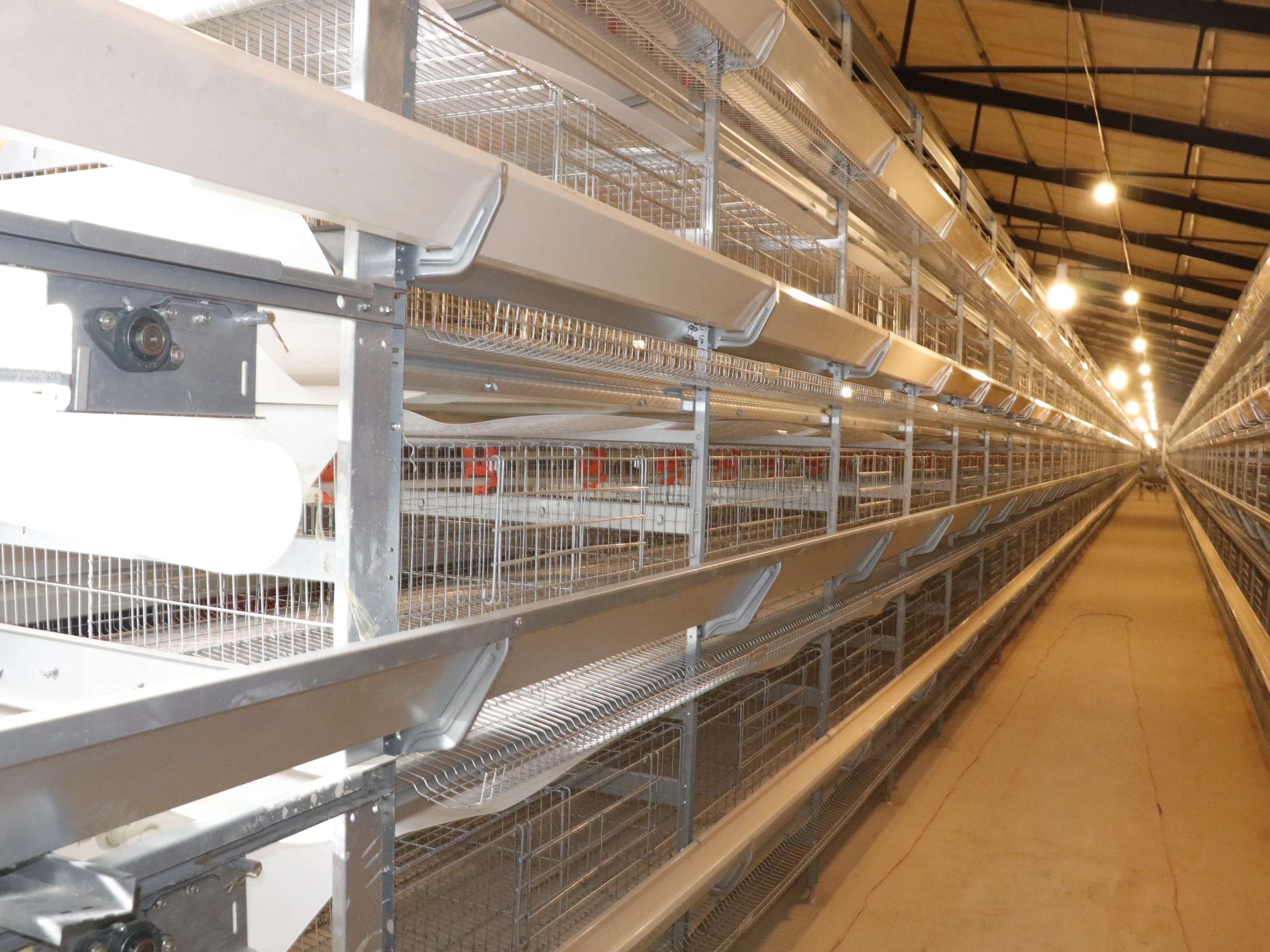

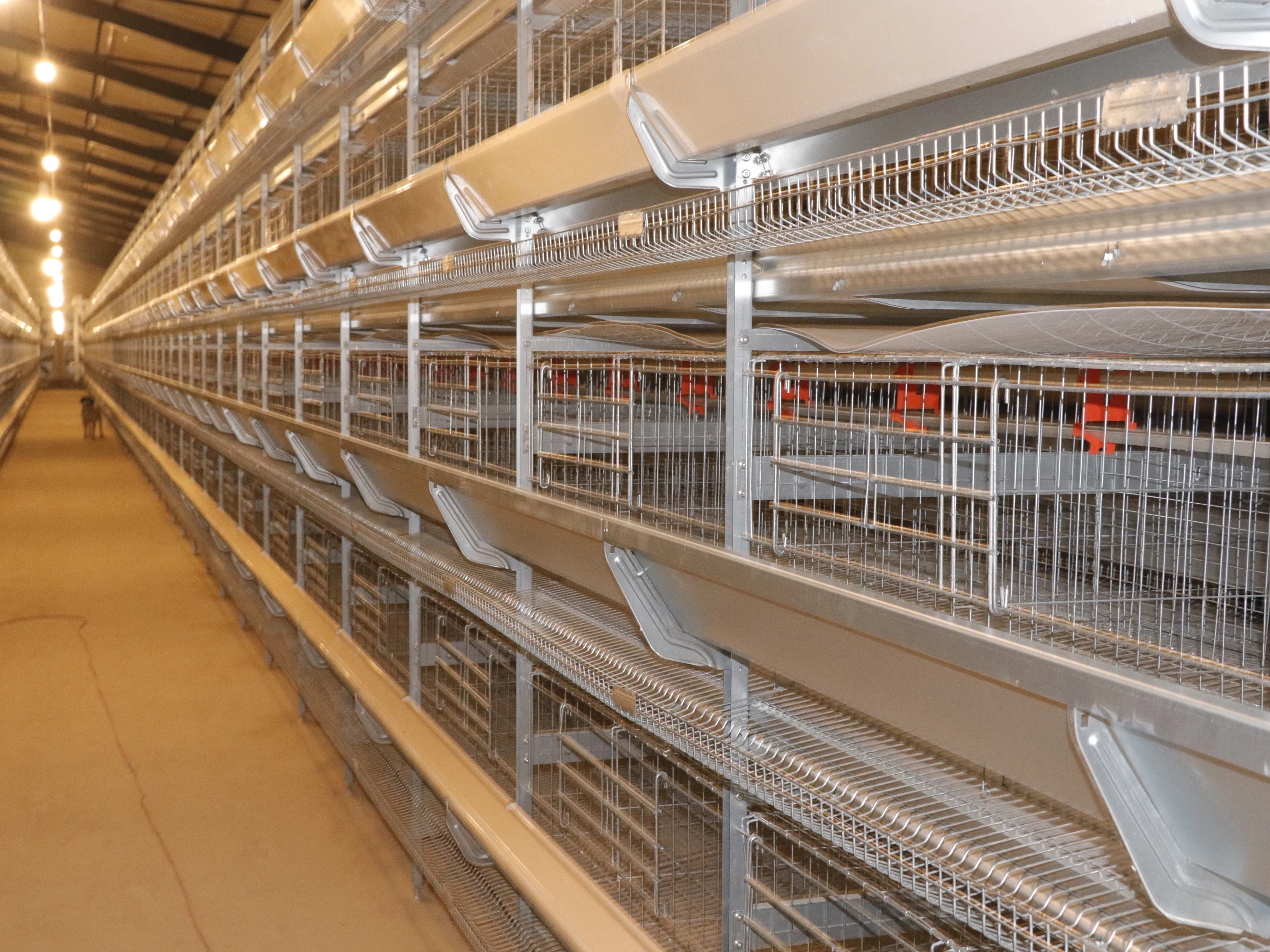

hen farm breeding automatic laying chicken cage system
- Category: >>>
- Supplier: Shijiazhuang Kangfa Machinery Equipment Co. Ltd.
Share on (1601217812930):
Product Overview
Description
Products Description

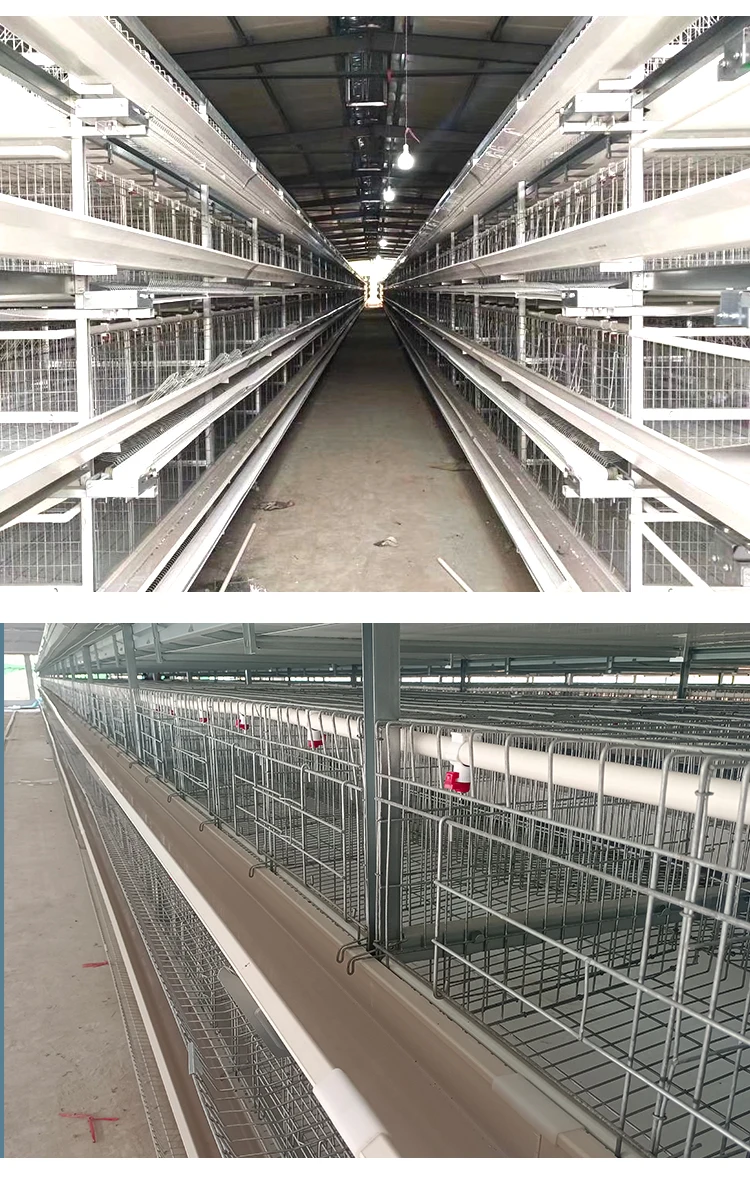

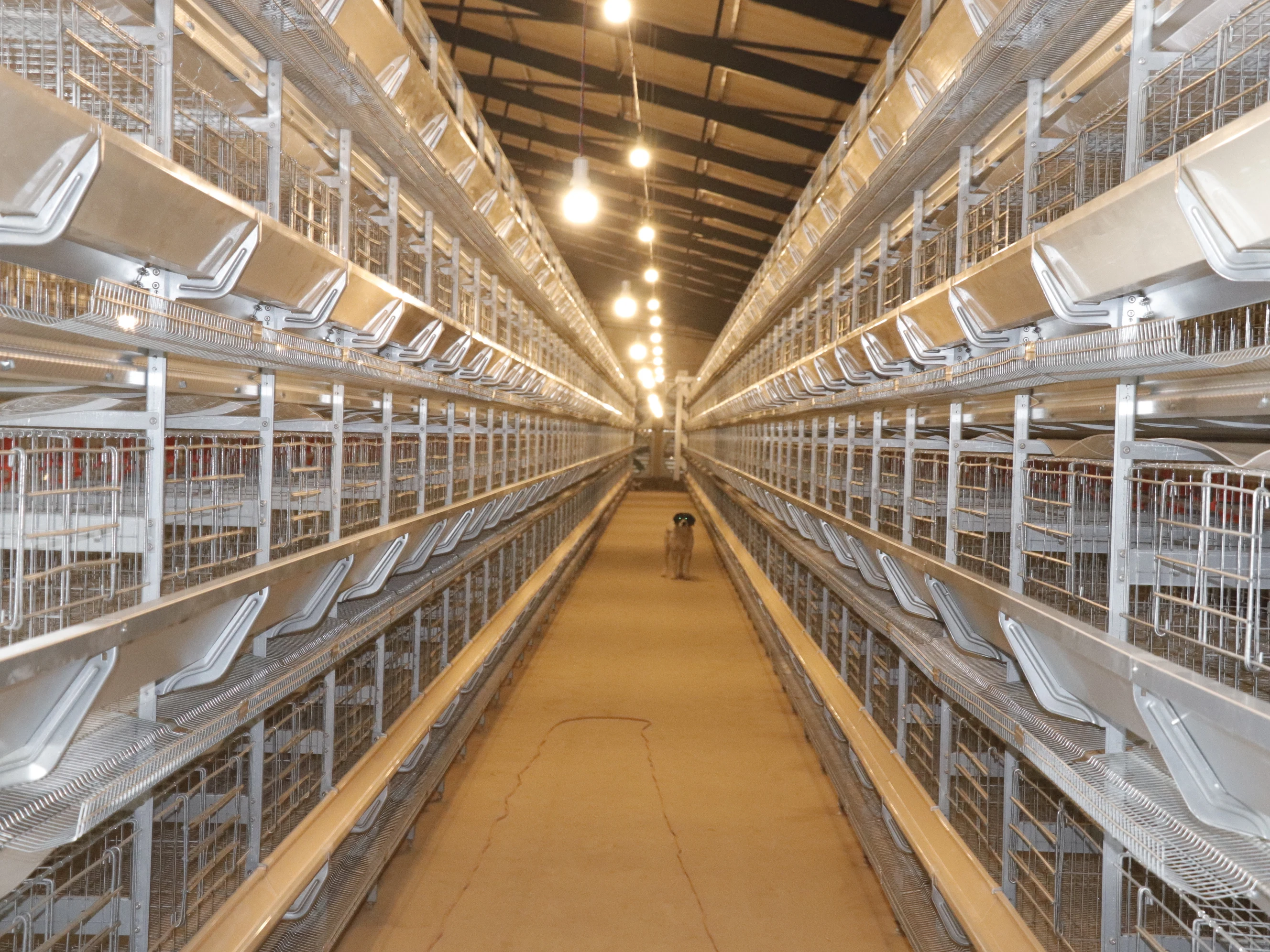

Europe Factory A Type Laying Hens Battery Chicken Cage With Chicken House For Africa
A type layer chicken cage size | ||||||||||||||||
Cage size | Door No. /cage | Chicken No. /door | No. of layer | Capacity of one set of cage | Area per head (sqcm) | Length of the cage with frame | Width of installed cage with feeding machine | Height of installed cage with feeding machine | ||||||||
1950*350*380 | 5 | 3 | 3 | 90 | 155 | 2000 | 2450 | 1955 | ||||||||
1950*350*380 | 5 | 3 | 4 | 120 | 155 | 2000 | 2800 | 2455 | ||||||||
1950*450*410 | 5 | 4 | 3 | 120 | 438.75 | 2000 | 2625 | 2050 | ||||||||
1950*450*410 | 5 | 4 | 4 | 120 | 438.75 | 2000 | 3075 | 2530 | ||||||||
Corollary equipment | Automatic feeding, automatic egg collection and automatic manure cleaning system | |||||||||||||||
Surface treatment | Hot dipped galvanized, Galfan | |||||||||||||||
Material | Q 235 | |||||||||||||||
lifetime | 15-20 years | |||||||||||||||
Chicken house size recommendation use 4-tier cage | ||||||
Cage Model | 1950*450*410 mm, 5 doors, 4 chicken/door, 4-tier cage, 160 capacity | |||||
4-tier Cage installation size | 2 m*3 m*2.5 m | |||||
No. of cage per row | 40 | No. of cage per row | 40 | |||
Rows of cages | 3 | Rows of cages | 4 | |||
No. of chicken per house | 19200 | No. of chicken per house | 25600 | |||
House size | 86m*13m*3.5m | House size | 86m*16m*3.5m | |||
Hot Products
Product Details

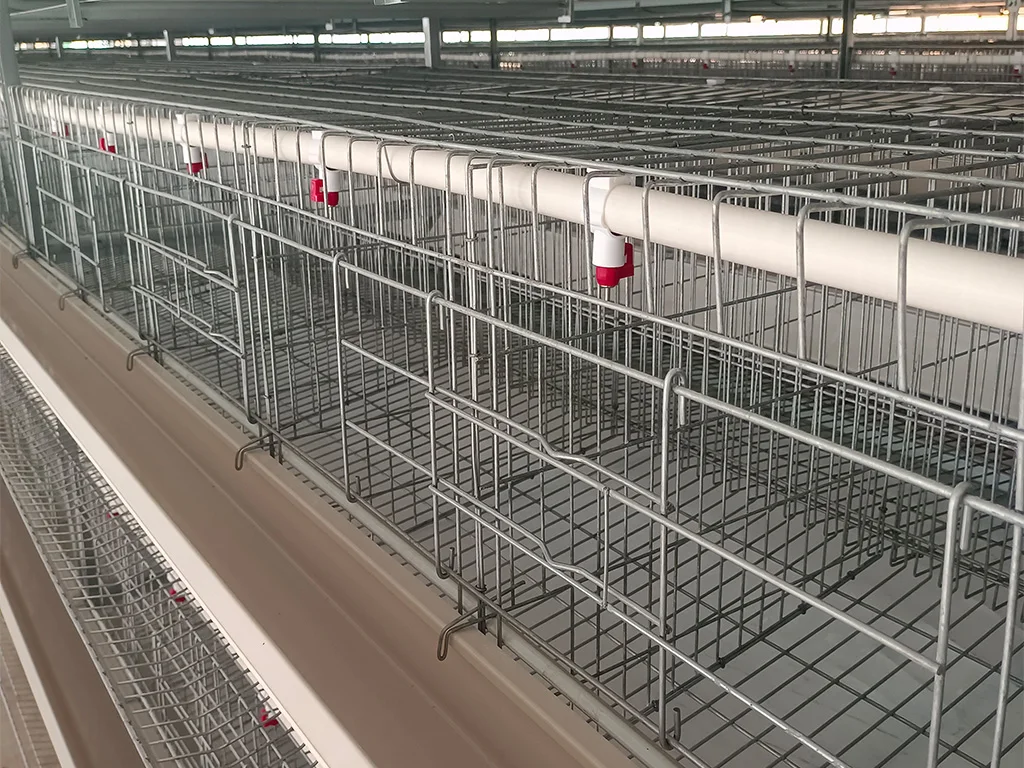

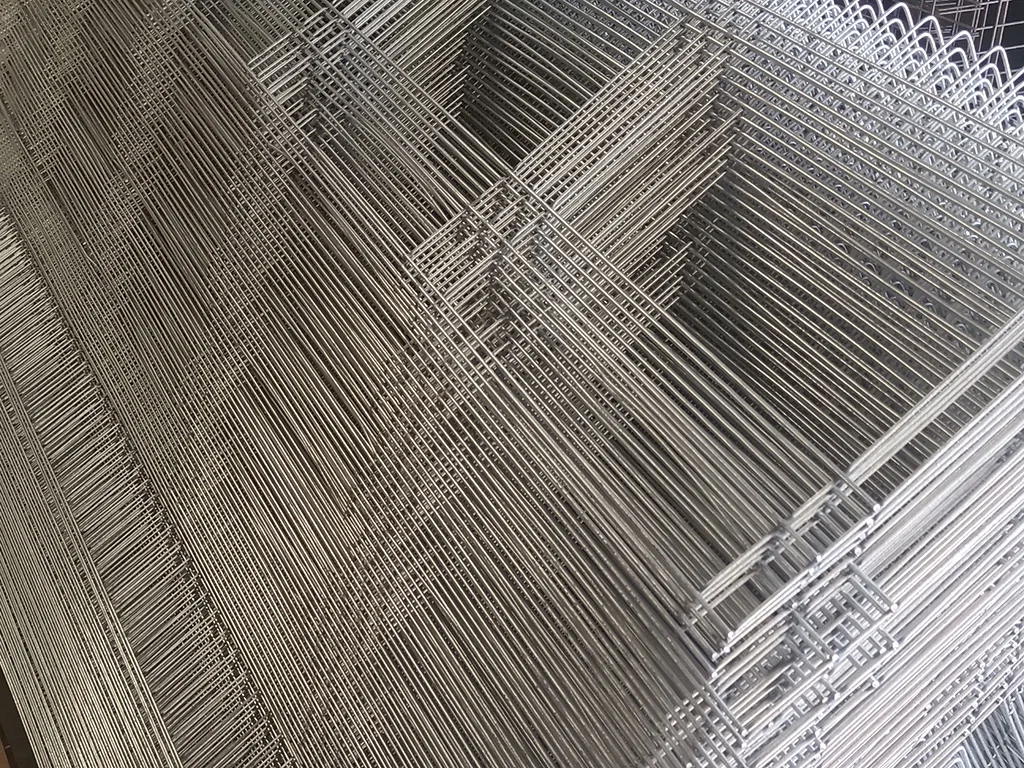

Hot dip galvanized cage wire
1.We adopt national standard Q235 material .
2.Hot dip galvanized technology
3 Cage wire diameter 2.3-4.0mm
4.Good elasticity. Corrosion resistant .Long service life.
2.Hot dip galvanized technology
3 Cage wire diameter 2.3-4.0mm
4.Good elasticity. Corrosion resistant .Long service life.

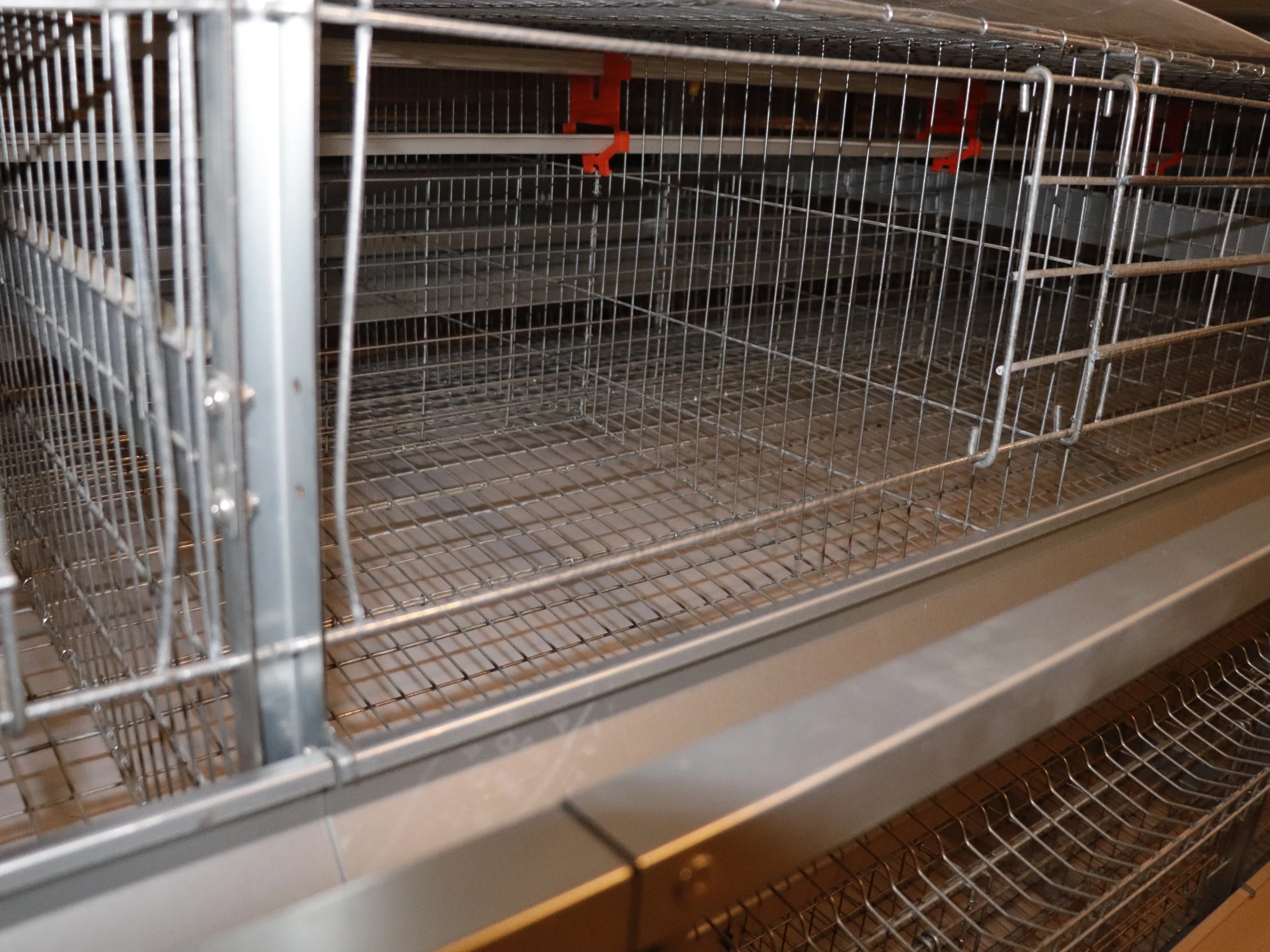

Craftsmanship design
1.We designe with an 8 ° egg collection slope with a low damage rate.
2. Our design can effectively prevent feather pecking, anal pecking, and fatigue syndrome.
3.Galvanizing and chromium passivation of the mesh enhances its service life by 6-7 times.
2. Our design can effectively prevent feather pecking, anal pecking, and fatigue syndrome.
3.Galvanizing and chromium passivation of the mesh enhances its service life by 6-7 times.
1.Equipped with the thickened water pipe with anti-aging.
2. Equipped with a stainless steel nipple drinker
3.Equiped with a larger feeding trough to prevent wasting with 8 * 9 * 13cm.
2. Equipped with a stainless steel nipple drinker
3.Equiped with a larger feeding trough to prevent wasting with 8 * 9 * 13cm.

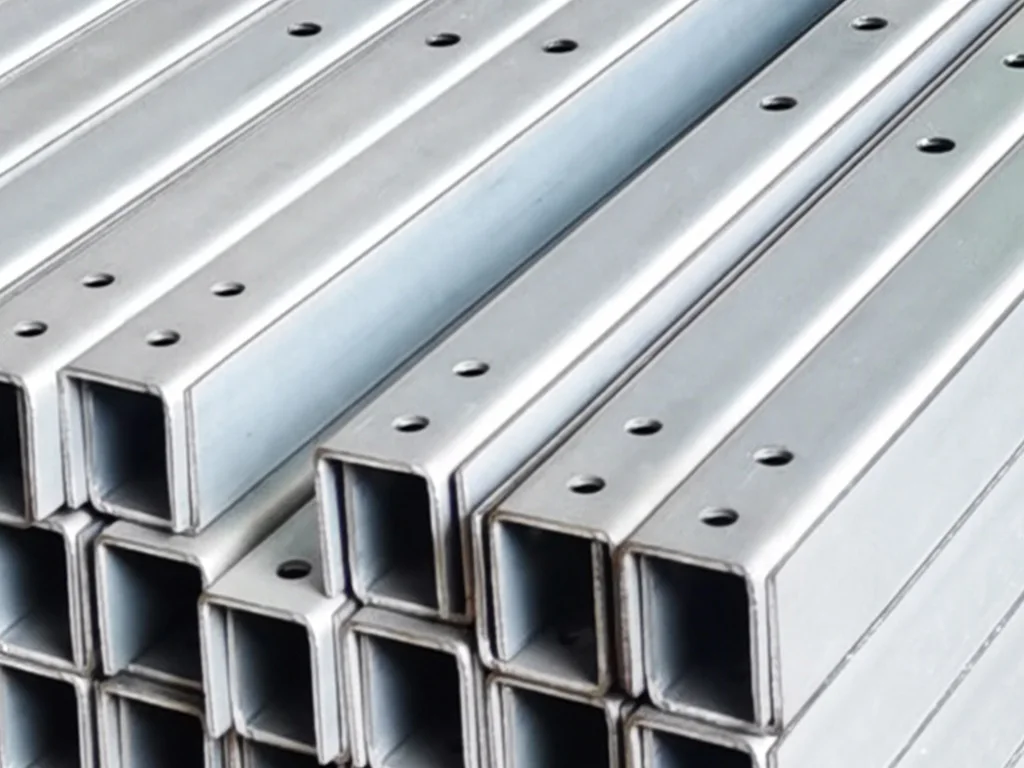

High zinc layer board frame
1.275 grams of hot-dip galvanized coating per square meter, corrosion-resistant.
2.Thickened material provides higher stability after installation. Horizontal installation method is adopted for installation to reduce the deviation rate of the manure cleaning belt
2.Thickened material provides higher stability after installation. Horizontal installation method is adopted for installation to reduce the deviation rate of the manure cleaning belt
Product Display
Company Profile
Certificate Display
FAQ
Q:How many chickens can the cage hold? How many layers?
A: 3-tier cage keep 120 chickens and 4-tier cage keep 160 chickens.
Q:Which one is suitable to my chickens farm?
A: Once you want to start your chicken farm,you can tell us your chicken coop size,We will provide free chicken farm layout
design,We have a team to do research the poultry industry for 20 years, they will help you to start a modern and scientific farm.
Q:What is the MOQ of chicken cage?How many sets can fit in one container?
A: Generally 10000 chicken use automatic A type layer cage need one 40HC.
Q:How many years it can use?
A:15-20 years (based on different material and your environment).
Q:How to install the cage?
A:We provide installation service in two ways!
1. We provide manual book or videoto guide you that how to install the cage
2. Send our engineer to your farm!
Q:How is your payment term?
A:Generally,our payment term is T/T 30% in advance and the balance 70% before loading. Other payment term we can also discuss.
Q:How is your lead time?
A: About 15-25 days.
A: 3-tier cage keep 120 chickens and 4-tier cage keep 160 chickens.
Q:Which one is suitable to my chickens farm?
A: Once you want to start your chicken farm,you can tell us your chicken coop size,We will provide free chicken farm layout
design,We have a team to do research the poultry industry for 20 years, they will help you to start a modern and scientific farm.
Q:What is the MOQ of chicken cage?How many sets can fit in one container?
A: Generally 10000 chicken use automatic A type layer cage need one 40HC.
Q:How many years it can use?
A:15-20 years (based on different material and your environment).
Q:How to install the cage?
A:We provide installation service in two ways!
1. We provide manual book or videoto guide you that how to install the cage
2. Send our engineer to your farm!
Q:How is your payment term?
A:Generally,our payment term is T/T 30% in advance and the balance 70% before loading. Other payment term we can also discuss.
Q:How is your lead time?
A: About 15-25 days.
