Product Overview

Description



Product Description

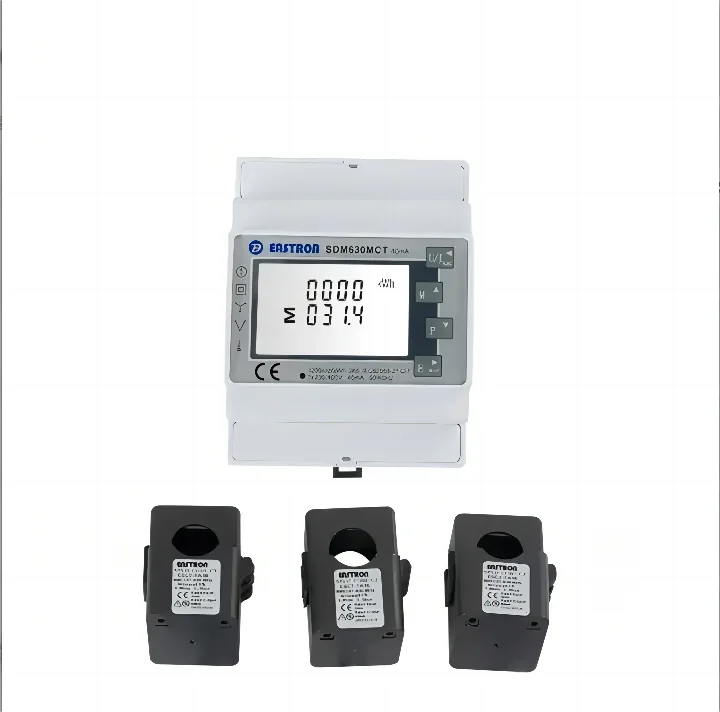

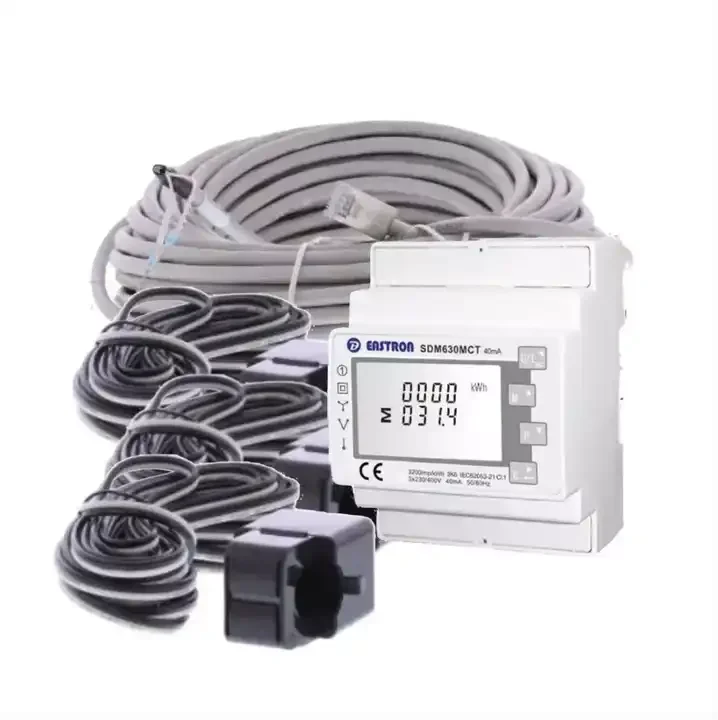

SDM630MCT-40mA
RCM 40mA CT Type Din Rail Three Phase Multi-function Solar PV /Zero Export Meter for PV Metering

* CT & PT operated

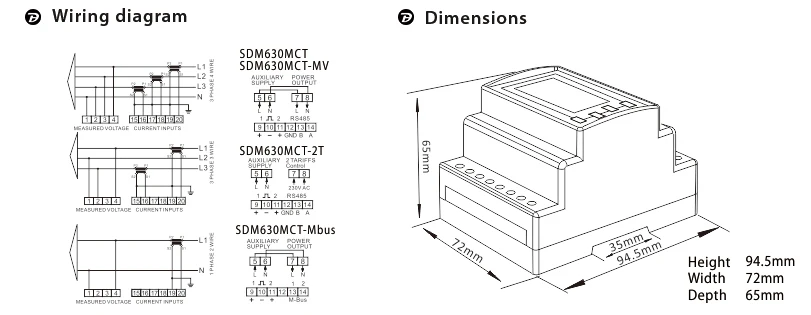

* Work with 3P4W/3P3W/1P2W
* 4 Module 72mm wide
* Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,etc.
* Bi-directional measurement for Solar PV Metering
* 2 Pulse outputs
* RS485 Modbus

SDM630M CT series measures and displays the characteristics of 1p2w, 3p3w and 3p4w supplies, including voltage, frequency, current, power, active and reactive energy, imported or exported, harmonic etc. Bi-directional measurement makes it an ideal choice for Solar PV measurement.
The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation.
Two pulse outputs and 1 communication port (Mbus/Modbus) are provided for remote monitoring in AMR system or SCADA system.

The unit has been approved to meet the requirements of EU Directive 2014/32/EU.

Characteristics

Multi-parameters.
Bi-directional measurement IMP & EXP
Modbus / Mbus
Two pulse outputs
Multi-tariff
Dual power source
Accuracy Class 0.5S / 1.0
Touch button opercation
Din rail mounting
Backlit LCD Display
100A direct connect

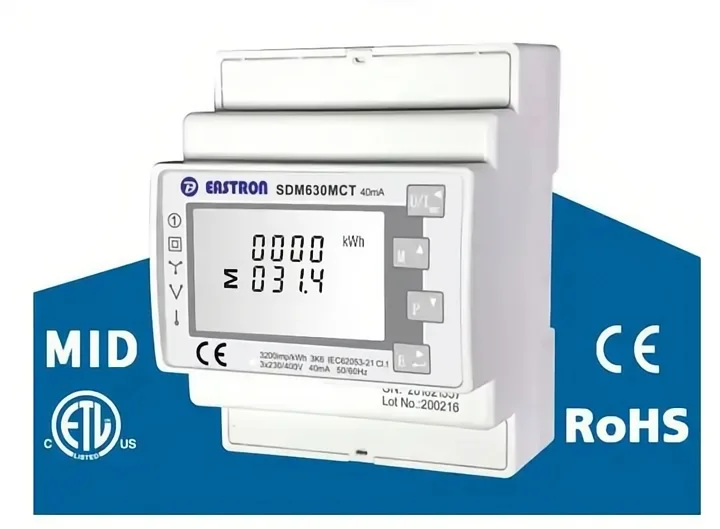

MID approved


Electrical Characteristics
Type of Measurement
RMS including harmonics on three phase AC system (3P,3P+N)
Measurement Accuracy
Power
0.5% of range maximum
Active Energy
IEC 62053-22 Class 0.5S ,IEC 62053-21 Class 1.0
Reactive Energy
IEC 62053-23 Class 2.0, IEC 61557-12 Class 2
Frequency
± 0.1%
Current
±0.2%
Voltage
±0.2%
Power Factor
± 0.01


Input & Output
Input Current
Rated Current
1A/5A
Max. Current
1-9999A
Min. Current
0.25A
Starting Current
10mA
Outputs
SDM630-MCT/-MV/-RC
2 Pulse outputs and RS485 Modbus
SDM630MCT-2T
2 Pulse outputs and RS485 Modbus; 2T/ 230V for dual source measurement
SDM630-MCT-Mbus
2 Pulse outputs and Mbus EN13757
SDM630MCT-LoRaWAN
Wireless LoRaWAN
SDM630MCT-LoRa MESH
Wireless LoRaMESH


Modbus Communications
Interface Standard and Protocol
RS485 Modbus RTU
Modbus Address
1~247
Transmission Mode
Half duplex
Data Type
Floating point
Transmission Distance
Max. 1000m
Transmission Speed
2400bps~38400 bps
Parity
None / Even / Odd
Stop Bits
1 or 2
Response Time
<100mS




Specification


item
value
Brand Name
EASTRON
Model Number
SDM630MCT-40mA
Rated Voltage
230V L-N / 120V L-N
Maximum Current
1-9999A
Certificate
MID ETL CE RoHS
Pulse output
configurable
Baud rate
2400, 4800, 9600, 19200, 38400
Protocol
Modbus
Vibration
10Hz to 50Hz, IEC 60068-2-6, 2g
Measure parameters
kwh kvarh V, A, P, PF, dmd, Hz THD etc
Response Time
<100 mS

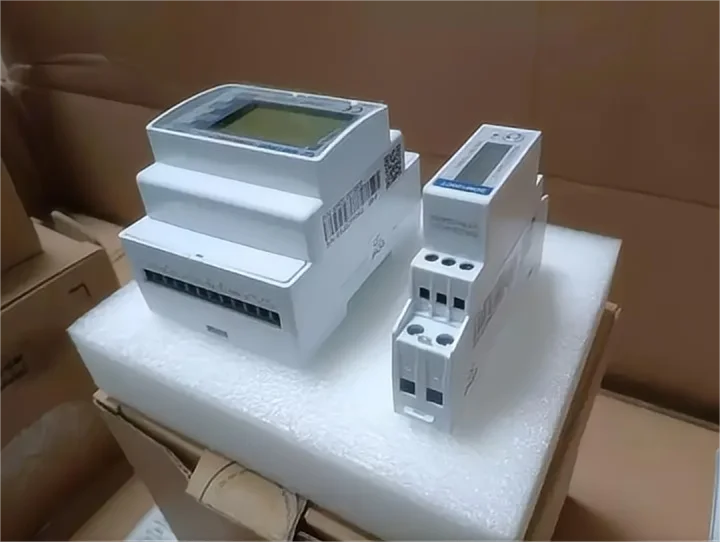

Packing & Delivery
