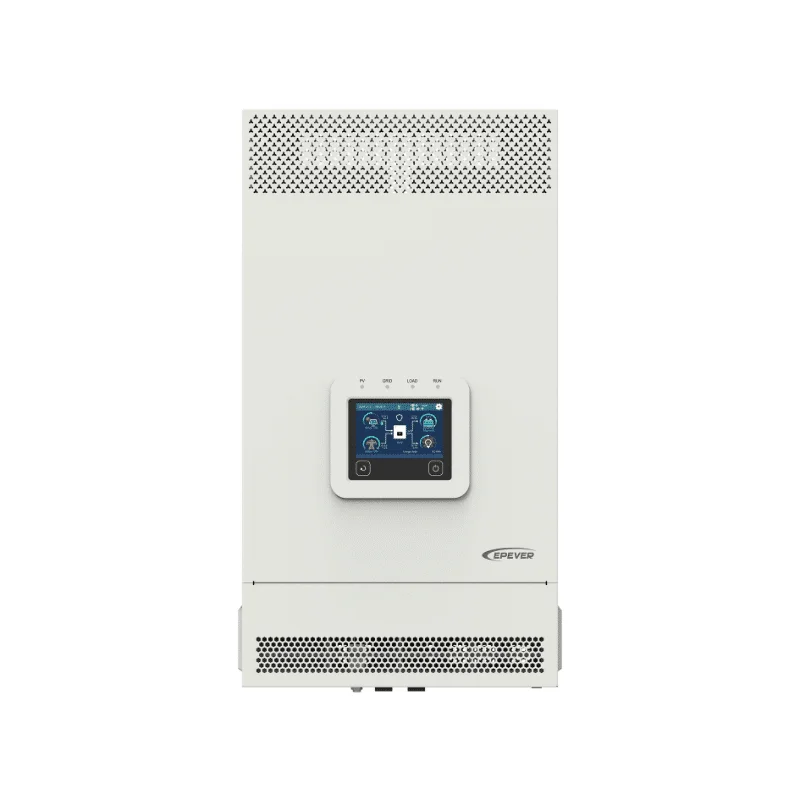

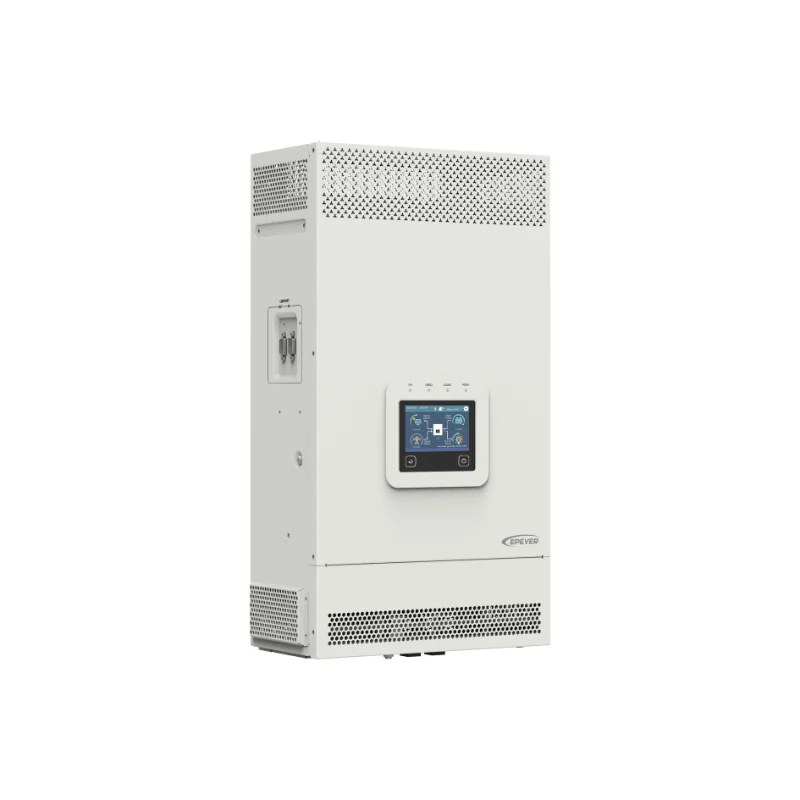

EPEVER UC Series Hybrid Inverter Charr 3.5kw/5.5kw 24v/48v Solar Inverter
- Category: >>>
- Supplier: Beijing Shan Hu International Technology Co. Ltd.
Share on (1601217870824):
Product Overview
Description
Applicable for pure off grid / backup power / self-consumption / on grid situationPV input voltage range: 80Vdc-500VdcPV input current up to 32ASupports battery mode & non battery modeBattery & PV reverse polarity protectionDual pure sine wave outputSupports single-phase or three-phase parallel operation (up to 16 units)Sleep mode triggered by low power output or low battery voltageIndependent BMS communication interfaceBuilt-in WiFi for mobile monitoring*Isolated RS485 interface：Connects with Bluetooth, WiFi, 4G, etc.Optional 320 x 480 high-resolution color LCD touchscreen or monochrome screenHistorical data recording function, storage capacity of 25000 recordsComprehensive electronic protection ensures safer and more stable operationIP20 enclosure design with anti-dust kit

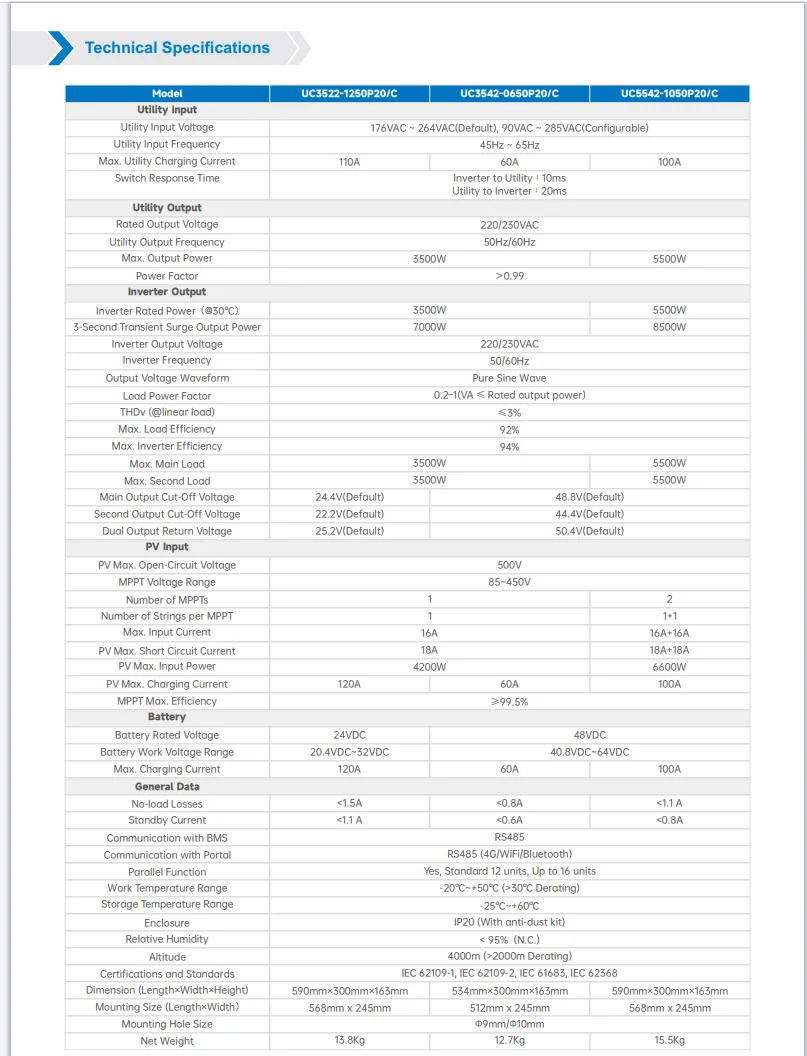

Technical Specifications
Model | UC3522-1250P20/C | UC3542-0650P20/C | UC5542-1050P20/C | |||
Utility Input | ||||||
Utility Input Voltage | 176VAC ~ 264VAC(Default), 90VAC ~ 285VAC(Configurable) | |||||
Utility Input Frequency | 45Hz ~ 65Hz | |||||
Max. Utility Charging Current | 110A | 60A | 100A | |||
Switch Response Time | Inverter to Utility：10msUtility to Inverter：20ms | |||||
Utility Output | ||||||
Rated Output Voltage | 220/230VAC | |||||
Utility Output Frequency | 50Hz/60Hz | |||||
Max. Output Power | 3500W 5500W | 5500W | ||||
Power Factor | ＞0.99 | |||||
Inverter Output | ||||||
Inverter Rated Power（@30℃） | 3500W | 5500W | ||||
3-Second Transient Surge Output Power | 7000W | 8500W | ||||
Inverter Output Voltage | 220/230VAC | |||||
Inverter Frequency | 50/60Hz | |||||
Output Voltage Waveform | Pure Sine Wave | |||||
Load Power Factor | 0.2–1(VA ≤Rated output power) | |||||
THDv (@linear load) | ≤3% | |||||
Max. Load Efficiency | 92% | |||||
Max. Inverter Efficiency | 94% | |||||
Max. Main Load | 3500W | 5500W | ||||
Main Output Cut-Off Voltage | 24.4V(Default) | 48.8V(Default) | ||||
