HOT SALE Sinotruk HOWO 6X4 TRACTOR TRUCK howo tractor truck

Share on (1601217892835):


Price:$40,000.00

Quantity:


Product Overview

Description



PRODUCT DISPLAY

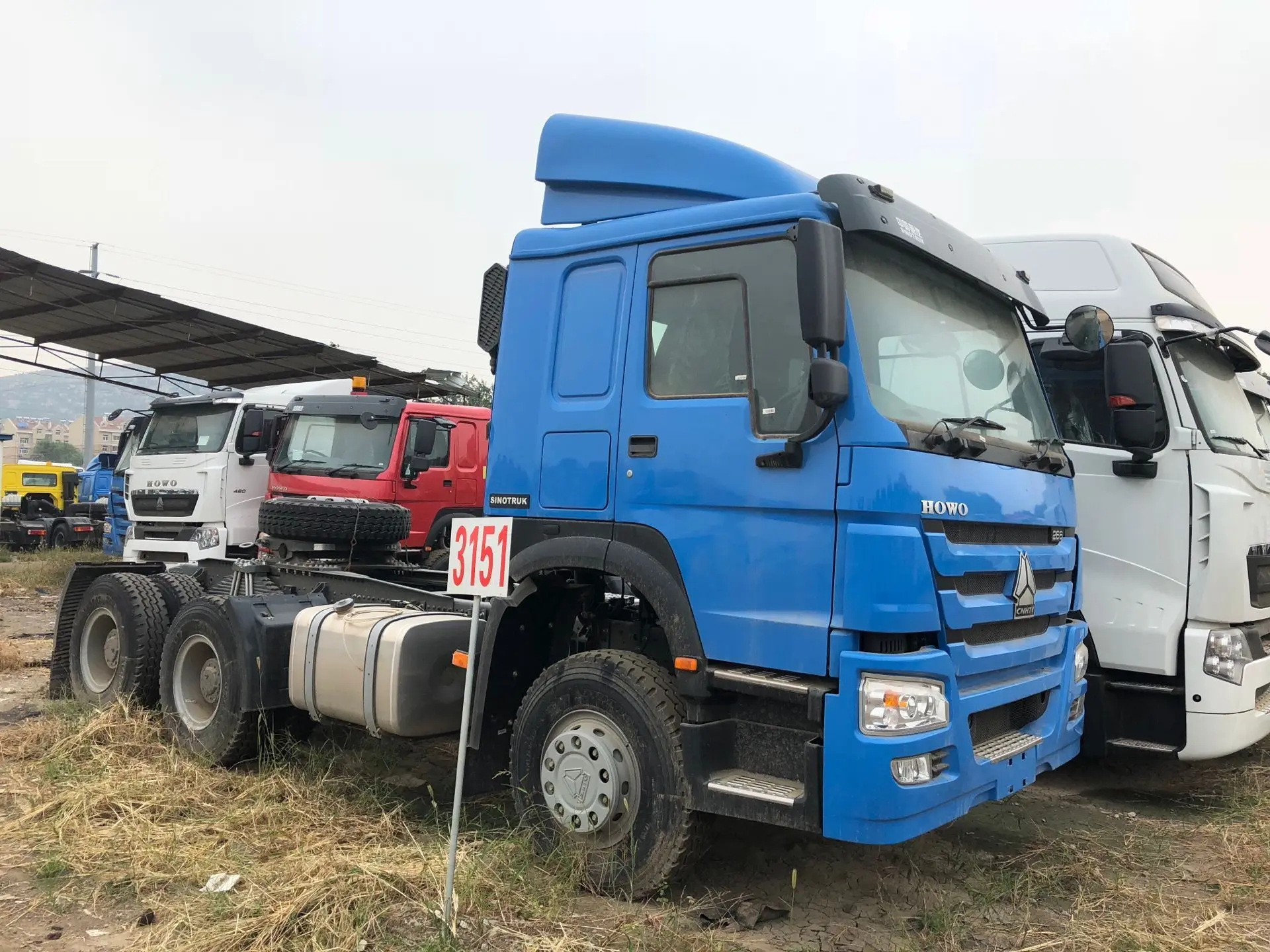

HOWO 6X4 Tractor Truck
Driving Type:6x4 / 10 Wheels / 3 Axles
Cabin Type:Double Berth
Horse Power:336HP / 371HP / 420HP
Transmission:HW19712, 12F & 2R

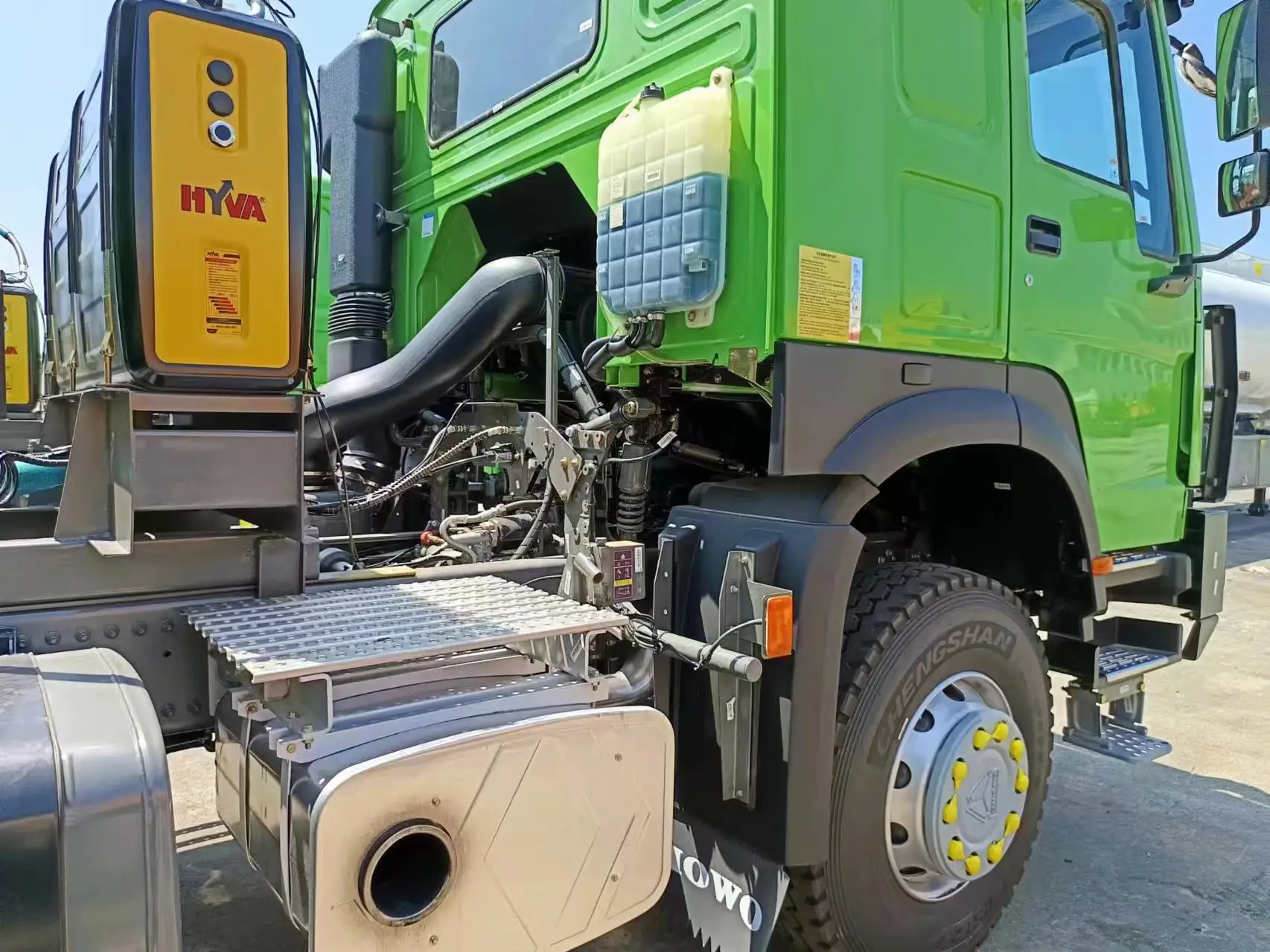

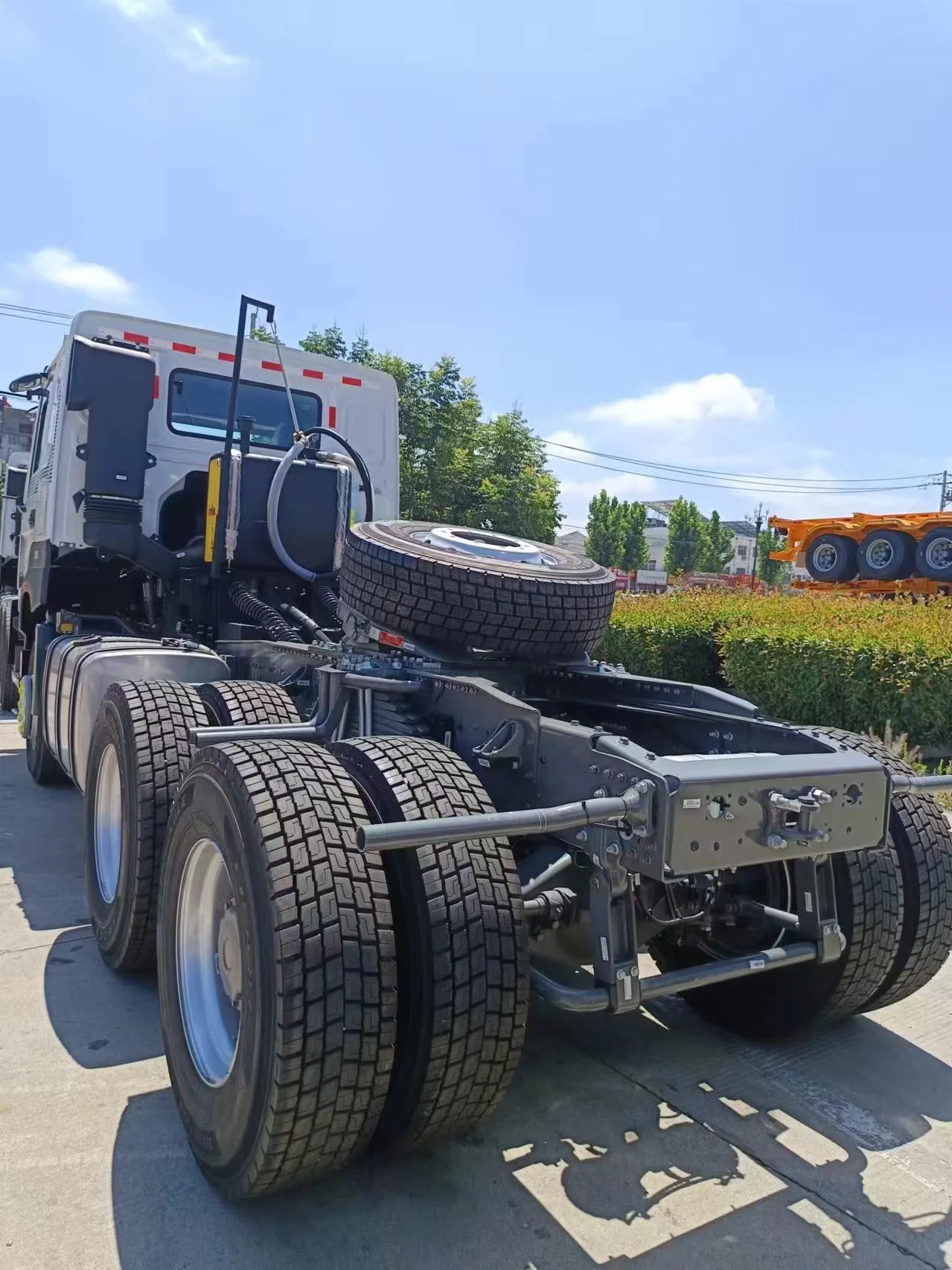

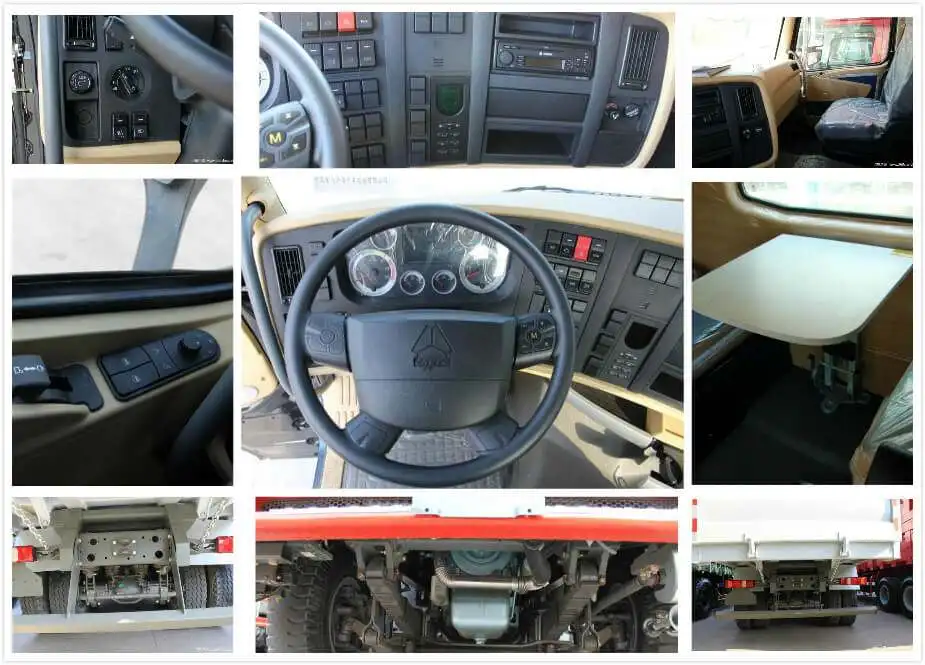

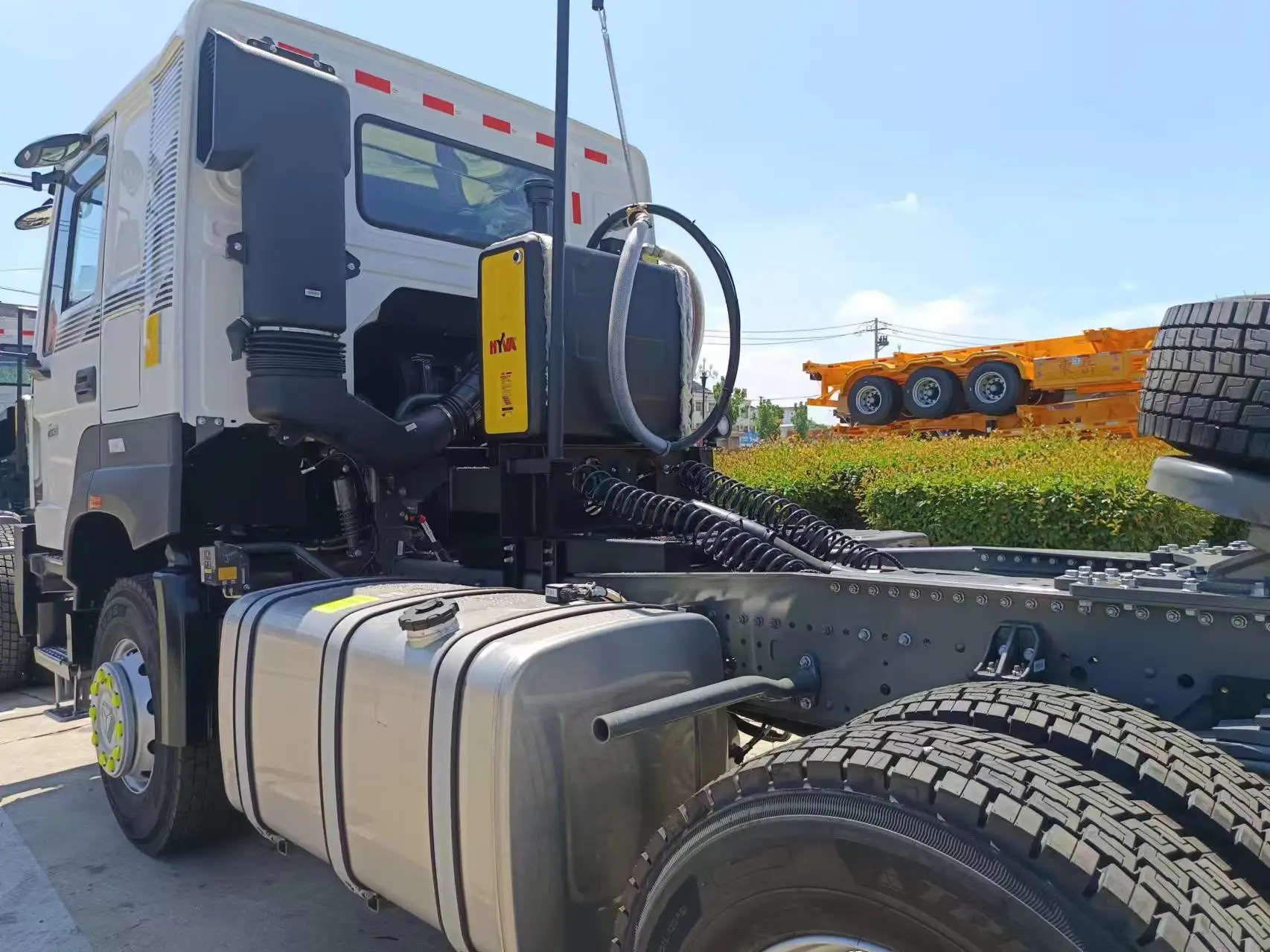

Details Images




Chassis Model
ZZ4257V3241W
Driving Type
LHD (RHD is optional)
Cabin
HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, adjustable driver's air seat, exterior
sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with four piont support floating suspension+shock
absorber.
Engine
Diesel 4-stroke direct injection diesel engine
Engine model: WP12.400, Euro 2, 400 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 11.596 L
Transmission
HW19710 , 10F & 2R ,HW19712, 12F & 2R
Steering
ZF power steering, modol ZF8118, hydraulic steering with power assitance;
Front Axle
VGD95, 1x9500 KGS
Rear Axle
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:4.42
Chassis
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres
315/80R22.5, one spare tyre
Fuel Tank
400L
Fifth Wheel
90#
Overall Dimension
6900*2550*3450mm

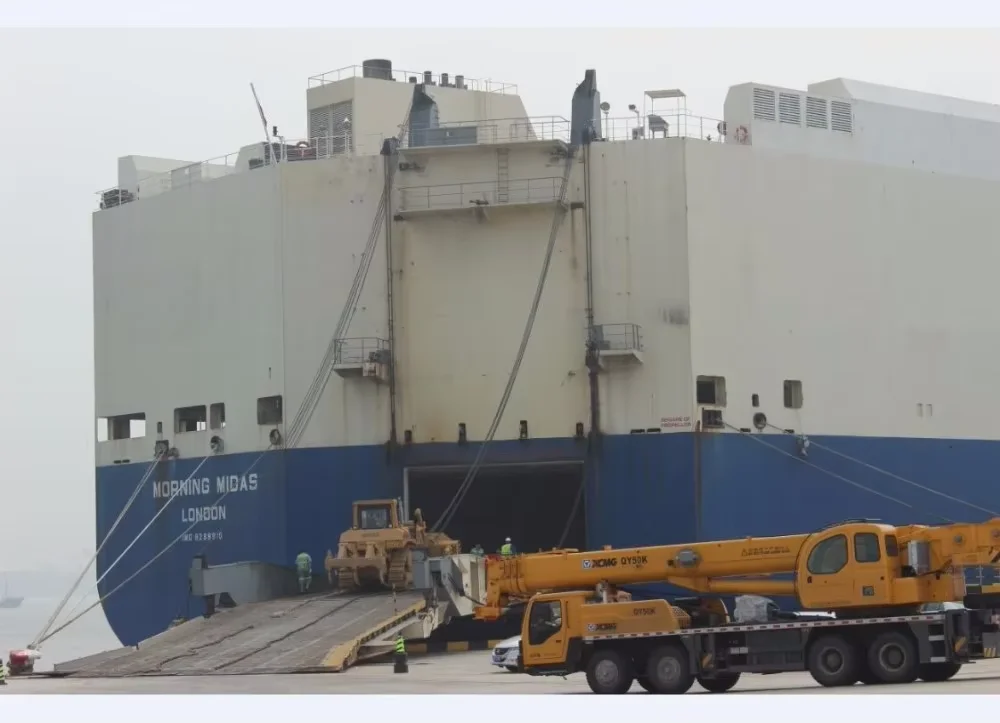

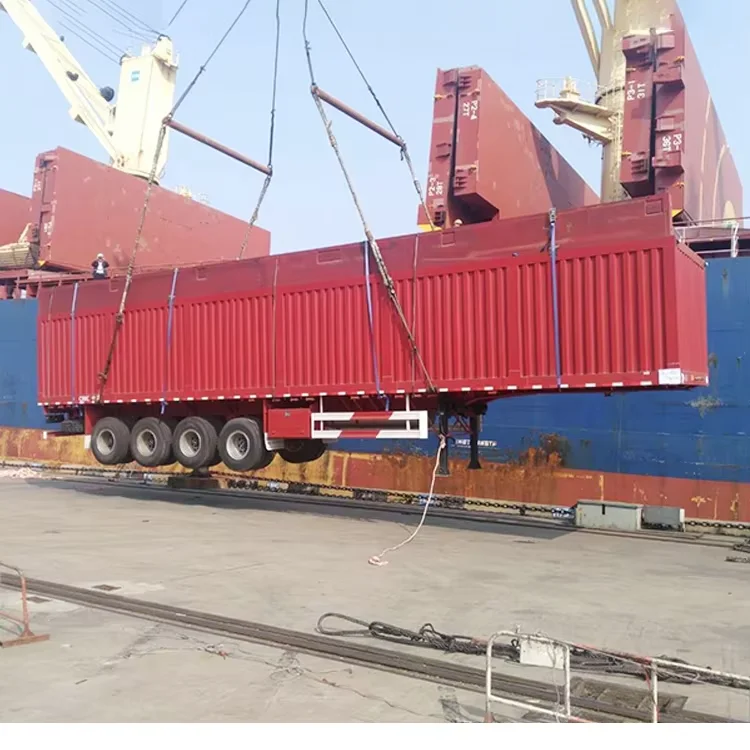

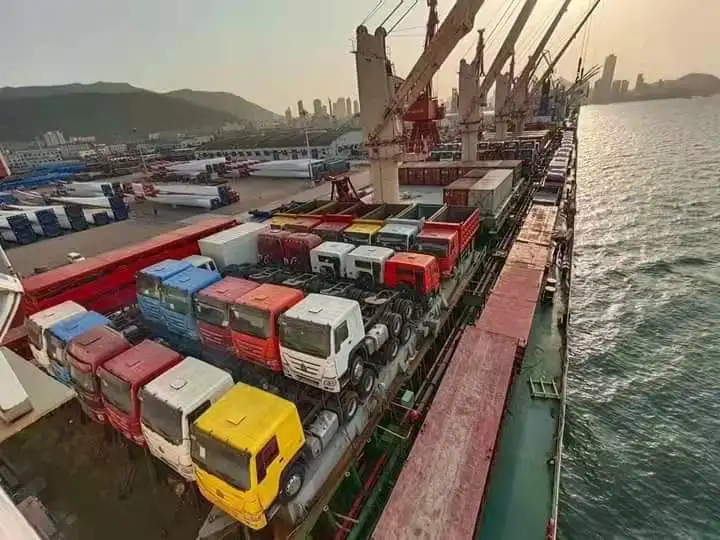

Product packaging

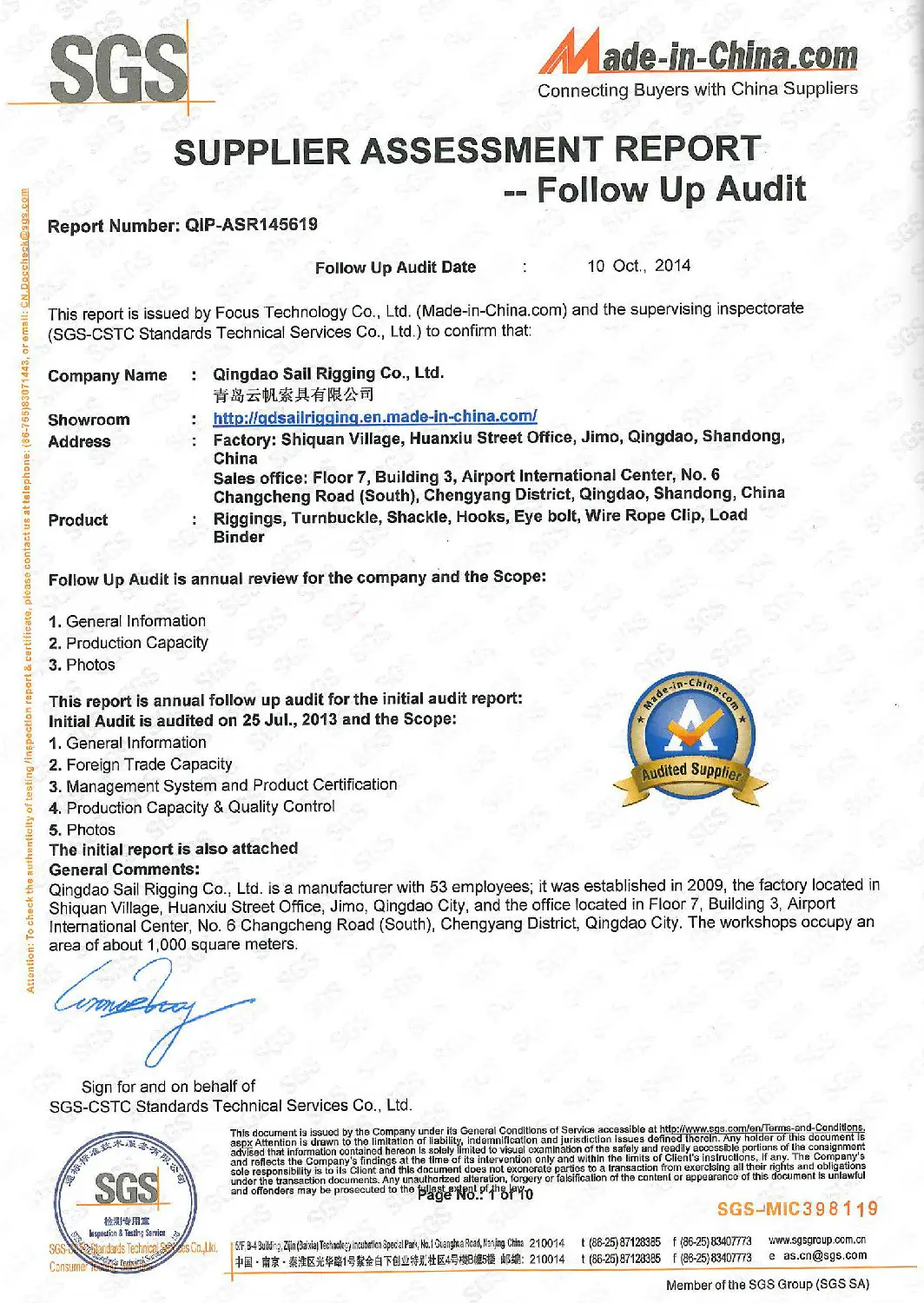

Certifications

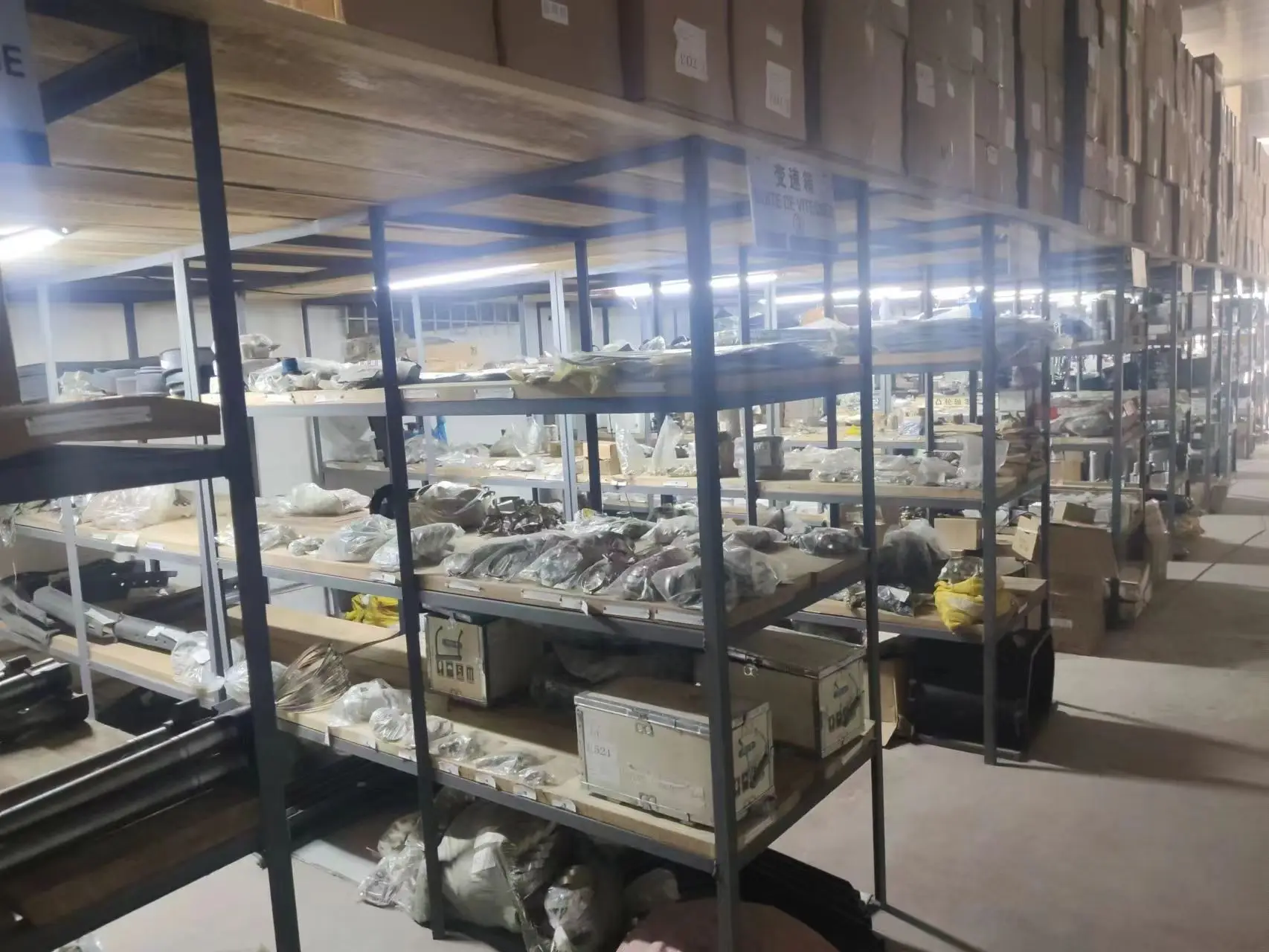

Overseas warehouse

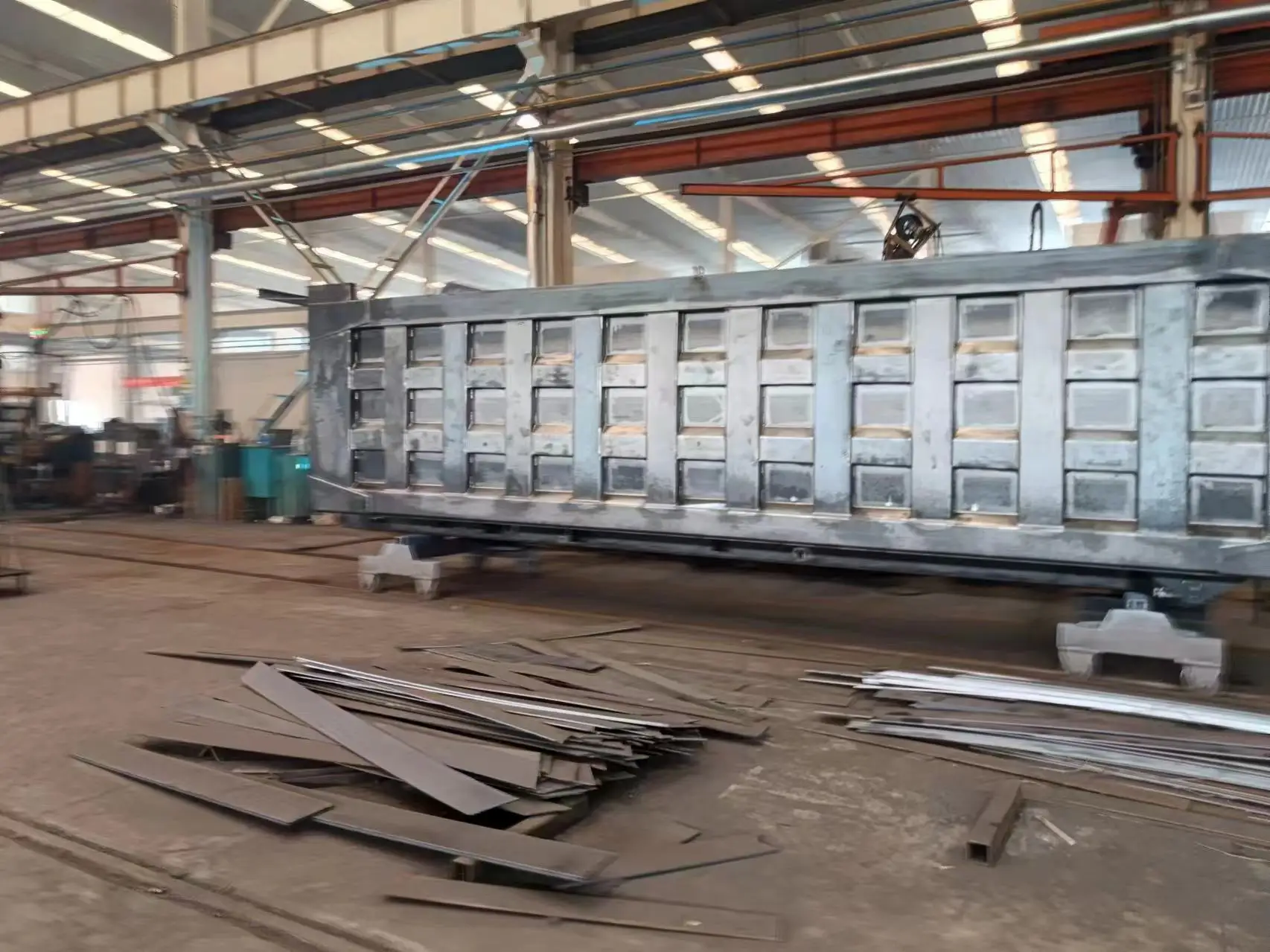

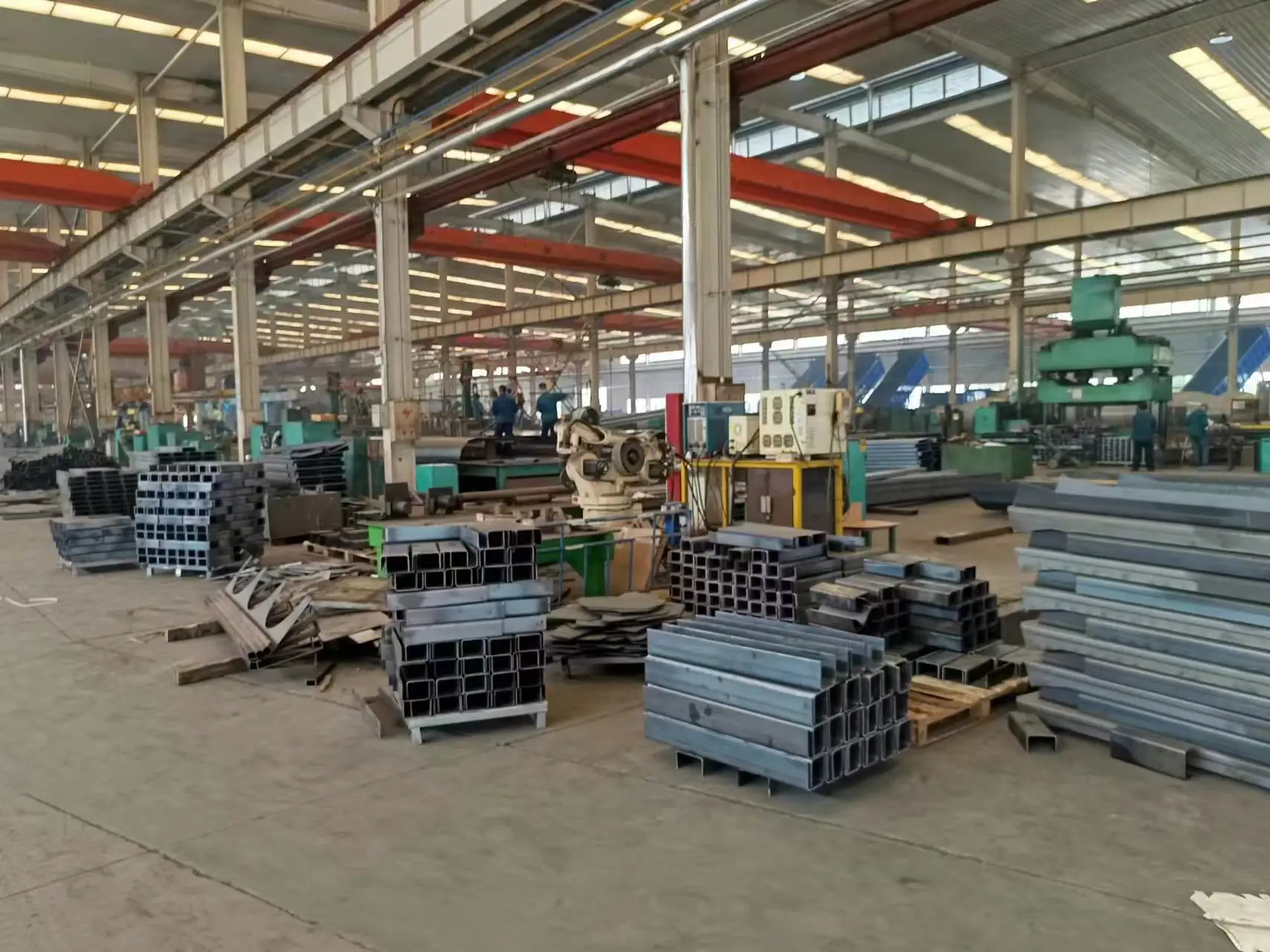

Company Profile



China National Heavy Duty Truck Group Corp., Ltd. (SINOTRUK) is China’s first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China’s heavy duty truck industry. It once manufactured China’s first heavy duty truck – HUANGHE branded JN150 8-ton truck in 1960; and successfully introduced the STEYR heavy duty truck project from Austria and became China’s first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle in 1983. In 2009, SINOTRUK formed its strategic partnership with German MAN Group, by which MAN held a 25%+1 stake in SINOTRUK (Hong Kong) Limited...


FAQ
