Product Overview

Description

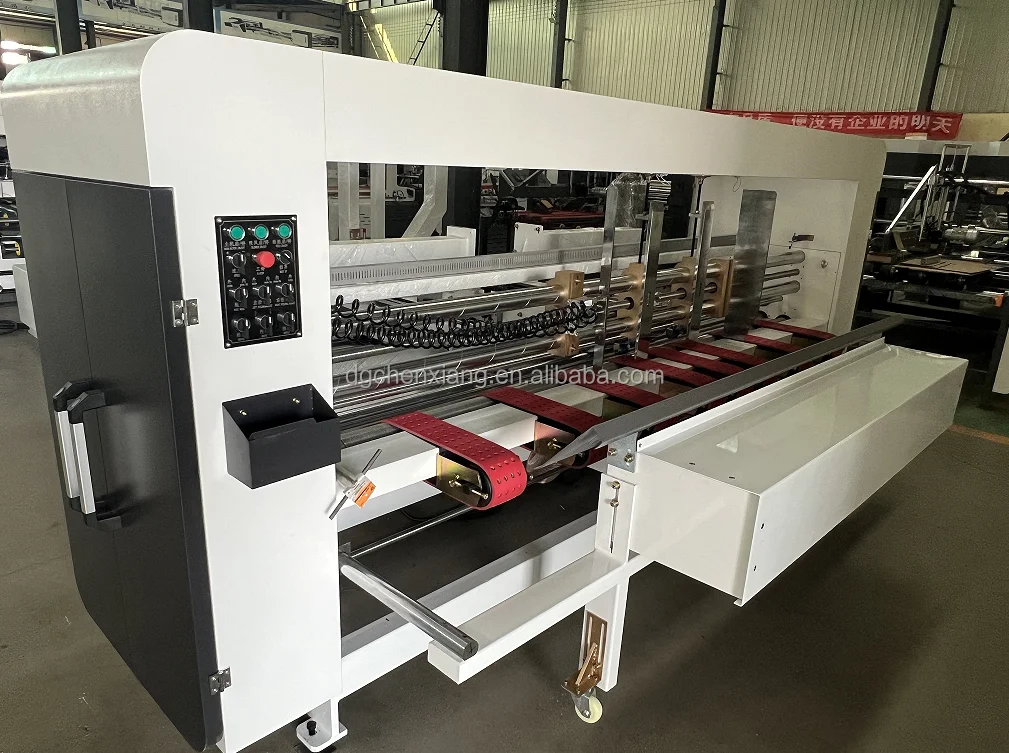

Machine Introduction

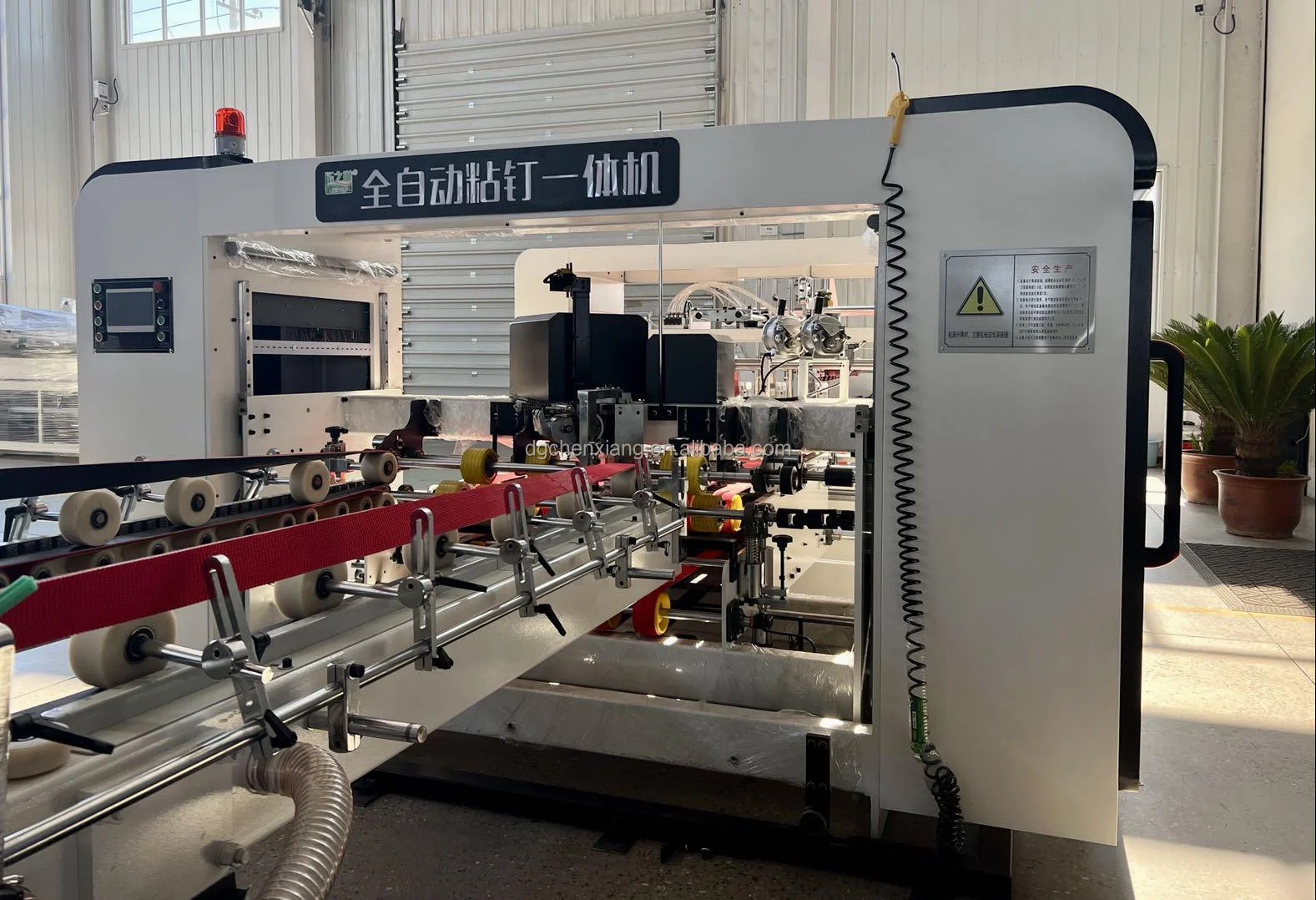

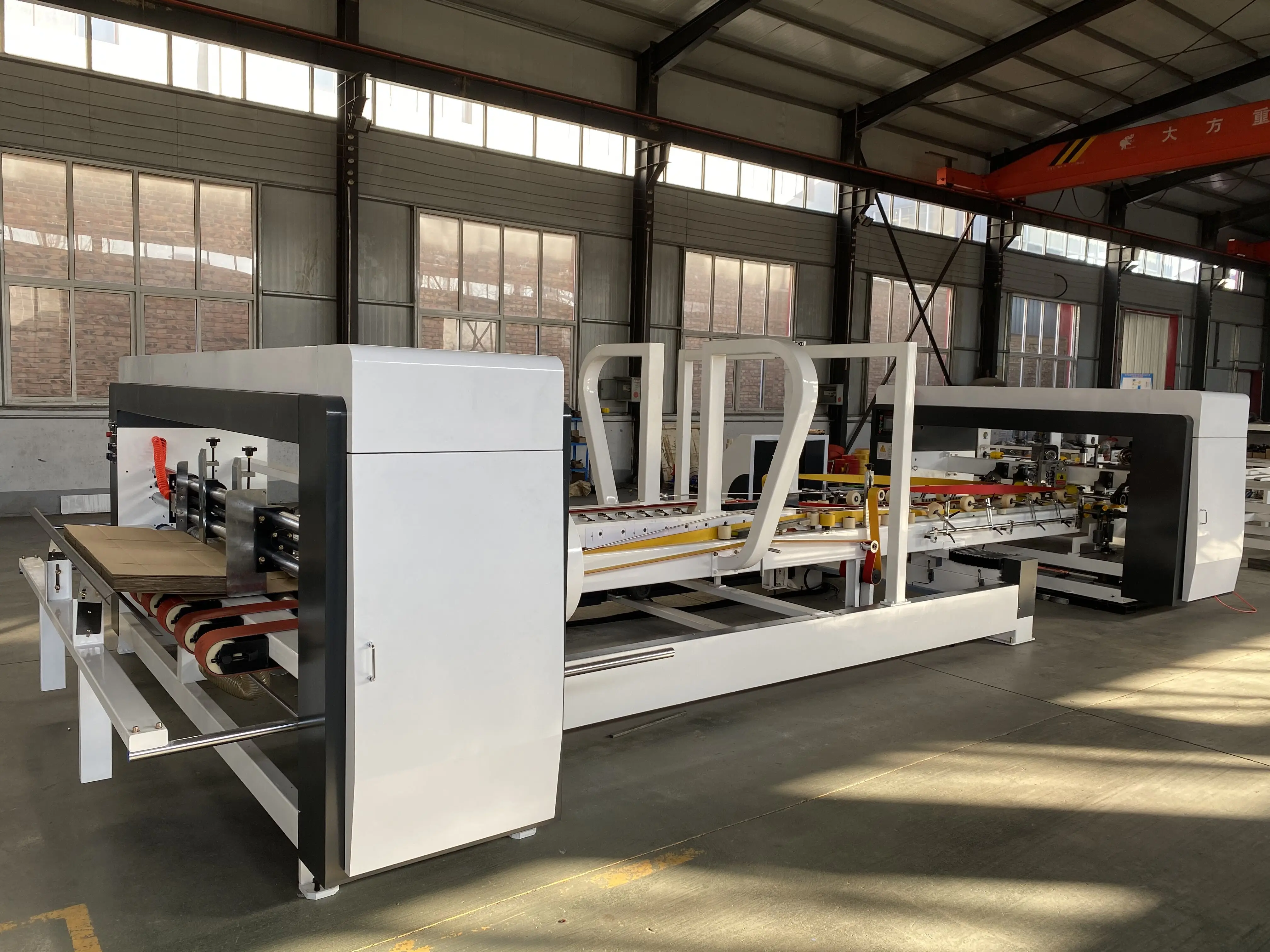

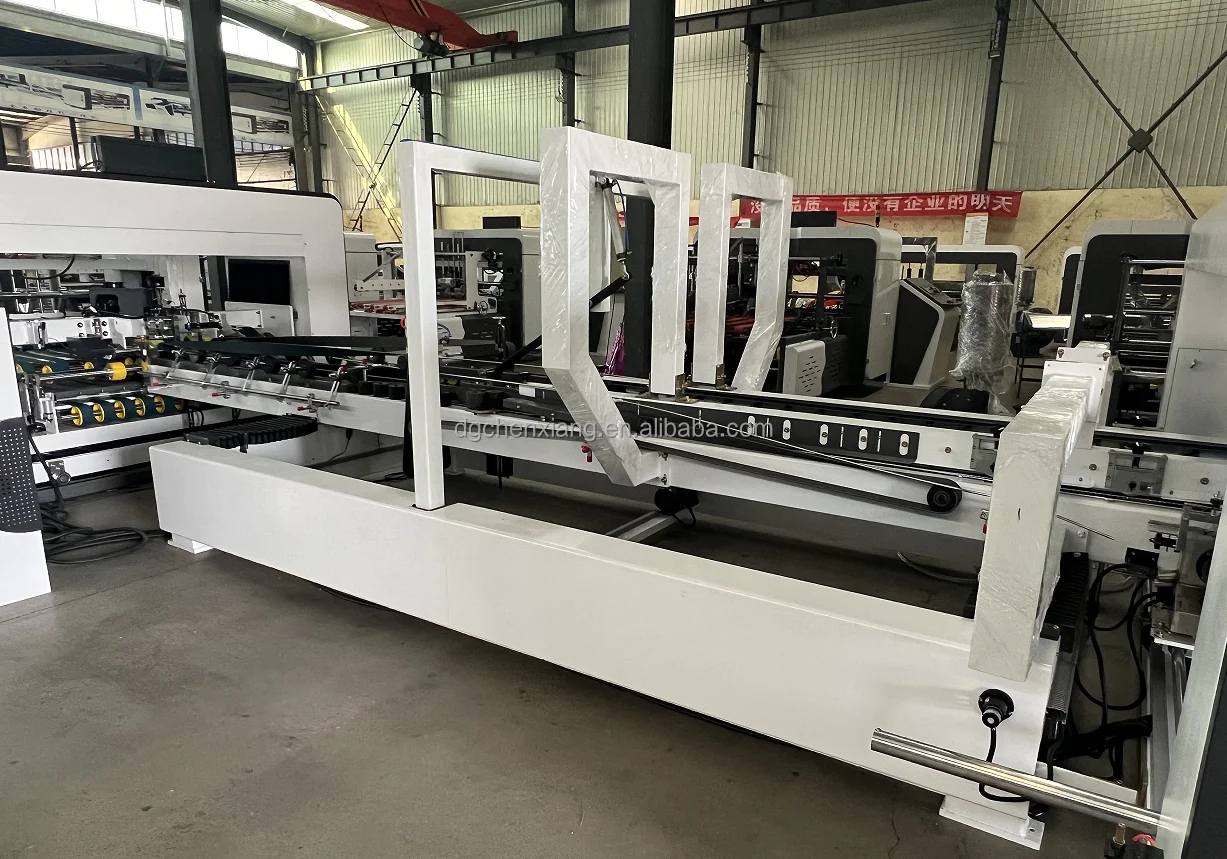

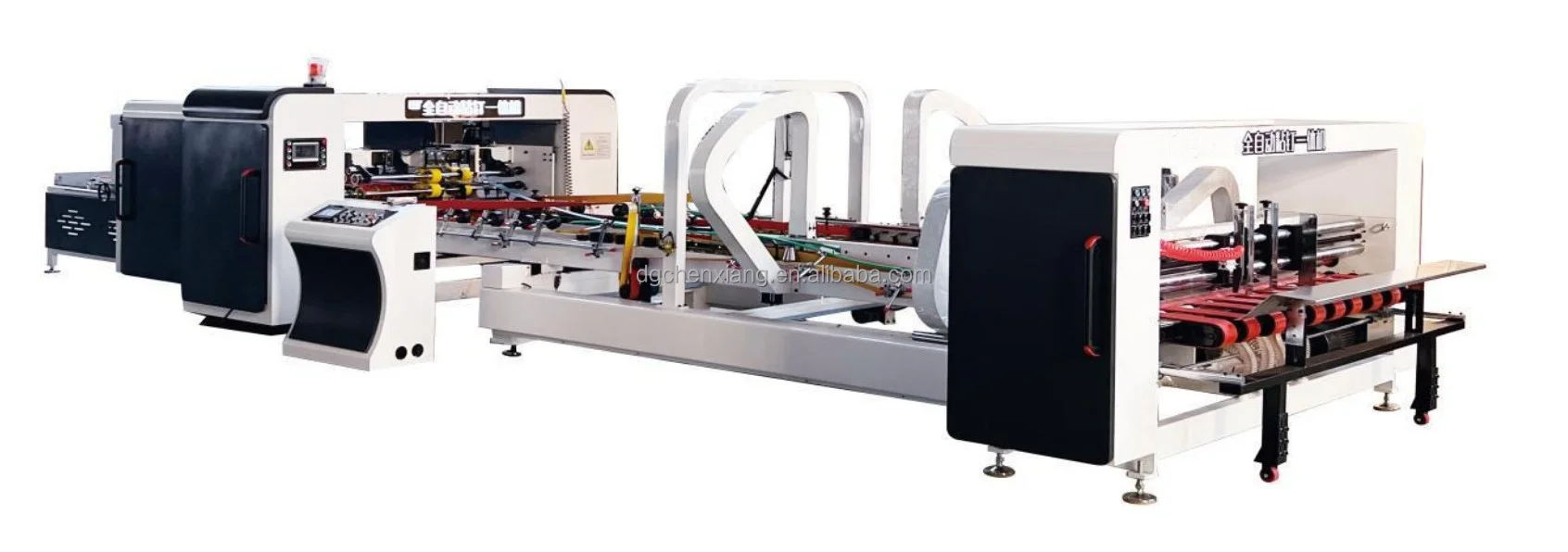

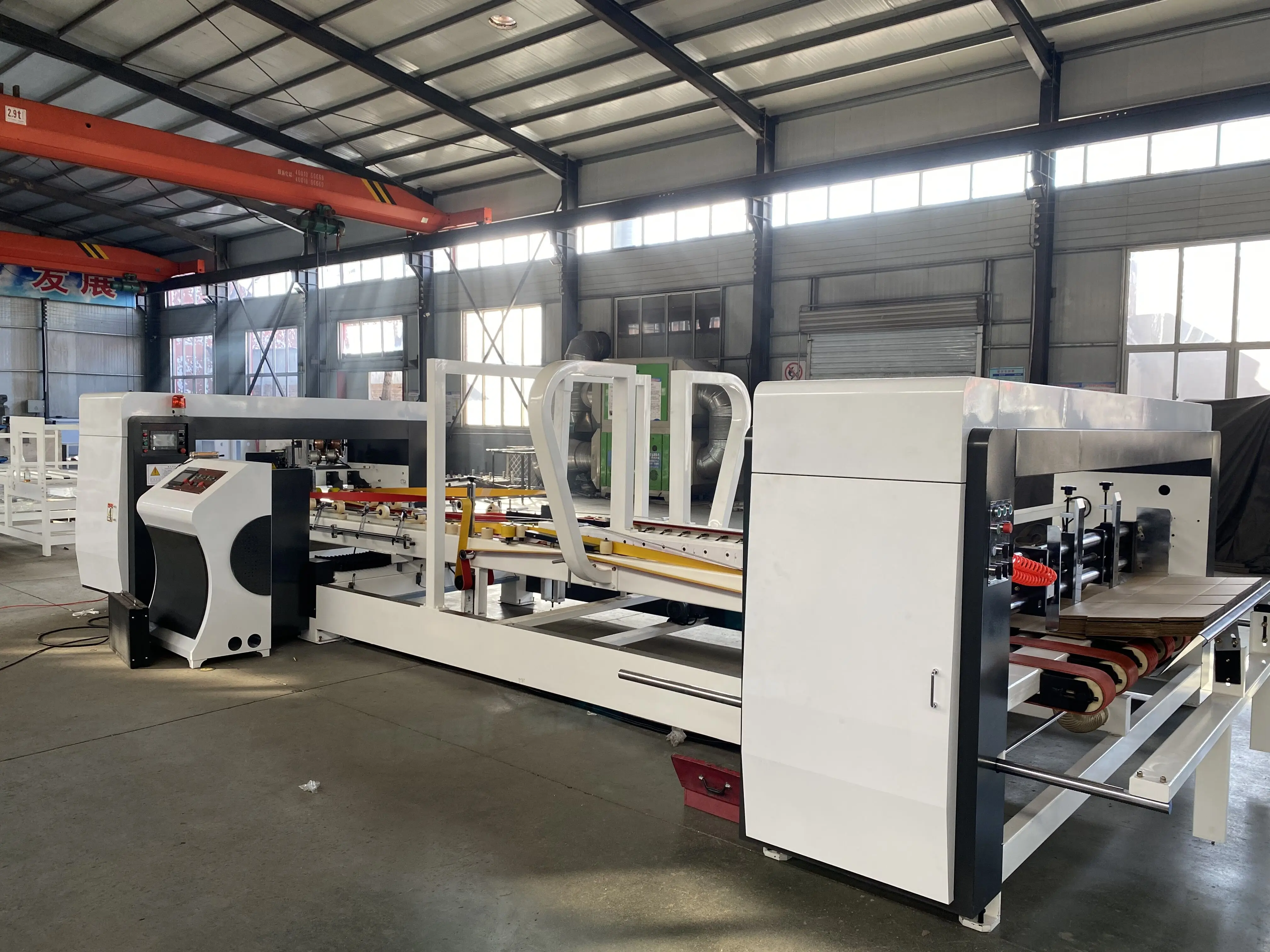

Automatic Corrugated Box Folder Gluer & Stitcher Machine

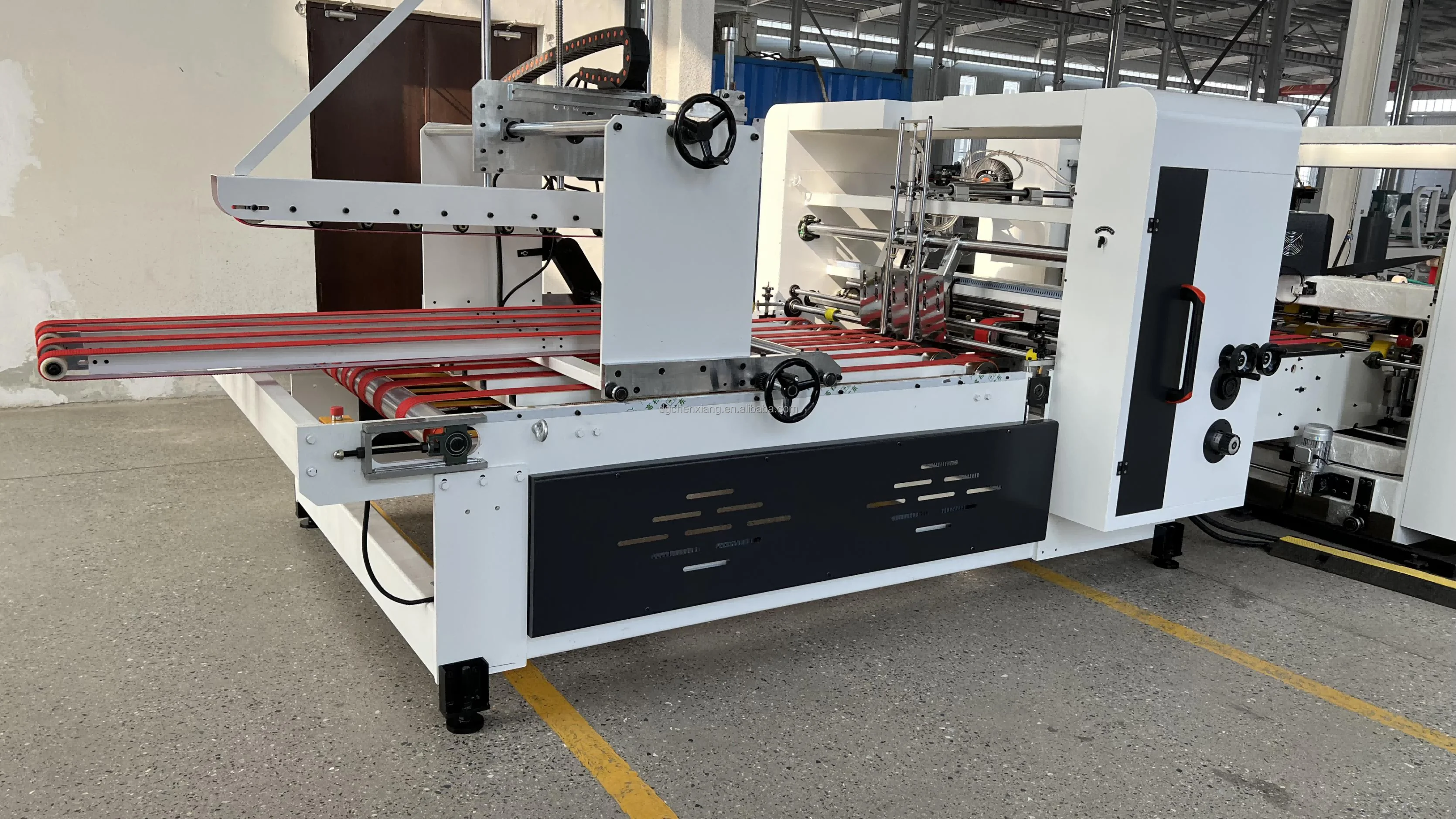

1,Paper Feeding Unit:




u Machine adopts belt leading edge suction and paper feeding mode, accurate and reliable.


u Machine adopts electromagnetic clutch and PCL intermittent simulation operation system, so that the paper feeding can be timely response, more accurate and reliable.


2,Paper Folding Unit:




u Machine adopts belt suction and paper feeding mode, accurate and reliable.


u The height of the press wheel is adjustable, and the left and right walls of the folding part are adjustable.


3,Gluing and Stitching Unit:




u The gluing and stitching unit adopts lifting mode to realize the quick conversion between the box gluing and the box stitching mode, without too much manual adjustment, saving time.


u The lifting part adopts high-precision linear slide to ensure the repeated positioning accuracy of the gluing and stitching unit.


4. Counting and Stacking Unit:




u Machine adopts PLC programming controller and touch screen digital control, simple operation, reliable action non-stop input data, automatic counting, automatic stacking, neat output.


Technical Parameters:

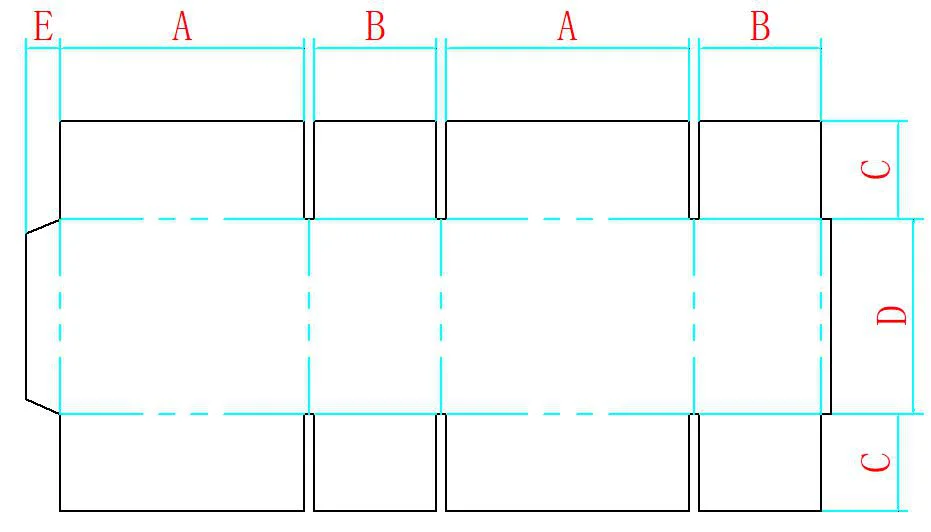

Stitching Parameter:















































Max Length (A+B)*2



2600mm



Min Length (A+B)*2



880mm



Max Width (C+D+C)



1200mm



Min Width (C+D+C)



300mm



Stacking Height



400mm



 Box Length



Max A: 700mm     Min A: 200mm



Box Width



Max B: 500mm     Min B: 200mm



Box Height



Max D: 600mm     Min D: 120mm



Box Cover



Max C: 275mm     Min C: 60mm



Lip



  E:40mm






Gluing Parameter:











Company Information


Company Information:



  Dongguang Chenxiang Machinery Co.,Ltd is professional enterprise which is specialized in producing and selling the sets of equipment for making paper box. We are located in dongguang county, Cangzhou city, Hebei Province, China. We have completed processing equipment, high professional degree, rich manufacturing experience, and strong technical strength. Perfect testing process and strict management system make our company become the leader of manufacturing machinery for producing carton in China.

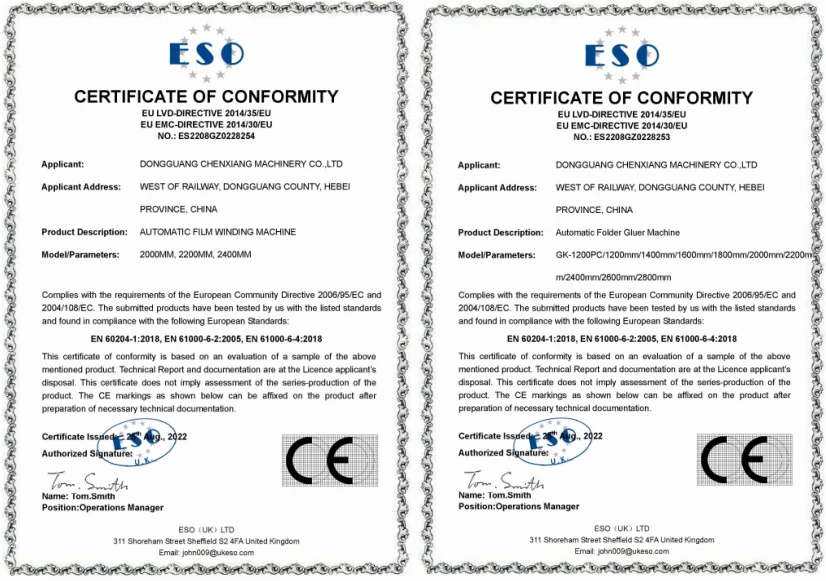

Our Certificate:



Package & Shipment:



Contact Details:
