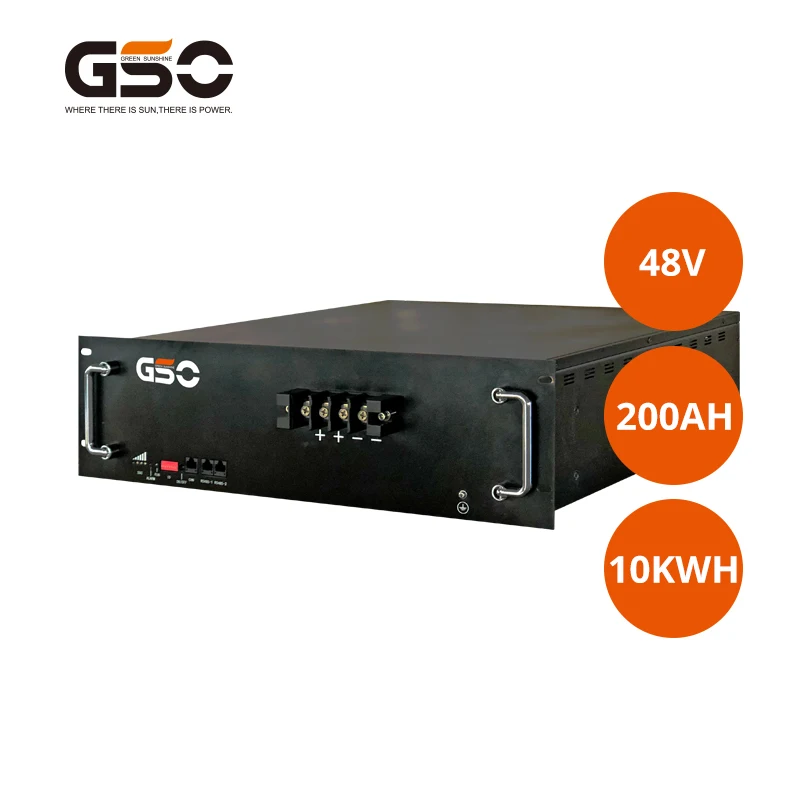

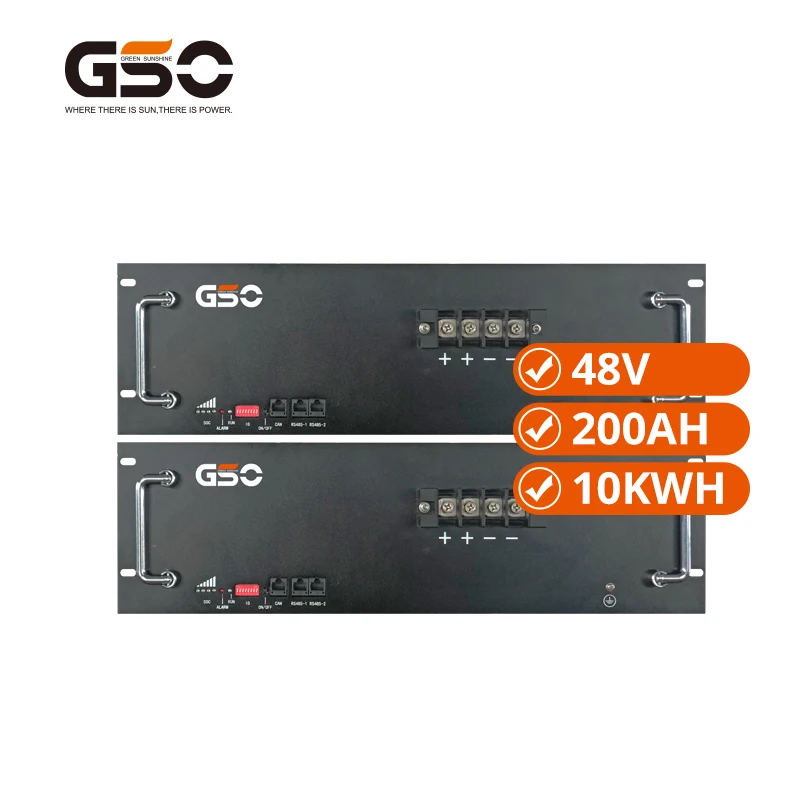

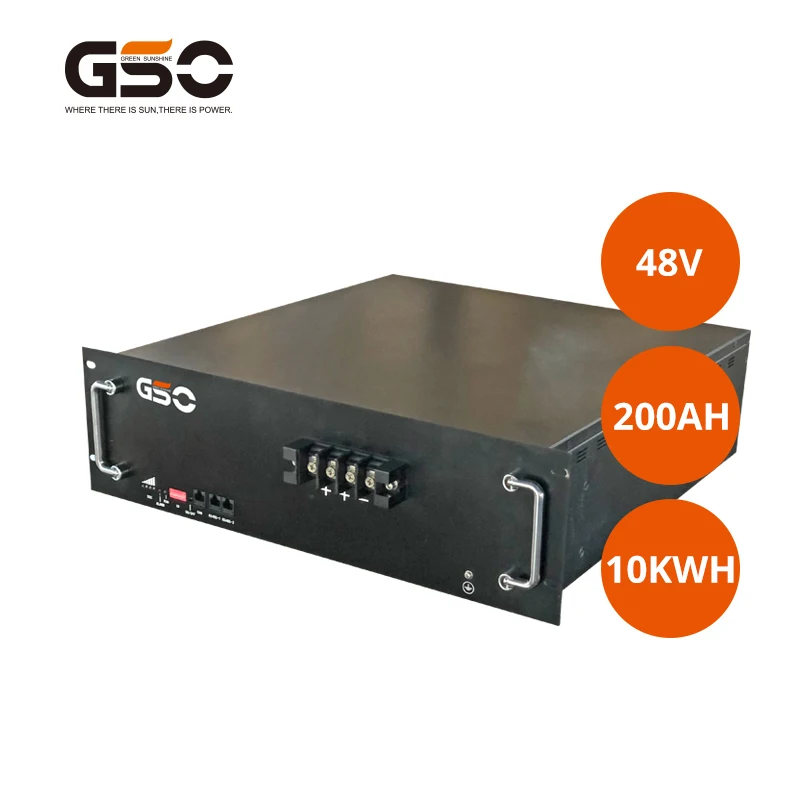

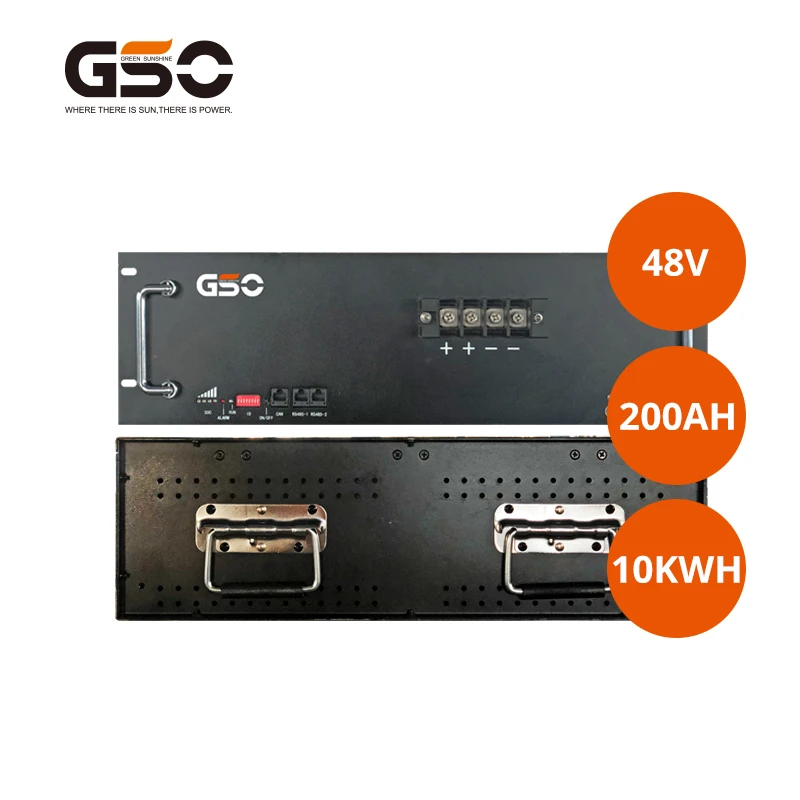

10kwh 200ah Phosphate lifepo4 lithium Battery Rack Solar Back up Battery for Solar Panels
- Category: >>>
- Supplier: Jiangsu Gso New Energy Technology Co. Ltd.
Share on (1601218030902):
Product Overview
Description
48V 200AH Home Storage Battery
The product utilizes Top grade A cell, designed to last over 10 years;
Easy maintenance and operation;
Functions:1.Over-temperature alarm protection
2.Over-charge and over-discharge protection
3.Short-circuit protection
4.Seamless connection with UPS, photovoltaic power generation and other mainequipment
Easy maintenance and operation;
Functions:1.Over-temperature alarm protection
2.Over-charge and over-discharge protection
3.Short-circuit protection
4.Seamless connection with UPS, photovoltaic power generation and other mainequipment
Wide Compatibility
GSO is proud to announce that our modules can Cooperate with most inverters on the market.
More brands are coming soon...
Model | GBP48-200R | ||||||
Nominal Voltage (V) | 48v | ||||||
Battery Capacity (AH) | 200ah | ||||||
Output Power Range | 10kwh | ||||||
Dimension (L*W*H) | 510*640*252（mm) | ||||||
Weight | 90kg | ||||||
Communication Port | CAN, RS485,Can be customizable | ||||||
Protection Class | IP20 | ||||||
Nominal Voltage | 48V | ||||||
Nominal capacity | 205AH | ||||||
Operating voltage range | 42-55(V) | ||||||
Standard discharge current | 20A | ||||||
Maximum discharge current | 50A | ||||||
Applicable temperature | -30℃~60℃(Recommended 10℃~35℃) | ||||||
Allowable humidity range | 0~95% RH | ||||||
Storage temperature | -20℃~65℃(Recommended10℃~35℃) | ||||||
Cooling method | natural Air Cooling | ||||||
1.Small size and light weight
2.Maintenancefree
2.Maintenancefree

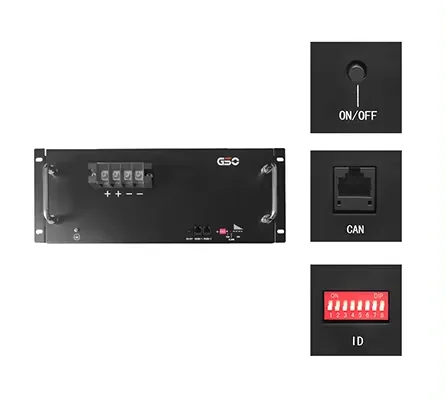

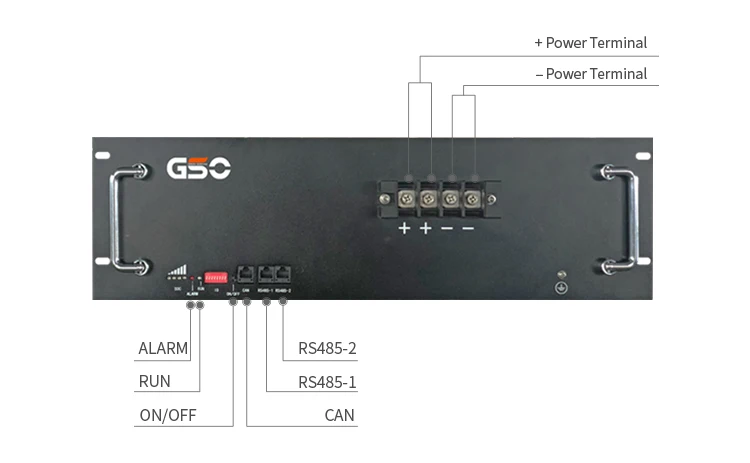

3.Communication interface with two RS485 and one CAN,can be customizable.

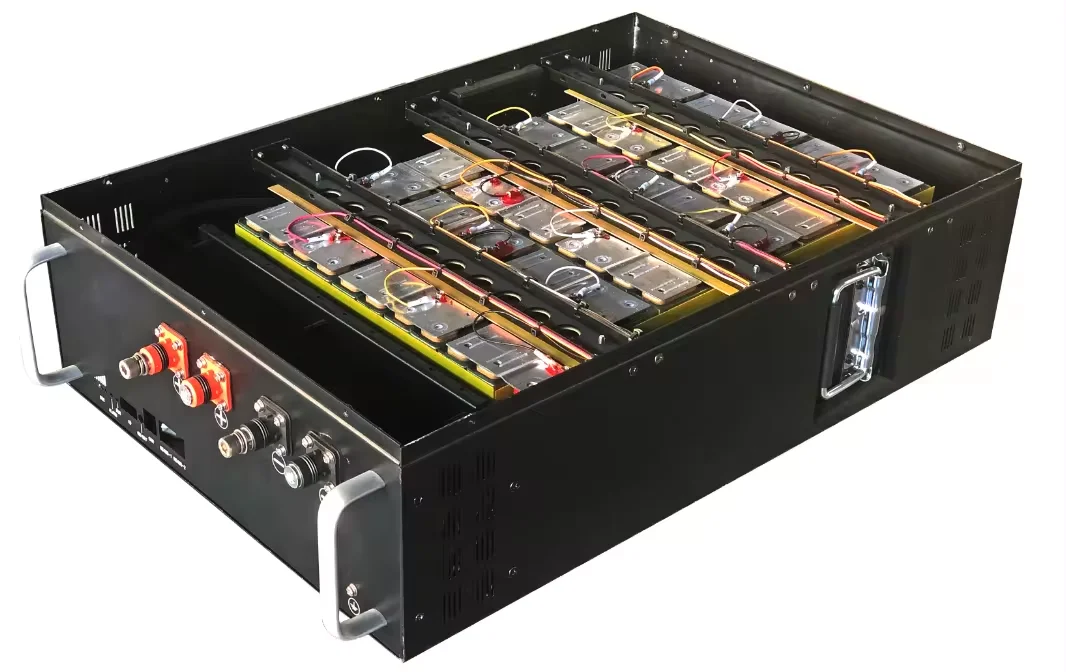

Inside The Battery

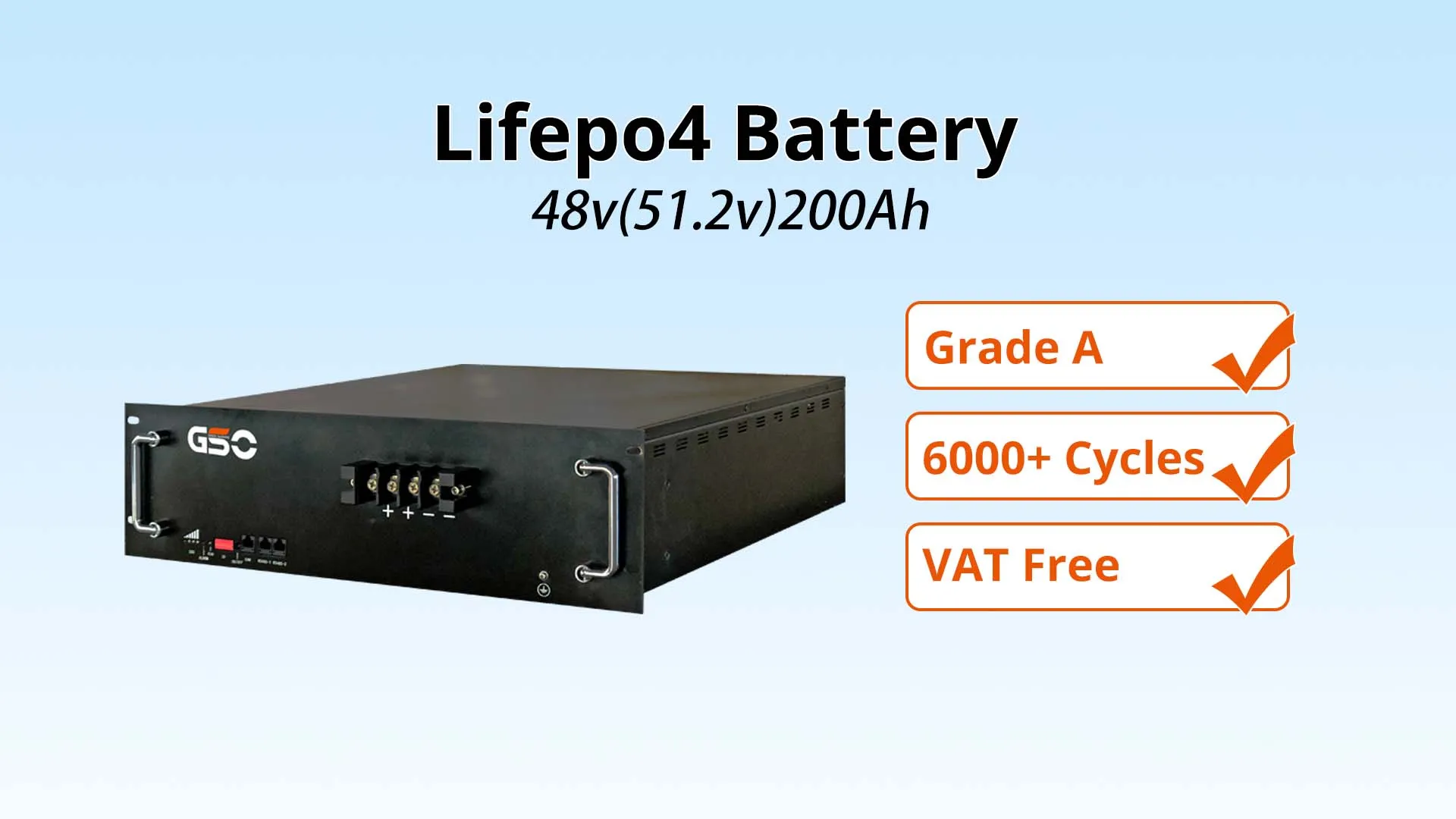

1.Top garde A cell2.Standard cycle life is more than 6000 times
3.Metals, green and environmentally friendly
4.Designed to last over 10 years
3.Metals, green and environmentally friendly
4.Designed to last over 10 years
This product is composed of high-quality lithium iron phosphate cells (by series and parallel) and advanced BMS management system.
It can be used as an independent DC power supply or as a "basic unit" to form a variety of energy storage lithium battery power
systems.
It can be used as an independent DC power supply or as a "basic unit" to form a variety of energy storage lithium battery power
systems.
Project cases
Why Choose Us
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Customer Feedback

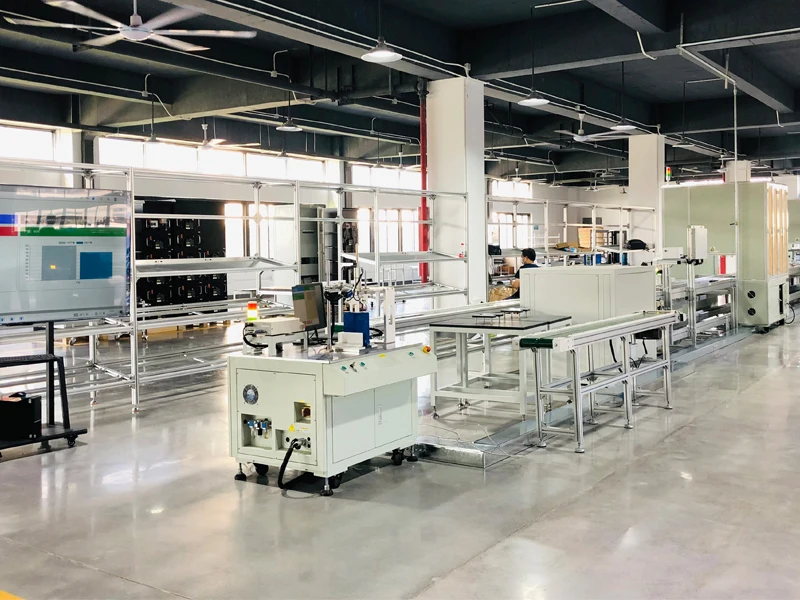

Company Profile
Jiangsu Lvyang New Energy is a high-tech enterprise dedicated to photovoltaic, energy storage and related products. The company specializes in the integration of lithium battery PACK, household energy storage and energy saving products.
Exhibition
2023 Canton Fair
2023 SNEC Exhibitions
2023 CESC Exhibitions
2023 EESA Exhibitions
