China factory wholesale 30 Micron Diesel Fuel Dispenser Particulate Removal Oil Filter
- Category: >>>
- Supplier: Xuzhou Desheng Petrol Machine Co. Ltd.
Share on (1601218170687):
Product Overview
Description

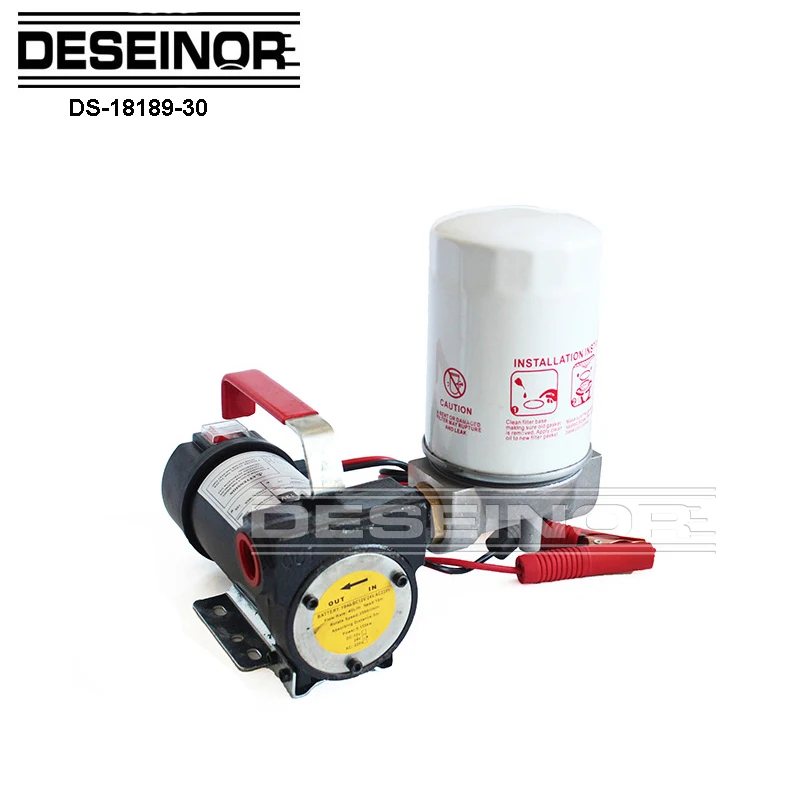

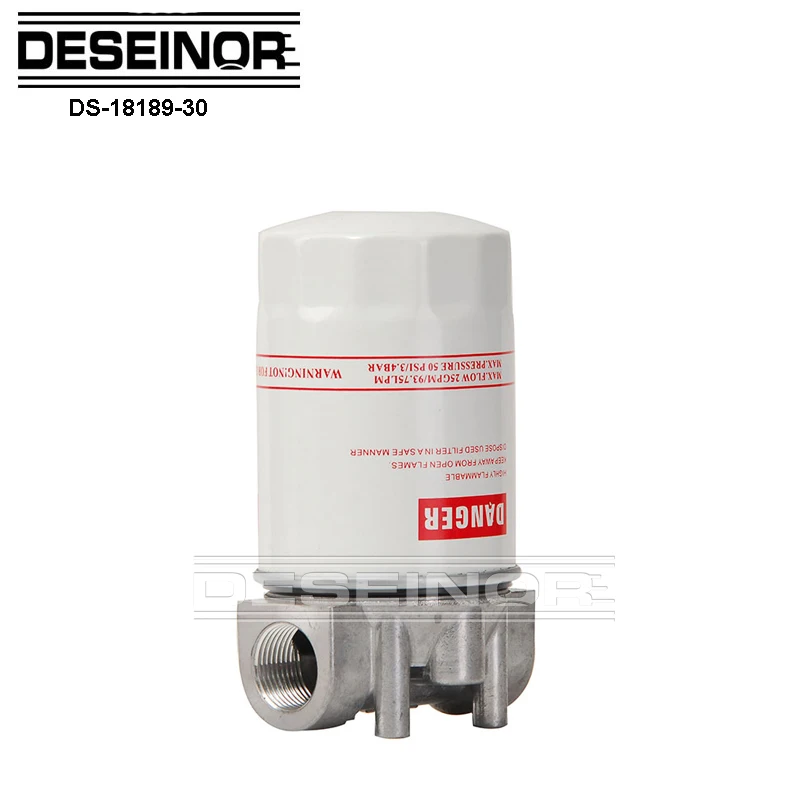

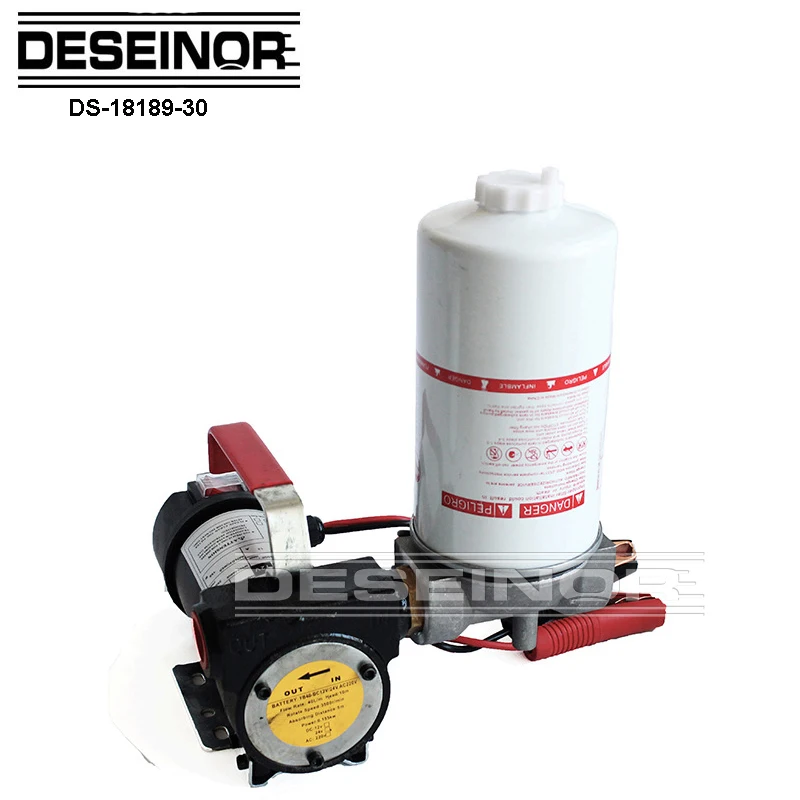

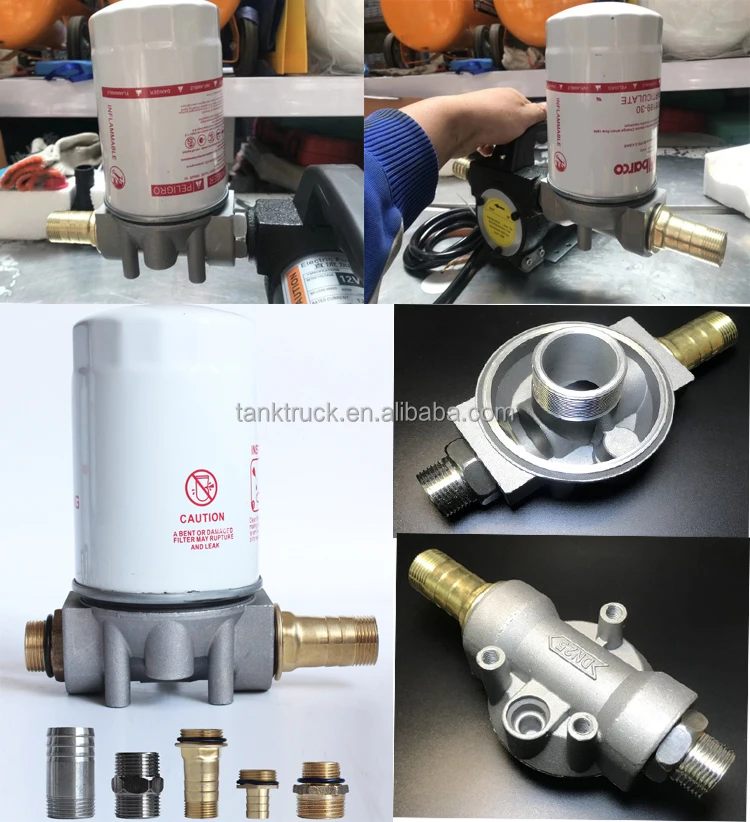

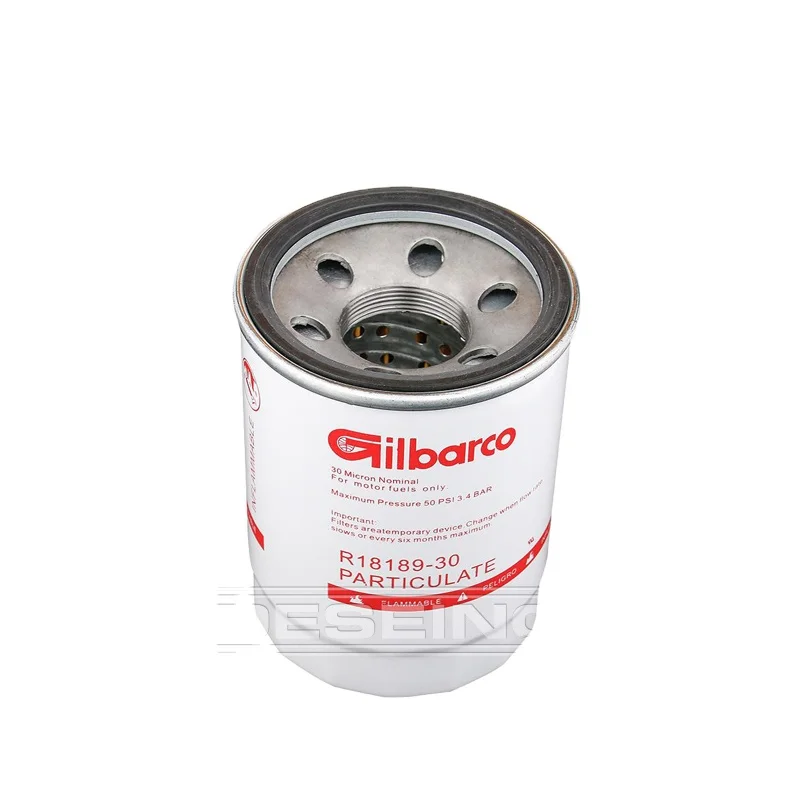

Diesel Fuel Dispenser Particulate Removal Oil Filter R18189 30 Micron
For GILBARCO#Tokheim/CIM-TEK/WAYNE TYPE ECT.
USED
Ideal for use in construction and agricultural applications. Keep your fuel pump running better by using particulate filters, which are suitable for handling problems caused by dirt, silt and corrosion.
Specification
| Flow Rate | 25 GPM |
| Max Pressure | 50 PSI |
| Particulate Filter | 30 Micron |
| Thread Size | 3/4" NPT or 1" NPT |
| Includes elment | Cast aluminum filter head spin-on style filter cartridge with 1 1/2"-16 UNF threads (replacement Asin: B0B452VVFN), |
Application: Recommended for gasoline, diesel and kerosene; designed for use in both mobile containers and stationary fuel tanks with pump.
Do not use: water-based products, aviation fuels, racing fuels, etc.
Product Description
1.Our fuel dispenser is Adopting combination pump or separate pump,smaller shape and convenient maintenance.
2.Our fuel dispenser is Adopting painting-side for common type and stainless steel side for luxurious type .
3.Leading-static and Highly-hang oil pipe.
4.Features fueling as ration,resetting by computer and re-displaying when power cut.

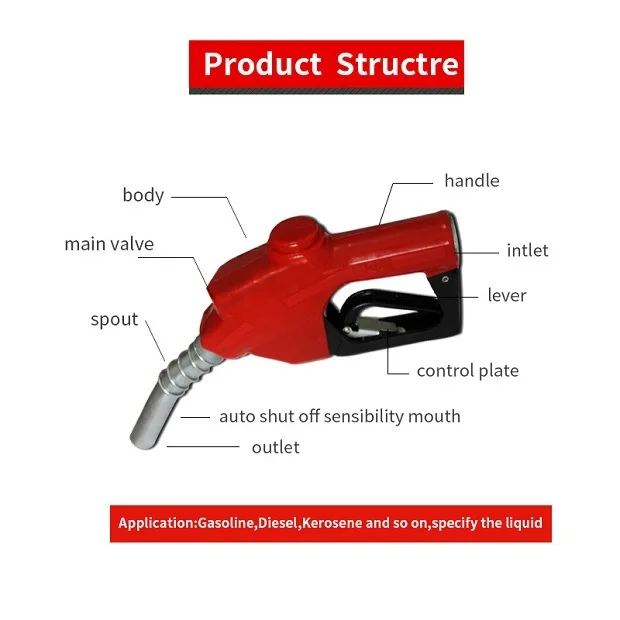

5.Big-size aluminium nozzle booter.
6.Submersible pump to be optional.
7.Flow meter features high precision and strong reliability.
8.Excellent electromagnetic compatibility and strongly anti-jamming.
9.Be capable of connecting with central computer in gas station.
10.Conveniently combining and extending function.
11.To update IC card fuel dispenser.
Techmical index and parameter of our fuel dispenser :
Ambient temperature: -40 degree to +55 degree
Humidity: 30% -90%
Max flow: 50L/min or 90L/min
Accuracy: ±0.3%
Repeating error: ≤ 0.15%
Inlet pressure: ≥ 54Kpa
Outlet pressure: ≤ 0.3Mpa
Power: 220V50hz(380V to be optional)
Noise: ≤ 80dB(A class)
Unit price range :0.01-99.99
Single volume range : 0.01-9999.99
Accumulative volume range: 0.01-99999999999.99
Explosion-proof certifcate : CE011195
Explosion-proof sign : Exdm AT3
The Specifications of our fuel dispensers:
Mode | Product | Nozzle | Display | Motor | Pump | Flow meter |
DJY-218A | 1 | 1 | 2 | 1 | 1 | 1 |
DJY-121A | 1 | 2 | 2 | 1 | 1 | 2 |
DJY-122B | 1 | 2 | 2 | 1 | 1 | 1 |
DJY-222A | 2 | 2 | 4 | 2 | 2 | 2 |
DJY-241A | 2 | 4 | 4 | 2 | 2 | 4 |
DJY-242B | 2 | 4 | 4 | 2 | 2 | 2 |
DJY-142C | 1 | 4 | 4 | 1 | 1 | 1 |
Company profile
Xuzhou DeSheng petrol machine parts Co.,Ltd,is concentrates on
design,development,manufacture, marking sales into on company.produces the relative accessories of the road dangerous fuel transportation parts and other aluminum alloy components used on machinery .at present ,the products are mainly include flanges ,ball valve ,filters,manhole covers,API loading valves,quick coupling,vapor recovery parts and other related products,the aluminum alloy hose quick coupling ,dois China Petroleum Co.,Ltd.appointed products to supply.
Mission:
meager profit business,integrity is golden, dealing with customer requirements as far as possible perfect communication, solving. Track service with the time of delivery and the pre-sale after sale.
we could also re-design and make new mold as you required.
