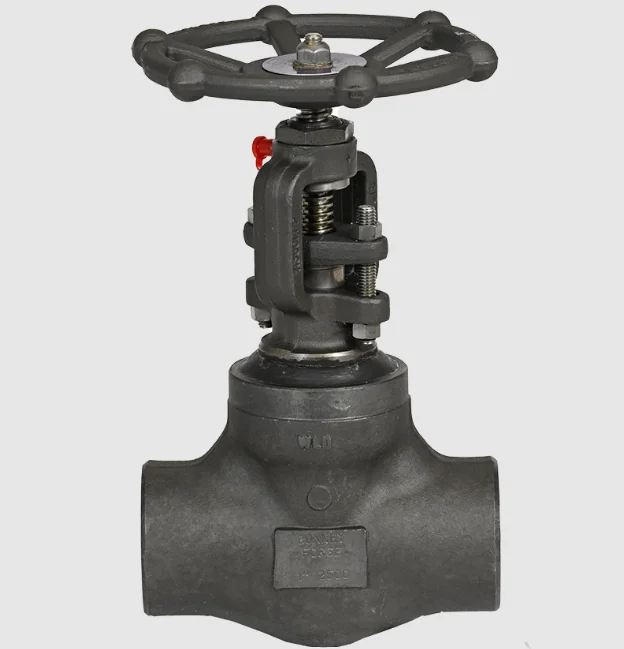

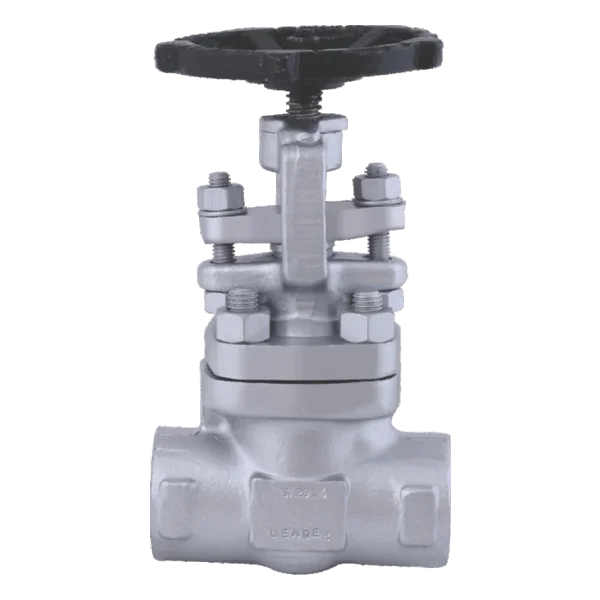

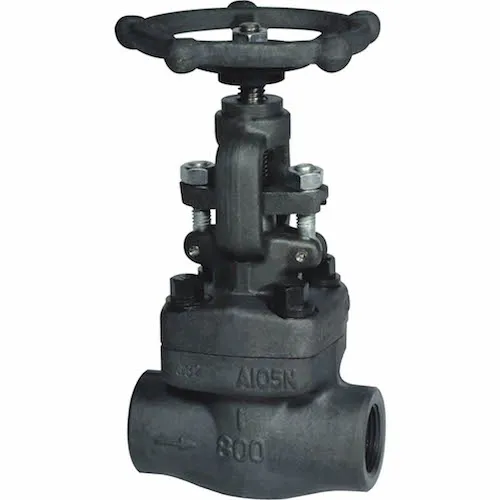

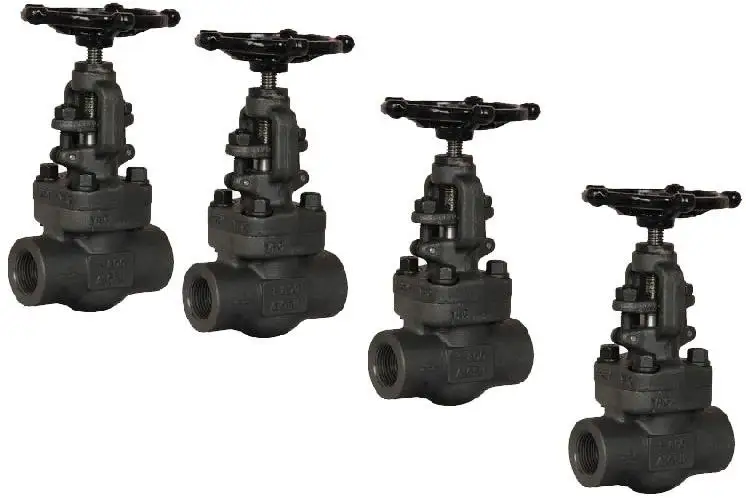

800 Class Socket Weld Forged Steel A105 F304 F316 Globe Valve
- Category: >>>
- Supplier: Zhengzhou Jinggong Valve Co. Ltd.
Share on (1601218503983):
Product Overview
Description
SIZE (mm) | 15 | 20 | 25 | 32 | 40 | 50 | ||
L | 88 | 100 | 124 | 145 | 170 | 228 | ||
∅b | 12.7 | 18 | 23 | 30 | 35 | 47.5 | ||
~∅HW | 90 | 96 | 114 | 155 | 155 | 155 | ||
~H | 155 | 175 | 198 | 240 | 270 | 334 | ||
C | 18 | 21 | 21 | 23 | 24 | 24 | ||
Rc | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | ||
∅SW | AS PER ASME B16.11 | 22.2 | 27.6 | 34.3 | 43.1 | 49.2 | 61.7 | |
21.8 | 27.2 | 33.9 | 42.7 | 48.8 | 61.2 | |||
D | 14 | 14 | 14 | 14 | 14 | 17 | ||
Main parts and materials | ||||||
No. | Parts name | Material | standard | |||
1 | Body，Bonnet | WCB | ||||
2 | Disc | WCB+Stainless steel | ||||
3 | Stem | Stainless steel、Carbon steel | ||||
4 | Yoke nut | Brass | ||||
Design Features:
Design Features:
Pressure Range: Class 150 ~ 2500
Nominal Size Range: DN 50 ~ 400, NPS 2" ~ 16"
Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW)
Out side screw and york (OS & Y)
Bolted Bonnet (BB)
Rising stem with hand wheel
Renewable seat ring
Pressure Range: Class 150 ~ 2500
Nominal Size Range: DN 50 ~ 400, NPS 2" ~ 16"
Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW)
Out side screw and york (OS & Y)
Bolted Bonnet (BB)
Rising stem with hand wheel
Renewable seat ring
Design Specifications:
Design: BS1873
Wall thickness: API 600
Pressure-temperature rating: ASME B16.34
Face-to-face dimensions for butt weld and flanged valves: ASME B16.10
Flange design: ASME B16.5
Butt welding design: ASME B16.25
Design: BS1873
Wall thickness: API 600
Pressure-temperature rating: ASME B16.34
Face-to-face dimensions for butt weld and flanged valves: ASME B16.10
Flange design: ASME B16.5
Butt welding design: ASME B16.25
FAQ:
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.
Q: What are your payment terms?
A: T/T (50% as desposit, the rest 50% will be paid before delivery), L/C at sight.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
A: Yes, we can make it with your exact requirement.
Q: What are your payment terms?
A: T/T (50% as desposit, the rest 50% will be paid before delivery), L/C at sight.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
