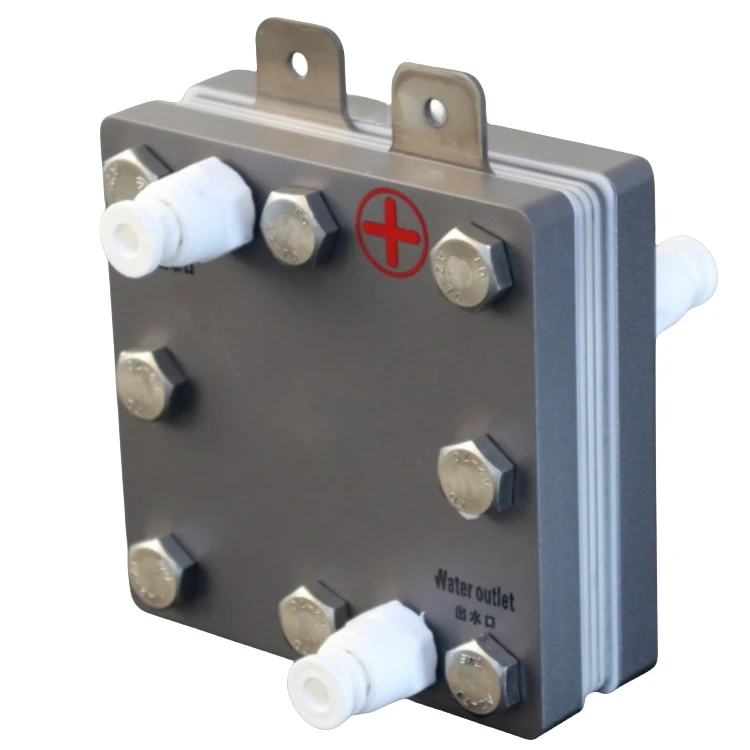

1800ml hydrogen generator cell pure water PEM electrolyzer with Hydrogen Breathing Machine
- Category: >>>
- Supplier: Gatechn New Energy Technology (shanghai) Co. Ltd.Gatechn Ltd.
Share on (1601218641413):
Product Overview
Description
Product Description
Product Presentation
Advantages of PEM:
1. Pure water used by PEM electrolyzer avoids potential environmental pollution and is friendly to the environment;
2. PEM has low resistance and gas permeability, making the current density, working efficiency and gas purity high;
3. The fast response of PEM electrolyzer makes it adaptive to the volatility of renewable energy.
Type | H2G-1800ml |
Hydrogen Production ( ml/min) | 1800 |
DCA (Rated Current) | 49 |
DCV (Voltage Range) | 9-12.5 |
Energy Consumption （kW·h/m3） | ≤4.50 |
Numbers of Cell | 3 |
Electrolysis Efficiency | 80% |
Operating Temperature (℃) | 40-50 |
Water Quality Requirement (MΩ·cm²) | ≥15 |
Hydrogen Side Pressure (MPa) | ≤0.5 |
Water Side Pressure(MPa) | ≤0.5 |
Electrolyzer Dimensions (mm) | 145*124*51 |
Electrolyzer Structure
PEM Electrolyze Cell
PEM electrolyze is typically composed of end plate, diffusion layer, catalyst layer and proton exchange membrane.
The role of end plate is to fix components, guide current and help distribution of water and gas.
The diffusion layer plays a role as current collector and promote gas-liquid transport.
The role of end plate is to fix components, guide current and help distribution of water and gas.
The diffusion layer plays a role as current collector and promote gas-liquid transport.
H2gatech-Structure diagram of PEM Electrolyze
The core of the catalyst layer is the Triple Phase Boundary (TPB) consisting of catalyst, electron and proton conduction medium, where the electrochemical reactions take place.
For higher hydrogen production rates, a PEM electrolyze is typically stacked with 5 to 100 cells in series.
For higher hydrogen production rates, a PEM electrolyze is typically stacked with 5 to 100 cells in series.

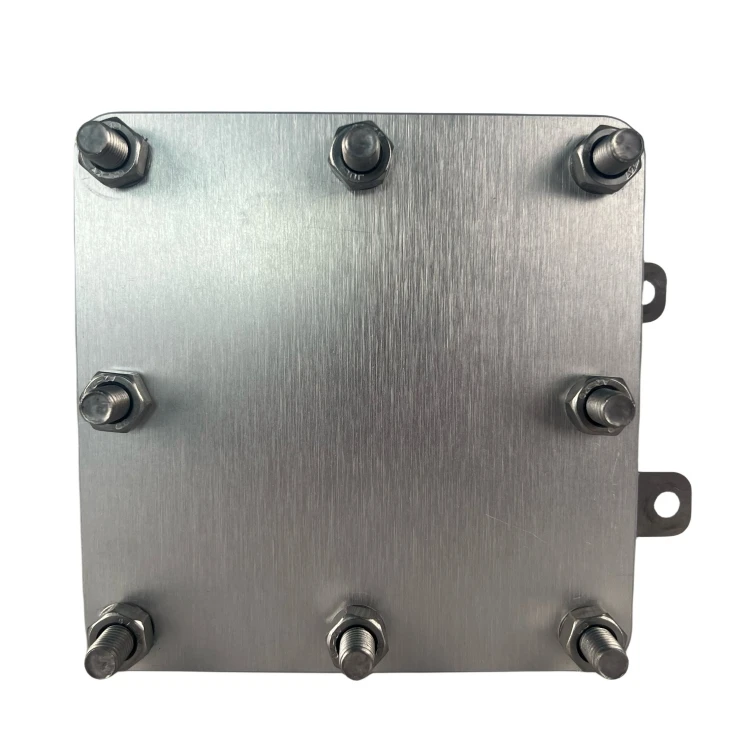

Detailed Images
Core component of electrolyzer: Ordered Membrane Electrode
MEA (Membrane Electrode Assembly) is composed of diffusion layer, catalyst layer and proton exchange membrane.
MEA (Membrane Electrode Assembly) is composed of diffusion layer, catalyst layer and proton exchange membrane.
High specific surface area: compared with ordinary membrane electrode, the active area is increased by more than 50%.
High electron conductivity: the electron conductivity is improved with arrayed catalyst.
Corrosion resistance at high potential: our electrolyzer can work normally at higher potential.
Mesoporous structure: can improve mass transport at the interface.
High electron conductivity: the electron conductivity is improved with arrayed catalyst.
Corrosion resistance at high potential: our electrolyzer can work normally at higher potential.
Mesoporous structure: can improve mass transport at the interface.
Proton Exchange Membrane
Customized catalyst
Customized Membrane Electrode

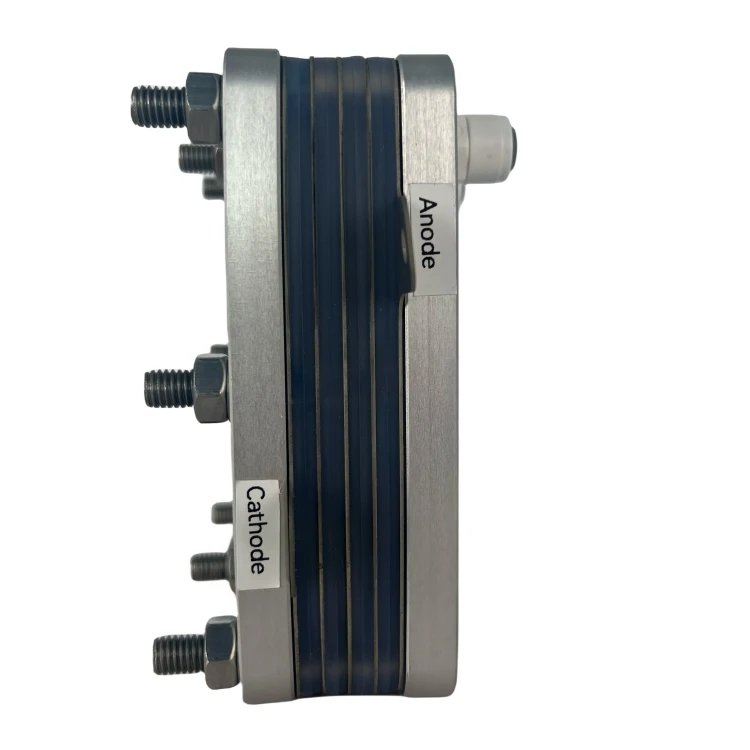

Electrolyzer Assembly
The electrolyzer adopts zero - distance structure to improve assembly efficiency and maintain strong sealing and low contact resistance.
The energy consumption of the electrolyzer has been greatly reduced with the overall efficiency increased from 73% to 84%.
The energy consumption of the electrolyzer has been greatly reduced with the overall efficiency increased from 73% to 84%.

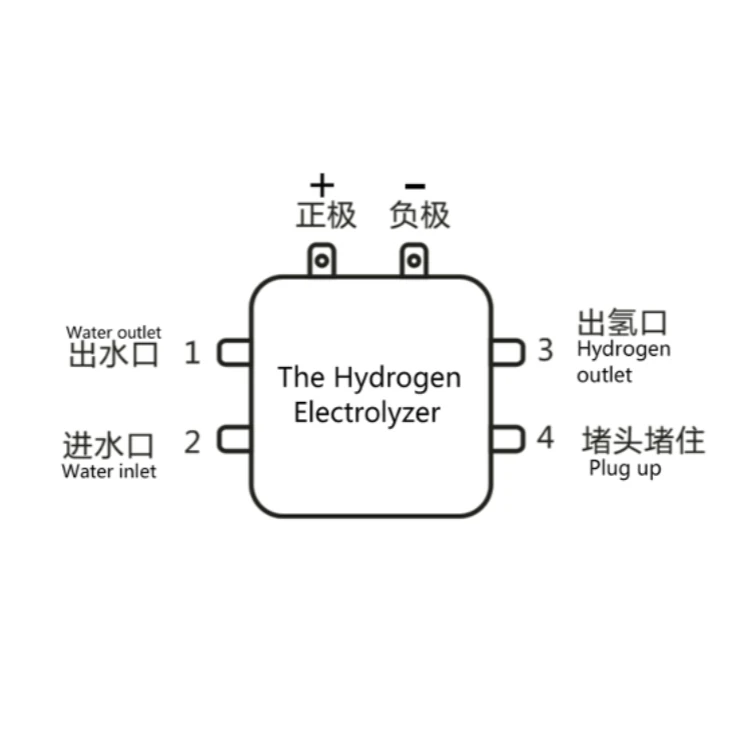

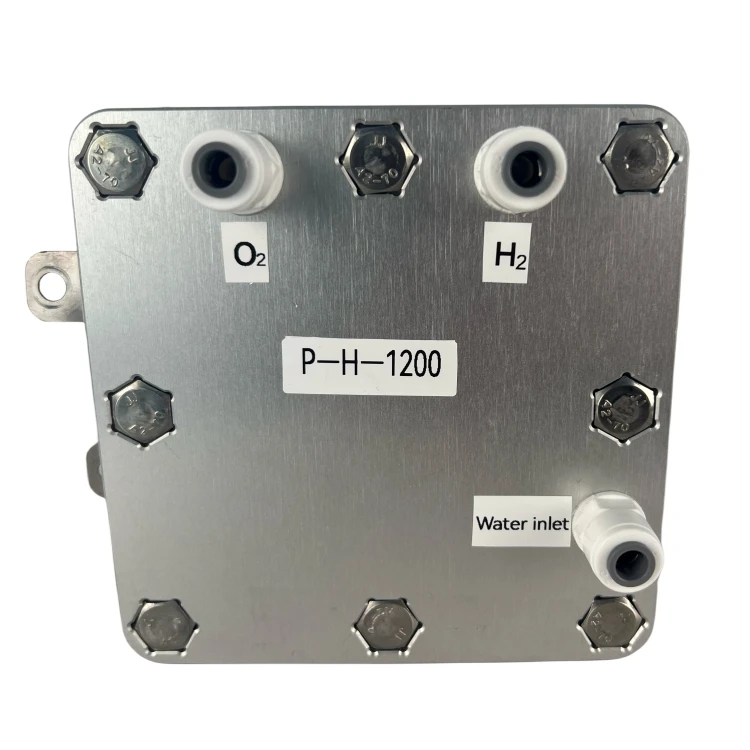

Product detail drawing
Application showcase
Hydrogen & Oxygen Generator
The Hydrogen & Oxygen Generator is a high-tech product that produces pure hydrogen through electrolysis of water. Hydrogen molecules enter the human body directly from the respiratory system and diffuse to the nose, lungs and brain.
After the hydrogen enters the human body, the hydrogen combines with the malignant oxygen free radicals in the human body and reduces to water, which is excreted in the form of water. After eliminating the malignant free radicals, the human cells return to a balanced state
After the hydrogen enters the human body, the hydrogen combines with the malignant oxygen free radicals in the human body and reduces to water, which is excreted in the form of water. After eliminating the malignant free radicals, the human cells return to a balanced state

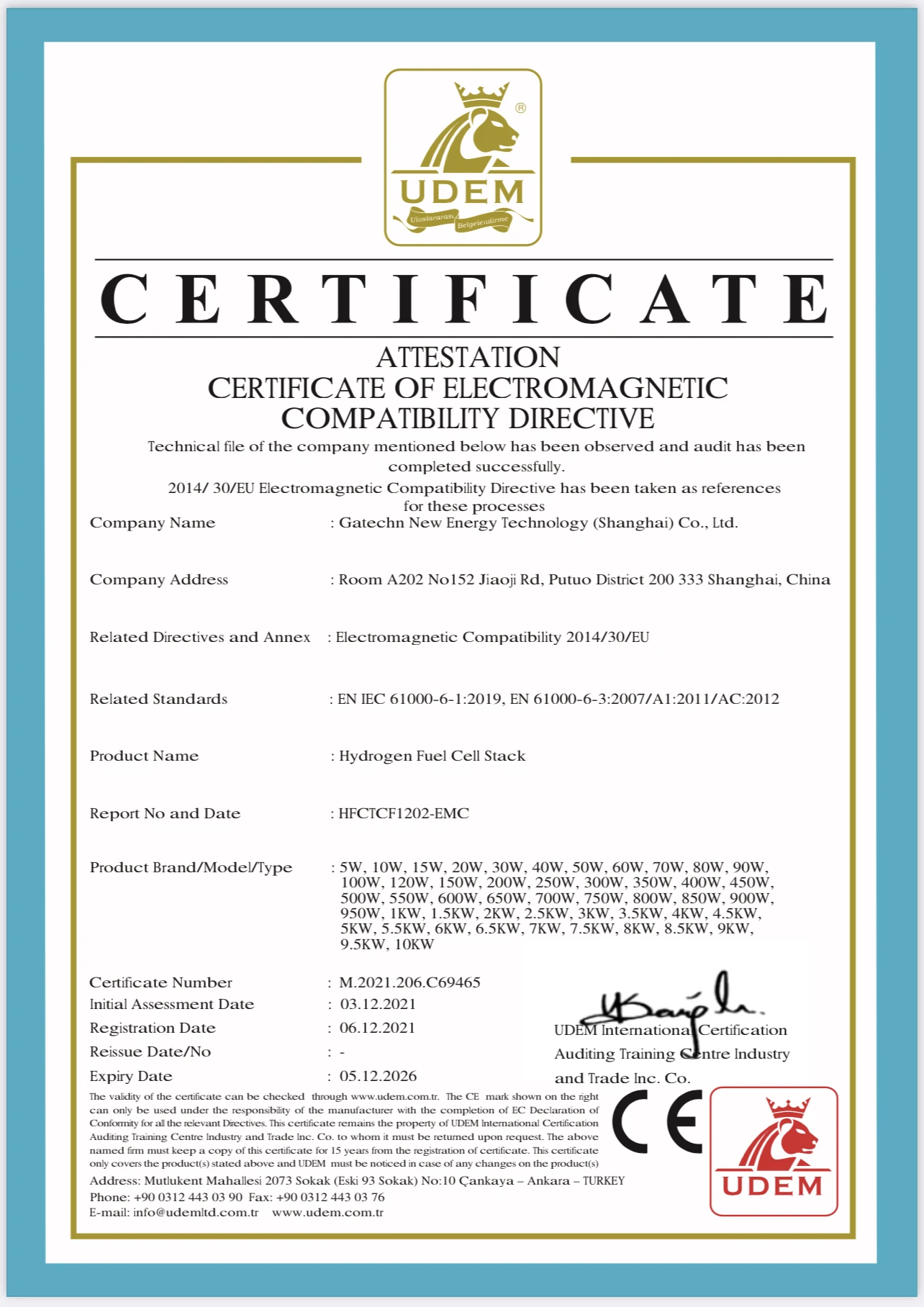

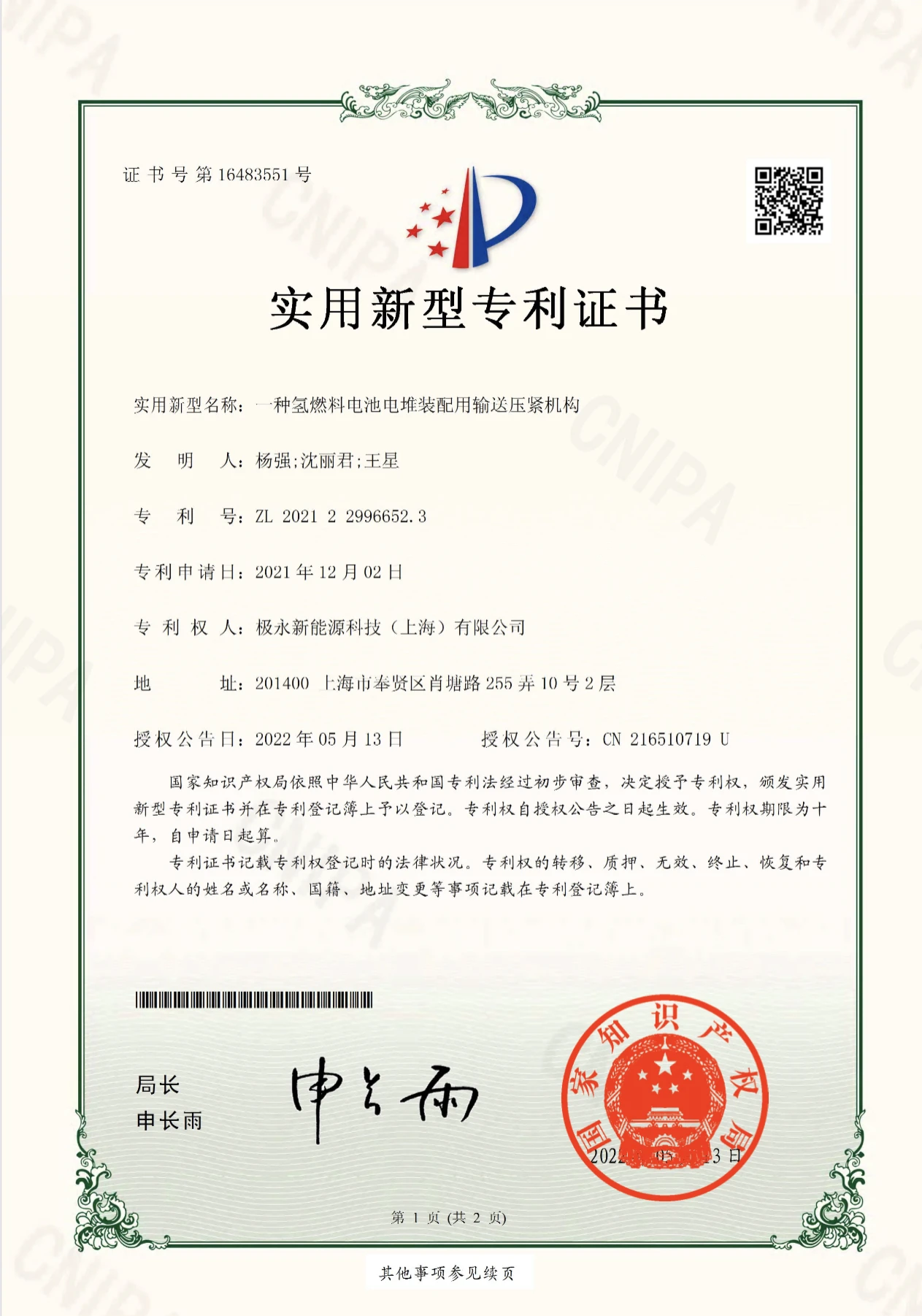

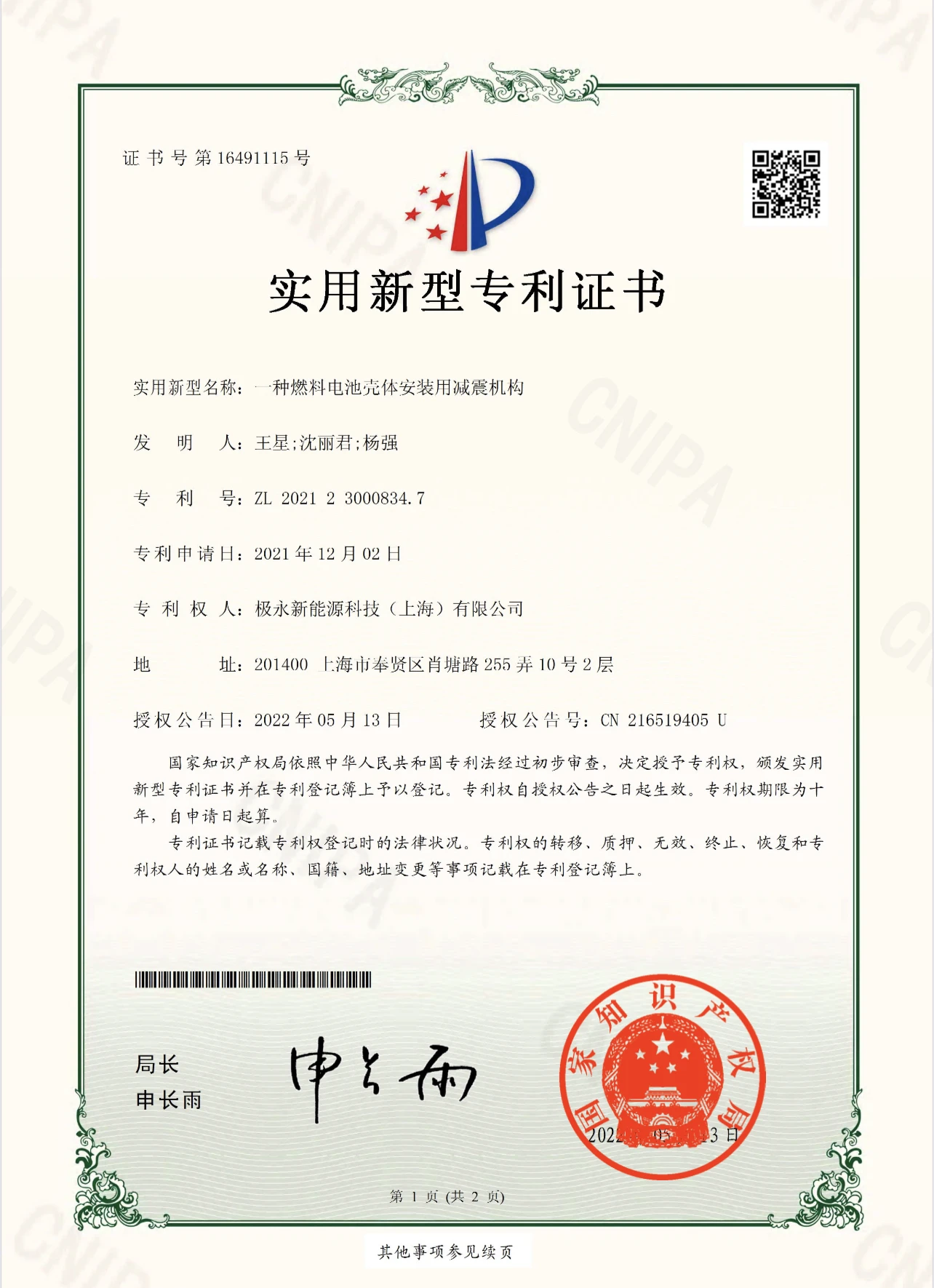

Certificate
Gatechn New Energy Technology (Shanghai) Co., Ltd. is primarily dedicated to the research, development, and manufacturing of hydrogen fuel cells, core materials, and critical components. We have applied for 25 fuel cell-related patents, with 5 of them granted.
Related Products
Company Introduction
We were established in 2019 with the participation of many industry experts.

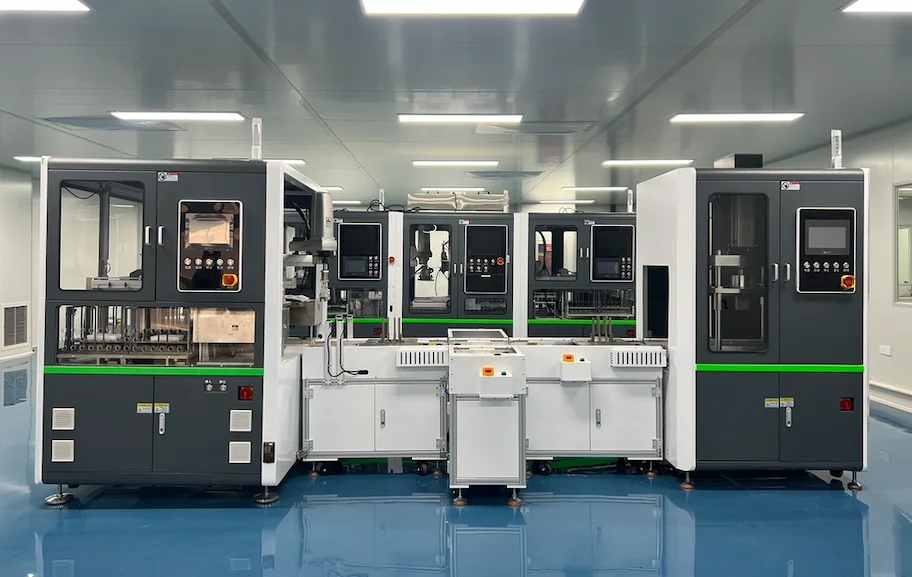

We have established comprehensive cooperative relationships with many well-known domestic universities and research institutes to provide advanced technical knowledge and resource support for hydrogen fuel cell research and development. We have established a production and research base in Yangzhou, Jiangsu. Our company has brought together a team of seasoned engineering and technical experts with over 20 years of experience in the hydrogen energy industry, and we possess core technologies and processes for membrane electrodes, catalysts, and hydrogen fuel cell stacks. Our air-cooled stacks have been applied in various fields, including shared bicycles, delivery vehicles, tricycles, and sightseeing vehicles.
