OEM PEM CCM electrolyzer Water electrolysis membrane electrode with Nafion 115 117
- Category: >>>
- Supplier: Gatechn New Energy Technology (shanghai) Co. Ltd.Gatechn Ltd.
Share on (1601218740154):
Product Overview
Description
Product Description
Product Presentation
Water Electrolysis Membrane Electrode is a critical component used in the process of water electrolysis. It typically consists of a thin membrane or electrolyte film and two electrodes. Water electrolysis is a chemical reaction in which water is split into hydrogen gas and oxygen gas, and it is a method for producing hydrogen as an energy source.
During the water electrolysis process, the water electrolysis membrane electrode applies electrical energy to water, causing the separation of oxygen ions and hydrogen ions in the water, leading to oxidation-reduction reactions on two electrodes. One electrode (anode) is where the oxidation reaction takes place, while the other electrode (cathode) is where the reduction reaction occurs. Oxygen gas is produced at the anode, and hydrogen gas is generated at the cathode.
Name | Water Electrolysis Membrane Electrode |
Type | Catalyst coated membrane |
Material | PFSA/ Nafion N115 or Nafion N117 |
Cell potential | a) (1A/cm2)=1.67-16.9v |
Cell potential | b) (2A/cm2)=1.91-1.98v |
Cell potential | Customized |
Catalyst Loading | Iridium min loading: 1.85(mg/cm) |
Catalyst Loading | Platinum min loading:0.5(mg/cm) |
Catalyst Loading | Customized |
Reinforcement | PEN or PTFE (Recommend PEN) |
Detailed Images

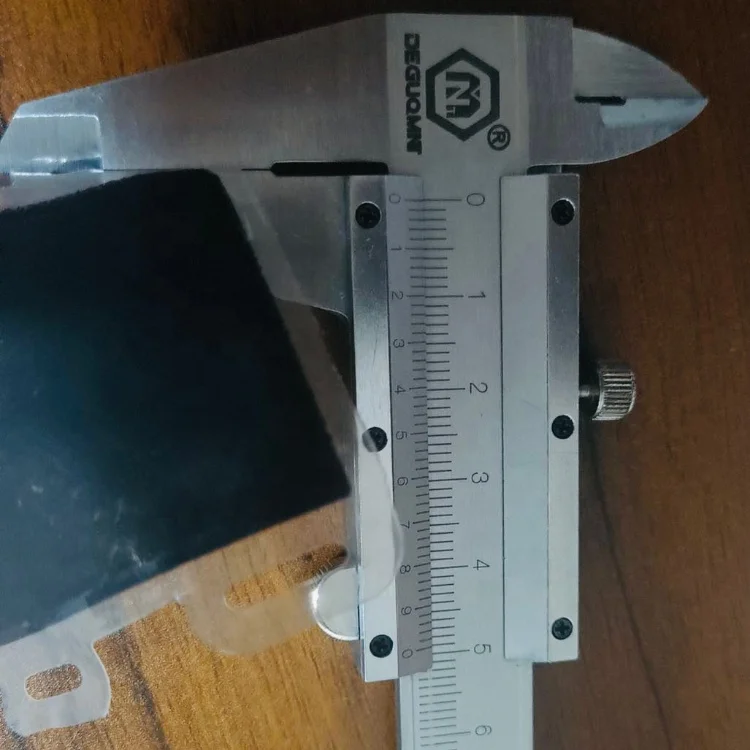

Product detail drawing
Core component of electrolyzer: Customized Membrane Electrode
MEA (Membrane Electrode Assembly) is composed of diffusion layer, catalyst layer and proton exchange membrane .
MEA (Membrane Electrode Assembly) is composed of diffusion layer, catalyst layer and proton exchange membrane .
Our company's self-developed catalyst offers the following advantages:
High Consistency: Uniform distribution of nanoparticle size.
High Electrochemical Activity: Both ECSA (Electrochemically Active Surface Area) and MA (Mass Activity) are relatively high.
Excellent Durability: The use of high-temperature annealing technology extends the catalyst's lifespan by approximately 30% compared to commercial alloy catalysts
High Consistency: Uniform distribution of nanoparticle size.
High Electrochemical Activity: Both ECSA (Electrochemically Active Surface Area) and MA (Mass Activity) are relatively high.
Excellent Durability: The use of high-temperature annealing technology extends the catalyst's lifespan by approximately 30% compared to commercial alloy catalysts
Hydrogen generation by PEM has four main steps:
1. Water hydrolyzes at anode. (2H2O=4H++4e-+O2)
2. 4H+ pass through the ordered MEA(proton exchange membrane coated with ordered catalyst) to cathode.
3. 3. 4e- electrons transport from anode to cathode through external circuit.
4. Hydrogen generation at cathode. ( 4H++4e-=2H2 )
1. Water hydrolyzes at anode. (2H2O=4H++4e-+O2)
2. 4H+ pass through the ordered MEA(proton exchange membrane coated with ordered catalyst) to cathode.
3. 3. 4e- electrons transport from anode to cathode through external circuit.
4. Hydrogen generation at cathode. ( 4H++4e-=2H2 )
Proton Exchange Membrane
Customized catalyst

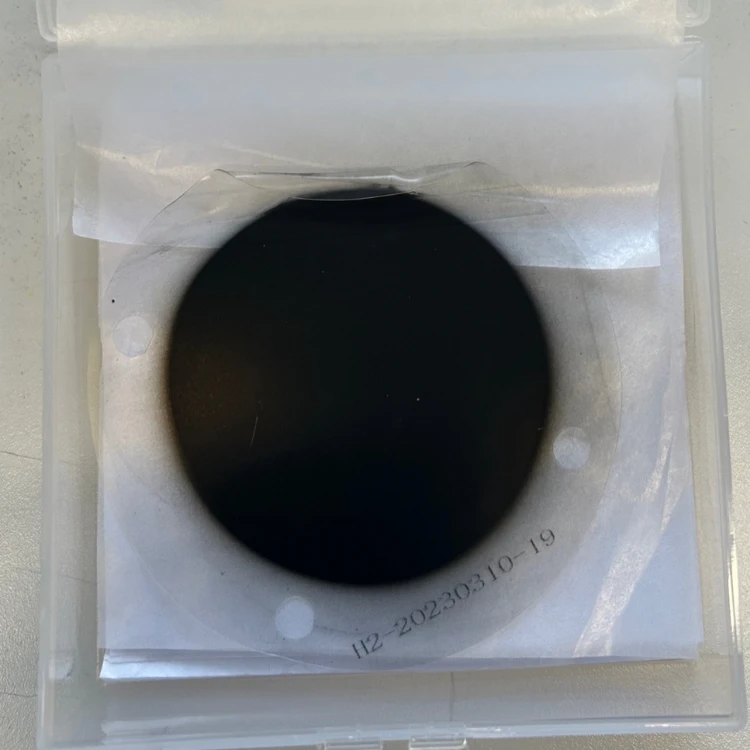

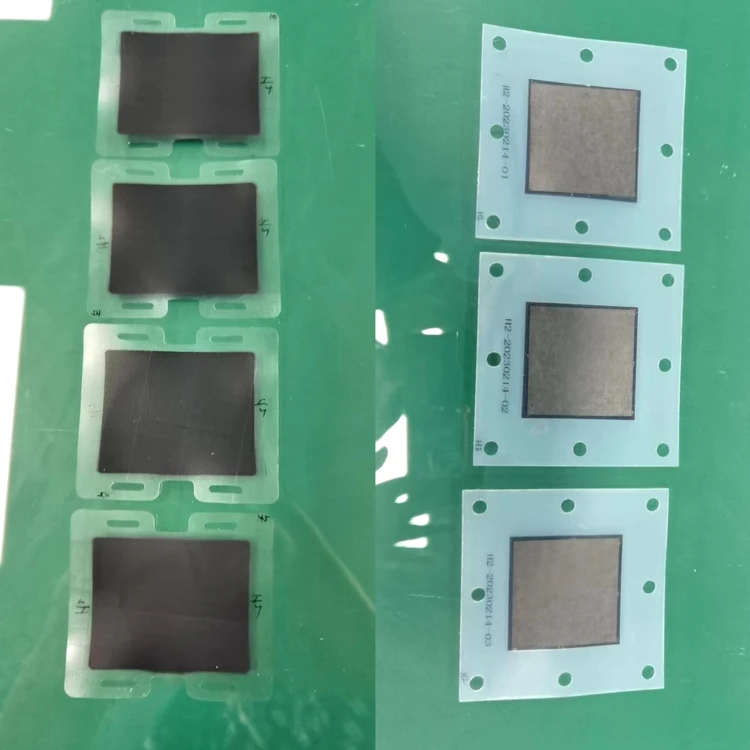

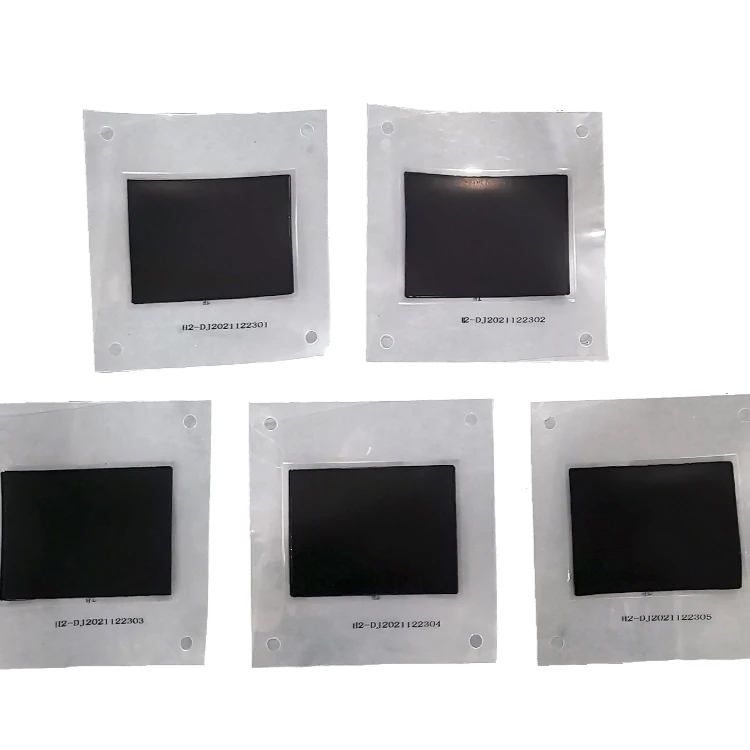

Customized Membrane Electrode
Electrolyzer Structure
PEM Electrolyze Cell
PEM electrolyze is typically composed of end plate, diffusion layer, catalyst layer and proton exchange membrane.
The role of end plate is to fix components, guide current and help distribution of water and gas.
The diffusion layer plays a role as current collector and promote gas-liquid transport.
The role of end plate is to fix components, guide current and help distribution of water and gas.
The diffusion layer plays a role as current collector and promote gas-liquid transport.
H2gatech-Structure diagram of PEM Electrolyze
The core of the catalyst layer is the Triple Phase Boundary (TPB) consisting of catalyst, electron and proton conduction medium, where the electrochemical reactions take place.
For higher hydrogen production rates, a PEM electrolyze is typically stacked with 5 to 100 cells in series.
For higher hydrogen production rates, a PEM electrolyze is typically stacked with 5 to 100 cells in series.

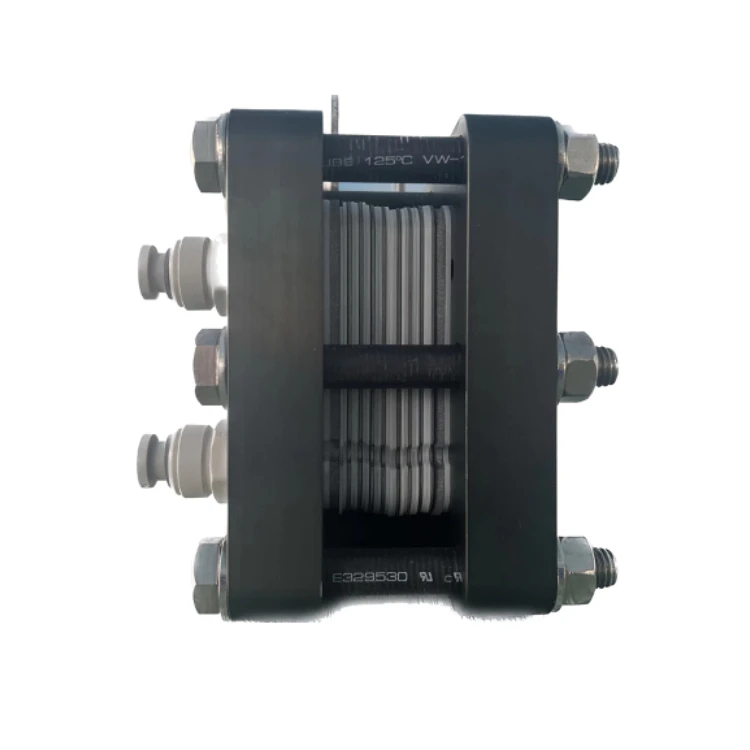

Electrolyzer Assembly
The electrolyzer adopts zero - distance structure to improve assembly efficiency and maintain strong sealing and low contact resistance.
The energy consumption of the electrolyzer has been greatly reduced with the overall efficiency increased from 73% to 84%.
The energy consumption of the electrolyzer has been greatly reduced with the overall efficiency increased from 73% to 84%.
Application showcase

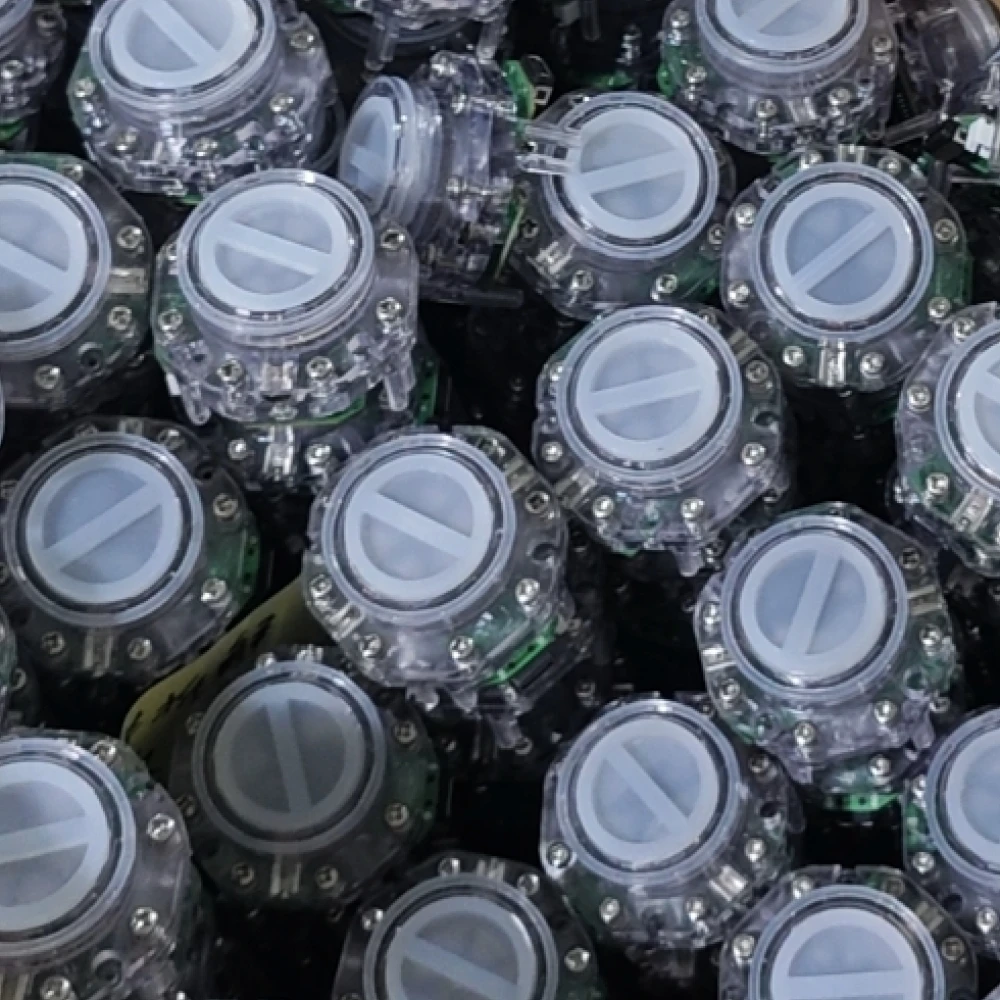

PEM（Proton Exchange Membrane） Electrolyzer
High Efficiency: PEM electrolysis cells typically exhibit higher electrochemical efficiency. Since they only allow protons to pass through while blocking hydroxide ions, they are often more efficient in producing hydrogen gas.
Low Electrolysis Load: Due to their high efficiency, PEM electrolysis cells typically require lower electrolysis loads to produce the same amount of hydrogen, which can reduce the energy cost.
Fast Response: PEM electrolysis cells offer quick startup and response times, making them suitable for applications that require rapid response.
Lower Operating Temperature: PEM electrolysis cells typically operate at lower temperatures, which can reduce energy consumption.
Smaller System Size: Because of their efficiency, PEM electrolysis cells can often be designed with smaller footprints, suitable for applications with limited space.
Low Electrolysis Load: Due to their high efficiency, PEM electrolysis cells typically require lower electrolysis loads to produce the same amount of hydrogen, which can reduce the energy cost.
Fast Response: PEM electrolysis cells offer quick startup and response times, making them suitable for applications that require rapid response.
Lower Operating Temperature: PEM electrolysis cells typically operate at lower temperatures, which can reduce energy consumption.
Smaller System Size: Because of their efficiency, PEM electrolysis cells can often be designed with smaller footprints, suitable for applications with limited space.
Certificate
Gatechn New Energy Technology (Shanghai) Co., Ltd. is primarily dedicated to the research, development, and manufacturing of hydrogen fuel cells, core materials, and critical components. We have applied for 25 fuel cell-related patents, with 5 of them granted.
Related Products
Company Introduction
We were established in 2019 with the participation of many industry experts.
We have established comprehensive cooperative relationships with many well-known domestic universities and research institutes to provide advanced technical knowledge and resource support for hydrogen fuel cell research and development. We have established a production and research base in Yangzhou, Jiangsu. Our company has brought together a team of seasoned engineering and technical experts with over 20 years of experience in the hydrogen energy industry, and we possess core technologies and processes for membrane electrodes, catalysts, and hydrogen fuel cell stacks. Our air-cooled stacks have been applied in various fields, including shared bicycles, delivery vehicles, tricycles, and sightseeing vehicles.
We have exported our products to countries and regions including the United States, Canada, Mexico, France, Spain, Chile, South Korea, Malaysia, India, and Taiwan, etc.
We have established comprehensive cooperative relationships with many well-known domestic universities and research institutes to provide advanced technical knowledge and resource support for hydrogen fuel cell research and development. We have established a production and research base in Yangzhou, Jiangsu. Our company has brought together a team of seasoned engineering and technical experts with over 20 years of experience in the hydrogen energy industry, and we possess core technologies and processes for membrane electrodes, catalysts, and hydrogen fuel cell stacks. Our air-cooled stacks have been applied in various fields, including shared bicycles, delivery vehicles, tricycles, and sightseeing vehicles.
We have exported our products to countries and regions including the United States, Canada, Mexico, France, Spain, Chile, South Korea, Malaysia, India, and Taiwan, etc.
