Optical Red Light 120m 3HZ Laser Ranging Sensor Industrial Laser Measure Distance Sensor RS485
- Category: >>>
- Supplier: Chengdu Meskernel Integrated Technology Co. Ltd.
Share on (1601218810262):
Product Overview
Description
Products Description

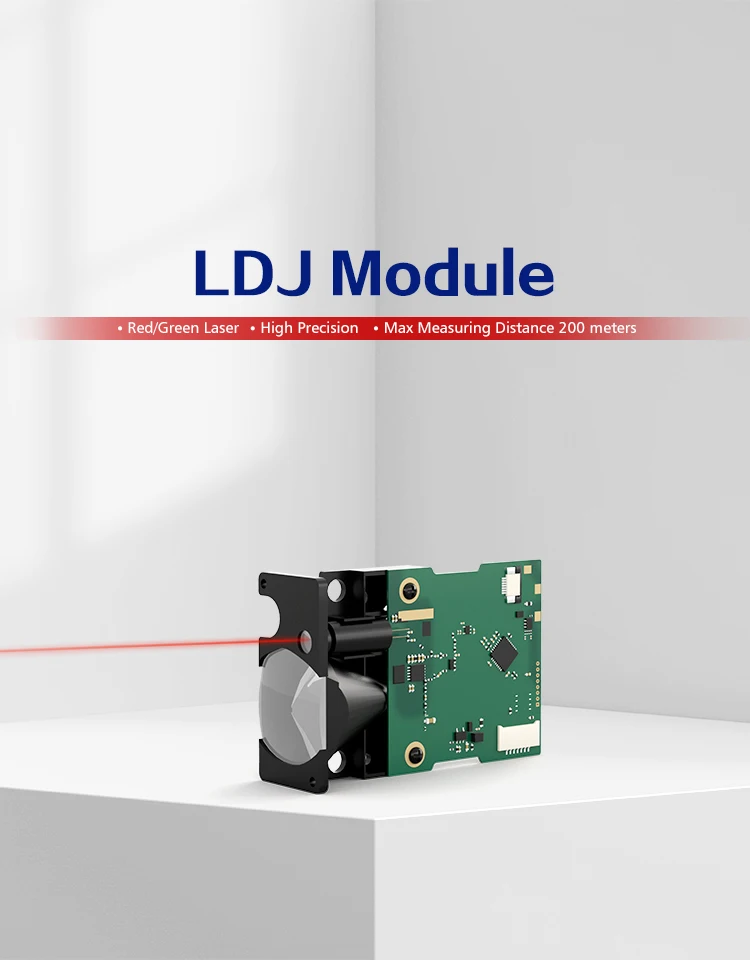

LDJ Module
The LDJ laser distance sensor represents a sophisticated sensing solution harnessing laser technology for precise distance measurement. Designed to facilitate secondary development and seamless data communication, it offers versatile compatibility with various communication interfaces including USB, TTL, RS232, RS485, and Bluetooth. Its customizable features include dual-color laser options—green and red—and selectable frequencies of 3Hz, 10Hz, and 20Hz, ensuring adaptability across diverse operational environments.
Product Parameters
Range Distance | 0.03-100m/120m/150m/200m |
Frequency | 3Hz/10Hz/20Hz |
Resolution | ±3mm |
Measuring Time | 0.05~4s |
Laser Type | 620nm~690nm, <1mW Red laser |
Laser Class | Class II |
Operating Temperature | 0~40℃ （32~104℉） |
Storage Temperature | -25~60 ℃ (-13~140 ℉) |
Power Consumption | <120mA@3.3V |

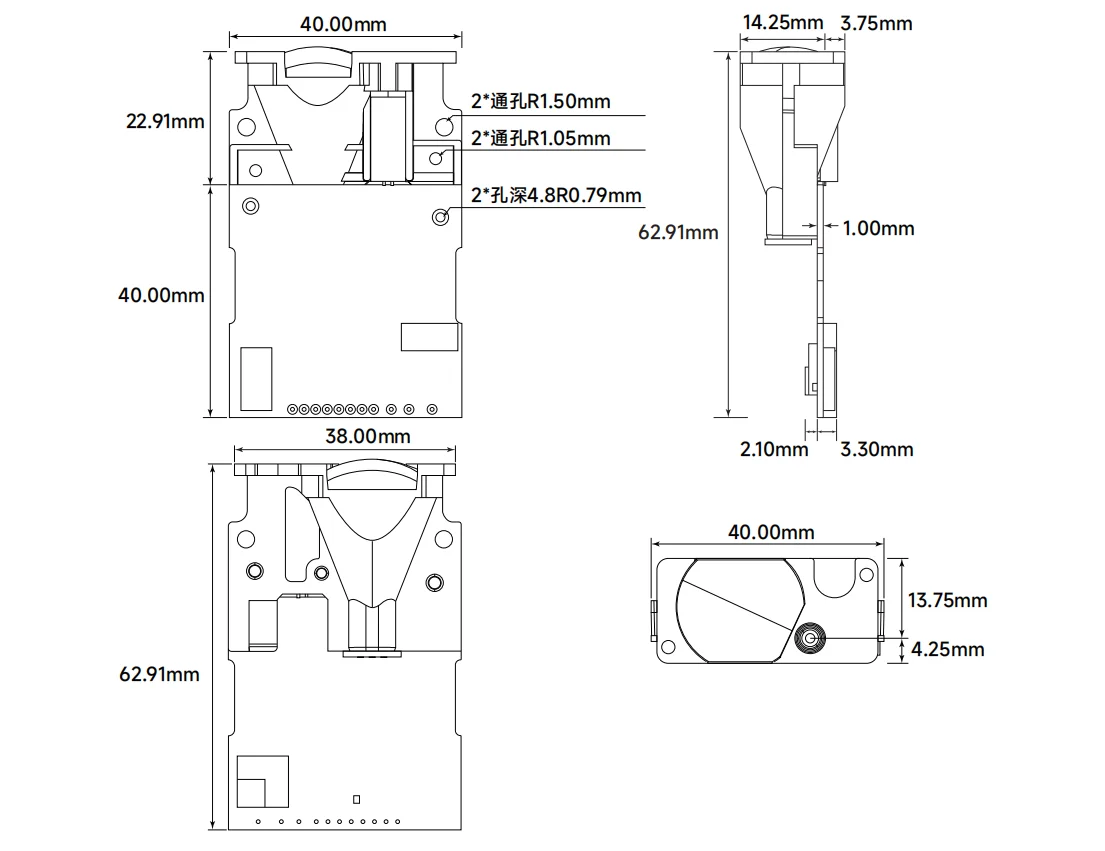

Size | 64*40*18mm |
Weight | 14g |
Data Interface | UART/RS232/RS485/Bluetooth |
Features
Equipped with both single measurement and continuous measurement modes, it boasts robust performance capable of sustaining 24-hour continuous operation. Widely deployed in Industrial Automation, Intelligent Warehousing, Rail Transportation, and engineering measurement systems, the LDJ laser distance sensor embodies cutting-edge functionality tailored to demanding professional applications.
Product Details

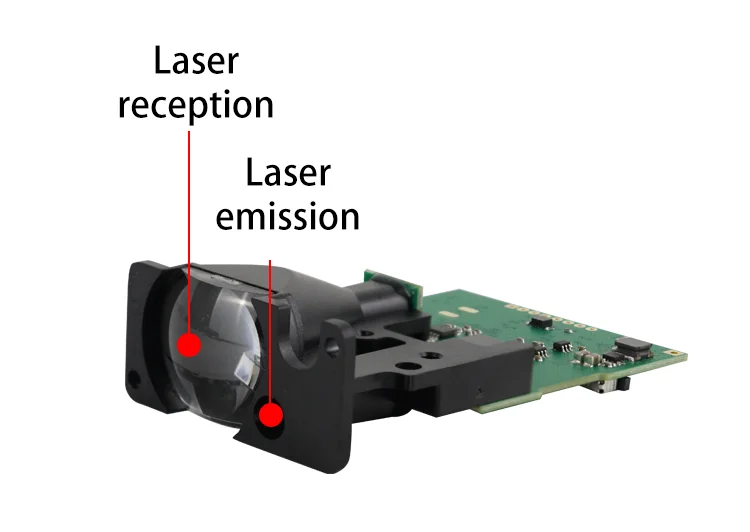

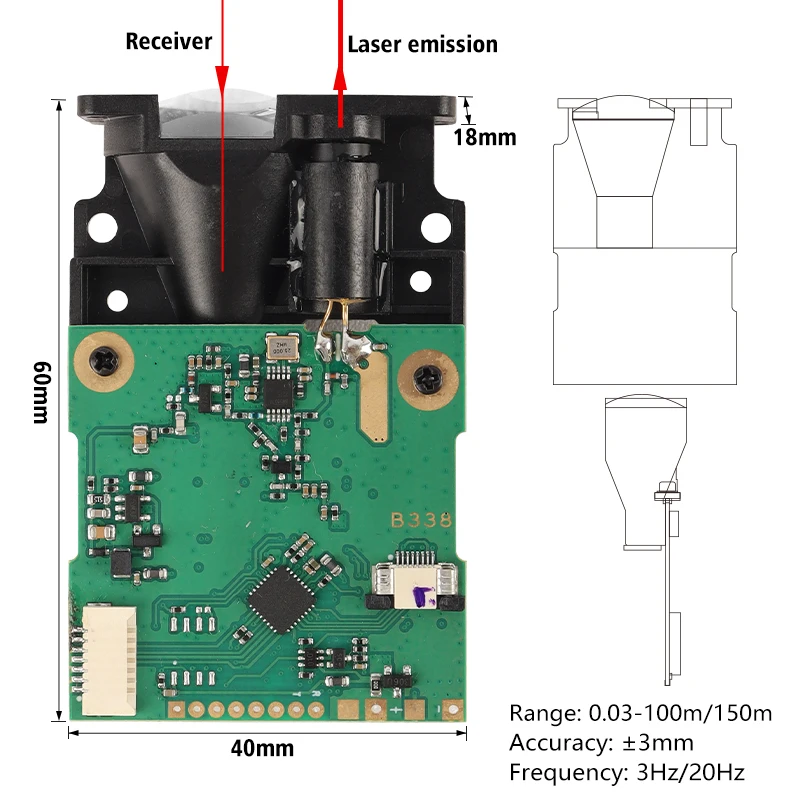

Laser Emisson And Reception
The diode emits a laser, receives the laser through an optical lens, and converts the light signal into an electrical signal.
Communication Port

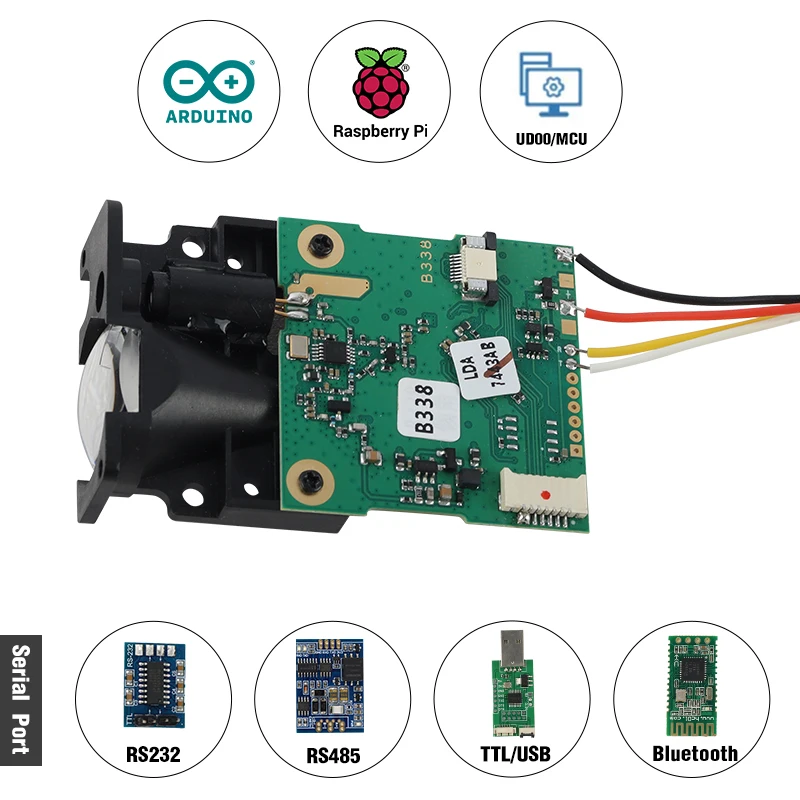

LDJ Laser Distance Measuring Sensor supports USB, TTL, RS232, RS485, Bluetooth and other communication interfaces, supports Arduino, Raspberry PI and other external devices.

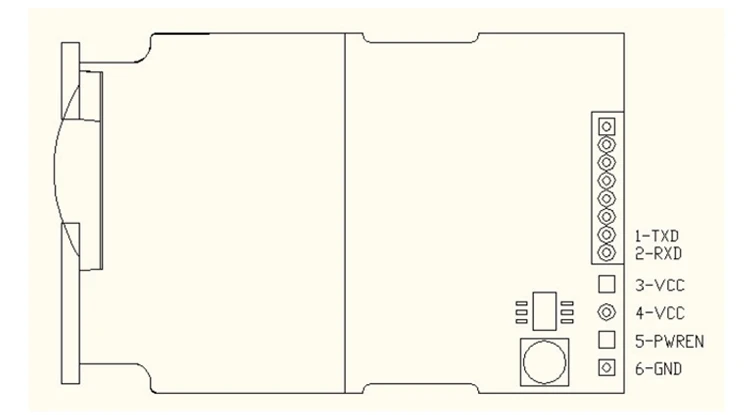

Interface Definition
We will provide comprehensive pin labeling and definitions for our customers, and our team of professional engineers will be available to assist and guide you through the soldering process.

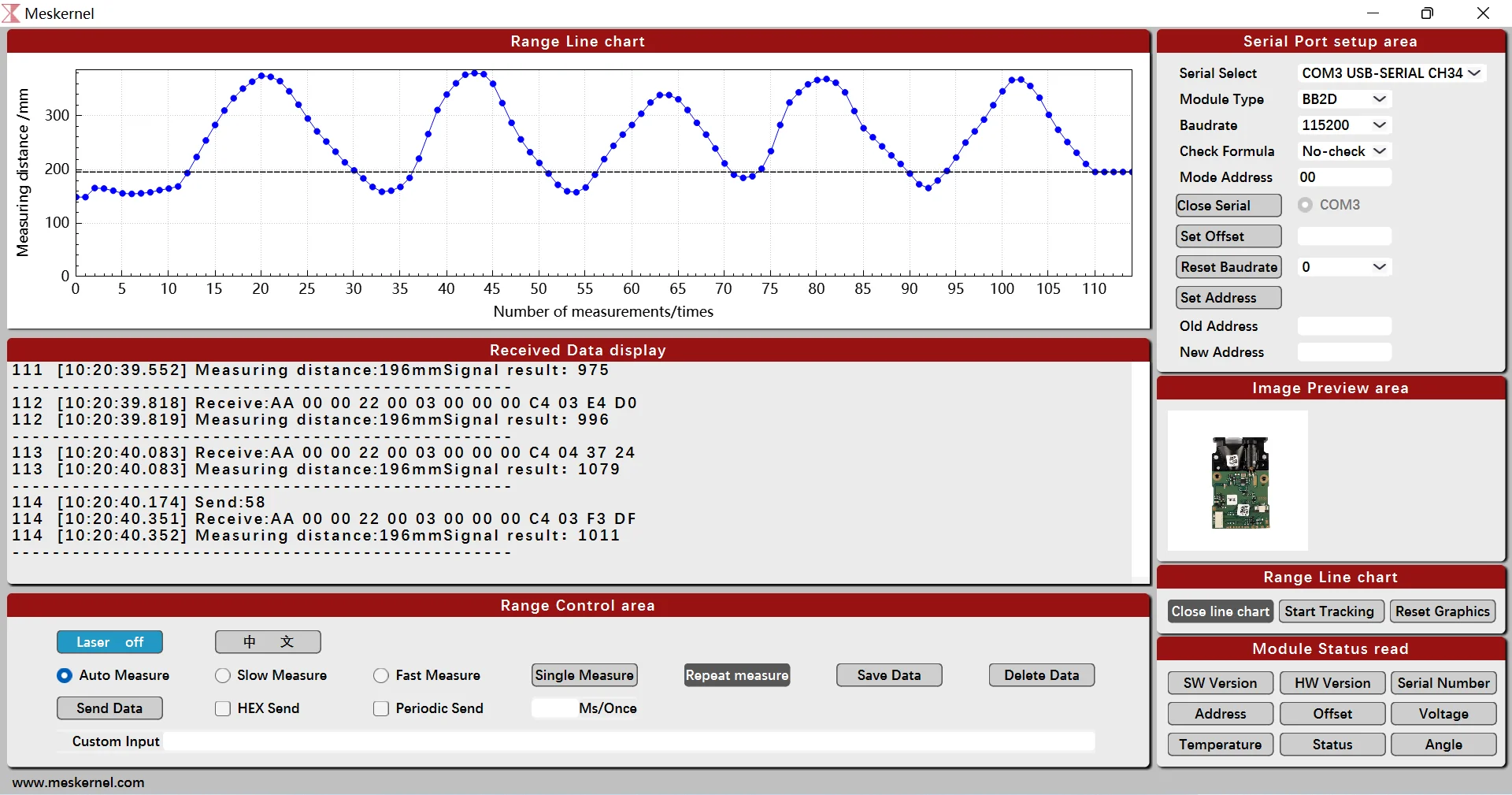

Test Software Platform
We possess proprietary software testing tools that interface with the computer via distance measurement technology.
Application
The robot can measure the distance of obstacles ahead to achieve intelligent obstacle avoidance. At present, it is widely used in service industry
