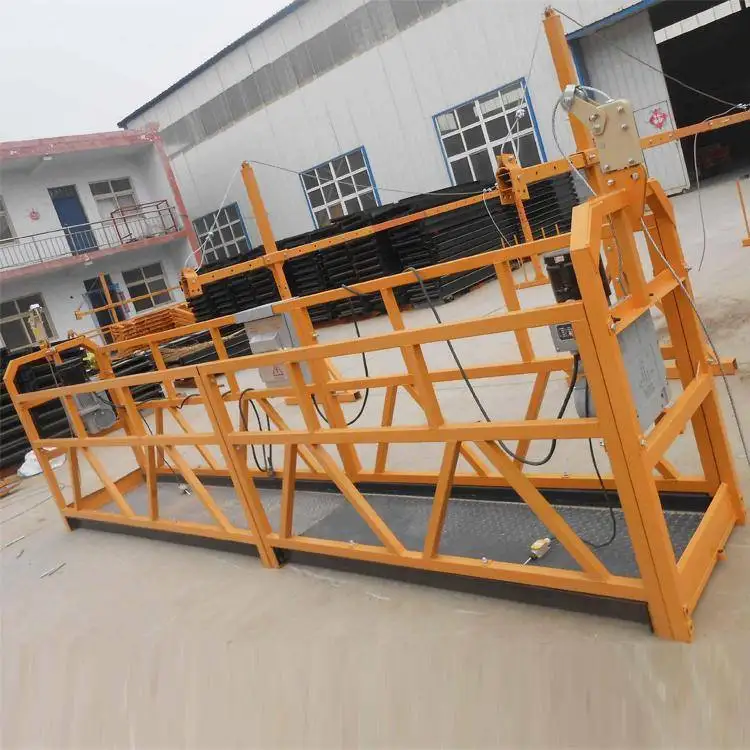

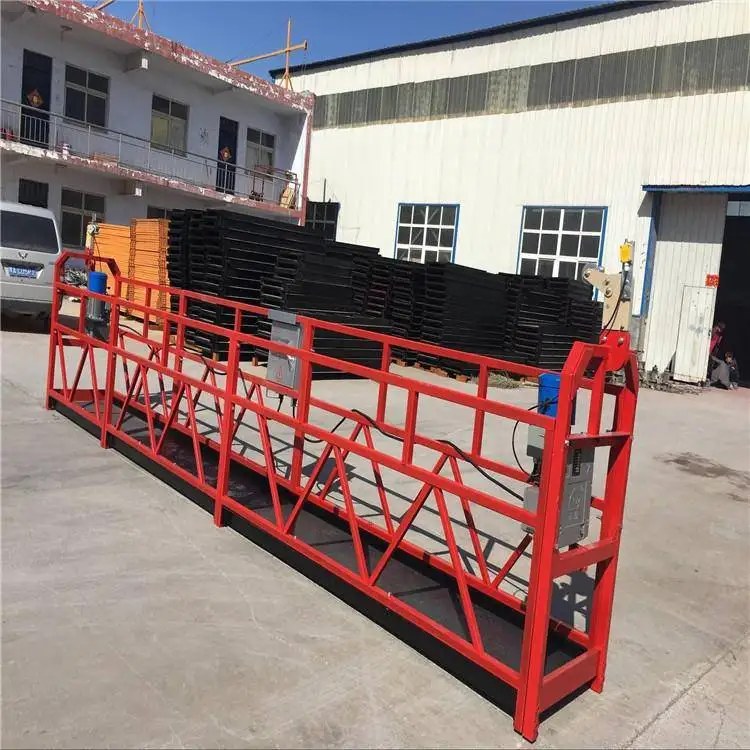

Load Capacity 500kg Electric Moted Suspended Working Platform Raised Maintenance Platform
- Category: >>>
- Supplier: Shanghai Power Engineering Machinery Co. Ltd.
Share on (1601219012437):
Product Overview
Description
Products Description
Parameters of Painting ZLP500 Suspended Platform | ||
1. Rated Load | 500KG | |
2. Lifting speed | 9.3m/min | |
3. Lifting height | 50m | |
4. Hoist | LTD5.0 | |
4.1 Voltage-3 Phase | 380V(415V/220V) | |
4.2 Frequency | 50Hz/60Hz | |
4.3 Power | 1.5kwx2 | |
5. Safety Lock | LSG20 | |
6. Electric Control Cabinet Components | Schneider or CHNT | |
7. Platform Sise (LxWxH) | (2.5+2.5)x0.69x1.18m | |
8. Steel Wire Rope | 4pcsx100m 4x31SW+FC D=8.3mm | |
9. Special Cable | (3x2.0+2x1.0mm2) 100m | |
10. Suspended Jibs | 340kg | |
11.Lifting Parts Weight | 410kg(Steel) 290kg(Aluminum) | |
12.Counter Weight | 750kg | |
13.Qty of 20" Container | 10 sets | |
1. Working Platform: Steel Q235 + Painting; Q235 + Galvanised; Aluminum Alloy + Painting;
1.1 Working Platform is the workplace at heights for the workers.
1.2 Size of platform can be adjusted from 1.0m, 1.5m, 2m, 2.5 meter or 3m etc depending upon the needs of your building
1.3 With Bottom Wheel fitted underneath, the platform is easy to move.
1.1 Working Platform is the workplace at heights for the workers.
1.2 Size of platform can be adjusted from 1.0m, 1.5m, 2m, 2.5 meter or 3m etc depending upon the needs of your building
1.3 With Bottom Wheel fitted underneath, the platform is easy to move.
2. Suspension Mechanism: Steel Q235 + Painting; Q235 + Galvanised;
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.
3. Components:

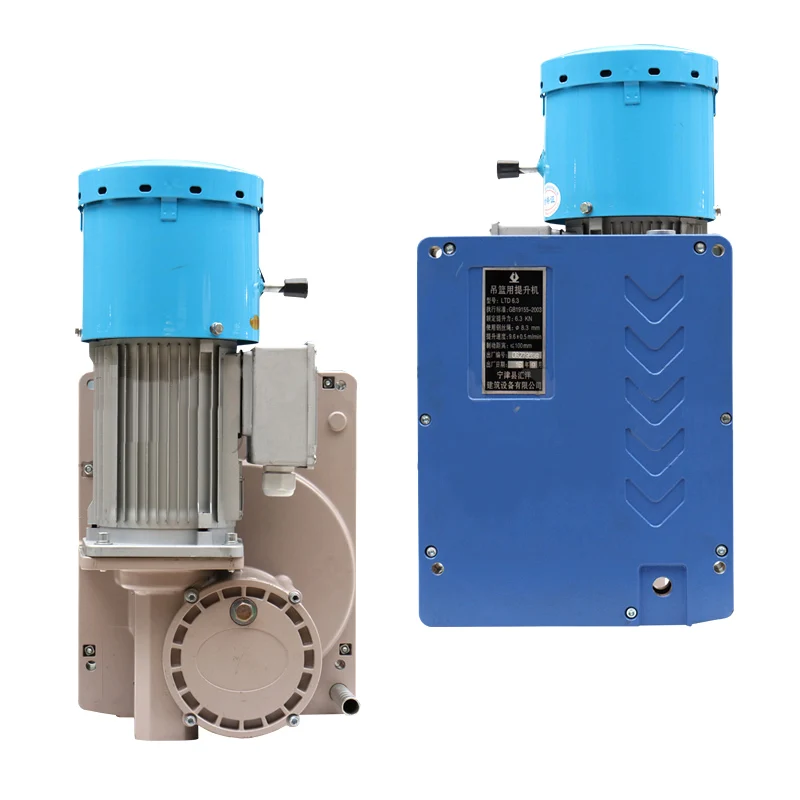

LTD6.3 Hoist: 1.5kw, 2 sets;
LSD20 Safety Lock: 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, 3x2.5+2x1.5mm sq;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.
LTD6.3 Hoist: 1.5kw, 2 sets;
LSD20 Safety Lock: 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, 3x2.5+2x1.5mm sq;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.

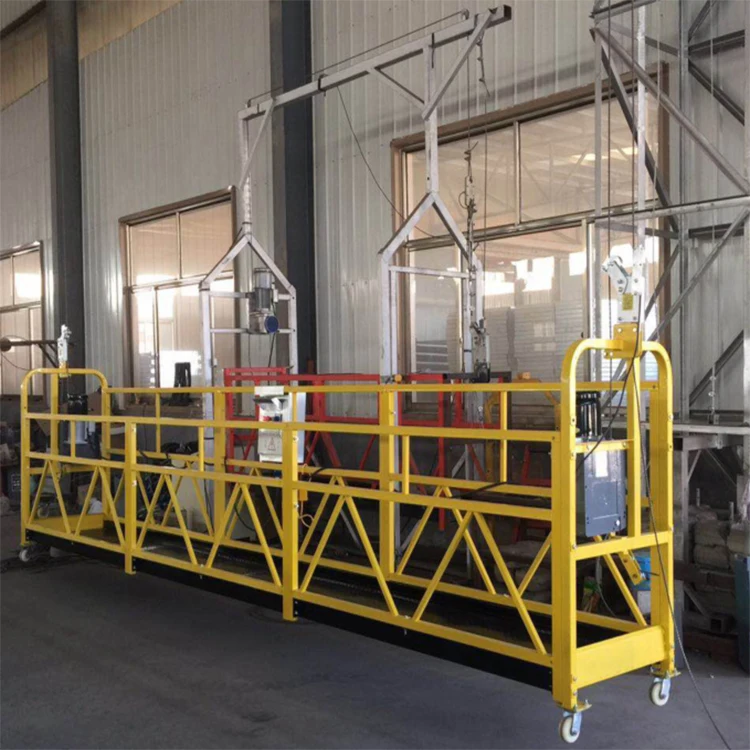

Product display

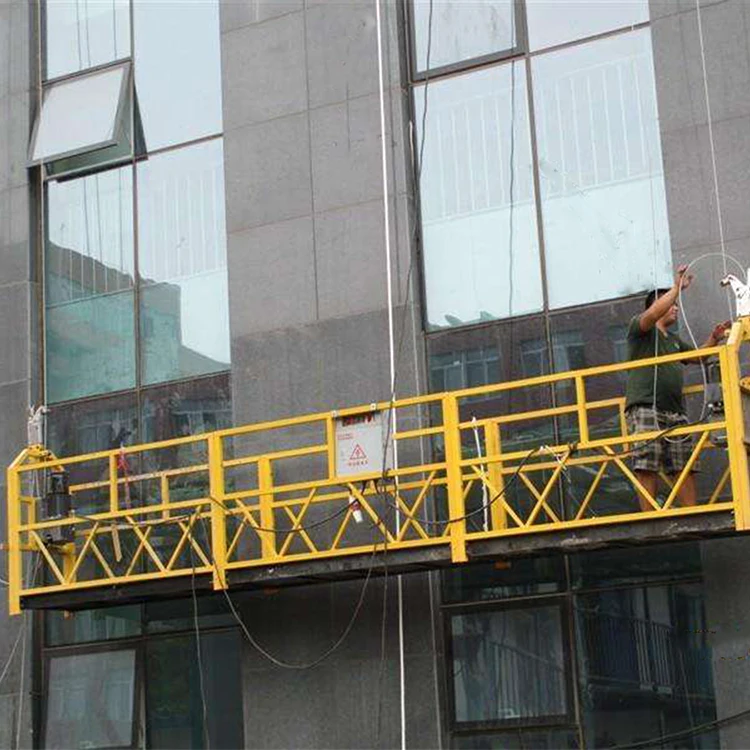

Successful Case
Our Construction gondola for window cleaning machine suspended platform have exported to more than 20 countries with good feedback from customers. We supply site access solutions according to different construction solution.
Technological process
Packing&Delivery
FAQ
1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity, material, painting coat or galvanzied, voltage,with counterweight or not and price terms.
2. Features for Steel Platform with Plastic coating finish?
Color plastic spraying on platform surface with comptitive price compared with the aluminum alloy and hot dip gavalnized surface.----
Hot dip galvanized steel platform with good anti corrosion and Lower price than aluminum alloy platform.
3. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.
4. What payment terms do you accept?
T/T, L/C, Alibaba trade.
5. Product quality assurance and after-sales service?
One Year Quality Warranty And Life-time Technical Support. If any parts get damaged because of quality within 12 months after
shipping date. We will send new parts to replace right away.
6. Can you make suspended platform with our brand?
Yes.
7. How you arrange shipment?
By Sea/By Train/By Air or By Express,15-20days Against Deposit.
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity, material, painting coat or galvanzied, voltage,with counterweight or not and price terms.
2. Features for Steel Platform with Plastic coating finish?
Color plastic spraying on platform surface with comptitive price compared with the aluminum alloy and hot dip gavalnized surface.----
Hot dip galvanized steel platform with good anti corrosion and Lower price than aluminum alloy platform.
3. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.
4. What payment terms do you accept?
T/T, L/C, Alibaba trade.
5. Product quality assurance and after-sales service?
One Year Quality Warranty And Life-time Technical Support. If any parts get damaged because of quality within 12 months after
shipping date. We will send new parts to replace right away.
6. Can you make suspended platform with our brand?
Yes.
7. How you arrange shipment?
By Sea/By Train/By Air or By Express,15-20days Against Deposit.
