Epever 30a Mppt Solar Charge Controller with Lithium Battery Self Activating Function for Solar Battery System for Yachts
- Category: >>>
- Supplier: HK Ecopower Co. LimitedHK Limited
Share on (1601219027782):
Product Overview
Description
Products Description
Overview
Tracer-BP series adopts advanced MPPT (Maximum Power Point Tracking) charging methods which will results in up to 30% charging efficiency increase compared with the PWM charge controllers. The RS485 interface with standard MODBUS communication protocol and 5V,150mA power supply makes it easy for the customer to expand the application. With the accessories like MT50, WiFi module, Bluetooth adapter, IoT module, users can realize remote monitoring and controlling the solar system via app and cloud platform.
Features
* MPPT（maximum power point tracking）charging
* MPPT（maximum power point tracking）charging
* Support lead-acid and lithium-ion batteries
* Lithium battery self-activating function
* Multi load control mode
* Extensive electronic protections
* RS 485 communication, support IoT monitoring
* IP68 Ingress protection(1.5 meters, 72h)

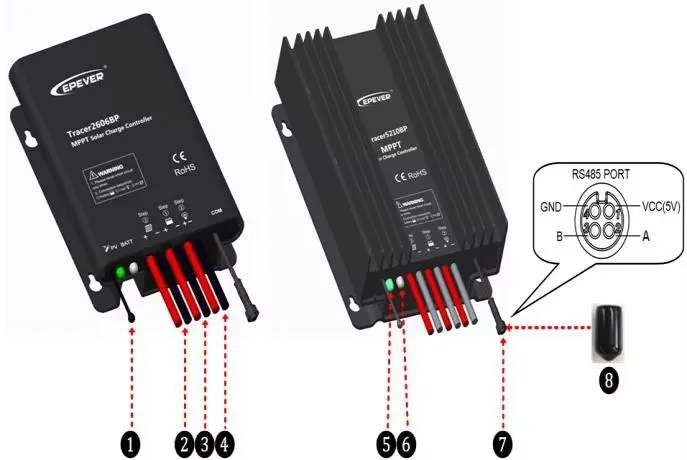

Characteristics | ||||||
① | Temperature Sensor⑴ | ⑤ | Charging Status LED indicator | |||
② | PV Positive and Negative Wires | ⑥ | Battery Status LED indicator | |||
③ | Battery Positive and Negative Wires | ⑦ | RS485 waterproof port⑵ | |||
④ | Load Positive and Negative Wires | ⑧ | Waterproof cap(Included) | |||
⑴ If the temperature sensor is short-circuited or damaged, the controller shall be charging or discharging at the default temperature of 25ºC. | ||||||
⑵ The port can provide a DC power supply of 5VDC/150mA and own the short circuit function. | ||||||

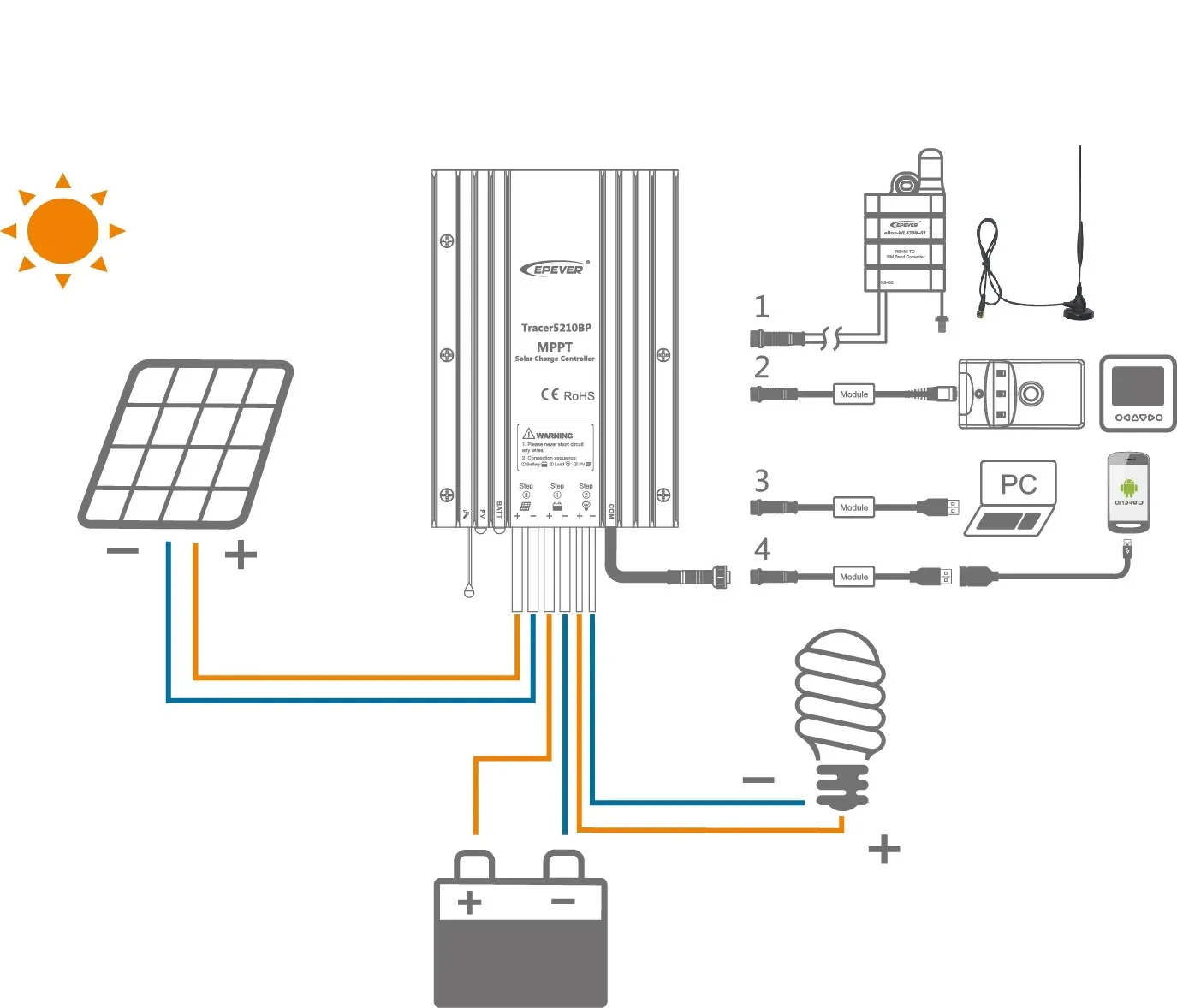

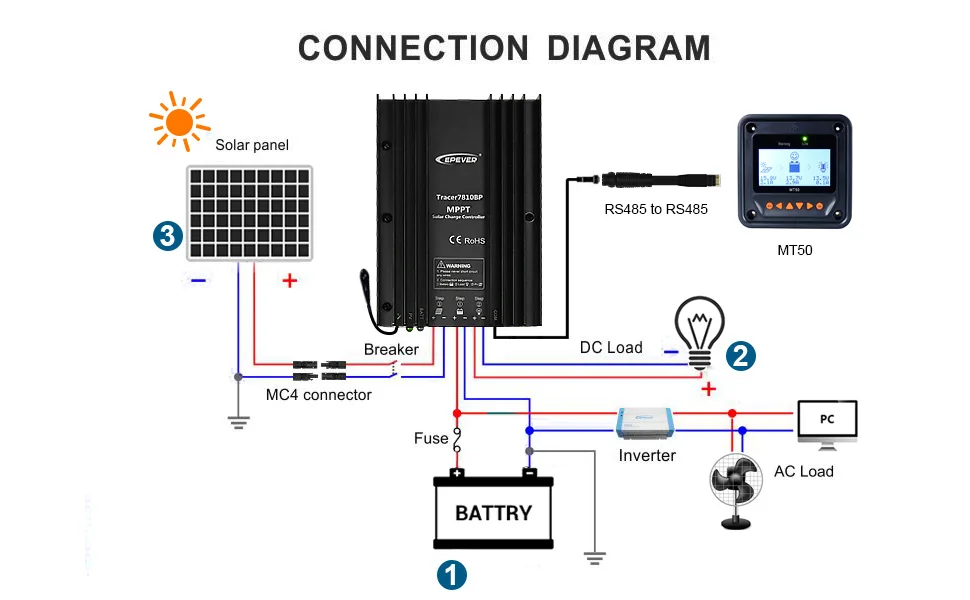

Wiring | ||||||||
Technical Specifications | ||
Model | Tracer7810BP | |
Nominal system voltage | 12/24VDC Auto( Lithium battery cannot automatically identify system voltage) | |
Battery input voltage range | 8.5～32VDC | |
Rated charge/ discharge current | 30A | |
Rated charge power | 390W/12V; 780W/24V | |
Max. PV open circuit voltage | 100V( at minimum operating environment temperature ） 92V( at 25℃ environment temperature ) | |
MPP Voltage rangeBattery Type | ( Battery voltage+2V)～72V | |
Battery Type | LiFePO4/ Li-NiCoMn/Lead-acid battery/Sealed(Default) / Gel / Flooded/User | |
Equalize Charging Voltage | Sealed :14.6V, Gel：No, Flooded:14.8V, User:9-17V (×2/24V) | |
Boost Charging Voltage | Sealed :14.4V, Gel：14.2V, Flooded:14.6V, User:9-17V (×2/24V) | |
Float Charging Voltage | Sealed/Gel/Flooded:13.8V, User:9-17V (×2/24V) | |
Low Voltage Reconnect Voltage | Sealed/Gel/Flooded:12.6V, User:9-17V (×2/24V) | |
Low Voltage Disconnect Voltage | Sealed/Gel/Flooded:11.1V, User:9-17V (×2/24V) | |
Boost Charging Voltage | LiFePO4:14.5V, Li-NiCoMn:12.5V, User:9-17V (×2/24V) | |
Low Voltage Reconnect Voltage | LiFePO4:12.8V, Li-NiCoMn:10.5V, User:9-17V (×2/24V) | |
Low Voltage Disconnect Voltage | LiFePO4:11.1V, Li-NiCoMn:9.3V, User:9-17V (×2/24V) | |
Self-consumption | ≤13mA/12V; ≤11.5mA/24V | |
Temperature compensation coefficient | -3mV/℃/2V( Lithium battery don't have temperature compensation coefficient) | |
Communication | RS485 | |
Environment Temperature | -40℃〜+50℃ | |
Enclosure | IP68 | |

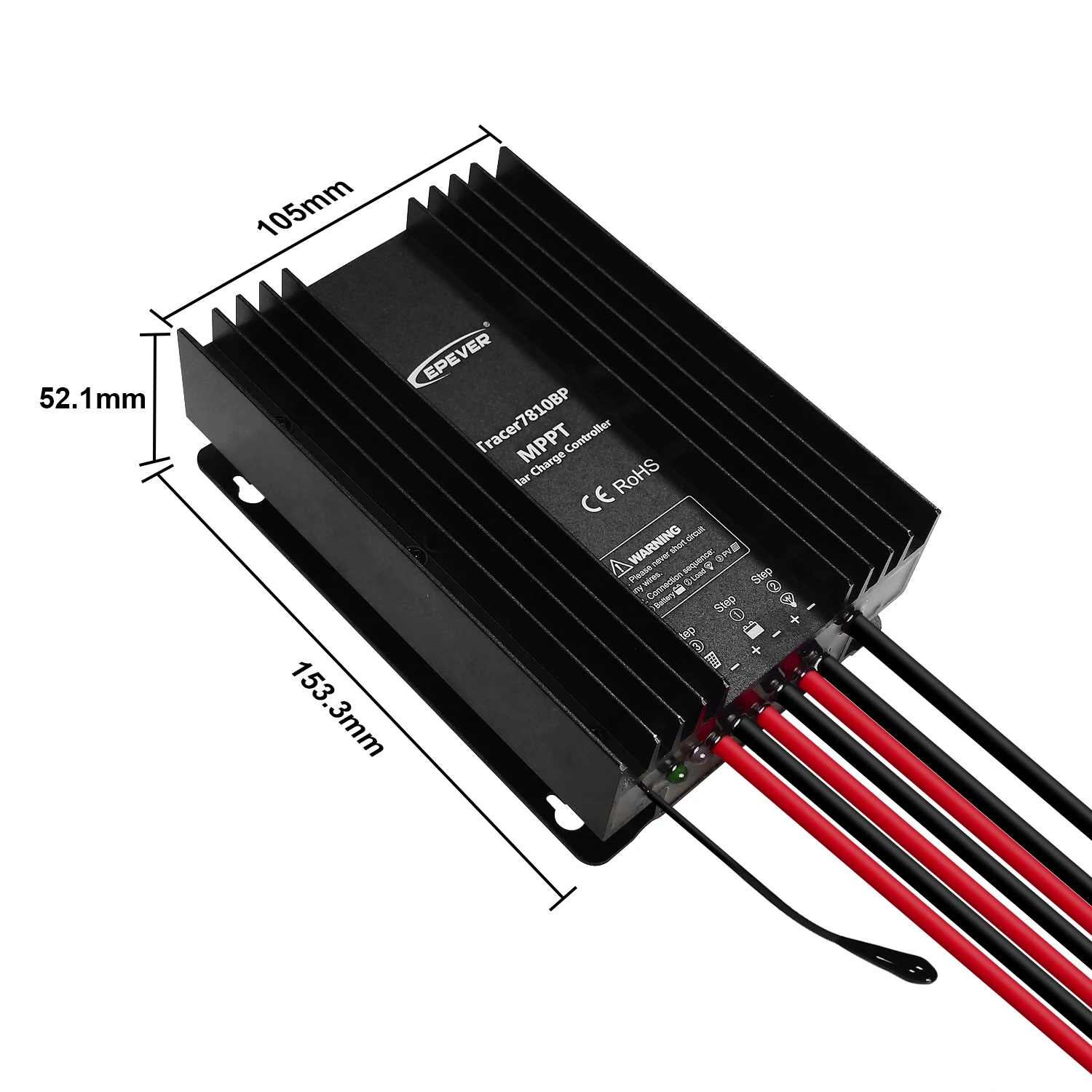

Overall dimension | 153.3×105×52.1 mm | |
Mounting hole size | Φ3.5mm | |
Mounting size | 120×94mm | |
Power cable | 10AWG(6mm2) | |
Net weight | 1.26kg | |
