Ecotec Atex Coriolis Mass Flow Meter High Accuracy Meter for LPG Dispenser
- Category: >>>
- Supplier: Wenzhou Ecotec Energy Equipment Co. Ltd.
Share on (1601219067090):
Product Overview
Description
Products Description

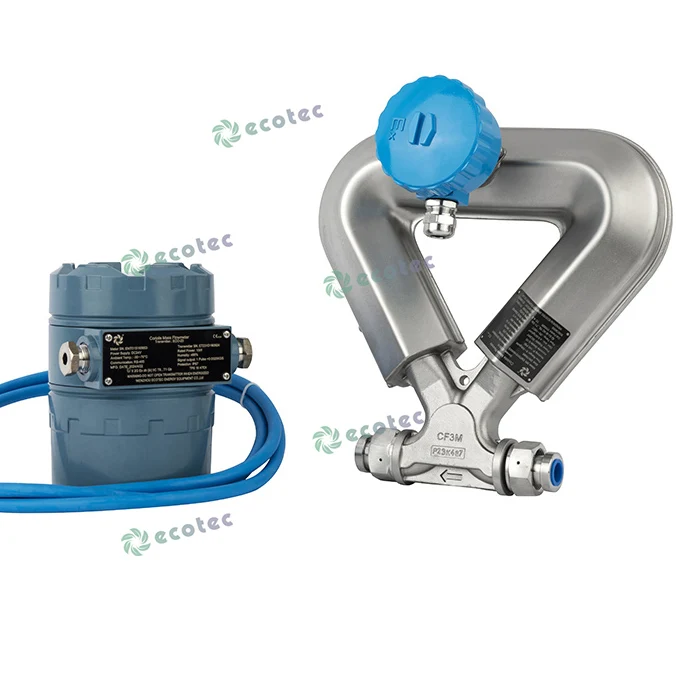

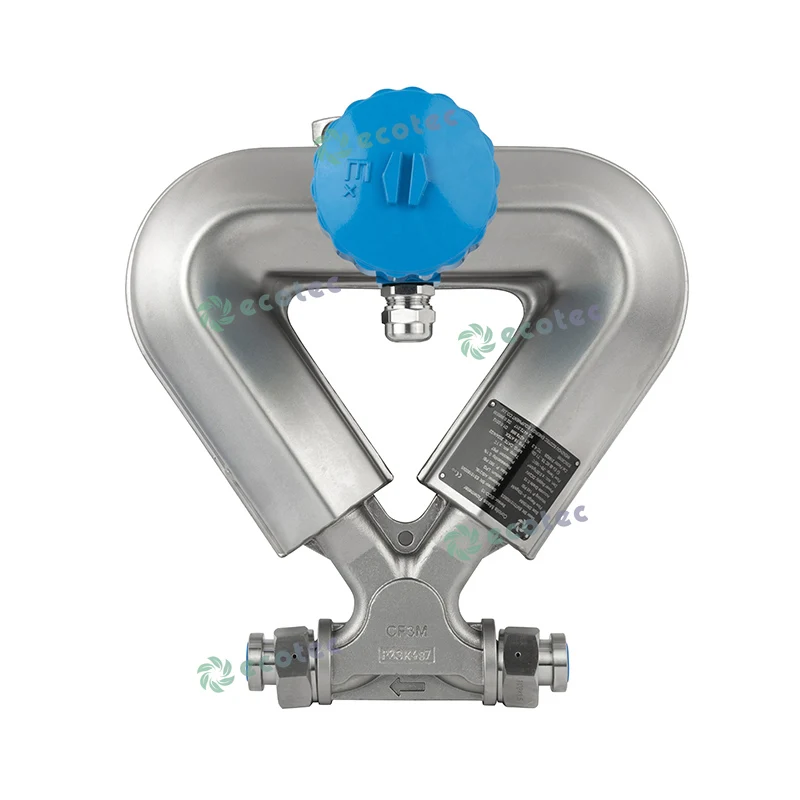

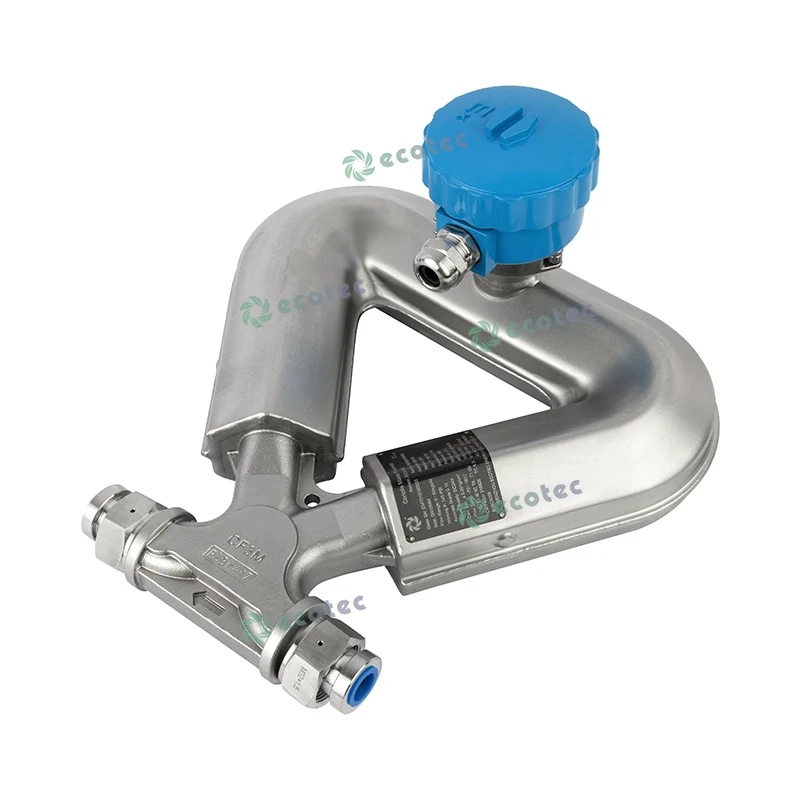

Ecotec Mass Flow Meter Coriolis Meter
Contact Alisa:+8617357789305
Portable Coriolis Flow Meter Detailed Configuration List | ||||||||
Electronic Components | 1 | Mechanical Components | ||||||
Max Flow Rate: | 12t/h | 3 | Repeatability: | 0.05%/ 0.075%/ 0.1%/ 0.25% | ||||
Nominal Diameter: | 25mm(1inch) | 4 | Certificates: | TATEX, IECEx, SIL, CE | ||||
Liquid Accuracy: | ±0.1%/ ±0.15%/ ±0.2%/ ±0.5% | 5 | Ingress protection: | IP67 | ||||
Gas accuracy: | ±0.5% | 6 | Warranty: | 2 years | ||||
MWP.: | 4MPa | 7 | Packing: | 1set/ Carton | ||||
Density accuracy: | 0.002g/cm3 | 8 | Package size: | 665*645*320mm | ||||
Temperature accuracy: | ±1°C ± 0.5% of reading | 9 | 23KGG.W.: | Equipped | ||||
Zero stability: | 0.62kg/h | 10 | Wetted parts: | Stainless steel 316L | ||||
Sensor housing | Stainless steel 304 | Fluid temp: | -70°C~+160°C/ -200~+60ºC/ -40~+300ºC | |||||
- Ecotec Design & Manufacture
Model available from 1 nozzle to 8 nozzle, max 2 nozzle per side can work at the same time, available for both submersible and suction type.Available Tatsuno /Tokheim /Bennett/LPG/AdblUe/ CNG Dispenser, as well as for DC EV charger
- Ecotec Smart Dispenser Controller
Ecotec smart controller is durable and statble, and it can work with FuelPlus+ station management system.
Function List
Easy operationLessmaintenance
Stable and accurate
Wide range of power supply
Varies of keyboard and display board to meet different market
Many special function for different area use
Self diagnostics with error code
Working with FuelPlus+ station management system
- Optional Keypad and Display Board
Ecotec offer more options for customer, below is some of our options, contact seller for more type
- Both Suction and Submersible type available.
Ecotec also accept customization, send us the type you prefer!
Suction Model
(Tatsuno Type)
Suction Model
(Tokheim Type)
Submersible Model
（Paper/Metal filter option)
FuelPlus+ Station Management System
- Oil depot, oil tanker trailer, Fuelplus can manage the fuel dispenser, ATG, LED price boardand other device by means of Rs485, Rj45, Lora,wifi,4G/3G and GRPS with database on doudorlocal basis
- Available on PC, Laptop, Cell phone both i0S and android, as well as other paymentterminal(POS)
- Fuelplus can set upcenter database to control and monitor all fleet stations, every stationcan have local management system to control the fuel dispenser, ATG,LED price, every fueldispenser can install POS terminal, IC card reader, lD card reader to achieve self-service,every ATG can linked to fuelplus timely
- Fuelplus also can work as single station or single dispenser, also container station solution,you can install the application on can smart control screen or POS to achieve the control.itcan working without any PC
- Fuelplus also can work as single station or single dispenser, also container station solution,you can install the application on can smart control screen or POS to achieve the control.itcan working without any PC
Products Specifications
Standard Model List | ||||||||||
Dispenser | Model | Product/Pump | Flow Meter /Nozzle /Hose | Display | Flow rate LPM | |||||
Suction type | A112S | 1 | 1 | 2 | 50L/M | |||||
A122S | 1 | 1 | 2 | 45L/M | ||||||
A224S | 2 | 2 | 4 | 50L/M | ||||||
A112R | 1 | 1 | 2 | 50L/M | ||||||
Submersible type | A122R | 1 | 1 | 2 | 45L/M | |||||
A224R | 2 | 2 | 4 | 50L/M | ||||||
Nozzle number, product number ,flow rate all can be customized, contact for more details | ||||||||||
Specification | ||||
Pump | Type | Optional (tatsuno, tokheim, bennett, submersible) | ||
Inlet Pressure | ≥54kPa. | |||
Flow rate (L/min. ) | 55±5 | |||
Suction Distance (m) | 6(vertical meter) / 50(horizontal meter) | |||
Type | Optional | |||
Accuracy | ±0.2% | |||
Voltage(V) | 110V/220V/380V, 50Hz/60Hz | |||
Capacity(HP) | 1HP(0.75kw) | |||
Input Voltage | 110V/220V/380V, 50Hz/60Hz | |||
Nozzle | Auto Shut-off Nozzle | |||
Environmental Condition | -40ºC~~+55ºC | |||
Control Type | Solenoid Vale Control Type | |||
Preset | Function Provided(Small LCD Indicator) | |||
Display(Counter) | Type | LCD and Bright Backlight | ||
Digit of Volume | 0~~999, 999(6 Digits), Decimal point can be changed | |||
Digit of Amount | 0~~999, 999(6 Digits), Decimal point can be changed | |||
Digit of Unit price | 0~~9999(4 Digits), Decimal point can be changed | |||
Digit of Total Range | 0~~99, 999, 999, 99 | |||
Type | LCD and Bright Backlight | |||
Digit of Volume | 0~~99, 999, 999(8 Digits), Decimal point can be changed | |||
Digit of Amount | 0~~99, 999, 999(8 Digits), Decimal point can be changed | |||
Digit of Unit price | 0~~999999(6 Digits), Decimal point can be changed | |||
Digit of Total Range | 0~~99, 999, 999, 99 | |||
Totalizer | 1~~9, 999, 999 | |||
Hose | 10m | |||
Weight | 90kg | |||
Dimension(L×W×H) | 800*600*600 | |||
Company Profile
WENZHOU ECOTEC ENERGY EQUIPEMNT CO., LTD. as a professional supplier of petroleum equipment, energy device, can offer customer the better products with better price.
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can offer package service from design, manufacturing, delivery to after-sale service, and we have exported to over 60 countries now, also have agent in Africa, Middle East, Asia and South American countries.
Customers and dedication are the standards we adhere to, so we will always focus on customers need, and struggle for it. Looking forward to cooperate with you!
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can offer package service from design, manufacturing, delivery to after-sale service, and we have exported to over 60 countries now, also have agent in Africa, Middle East, Asia and South American countries.
Customers and dedication are the standards we adhere to, so we will always focus on customers need, and struggle for it. Looking forward to cooperate with you!
Exhibition
Ecotec frequently participate in exhibitions around the world to strengthen contact with customers and provide better services.
Certifications
Ecotec produce products with higher standards than the industry and have been certified by relevant institutions and have a variety of certificates.
Packaging & Shipping
Ecotec accept air, ocean, and land shipping, and will choose the most suitable packaging for you according to the shipping
transportation.
transportation.
FAQ
1. Who are we?
We are based in Zhejiang, China, start from 2019,sell to Africa(30.00%),Eastern Asia(25.00%),Mid East(20.00%),South
America(5.00%),Southeast Asia(5.00%),South Asia(5.00%),North America(5.00%),Oceania(3.00%),Central America(2.00%). There are total about 100 stuff in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; always final Inspection before shipment; quick respond after sale and full life tech support.
3.What can you buy from us?
FUEL DISPENSER, FUEL STATION EQUIPMENT LPG TANK, LPG SKID, SUBMERSIBLE PUMP, CONTAINER STATION.
4. Why should you buy from us not from other suppliers?
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price. Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese, Arabic
We are based in Zhejiang, China, start from 2019,sell to Africa(30.00%),Eastern Asia(25.00%),Mid East(20.00%),South
America(5.00%),Southeast Asia(5.00%),South Asia(5.00%),North America(5.00%),Oceania(3.00%),Central America(2.00%). There are total about 100 stuff in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; always final Inspection before shipment; quick respond after sale and full life tech support.
3.What can you buy from us?
FUEL DISPENSER, FUEL STATION EQUIPMENT LPG TANK, LPG SKID, SUBMERSIBLE PUMP, CONTAINER STATION.
4. Why should you buy from us not from other suppliers?
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price. Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese, Arabic
