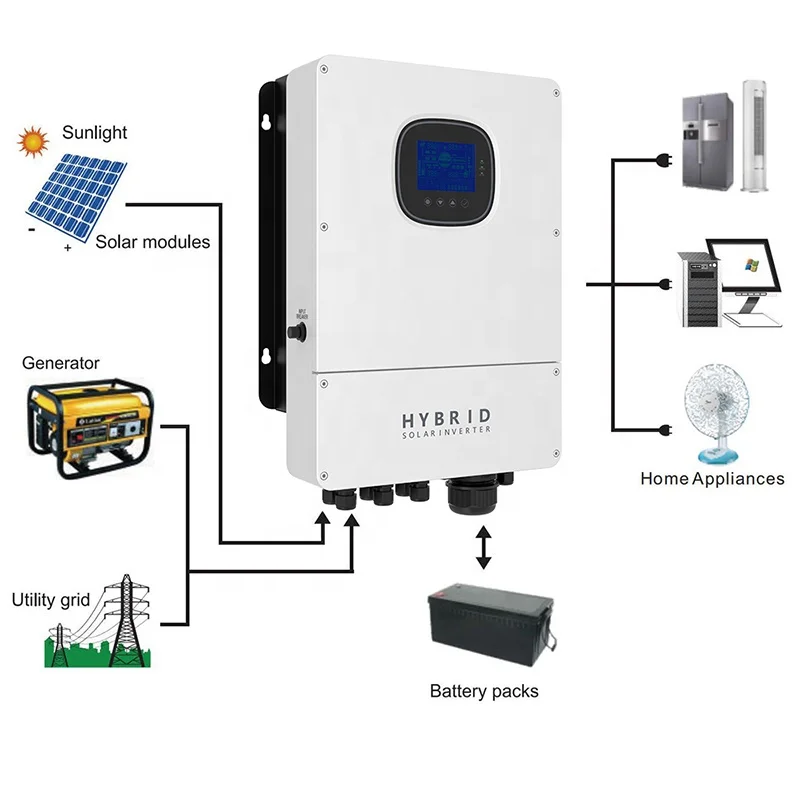

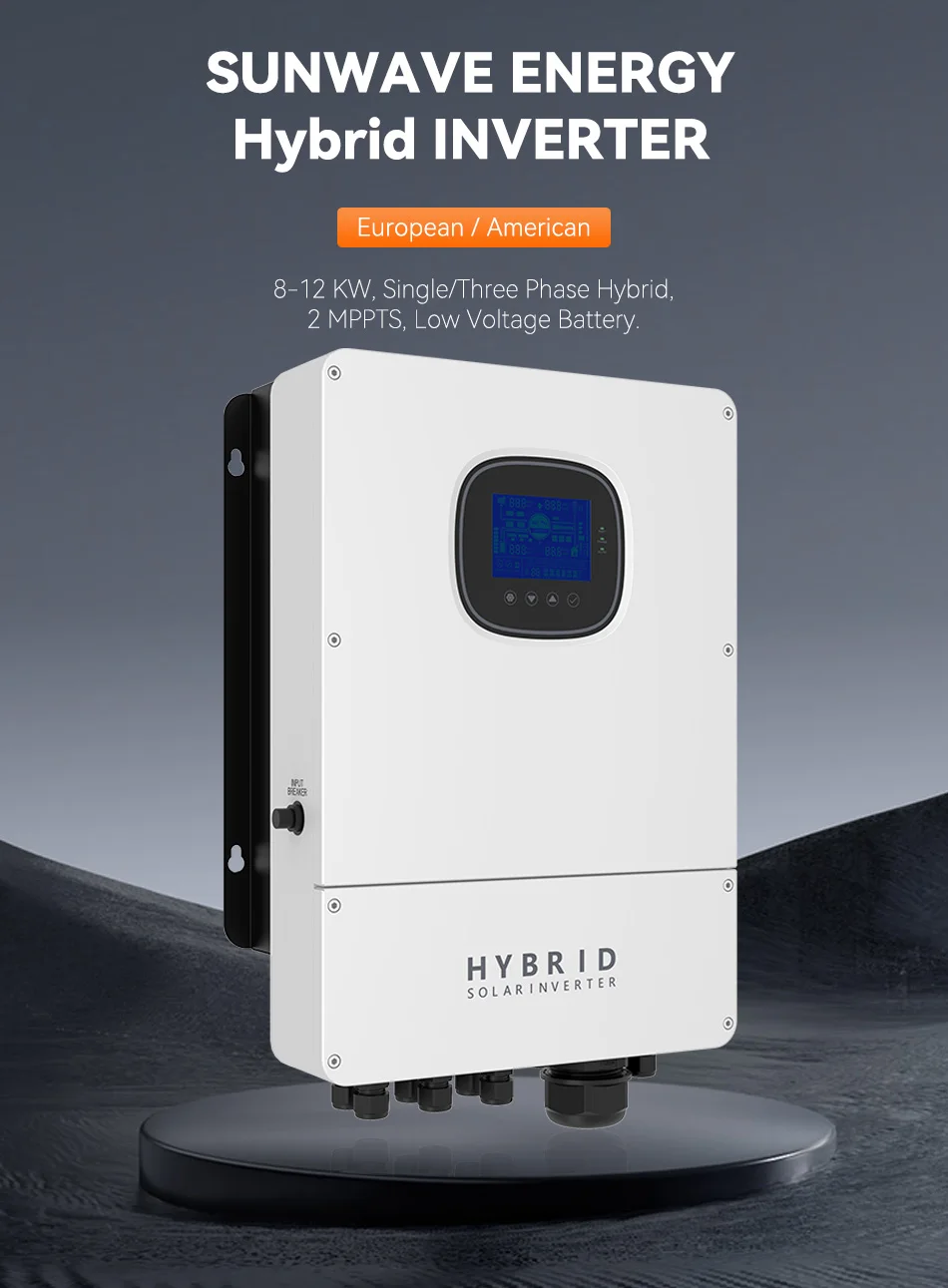

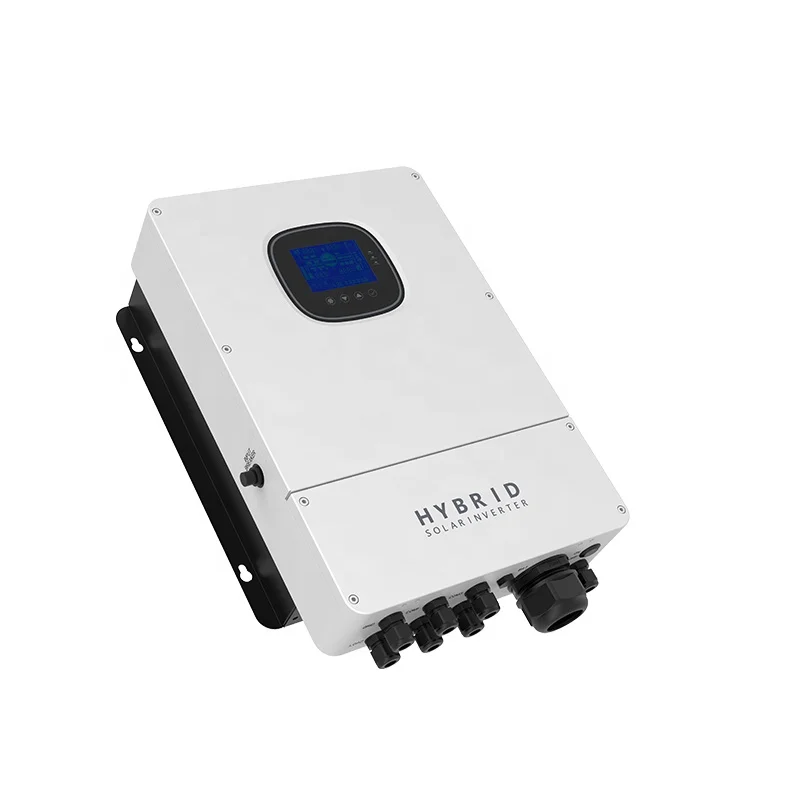

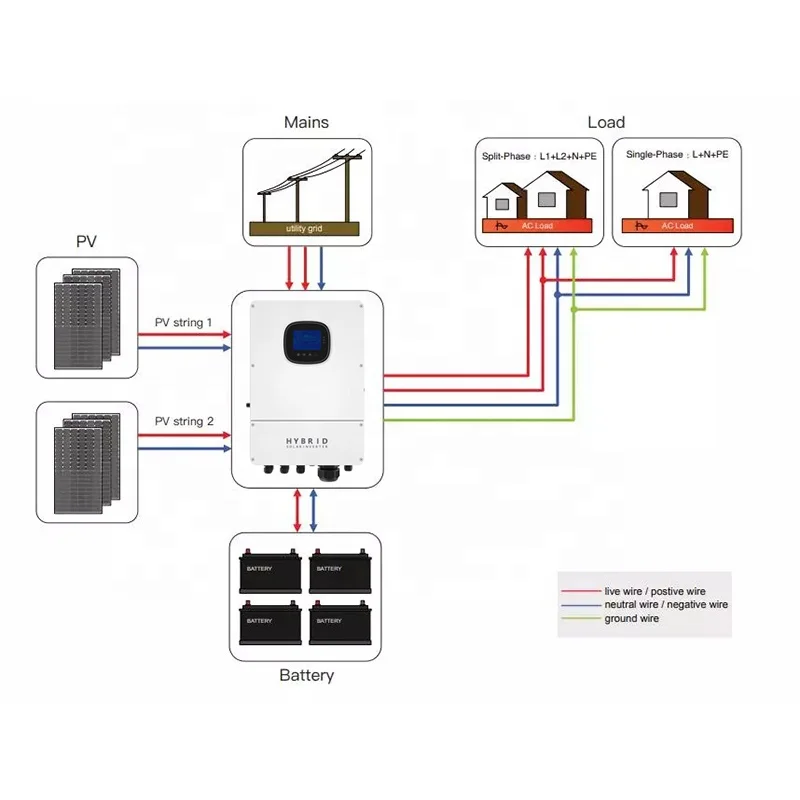

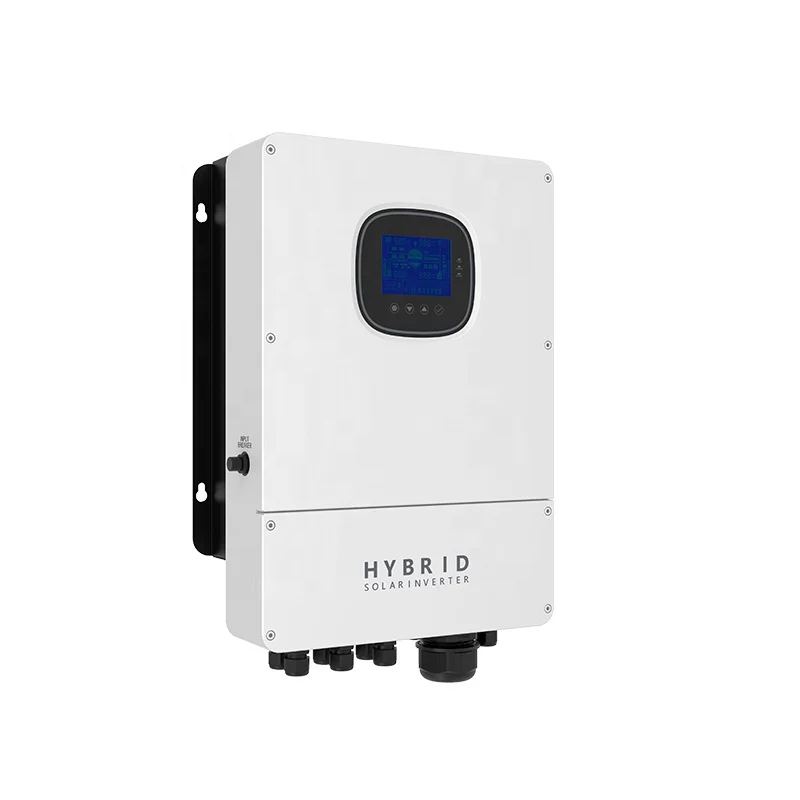

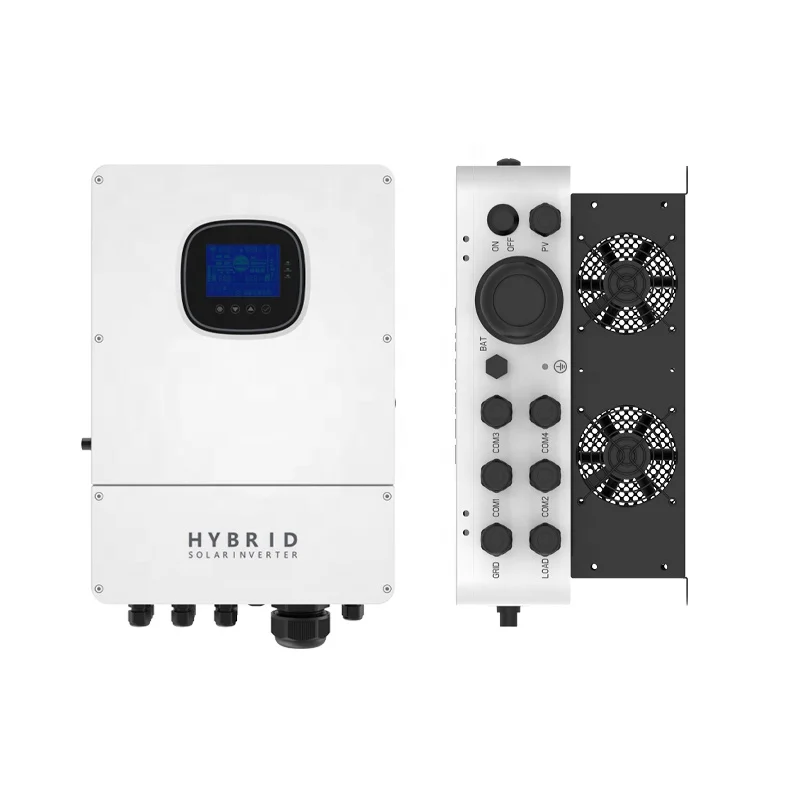

Professional 12Kva 10KW 8kW Pure Sine Wave MPPT IP65 Must Hybrid Inverter With LED Display
- Category: >>>
- Supplier: Sunwave Technology Co. Ltd.
Share on (1601219202058):
Product Overview
Description
Product Descriptions
Product Specifications
MODEL | SW-SEI-8K-SP | SW-SEI-10K-SP | SW-SEI-12K-SP | |||
NVERTER OUTPUT | ||||||
Rated Output Power | 8,800W | 10,000W | 12,000W | |||
Max.Peak Power | 17,600VA | 20,000VA | 24,000VA | |||
Rated Output Voltage | 230Vac,single-phase /three-phase(3 units in parallel) | |||||
Load Capacity of Motors | 5HP | 6HP | ||||
Output Frequency Range | 50/60Hz | |||||
Switch Time | 10ms(typical) | |||||
Num.of Parallel | 1 ~ 6 units | |||||
BATTERY | ||||||
Battery Type | Lead-acid /Li-ion /User Defined | |||||
Rated Battery Voltage | 48V | |||||
Battery Voltage Range | 40~60Vdc | |||||
Max.MPPT Charging Current | 200A | |||||
Max.Generator Charging Current | 60A | |||||
Max.Mains Charging Current | 120A | |||||
Max.Hybrid Charging Current | 200A | |||||
PV INPUT | ||||||
Num.of MPPT Trackers | 2 | |||||
Max.PV Array Power | 5.500W+5.500W 6,600W+6,600W | |||||
Max.Input Current | 22A+22A | |||||
Max.Voltage of Open Circuit | 500Vdc+500Vdc | |||||
UTILITY /GENERATOR INPUT | ||||||
nput Voltage Range | 90-280Vac | |||||
Frequency Range | 50/60Hz(auto detection) | |||||
Bypass Overload Current | 63A | |||||
GENERAL | ||||||
Dimensions | 670*440*240mm | |||||
Weight | 37kg | |||||
Protection Degree | IP65 | |||||
Operating Temperature Range | -25~60℃,>45℃ derated | |||||
Noise | <60dB | |||||
Cooling Method | Internal Fan | |||||
Warranty | 5 years | |||||
COMMUNICATION | ||||||
Embedded Interfaces | RS485/CAN /USB /Dry contact | |||||
External Modules(optional) | Wi-Fi /GPRS | |||||
