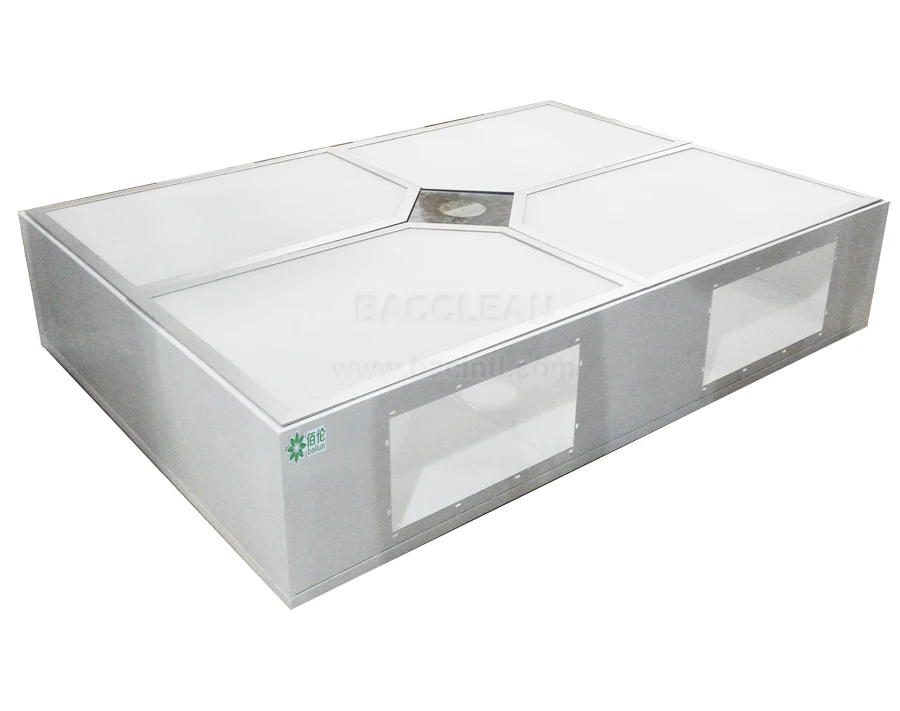

ISO5 Class Hospital Laminar Flow Ceiling Operation Cleanroom Laminar Air Flow Ceiling
- Category: >>>
- Supplier: Guangzhou Bacclean Tech Co. Ltd.
Share on (1601219213113):
Product Overview
Description

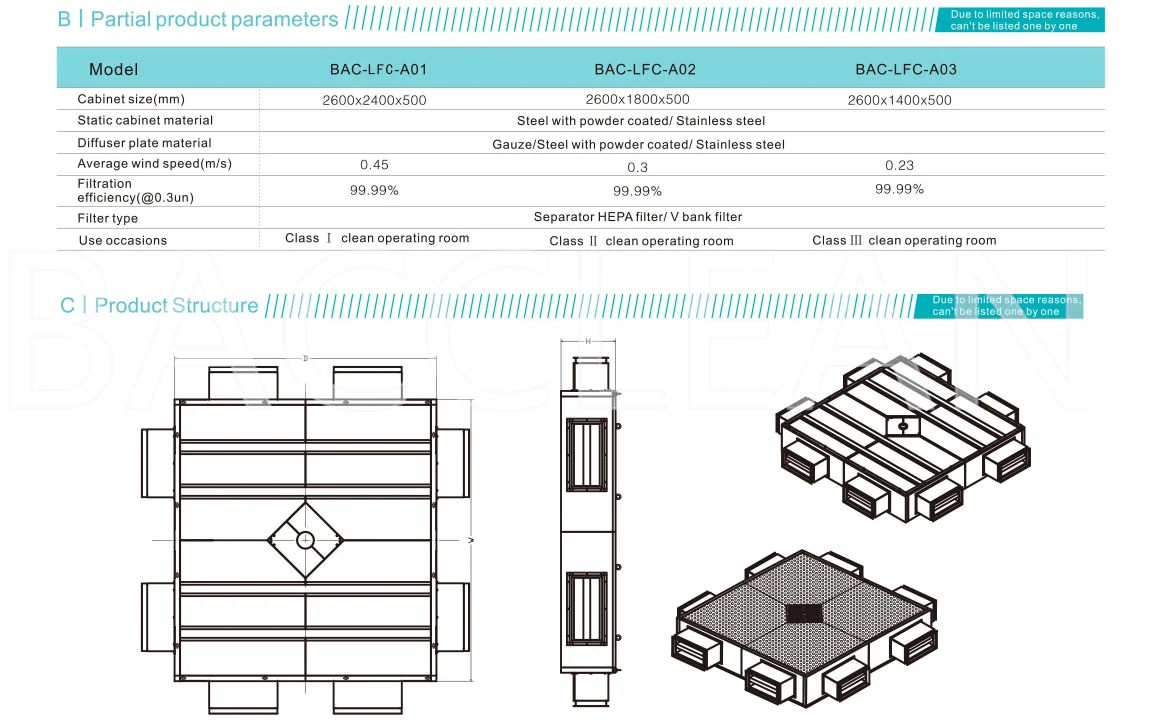

Product Information
All sizes and styles can be customized | ||||||
Model | BACCLEAN-AP01 | BACCLEAN-AP02 | BACCLEAN-AP03 | |||
Cabinet size(mm) | 2600*2400*500 | 2600*1800*500 | 2600*1400*500 | |||
Static cabinet material | Steel with powder coated/Stainless steel | |||||
Diffuser plate material | Gauze/Steel with powder coated/Stainless steel | |||||
Average wind speed(m/s) | 0.45 | 0.3 | 0.23 | |||
Filtration efficiency(@0.3un) | 99.97% | |||||
Filter type | Separator HEPA filter/V bank filter | |||||
Use occasions | Class I clean operating room | Class Il clean operating room | Class Ill clean operating room | |||
Product Display

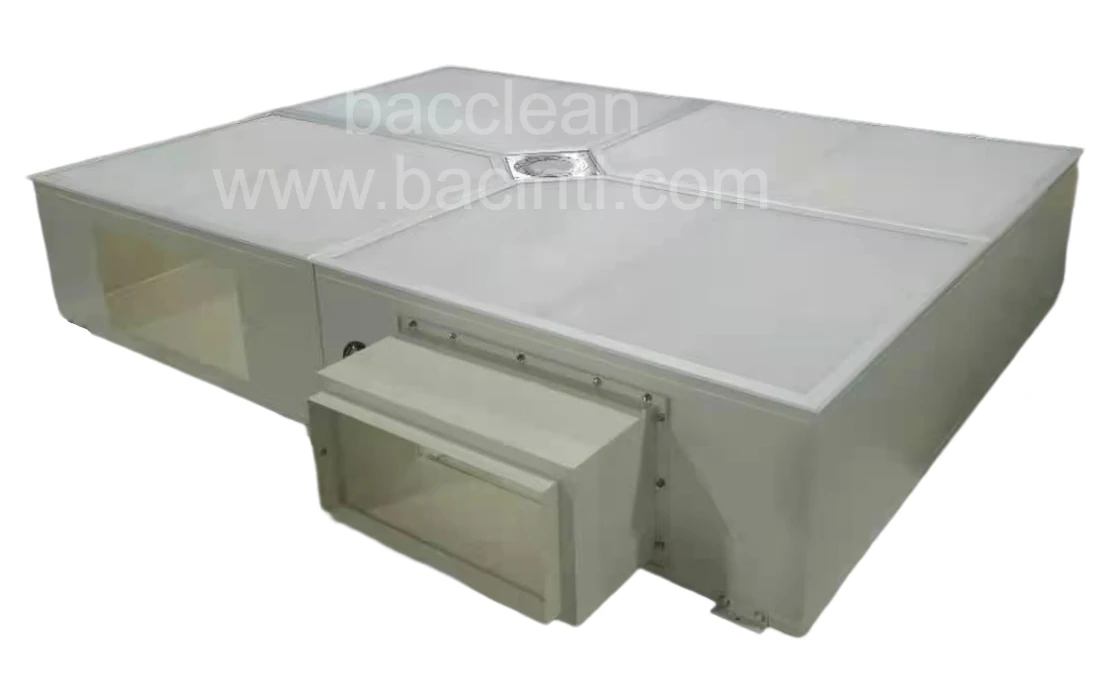

Laminar flow ceiling

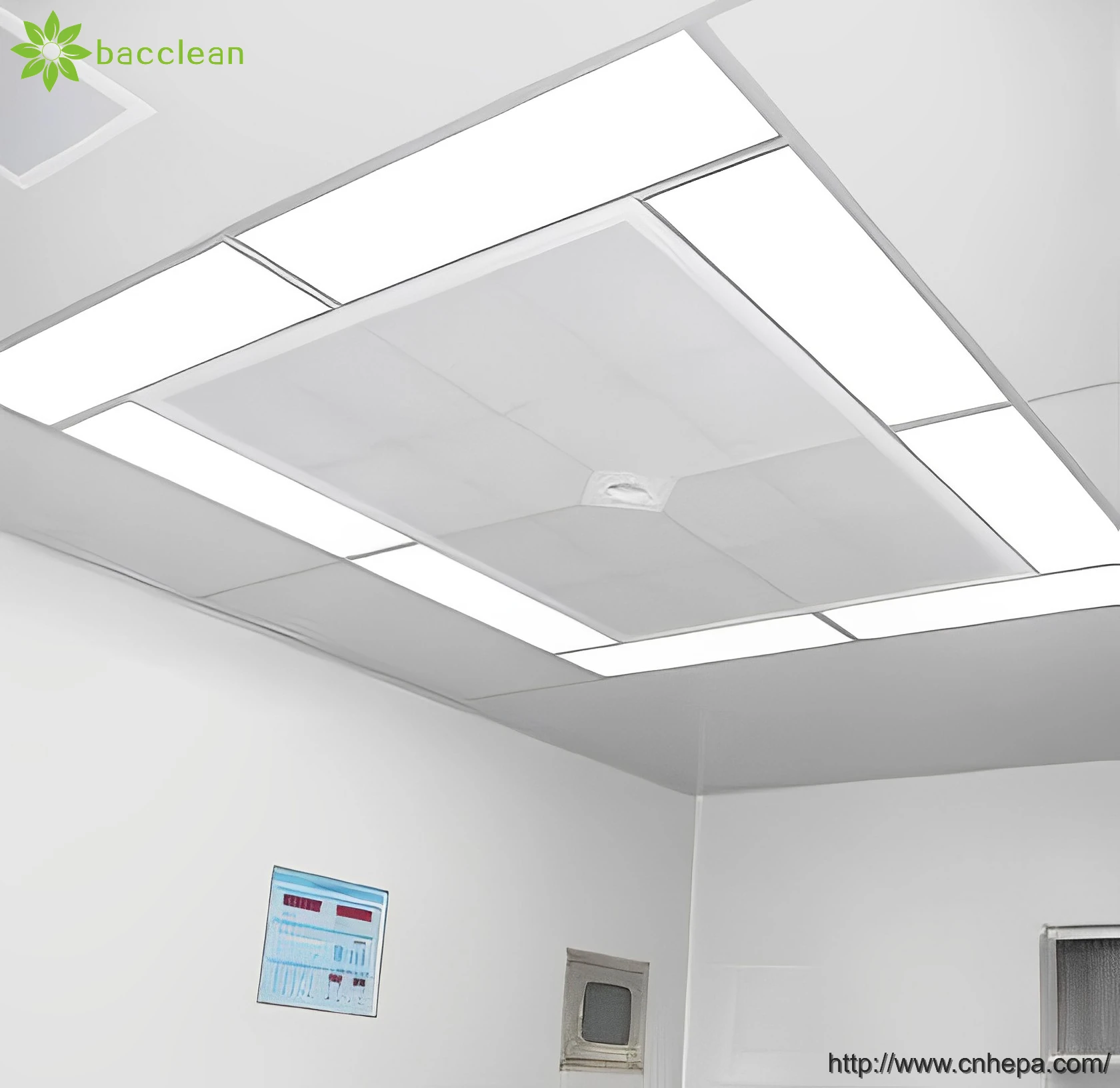

The Laminar Flow Ceiling is installed at the ceiling of Operating room to offer the uniform air flow and clean class, like for the class I clean operating room, class II clean operating room, class III clean operating room. It can ensures efficient protection against contamination which can occur during invasive acts and caused by airborne dead or living particles. Followings are the features.
1) It can be used alone or several together.
2) A good sealing performance with professional filter and box connection.
3) The overall wind with uniform speed.
4) Low noise, smooth operation, easy to maintain and replace, cost effective.
5)Applying leading resistance drain layer technology which allows reasonable airflow distribution inside clean room , effectively guarantee the indoor cleanliness.
6)Efficiency: 99.97%@0.3μm
7)cabinet material is cold rolled steel with powder coated / Stainless steel
2) A good sealing performance with professional filter and box connection.
3) The overall wind with uniform speed.
4) Low noise, smooth operation, easy to maintain and replace, cost effective.
5)Applying leading resistance drain layer technology which allows reasonable airflow distribution inside clean room , effectively guarantee the indoor cleanliness.
6)Efficiency: 99.97%@0.3μm
7)cabinet material is cold rolled steel with powder coated / Stainless steel

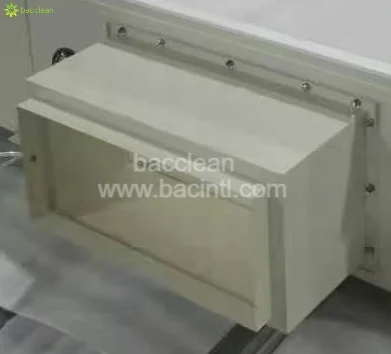

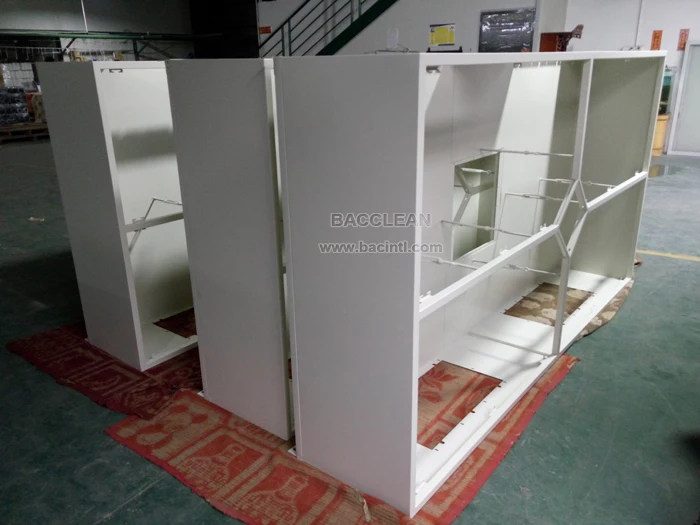

Cabinet frame for HEPA filter
Inside of the cabinet

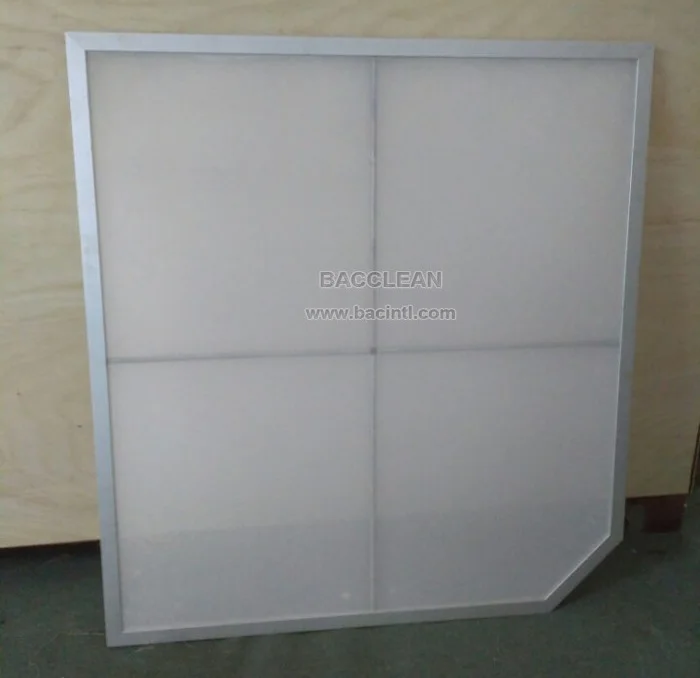

Gauze for laminar flow ceiling

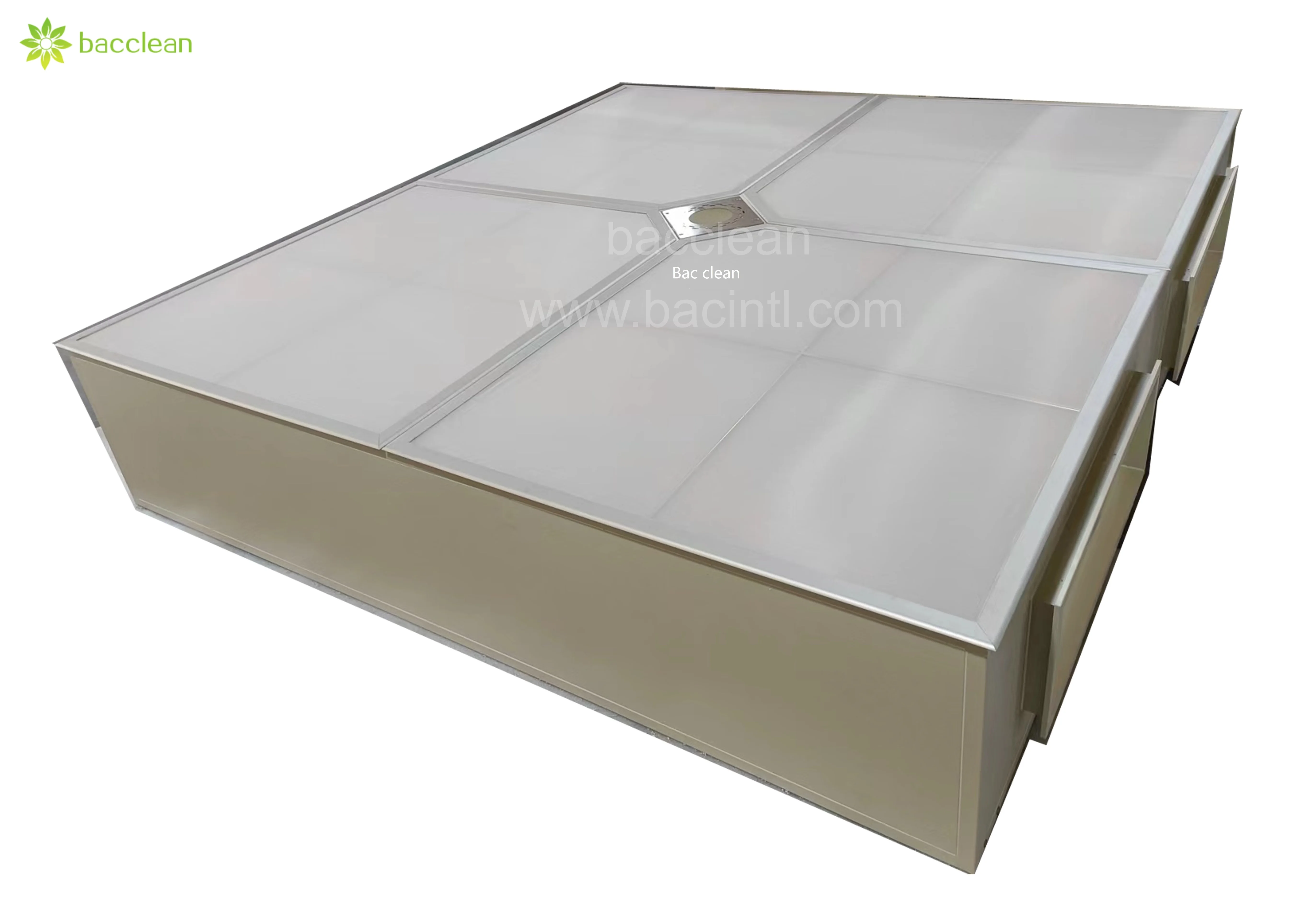

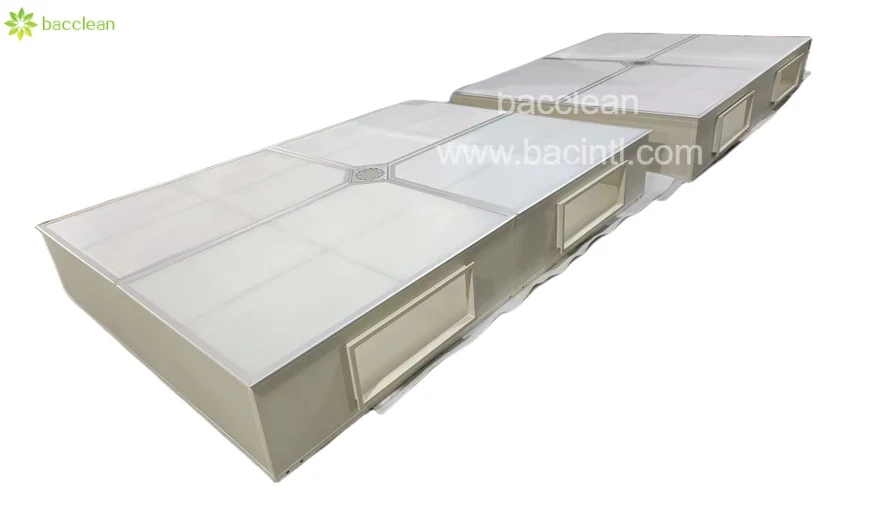

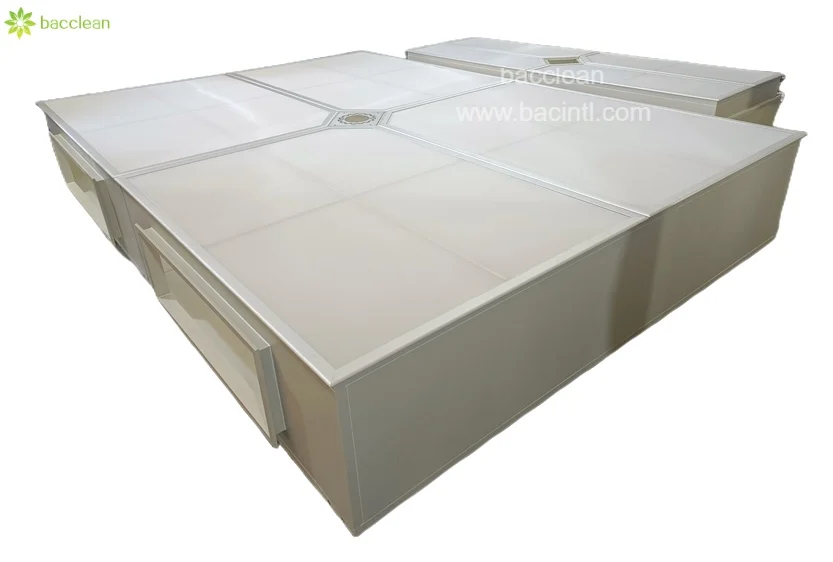

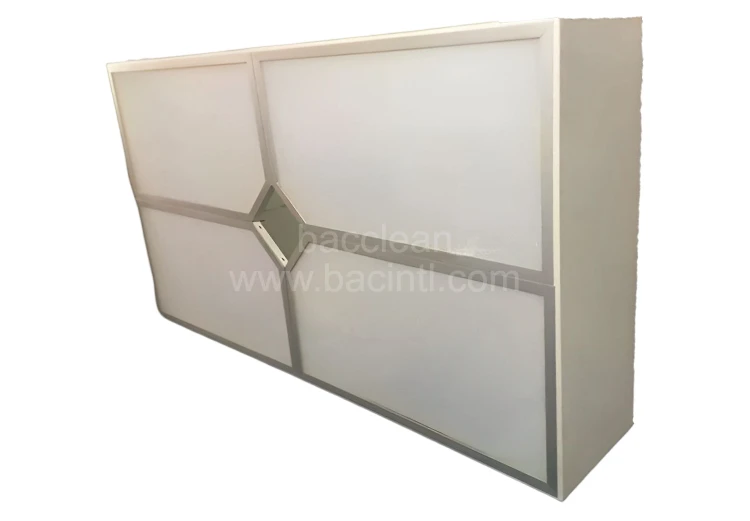

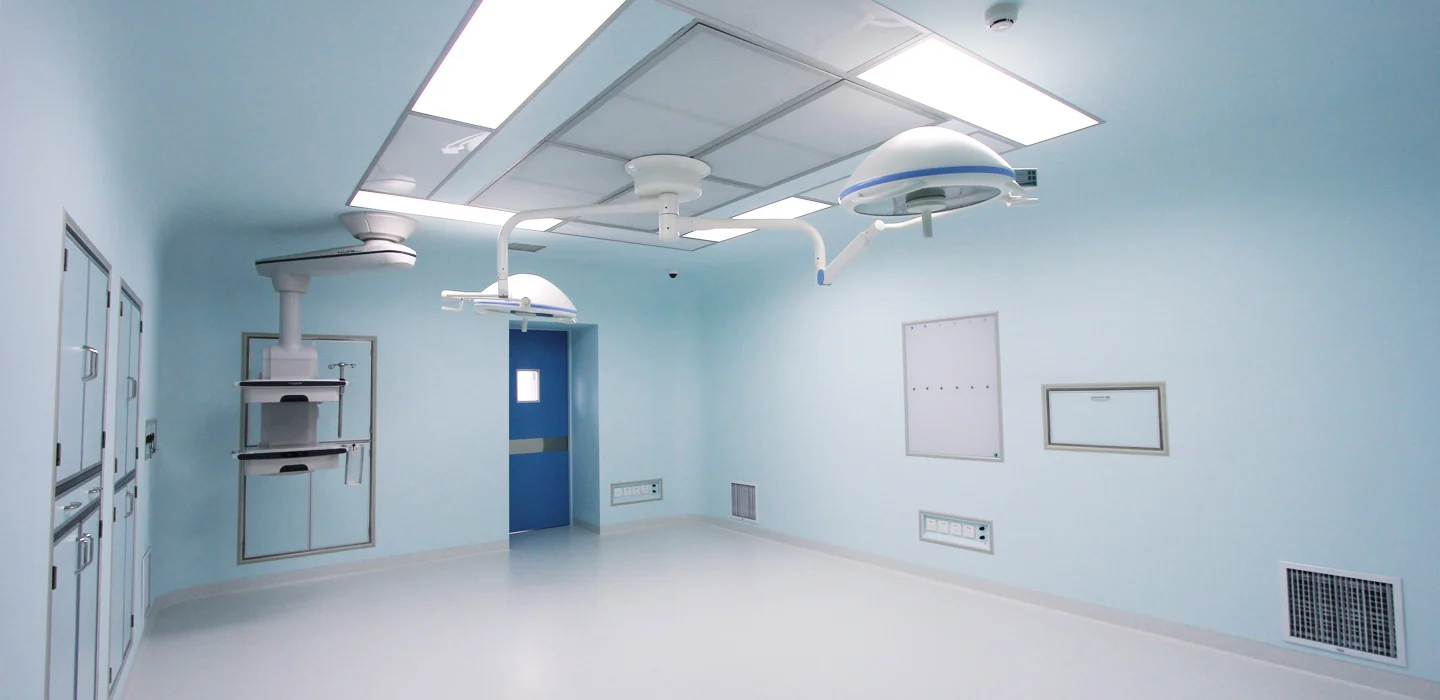

More pictures of Class 100 operating room laminar flow ceiling
Application
It is used at the ceiling of Operating room to offer the uniform air flow and clean class for some areas like for the class I clean operating room, class II clean operating room, class III clean operating room.
