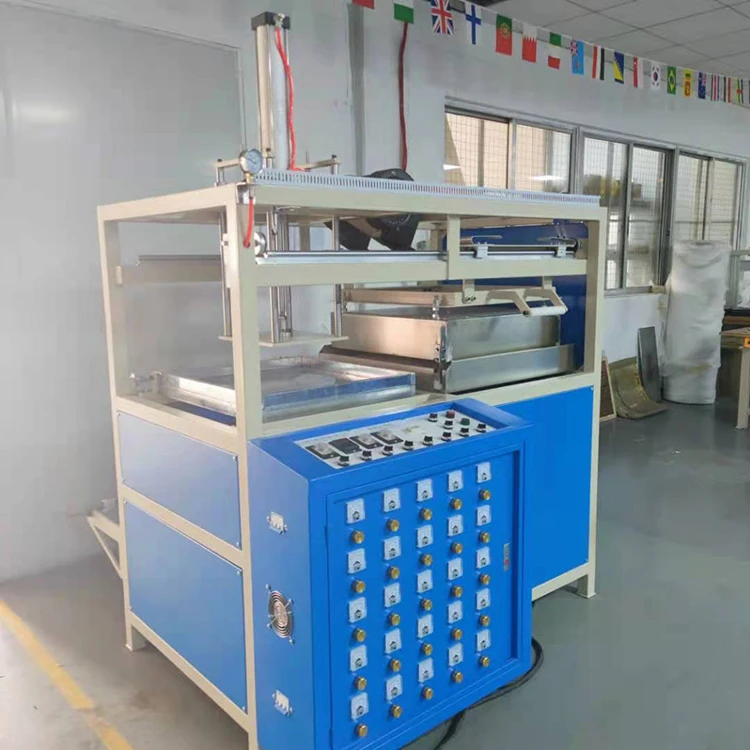

Vacuum Thermoforming Machine Abs Fruit Container Thermoforming Machine
- Category: >>>
- Supplier: Dongguan Chenghao Machinery Co. Ltd.
Share on (1601219230248):
Product Overview
Description
PRODUCT SPECIFICATIONS
Blister Thermoforming Machine
Model | CH-68-XSJ |
Forming Length (mm) | 610 |
Forming Width (mm) | 560 |
Forming Height(mm) | 150 |
Roll Material width(mm) | 610 |
Heater(pcs) | 25*500W |
Heating Power (Kw) | 12.5KW |
Vacuum Pump(M³) | 25M³; 2mbar |
Cooling Fan | 2 |
Upper Mold | Included |
PLC Control | Customized, on extra cost |
Digital temperature Setting Control | Customized, on extra cost |
Mold Table with Cooling | Customized, on extra cost |
Width Adjustable | Customized, on extra cost |
Safety Cover | Customized, on extra cost |
Water Spray Gun(pcs) | Customized, on extra cost |
Heating Oven With Move | Manual |

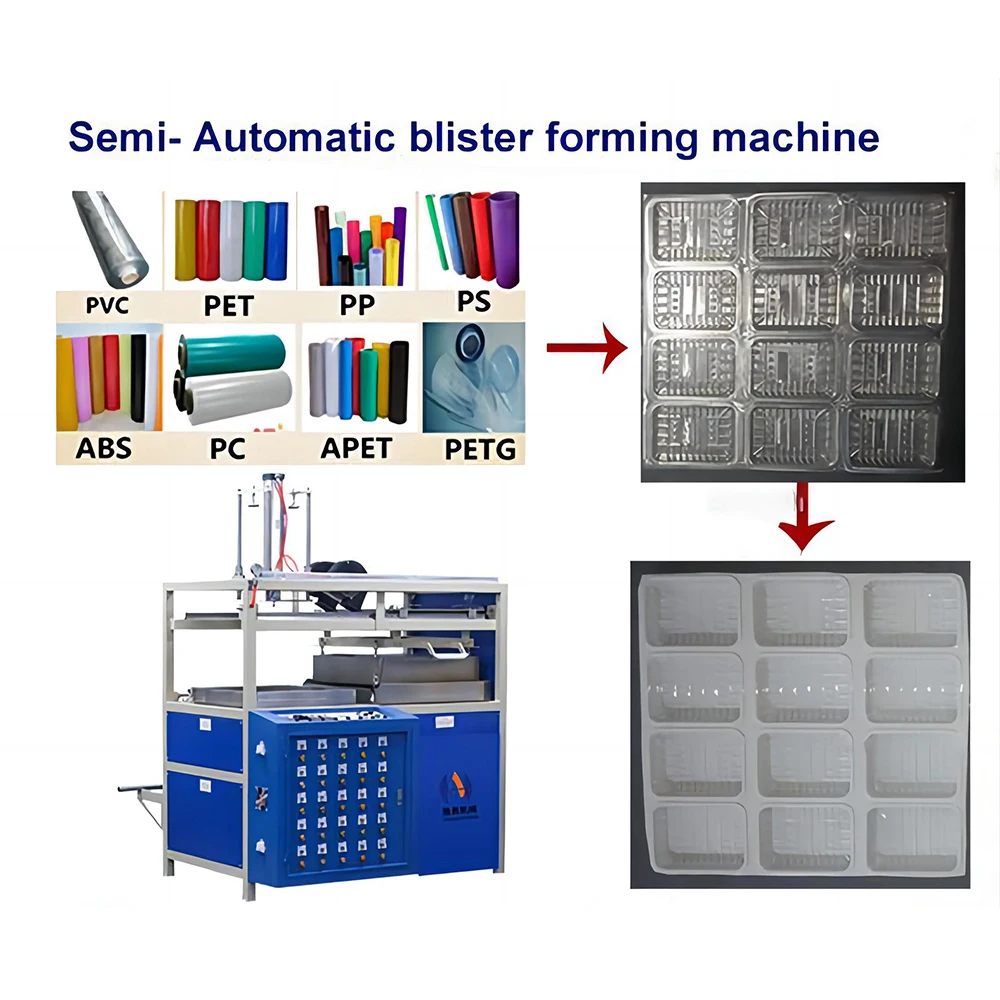

Material | PVC/PET/PETG/GAG/PP/PS |
Material Type | Sheet / roll, thickness:0.1-1.5mm |
Standard | CE ISO Certificate |
operations mode | Pneumatic |
Packing Information | L1800*W1500*H 2200mm; G.W: 500kg; Woode Packing: 5CBM |
FEATURES AT A GLANCE
Work Process:
Installing the mould -putting the plastic sheet or sheet to the clip frame - moving the heating furnace to the top of the plastic sheet-heating plastic -plastic softening-ending the heating time-removing the electric furnace-mould rises,softens Plastic and seal-vacuuming-closing the plastic to the mould -blow air cooling-blowing out the air of the mould to separate the hardened plastic from the mold -Lowering the mold-opening the clip frame-removing the product.
Appliaction:
Vaccum forming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable containers, lids, trays, blisters, clamshells, and other products for the food, and general retail industries.

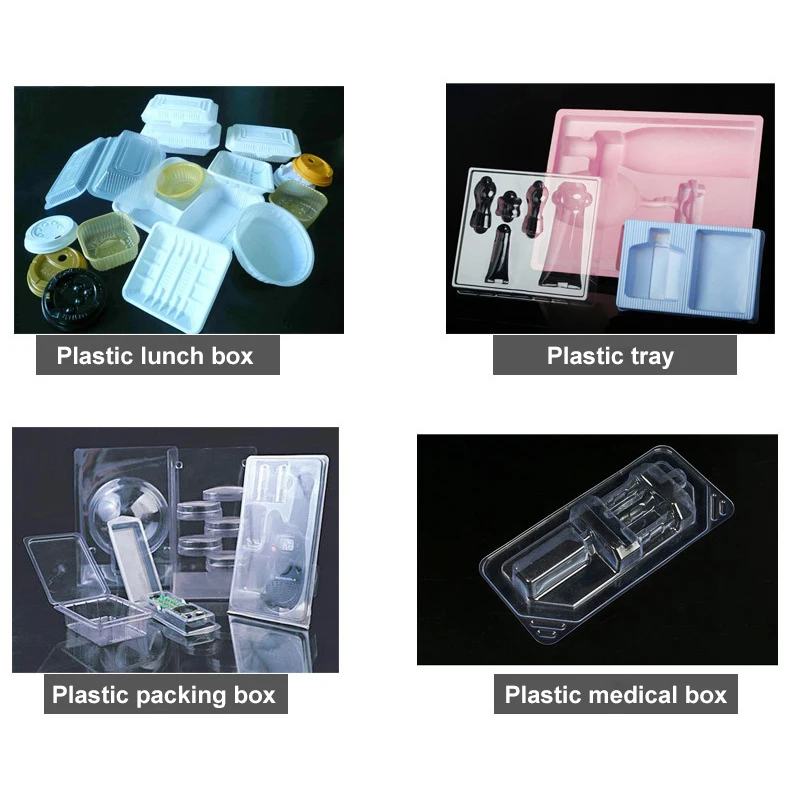

Below sample & mould pictures:

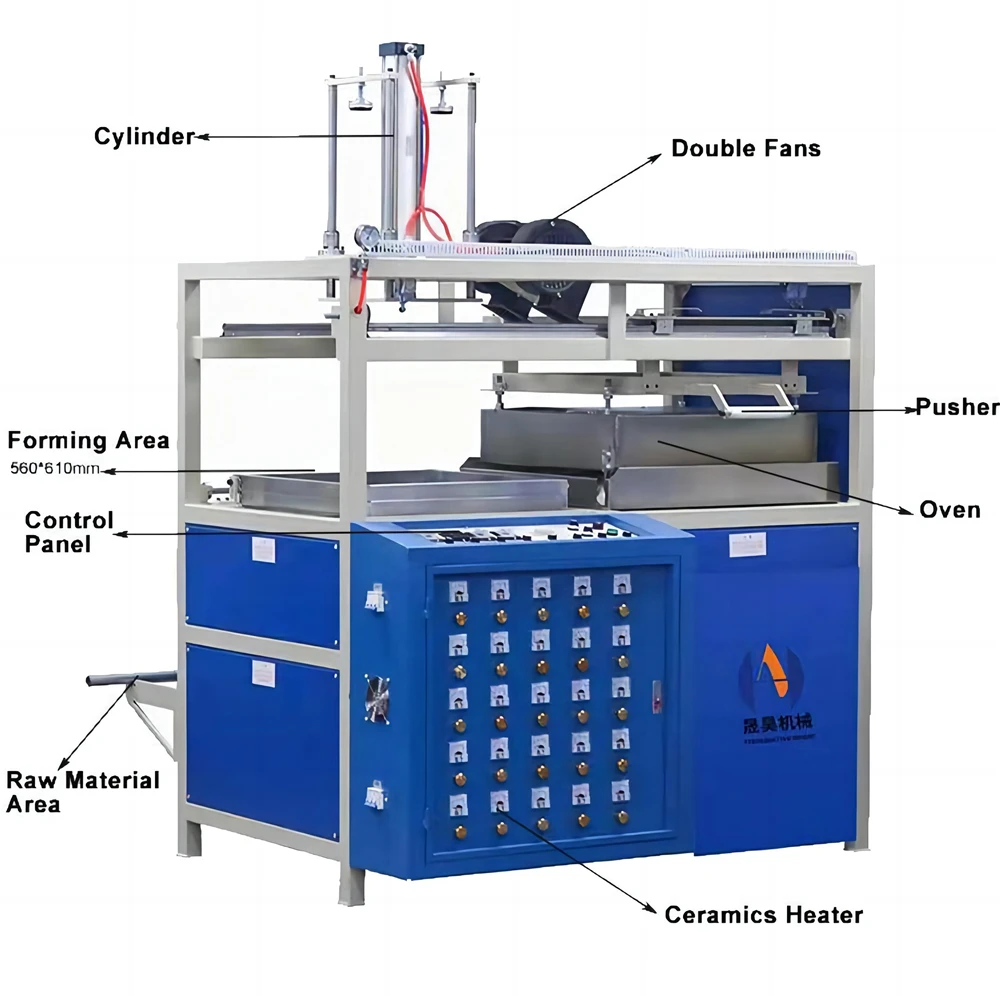

PRODUCT CONFIGURATION

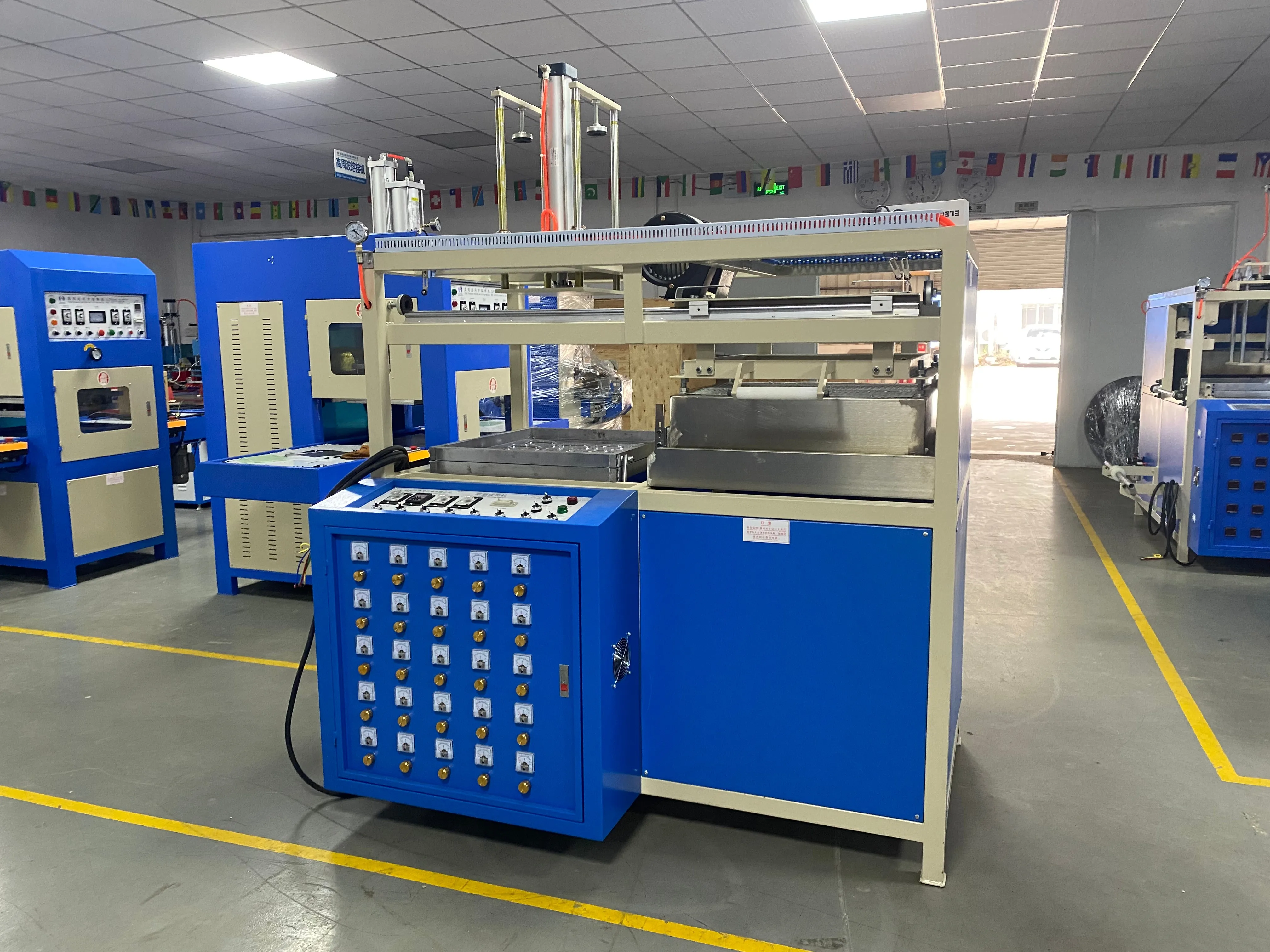

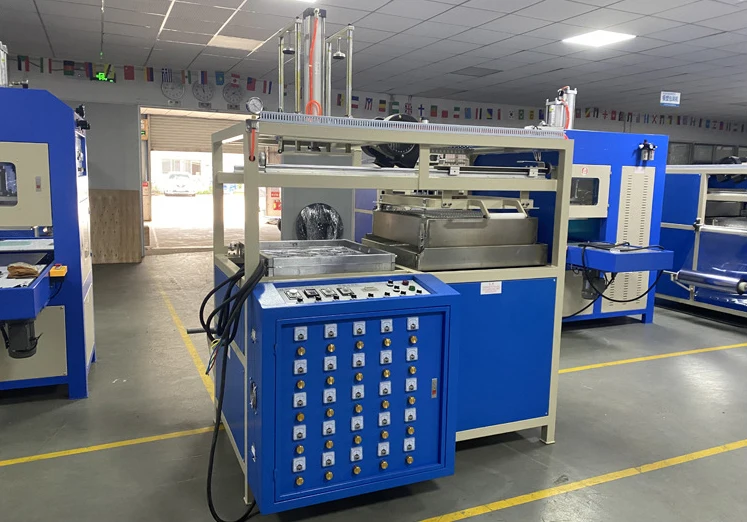

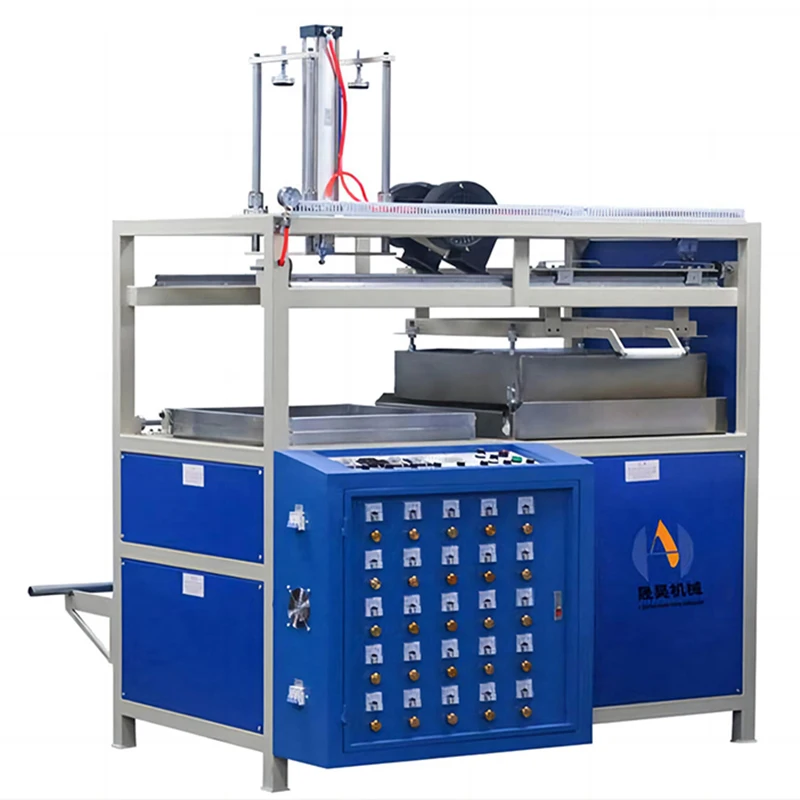

PRODUCT PICTURES
PACKING & DELIVERY

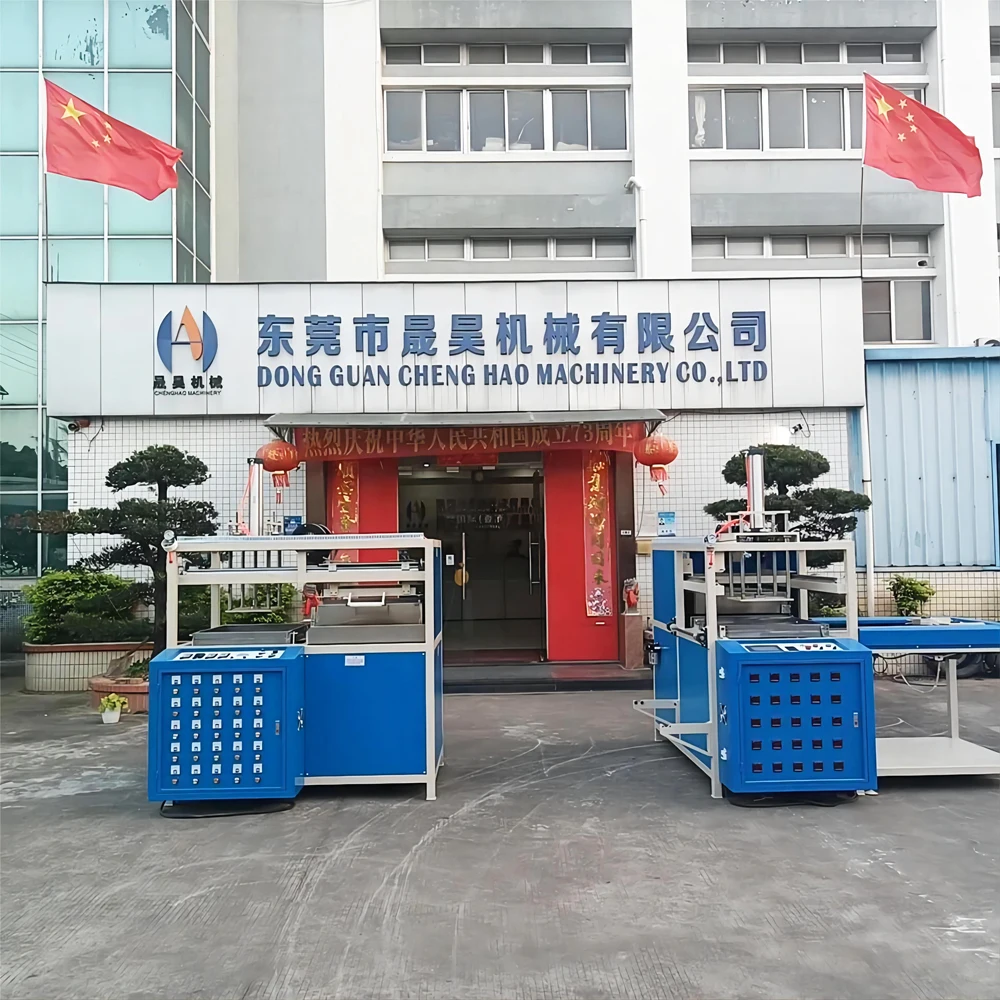

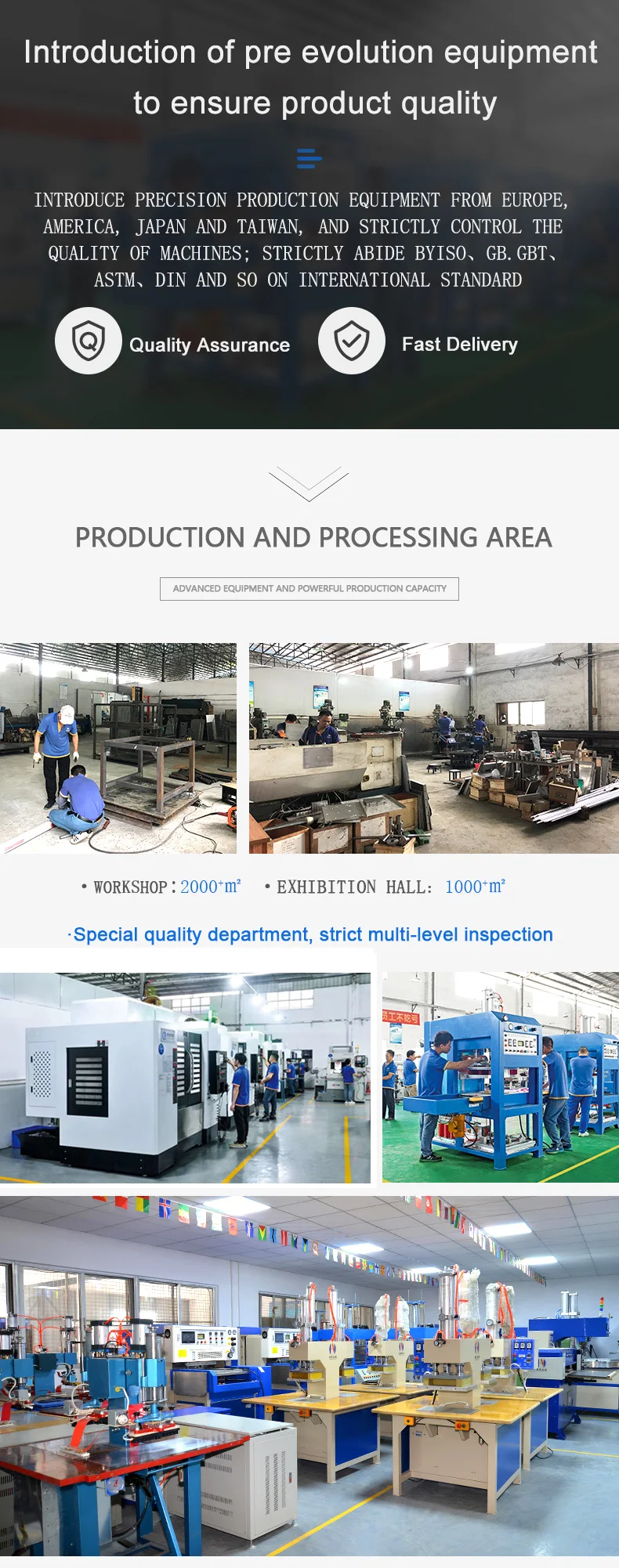

CHENGHAO FACTORY
