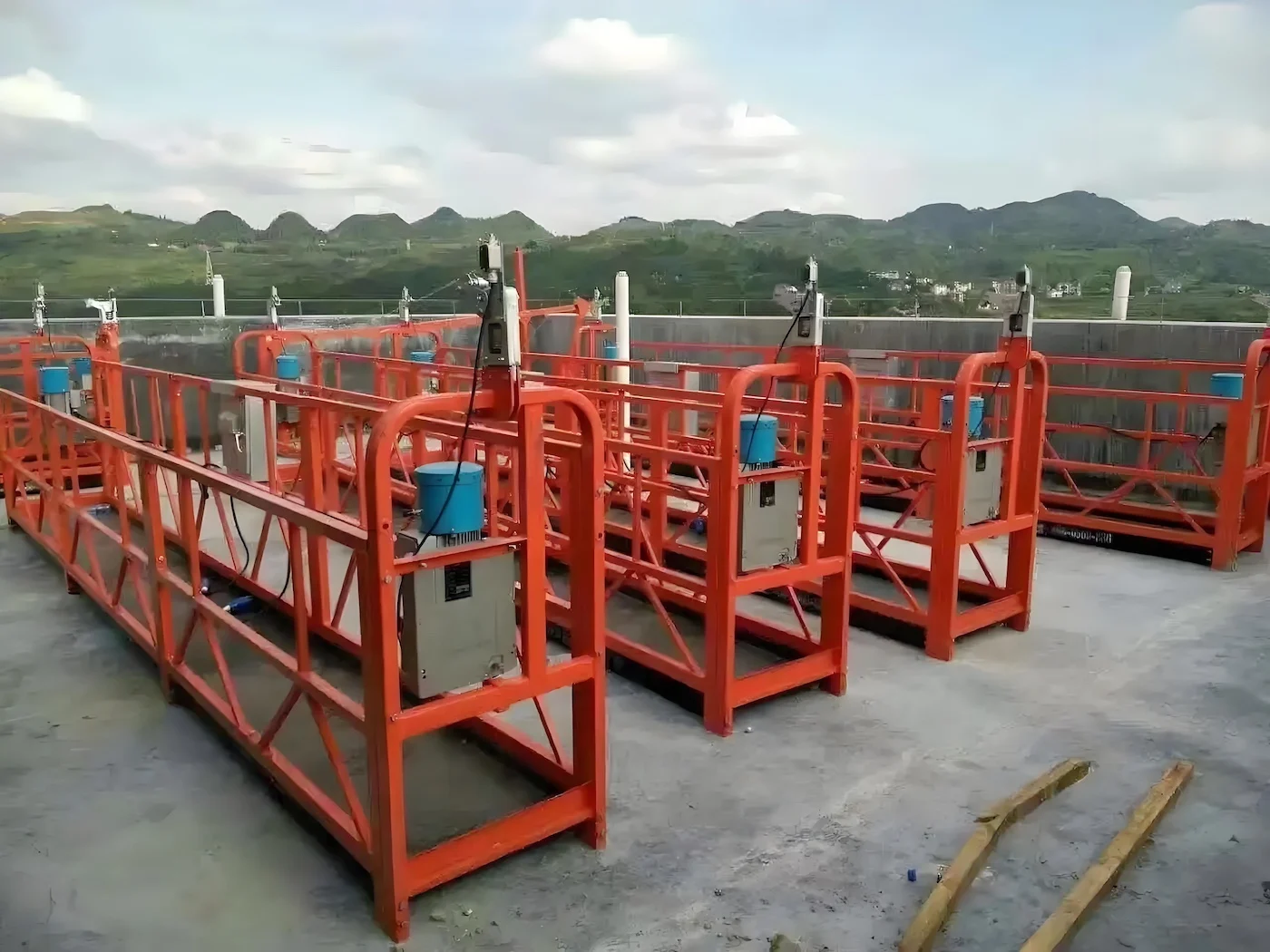

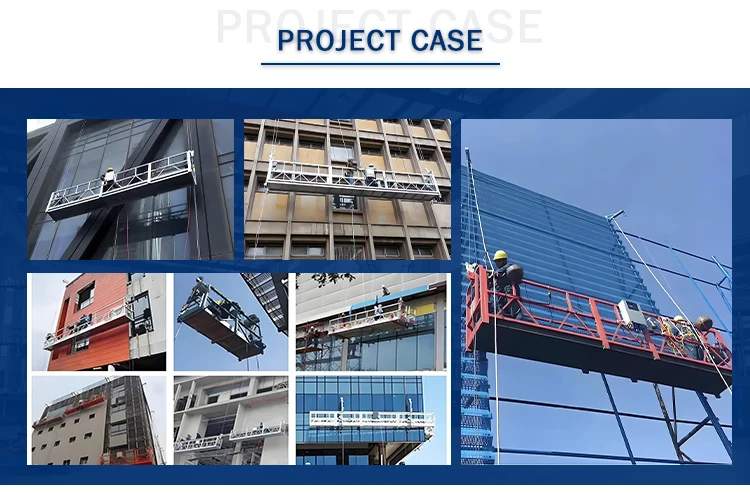

Construction Lifters Suspended Platform for Better Accessibility in Building Sites
- Category: >>>
- Supplier: Jiangsu Jinyang Industry Co. Ltd.Jiangsu Ltd.
Share on (1601219230287):
Product Overview
Description
Products Description
How to install ZLP630 suspended platform
ZLP630 suspended platform is one of the most popular hanging working platform model. Before using the suspended working platform, we need to install the system. But how to install or assemble a suspended platform? In this article, we will show you a detailed ZLP630 suspended platform installation guide.
Part 1: Confirm all the parts of the suspended platform
A complete suspended platform system consists of many important parts, such as suspension mechanism, lifting hoist, electric control box, safety lock and so on. Before starting to build the suspended platform, please confirm all the parts of the suspended platform. There are the components of the ZLP630 suspended platform below.

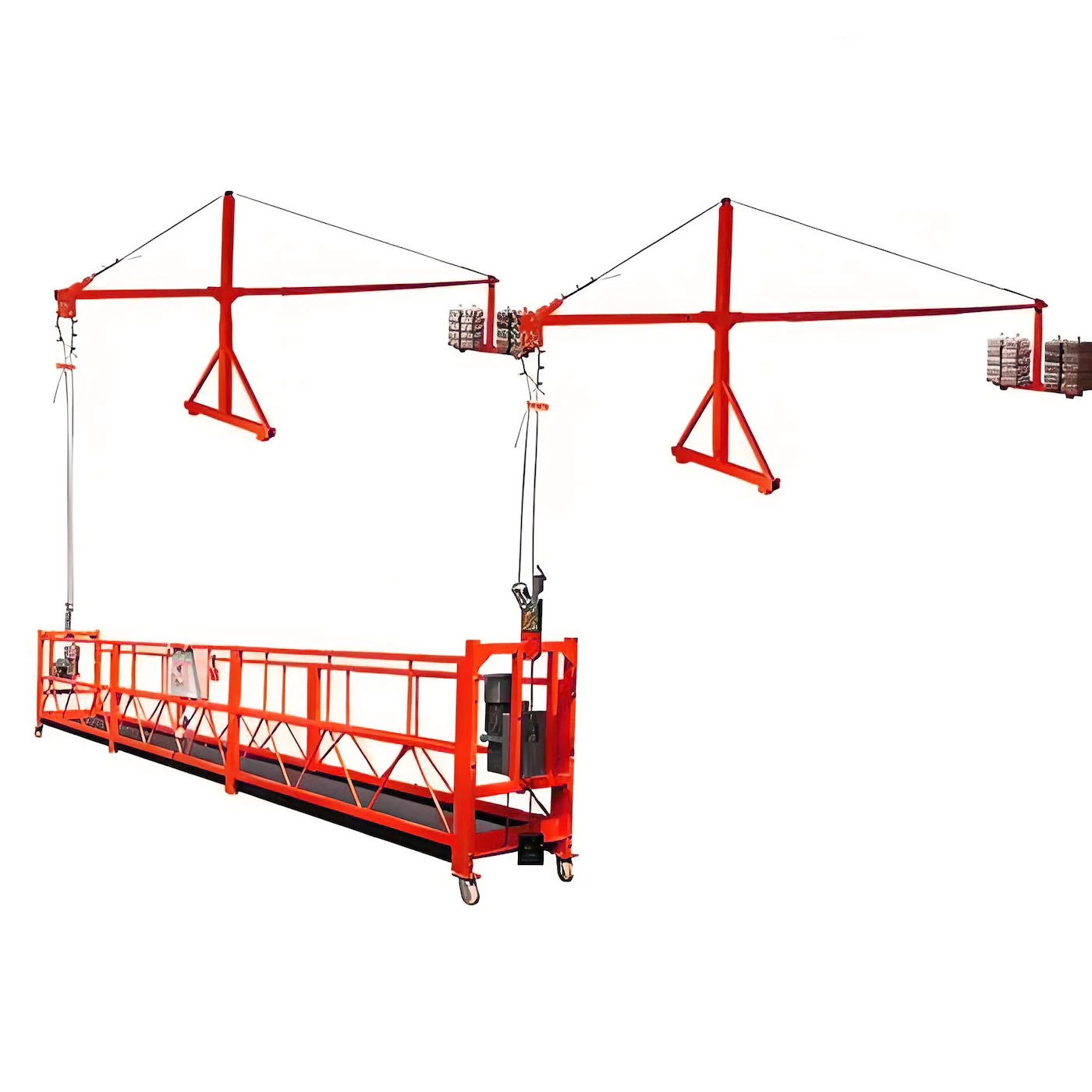

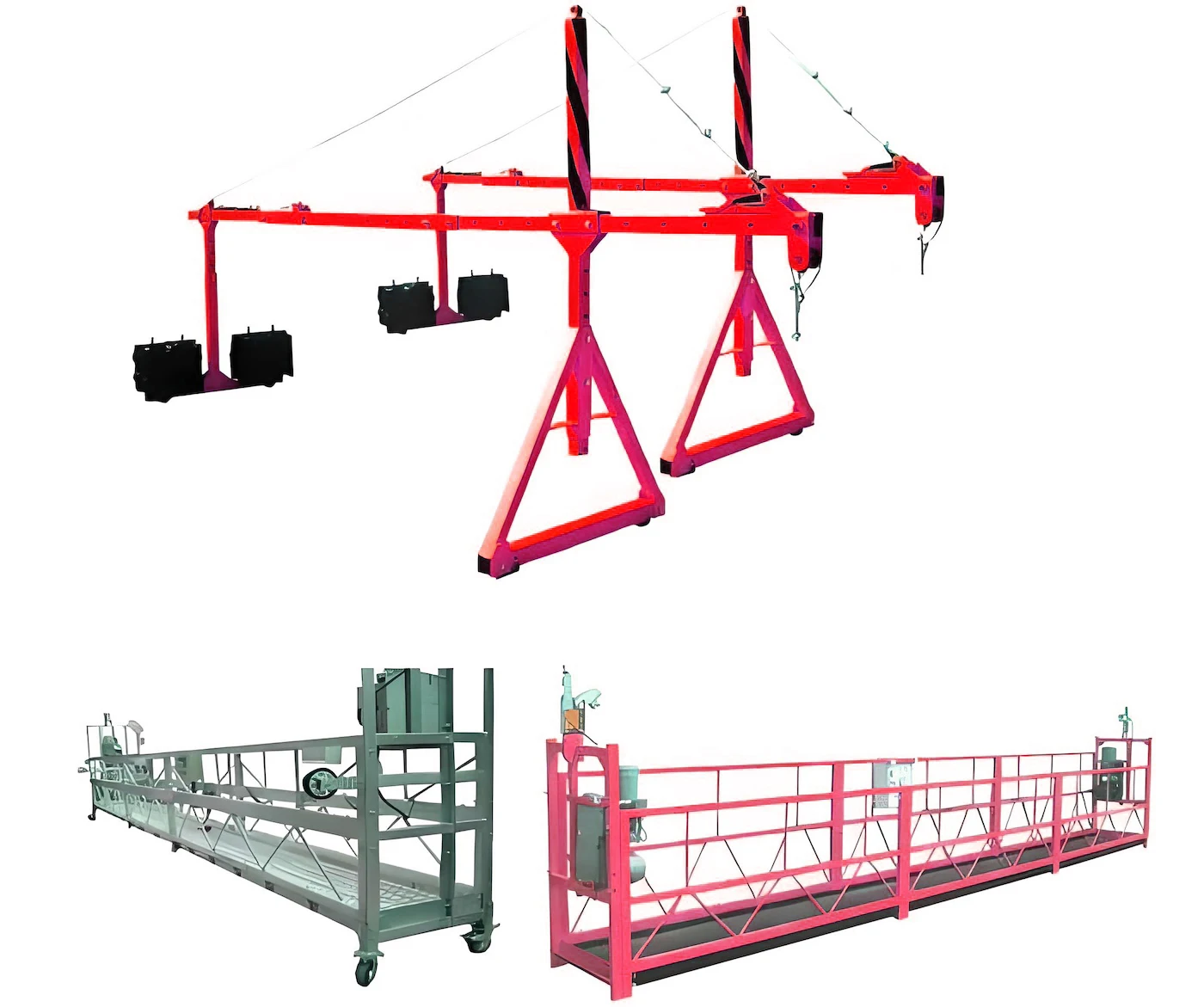

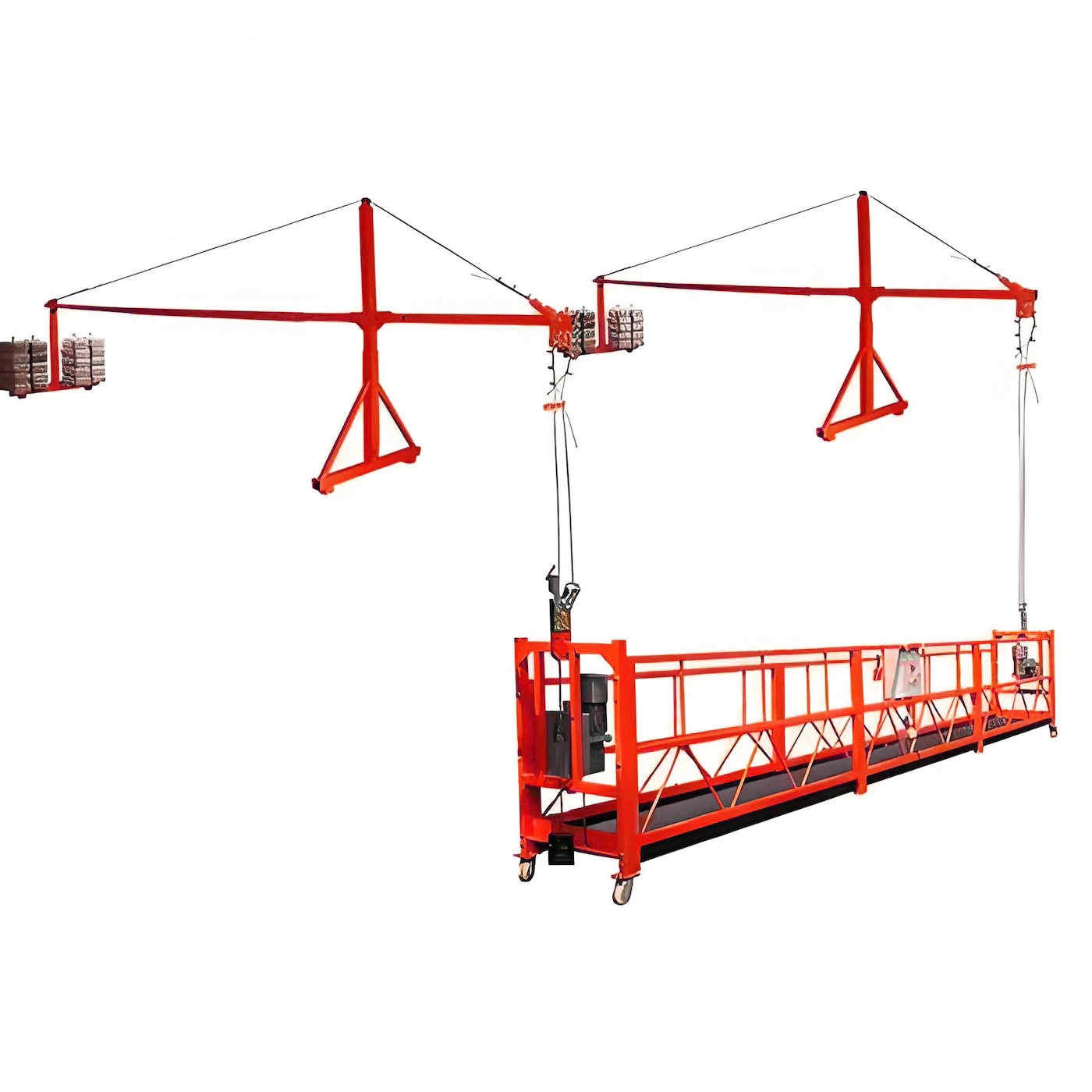

A completer suspended platform system is mainly including two parts: working platform and suspension mechanism. The suspension mechanism consists of front beam, middle beam, rear beam, front support, upper column, rear support, and balance weight. The hanging working platform parts are including steel wire rope, safety lock, hoist, electric control box, and the metal working platform.
Part 2: assemble working platform
1. Select a relatively flat site, put the three-cage bottoms in one font. Take a low balustrade and install it over the bottom of the cage against the working face. Install the bolt fixing in the middle position, and then install a high balustrade piece on the other side of the cage bottom, the same bolt fixing. In the same way, insert other balustrade pieces.
2. Connect the cage bottom, between the two adjacent cage bottom and the joint of the balustrade, install the bolt.
3. Connect the balustrade pieces and install bolts on the adjacent balustrade pieces.
4. The installation hoist frame, turn the side with the roller into the platform and bolt.
5. Install the safety lock, and the roller end is facing the working platform.
6. Install the hoist, alignment bolt.
7. Install the limited switch. First remove the two nuts of the safety lock, install the formed switch on the safety lock, and tighten the nut.
8. Install electric direction and each connecting line. Hang the electric control box in the middle of the high blue chip, and the side with the push button faces into the working platform. Insert the handle plug, motor plug and cable plug into the socket respectively.
9. Check whether each part is installed correctly and there is any dislocation. Note the specification of bolts, length, and size of gaskets. Large washers must be used in contact with the square pipe. After confirmation, lock all bolts.
Part 3: Suspension mechanism installation
1. Insert the adjusting bar into the sleeve of the triangle front support. Adjust the height of the telescopic pillar according to the height of the parapet wall. Bolted, installation of the front base is complete.
2. Insert the adjusting bar into the sleeve tube of the rear support. The height of the telescopic pillar is equal to that of the former base. Install the rear support.
3. Load the front beam and the rear beam into the telescopic pillar of the front and near base respectively. Connect the front and rear beams with the middle beams, and select the overhang of the front beam and the distance between the front and near vase according to the actual situation. It usually overhangs 1.3 meters.
4. Place the upper pillar on the telescopic pillar of the front bracket and fix it with bolts. The erection of the upper support is completed.
5. Install the hanging front sleeve, rear coupling sleeve and ring-hook screws in turn. Through the strengthen rope to the roller of hanging front sleeve. Use the steel grip to fixed, then through the roller of upper column and rear sleeve the end to hang on the ring-hook screws, with wire rope grip fixed. Adjust the screw of the ring-hook screws to tighten the strengthen rope.
6. The hoisting wire rope and the safety wire rope are respectively fixed on the front beam frontal hanging plate. By pass the steel thimbles and fixed with a wire rope grip.
7. Install limit plate at the appropriate place of the safety wire rope.
8. Installation and counter weight. Each set is equipped with 40 pieces.
9. The hanging mechanism on the other side shall be installed as in the previous example.
As the ZLP630 suspended platform is mainly used for aerial work, safety is extremely important. During installation, the installation works must strictly follow the suspended platform installation guide. Besides, workers must be trained on the rules and safety regulations for suspended working platform before being allowed to use the equipment.
Part 1: Confirm all the parts of the suspended platform
A complete suspended platform system consists of many important parts, such as suspension mechanism, lifting hoist, electric control box, safety lock and so on. Before starting to build the suspended platform, please confirm all the parts of the suspended platform. There are the components of the ZLP630 suspended platform below.
A completer suspended platform system is mainly including two parts: working platform and suspension mechanism. The suspension mechanism consists of front beam, middle beam, rear beam, front support, upper column, rear support, and balance weight. The hanging working platform parts are including steel wire rope, safety lock, hoist, electric control box, and the metal working platform.
Part 2: assemble working platform
1. Select a relatively flat site, put the three-cage bottoms in one font. Take a low balustrade and install it over the bottom of the cage against the working face. Install the bolt fixing in the middle position, and then install a high balustrade piece on the other side of the cage bottom, the same bolt fixing. In the same way, insert other balustrade pieces.
2. Connect the cage bottom, between the two adjacent cage bottom and the joint of the balustrade, install the bolt.
3. Connect the balustrade pieces and install bolts on the adjacent balustrade pieces.
4. The installation hoist frame, turn the side with the roller into the platform and bolt.
5. Install the safety lock, and the roller end is facing the working platform.
6. Install the hoist, alignment bolt.
7. Install the limited switch. First remove the two nuts of the safety lock, install the formed switch on the safety lock, and tighten the nut.
8. Install electric direction and each connecting line. Hang the electric control box in the middle of the high blue chip, and the side with the push button faces into the working platform. Insert the handle plug, motor plug and cable plug into the socket respectively.
9. Check whether each part is installed correctly and there is any dislocation. Note the specification of bolts, length, and size of gaskets. Large washers must be used in contact with the square pipe. After confirmation, lock all bolts.
Part 3: Suspension mechanism installation
1. Insert the adjusting bar into the sleeve of the triangle front support. Adjust the height of the telescopic pillar according to the height of the parapet wall. Bolted, installation of the front base is complete.
2. Insert the adjusting bar into the sleeve tube of the rear support. The height of the telescopic pillar is equal to that of the former base. Install the rear support.
3. Load the front beam and the rear beam into the telescopic pillar of the front and near base respectively. Connect the front and rear beams with the middle beams, and select the overhang of the front beam and the distance between the front and near vase according to the actual situation. It usually overhangs 1.3 meters.
4. Place the upper pillar on the telescopic pillar of the front bracket and fix it with bolts. The erection of the upper support is completed.
5. Install the hanging front sleeve, rear coupling sleeve and ring-hook screws in turn. Through the strengthen rope to the roller of hanging front sleeve. Use the steel grip to fixed, then through the roller of upper column and rear sleeve the end to hang on the ring-hook screws, with wire rope grip fixed. Adjust the screw of the ring-hook screws to tighten the strengthen rope.
6. The hoisting wire rope and the safety wire rope are respectively fixed on the front beam frontal hanging plate. By pass the steel thimbles and fixed with a wire rope grip.
7. Install limit plate at the appropriate place of the safety wire rope.
8. Installation and counter weight. Each set is equipped with 40 pieces.
9. The hanging mechanism on the other side shall be installed as in the previous example.
As the ZLP630 suspended platform is mainly used for aerial work, safety is extremely important. During installation, the installation works must strictly follow the suspended platform installation guide. Besides, workers must be trained on the rules and safety regulations for suspended working platform before being allowed to use the equipment.
Product Paramenters
Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |||
Rated Capacity | 500KG | 630KG | 800KG | 1000KG | |||
Rated Lifting Speed | 9-11m/min | 9-11m/min | 8-10m/min | 8-10m/min | |||
Length of Platform | 5m | 6m | 7.5m | 7.5m | |||
Wire Rope Diameter | 8.3mm | 8.3mm | 8.6mm | 8.6/9.1mm | |||
Traction Hoist Type | LTD5.0 | LTD6.3 | LTD8.0 | LTD10 | |||
Hoist Rated Lifting Force | 5KN | 6.3KN | 8KN | 9.8KN | |||
Motor Power | 1.5KW | 1.5KW | 1.8KW | 2.2KW | |||
Motor Voltage | 380V/50HZ 3Phase, 220V/60HZ 3Phase , 220V/60HZ single phase | ||||||
Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |||
Rotation Speed | 1420rpm | 1420rpm | 1420rpm | 1420rpm | |||
Brake Torque | 15Nm | ||||||
Safety Lock Type | LSG30 | ||||||
Permission Force of Impact | 30KN | ||||||
Locking Cable Distance | <100mm | ||||||
Locking Cable | 3°~8° | ||||||
Suspension Mechanism Length | 1.3~1.7m | ||||||
Adjustable Height of the Beam | 1.1~1.8m | ||||||
Weight of platform Steel/Aluminum | 1770/1710kg | 1810/1730kg | 1950/1830kg | 2340/2240kg | |||
Weight of Suspension Mechanism | 310kg | ||||||
Counter Weight | 1000kg | 1000kg | 1000kg | 1300kg | |||

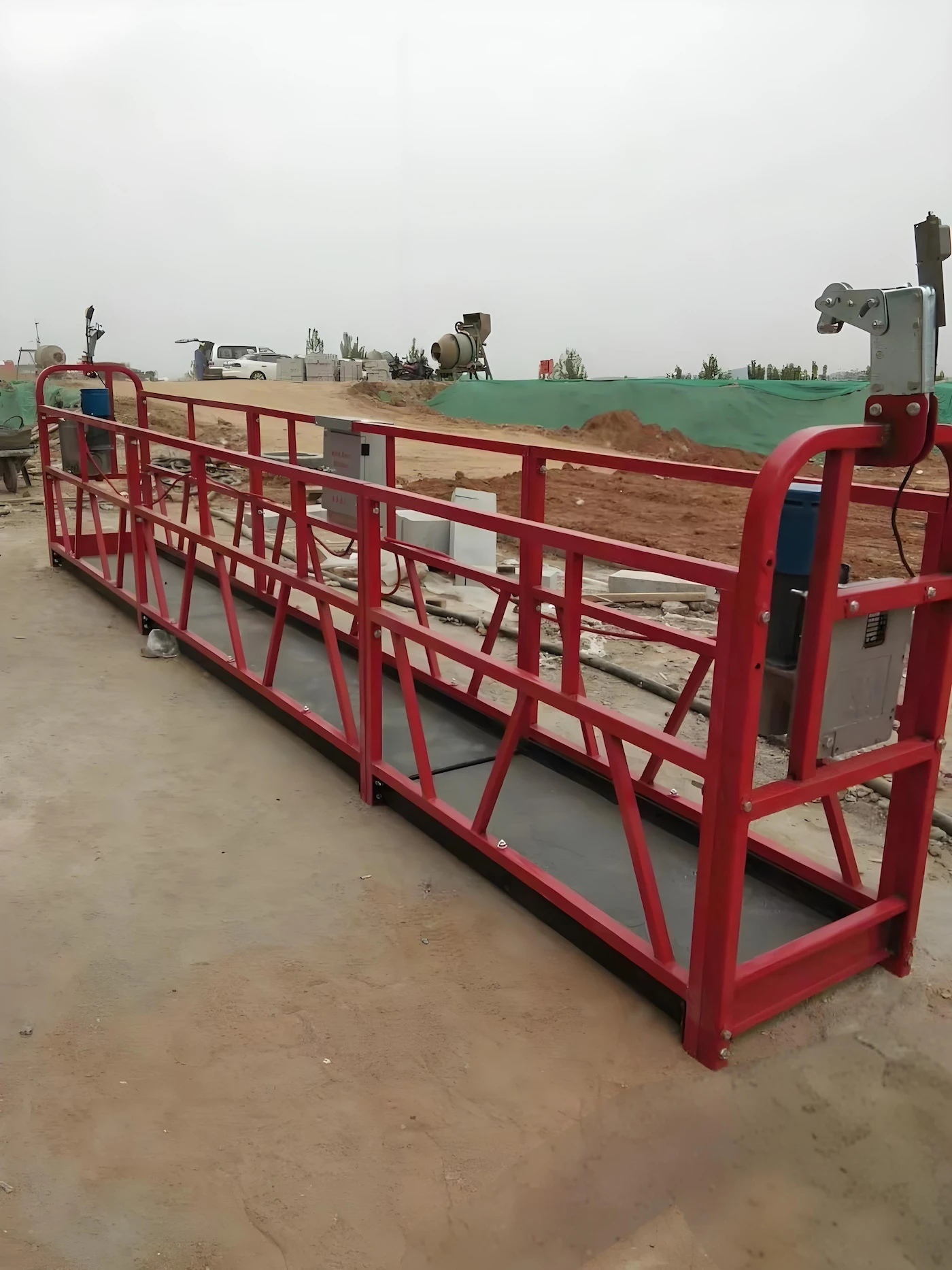

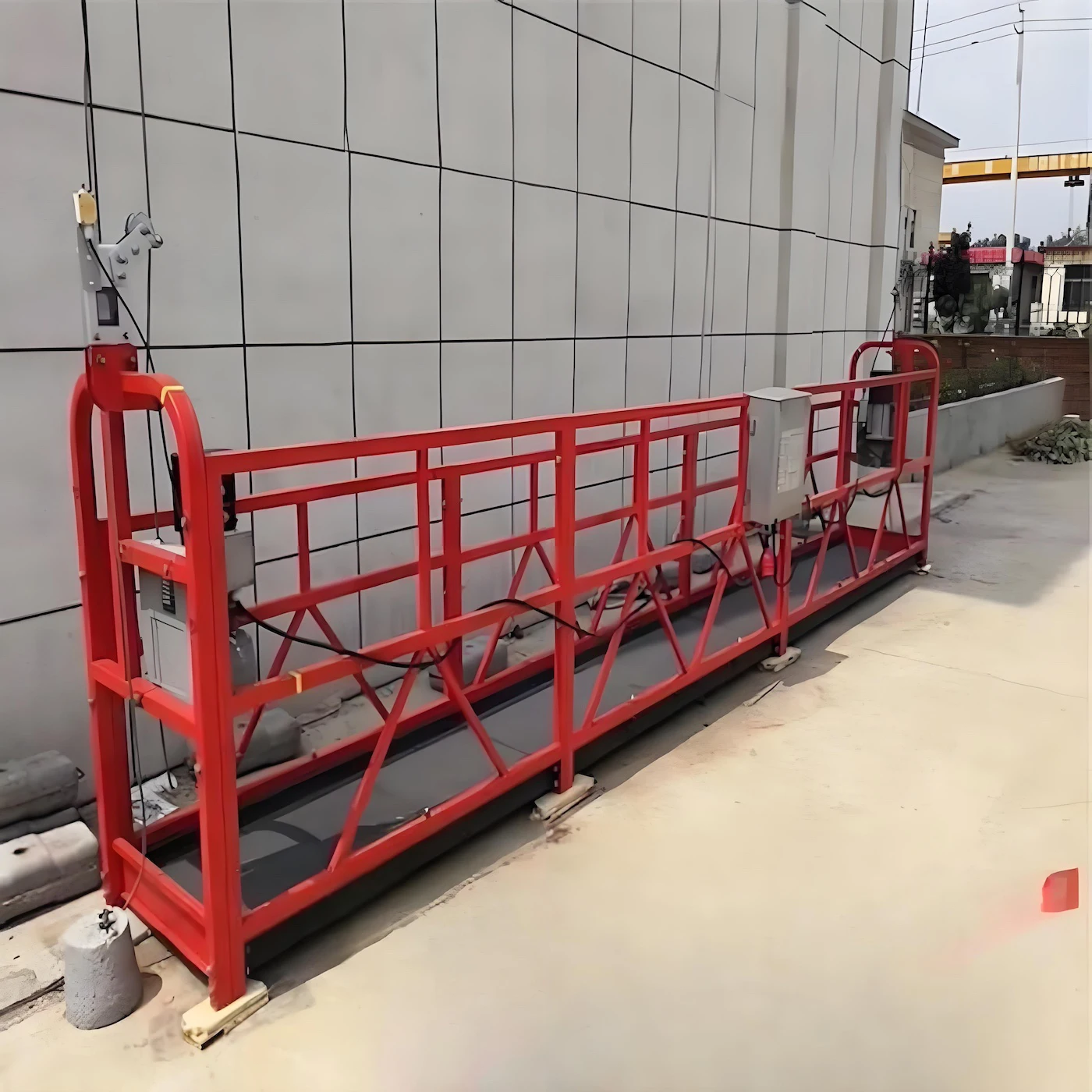

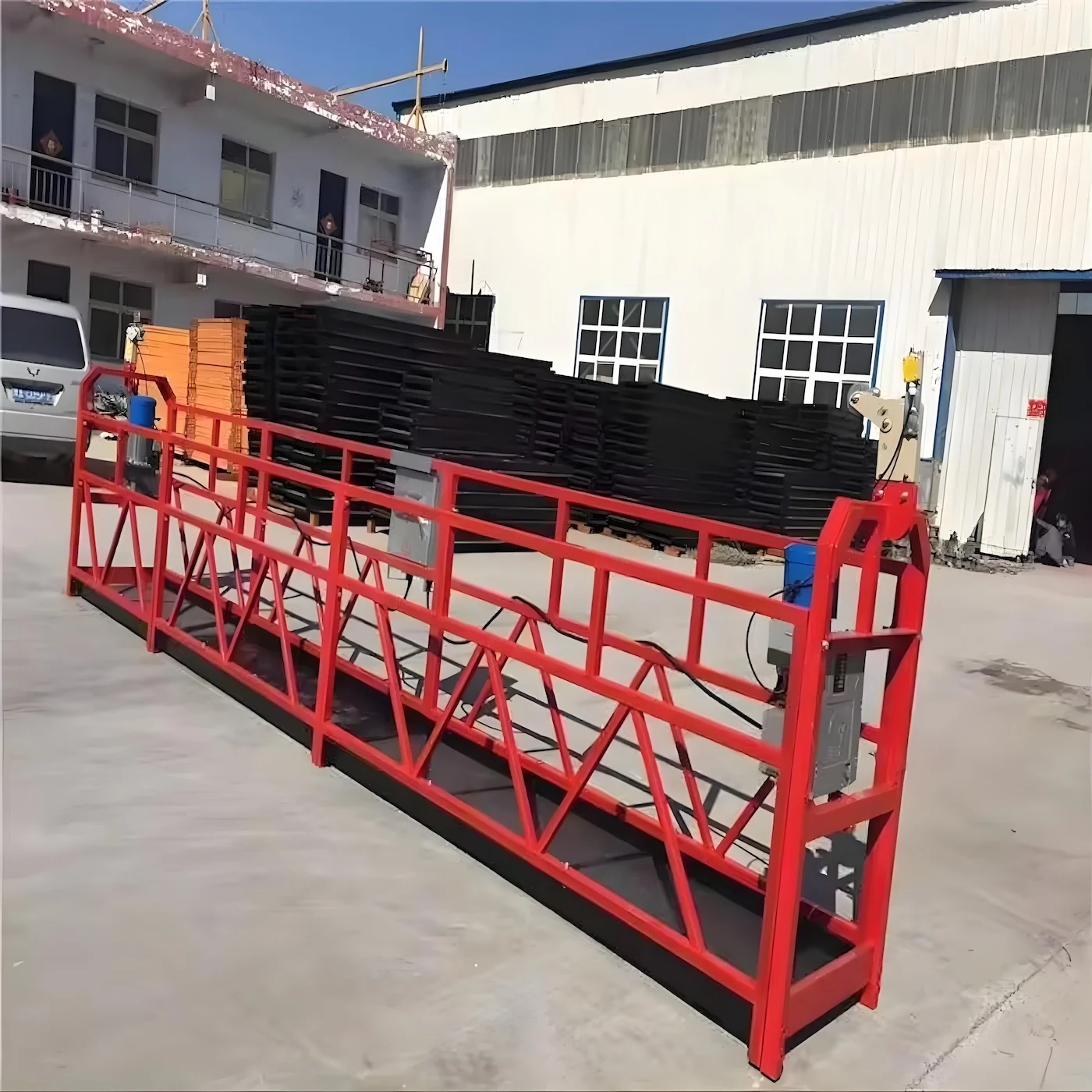

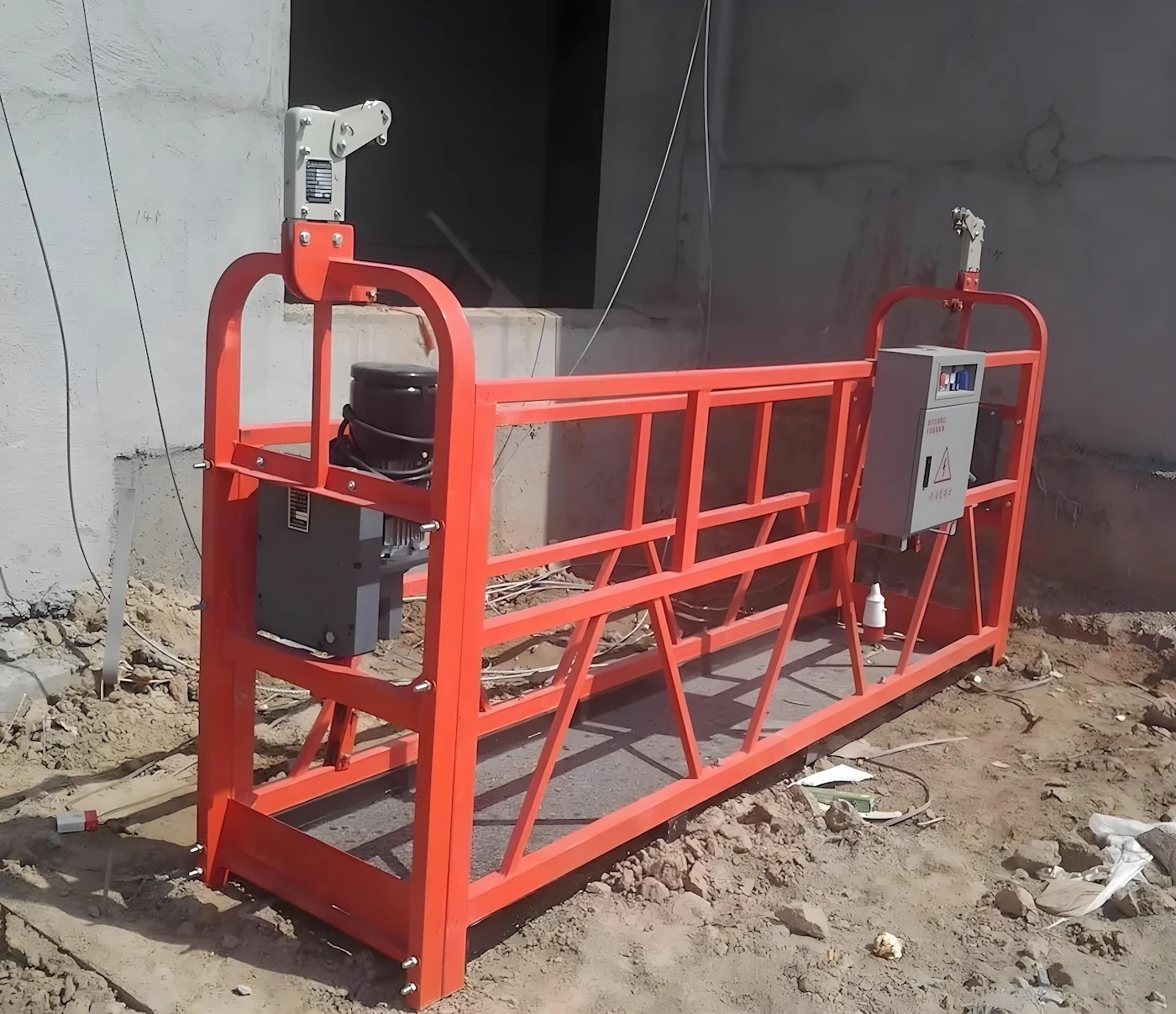

Details Images
Company Profile

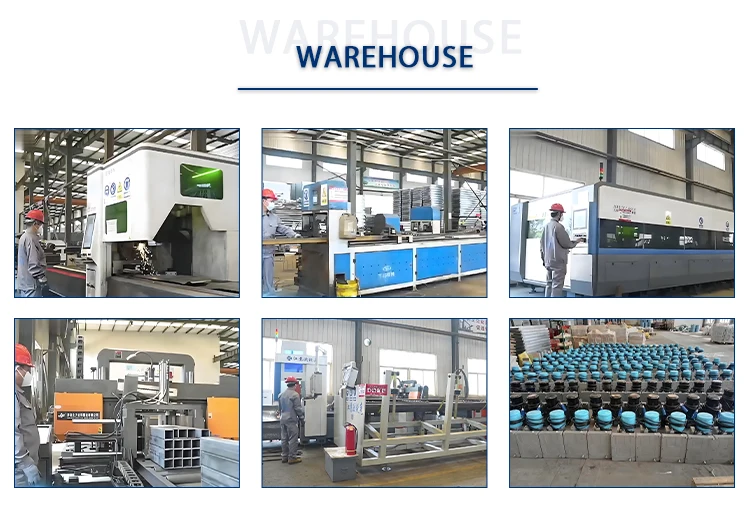

Jiangsu Jinyang industrial Co., Ltd., founded in 2016, is an innovative enterprise focusing on the field of construction machinery products. Headquartered in Jiangsu province, the company has developed into a combination of research and development, production, sales and service. The company has a high-quality.professional research and development team, committed to continuous exploration and innovation, in order to meet the market for construction machinery products growing demand and higher quality requirements. lts product line is rich and diverse, covering the hanging basket, tower crane, crane, concrete mixer and other advanced construction machinery and equipment, widely used in all kinds of construction projects.tion machine and our RELIABLE company.
Jinyang industry always adhere to the quality as the life, strictly follow the international and domestic quality standards, from raw material procurement to the production process of every link, are strict quality control,to ensure that each equipment has excellent performance and reliable stability. In terms of service, the company has built a perfect pre-sale, sale and after-sales service system, and has won the trust and praise of customers with its professional, efficient and intimate service. Not only to provide customers with high-quality products, but also to provide customers with a full range of technical support and solutions, to help customers to achieve the smooth progress of the project. Looking forward to the future, Jiangsu Jinyang industrial Co., Ltd. will continue to uphold the concept of "innovation, quality, service", constantly improve their own strength, contribute to the development of the construction machinery industry, and strive to become a leading enterprise in the industry.
FAQ
Q:What the main products you can supply?
A: We are the professional and famous factory in China for suspended platform,electric suspended platform,construction suspended platform,working suspended platform,accessories of suspended platform.
Q:Will you can accept the customized and OEM products?
A:Yes,we can do the production based on your drawings and with your logo,also because we have very strong design and development team,so the feedback is very good for customized product.
Q:What is your payment terms?
A:Commonly two payment term for new customers
A: T/T, L/C at sight, Escrow, Paypal, West Union
If you need other terms, please feel free to contact us too, we will try our best.
Q:How about the samples? Is it free to extra fees?
A: Because this is large scale construction equipment, we do not supply samples for free. We would provide discount based on the order volume.
Q:How long is your delivery time?
A: It will take less than 7 days to finish one order, But the exact time is according to actual situation.
Q: How about the warranty?
A: One years warranty. If quality problems occur, please feel free to contact us.
Q:How to control and guarantee your product quality?
A:（1）All our factories are ISO 9001 certified facility;
（2）Worked with world famous origin mills as TISCO, Bao steel;
（3）Ex factory inspection by our own laboratory;
（4）SGS/BV Third party inspection before delivery.
A: We are the professional and famous factory in China for suspended platform,electric suspended platform,construction suspended platform,working suspended platform,accessories of suspended platform.
Q:Will you can accept the customized and OEM products?
A:Yes,we can do the production based on your drawings and with your logo,also because we have very strong design and development team,so the feedback is very good for customized product.
Q:What is your payment terms?
A:Commonly two payment term for new customers
A: T/T, L/C at sight, Escrow, Paypal, West Union
If you need other terms, please feel free to contact us too, we will try our best.
Q:How about the samples? Is it free to extra fees?
A: Because this is large scale construction equipment, we do not supply samples for free. We would provide discount based on the order volume.
Q:How long is your delivery time?
A: It will take less than 7 days to finish one order, But the exact time is according to actual situation.
Q: How about the warranty?
A: One years warranty. If quality problems occur, please feel free to contact us.
Q:How to control and guarantee your product quality?
A:（1）All our factories are ISO 9001 certified facility;
（2）Worked with world famous origin mills as TISCO, Bao steel;
（3）Ex factory inspection by our own laboratory;
（4）SGS/BV Third party inspection before delivery.
