Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
High Speed 3kw 4kw Laser Cutting Machine for Stainless Steel Iron Metal Pipe High Efficiency Welder for Metal Work
- Category: >>>
- Supplier: Fortune Laser Technology Co. Ltd.
Share on (1601219329043):
Product Overview
Description
Product Description

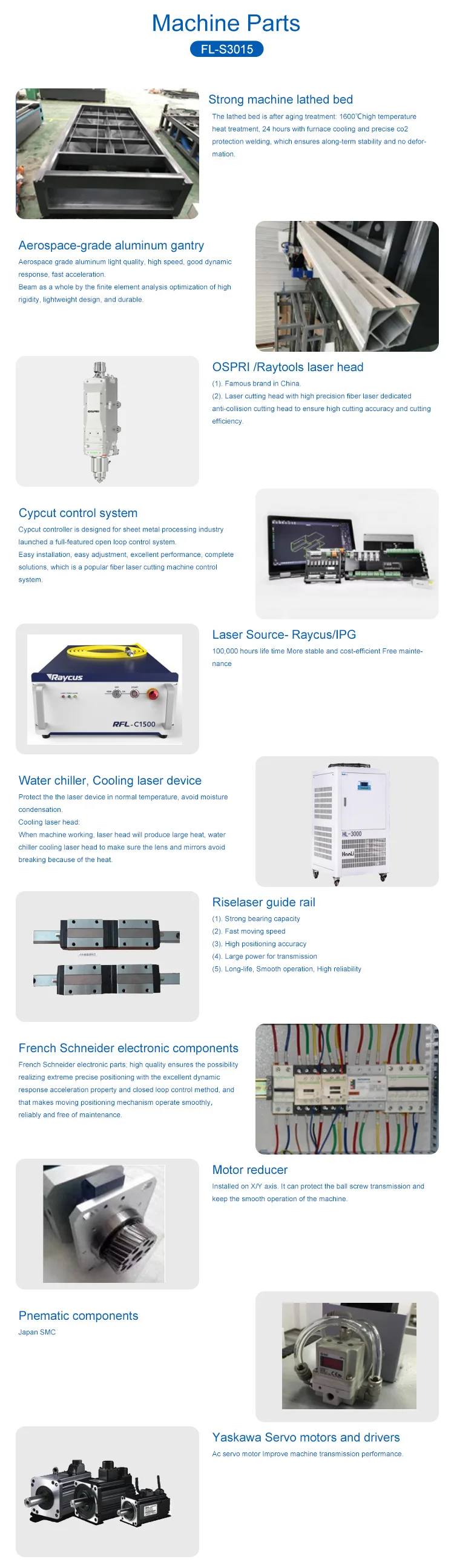

Machine configuration | |||
Model | Fiber Laser Cutting Machine FL-S3015 | ||
Working Area(L*W) | 3000mm*1500mm | ||
Applicable Materials | Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titaniu metc metal plate | ||
Laser power | 1000W/1500W/2000W/3000W | ||
Materials Thickness | Depends on the material and the power | ||
Laser source | MAX | ||
Control System | Cypcut 2000C | ||
Laser head | Raytools BM110 | ||
Machine bed | Fortune Laser | ||
X/Y Axis Position Accuracy | ±0.02mm | ||
Max Moving Speed | 80000mm/min | ||
Max Acceleration | 1.2g | ||
Max Loading Weight | 800kg | ||
Power Supply | AC380V/50Hz | ||
Machine rack and pinion | YYC | ||
Precision guide rail | HIWIN | ||
Servo Motor Drive | Inovance (Y axis 1.3KW,X axis 850W,Z axis 400W) | ||
Electronic components | France Schneider | ||
Reducer system | MOTOREDUCER | ||
Pneumatic components | Japan SMC | ||
Machine bed accessories | Fortune Laser | ||
Water chiller | Hanli | ||
Waste recycling equipment | Fortune Laser | ||
Container | 1* 20GP | ||

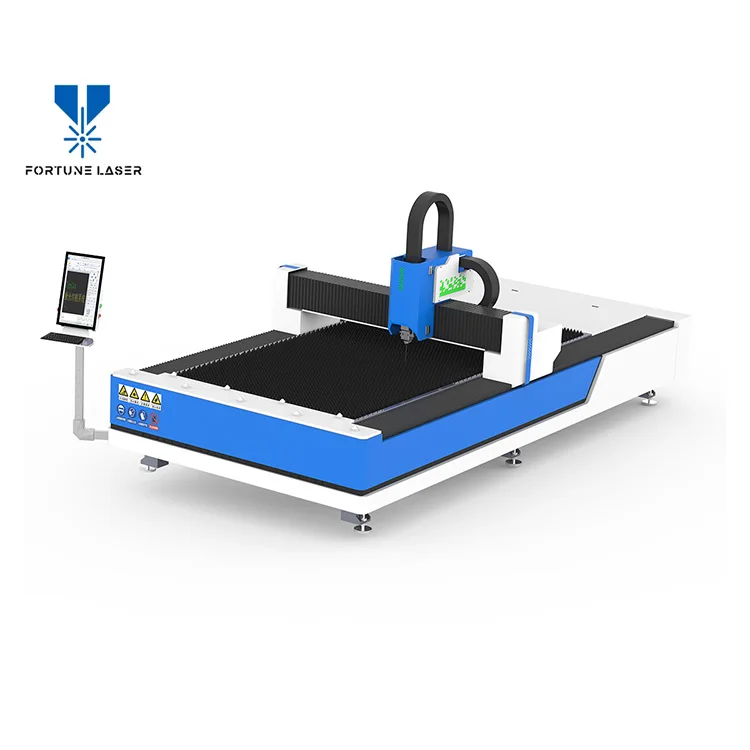

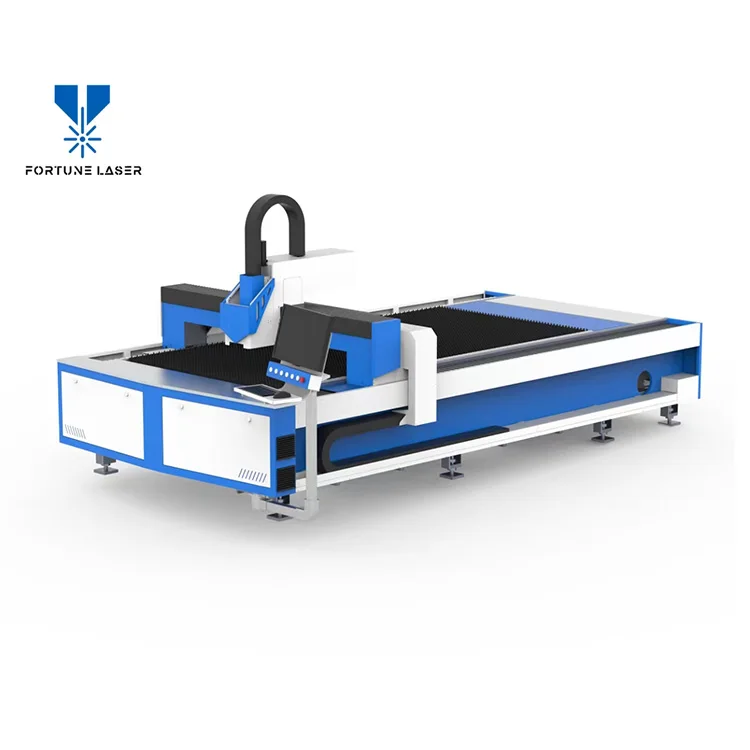

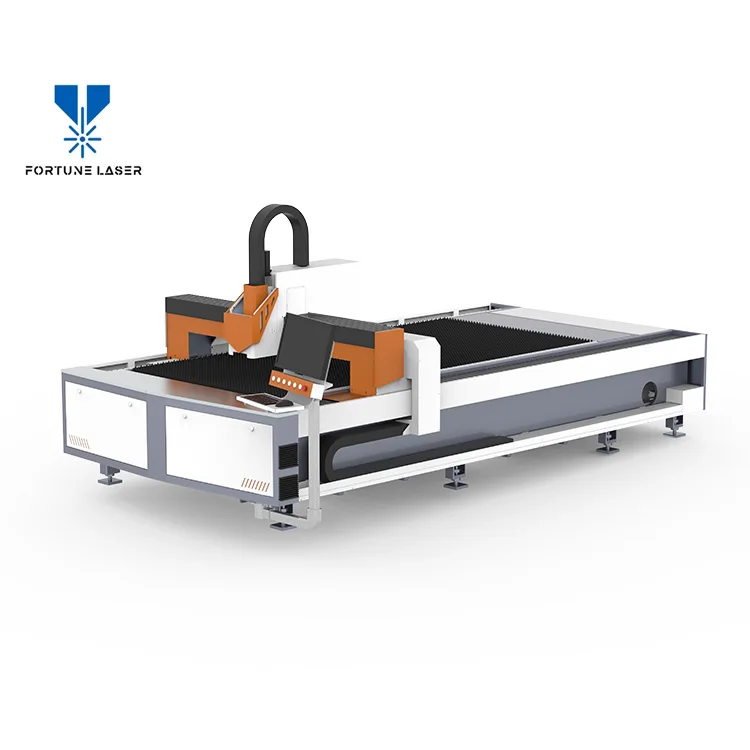

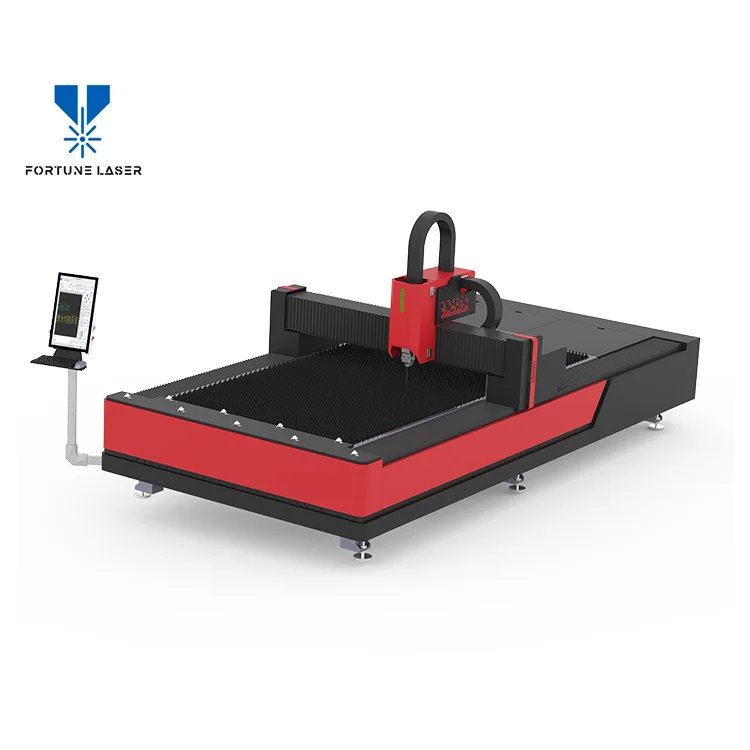

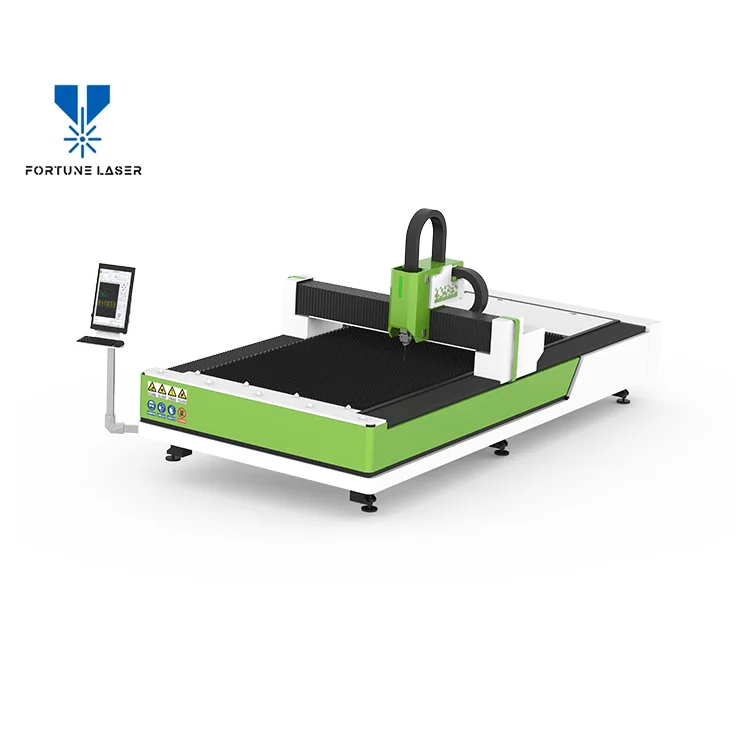

Fortune Laser 1000W 1500W 2000W 3000W 3015 Sheet Metal Fiber Laser Cutting Machine
Servo dual-drive gantry structure: Bridge gantry structure, rack rail drive, the use of centralized lubrication device, easy maintenance;
Stable and practical: Reinforced welding bed, high-temperature tempering treatment vibration to eliminate stress, machine tool deformation can be controlled at ± 0.02mm;
Industrial aesthetics design: Export standards in Europe and America, the appearance of aesthetic design, simple atmosphere;
The operation is simple and easy to use: More than 20000 users, global technology-leading CNC laser cutting system, the flexible operation is simple, has the function of laser power adjustment, to ensure the quality of cutting, the operation is simple and convenient;
High-quality cutting: High-precision anti-collision professional laser cutting head, to ensure the best cutting effect;
Efficient material: Used in the standard specifications of metal sheet cutting, saving time and material;
Fiber laser: Use Maxphotonics laser(Other brands laser are optional), stable and reliable power in the domestic top brand, performance guaranteed;
Note:
1. This machine configuration is only for your reference, many other brands for each part of the machines are optional based on your requirements and your budget.
2. We provide the whole set laser machines and also the parts for the laser machines, including the Laser source, laser head, water chiller, CNC controller, etc. Please contact us for more details today!
Machine Parameters | ||||||||
Model | FL-S2015 | FL-S3015 | FL-S4020 | FL-S6020 | ||||
Working Area (L*W) | 2000*1500mm | 3000*1500mm | 4000*2000mm | 6000*2000mm | ||||
X/Y Axis Position Accuracy | ±0.03mm/1000mm | ±0.03mm/1000mm | ±0.03mm/1000mm | ±0.03mm/1000mm | ||||
X/Y Axis Repeat Position Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ||||
Max Moving Speed | 80000mm/min | 80000mm/min | 80000mm/min | 80000mm/min | ||||
Max Acceleration | 1.2g | 1.2g | 1.2g | 1.2g | ||||
Max Loading Weight | 600kg | 800kg | 1200kg | 1500kg | ||||
Power Supply | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz | ||||
Laser Source Power(Optional) | 1kW/1.5kW/2kW/2.5kW/3kW/4kW/6kW/8kW/10kW/12kW/15kW/20kW | |||||||
