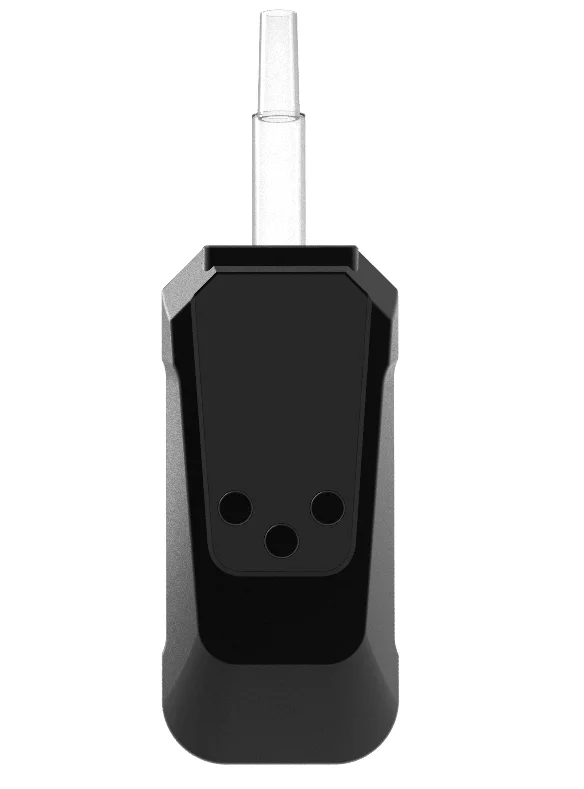

Alcohol Tester Breath Printing With Breathalyzer High Quality Home Used For Driver And Party

TP 07

The parameter name

Specification

Measurement Method

Rapid Assessment

Operating Mode

Continuous Data Acquistion

Measurement Range

0mg/100mL~ 400mg/100mL(BAC)

Sensitivity

0.5mg/100mL BAC

Measurement Unit

mg/L(BrAC),mg/100mL(BAC)Optional

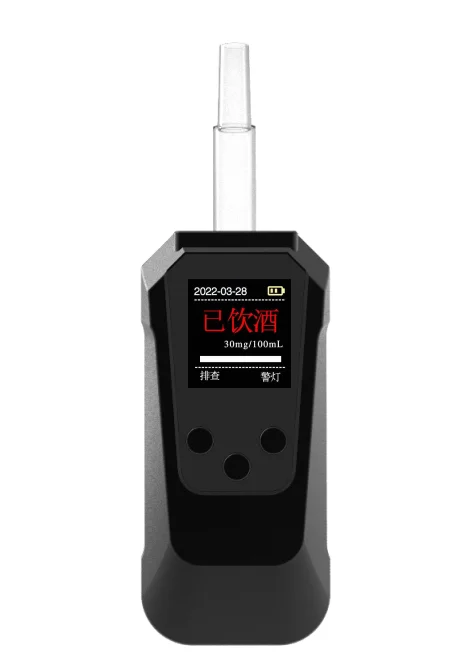

Display

1.4-inch LCD color display; green color indicates sobriety, accompanied by a voice prompt: “Thank you for your cooperation.”

When alcohol is detected, the display turns red, accompanied by a voice alert: “You have been drinking.”

Operation Mode

Menu

Measurement Accuracy

When the standard gas concentration is 50mg/100mL BAC:

When the blowing distance is less than 5cm: ±5.0mg/100mL

When the blowing distance is between 5~10cm: ±6.0mg/100mL

When the blowing distance is greater than 10cm: ±10.0mg/100mL

Measurement Time

5 Seconds

Operating Environmental Conditions Required

Operating Temperature Range: 0~50°C

Environmental Humidity: 20~98%

Storage Temperature: -20~70°

Atmospheric Pressure: 600~1400hPa

Weight

75 g (including the battery)

Battery

1800mAh, capable of conducting over 1000 consecutive alcohol tests (5V1A charging IC)

Power Consumption

During alcohol testing: <50mA

Sensor

Semiconductor high-precision intelligent sensor

Size

Length * Diameter: 120mm * 50mm

Power Saving Mode

The device automatically shuts down after 5 minutes in alcohol testing mode.

Data

Measurement records are saved locally and can be exported to a computer via USB.

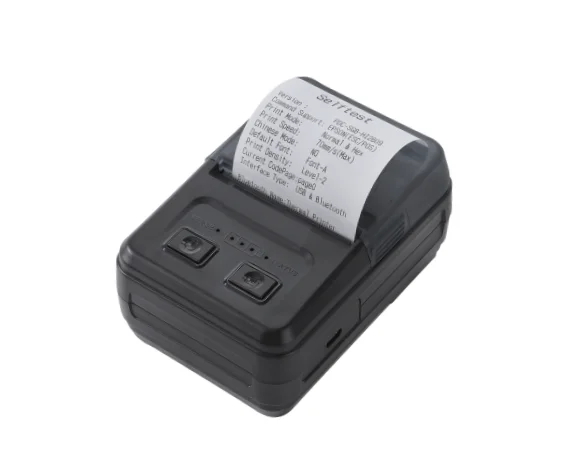

Printer

The device activates Bluetooth to connect to the printer for printing.
