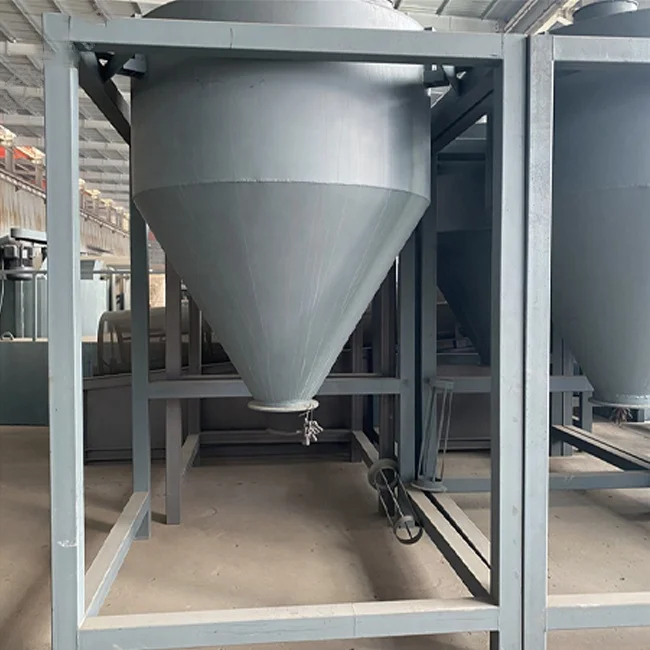

Foam Lightweight AAC Block Material Fly ash Cement Sand Brick Making Machine
- Category: >>>
- Supplier: Gongyi Shield Machinery Manufacturing Co. Ltd
Share on (1601219622399):
Product Overview
Description
Products Description
Gongyi Dunpai Machinery Factory produces a non-steam aerated block brick laying machine (Lightweight bricks making machine) which mainly passes waste resources such as fly ash, slag, sand and other waste resources through the brick making machine to produce lightweight bricks. The production process is simple, the investment is small, and the cost is low. Good quality, environmental protection and energy saving.
Technical Parameters
Product Name:Electronic Batching Machine
Boundary Dimension:5.60*1.80*2.80m
The raw materials are proportioned and weighed by the automatic batching system.
Boundary Dimension:5.60*1.80*2.80m
The raw materials are proportioned and weighed by the automatic batching system.
Technical Parameters

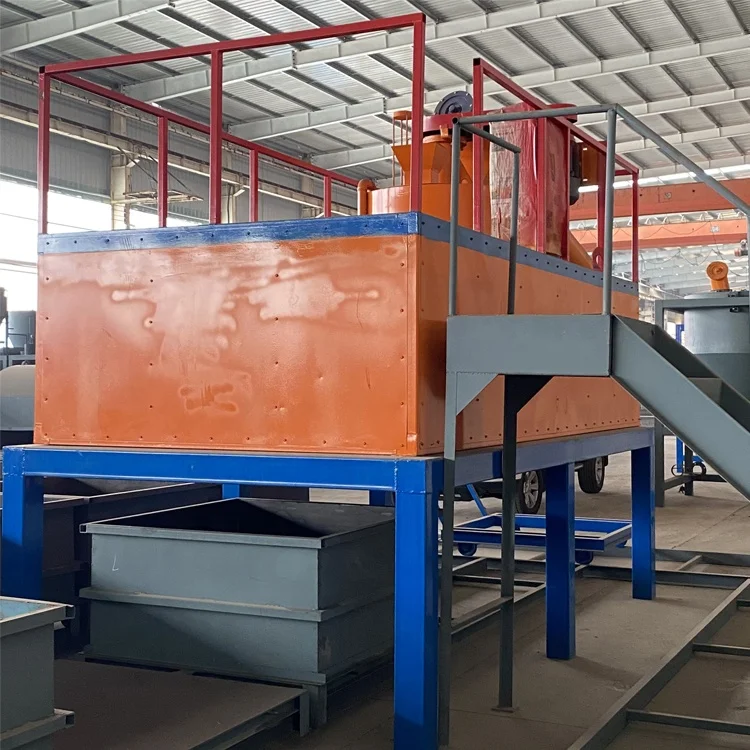

Product Name: Foaming Stirring Mainframe
Power:11kw
Boundary Dimension:4.00*2.20*2.00m
The machine mixes raw materials and foaming machine to form slurry.
Power:11kw
Boundary Dimension:4.00*2.20*2.00m
The machine mixes raw materials and foaming machine to form slurry.
Technical Parameters

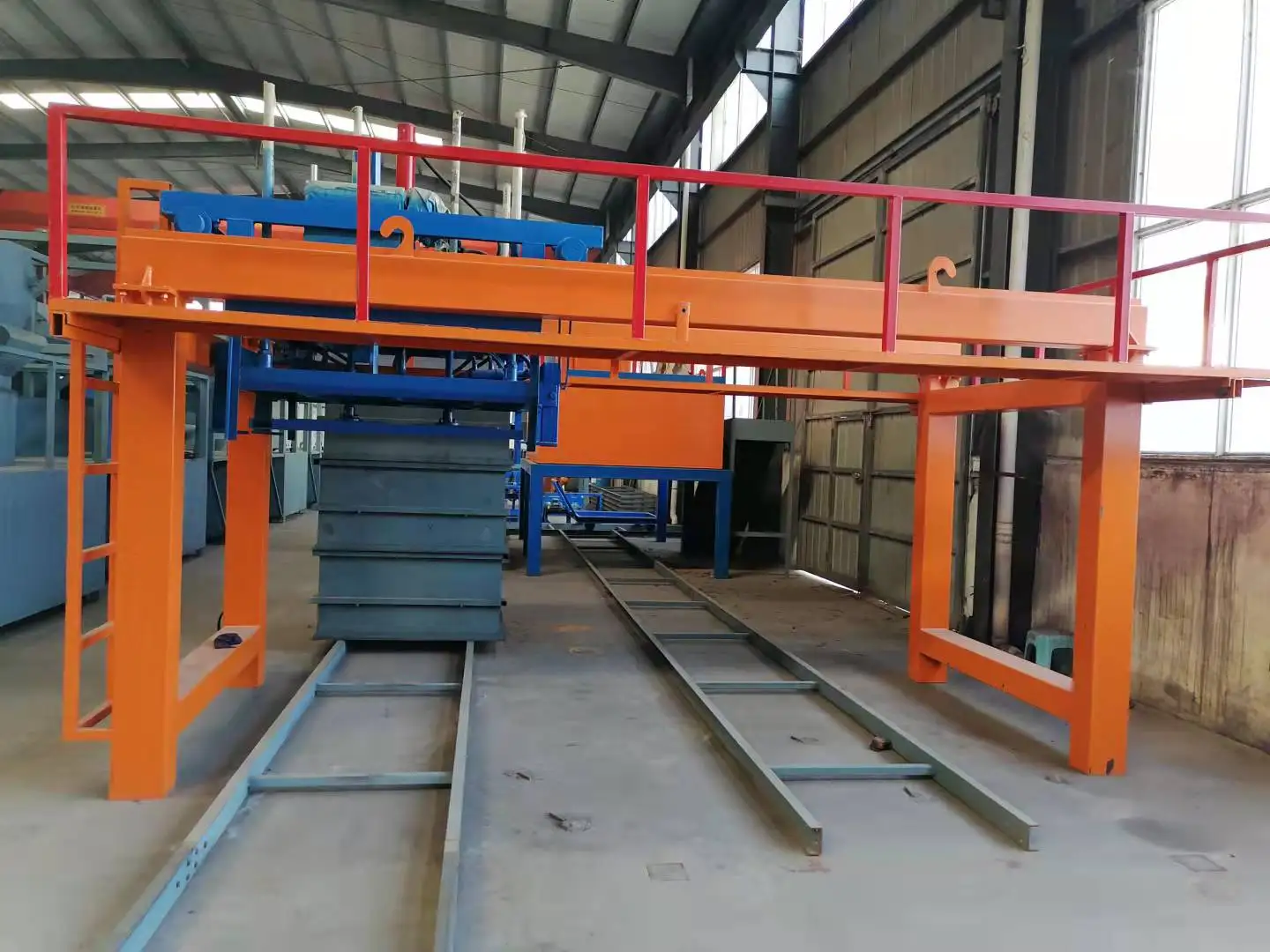

Product Name:Demoulding Machine
Power:4.5kw
Boundary dimension:6.00*2.50*2.20m
Lift the mold by the ferry car for holding mold, and then transport it to the cutting machine.
Power:4.5kw
Boundary dimension:6.00*2.50*2.20m
Lift the mold by the ferry car for holding mold, and then transport it to the cutting machine.
Technical Parameters
Product Name:Surface Cutting Machine
Power:11kw
Power:11kw
Boundary Dimension:3.25*0.5*1.90m
Make the surface of the semi-production flat.
Make the surface of the semi-production flat.
Technical Parameters

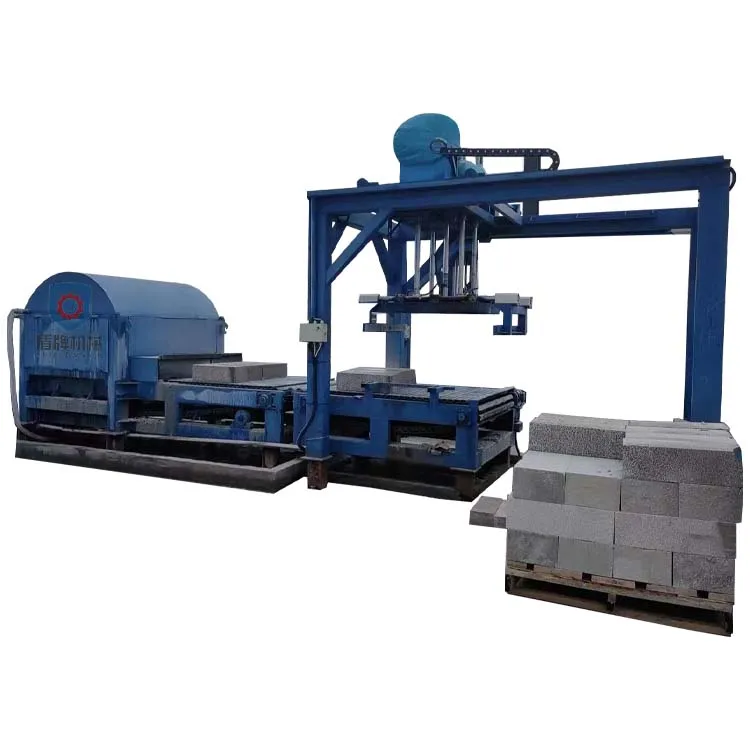

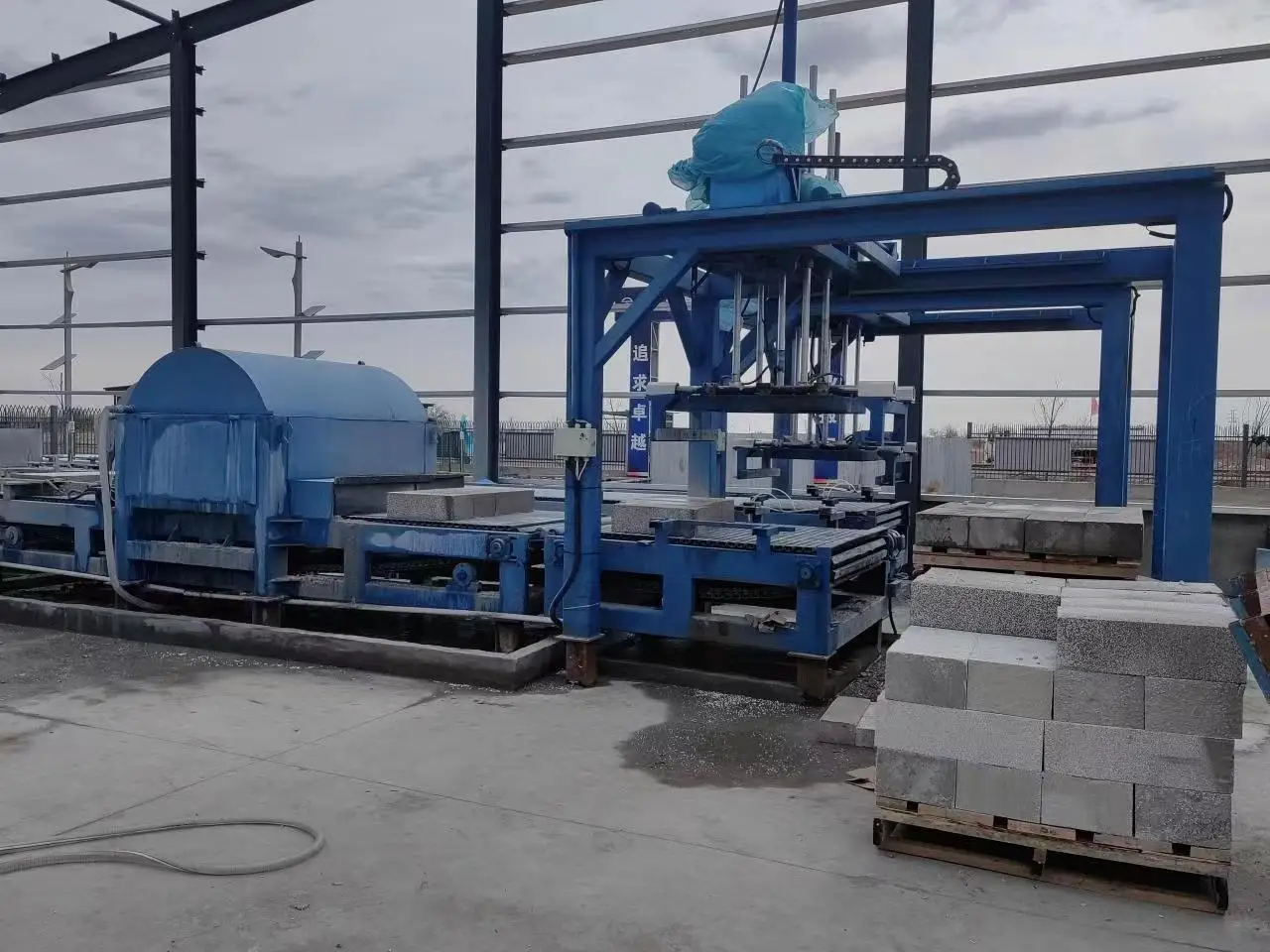

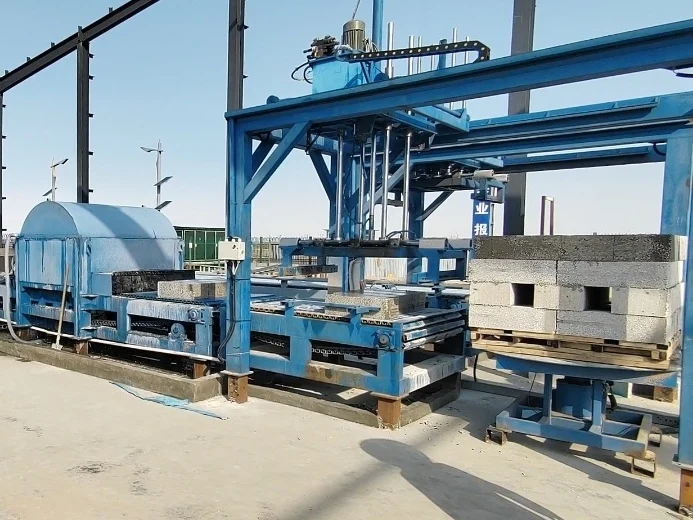

Product Name:Disc cutting machine and Automatic palletizer
Power:113.2KW
Boundary Dimension:20*2.35*1.8m
Use a disc cutting machine to cut bricks of suitable size according to the required size.
Stacker Machine is used for brick clamping, and crane and forklift can be used.
Technical Parameters
Product Name:
Dual Electric Rail Changing Trolley
Boundary dimension:3.60*2.00*0.3m
Dual Electric Rail Changing Trolley from one track to another track for continuous production.
Technical Parameters
Product Name:Mold
Boundary dimension:1.20*1.20*0.60m
Pour the slurry into the mold and wait for chemical foaming.

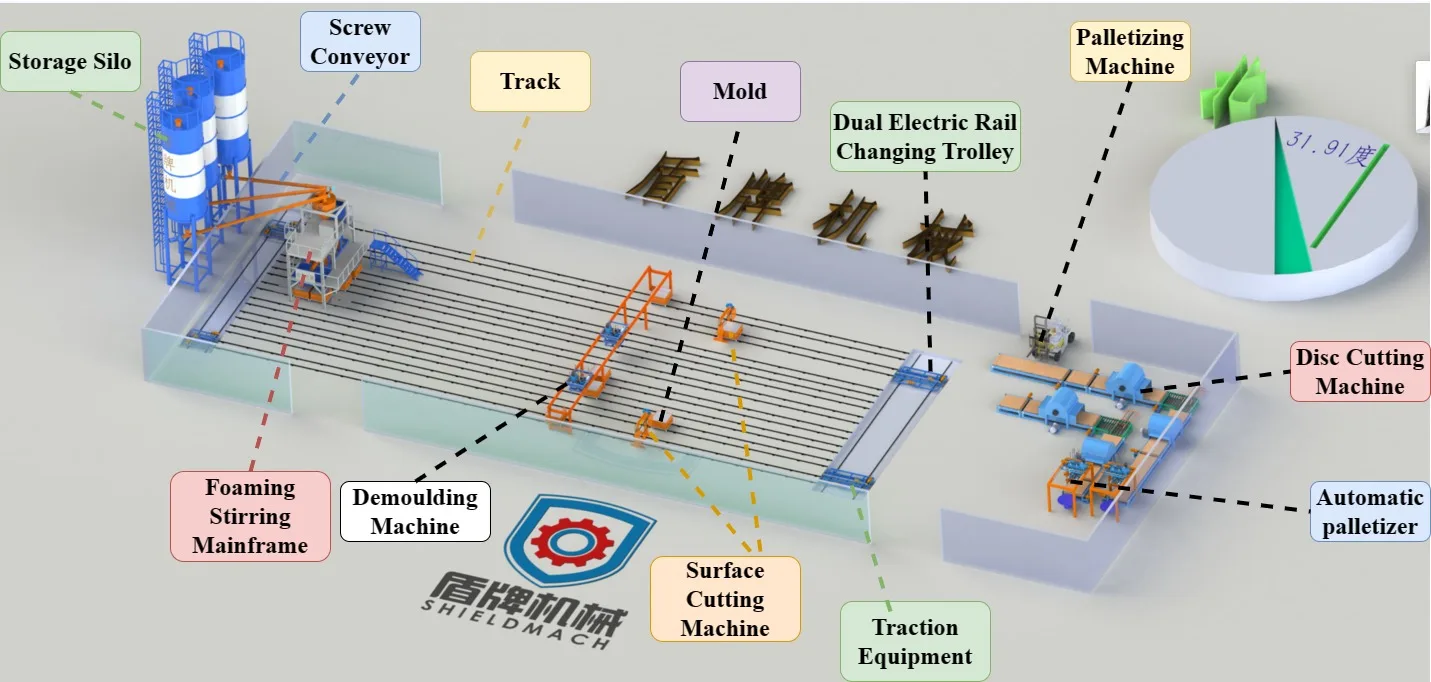

Production line layout
Gongyi Dunpai Machinery Factory produces a non-steam aerated block bricklaying machine ( Lightweight bricks making machine) which has many advantages:
1.Simple operation, technical guidance ；
2.Diverse models, accept customization；
3.No need to assemble, plugand play；
4.Precision machining, humanized design ；
5.The first domestic patent brick making.

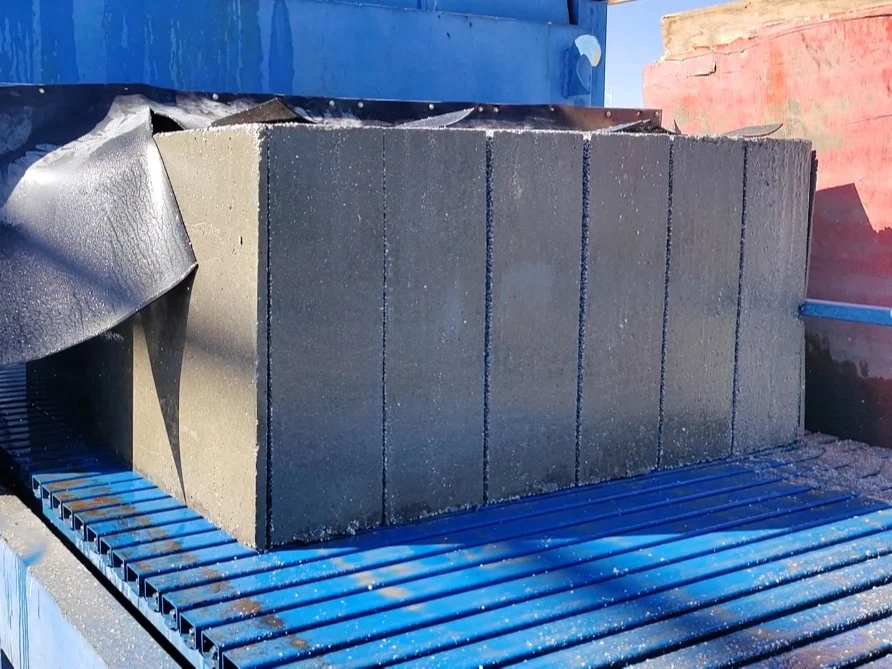

Finished product display and application
Lightweight bricks are also called polystyrene foam bricks or steam-free aerated block bricks.It can be used in various building facilities, and has the advantages of heat preservation, heat insulation, sound insulation, etc., and has good earthquake resistance, compression resistance and waterproof performance. More environmentally friendly than ordinary bricks, so it is now used more.
Model size
Foam Concrete Non Autoclaved Aerated Brick Block Machine Product Line | ||||
Model | Capacity | Power | ||
CLC-50 Line | 50 m³/day | 27.5 KW | ||
CLC-100 Line | 100 m³/day | 84.5 KW | ||
CLC-200 Line | 200 m³/day | 179 KW | ||
CLC-300 Line | 300 m³/day | 317.6 KW | ||
Notes:Can be customized according to customer needs | Can be customized according to customer needs | |||
Our Advantages
The main advantage of our block making machine.
1.Our block machine is one of our newly designed block making machine with less power.
2.It adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With simple operation and high productivity, when producing hollow blocks, it has an advantage over the large hydraulic block machines.
3.It uses Mode 350 speed reducer to raise and lower the mold, so it greatly increases the usage life of the speed reducer.
4.The blocks made by this machine has high strength and accurate size.Its performance and product quality are comparable to the large equipment.
Company Profile
Gongyi DUNPAl Machinery Manufacturing Co.Ltd is a manufacturer ofnew-type foam concrete block (CLC/AAC) production equipment which is located in Gongyi city China,established in 1985. DUNPAI has been the first class in this field for more than 25 years. By now our foam concrete block(CLC/AAC)equipment is not only sold all over China but also exported to Mongolia,Indonesia,Cambodia,and otherAsian countries100+cases inside ofchina,30+cases abroad.
lt has an R&D design team and an after-sales service team of 5-10 people,is holding many-core technology patents in this field. According to the actual needs of different customers,DUNPAl provides customers with one-stop services from site design to equipment installation.we are the only 1ful process service provider & equipment manufacturer in China.
Packaging&Shipping
Packaging：First, wrap the mechanical equipment with lastic wrap, and then put the wrapped mechanical quipment into the wooden box after packaging.
Shipping：First by truck to the port, and then by sea to the destination.
Shipping：First by truck to the port, and then by sea to the destination.
FAQ
1.What are the required raw materials?

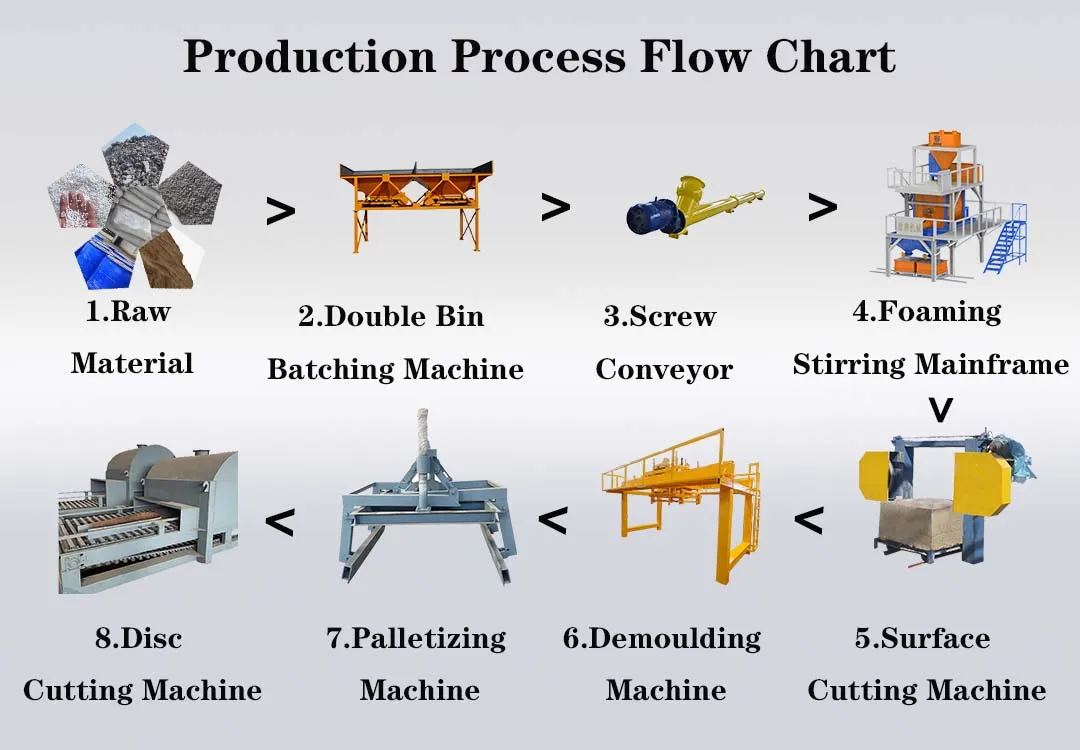

2.What machines are included in the production line?
Electronic batching machines, conveyors, foam mixing machines, mold lifting ferry machines, cutting machines, palletizers, ferry cars, traction equipment.
Main materials: water, cement Auxiliary materials: polystyrene particles / sand / stone powder / fly ash / tailings / slag / construction waste (any one can be used) foaming agent.
2.What machines are included in the production line?
Electronic batching machines, conveyors, foam mixing machines, mold lifting ferry machines, cutting machines, palletizers, ferry cars, traction equipment.
According to the different raw materials and formulas, the compressive strength of the bricks produced by our equipment is between 2.5-4.7N/mm². The exclusive formula will be provided based on the material you will choose before the purchase ends.
4.what kinds of NON-AAC block-making machines do you provide?
Based on the different techniques of foaming we produce chiemical type and physical type.
Based on the different capicities you will need ,we produce the following basic type: QT-C-50;QT-C-100;QT-C-200;QT-P-50;QT-P-100;QT-P-200; Daily output ranges from 50 cubic meters to 200 cubic meters or more.
5.What are the advantages of autoclaved aerated block production equipment compared with traditional autoclaved equipment?
√ 60-90% investment cost savings, because we use the developed formula to replace the boiler autoclave.
√ There is no exhaust gas, waste water, solid waste discharge, and the energy saving rate is more than 50%.
√ Minimal site, labor requirements, and high production efficiency. Daily output of 100 party lines only 4-5 people, no heavy physical and hazardous work.
√ No specific production environment is required. Normal temperature and pressure can guarantee product quality.
