SC200 Electric Construction Elevator Lift New Condition Core Components Motor Gear Used Construction Hoist

Product Overview

Description

SC200 Electric Construction Elevator Lift New Condition Core Components Motor Gear Used Construction Hoist

Overview

Shandong Hongming Machinery Co., Ltd is a professional manufacturer and exporter for construction hoist.

We pay all our attention for the product design and manufacturing.

We accept OEM order , we can design and supply product as you requirement.

Technical Data:

Model S/N          Single        Twin			Load Capacity  MAX.Speed   MAX.Height   Drive Unit percage(Kg)     (m/min)        (m)        (KW/Hz)				Safety Device	EL Control (KW)
1	SC100	SC100/100	1000	33	150	2*11/50	SAJ30-1.2	PLC DOL
2	SC100L	SC100/100L		36	250	2*11/60	SAJ30-1.2	30 VFD
3	SC100M	SC100/100M		60	350	2*15-19/87	SAJ30-1.4	37 VFD
4	SC100H	SC100/100H		75	450	2*23/87	SAJ40-2.0	55 VFD
5	SC100SH	SC100/100SH		96	550	2*32/87	SAJ40-2.0	75 VFD
6	SC200	SC200/200	2000	33	150	3*11/50	SAJ40-1.2	PLC DOL
7	SC200LA	SC200/200LA		36	250	2*13/60	SAJ40-1.2	30 VFD
8	SC200LB	SC200/200LB		45	250	2*15/60	SAJ40-1.2	37 VFD
9	SC200MA	SC200/200MA		54	250	2*19/87	SAJ40-1.4	45 VFD
10	SC200MB	SC200/200MB		60	250	2*23/87	SAJ40-1.4	55 VFD
11	SC200MC	SC200/200MC		63	350	3*15/87	SAJ40-1.4	55 VFD
12	SC200H	SC200/200H		75	450	3*19-23/87	SAJ50-2.0	75-90VFD
13	SC200SH	SC200/200SH		96	550	3*26-32/87	SAJ50-2.0	90-110 VFD
14	SC300LA	SC300/300LA	3000	36	250	3*11/60	SAJ50-1.2	37 VFD
15	SC300LB	SC300/300LB		48	250	3*15/87	SAJ50-1.2	55 VFD
16	SC300M	SC300/300M		60	350	3*19-23/87	SAJ50-1.4	75-90 VFD
17	SC300H	SC300/300H		75	450	3*26-32/87	SAJ50-2.0	90-110 VFD
Remarks:The ones marked are our recommended model,others can be customized according to the requirements.

Our Advantages:

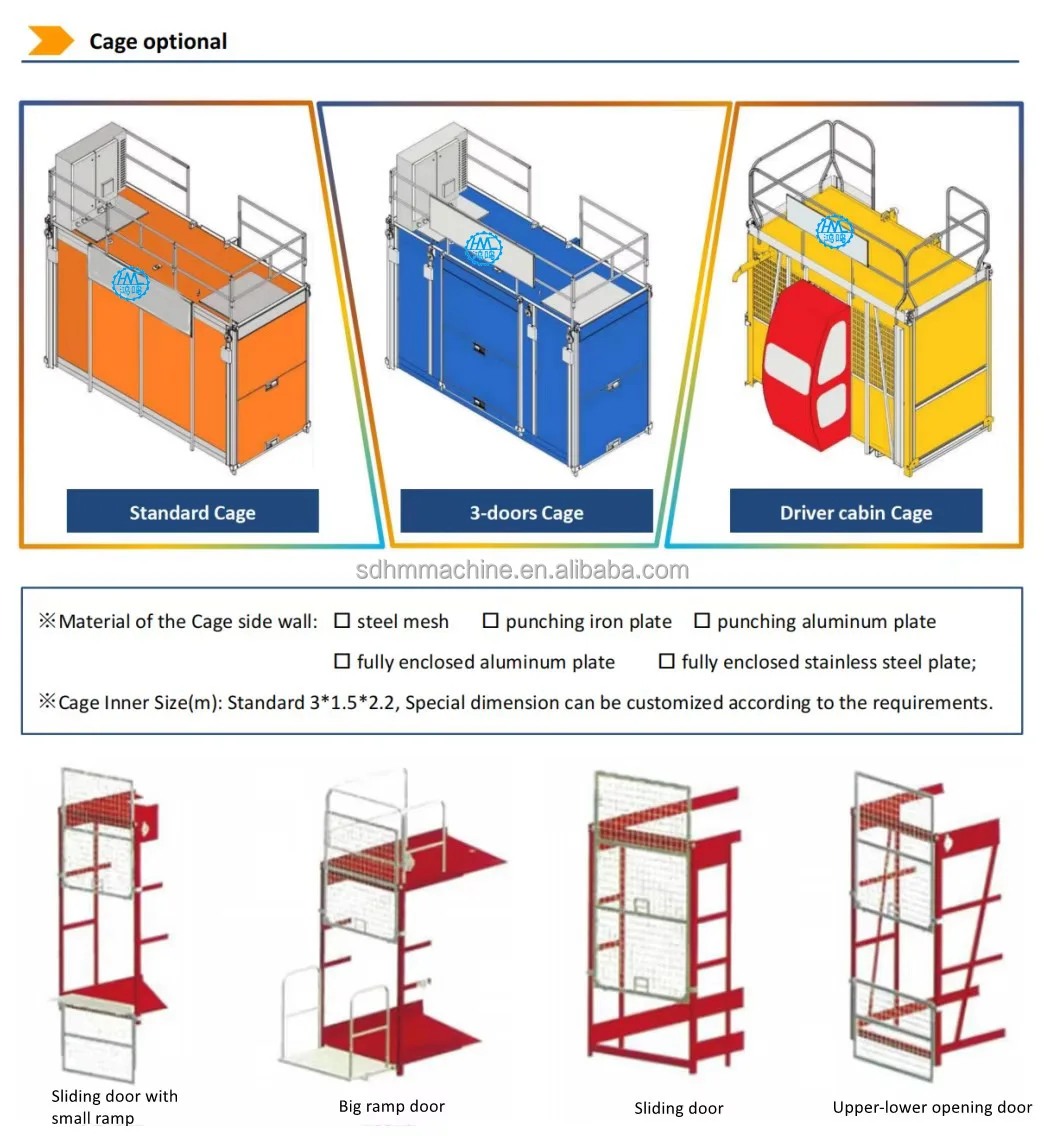

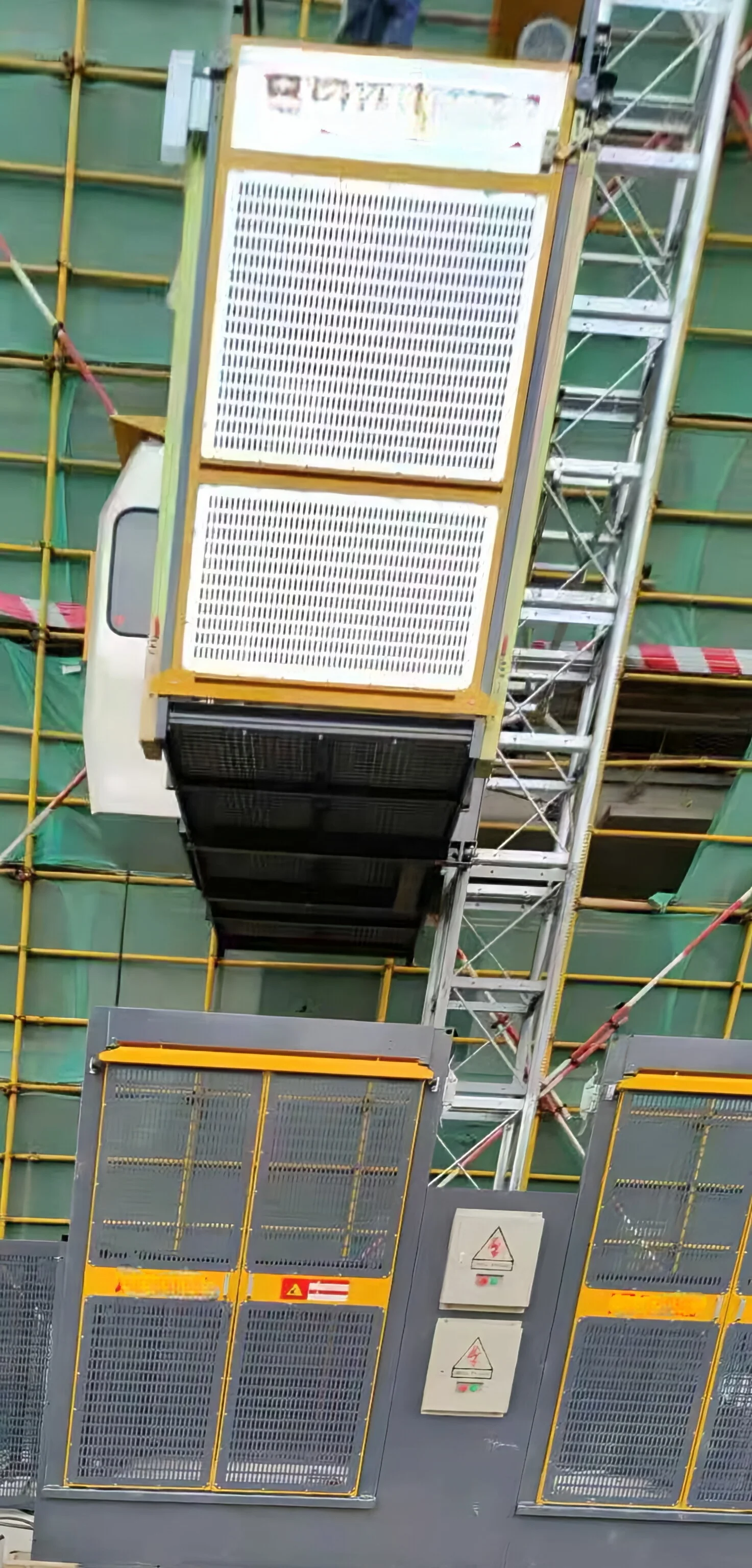

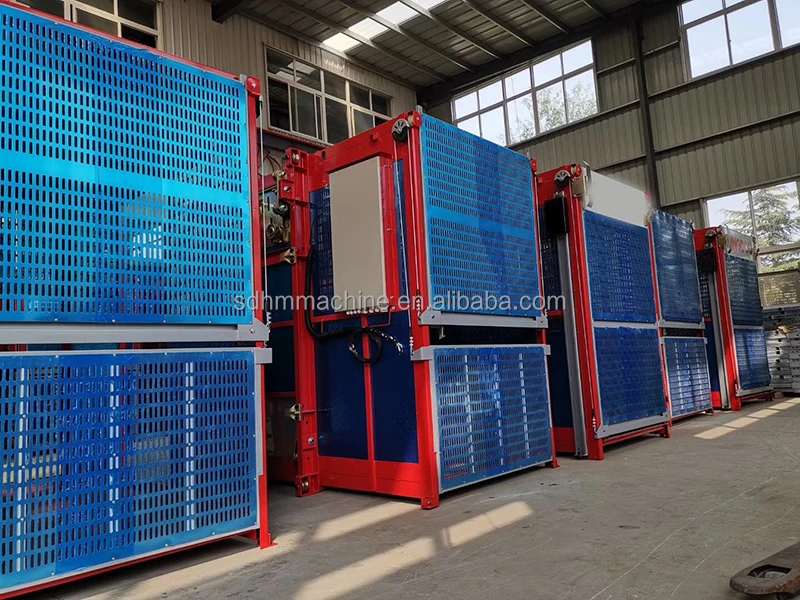

A.cage details

1.The cage is boarded up by all punched aluminum sheet ,Sidewall of Wire Mesh for cage is also available. The size can be arranged to your requirement.

( Optional Size:3x1.5x2.1m, 3x1.3x2.1m, 3.2x1.5x2.1m, 3.2x1.3x2.1m, 3x1.5x2.4m, 3x1.3x2.4m, 3.2x1.5x2.4m, 3.2x1.3x2.4m)

2. Main structure of cage is made of high-quality steel after bending.(The bent steel is firm, good vertically, stability. Moreover it ensure stable of the whole structure.)

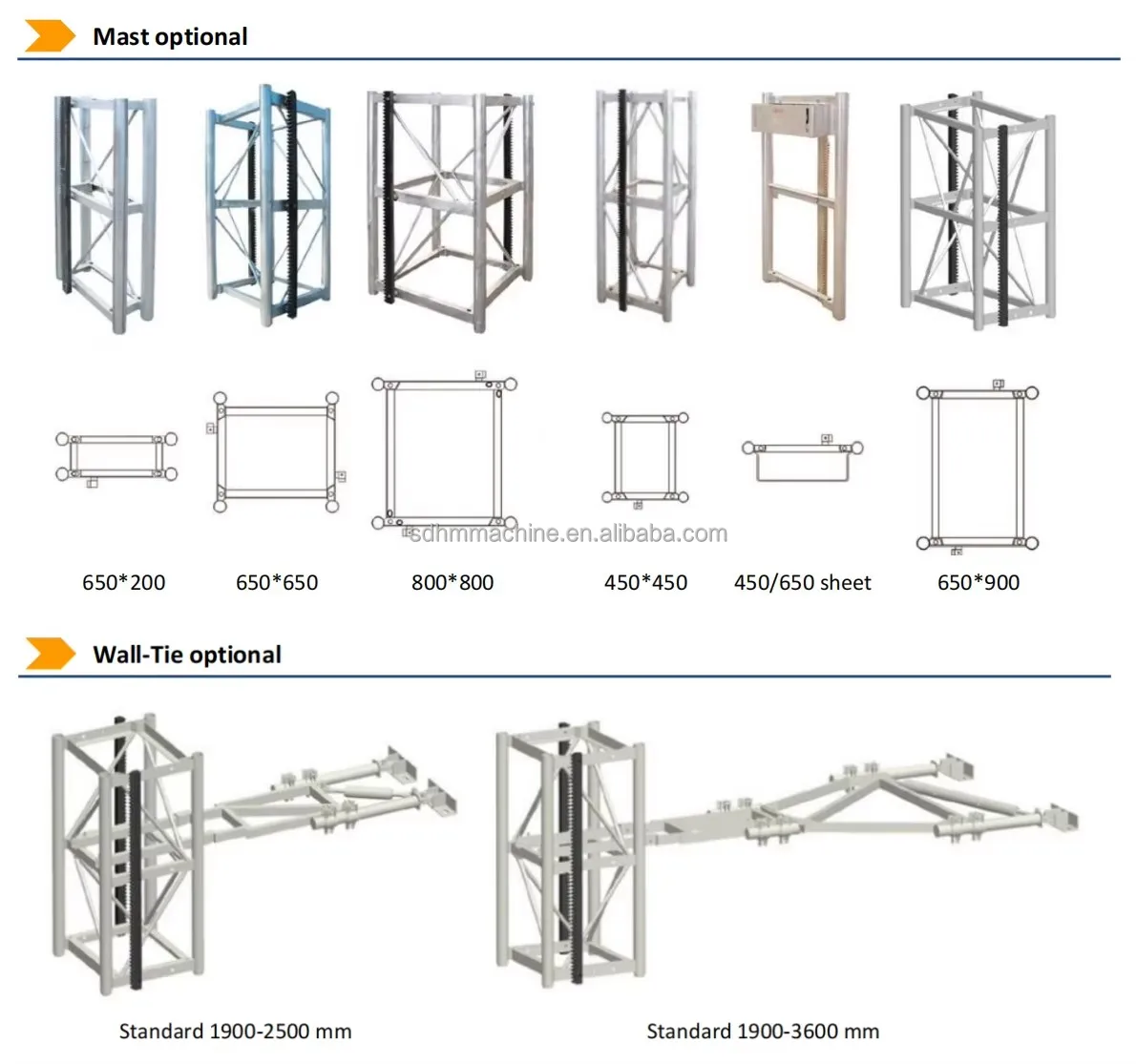

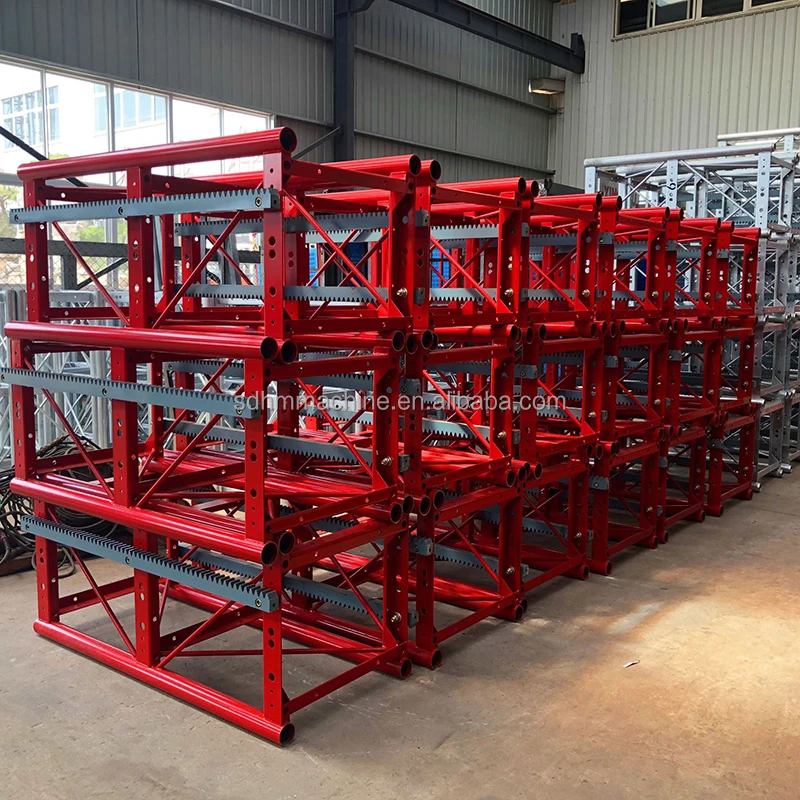

B.mast section details

The  Mast section(color is variable) is made of HF welding pipe and seamless pipe.

(The high quality seamless steel pipe is good vertically, anti-pressure, anti-aging, thickness and so on), it offer a well rail for cage climbs on.

1. HF high quality tube&pipe Q345B good vertical.

2. Steel plate Q235B with high quality from Baosteel Group, steel plates are bent of U shape to strengthen the mast section

3. Mast section with galvanized coat or heat spray coat can be chosen

4. Steel round bar Q235B with high quality and strengthen the mast section

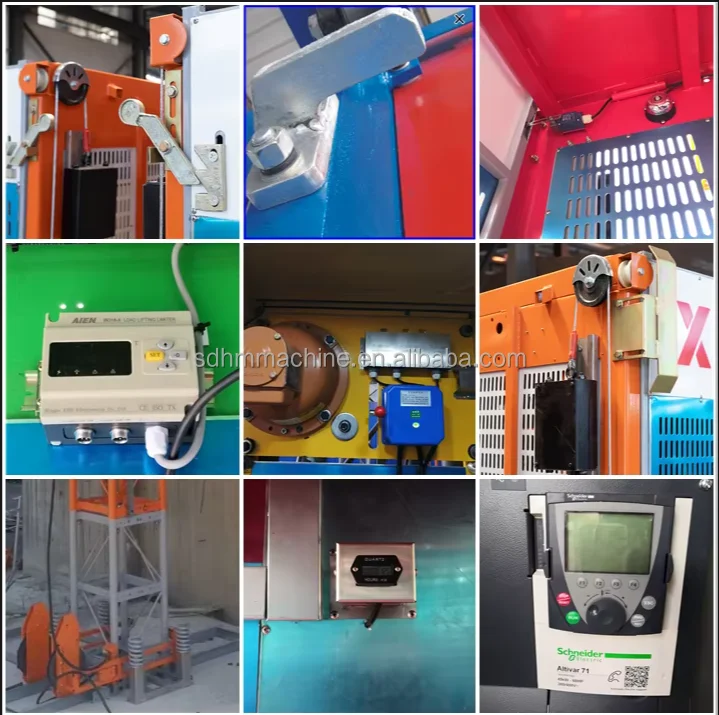

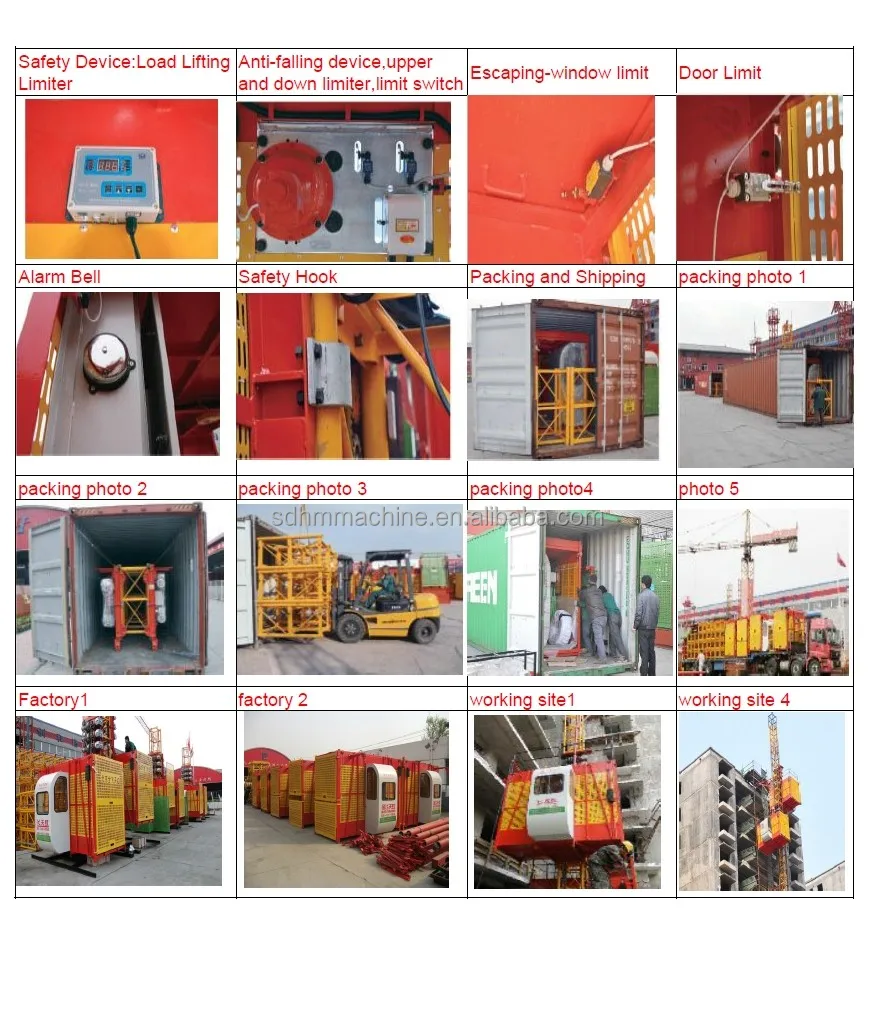

C: Completed safety measures.

1. Equipping with Anti-falling device

2. Electrical an Mechanical interlock: Door safety switches, Slack rope switch

3. Safety hook

4. Upper and bottom limit switches, trap door limit switch

5. Overload protector

6. Bottom Buffer

7. Level Calling system and auto leveling device to be choose.

8. Ramp door for (Ex.door of cage).

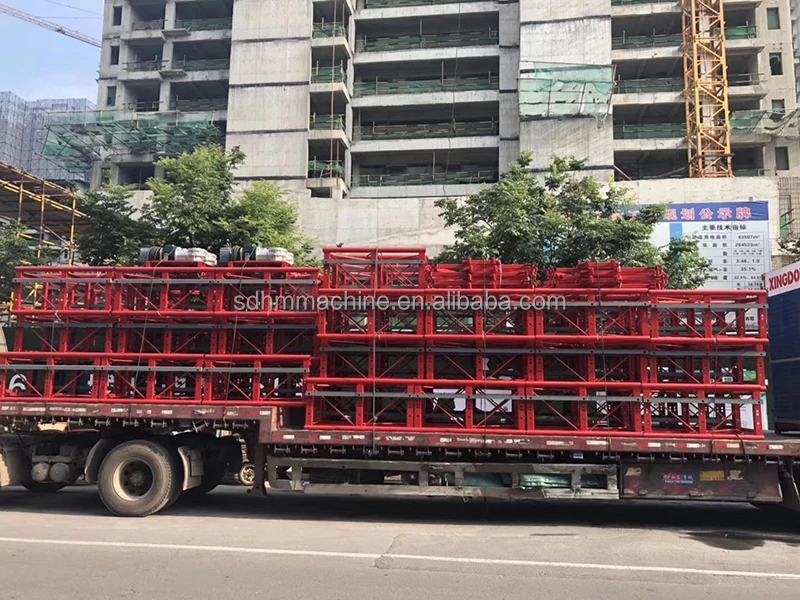

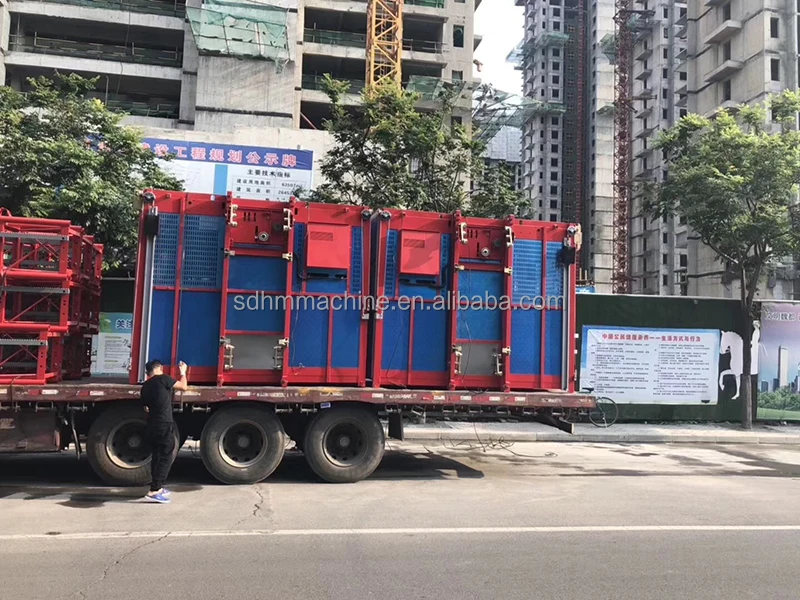

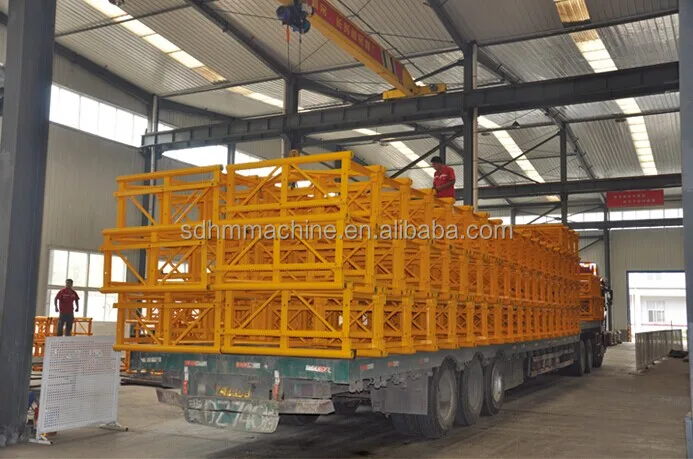

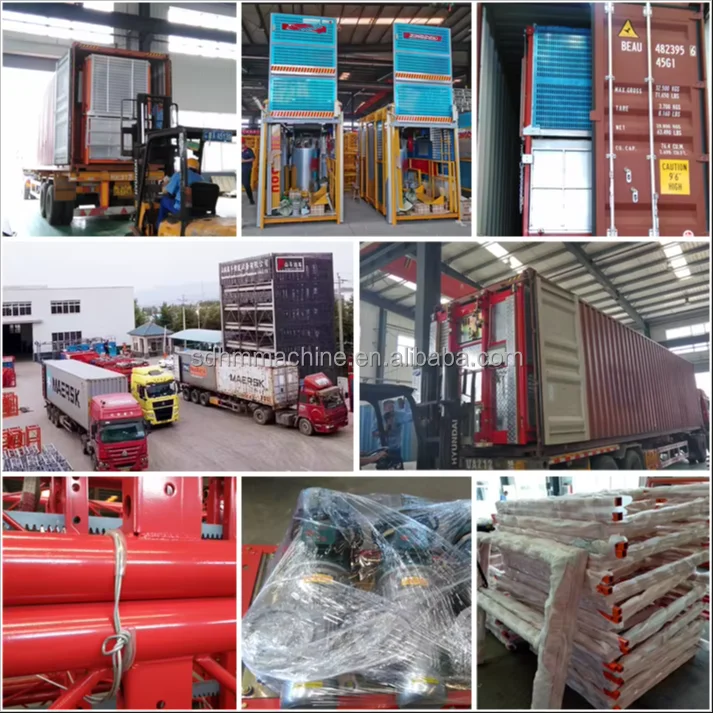

Packaging & Shipping:

High quality product is the most important matter, but we can not ignore the importance of package. Well package can protect the product from crash, rust ,mess and so on. It is easy for our clients to identify different spare parts, easy loading and unloading. We pay much more attention to the details...

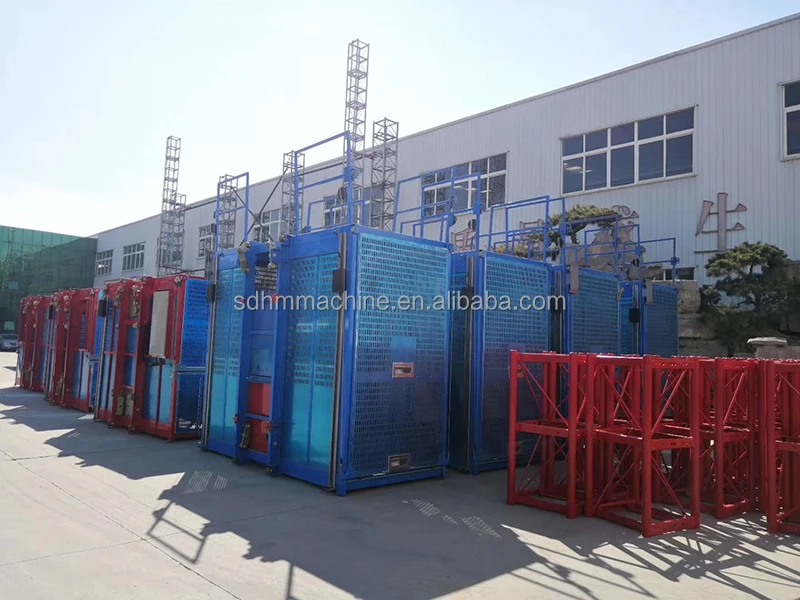

Below photos is our real package site and high praise by our clients:



asShipping and Package
